Tonzi: 2013-02-06 09:30:00 (DOY 37)
Author: Siyan Ma
Others: Joe

Summary: Standard field work, swapped Tower and Floor 7500s, CO2 profile railed - fixed, installed new peltier SHF at Vaira

When: Date: 2/6/2013 , Day: 37 , Watch Time: 9:30 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: chilly, clear, sunny, but very foggy between the levee and close to Irish Road.
Phenology: grasses green, on the ground, no oak leaf

Summary

checked and downloaded data at Tower, Floor
no PC at Vaira. Instead, one CR1000 collects flux 10 Hz data; one CR1000 collects photos; CR23X collects met data. Joe downloaded data from each datalogger.
Swapped Li-7500 at Tonzi Tower and Floor site.
Install 5 soil heat plates vertically at Vaira, combined with temperatures.
Gashound gas analyzer stopped working when we got there. Joe cleaned up and calibrated it in the field.
Read dendrometers
Measured soil moisture
Measure groundwater well:

Date	DOY	Location	Depth without the black thing (feet)
2/6/2013	37	Floor	27.6
		Tower	31.1
		roadside	35.5

Vaira_Grass Site

Fence and gate power: 12 v.
Panel and Batteries: 13.5 v; 4.4 amps; 1.0 amps.
no PC at Vaira. Instead, one CR1000 collects flux 10 Hz data; one CR1000 collects photos; CR23X collects met data. Joe downloaded data from each datalogger.
Check the fans of air temp. and relative humidity sensors at Vaira. YES!
Check CR23X with two multiplexers
Check levels of Radiation sensors, clear up surfaces.YES!
Check rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Screen shot of Vaira soil co2 data logger table

Screen shot of Vaira met data logger table before new SHF sensors

Screen shot of Vaira data logger table after new SHF sensors

Tonzi_Tower Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data

data downloaded
swap Li-7500, remove 1594, install 35.
check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Check rain gage, make sure not clogged. YES!
Gashound gas analyzer stopped working when we got there. Joe cleaned up and calibrated it in the field.
close gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Panel and Batteries: v; amps; amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen before downloading data

Screen shot of floor flux data logger table

downloading data YES!
swap Li-7500, remove 976, install 42.
Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met

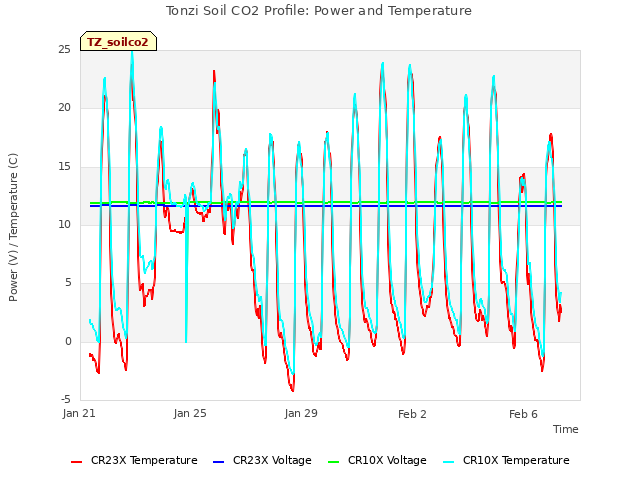

Soil CO₂ profile: CR23X5 – soil CO₂ profile
Screen shot of soil moisture data logger table

Screen shot of floor met data logger table

Screen shot of soil co2 data logger table

Screen shot of sap flow data logger table

Close gate and set up fence. YES!

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
2/6/2013	37
	sm
0-15	38.7	21.7	39.9	27.9	39.9	22.0	20.9	24.4	20.6
15-30	37.1	33.2	45.4	37.1	56.4	25.2	30.4	30.4	19.4
30-45	43.0	44.9	43.5	44.1	39.6	27.9	31.5	34.1	33.8
45-60	37.7	60.9	41.4	48.8	41.4	33.1	42.8	46.3	31.4

	A6D882B	A3D04E8	A6D72F5

0-15	26.4	23.2	21.7
15-30	26.5	17.9	32.3
30-45	35.4	34.3	37.7
45-60	44.3	49.7	48.6

vaira	7933dee	00000128B97F3	00000128B8072	00000128BDDE8
0-15	19.7	20.9	13.2	4.7
15-30	28.3	25.8	17.3	18.8
30-45	26.8	14.5	20.1	26.8
45-60	40.0	26.2	17.9	27.6

Tonzi
Dendrometer

Date	Day	Tag #	Reading (mm)
2/6/2013	37	1	24.2
		2	18.3
		3	20.6
		4	3.5
		5	24.1
		7	17.6
		8	8.9
		72	13.5
		79	14.2
		102	16.2
		245	12.1

Notes: “X” means not working any more.
Dendrometers installed by Gretchen group

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2013-02-06	TZ_floor	27.6
2013-02-06	TZ_road	35.5
2013-02-06	TZ_tower	31.1

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2013-02-06	1	24.2
2013-02-06	102	16.2
2013-02-06	2	18.3
2013-02-06	245	12.1
2013-02-06	3	20.6
2013-02-06	4	3.5
2013-02-06	5	24.1
2013-02-06	7	17.6
2013-02-06	72	13.5
2013-02-06	79	14.2
2013-02-06	8	8.9
