Mayberry: 2012-04-24 10:30:00 (DOY 115)
Author: Joe Verfaillie
Others: Jaclyn, Sara

Summary: Removed old eddy system and installed new Licor GHG1 system.

Mayberry
2012-04-24

I arrived about 10:30PDT with Jaclyn and Sara. It was hot and sunny with little to no wind. The wetland looks fully green. Seems like the weeds, cattails and tules have grown a foot since last week. It is hard to see the Tule Tower from the Main Tower. Lots of pepper weed on the levees.

We swapped out the existing eddy system for a new Licor GHG system.

Swapped out:
Sonic (sn 000019)
LI7500 (sn 1594)
LI7700 (sn TG1-0155)
CR1000 (sn 38212)
NL115 (sn 6763)
RS422to232 converter (sn S0812080)

Swapped in:
Sonic (sn 074417)
LI7500A (sn 75H-2182)
LI7550 (sn 0666)
LI7700 (sn TG1-0224)

All seemed to work. Jaclyn also connected the HMP45 and air pressure to the LI7700 analog inputs. The sonic was connected to the LI7550 analog inputs. The new 7700 RSSI was about 59. The wash reservoir needed a little water.

Sara took water samples for Emily.

7 photos found

Inside of an empty enclosure
Inside of an empty enclosure

Jaclyn and Sara on site
Jaclyn and Sara on site

Jaclyn and Sara on site
Jaclyn and Sara on site

Meadow Lark on LI7700
Meadow Lark on LI7700

Joe on site
Joe on site

Jaclyn, Sara, Joe on Site
Jaclyn, Sara, Joe on Site

Jaclyn, Sara and Joe on site swapping eddy system.
Jaclyn, Sara and Joe on site swapping eddy system.

Graphs display:
11 sets found

7 MB_flux graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

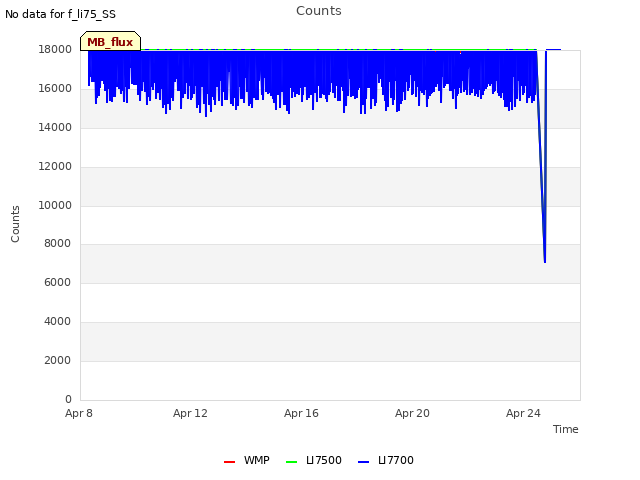

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

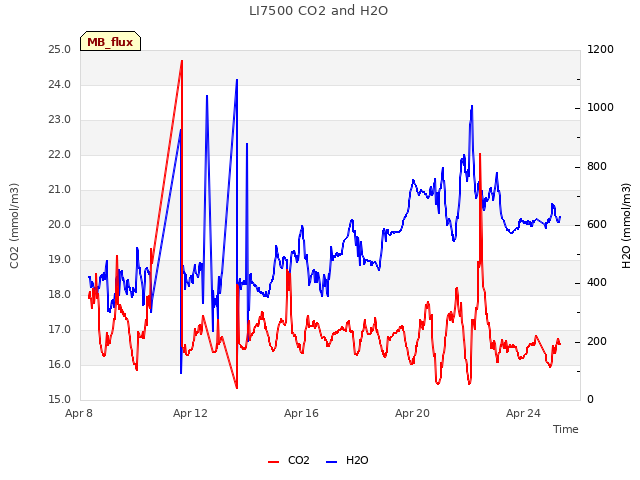

Explore the graph:LI7500 CO2 and H2O in a new window

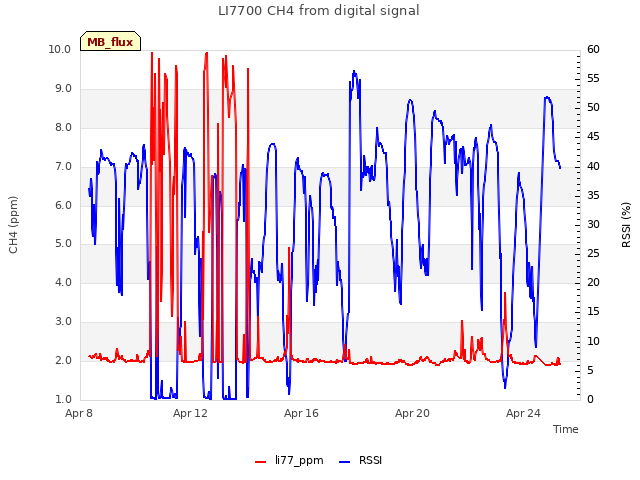

Explore the graph:LI7700 CH4 from digital signal in a new window

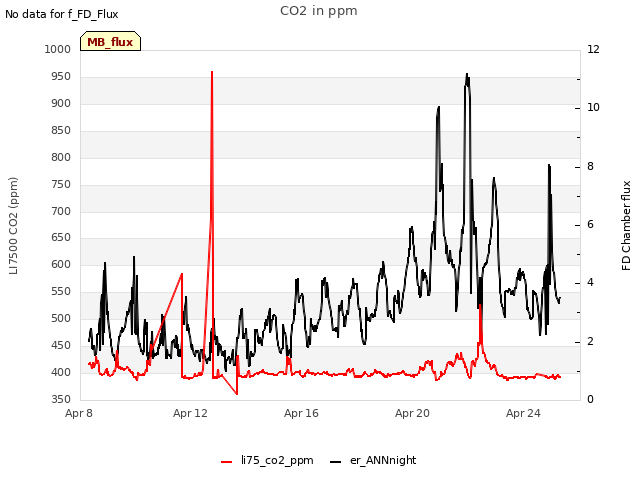

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
28 MB_tule graphs found

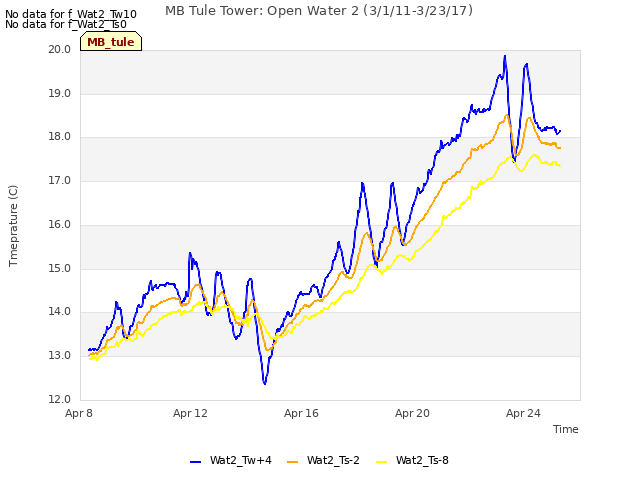

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

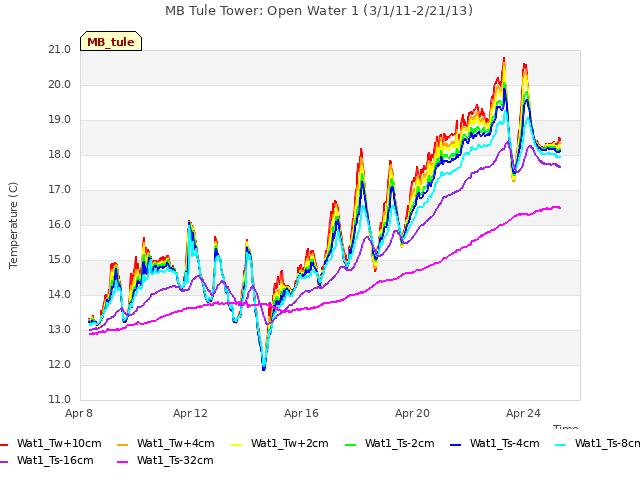

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

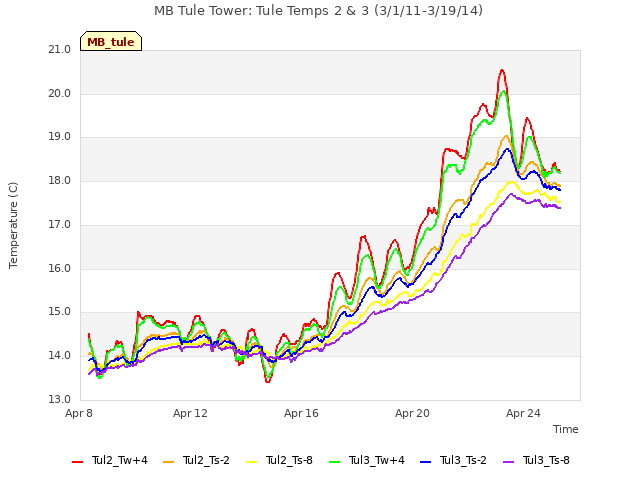

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

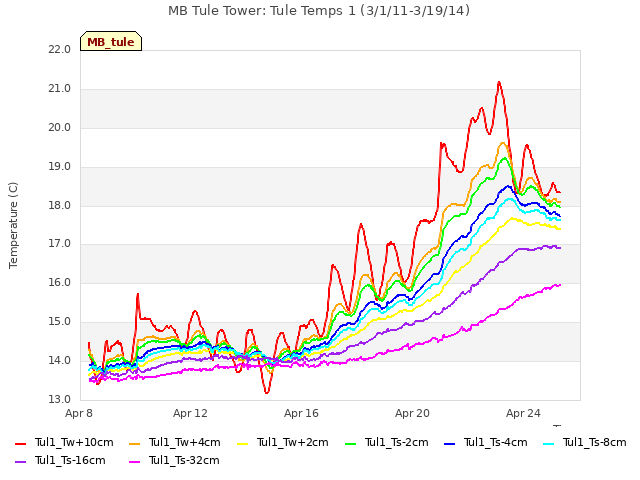

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

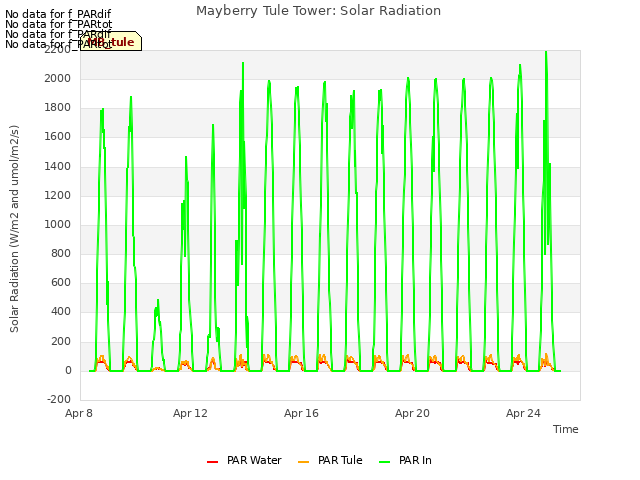

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

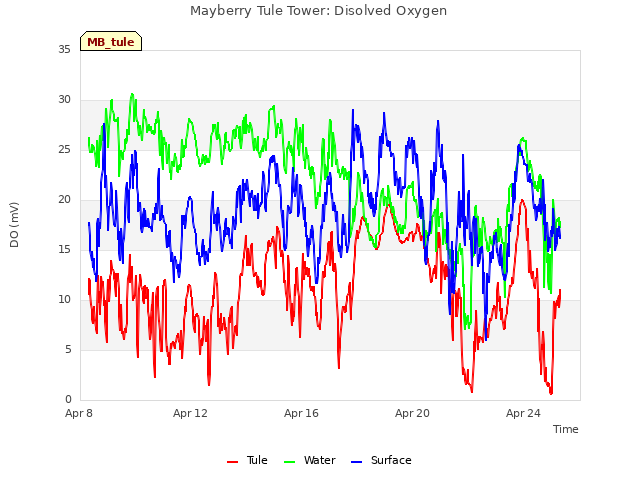

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

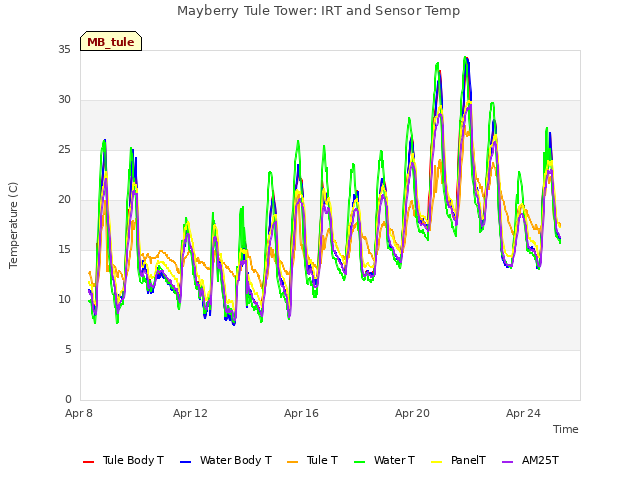

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

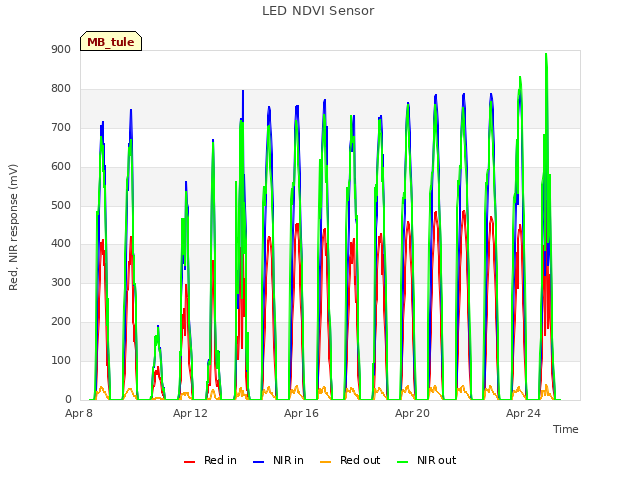

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

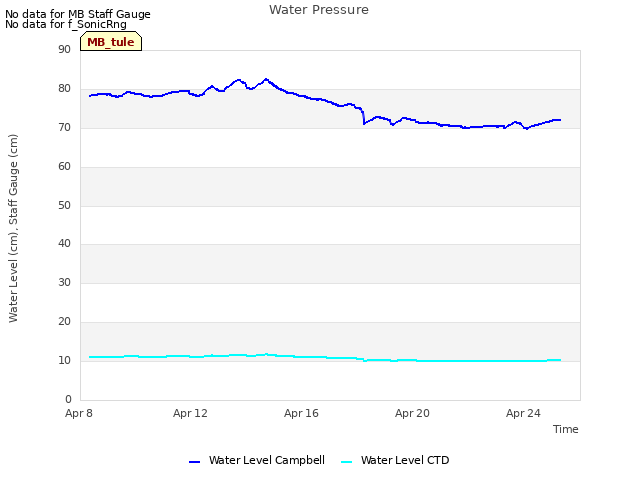

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

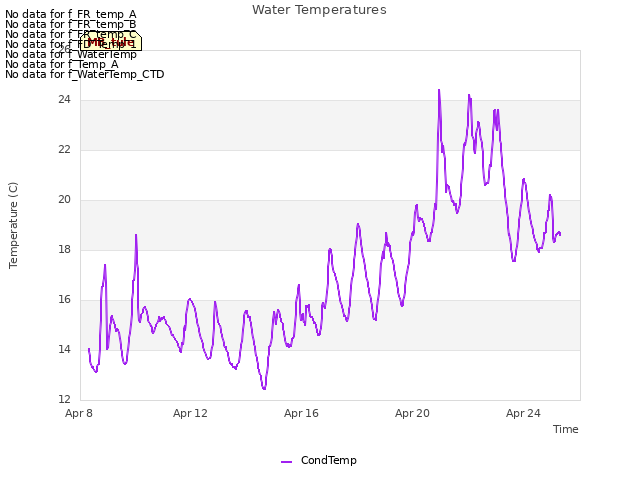

Explore the graph:Water Temperatures in a new window

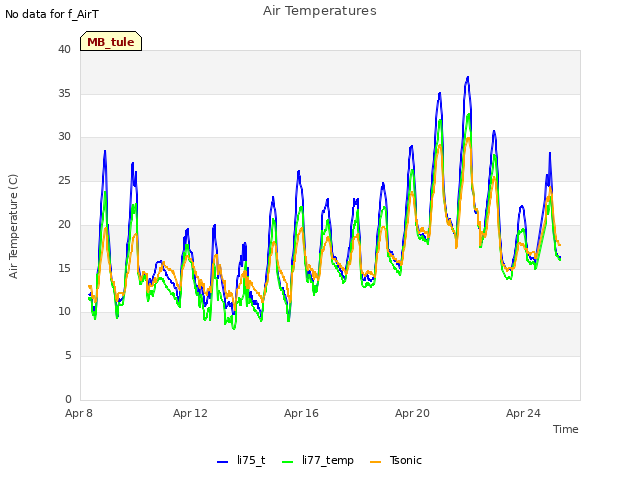

Explore the graph:Air Temperatures in a new window

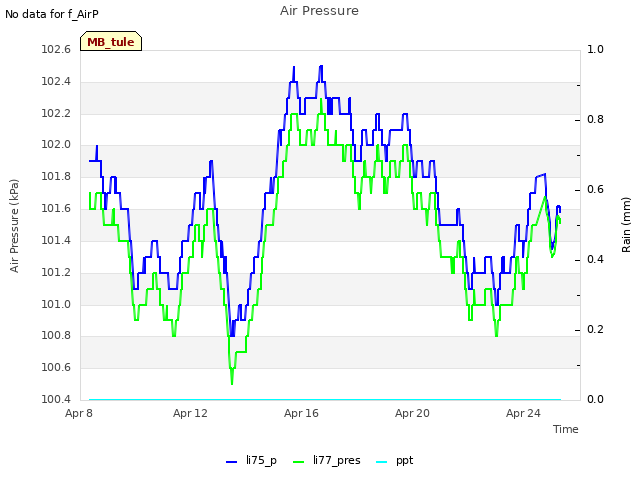

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

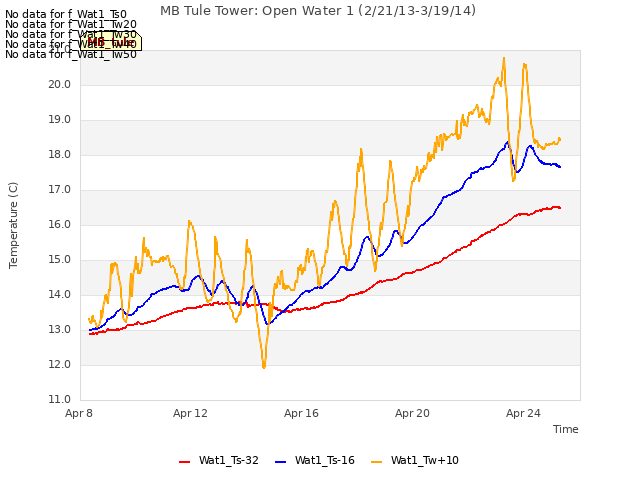

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

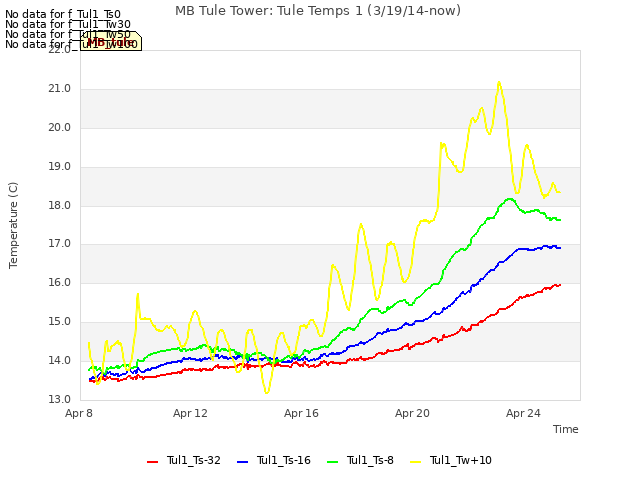

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

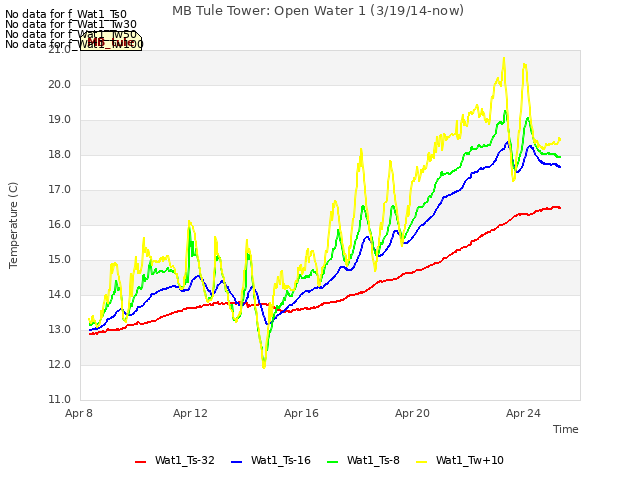

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

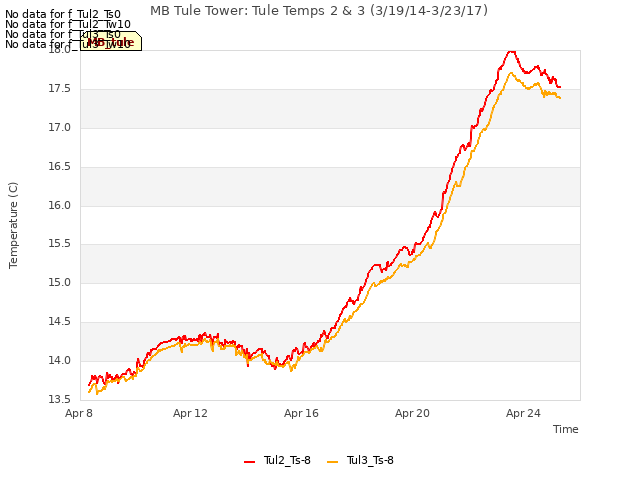

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

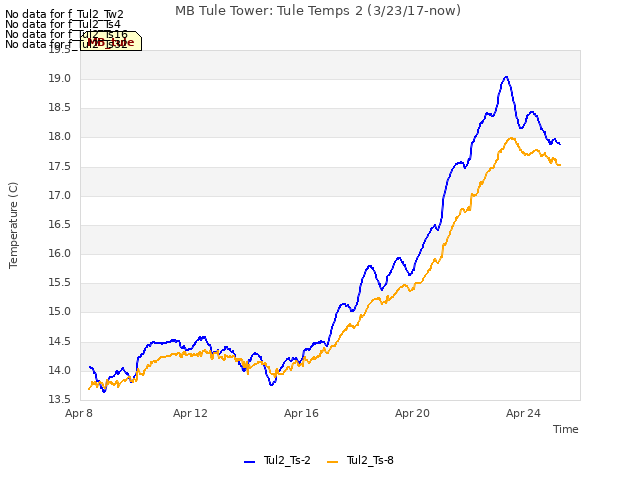

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

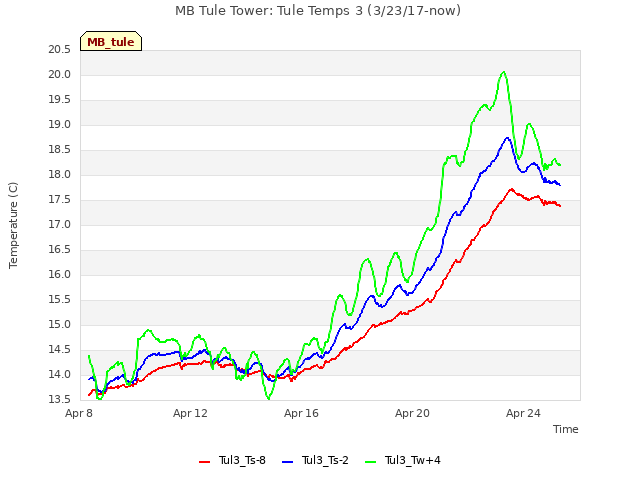

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

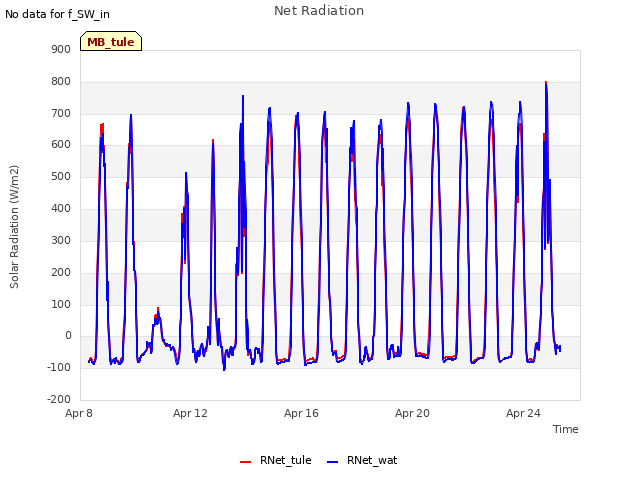

Explore the graph:Net Radiation in a new window

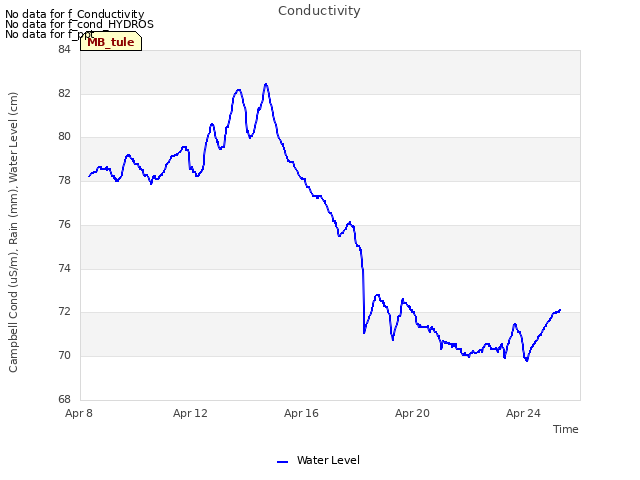

Explore the graph:Conductivity in a new window

Explore the graph:Soil electrical conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

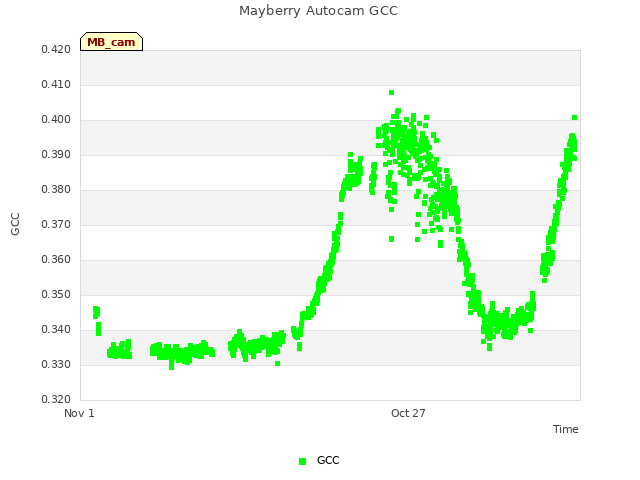

Explore the graph:Mayberry Autocam GCC in a new window
