Phenocam link: Searching...

Tonzi: 2012-04-05 09:30:00 (DOY 96)
Author: Siyan Ma
Others: Joe, Laurie, Martin, Sonia, Jessica

Summary: Standard field work, Met Sonia and Jessica who installed a Lidar profiler near the soil CO2 site.


When: Date: 4/5/2012 , Day: 96 , Watch Time: 9:30 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe, Laurie, Martin, Sonia, Jessica, and Matthias
Weather: a beautiful sunny spring day
Phenology: green grass, oak leaf-out 90%.

Tonzi:

Purple flower in grass
Trees with new leaves at Tonzi

Vaira:

Cows and green grass at Vaira
Green grass and trees at Vaira

Summary
  1. checked and downloaded data at Tower, Floor, and Vaira
  2. Calibrated Li-800 in the field.
  3. Read dendrometers
  4. Measured soil moisture
  5. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

4/5//2012
96
Floor
26.9



Tower
31.3



roadside
35.5

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Vaira Gill sonic plots screen before downloading data
  1. downloading data
  2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  3. Check MD-9 system connections YES!
  4. Check CR23X with two multiplexers: Something wrong with the multiplexer. One channel shift forward. Readings of Tair, rh, and P were back to normal after Joe re-plugged in the power of the datalogger.

Screen shot of Vaira data logger table
  1. Check levels of Radiation sensors, clear up surfaces.YES!
  2. Check rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Check rain gage, make sure not clogged. YES!
  4. Check calibration cylinders;

CO2 1400 psig; flow 20 psi; 421.63 ppm.
N2 1900 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:IoneSavanna_2004Tower_2004CO2ProfileLI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES!
Screen shot of Li-800 calibration zero pre-cal

Screen shot of Li-800 calibration zero post-cal

Screen shot of Li-800 calibration span pre-cal

Screen shot of Li-800 calibration span post-cal

  1. close gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps. (about 7:00 am local time)
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO2 profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X17 – snapflow
Screen shot of tower met data logger table

Screen shot of sap flow data logger table

Screen shot of soil moisture data logger table

Screen shot of floor met data logger table

Screen shot of soil co2 data logger table



  1. Close gate and set up fence. YES!

tonzi
7931AFE
402165
574B4B
402FF3
574632
7A432E
7A3C6E
7A3B40
7A4AAA

4/5/2012
96









sm








0-15
41.7
25.1
46.2
35.1
40.1
32.0
24.3
26.7
20.3

15-30
40.5
40.1
38.4
43.5
41.0
29.5
31.4
31.8
19.1

30-45
42.0
46.9
42.7
44.8
44.7
35.9
30.7
33.5
34.6

45-60
38.2
58.3
65.5
51.1
44.5
34.1
45.6
47.3
33.4












A6D882B
A3D04E8
A6D72F5
















0-15
30.0
26.4
24.7






15-30
27.5
21.3
34.9






30-45
35.8
37.1
39.0






45-60
44.0
50.6
49.1
















vaira
57318a
7933dee
00000128B97F3
00000128B8072
00000128BDDE8



0-15
broken
32.8
26.1
6.7
6.65




15-30
broken
30.9
30.25
14.9
20.45




30-45
broken
31.2
12.85
26.7
30.7




45-60
broken
44.0
30.4
19.7
32.05






Tonzi





Dendrometer










Date
Day
Tag #
Reading (mm)


4/5/2012
96
72
9.5




79
8.0




102
10.8




245
8.5




250
X
(reset to 10.5 on May 7, 2009)



1
18.5




2
15.8




3
16




4
X
Need reset



5
X
Need reset



7
15.1
133



8
7.3
11828



71
X




77
X
‌



78
X
‌



248
X
broken



255
X
‌



‌252‌
X
‌



6
X


Notes: “X” means not working any more.
Dendrometers installed by Gretchen group

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2012-04-05TZ_floor26.9
2012-04-05TZ_road35.5
2012-04-05TZ_tower31.3

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2012-04-05118.5
2012-04-0510210.8
2012-04-05215.8
2012-04-052458.5
2012-04-05316
2012-04-05715.1
2012-04-05729.5
2012-04-05798
2012-04-0587.3

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

3 photos found

Nice puffy clouds over green pasture
Nice puffy clouds over green pasture

Nice light
Nice light

Fieldwork near Jessicas (liukangs) tree setting up Lidar profiler
Fieldwork near Jessicas (liukangs) tree setting up Lidar profiler

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

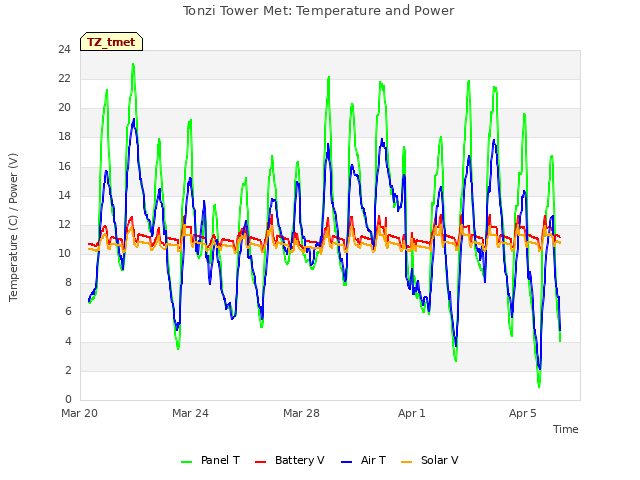

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

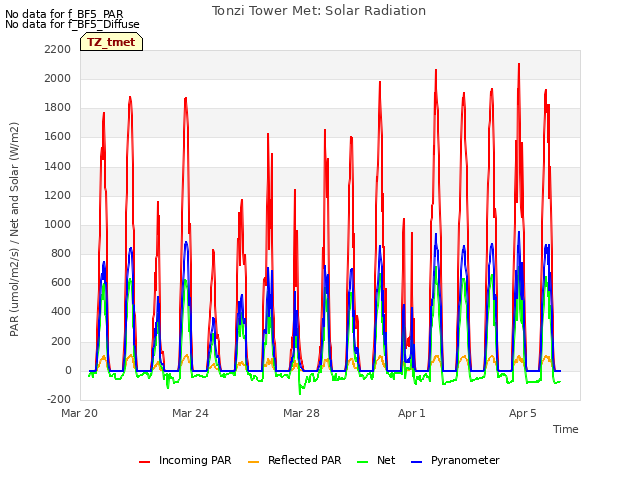

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

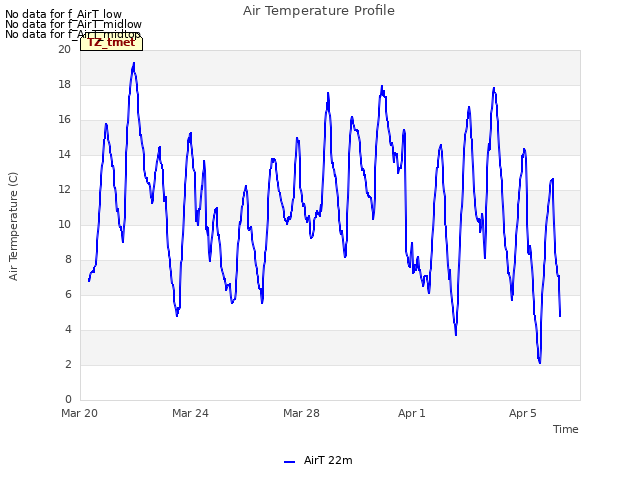

Explore the graph:Air Temperature Profile in a new window

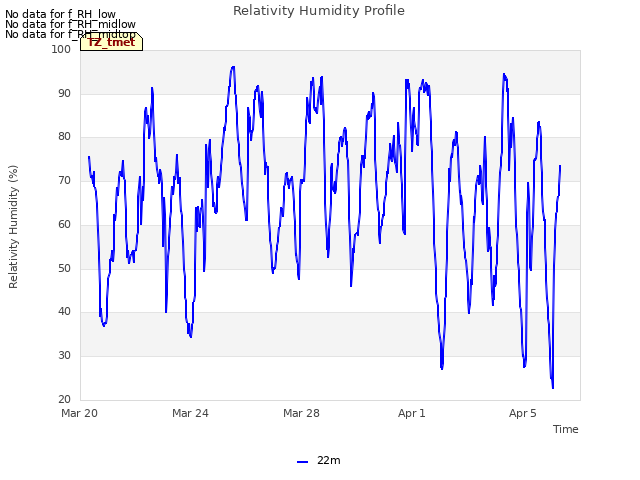

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

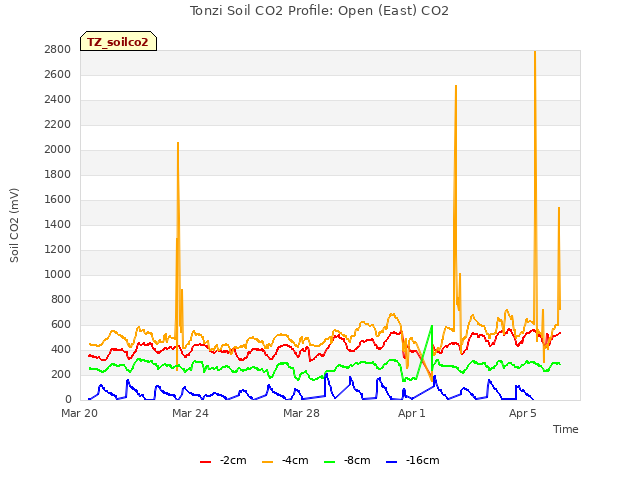

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

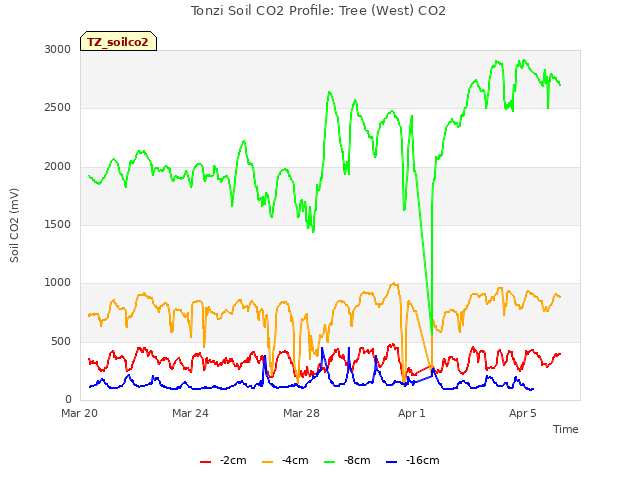

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

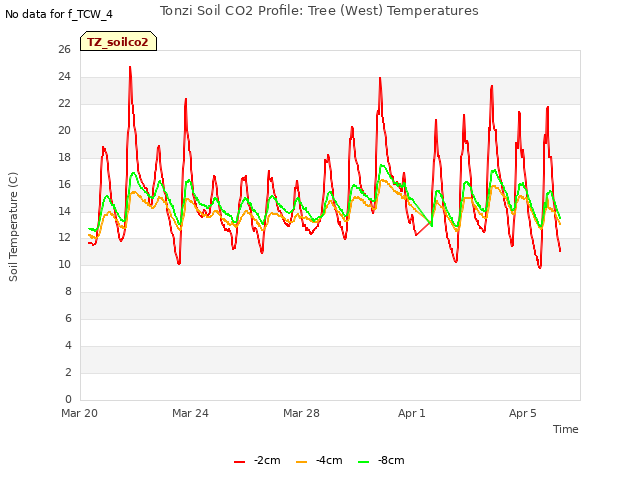

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

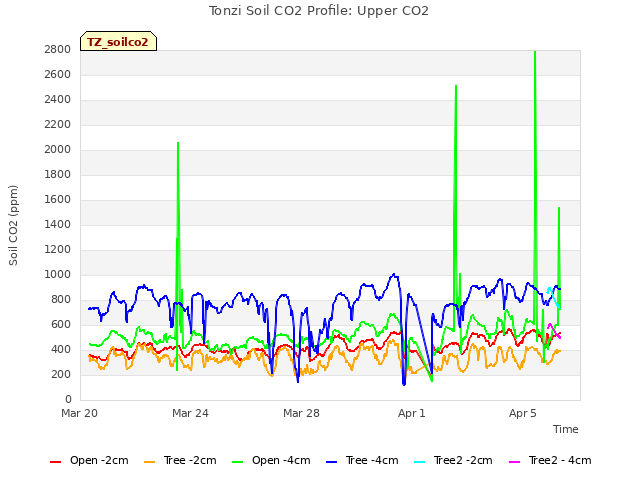

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

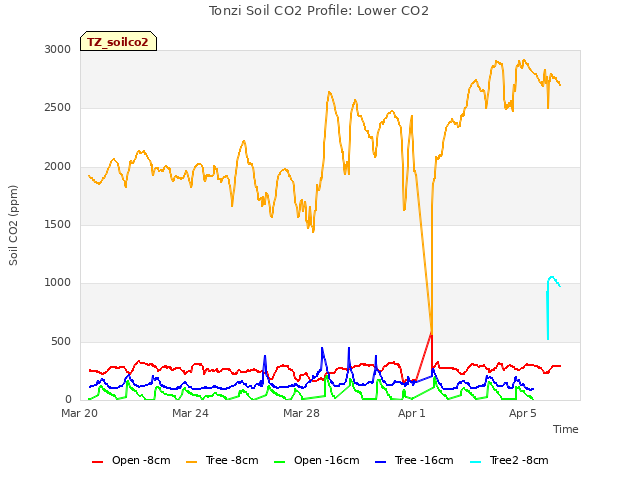

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

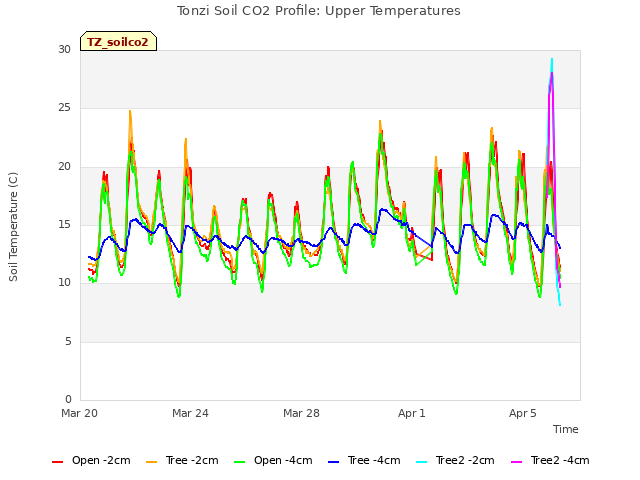

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

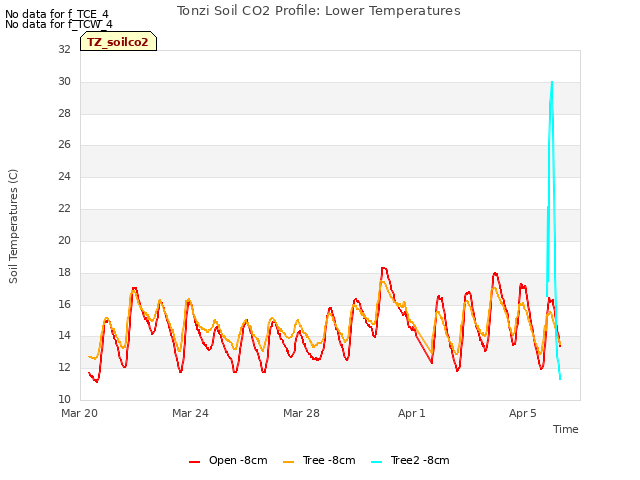

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

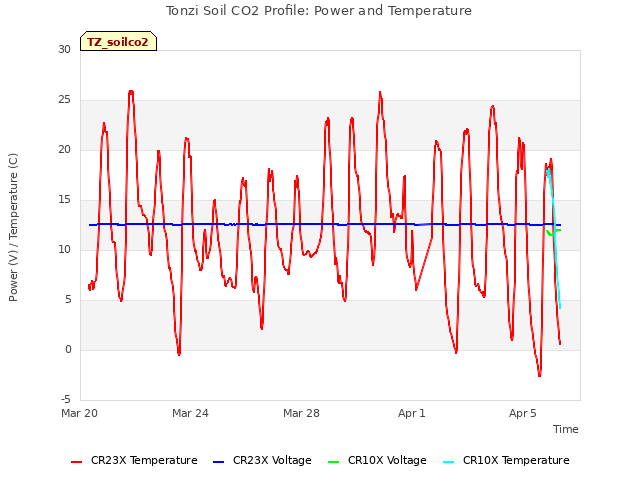

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

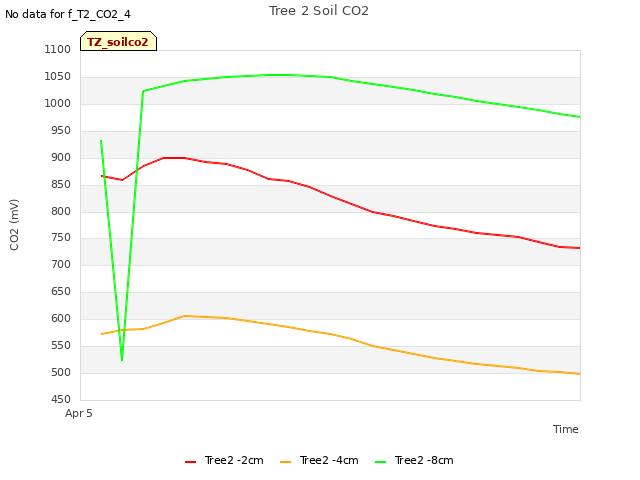

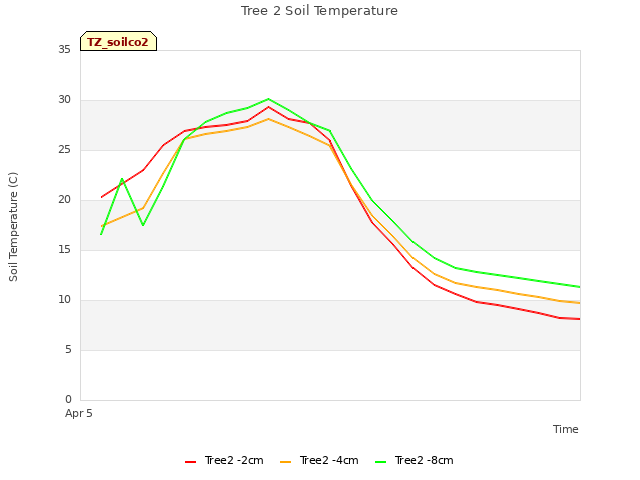

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

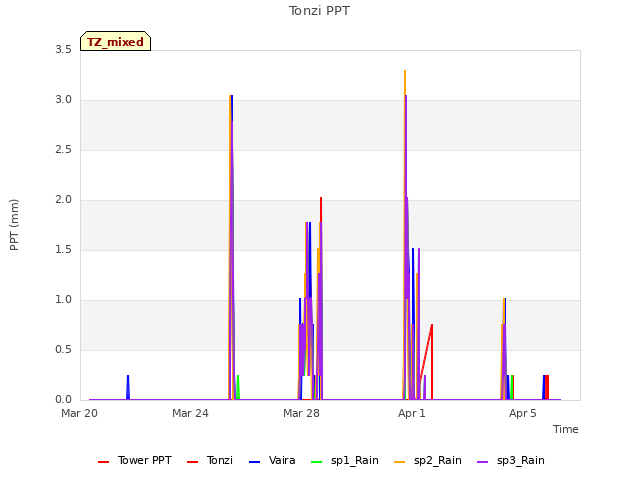

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

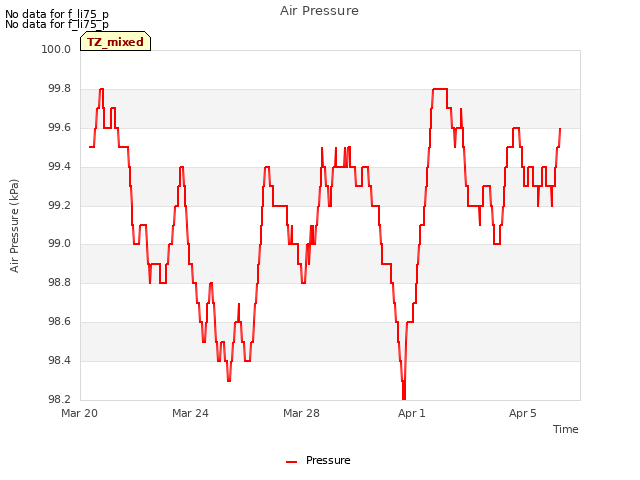

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

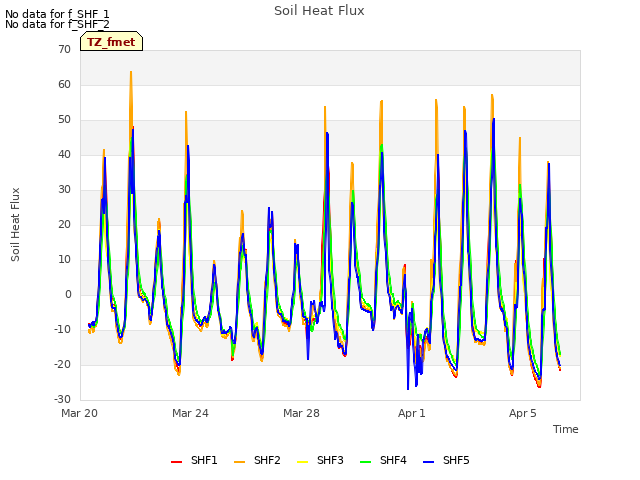

Explore the graph:Soil Heat Flux in a new window

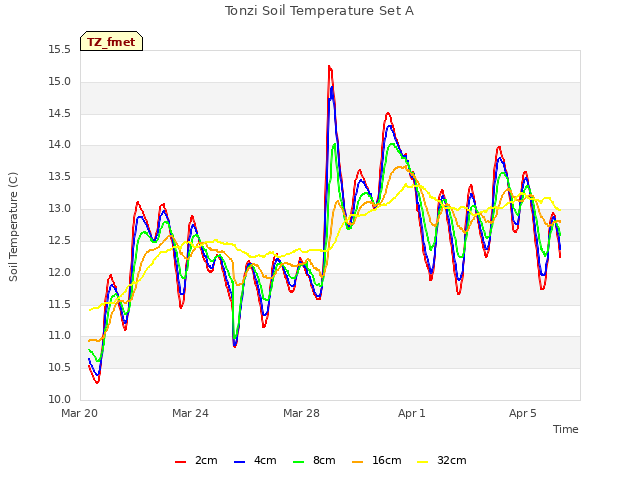

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

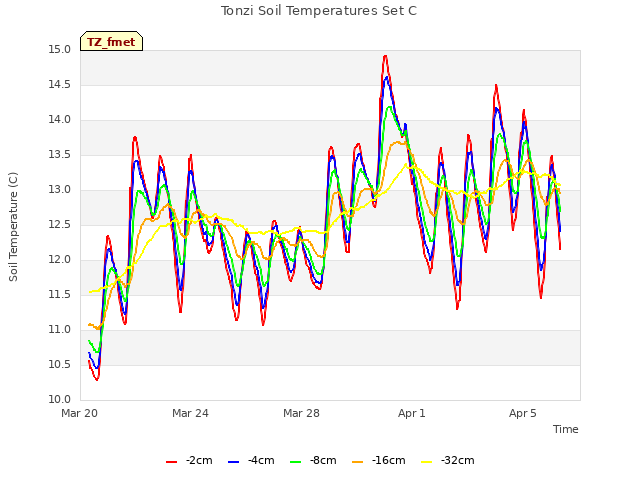

Explore the graph:Tonzi Soil Temperatures Set C in a new window

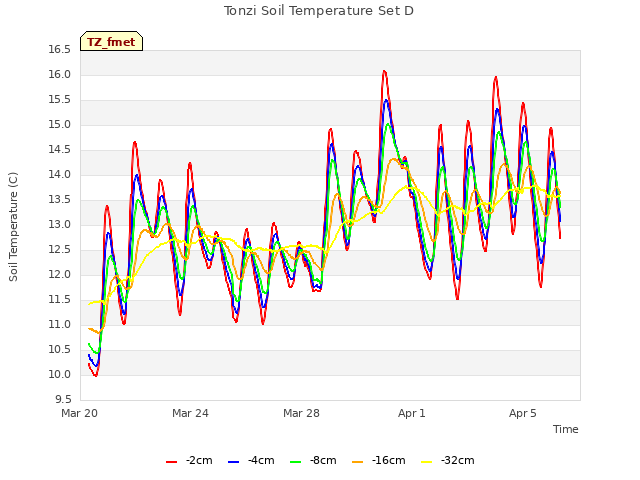

Explore the graph:Tonzi Soil Temperature Set D in a new window

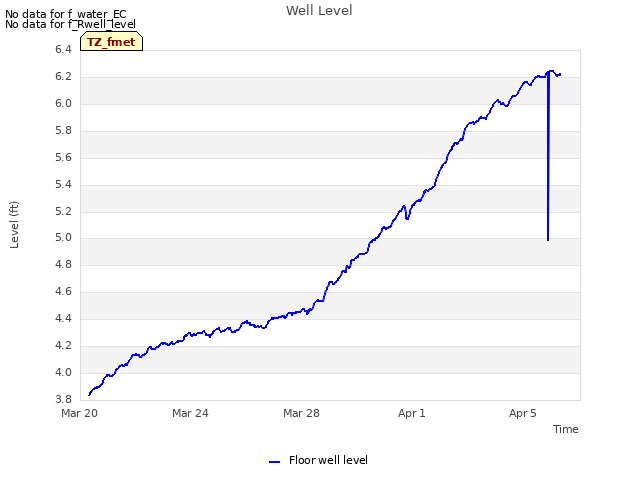

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

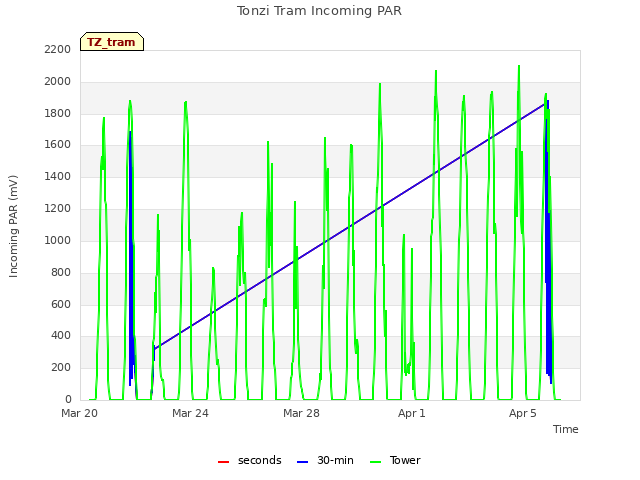

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

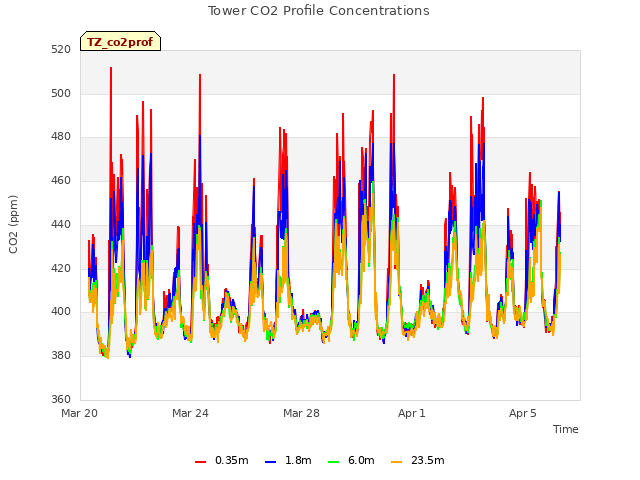

Explore the graph:Tower CO2 Profile Concentrations in a new window

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

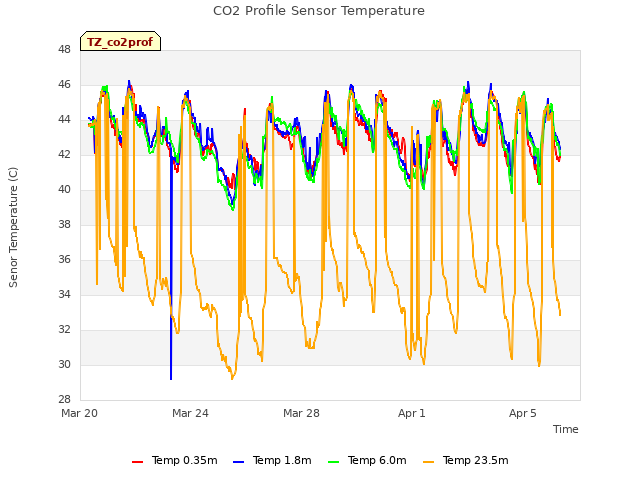

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

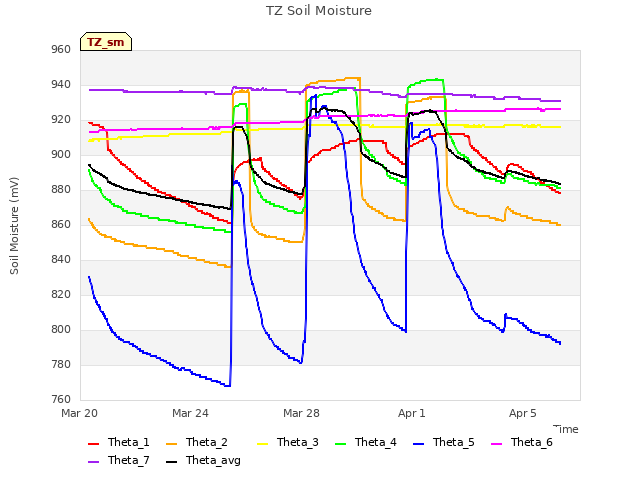

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

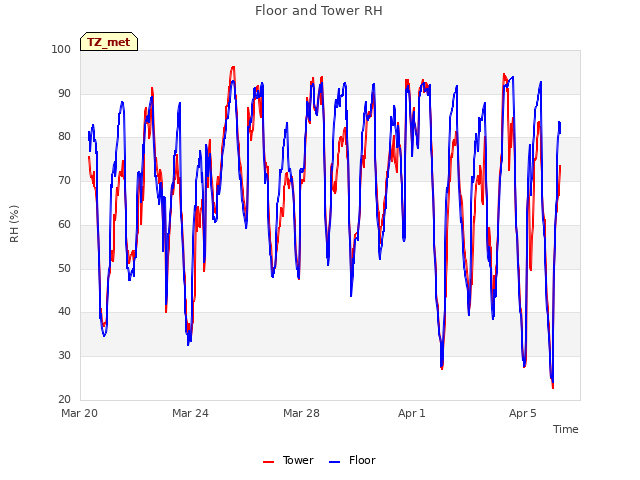

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

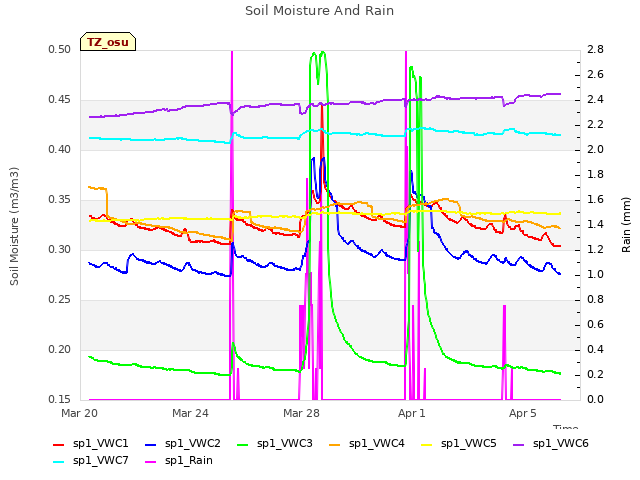

Explore the graph:Soil Moisture And Rain in a new window

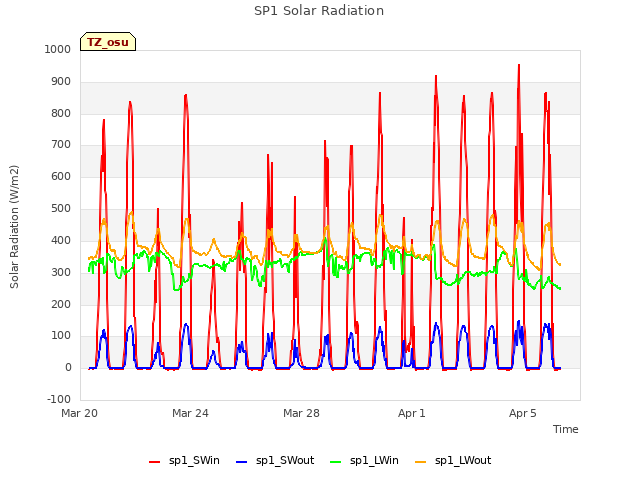

Explore the graph:SP1 Solar Radiation in a new window

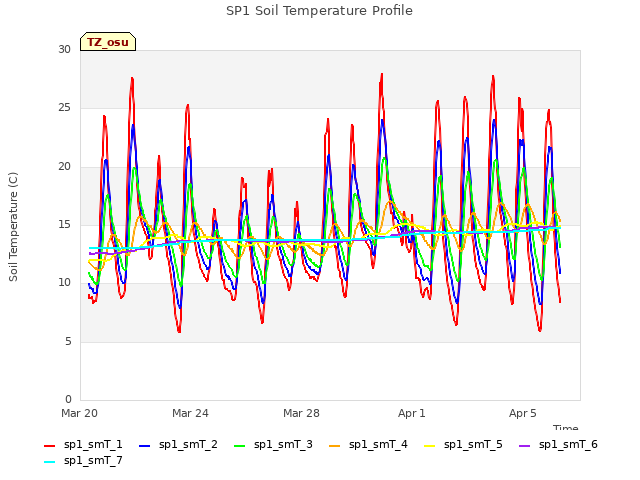

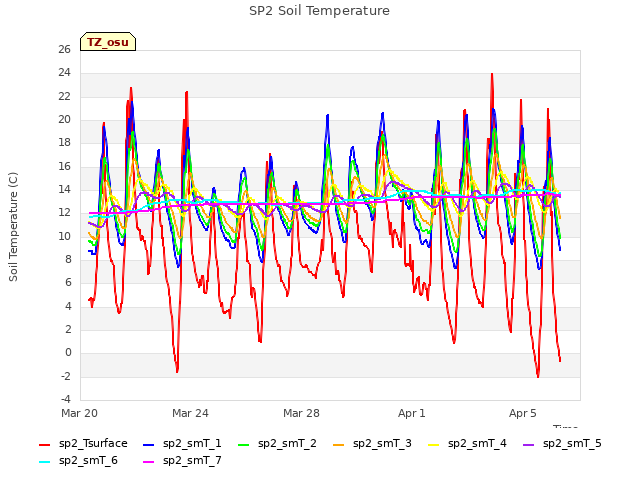

Explore the graph:SP1 Soil Temperature Profile in a new window

Explore the graph:SP1 Soil Heat Flux in a new window

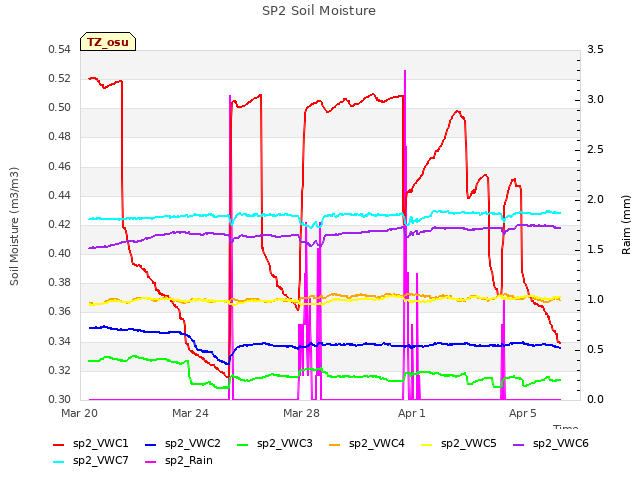

Explore the graph:SP2 Soil Moisture in a new window

Explore the graph:SP2 Soil Temperature in a new window

Explore the graph:SP3 Soil Moisture in a new window

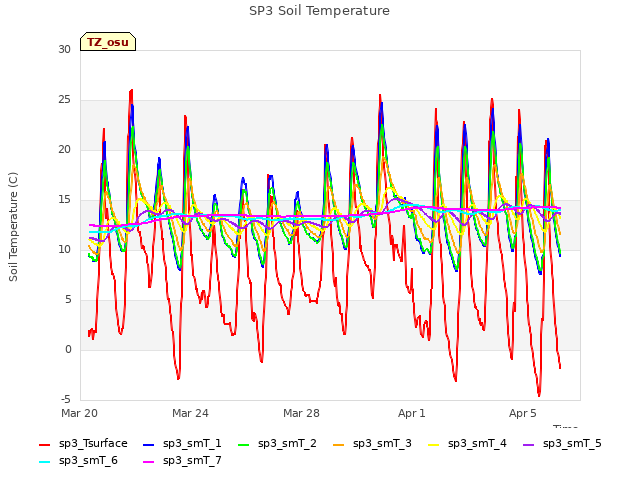

Explore the graph:SP3 Soil Temperature in a new window
