Sherman Island: 2012-03-20 10:30:00 (DOY 80)
Author: Joe Verfaillie
Others: Jaclyn, Sara

Summary: Computer power problems - computer left off.

Sherman
2012-03-20

I arrived about 10:30PDT with Sara and Jaclyn. It was cool, but clearing and getting warm with a light breeze. The field is green but the cows have mowed it flat – almost nothing sticking up from a green carpet of short grass. Inside the cow fence the pepper weed is already better the 20cm tall.

The computer seemed to be running but I got nothing on the screen. I tried to reboot the computer but it would start to boot then stop. It seemed that there wasn’t enough power. The battery backup for the 12VDC was low. I left the computer off. I probably need a stronger DC supply out there.

I collected the soil CO2 data with the netbook. I thought I got the rest with the site computer but it quit again before all the files transferred.

The LI7700 reservoir was only about a quarter low. The RSSI was about 16. Cleaning the mirrors brought it up to 89%.

9 photos found

Car and a flock of snow geese
Car and a flock of snow geese

a flock of snow geese on a green field
a flock of snow geese on a green field

a flock of snow geese on a green field zoom in
a flock of snow geese on a green field zoom in

A flock of snow geese taking off from a green field
A flock of snow geese taking off from a green field

Jaclyn doing spectral measurements at the cow pasture with the bridge in the background
Jaclyn doing spectral measurements at the cow pasture with the bridge in the background

New pepper weed coming up around soil co2 sensors
New pepper weed coming up around soil co2 sensors

New pepper weed coming up around soil co2 sensors
New pepper weed coming up around soil co2 sensors

New pepper weed coming up around soil co2 sensors
New pepper weed coming up around soil co2 sensors

Joe half way inside equipment box
Joe half way inside equipment box

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

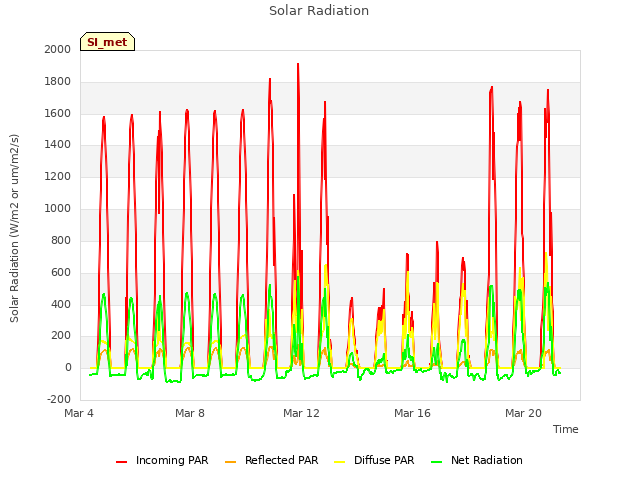

Explore the graph:Solar Radiation in a new window

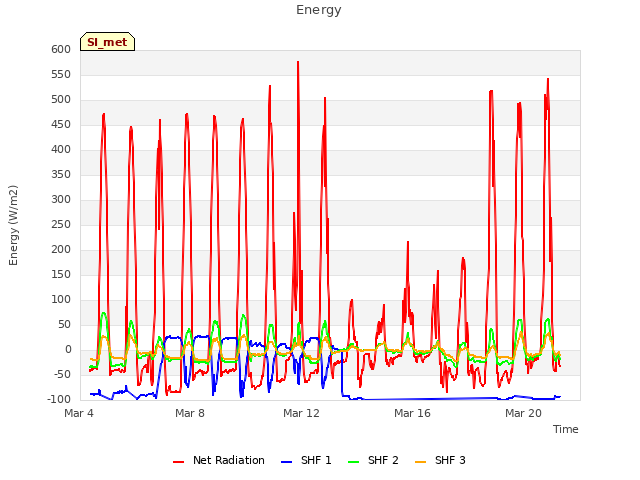

Explore the graph:Energy in a new window

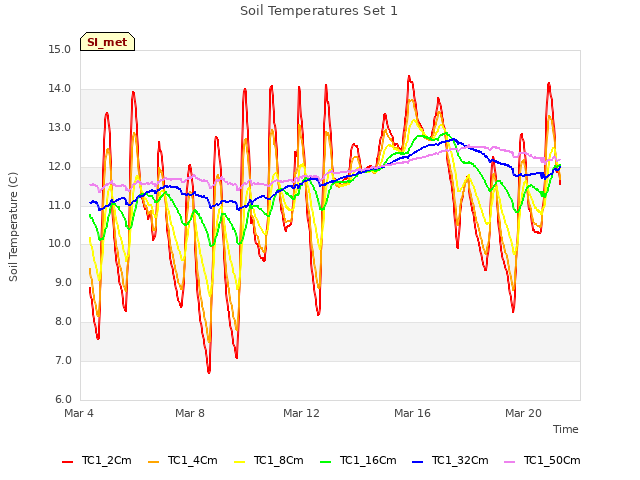

Explore the graph:Soil Temperatures Set 1 in a new window

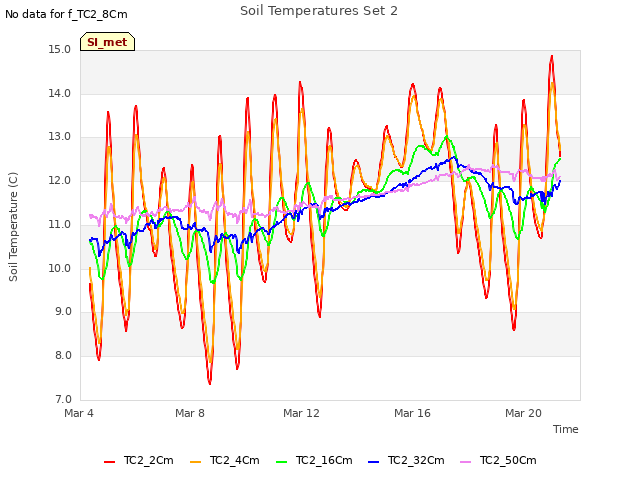

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

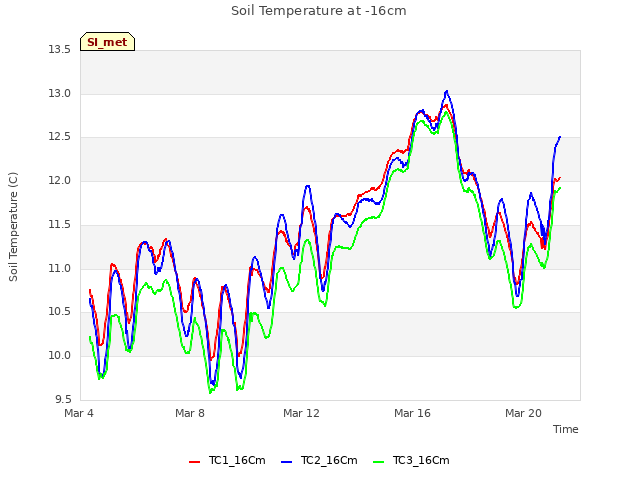

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:LED NDVI Sensor Output in a new window

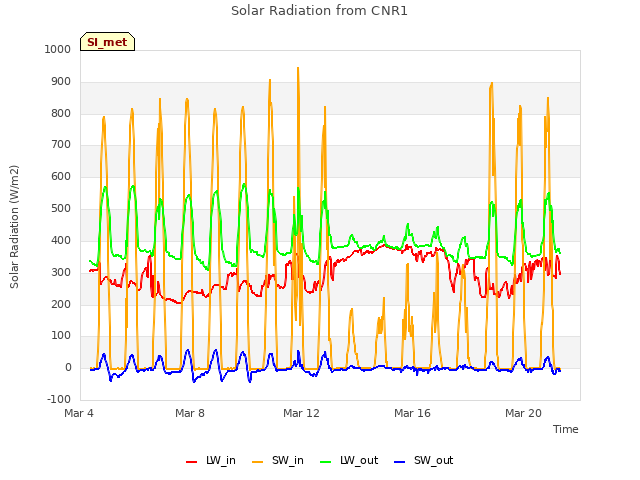

Explore the graph:Solar Radiation from CNR1 in a new window

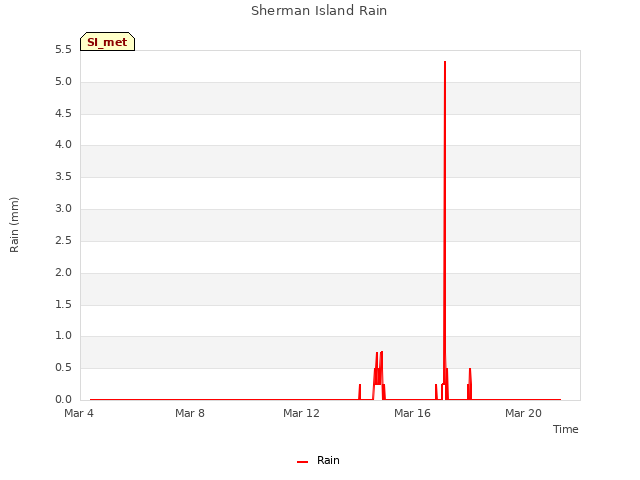

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

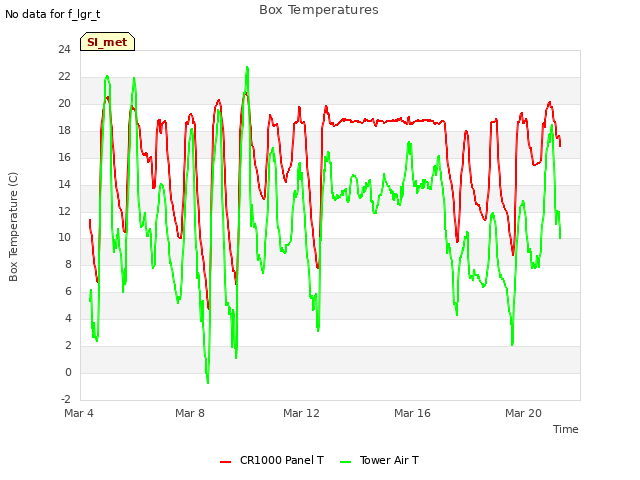

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

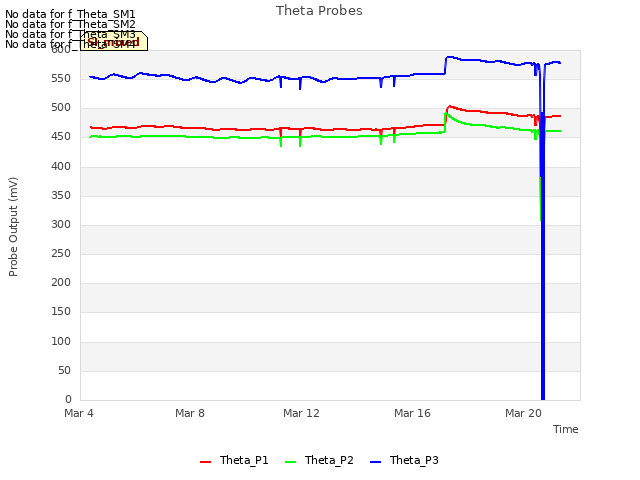

Explore the graph:Theta Probes in a new window

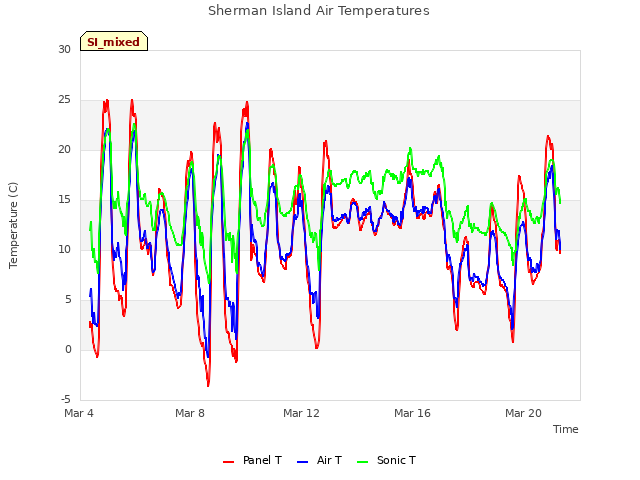

Explore the graph:Sherman Island Air Temperatures in a new window

5 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

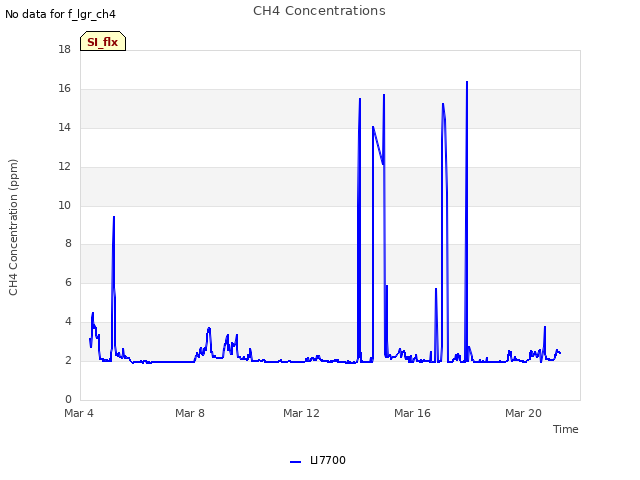

Explore the graph:CH4 Concentrations in a new window

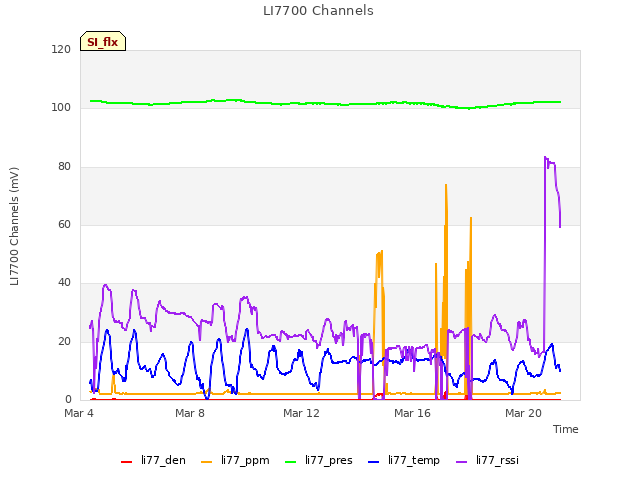

Explore the graph:LI7700 Channels in a new window

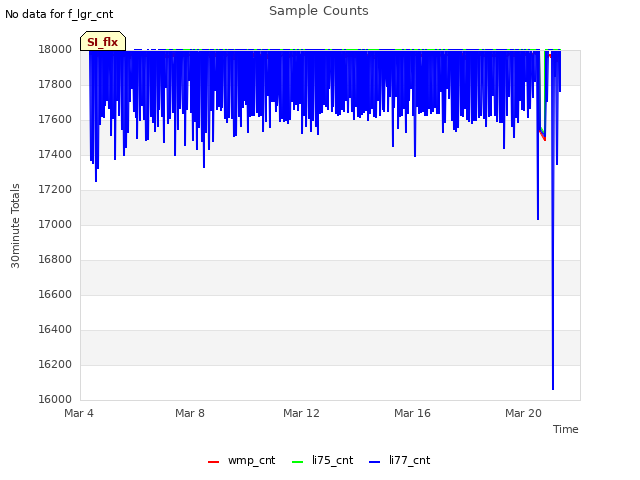

Explore the graph:Sample Counts in a new window

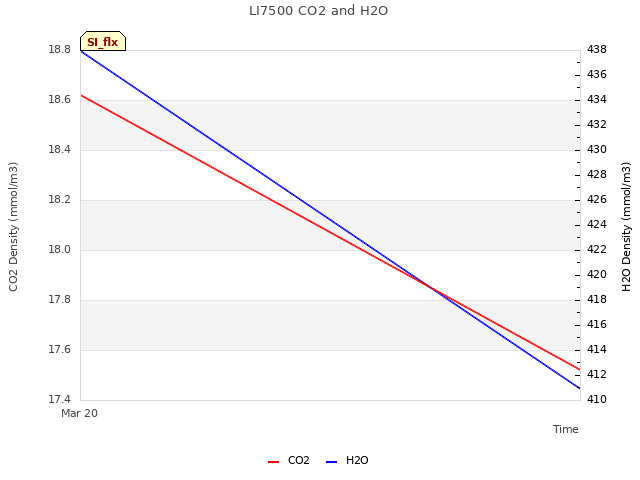

Explore the graph:LI7500 CO2 and H2O in a new window

2 SI_soilco2 graphs found

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

Explore the graph:Soil CO2 Temperatures in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
