Mayberry: 2012-03-20 11:30:00 (DOY 80)
Author: Joe Verfaillie
Others: Jaclyn, Sara
Summary: 7700 wash tube sprung a leak - fixed. Data collected, water samples.
| Mayberry

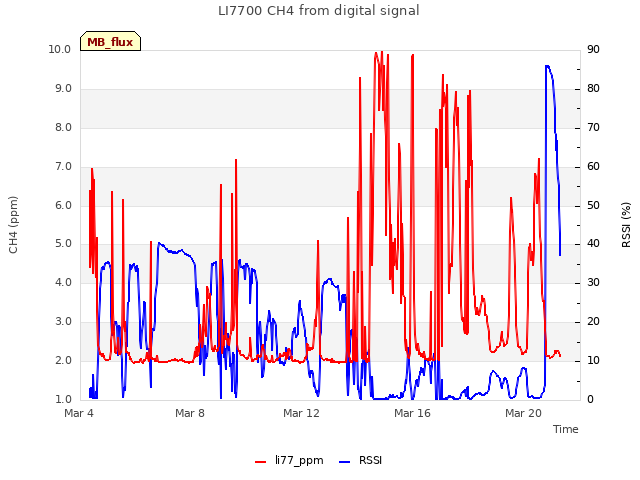

2012-03-21 I arrived about 11:30 with Jaclyn and Sara. It was warm and sunny with a light breeze. The wetland is beginning to turn green again. Jaclyn saw lots of new cattails coming up in areas of shallow water. The LI7700 wash reservoir was almost empty. I refilled it. While we were getting the netbook hooked up we observed the LI7700 trying to wash its mirror and noticed that the tube from the reservoir to the mirror had sprung a leak near the fitting on the reservoir. The tubing looks like it is degrading in the sun. I cut a length of tubing off and reattached it to the reservoir. The LI7700 RSSI was about 6%. Cleaning the bottom mirror didn’t improve it much but cleaning the top mirror brought it up to about 70%. |
4 photos found
view of field site
view of field site
view of field site
Sara, Joe and Jaclyn on site
11 sets found

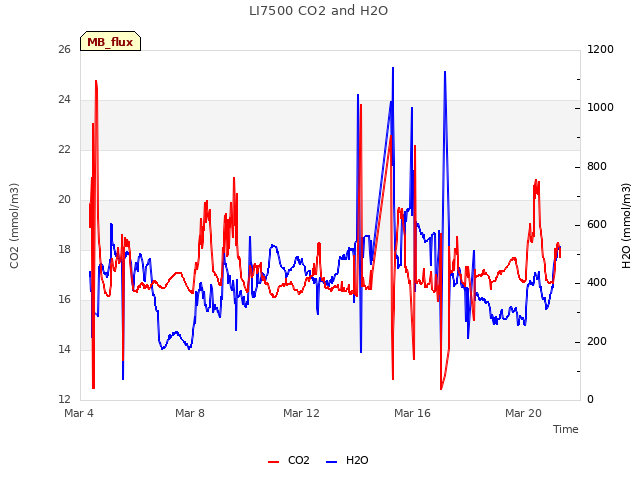

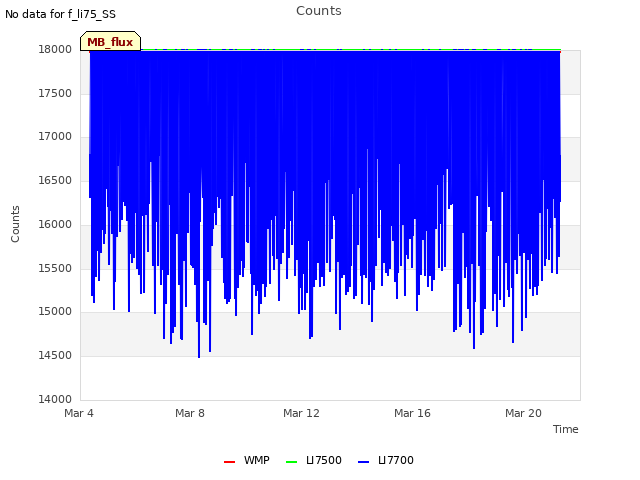

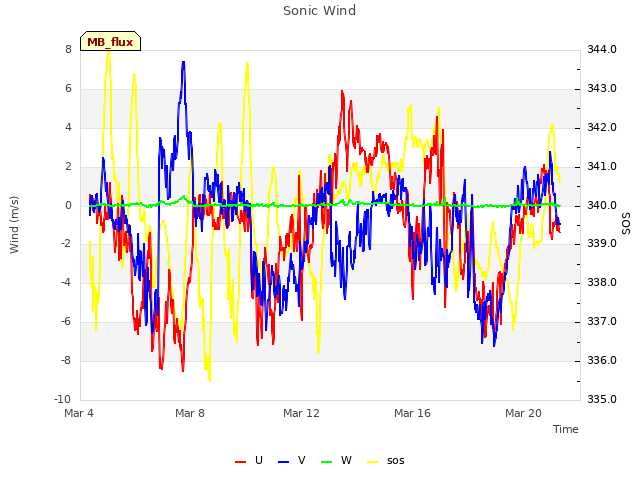

7 MB_flux graphs found
No data found for MB_met.

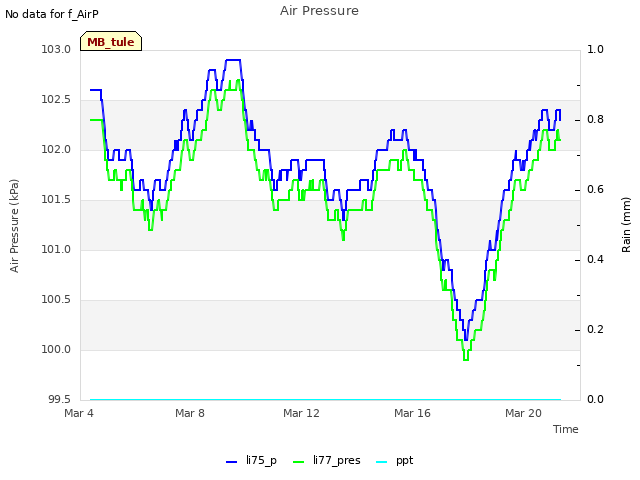

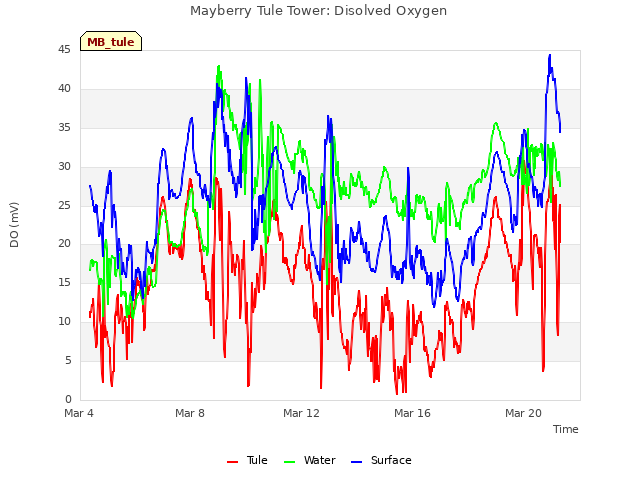

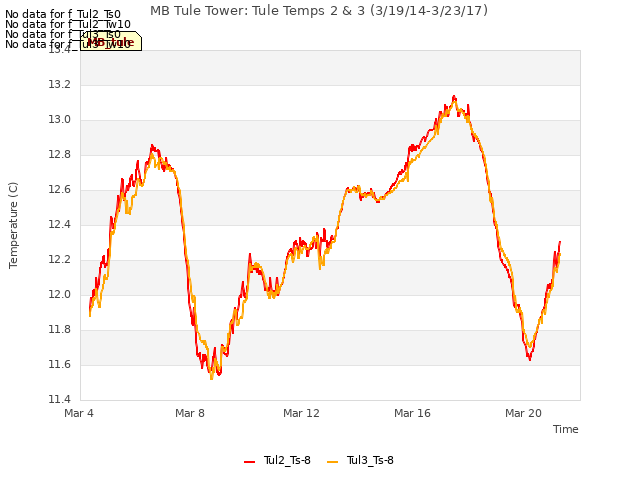

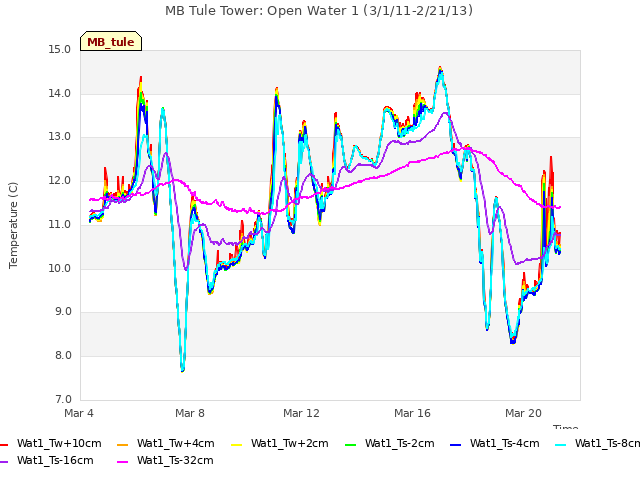

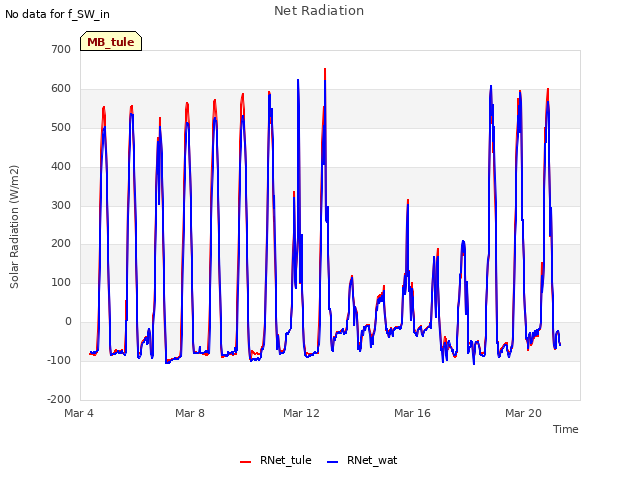

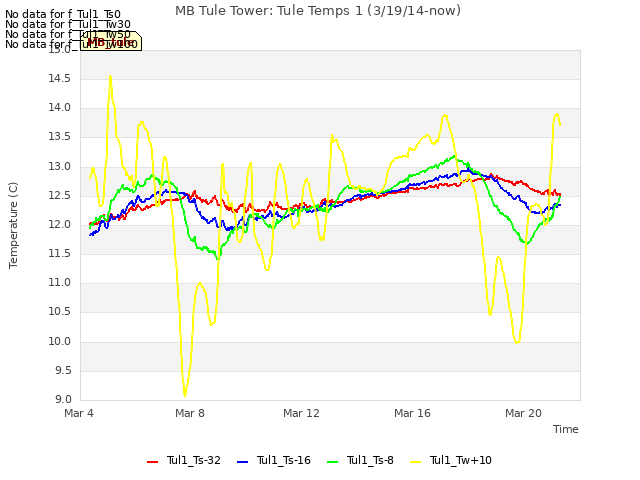

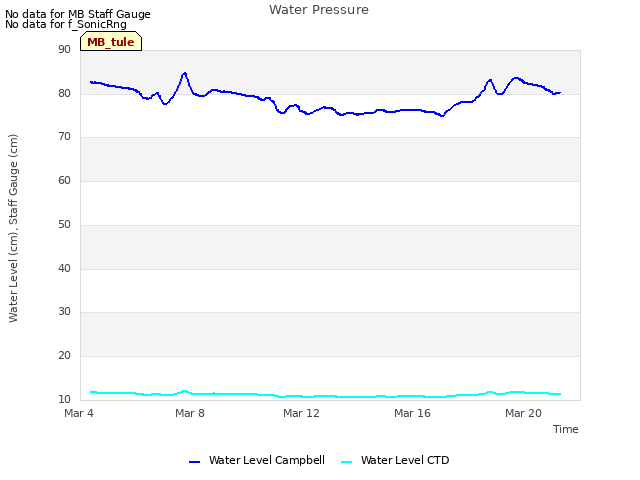

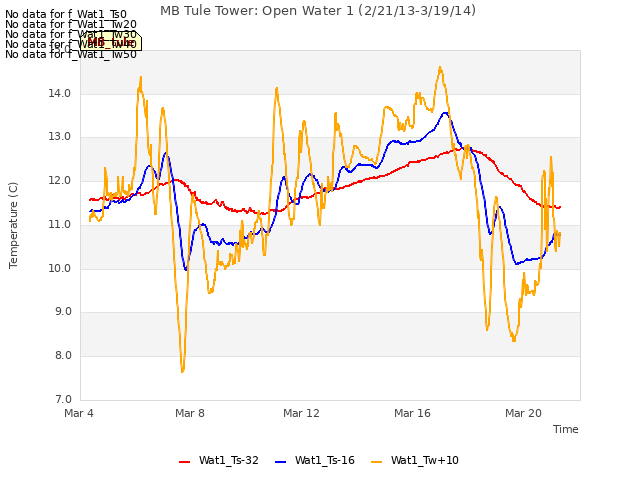

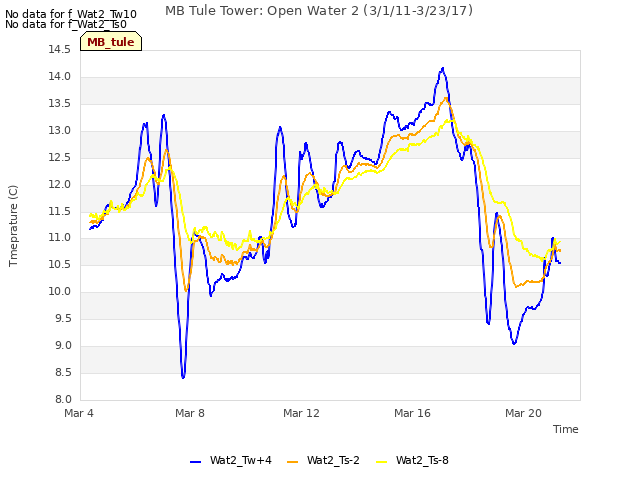

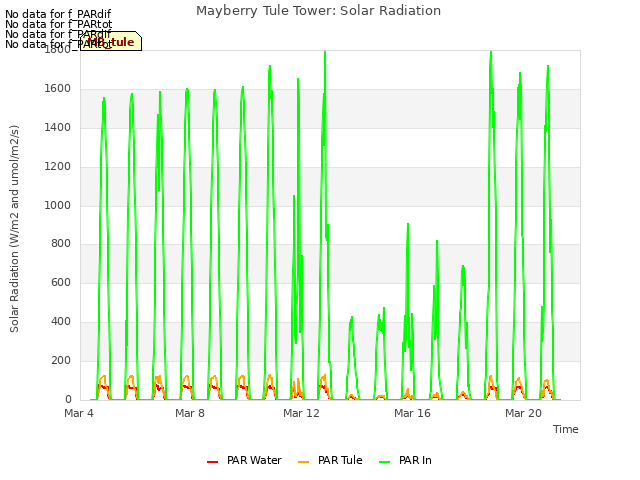

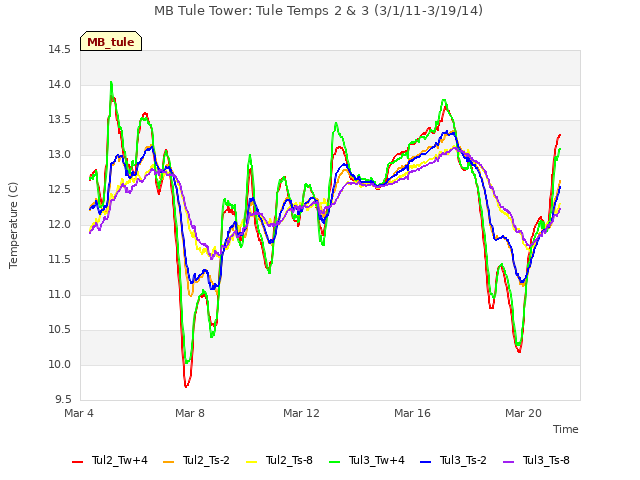

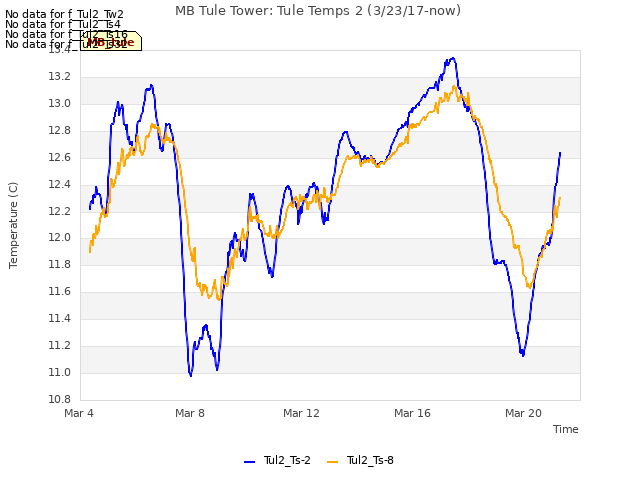

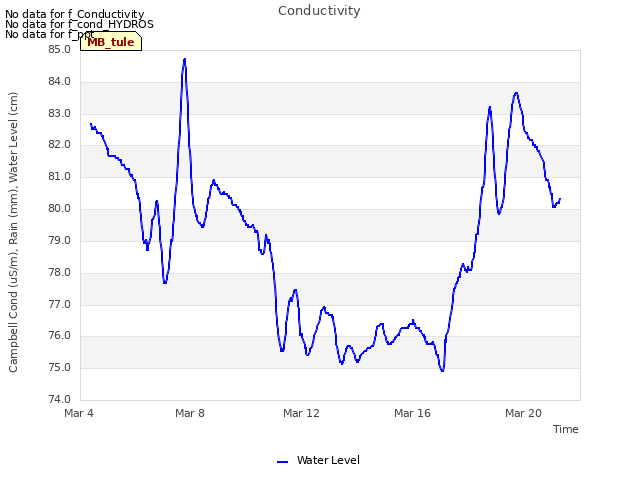

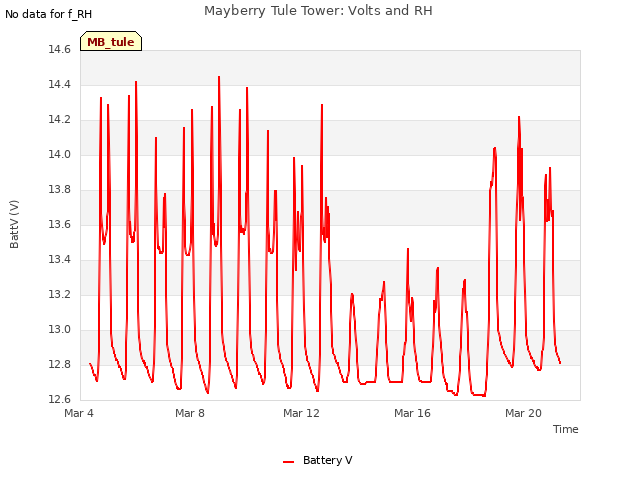

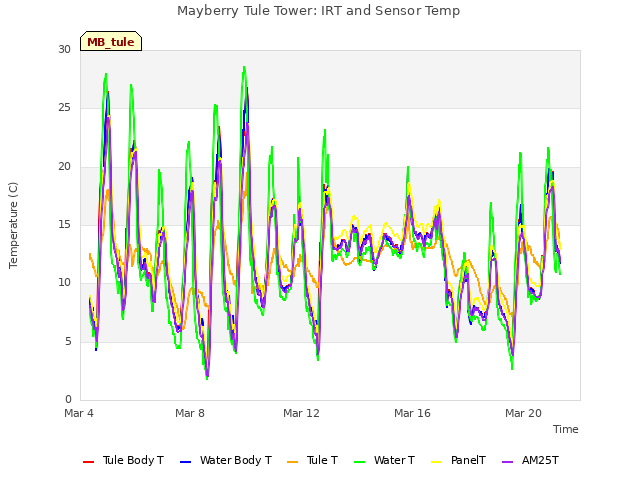

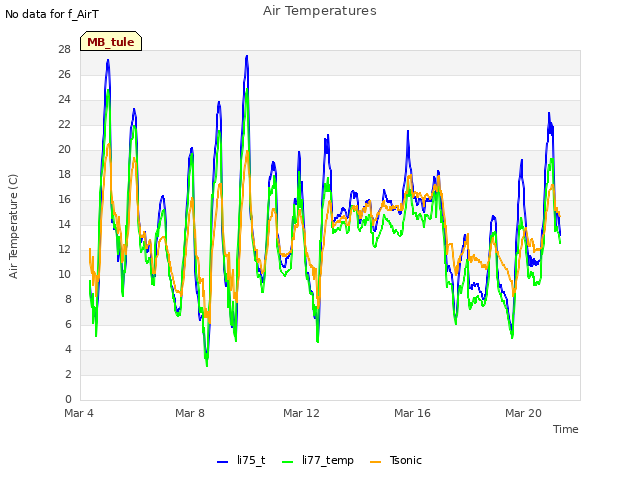

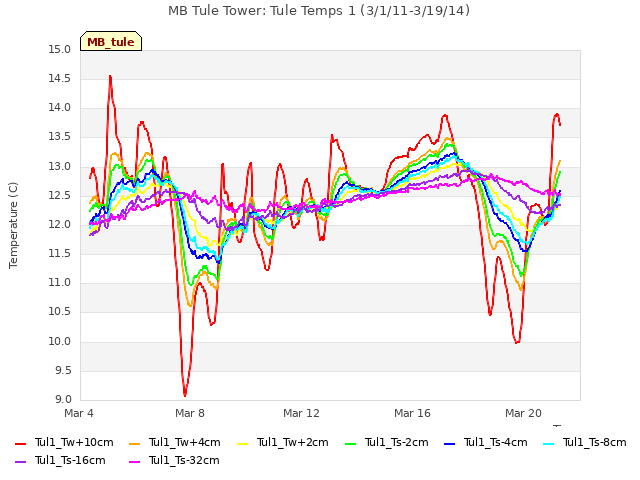

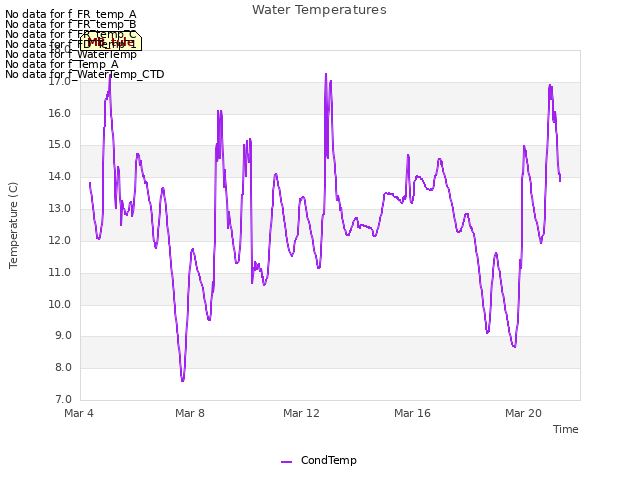

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

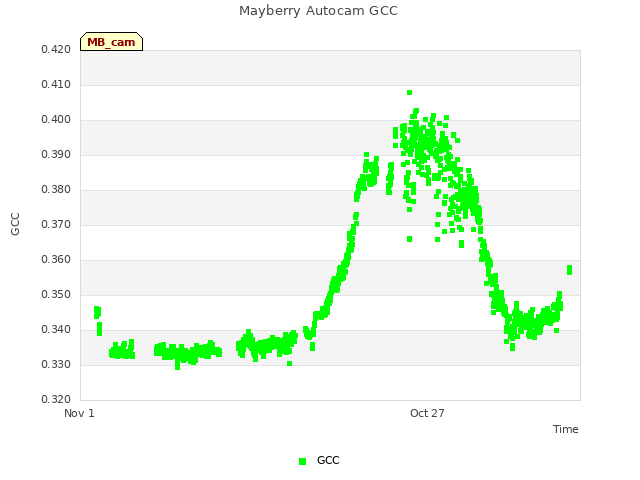

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

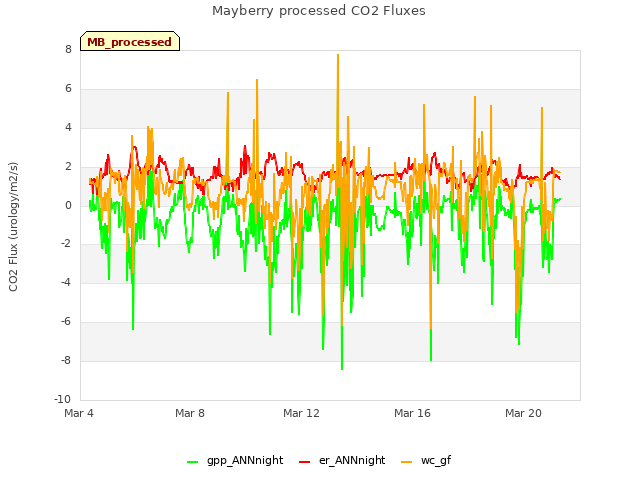

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
