Field Notes
<--2011-12-14 10:30:00 | 2011-12-28 09:30:00-->Other sites visited today: Mayberry
Phenocam link: Searching...
Sherman Island: 2011-12-20 11:30:00 (DOY 354)
Author: Joe Verfaillie
Others: Dennis
Summary: Checked data, reseated SHF plates, cleaned radiometers, cold and foggy.
| Sherman

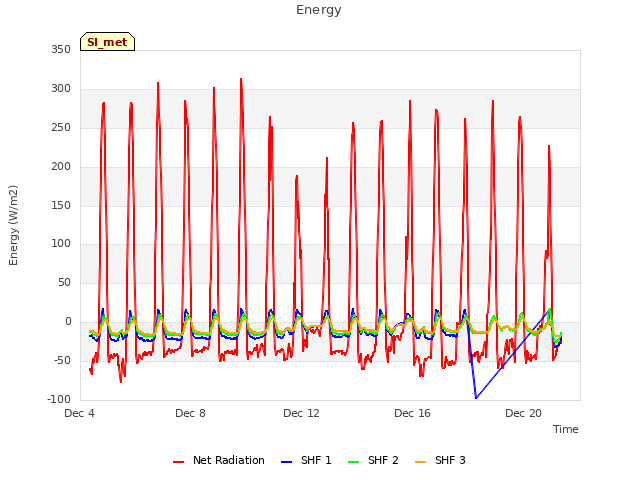

2011-12-20 I arrived about 11:30PST with Dennis. It was still cold (~2C) and foggy, but the fog was lifting. There was little to no wind. Walt has begun to feed the cows near our site, and the cows were standing near the gate when we arrived. The water level in the ditch along the road is almost empty. The weeds and grass in the field are almost completely dead. All was running. I collected soil CO2 data for Sara to check the new probes. The on screen values looked okay. Dennis reseated the soil heat flux plates installing number 2 in the ground just outside the cow fence just to the east of the radiometers. There is a much thicker layer of litter inside the cow fence. SHF 1 is to the west of the tower and SHF 3 is to the east of the tower and is one of the self-calibrating kind. The red label on #3 is coming loose. I cleaned the radiometers. |
6 photos found
Cows and feed in the fog
Cow in the fog
Two cows in the fog
Killdeer on the mud
Fog, cows and the drainage ditch
Wading birds in the fog
7 sets found
No data found for SI_mp.

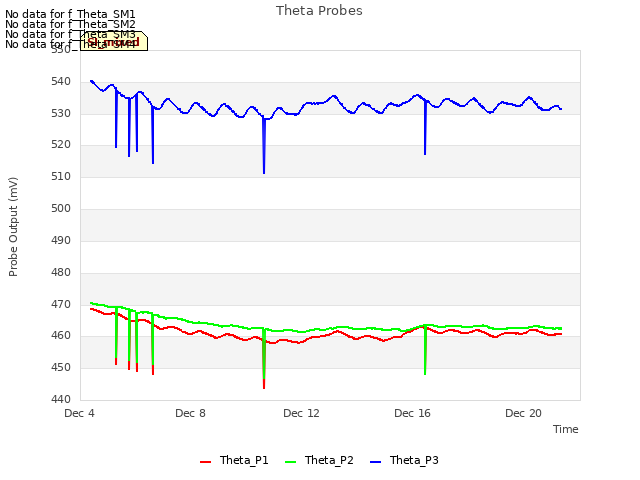

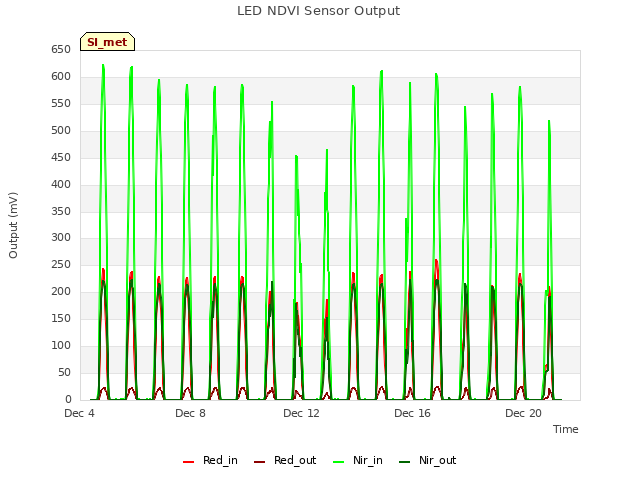

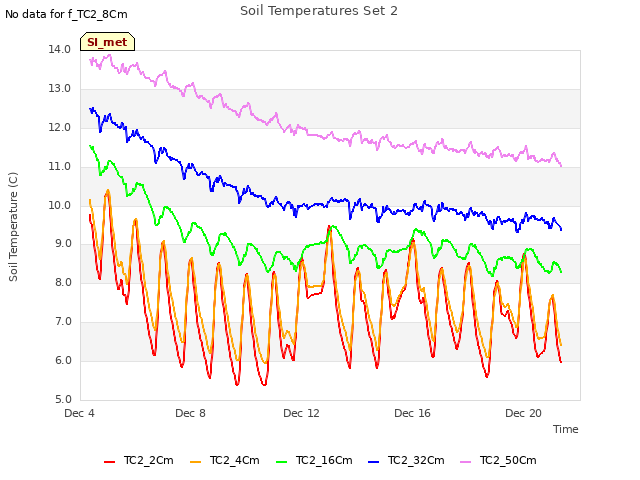

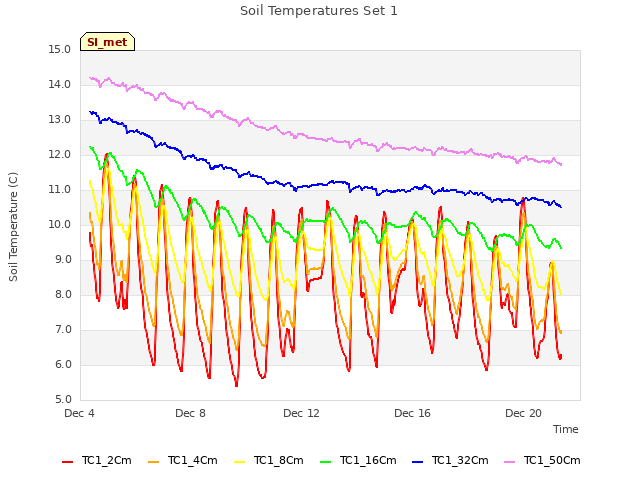

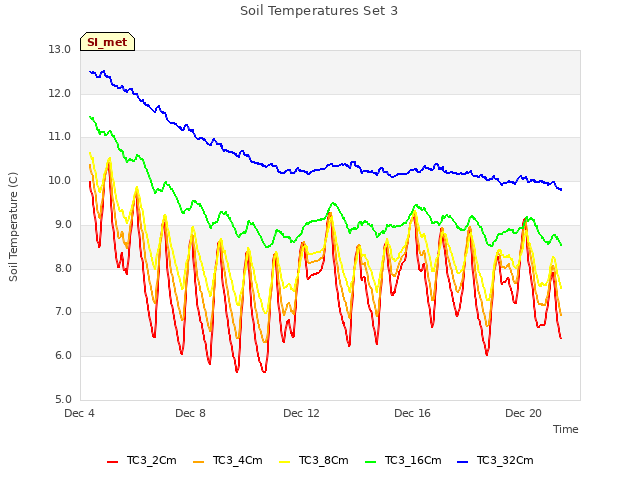

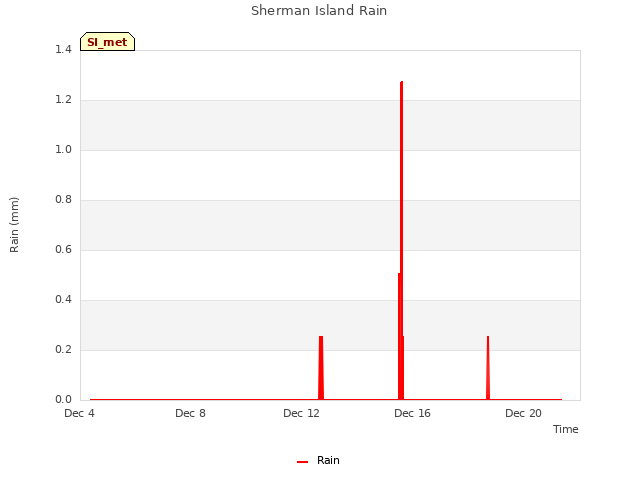

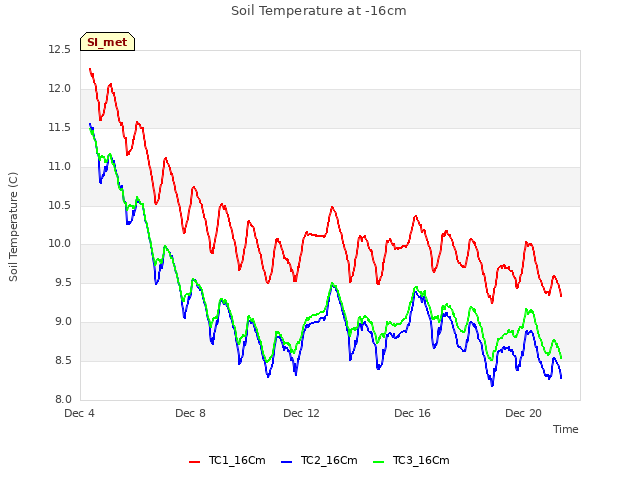

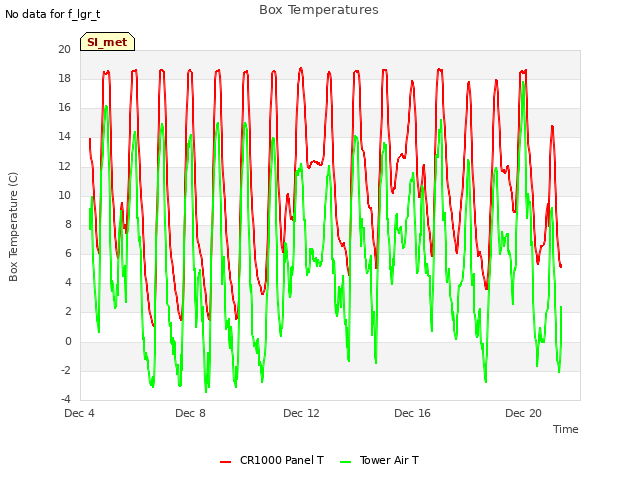

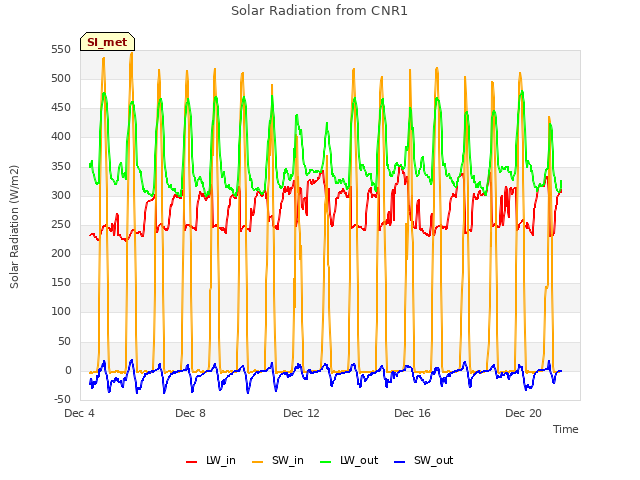

11 SI_met graphs found
Can't check SI_mixed

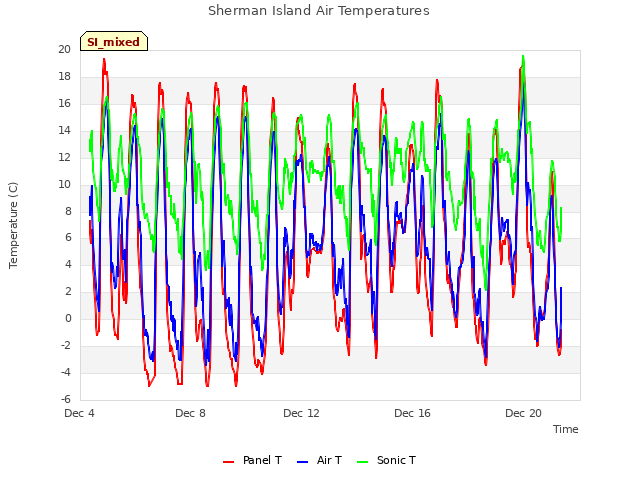

2 SI_mixed graphs found

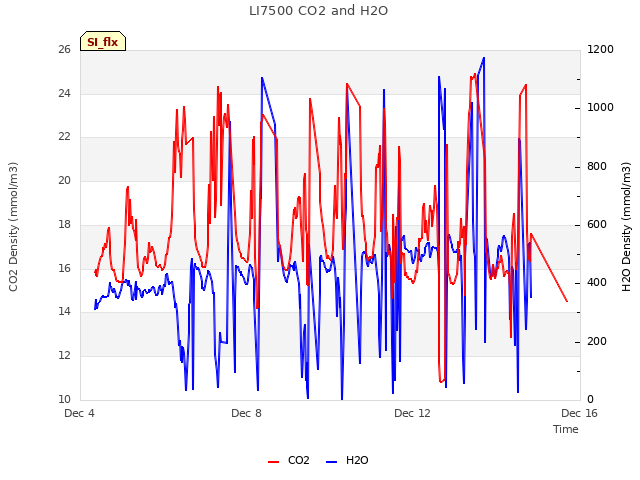

5 SI_flx graphs found

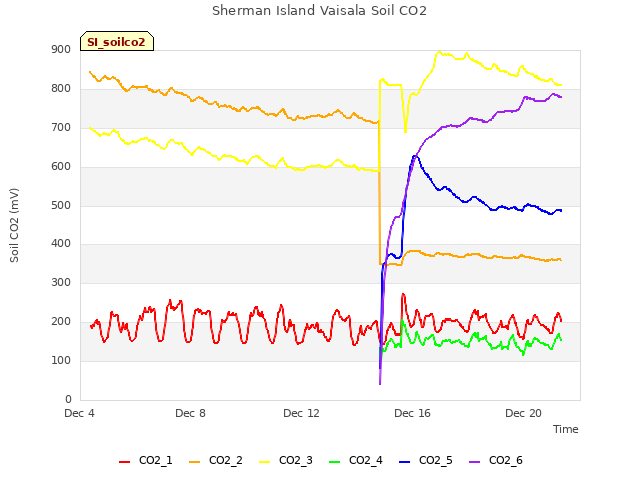

2 SI_soilco2 graphs found
Can't check TWSI_mixed
Can't check SIMBTWEE_met
