Tonzi: 2011-12-18 00:00:00 (DOY 352)
Author: Siyan Ma
Others: Sunny

Summary: checked and downloaded data at Tower, Floor, and Vaira, Swapped Li-7500 at TZ Tower and Floor, Li-800 showed "-9999", not working in the field, taken back to the lab, Collected oak litter of this fall within 1x1 m2 square


When: Date: 12/18/2011 , Day: 352 , Watch Time: 11:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear, nice breeze
Phenology: grass looks dry, see yellow, green oak leaves fell off.

Tonzi

Green leaves on climbing plant
No leaves on the oak branches

Vaira:

Green field with trees on the far edge
Dirt road and big tree without leaves

Summary
  1. checked and downloaded data at Tower, Floor, and Vaira
  2. Swapped Li-7500 at TZ Tower and Floor.
  3. Li-800 showed "-9999", not working in the field, taken back to the lab.
  4. Collected oak litter of this fall within 1x1 m2 square
  5. Read dendrometers
  6. Measured soil moisture
  7. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

12/18/2011
352
Floor
27.9



Tower
32.9



roadside
37.8

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 14.0 v; 12.1 amps; 3.7 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 ? 5 v.)

Vaira Gill sonic plots screen before downloading data
  1. downloading data
  2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  3. Check MD-9 system connections YES!
  4. Check CR23X with two multiplexers

Screen shot of Vaira data logger table
  1. Check levels of Radiation sensors, clear up surfaces.YES!
  2. Check rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!
  4. fix the date/time of the new Webcam

Screen shot of Stardot camera before fixing clock
Screen shot of Stardot camera after fixing clock

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.2 v; 0.0 amps; 5.7 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 ? 5 v.)

The water channel of IRGA didn?t work!!
Tower Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. swap IRGA: remove #65, install #418
  3. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  4. Check rain gage, make sure not clogged. YES!
  5. Is the pump of CO2 profile system running‌

YES. But the reading was frozen at ?-9999?. Brought it back to the lack. I broke the thermal couple. Disconnected the pump.
Screen shot of Li-800 bad reading

Screen shot of Li-800 all bad readings

  1. close gate and set up fence. YES!
  2. fix the date/time of the new Webcam

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.4 v; 2.7 amps; 1.8 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 ? 5 v.)

Floor Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. Check MD-9 system connections YES!

CR23X3 ? floor-Met
CR23X5 ? soil CO2 profile
CR23X6 ? tower-Met
CR10X2 ? floor-Met
Screen shot of sap flow data logger table

Floor Gill sonic plots screen before downloading data

Screen shot of soil moisture data logger table

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

  1. Soil CO2 profile:

Reading from panels of analyzers

depth
Open
order
depth
Tree
order

2cm (1%)
1260
1
2cm (1%)
2140
1

4cm
960
2
4cm
1880
4

8cm
1100
3
8cm
1740
2

16cm
1000
4
16cm
3150
3
  1. Close gate and set up fence. YES!

tonzi
7931AFE
402165
574B4B
402FF3
574632
7A432E
7A3C6E
7A3B40
7A4AAA

12/18/2011
352









sm








0-15
12.7
4.7
#DIV/0!
8.5
10.3
1.8
15.6
8.0
8.6

15-30
13.8
10.8
23.7
15.8
13.0
11.5
18.8
18.8
5.4

30-45
20.6
12.6
12.2
14.0
10.3
10.3
15.6
18.4
14.3

45-60
#DIV/0!
2.2
14.2
12.8
24.2
10.7
12.8
22.2
11.3












A6D882B
A3D04E8
A6D72F5
















0-15
17.1
10.0
2.1






15-30
15.8
3.5
22.8






30-45
19.0
17.5
23.2






45-60
15.6
17.6
5.3
















vaira
57318a
7933dee
00000128B97F3
00000128B8072
00000128BDDE8



0-15
broken
7.9
11.2
3.3
2.1




15-30
broken
15.8
12.85
6.2
10.9




30-45
broken
18.7
5.75
11.5
16.2




45-60
broken
28.5
14.6
9.5
15.9






Tonzi





Dendrometer










Date
Day
Tag #
Reading (mm)


12/18/2011
352
72
6.3




79
6.3




102
7.5




245
19.6




250
X
(reset to 10.5 on May 7, 2009)



1
16.9




2
14.5




3
12.9




4
19.2




5
23.6




7
14.0
133



8
6.1
11828



71
X




77
X
‌



78
X
‌



248
X
broken



255
X
‌



‌252‌
X
‌



6
X


Notes: ?X? means not working any more.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2011-12-18TZ_floor27.9
2011-12-18TZ_road37.8
2011-12-18TZ_tower32.9

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

Nice sunset from the Tower top
Nice sunset from the Tower top

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

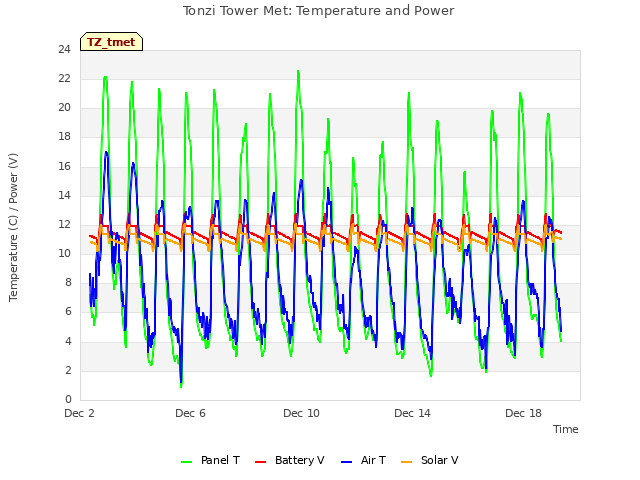

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

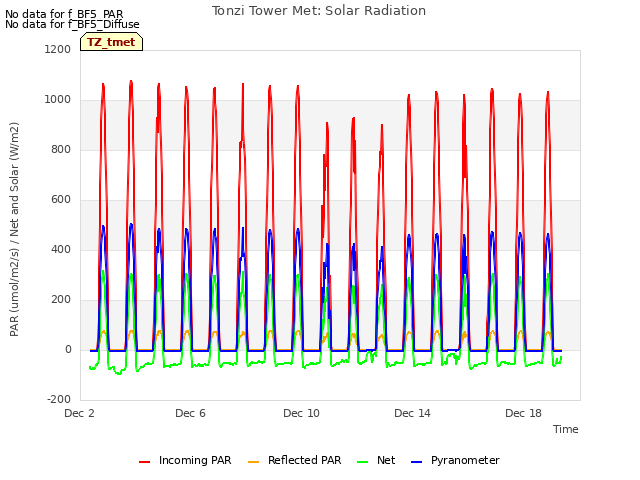

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

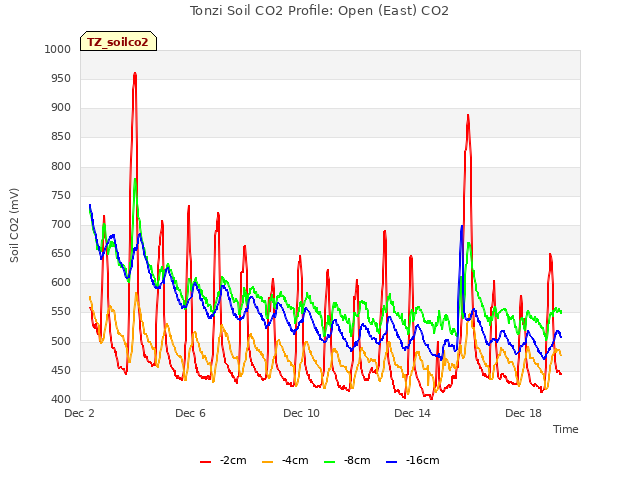

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

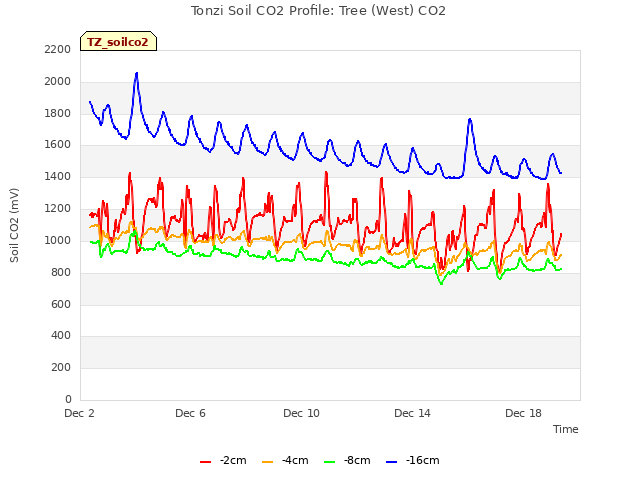

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

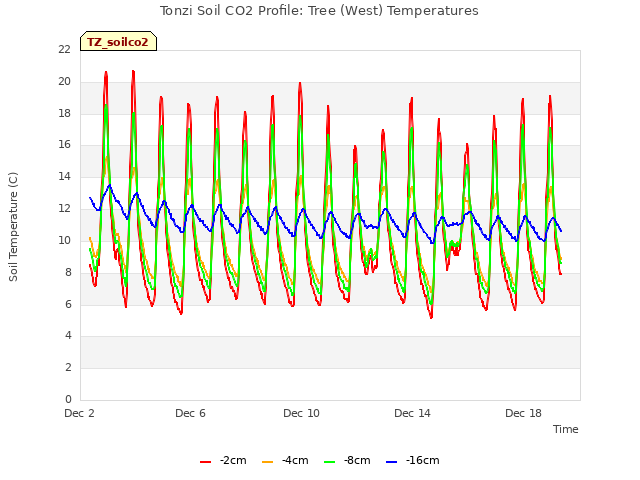

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

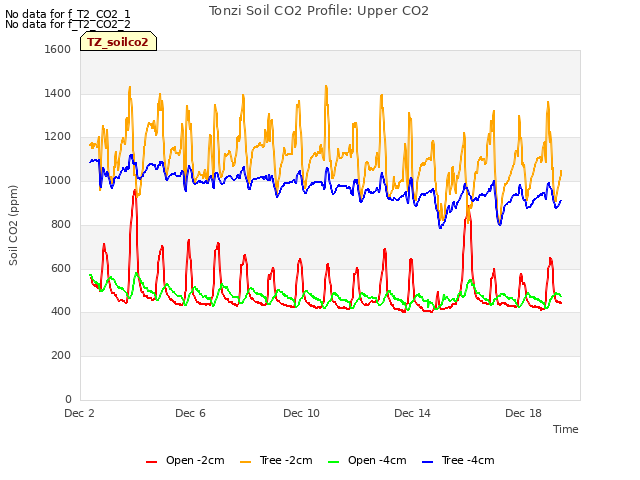

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

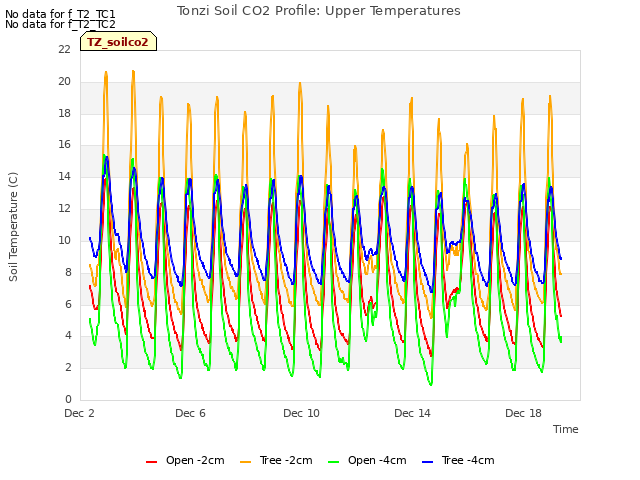

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

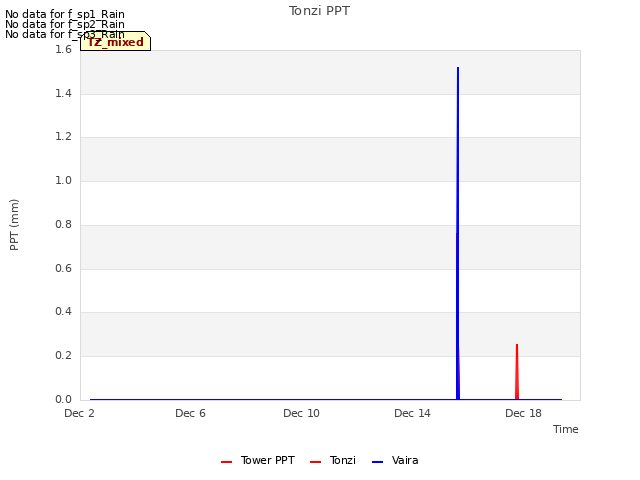

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

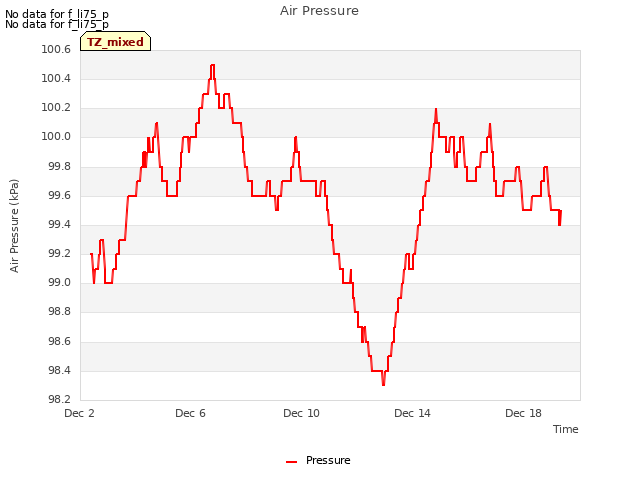

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

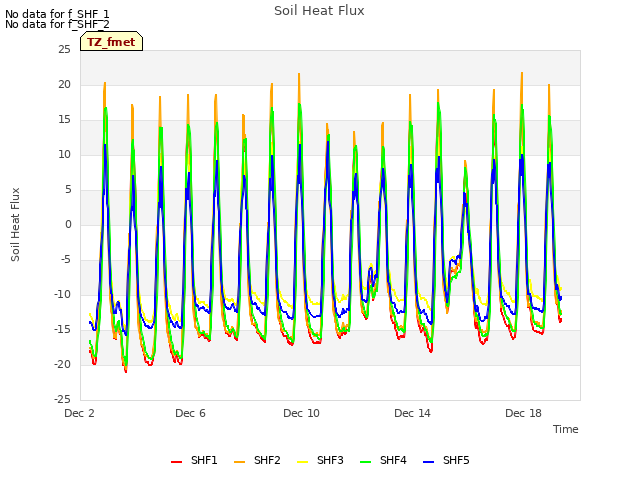

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

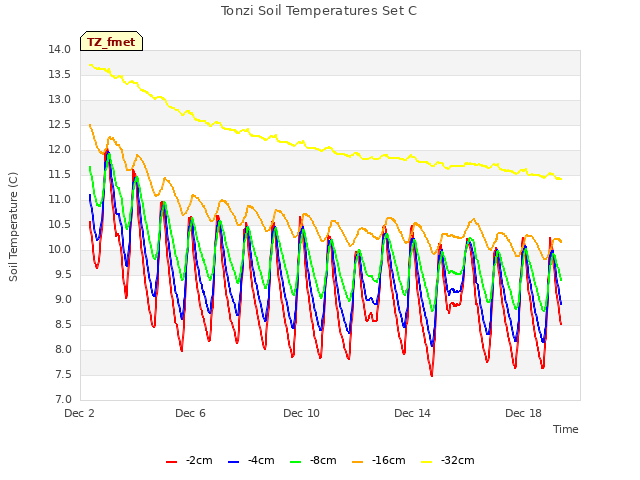

Explore the graph:Tonzi Soil Temperatures Set C in a new window

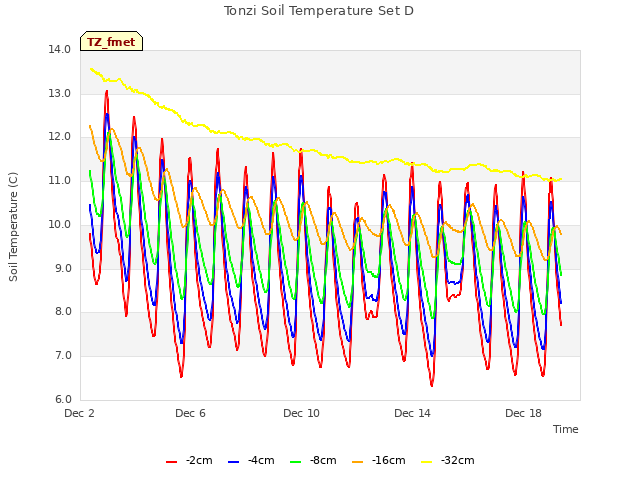

Explore the graph:Tonzi Soil Temperature Set D in a new window

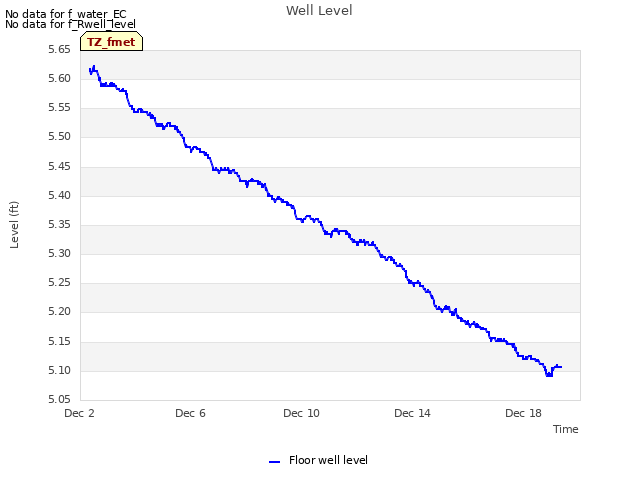

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

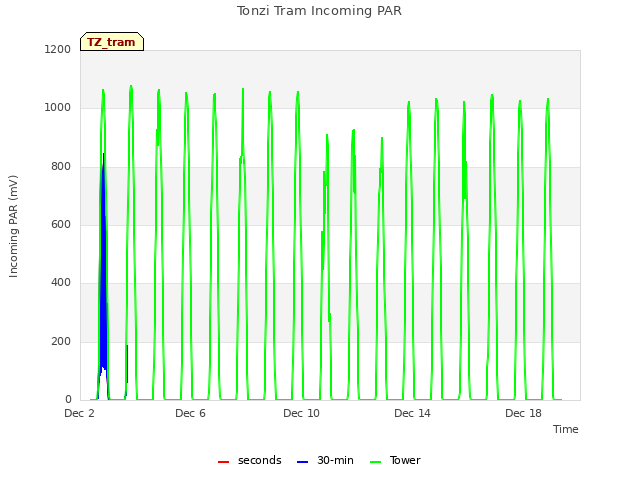

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

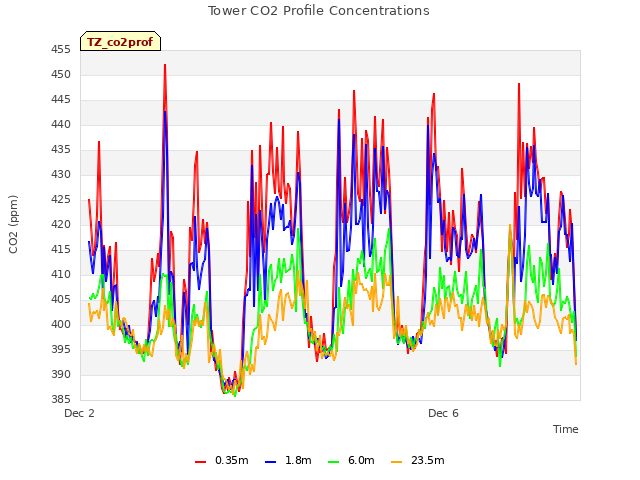

Explore the graph:Tower CO2 Profile Concentrations in a new window

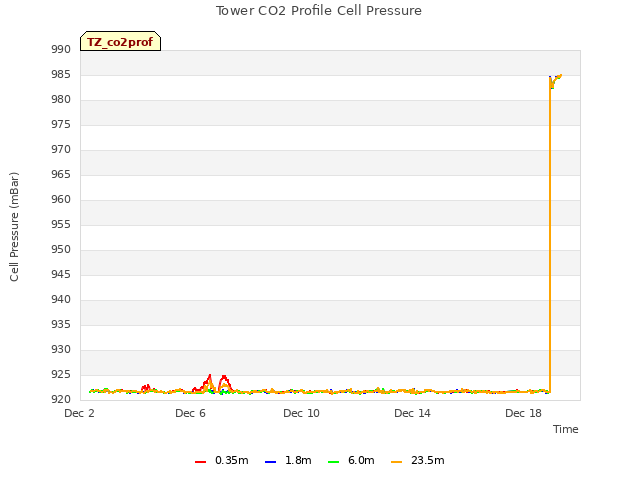

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

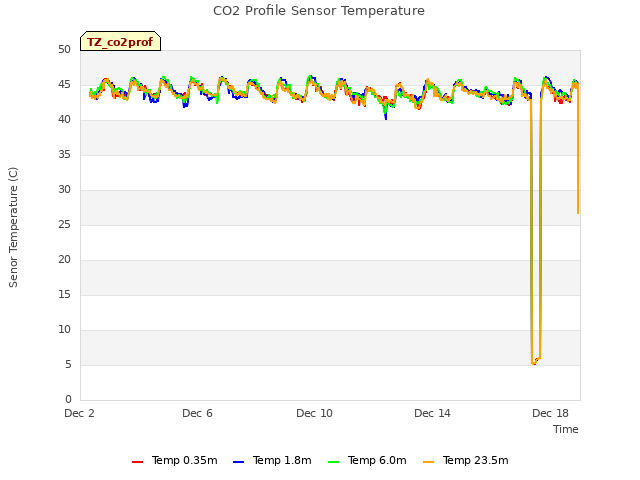

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

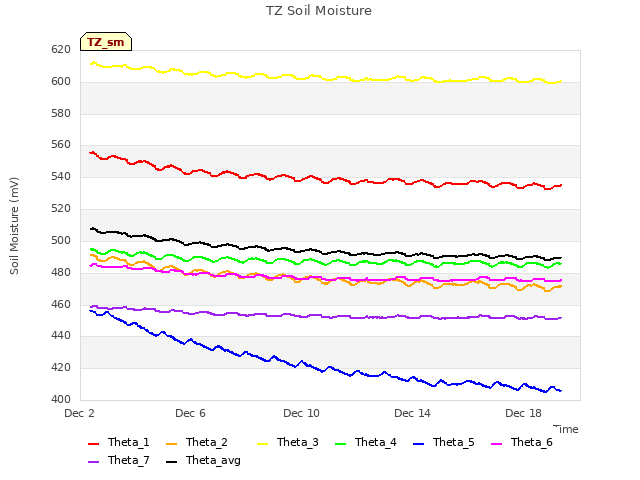

Explore the graph:TZ Soil Moisture in a new window
