Twitchell Rice: 2011-11-02 07:00:00 (DOY 306)
Author: Joe Verfaillie
Others: Siyan
Summary: Field chopped, reinstalled soil sensors, AC power line cut, radiation boom over field.
| Twitchell
2011-11-02 I arrived about 7:00 PST with Siyan. It was clear and cool with almost no wind. The field has been chopped near our tower but they were still chopping the check to the north. They are still harvesting other fields and it doesn?t sounds like they will re-flood the field soon. There is 5 to 10cm of soft rice straw mulch on the field now. When they chopped the area around our tower they also chopped the power line from the generator to our box. Jim said he would try to replace the line later today. Only the Methane should be down, everything else was running on solar. We put new sticks on the soil temperatures and reinstalled them in the field. We also reinstalled the well and the two theta probes. We reinstalled three of the four SHF plates two of which I replaced the cables on. We also reinstalled the tipping bucket that I fixed the cable on. There was no water in the bottom of the well. The bottom of the well is 87cm below the ground surface. The top of the pipe is 32cm above the ground and the pressure sensor is 1m below the top of the pipe. We swung the radiation boom back out over the field. The tube fitting on the top of the T came lose. It was missing one of the farrules. I replaced it with new nut and farrules. |
17 photos found
Mowing north check of Field 1
Mowing north check of Field 1
Mowing north check of Field 1
SoilT profile, well, soil moisture, soil heat flux (not visible)
View of tower and chopped field
View of tower and newly installed ground sensors.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
Chopping the straw.
6 sets found

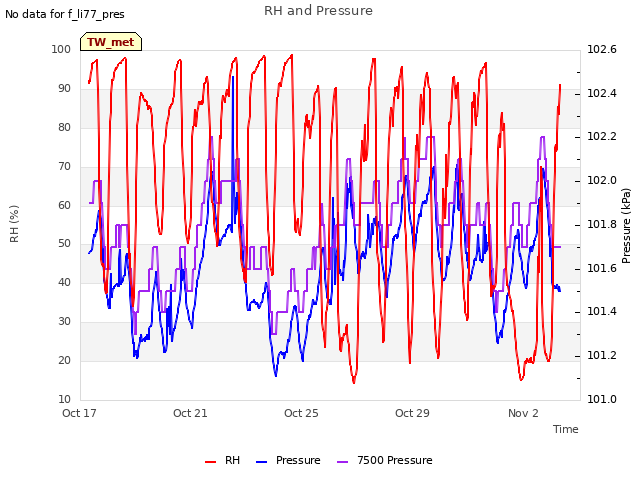

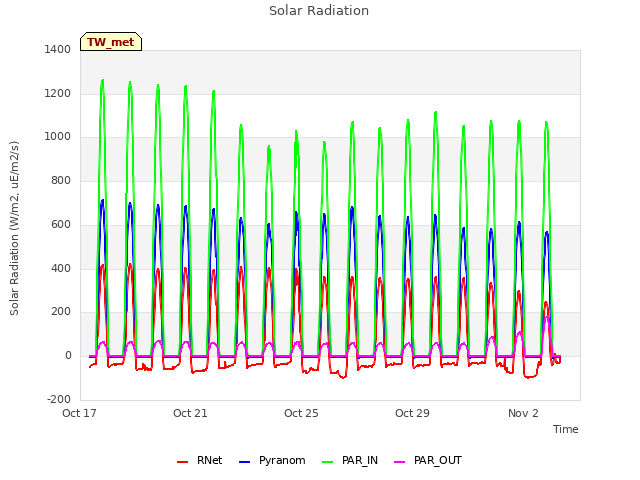

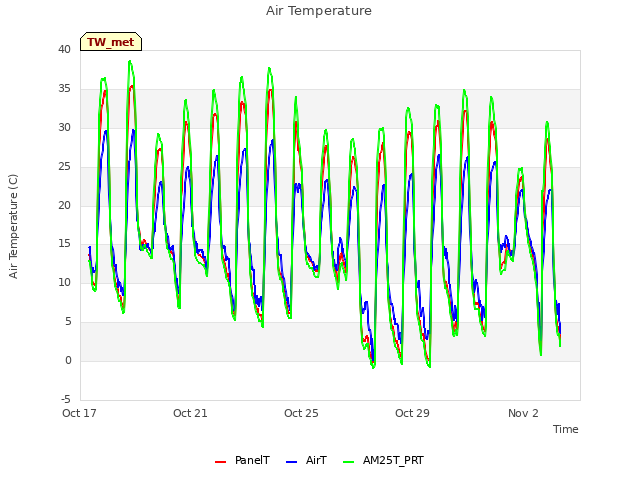

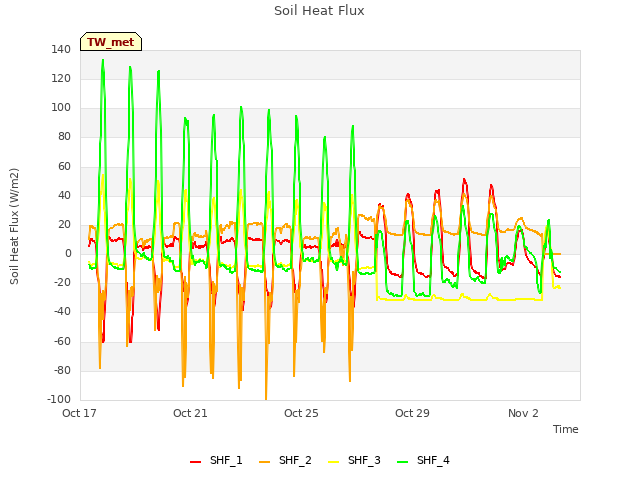

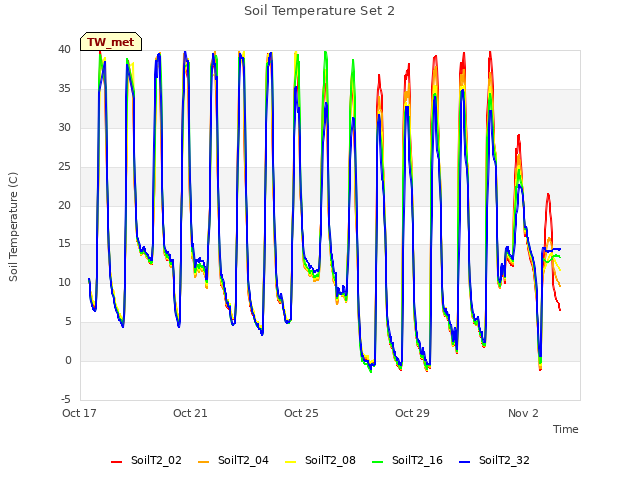

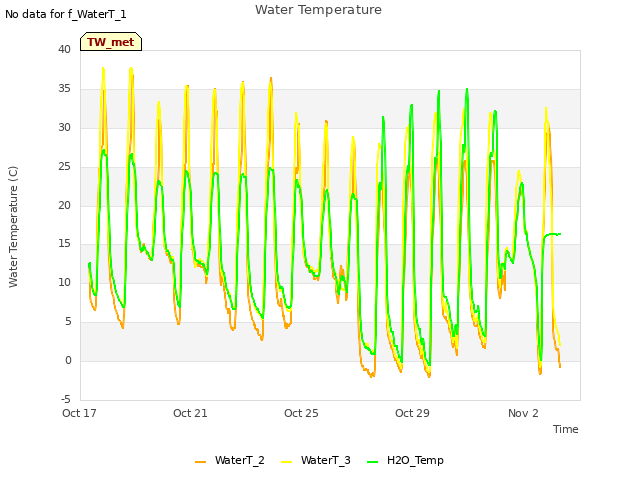

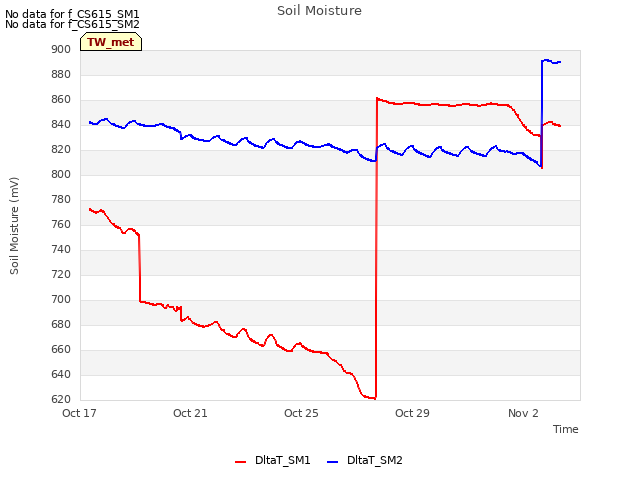

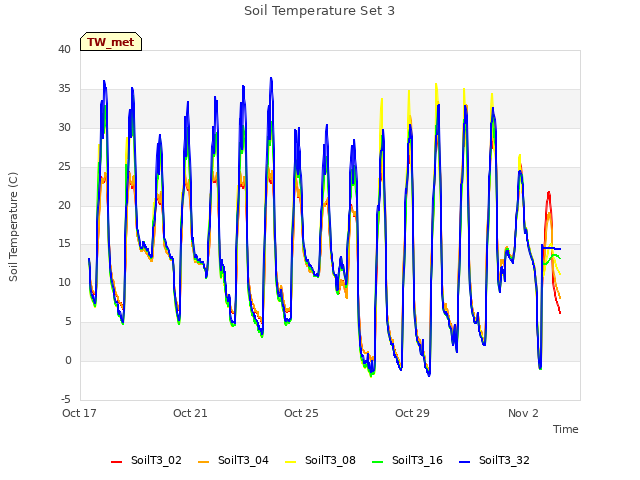

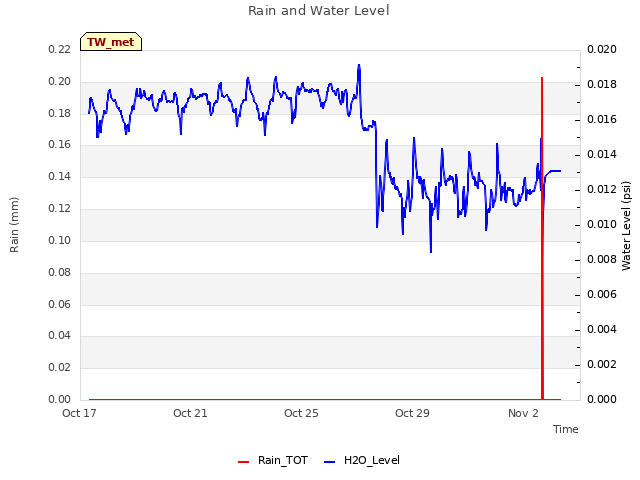

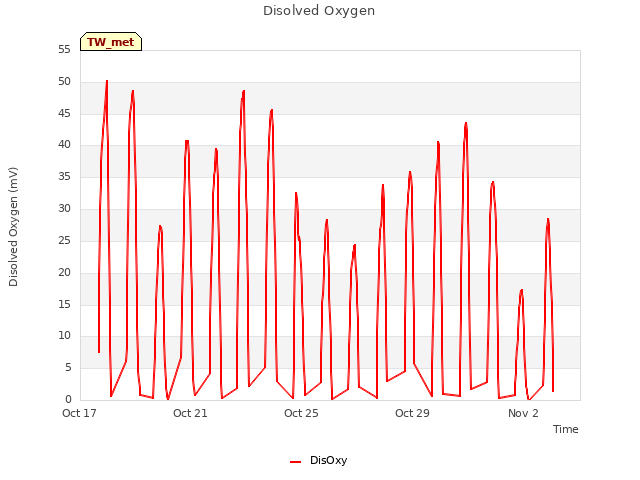

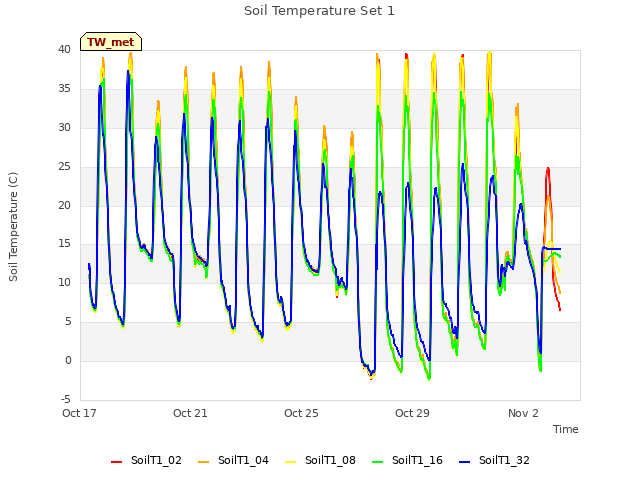

12 TW_met graphs found

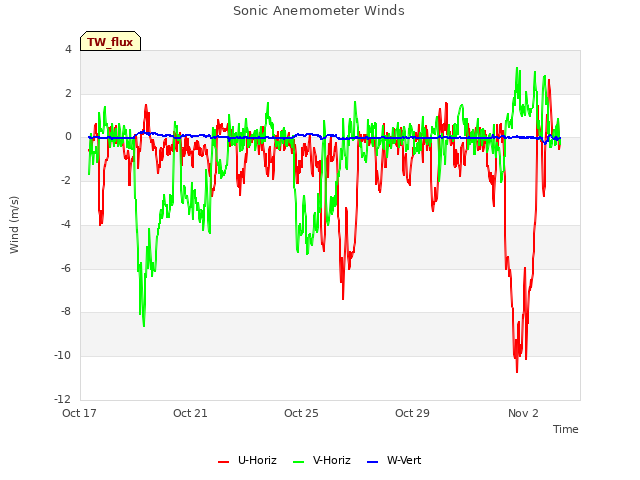

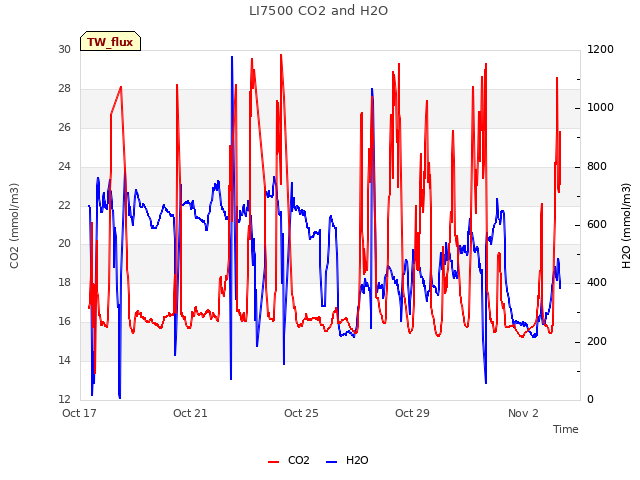

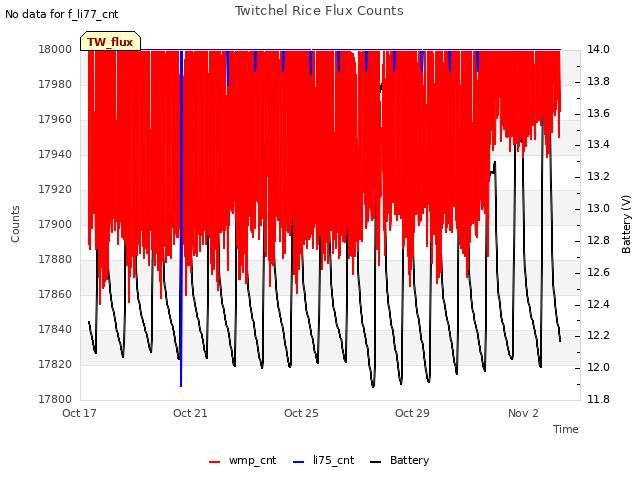

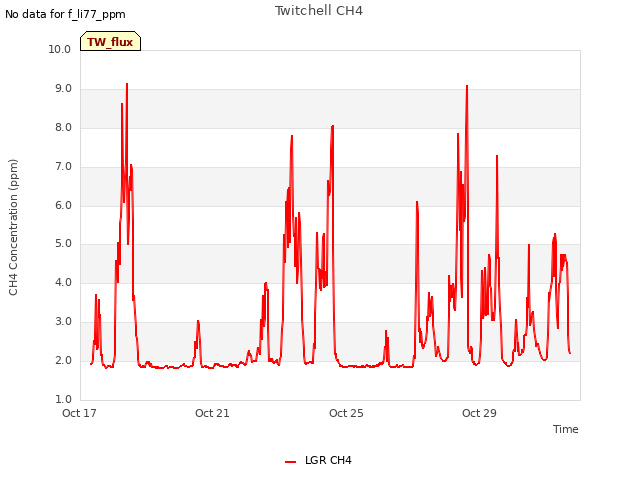

5 TW_flux graphs found
Can't check TWSI_mixed
Can't check SIMBTWEE_met

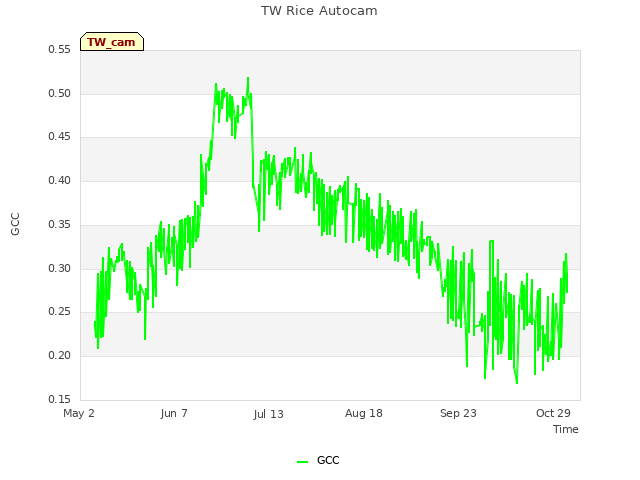

1 TW_cam graphs found
Can't check TATWBABCSB_cam
