Field Notes

<--2011-10-13 07:00:00 | 2011-10-27 11:00:00-->
Other sites visited today: Twitchell Rice | Sherman Island
Phenocam link: Searching...

Mayberry: 2011-10-20 11:30:00 (DOY 293)
Author: Jaclyn Hatala
Others: Sara Knox

Summary: New tule tower program, installed third DO sensor

Arrived at the Mayberry wetland around 11:30am with Sara. TONS of ducks and other birds. Light winds from the west and warm temperatures (18C).

Filled the LI-7700 reservoir with DI water, since it was nearly emtpty. Also cleaned the LI7700 mirrors and RSSI increased from about 28 to 78. Downloaded turbulence, main tower met, and tule tower data. Tried, but could not connect to the tule tower remotely from the main tower box, but waded out and connected directly.

I uploaded a new program to the tule tower and installed a third DO probe (the one from the rice) just under the water surface on the deep side of the tower. This will allow us to look at the O2 mixing gradient in the water.

Sara collected water samples for Emily Gilson to analyze on the LGR for CH4 and CO2 concentration in the lab.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

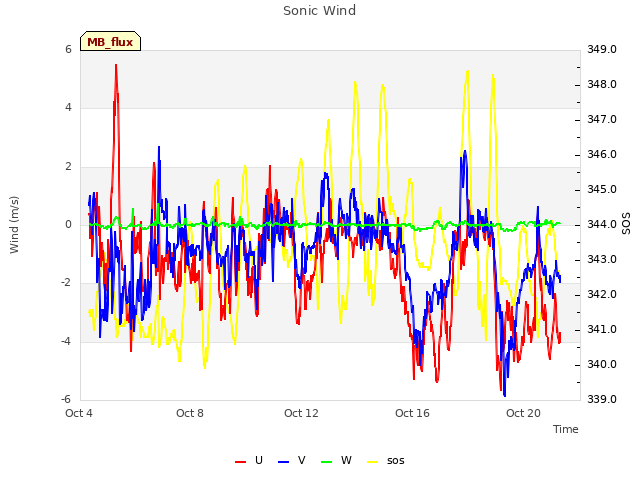

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

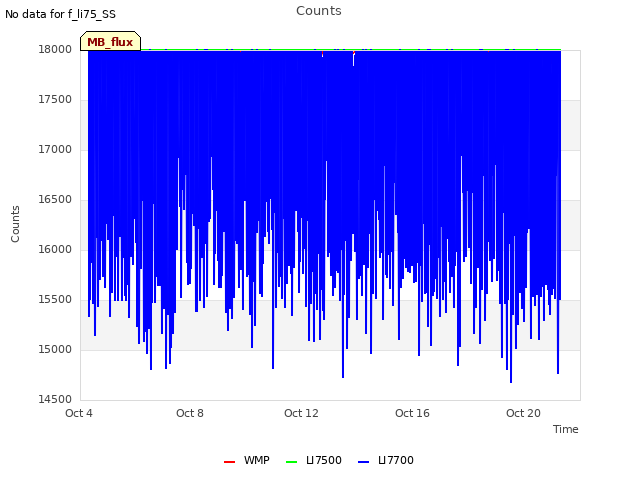

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

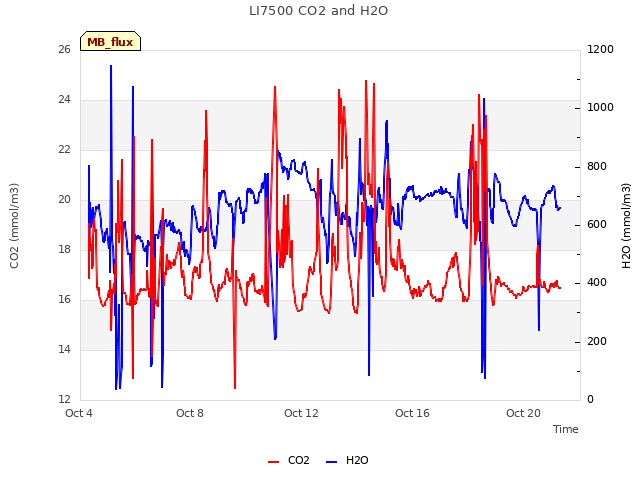

Explore the graph:LI7500 CO2 and H2O in a new window

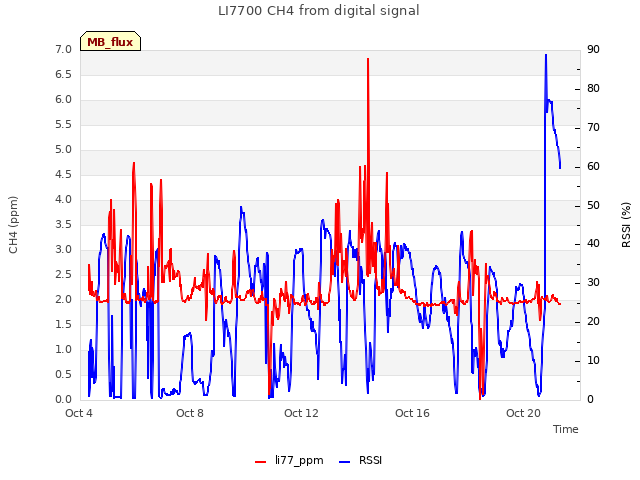

Explore the graph:LI7700 CH4 from digital signal in a new window

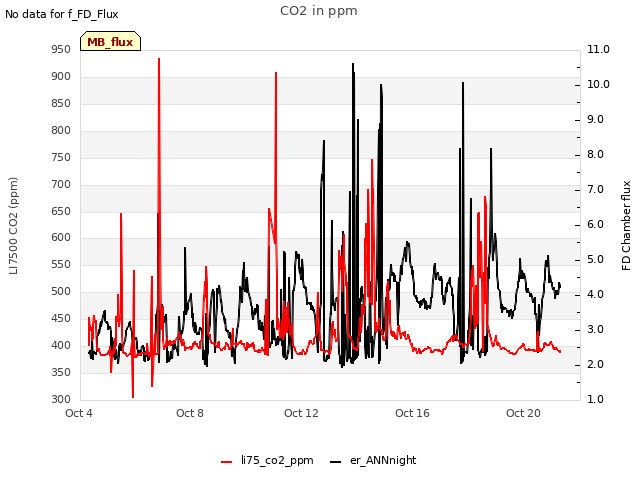

Explore the graph:CO2 in ppm in a new window

5 MB_met graphs found

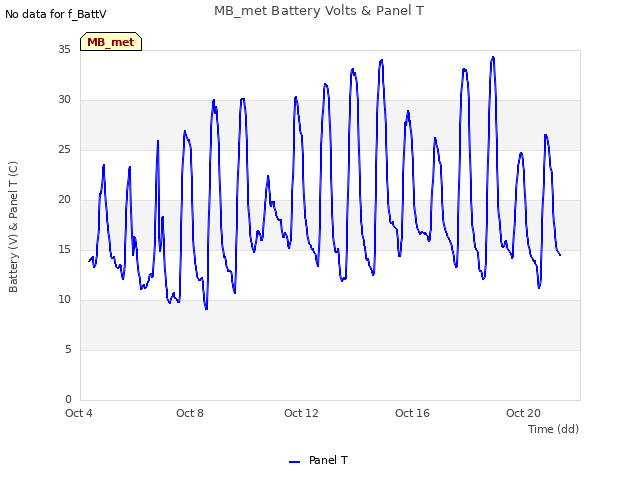

Explore the graph:MB_met Battery Volts & Panel T in a new window

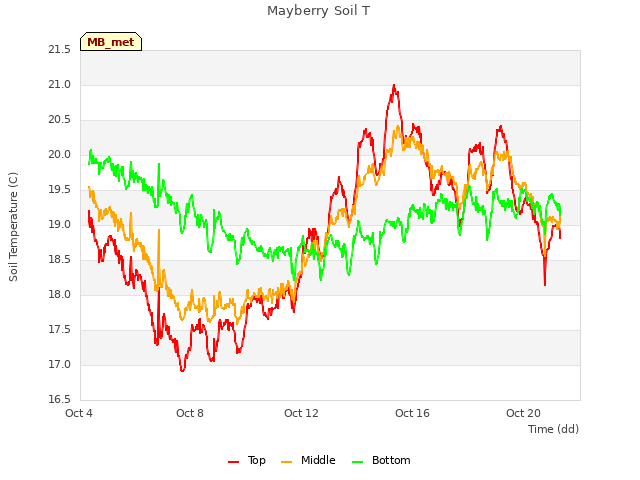

Explore the graph:Mayberry Soil T in a new window

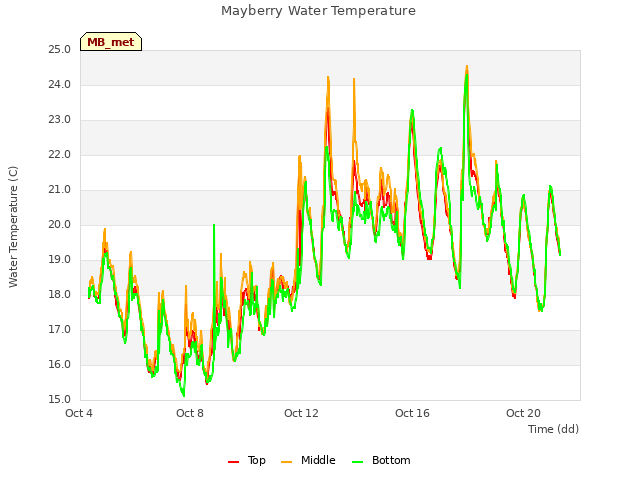

Explore the graph:Mayberry Water Temperature in a new window

Explore the graph:Mayberry Dissolved Oxygen in a new window

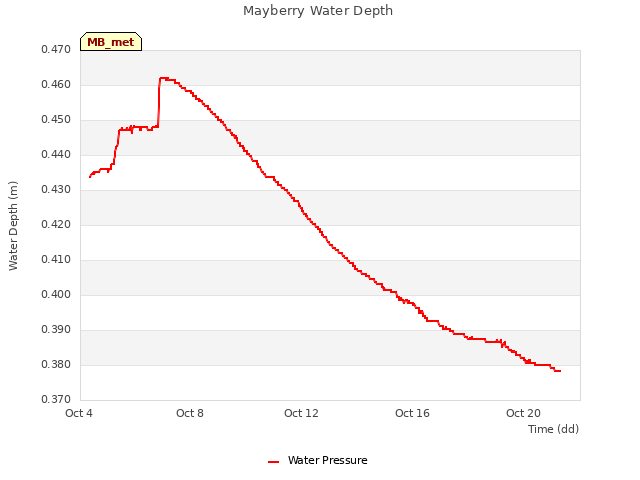

Explore the graph:Mayberry Water Depth in a new window

28 MB_tule graphs found

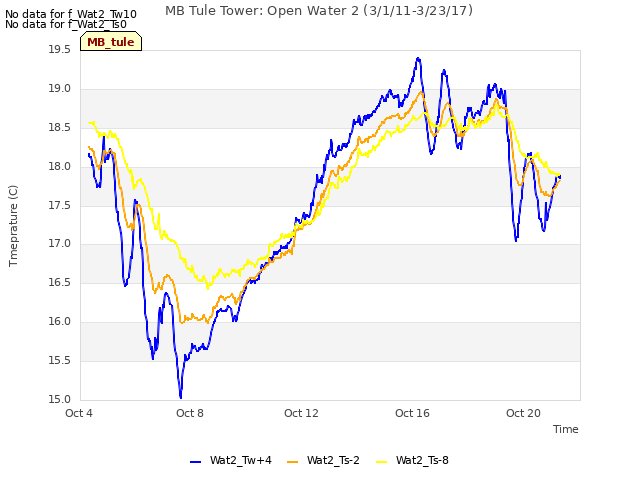

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

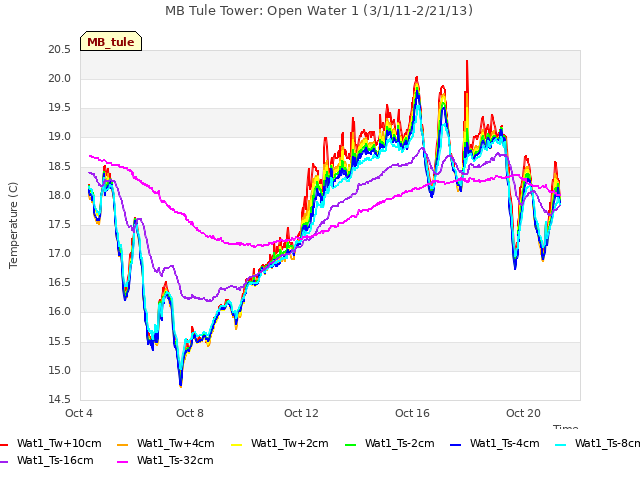

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

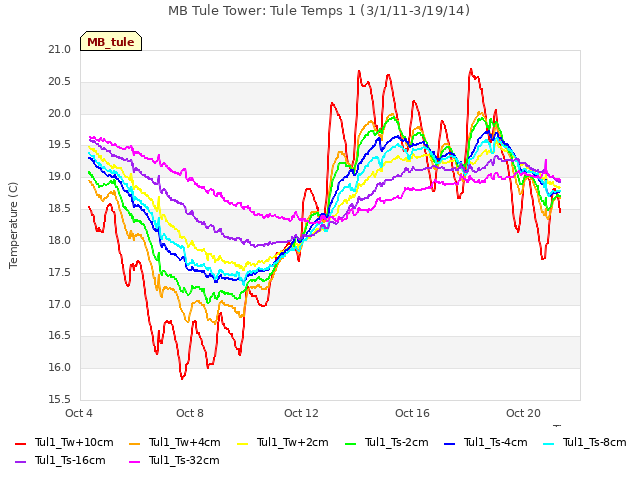

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

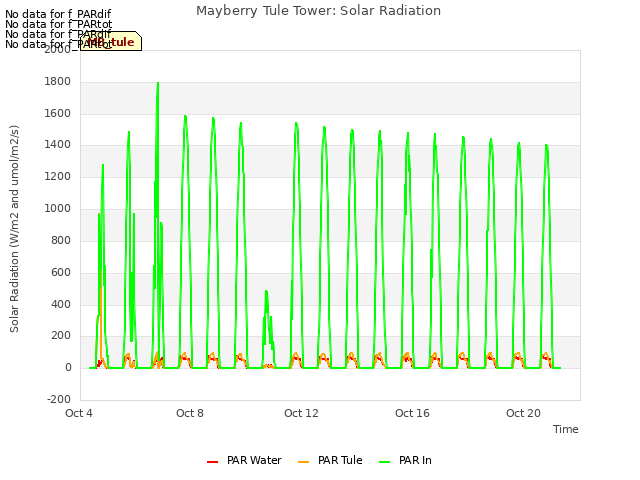

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

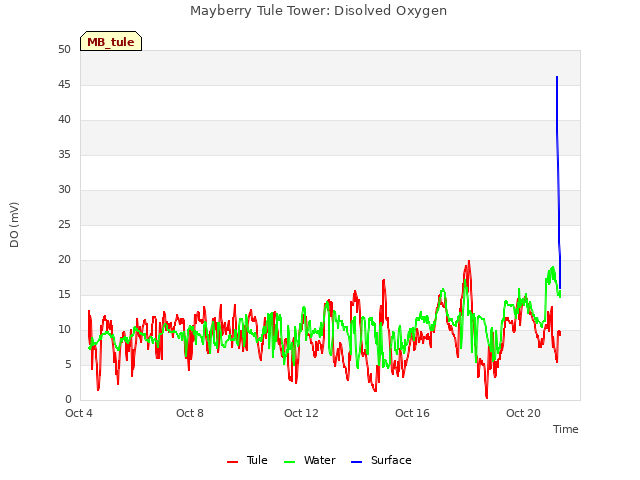

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

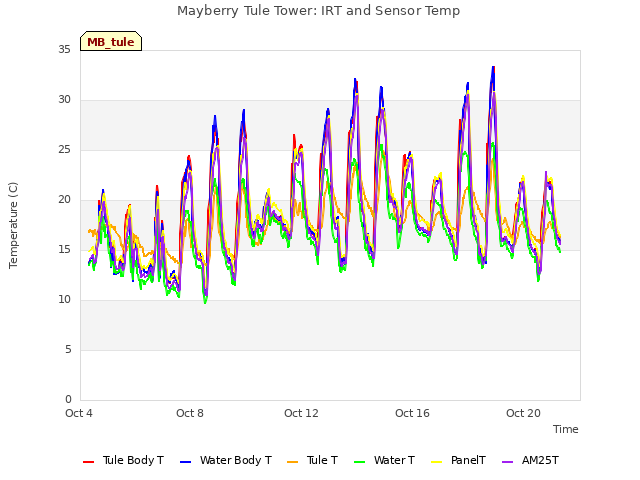

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

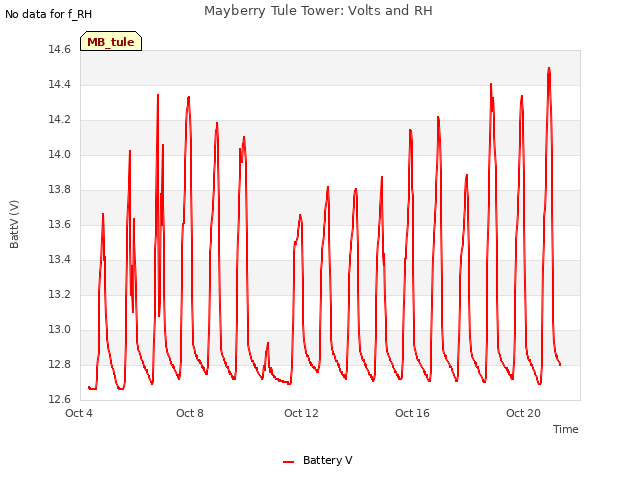

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

Explore the graph:Water Temperatures in a new window

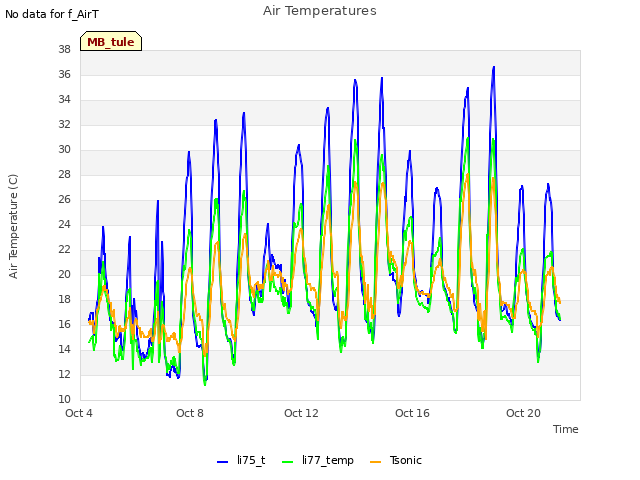

Explore the graph:Air Temperatures in a new window

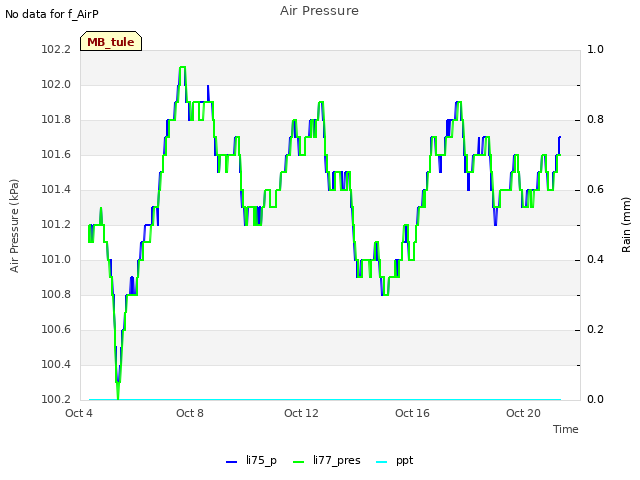

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

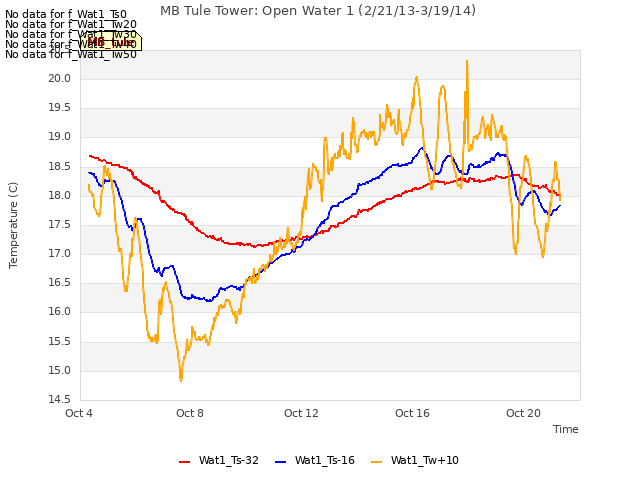

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

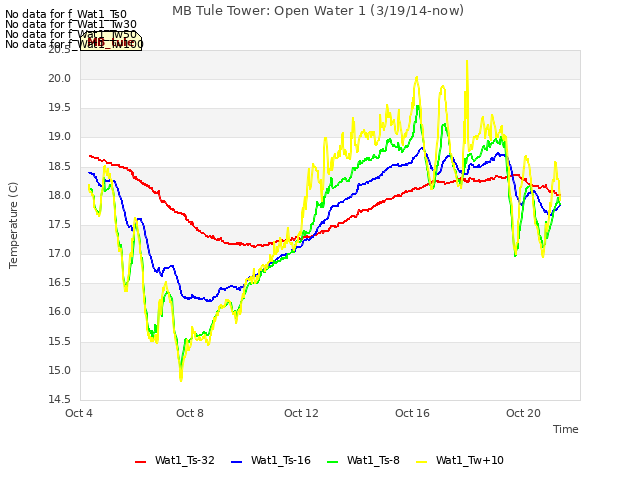

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

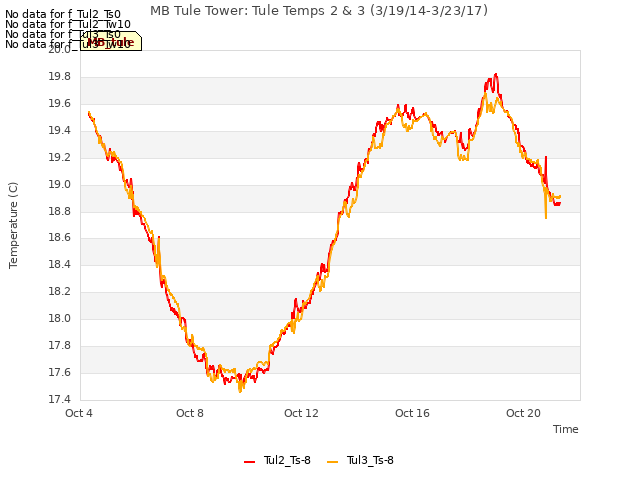

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

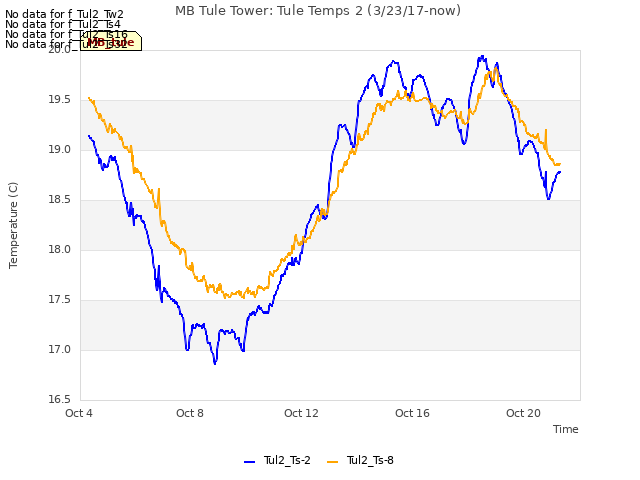

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

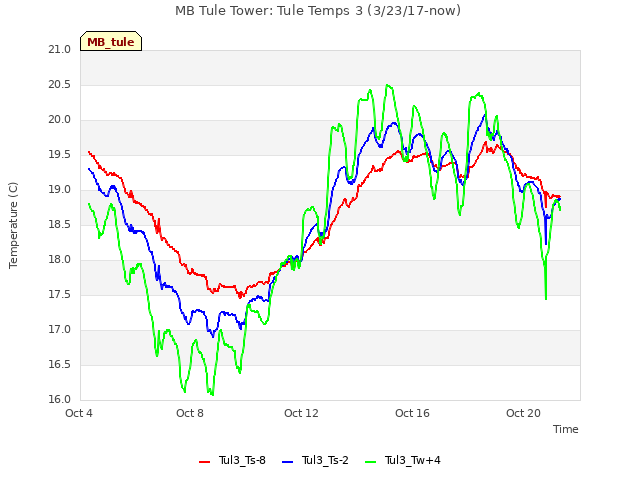

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Soil electrical conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

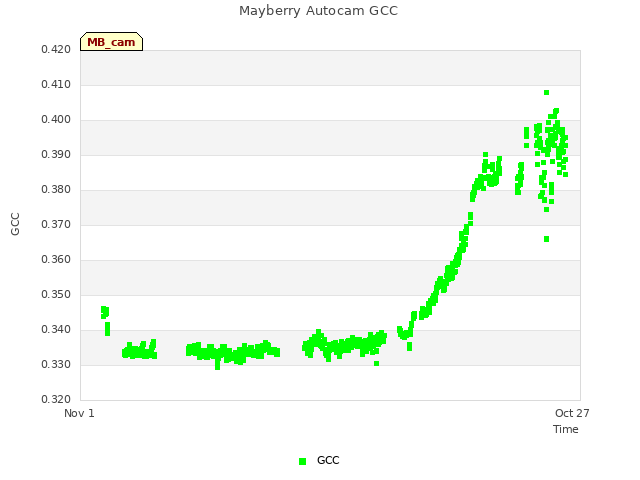

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

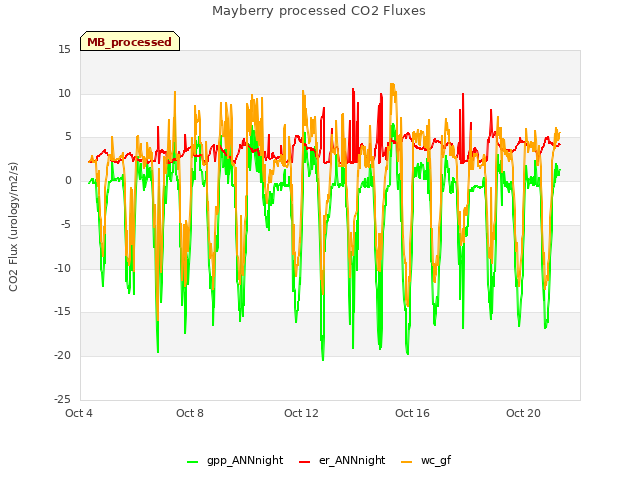

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
