Sherman Island: 2011-10-20 10:00:00 (DOY 293)
Author: Jaclyn Hatala
Others: Sara Knox

Summary: Removed old Vaisala probes

Arrived at the Sherman pasture with Sara about 10am. Light winds from the southwest, and temperature warming (17C). Cows are in the far northwest field outside the tower footprint. All looked well in the data, but Pressure seemed weird (2273?) but maybe these are in different units. Downloaded turbulence, met, and digital photo data.

Sara worked on getting the equipment ready to replace the Vaisala probes with the new ones she calibrated in the lab. We tried very hard, but the soil is still too dry to use the small corer (the one the size of the probe PVC pipe), so she's going to wait until a few more rains to install them. She pulled out all the old probes and thermocouples and brought them back to the lab, so that the box is ready for the new ones.

Jaclyn measured soil moisture with the MoisturePoint (the profiles are starting to increase in moisture) and measured well depths (water table about 60cm). Couldn't take spectral measurements since the white field laptop batteries were totally drained - we need to find a solution to this in the lab so that it's powered up for fieldwork.

0 photos found

Graphs display:
7 sets found

1 SI_mp graphs found

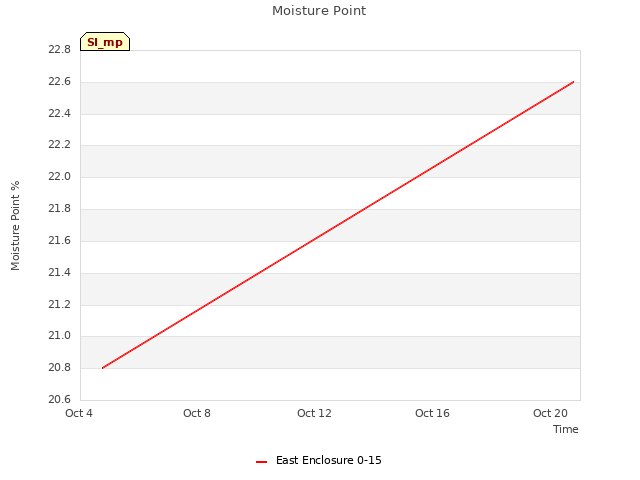

Moisture Point

11 SI_met graphs found

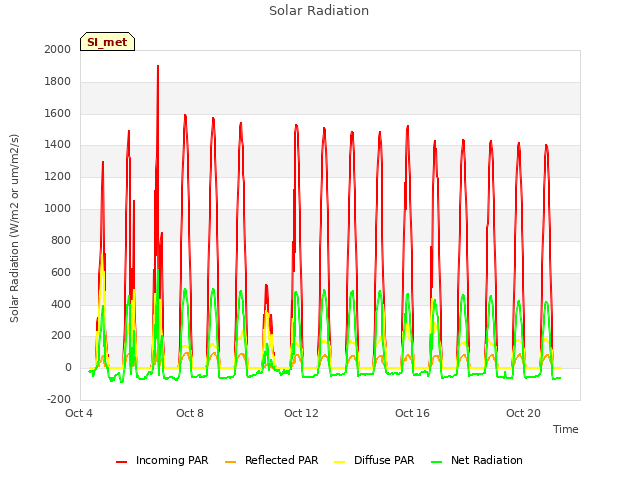

Solar Radiation

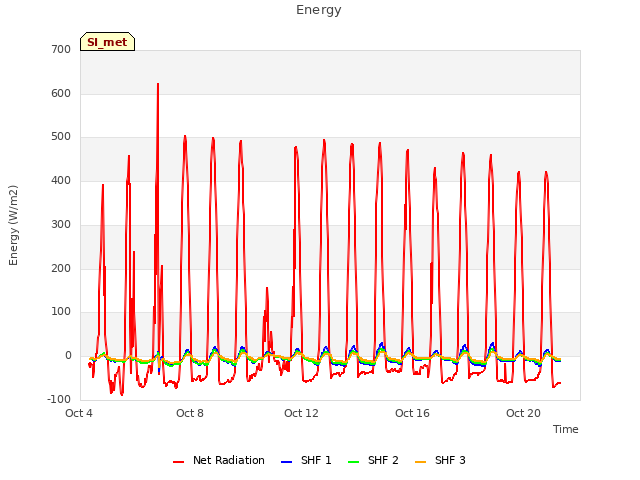

Energy

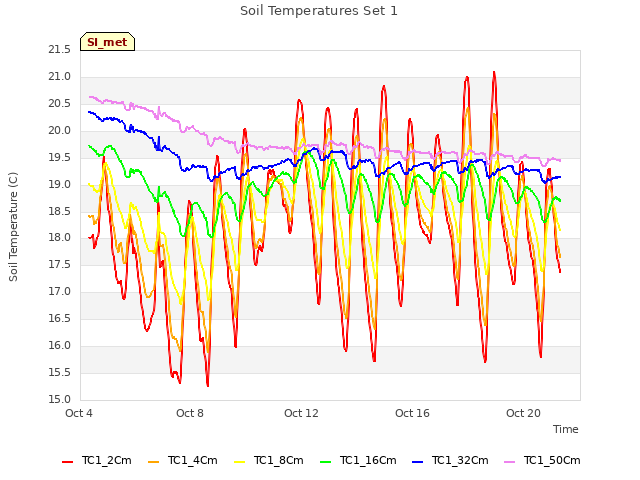

Soil Temperatures Set 1

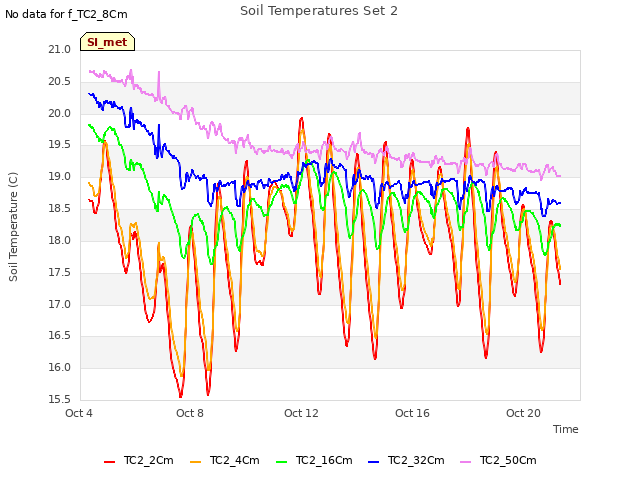

Soil Temperatures Set 2

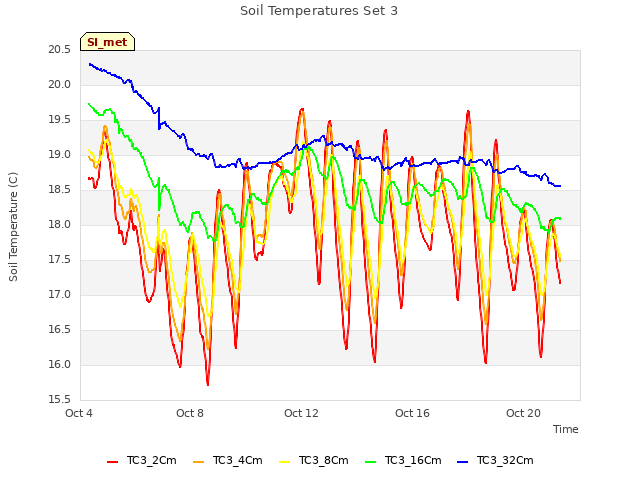

Soil Temperatures Set 3

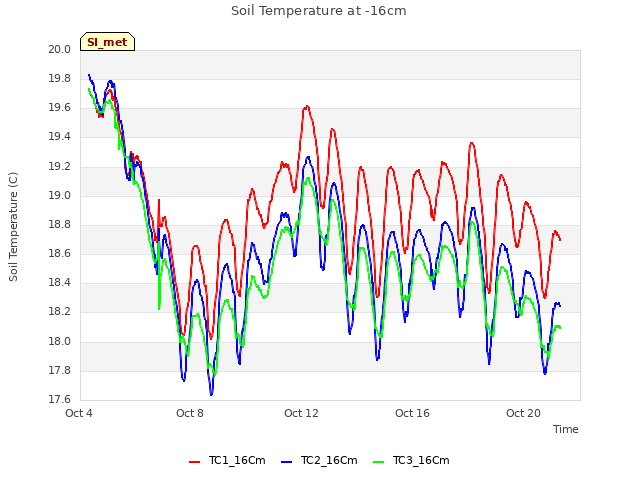

Soil Temperature at -16cm

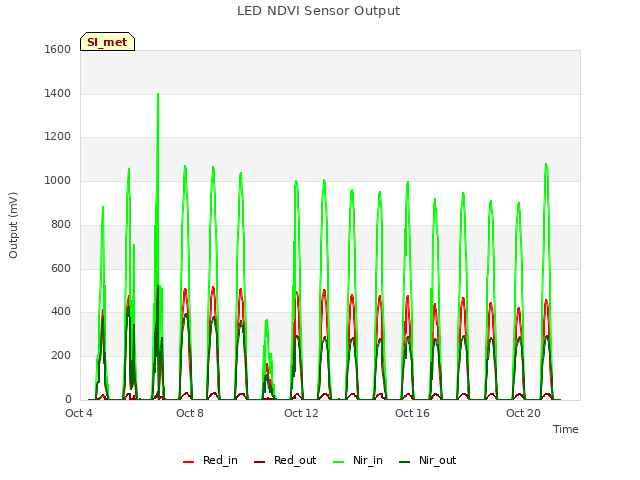

LED NDVI Sensor Output

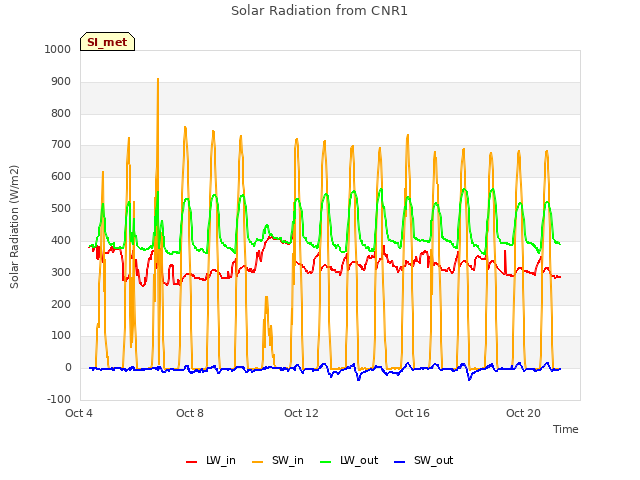

Solar Radiation from CNR1

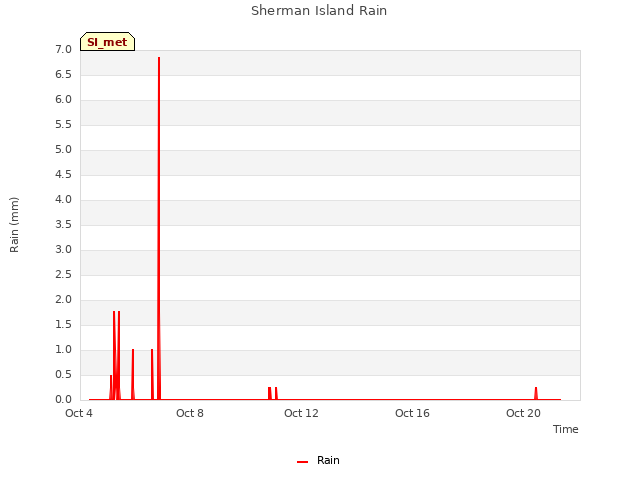

Sherman Island Rain

Sherman Well Level

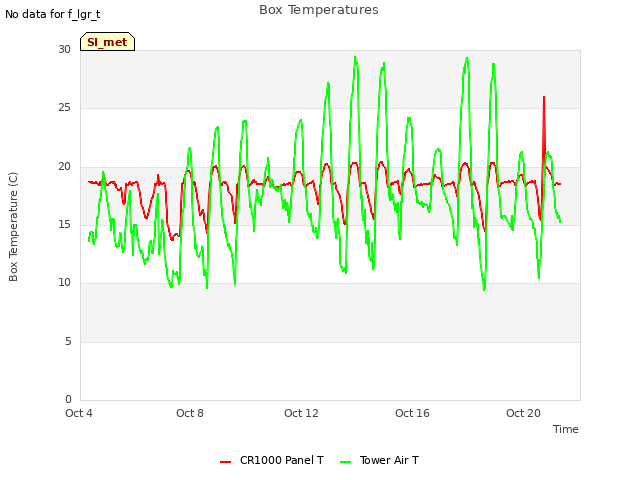

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

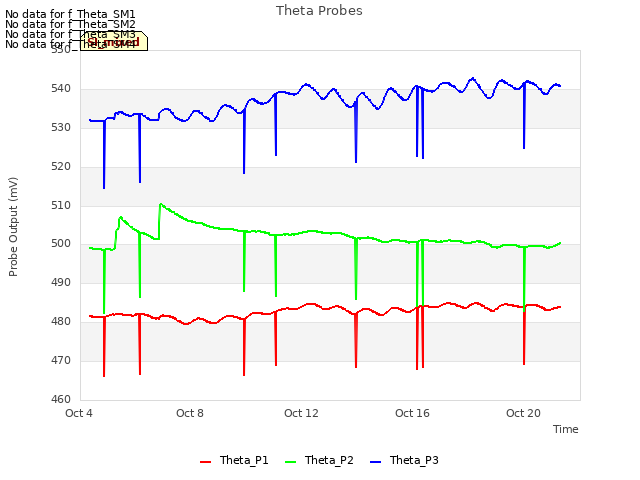

Theta Probes

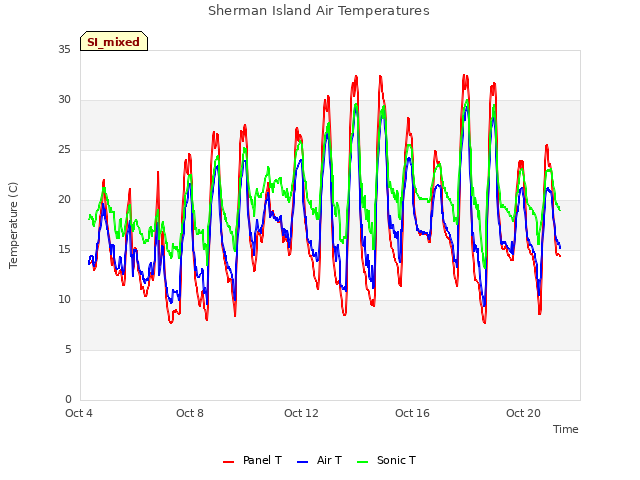

Sherman Island Air Temperatures

5 SI_flx graphs found

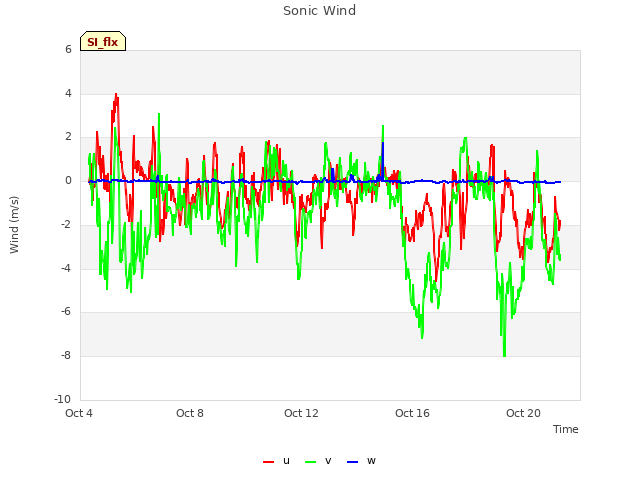

Sonic Wind

CH4 Concentrations

LI7700 Channels

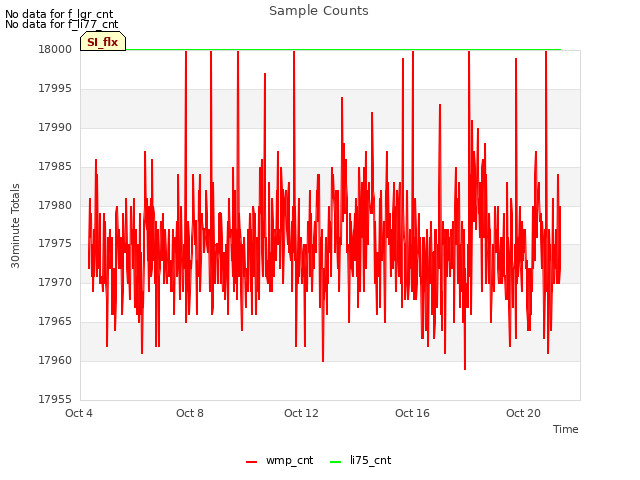

Sample Counts

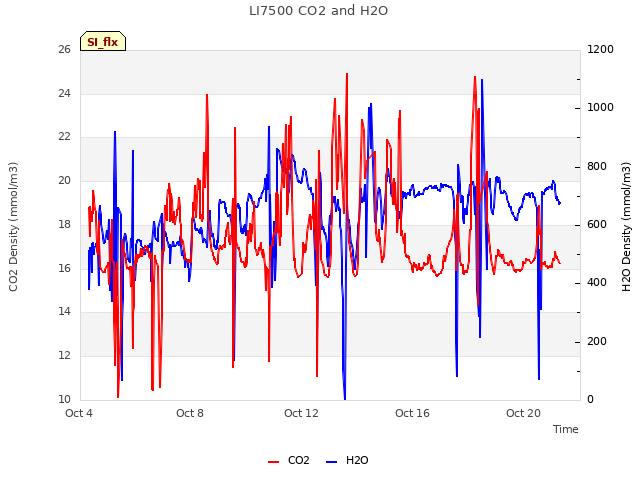

LI7500 CO2 and H2O

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
