Field Notes
<--2011-10-13 11:00:00 | 2011-10-26 09:00:00-->Other sites visited today: Vaira
Tonzi: 2011-10-18 09:30:00 (DOY 291)
Author: Joe Verfaillie
Others:
Summary: Swapped Floor 7500, Installed Stardot camera. Did EMI survey.
| Tonzi 2011-10-18 I arrived about 9:30PST. It was clear, sunny and hot with little to no wind. The ground seems drier than last Thursday but still damp in low spots. The trees are still green and healthy looking. Lots of puff ball mushrooms around. I swapped the LI7500 on the Floor tower: sn 0418 came off and sn 0073 went on. I installed a second Network Interface Card (NIC) in the tower computer and modified the case to make it fit. I installed MS FTP server and set it up to use the new NIC with IP 192.168.2.100 I installed the stardot camera sn 0030F4D0A167 above the existing web camera at the level to the top platform on the tower. I mounted its weather pod in a PVC shield on the back side (north facing) Sonic power enclosure. After downloading all the data, I modified the CR23X6 program to include the Stardot power on and power off on the switched 12V channel. The Stardot camera was working when I left, but the focus may be bad. I did an EMI survey. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

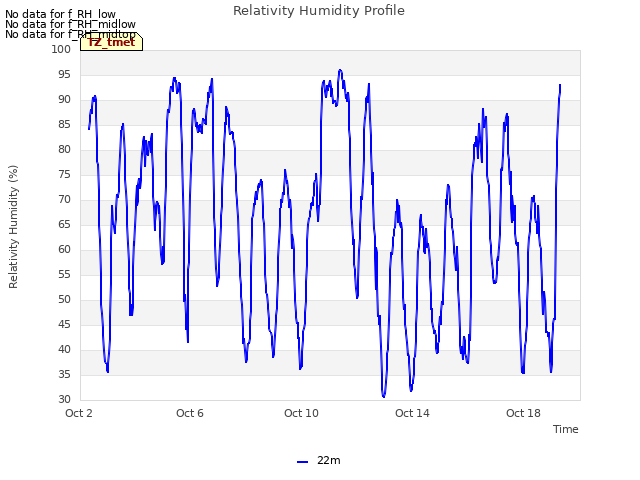

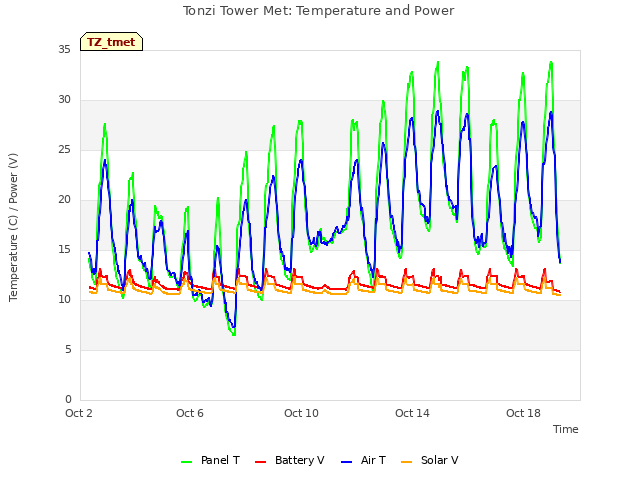

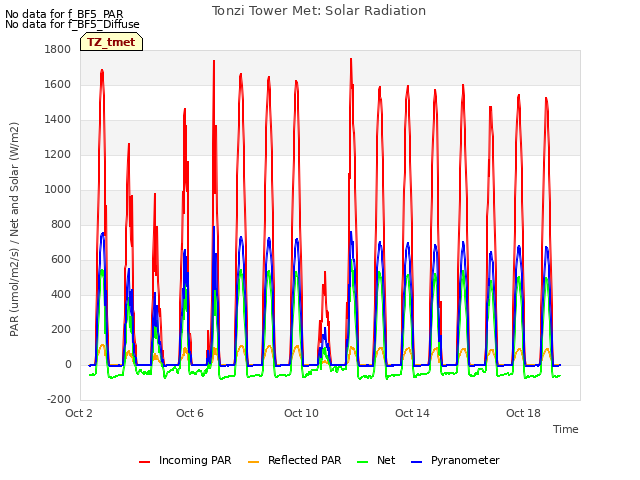

11 TZ_tmet graphs found

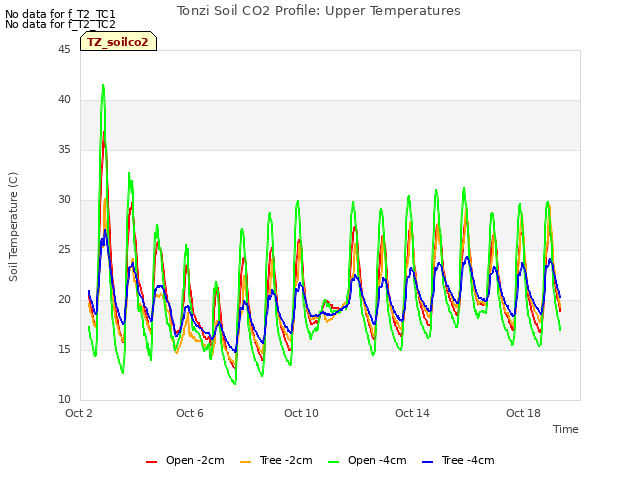

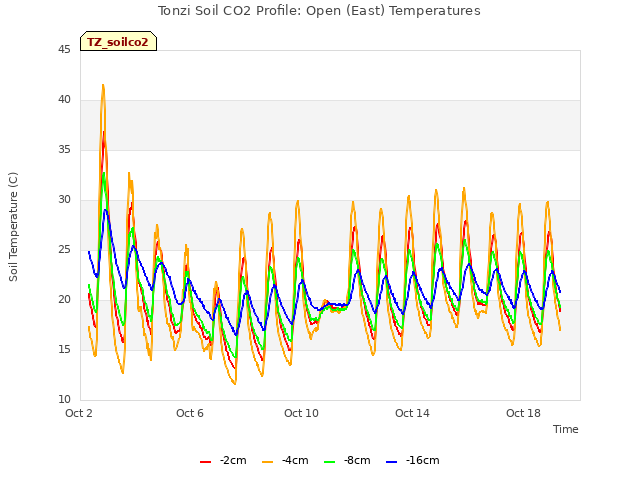

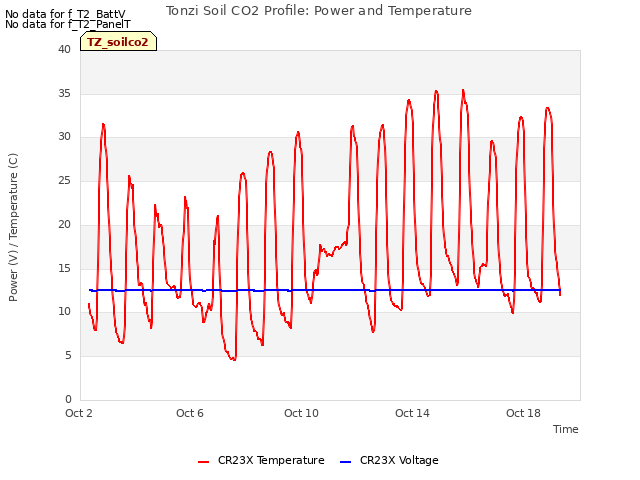

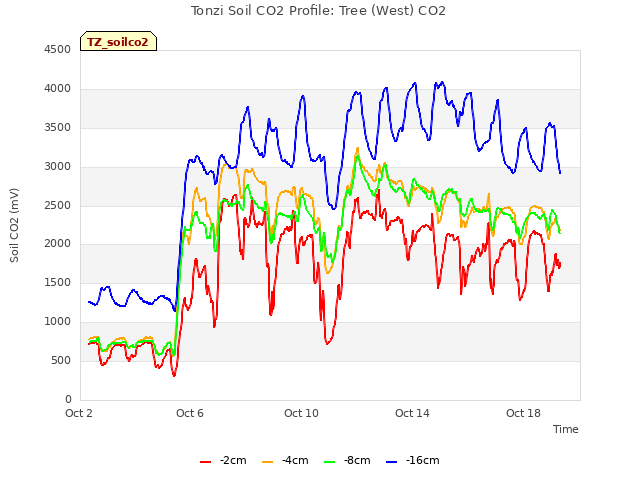

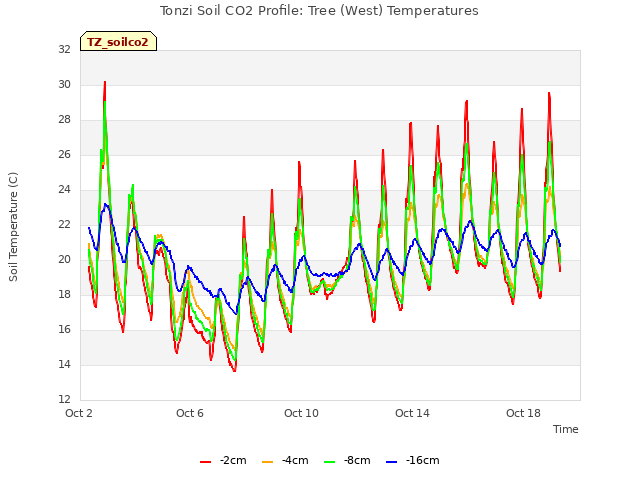

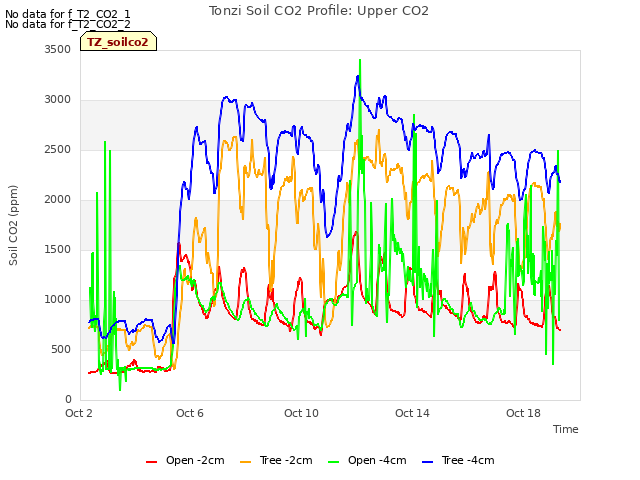

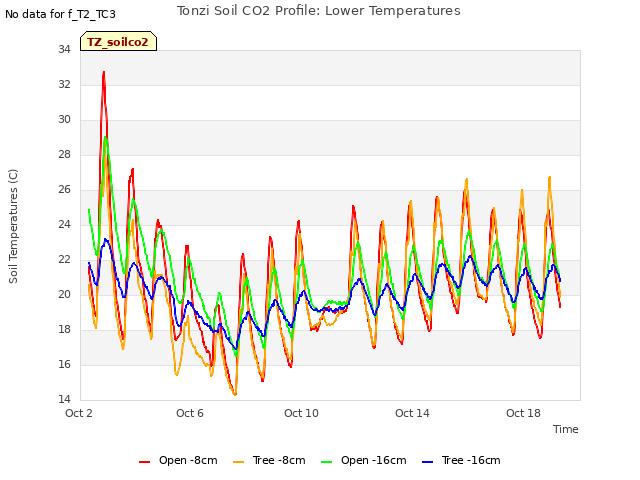

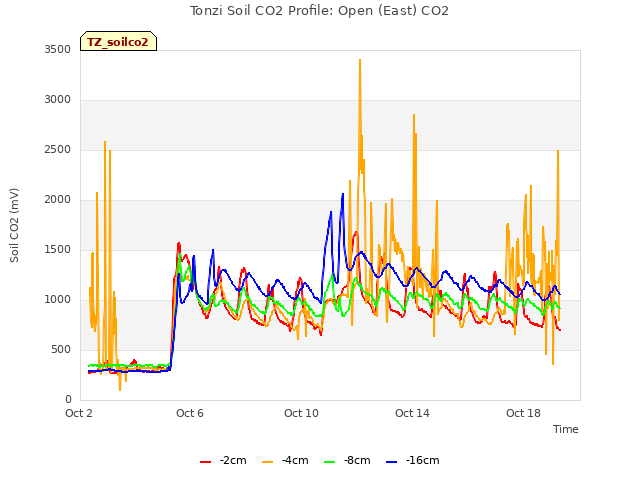

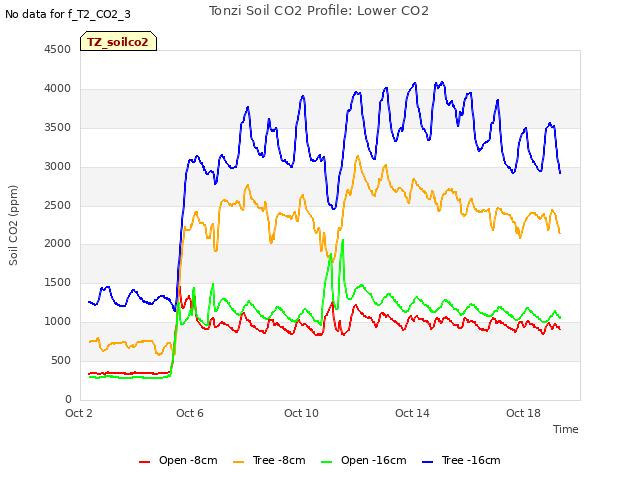

11 TZ_soilco2 graphs found
Can't check TZ_mixed

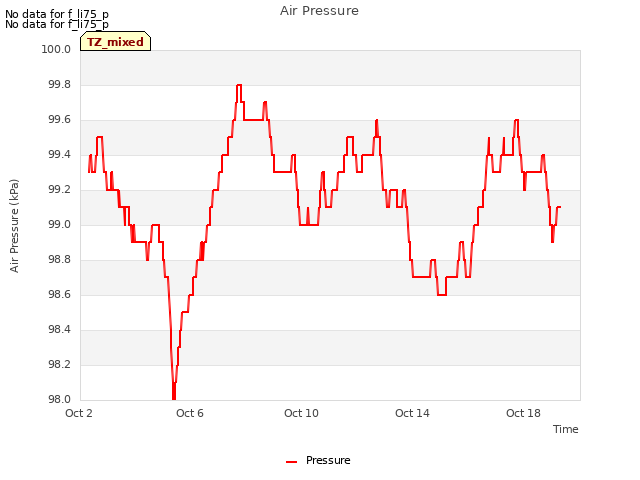

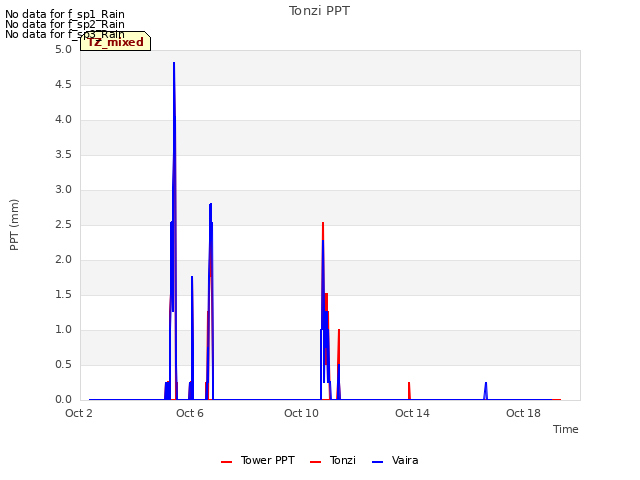

3 TZ_mixed graphs found
1 TZ_fflux graphs found

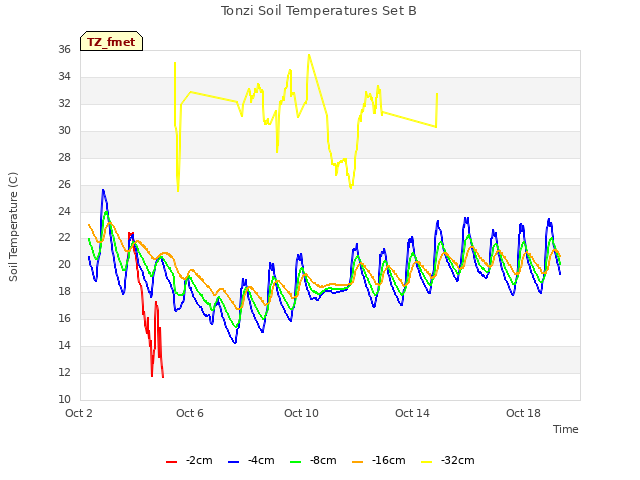

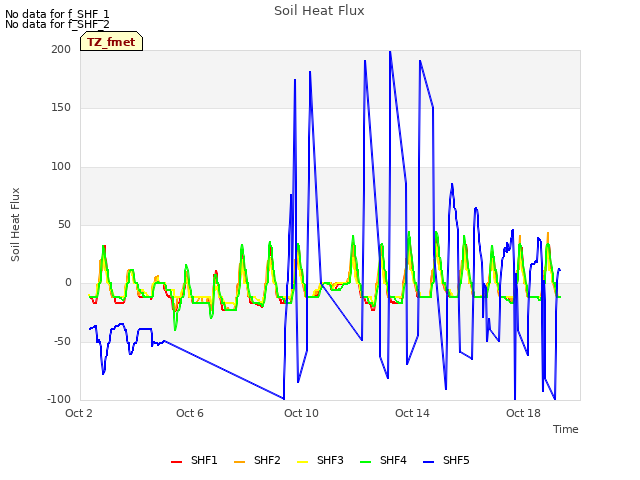

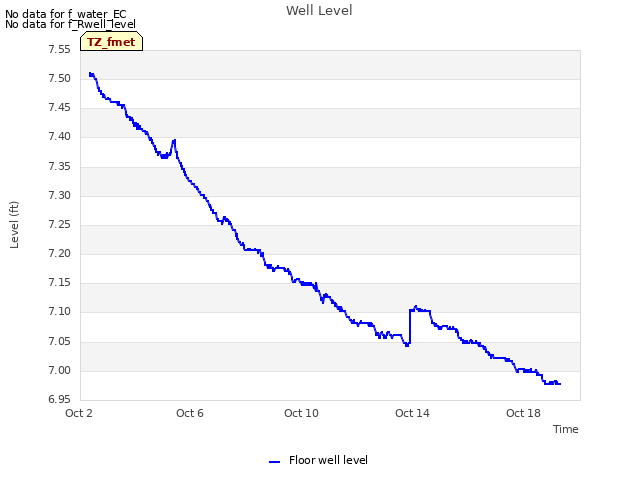

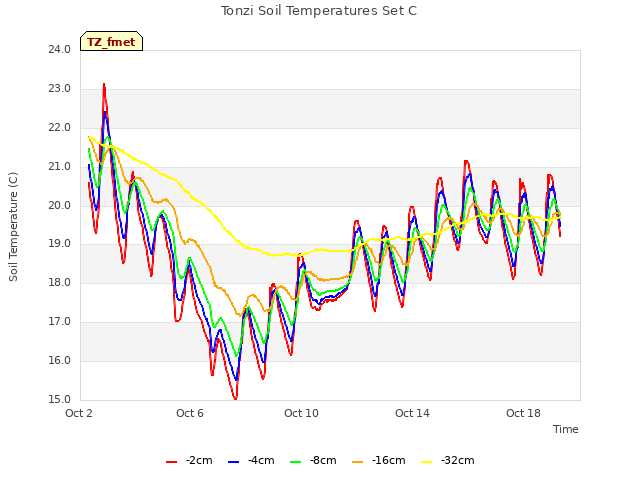

8 TZ_fmet graphs found

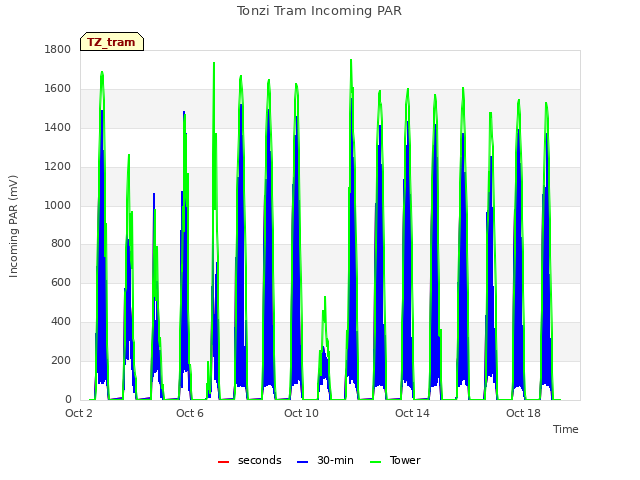

1 TZ_tram graphs found

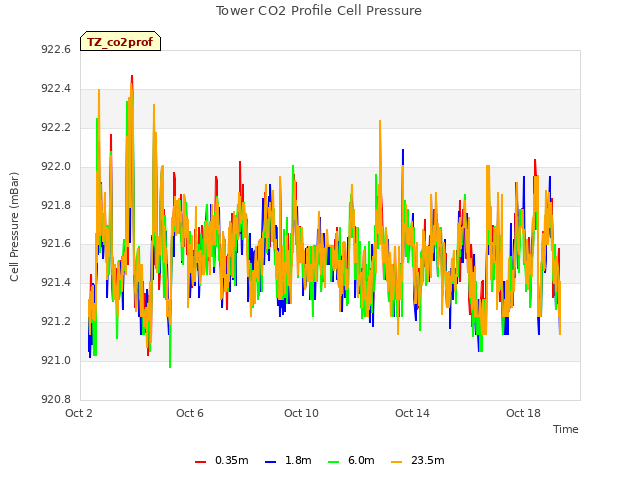

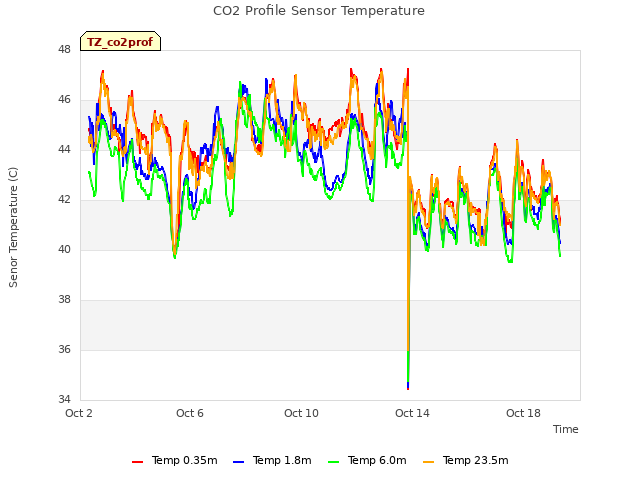

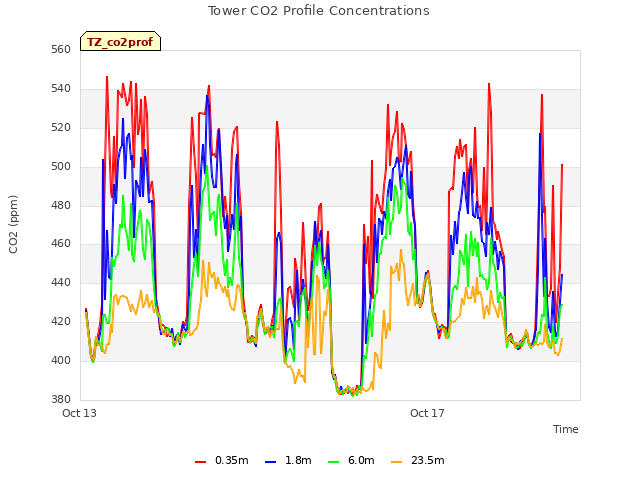

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

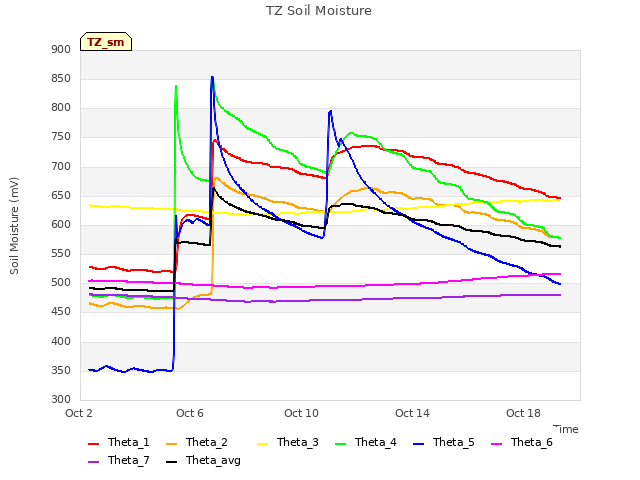

2 TZ_sm graphs found
Can't check TZ_met

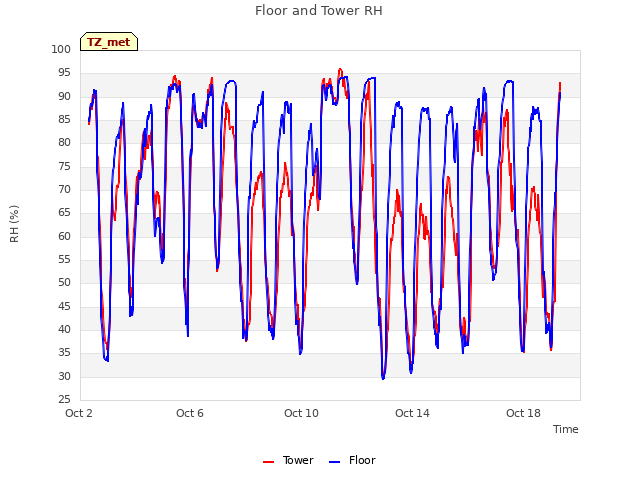

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
