Mayberry: 2011-09-22 08:30:00 (DOY 265)
Author: Joe Verfaillie
Others: Jaclyn, Emily G.
Summary: Fixed autocam mount, cleaned LI7700, collected water samples, finished extending tule TCs and connecting them.
| Mayberry

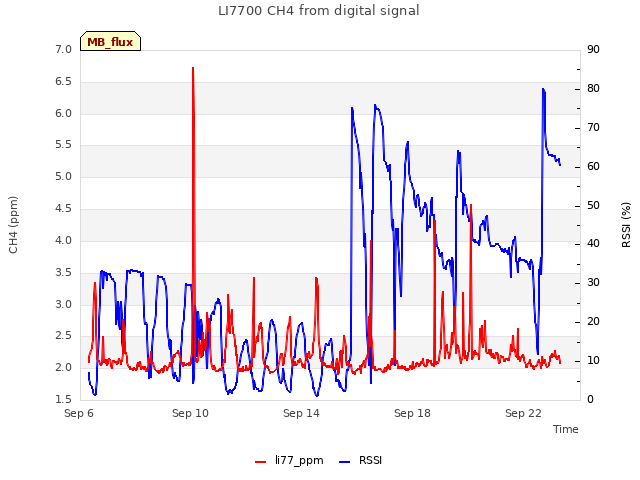

2011-09-22 I arrived with Jaclyn and Emily G about 8:30PST. It was clear and sunny but cool for this time of year. There was a very light breeze from the west. Jaclyn swears the plants grow a foot a week. There were some ducks near by. Something had sat on the auto cam and bent down to look at the ground. I fixed its alignment and the camera was on, but I restarted it. The RSSI was about 43. Cleaning the bottom mirror only improved it slightly. Cleaning the upper mirror brought the RSSI up to about 83. Everything else looked okay. Jaclyn and Emily collected some water samples. We finished extending the Tule TCs and got them all hooked up to the data logger. They all seemed okay. Jaclyn also hooked up the water SHF plate and tried to get it on the bottom with the right side up. |
4 photos found
Work at Tule Tower.
Work at Tule Tower.
Work at Tule Tower.
Bird bent camera down again.
11 sets found

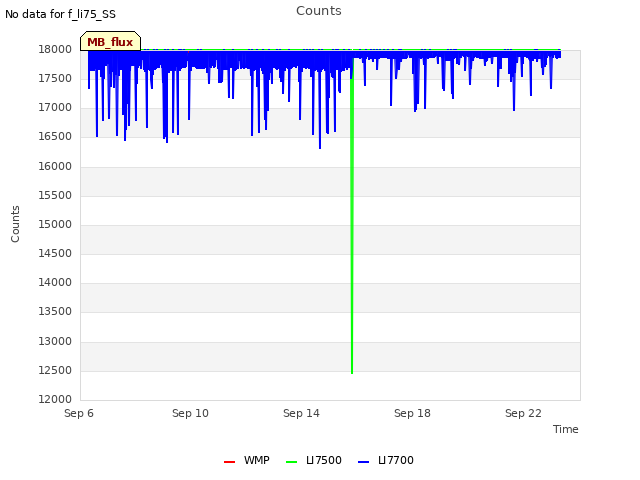

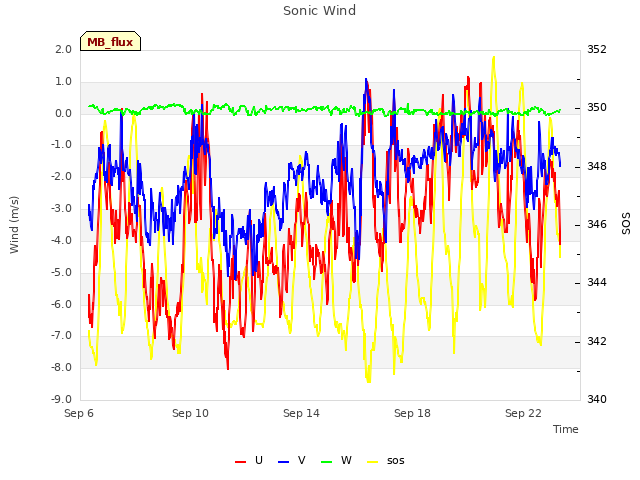

7 MB_flux graphs found

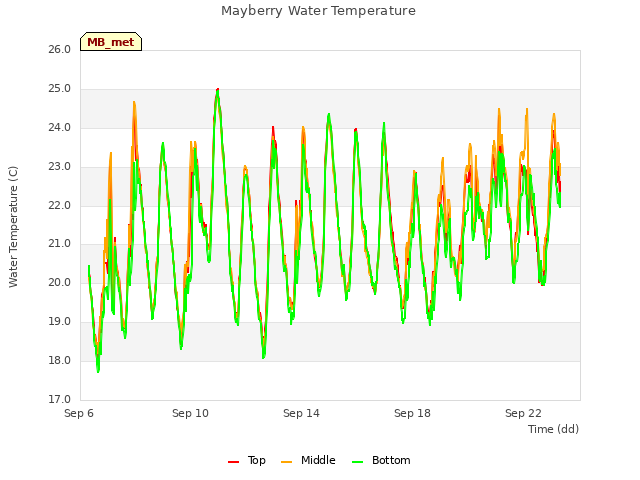

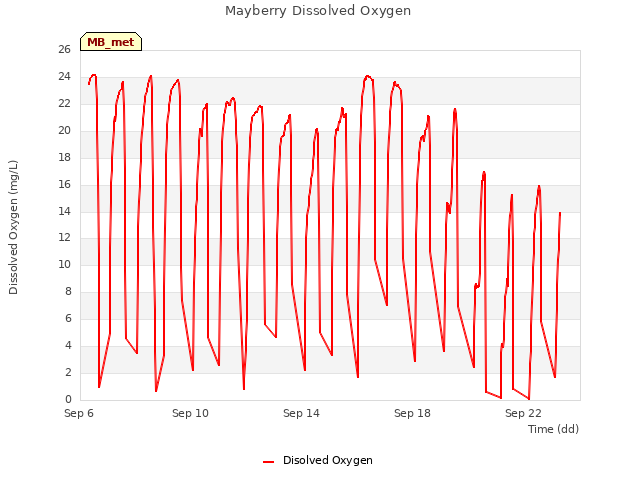

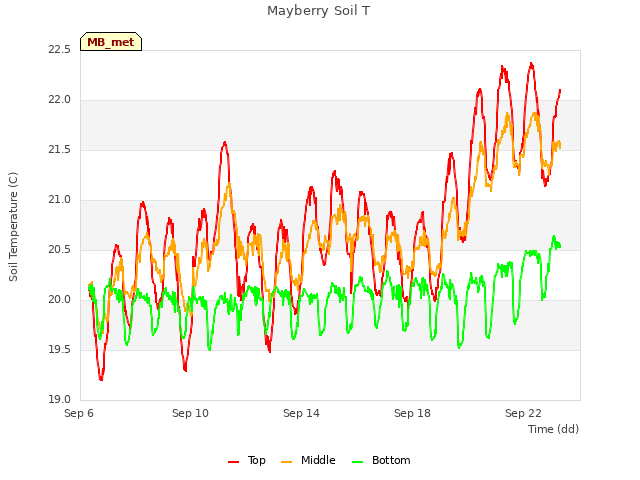

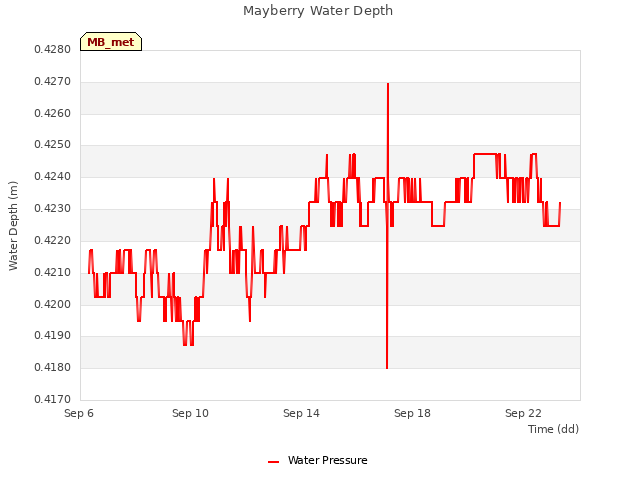

5 MB_met graphs found

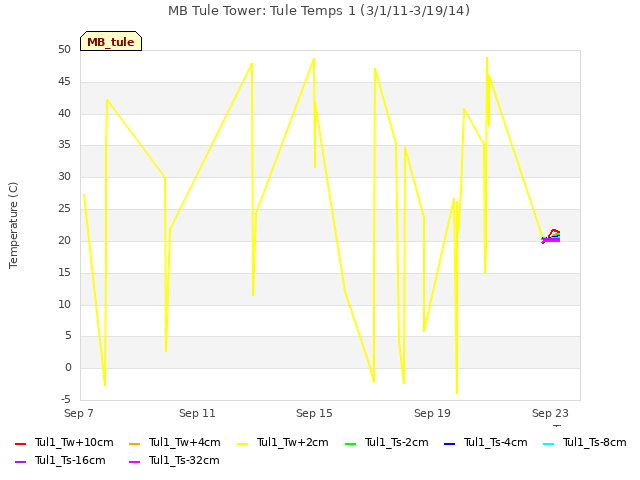

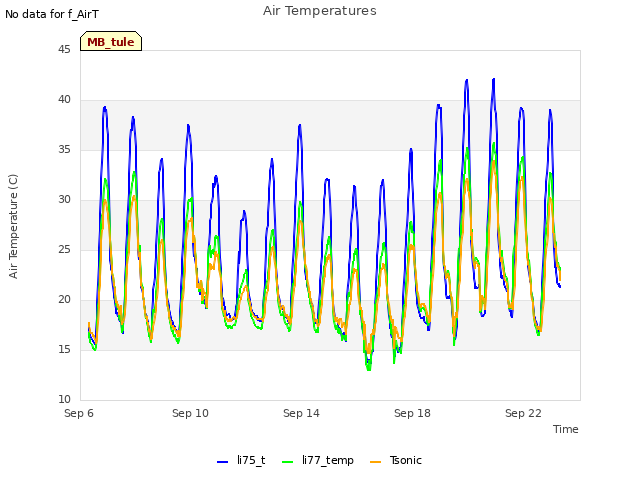

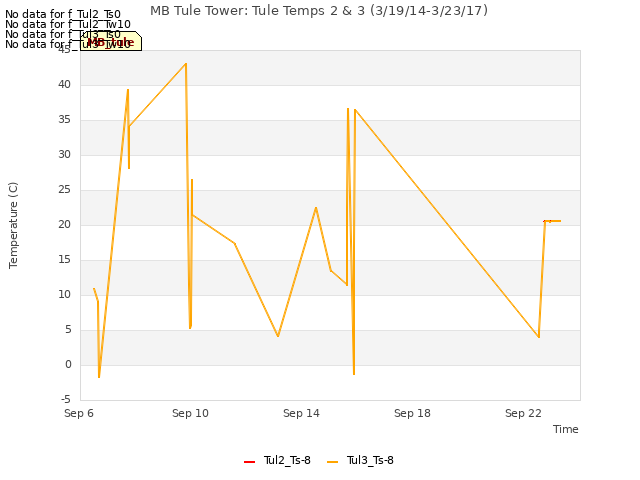

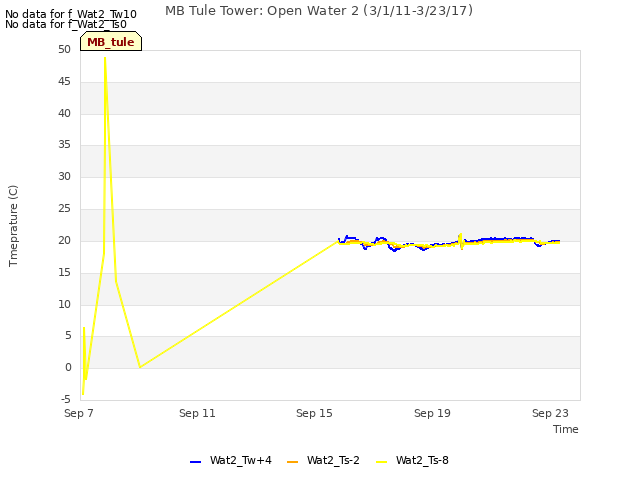

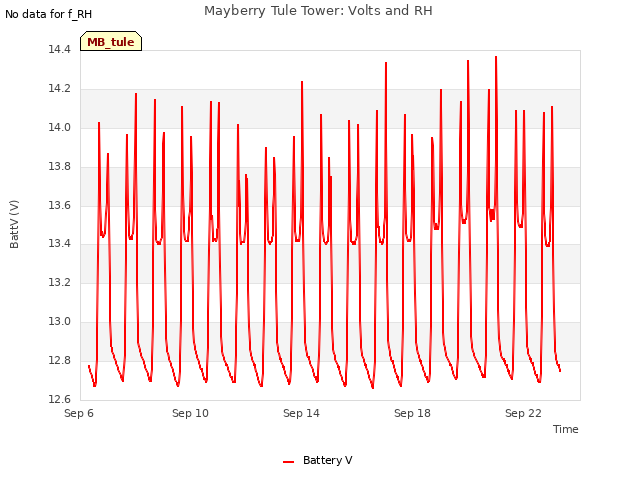

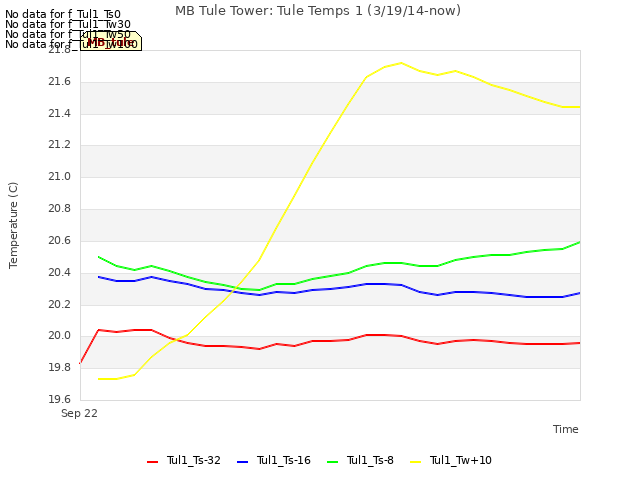

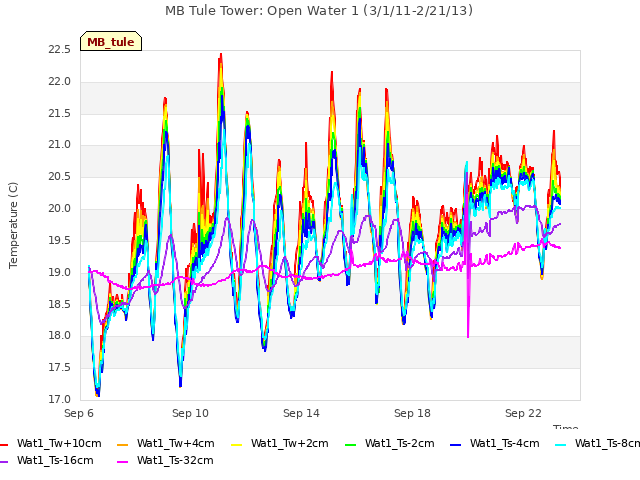

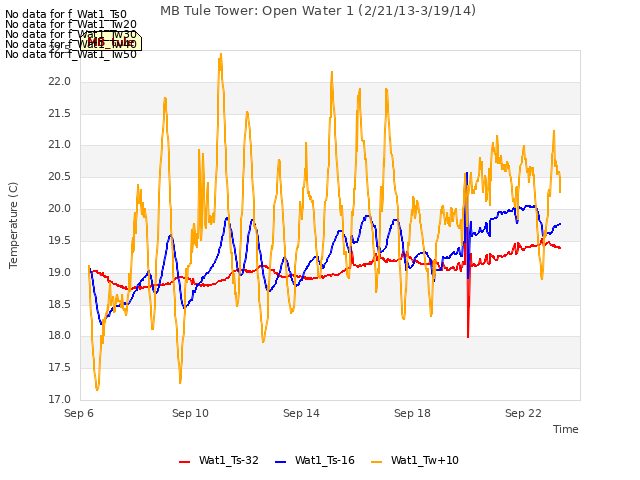

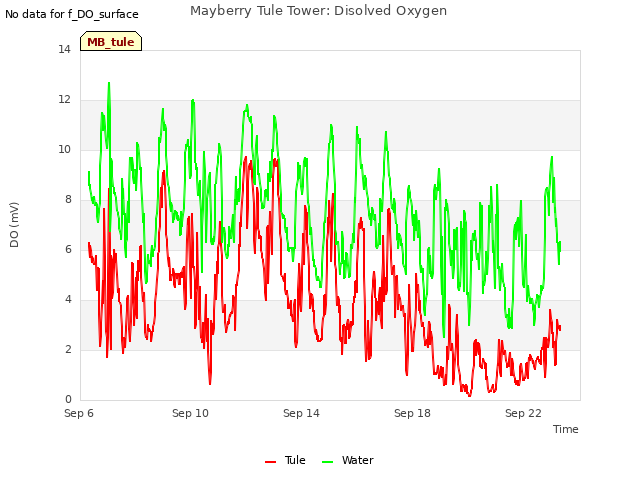

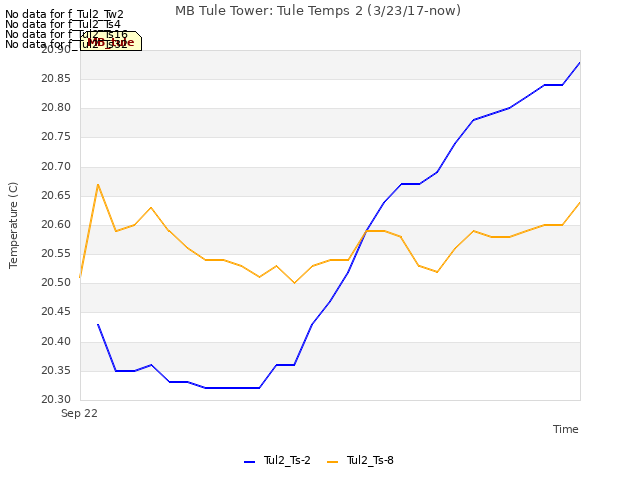

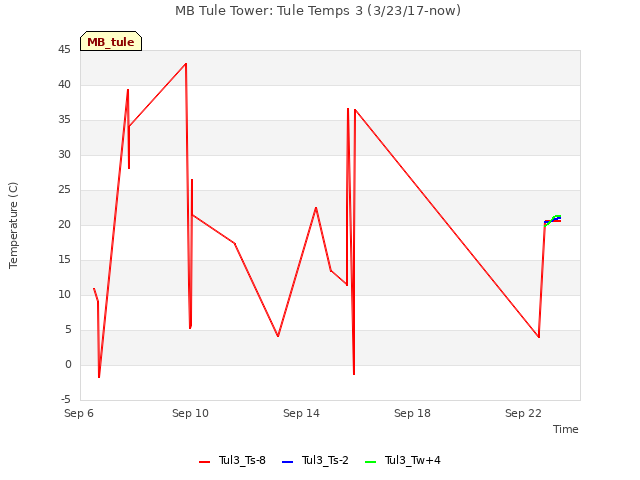

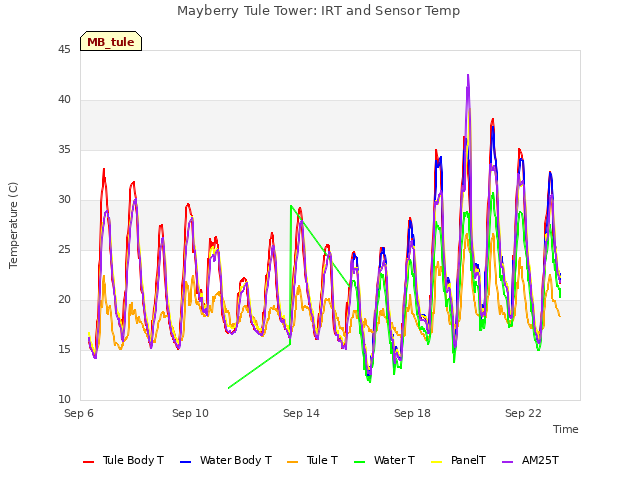

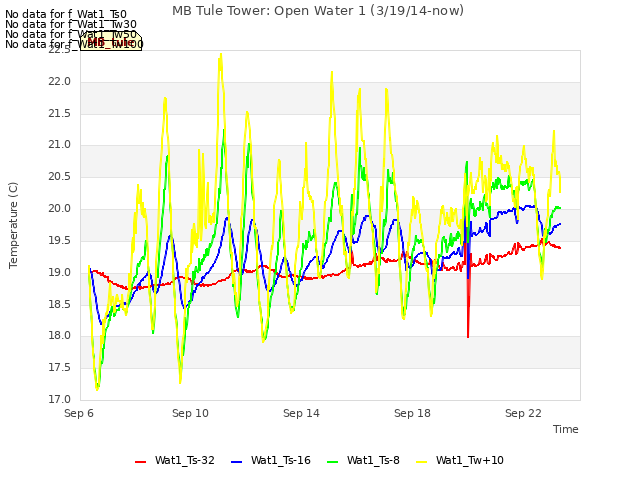

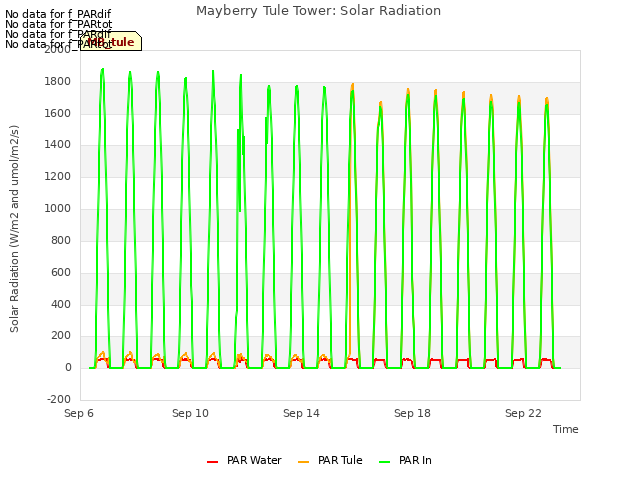

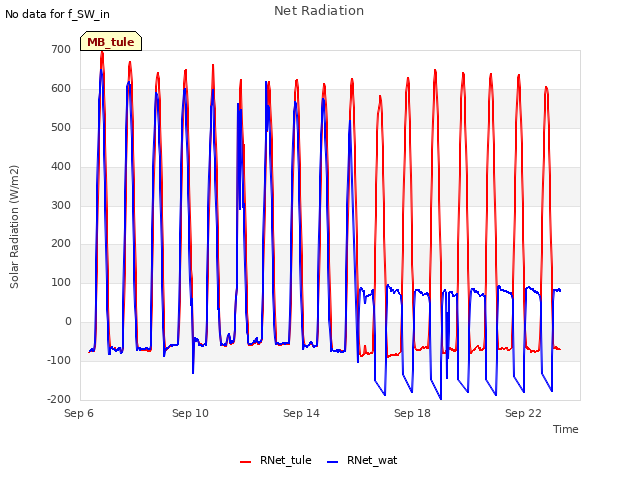

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

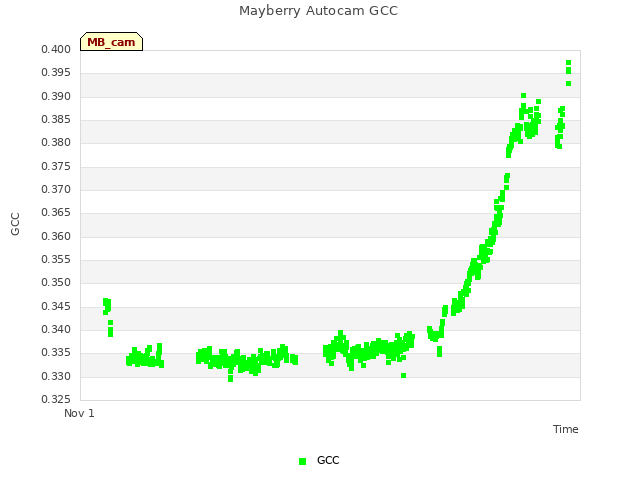

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

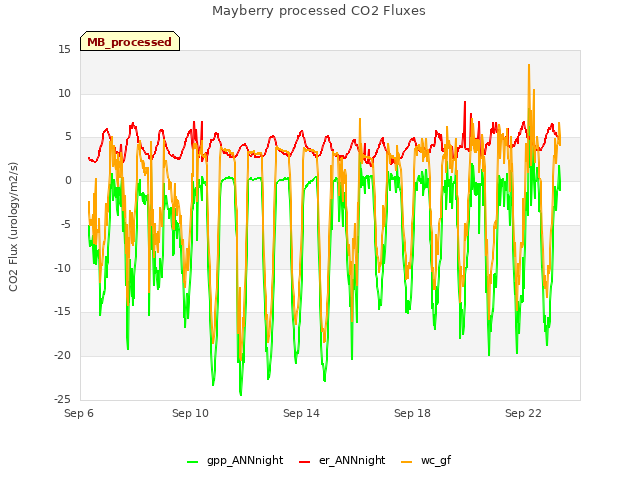

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
