<--2011-08-09 08:30:00 | 2011-09-16 08:00:00-->Other sites visited today: Tonzi
Vaira: 2011-08-31 08:30:00 (DOY 243)
Author: Joe Verfaillie
Others: Siyan, Laurie
Summary: Standard fieldwork. Very dry.
| Vaira

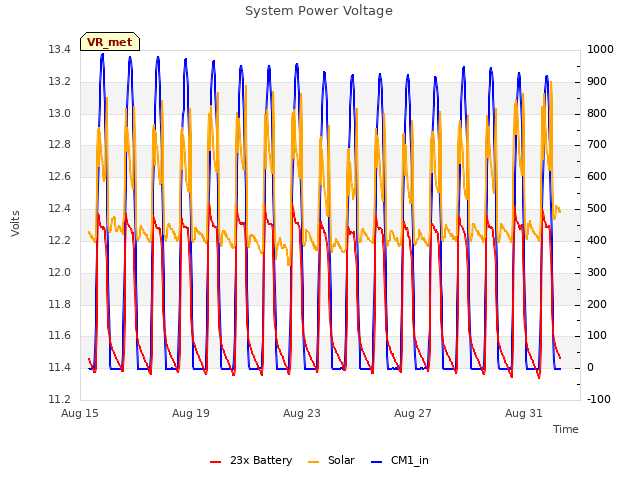

2011-08-31 I arrived about 9:30PDT with Siyan and Laurie. It was clear, hot and sunny. There was a breeze from the west. The trees still look green. There was a little water left in the water hole to the south of the road near the site, but the water level was much lower than last time. The grass is dry and brittle. Still some grasshoppers around. We did the standard field work. I read the moisture point probes. The solar system reported 13.2V, 9.9A solar and 3.2A load with the screen on. Siyan checked the radiometers and rain bucket. The Ocean Optics software had some problems. A menu bar was missing from the window and it was not immediately obvious how to restore it. Finally after fussing around a bit I got it straightened out. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2011-08-31 | TZ_floor | 23 |
| 2011-08-31 | TZ_road | 32.6 |
| 2011-08-31 | TZ_tower | 28.4 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
2 photos found
view of field site
view of field site
9 sets found

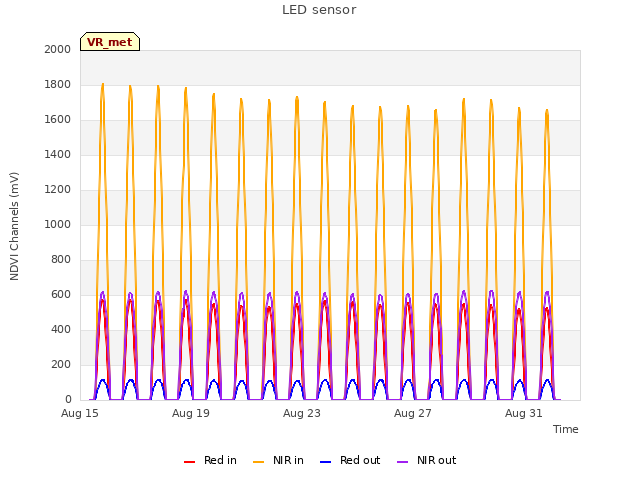

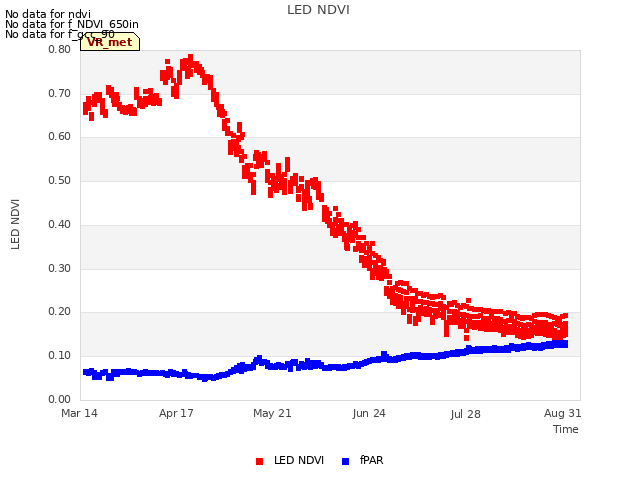

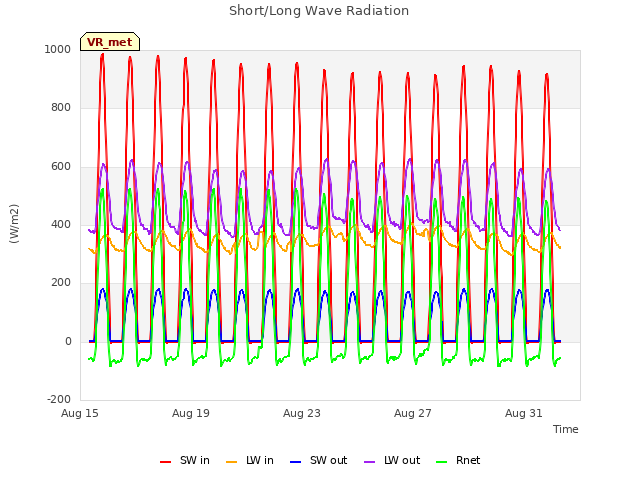

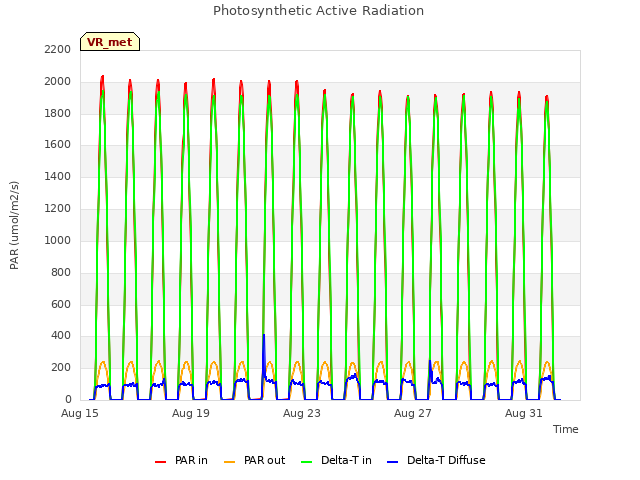

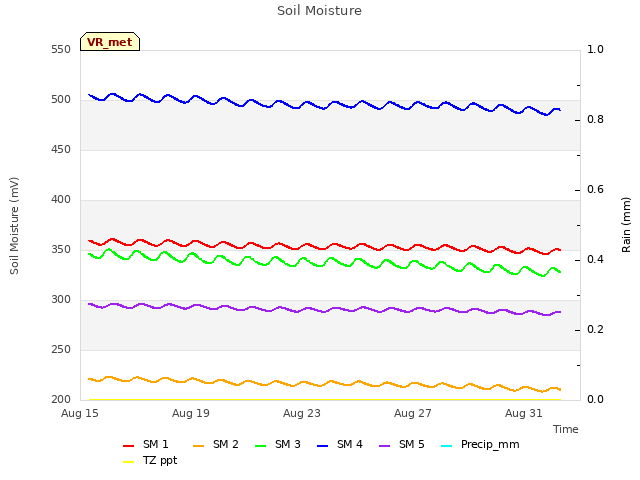

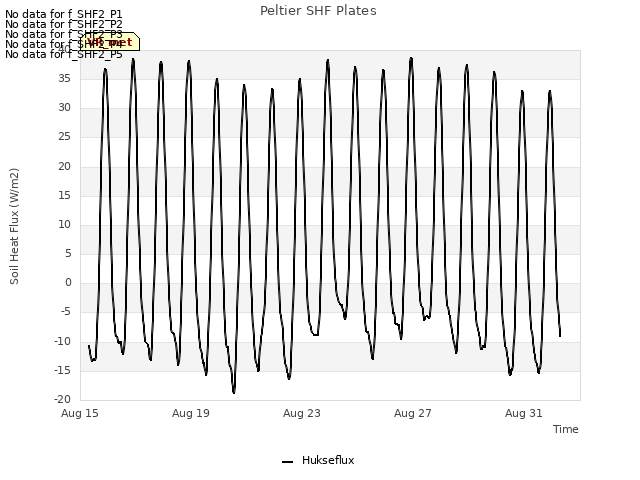

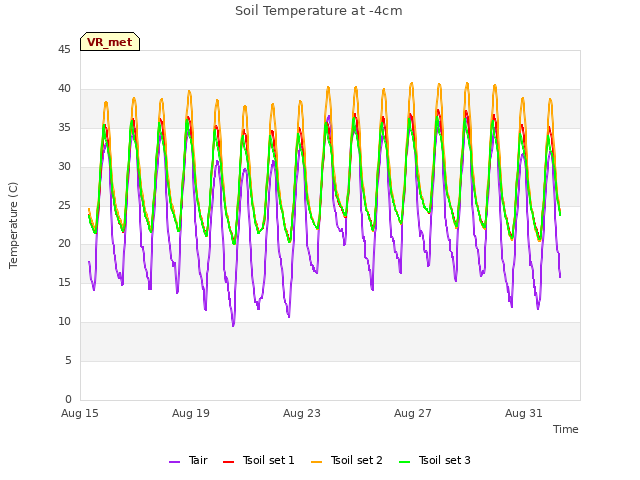

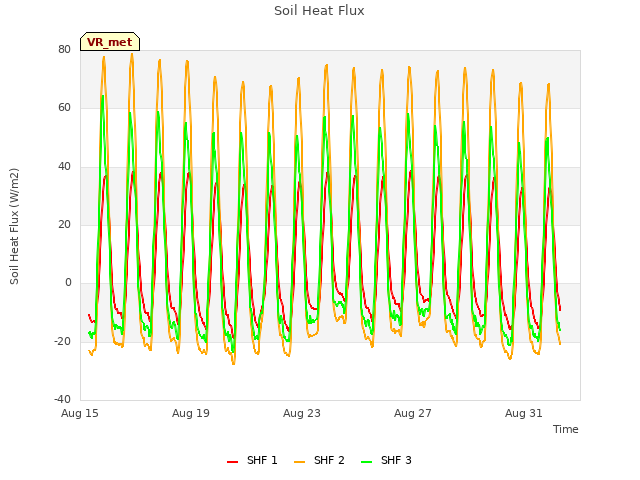

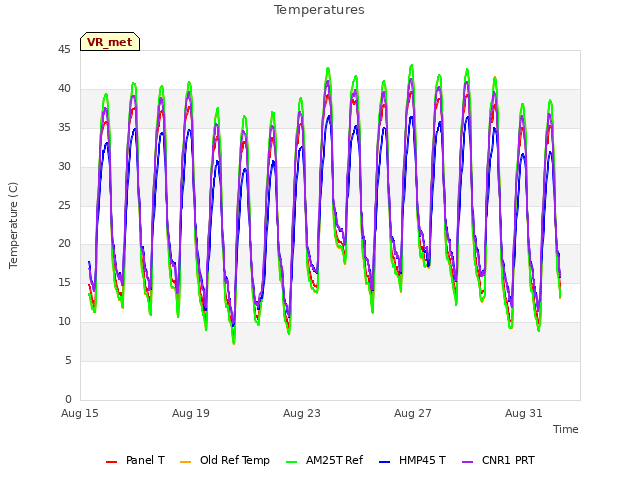

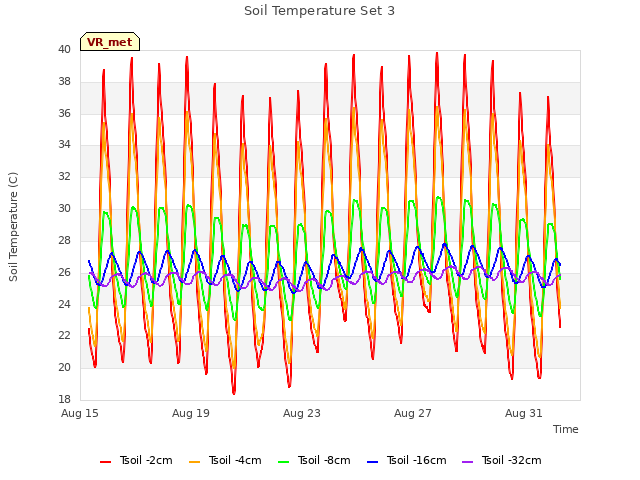

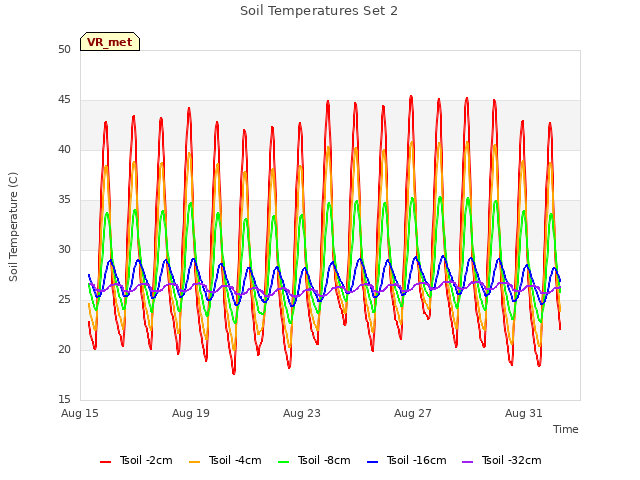

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
