Tonzi: 2011-07-06 11:00:00 (DOY 187)
Author: Siyan Ma
Others:

Summary: Need new tank for water potetial, PC at Vaira crashed - restarted, maybe need fan for box, swapped LI7500 at TZ Tower and Vaira.


Pond When: Date: 7/6/2011 , Day: 187 , Watch Time: 11:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: hot
Phenology: Grasses completely turned into yellow, but some green grass still in the lower dry spot by the gate; green oak leaves

Tonzi

Low water in Tonzi pond, dead grass
Dendrometer on tree at Tonzi

Vaira:

Brown grass at Vaira field site
Little bit of green a bottom of hill

Summary
1. Tank for water potential measurement needs to be changed since midday leaf water potential of oak leaf < -25 bar; pin needle=-20 bar.
2. PC at Vaira showed “Reboot failure” when I got there. This caused 3 day data missing. PC worked well after I reboot it again. Should we replace a PC next visiting‌ The site was very hot. The fan in PC was on all the time, but I didn’t hear any sound from the fan on the enclosure.
3. checked and downloaded data at Tower, Floor, and Vaira
4. Swapped Li-7500 at TZ Tower and Vaira.
5. Calibrated Li-800 in the field.
6. Collected samples of aboveground dry biomass (400cm2 × 4), oak leaves and pin needles
7. Read dendrometers
8. Measured soil moisture
9. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

7/6/2011
187
Floor
8.85



Tower
11.05



roadside
15.41

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.0 v; 9.3 amps; 3.8 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

PC at Vaira showed “Reboot failure” when I got there. This caused 3 day data missing. PC worked well after I reboot it again. Should we replace a PC next visiting‌ The site was very hot. The fan in PC was on all the time, but I didn’t hear any sound from the fan on the enclosure.
Vaira Gill sonic plots screen before IRGA swap
  1. downloading data YES!
  2. swap Li-7500: remove #418; install #73.

Vaira Gill sonic plots screen after IRGA swap
  1. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  2. Check MD-9 system connections YES!
  3. Check CR23X with two multiplexers

Screen shot of Vaira data logger table
  1. Check levels of Radiation sensors, clear up surfaces. YES!
  2. Check rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; 0.0 amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. swap Li-7500: remove #41; install #1594.
  3. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  4. Check rain gage, make sure not clogged. YES!
  5. Check calibration cylinders;

CO2 1000 psig; flow 20 psi; 384.08 ppm.
N2 2000 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES.
Screen shot of Li-800 calibration pre-cal
Before Zero
Screen shot of Li-800 calibration zero pre-cal
After zero

Screen shot of Li-800 calibration zero post-cal
Before spanScreen shot of Li-800 calibration span pre-cal
After spanScreen shot of Li-800 calibration span post-cal
  1. close gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps. (about 7:00 am local time)
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen before downloading data
  1. downloading data YES!
  2. Check MD-9 system connections failure, probably due to the heat.
  3. Soil CO2 profile:

Reading from panels of analyzers

depth
Open
order
depth
Tree
order

2cm (1%)
1320
1
2cm (1%)
1140
1

4cm
1000
2
4cm
2510
4

8cm
1540
3
8cm
2980
2

16cm
1530
4
16cm
6480
3
  1. Close gate and set up fence. YES!




Tonzi





Dendrometer










Date
Day
Tag #
Reading (mm)


7/6/2011
187
72
21.9




79
14.1




102
7.1




245
19.3




250
Broken
(reset to 10.5 on May 7, 2009)



1
15.3




2
14.5




3
13.8




4
18.1




5
23.3




7
14.1
133



8
6.8
11828



71
X




77
X
‌



78
X
‌



248
X
broken



255
X
‌



‌252‌
X
‌



6
X


Notes: “X” means not working any more.
Dendrometers installed by Gretchen group
Diagram of dendrometer tree locations

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2011-07-06TZ_floor8.85
2011-07-06TZ_road15.41
2011-07-06TZ_tower11.05

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2011-07-06 12:05:00 OAK UNKNOWN -25 -25 -25
2011-07-06 12:05:00 PINE OLD -20 -4 -19 -19
2011-07-06 12:05:00 PINE YNG -19 -24 -3 -22

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

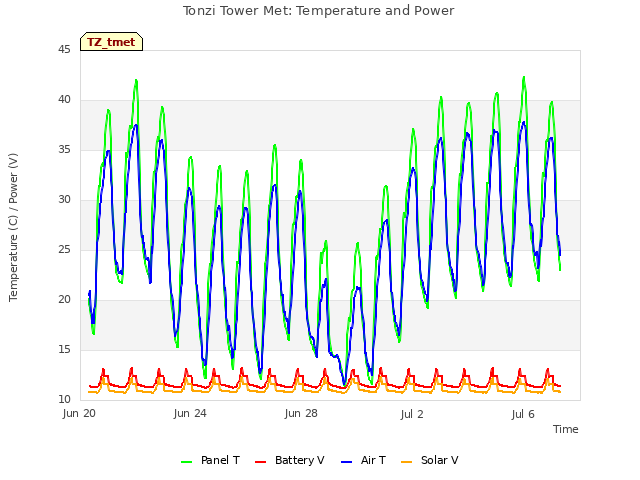

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

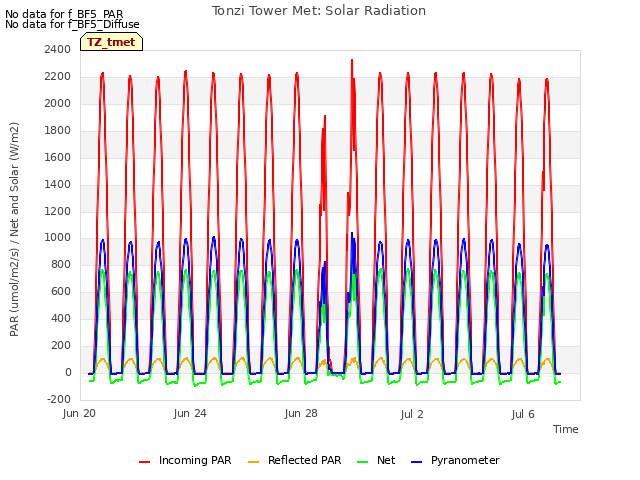

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

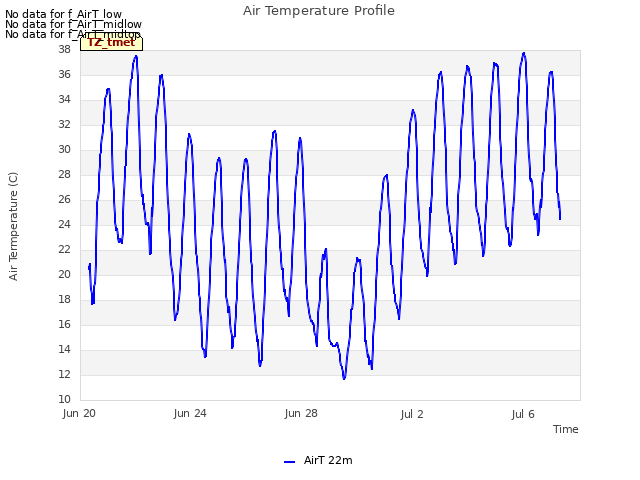

Explore the graph:Air Temperature Profile in a new window

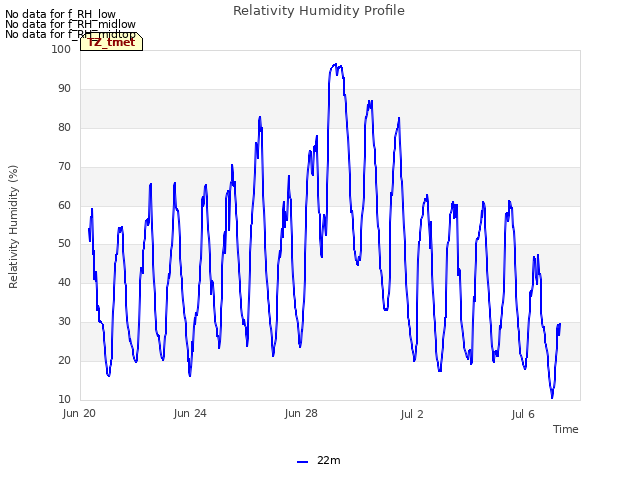

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

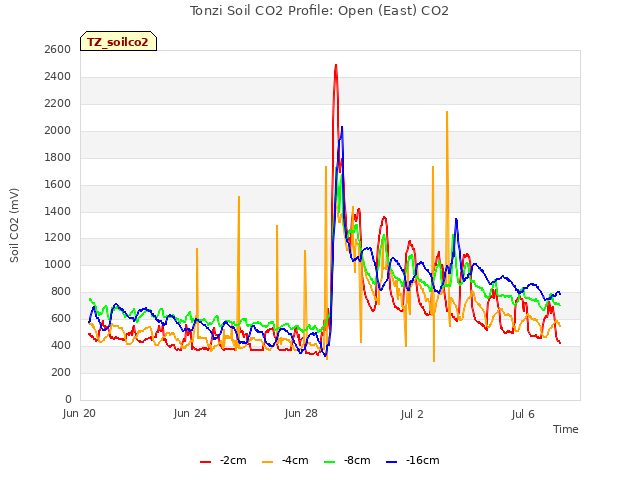

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

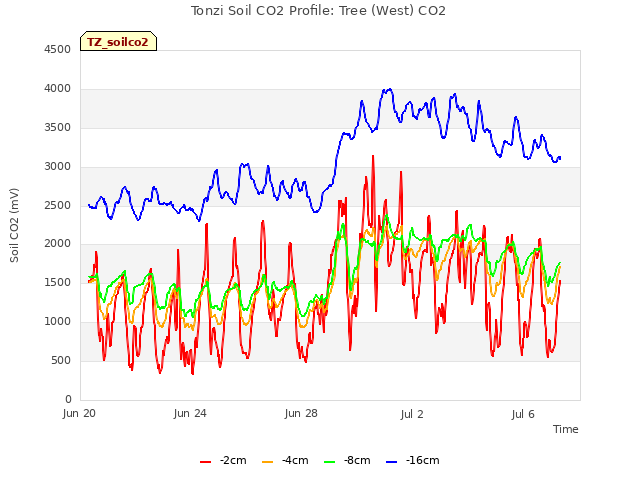

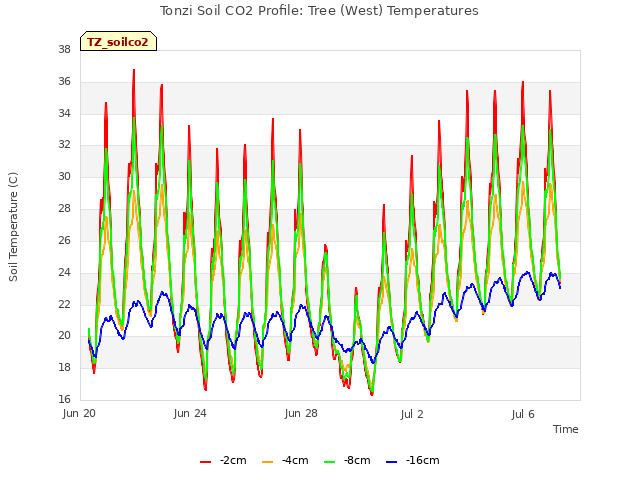

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

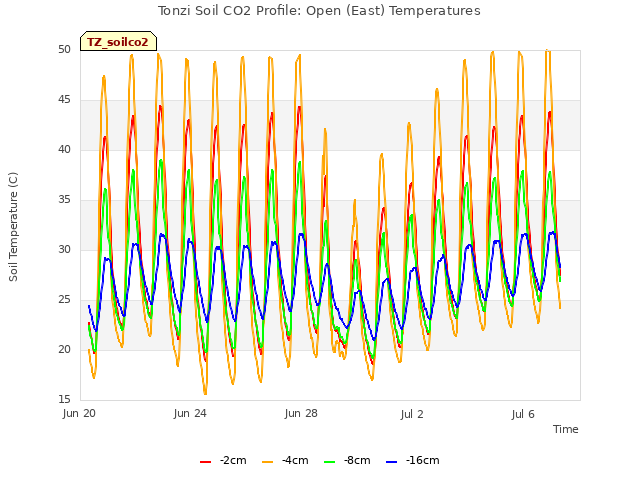

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

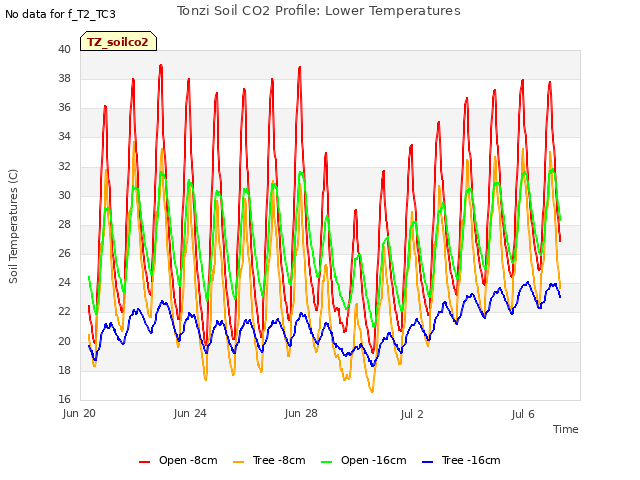

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

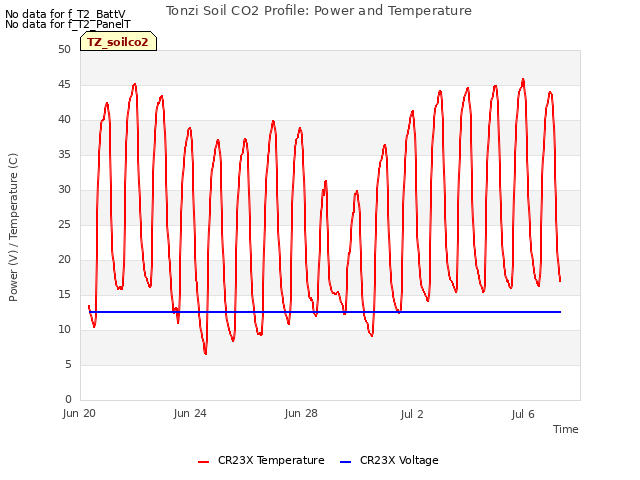

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

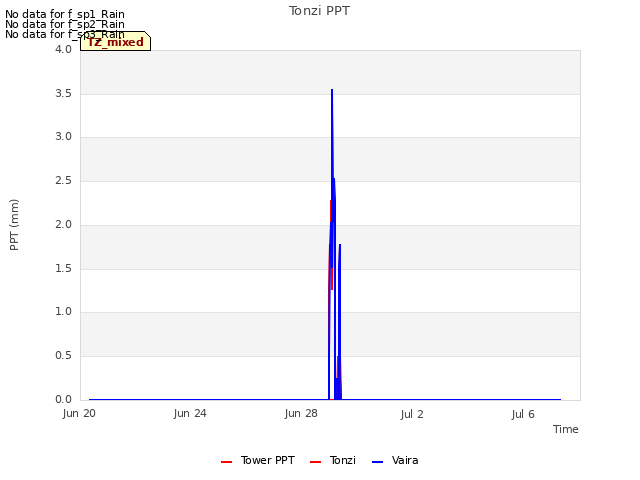

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

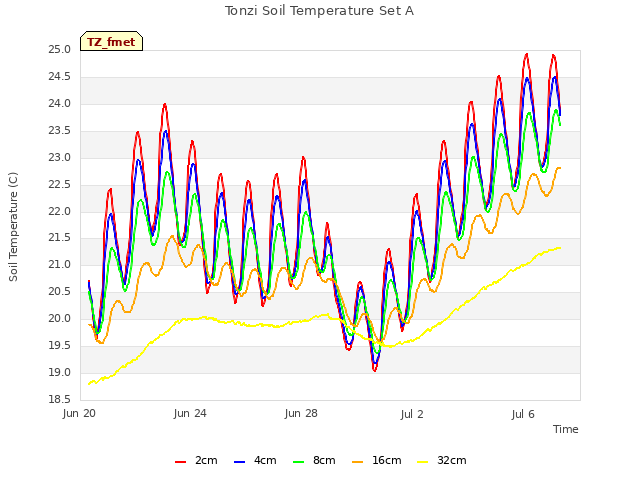

Explore the graph:Tonzi Soil Temperature Set A in a new window

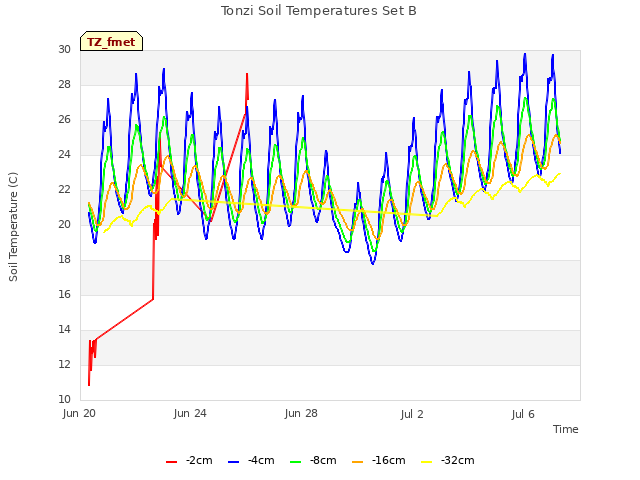

Explore the graph:Tonzi Soil Temperatures Set B in a new window

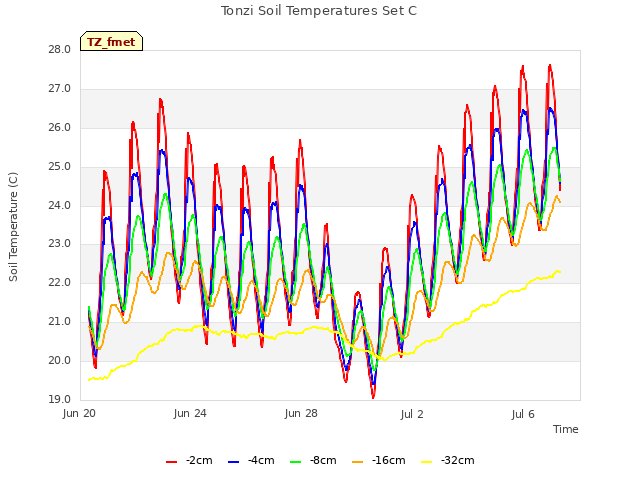

Explore the graph:Tonzi Soil Temperatures Set C in a new window

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

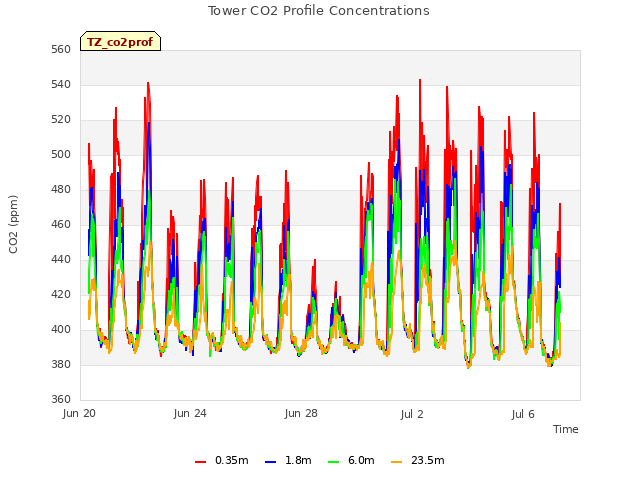

Explore the graph:Tower CO2 Profile Concentrations in a new window

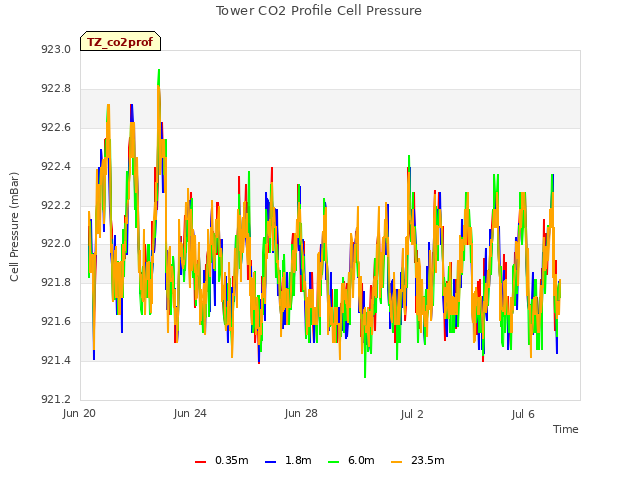

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

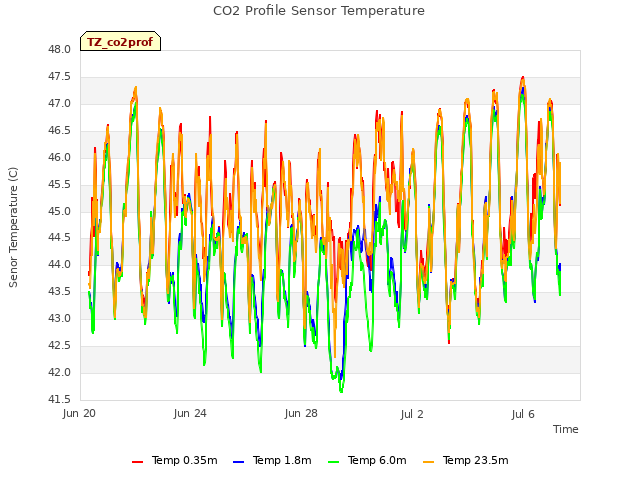

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

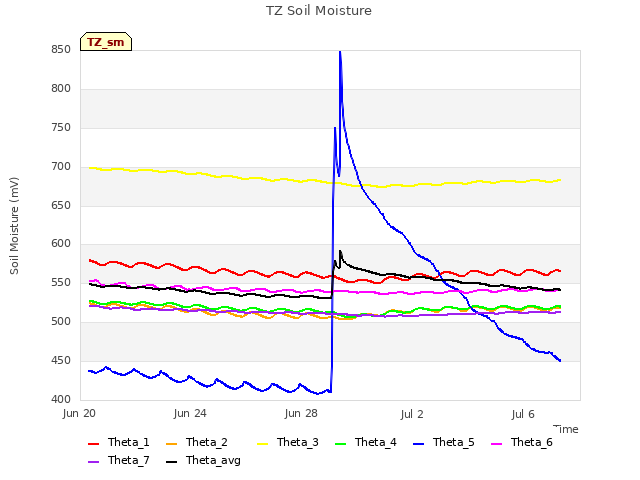

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

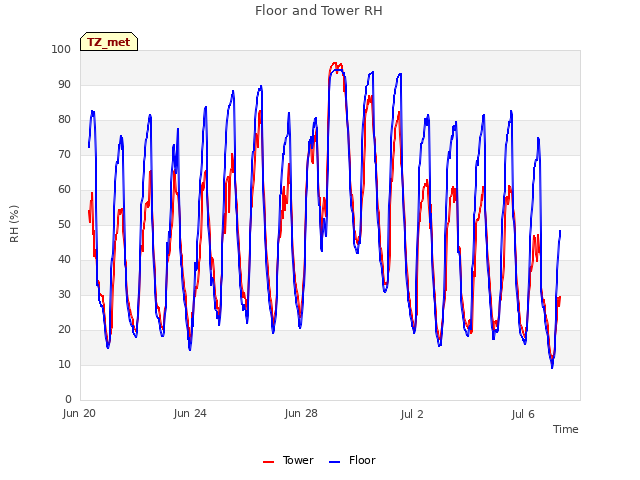

Explore the graph:Floor and Tower RH in a new window
