Phenocam link:
Searching...Tonzi: 2011-06-15 11:00:00 (DOY 166)
Author: Siyan Ma
Others: Sunny
Summary: Standard fieldwork, midday water potential.
When: Date: 6/15/2011 , Day: 166
, Watch Time: 11:00 .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: the hottest day in this year, nice breeze under
trees
Phenology: Vaira grassland still has green patches. It
is hard to set the ending data of this season. Grassland at Tonzi has more
green area. To me, those still-green plants likely are those germinating much
later, e.g., in Jan. or Feb, than the first group. The first group that
germinated following the first “big” rainfall in the fall has died out. I talked
to Laurie about this, and she didn’t think she noticed such multiple
phonological phases in her costal grassland.
Summary
- Midday leaf water potential: oak leaf= -20 bar; pin
needle=-3 bar.
- check and download data at Tower, Floor, and Vaira.
Three towers worked well.
- calibrate Li-800 in the field.
- collected samples of oak leaves and pin needles
- dendrometers
- soil moisture
- groundwater well:
Date
|
DOY
|
Location
|
Depth from the black thing (feet)
|
6/15/2011
|
166
|
Floor
|
13.22
|
|
|
Tower
|
18.30
|
|
|
roadside
|
23.04
|
Vaira_Grass Site
- Fence and gate power: 12
(but not on) v.
- Panel and Batteries: - v;
- amps; - amps.
- Reading from Gillsonic screen before downloading data.
(The value of H2O and CO2 should be in the range of
0 – 5 v.)
- downloading data YES!
- Check the fans of air temp and relative humidity sensors
at Vaira. YES!
- Check MD-9 system connections YES!
- Check CR23X with two multiplexers
- Check levels of Radiation sensors, clear up surfaces.YES!
- Check rain gage, make sure not clogged. YES!
- Closed gate and set up fence. YES!
Tonzi_Tower Site
- Fence and gate power: 12 v.
- Panel and Batteries: - v;
- amps; - amps.
- Reading from Gillsonic screen before downloading data.
(The value of H2O and CO2 should be in the range of
0 – 5 v.)
- downloading data YES!
- check the fans of air temp and relative humidity sensors
on the tower and the floor. YES!
- Check rain gage, make sure not clogged. YES!
- Check calibration cylinders;
CO2 1200 psig; flow 20 psi; 384.08
ppm.
N2 2200 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s
instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running Yes.
Before
Zero
Before
span
After
zero and span
- close gate and set up fence. YES!
Toniz_Floor Site
- Fence and gate power: 12
v.
- Panel and Batteries: - v;
- amps; - amps. (about 7:00 am local time)
- Reading from Gillsonic screen before downloading data.
(The value of H2O and CO2 should be in the range of
0 – 5 v.)
No snap shot, but values looked OK.
- downloading data YES!
- Check MD-9 system connections Can’t make connection at
that moment!
- Soil CO2 profile: no power when I got there. I
unplug and re-plug fuses, then the system back to work.
Reading from datalogger
Reading from panels of analyzers
depth
|
Open
|
order
|
depth
|
Tree
|
order
|
2cm (1%)
|
1710
|
1
|
2cm (1%)
|
3170
|
1
|
4cm
|
1360
|
2
|
4cm
|
3100
|
4
|
8cm
|
2070
|
3
|
8cm
|
3410
|
2
|
16cm
|
1810
|
4
|
16cm
|
5370
|
3
|
- Close gate and set up fence. YES!
Tonzi
|
|
|
|
|
|
Dendrometer
|
|
|
|
|
|
|
|
|
|
|
Date
|
Day
|
Tag
#
|
Reading (mm)
|
|
|
6/15/2011
|
166
|
72
|
20.5
|
|
|
|
|
79
|
13.3
|
|
|
|
|
102
|
6.0
|
|
|
|
|
245
|
18.9
|
|
|
|
|
250
|
14.9
|
|
|
|
|
1
|
13.2
|
|
|
|
|
2
|
14.7
|
|
|
|
|
3
|
13.2
|
|
|
|
|
4
|
16.9
|
|
|
|
|
5
|
22.4
|
|
|
|
|
7
|
14.0
|
133
|
|
|
|
8
|
6.1
|
11828
|
|
|
|
71
|
X
|
|
|
|
|
77
|
X
|
|
|
|
|
78
|
X
|
|
|
|
|
248
|
X
|
broken
|
|
|
|
255
|
X
|
|
|
|
|
252
|
X
|
|
|
|
|
6
|
X
|
|
|
Notes: “X” means not working any more.
Dendrometers installed by Gretchen group
tonzi
|
7931AFE
|
402165
|
574B4B
|
402FF3
|
574632
|
7A432E
|
7A3C6E
|
7A3B40
|
7A4AAA
|
6/15/2011
|
166
|
|
|
|
|
|
|
|
|
|
ddb
|
|
|
|
|
|
|
|
|
0-15
|
11.2
|
8.3
|
#DIV/0!
|
9.1
|
10.3
|
11.5
|
15.6
|
10.0
|
6.8
|
15-30
|
16.1
|
12.4
|
20.3
|
18.2
|
17.6
|
10.9
|
20.6
|
17.3
|
6.3
|
30-45
|
20.1
|
15.9
|
#DIV/0!
|
22.3
|
17.0
|
12.9
|
16.5
|
20.4
|
16.2
|
45-60
|
23.1
|
12.8
|
#DIV/0!
|
22.8
|
24.2
|
14.2
|
18.8
|
28.8
|
13.6
|
|
|
|
|
|
|
|
|
|
|
|
A6D882B
|
A3D04E8
|
A6D72F5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0-15
|
11.9
|
8.6
|
6.5
|
|
|
|
|
|
|
15-30
|
11.5
|
1.7
|
17.3
|
|
|
|
|
|
|
30-45
|
18.7
|
17.3
|
17.6
|
|
|
|
|
|
|
45-60
|
20.2
|
22.8
|
18.6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
vaira
|
57318a
|
7933dee
|
00000128B97F3
|
00000128B8072
|
00000128BDDE8
|
|
|
|
0-15
|
broken
|
6.4
|
10.9
|
3.6
|
1.35
|
|
|
|
|
15-30
|
broken
|
21.6
|
12.55
|
10.55
|
6.75
|
|
|
|
|
30-45
|
broken
|
20.4
|
4.6
|
14.15
|
16.2
|
|
|
|
|
45-60
|
broken
|
31.3
|
15.35
|
7.6
|
17.6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Atten:
Only useful after "Tonzi" is sorted by Ordering & Depth after
data input.
|
|
|
|
Field Data
No tank data

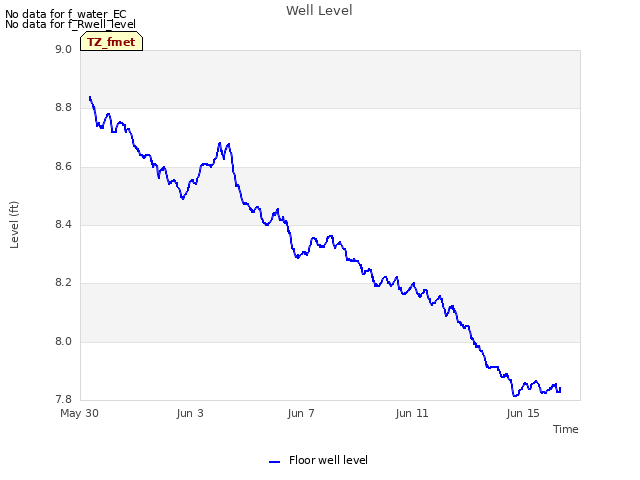

Well Depth
| Date | Location | Depth (feet) |
|---|
| 2011-06-15 | TZ_floor | 13.22 |
| 2011-06-15 | TZ_road | 23.04 |
| 2011-06-15 | TZ_tower | 18.3 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

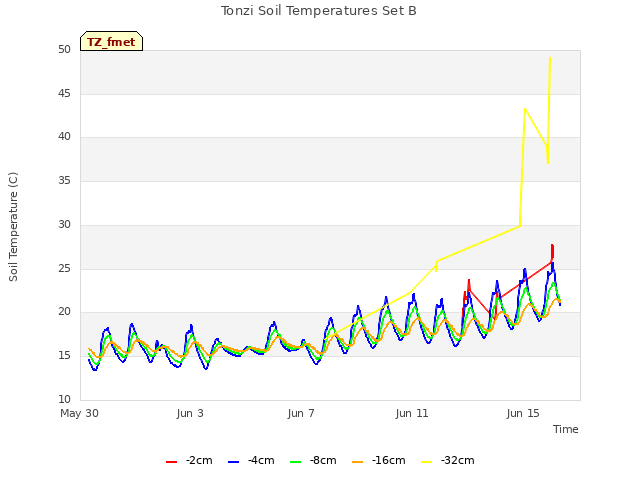

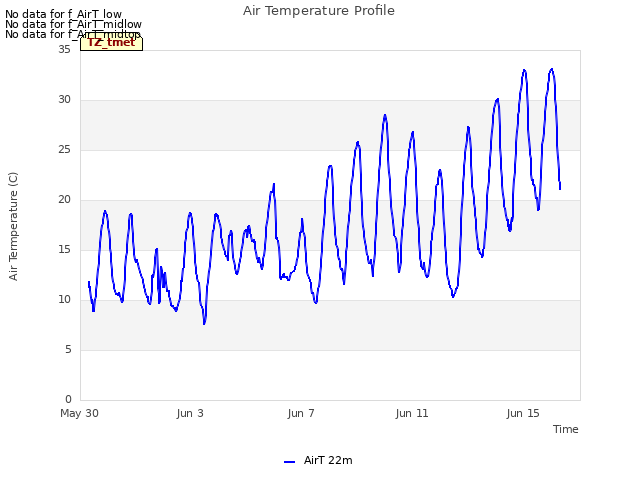

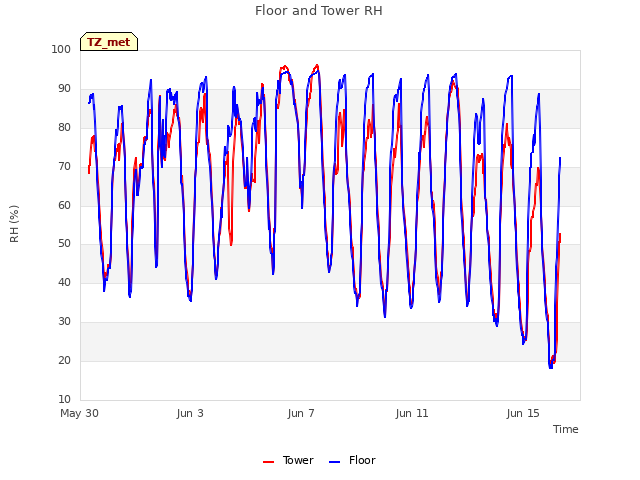

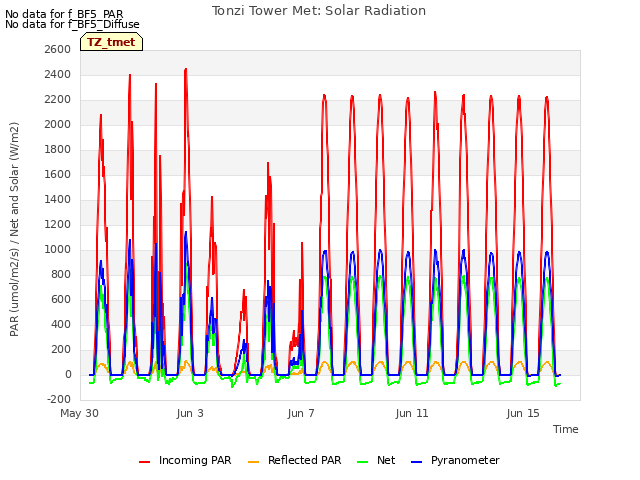

11 TZ_tmet graphs found

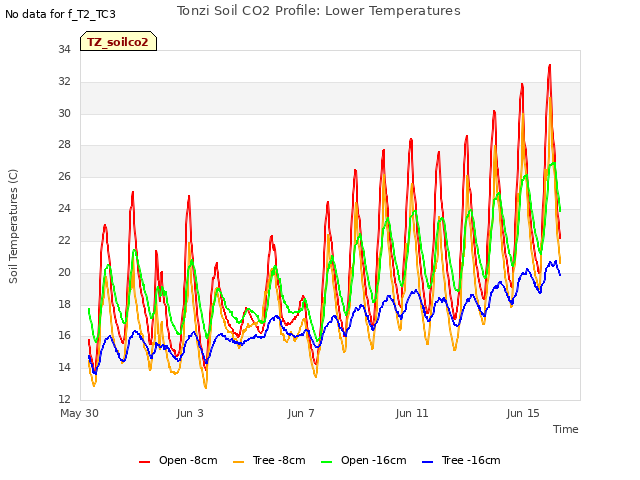

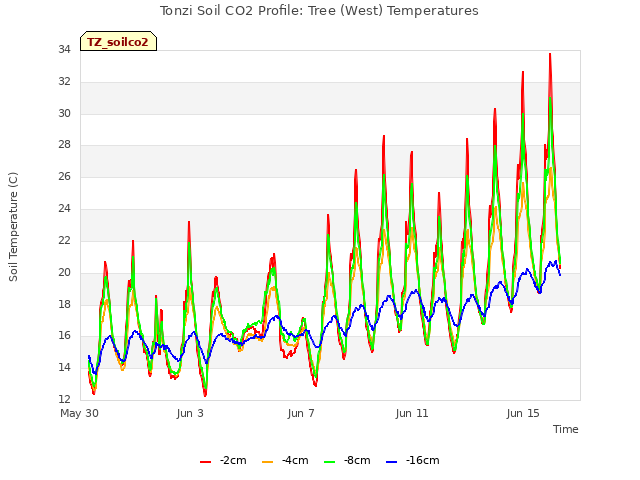

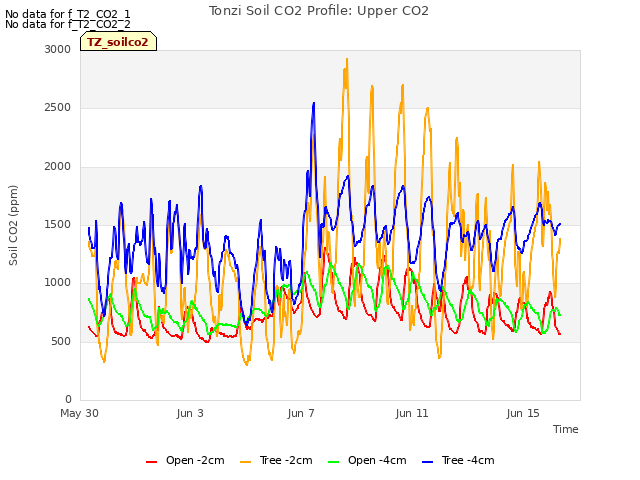

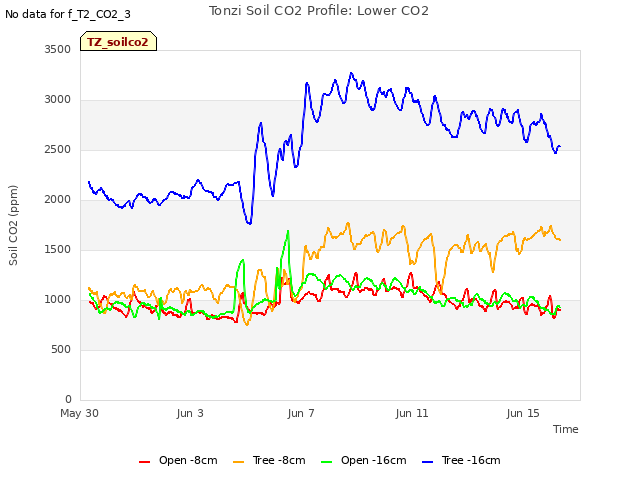

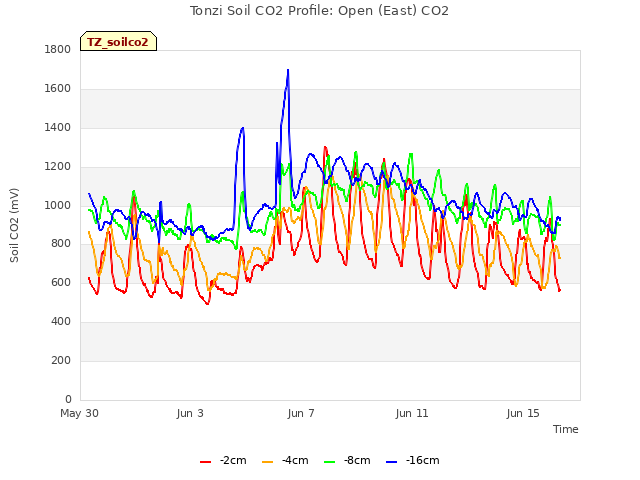

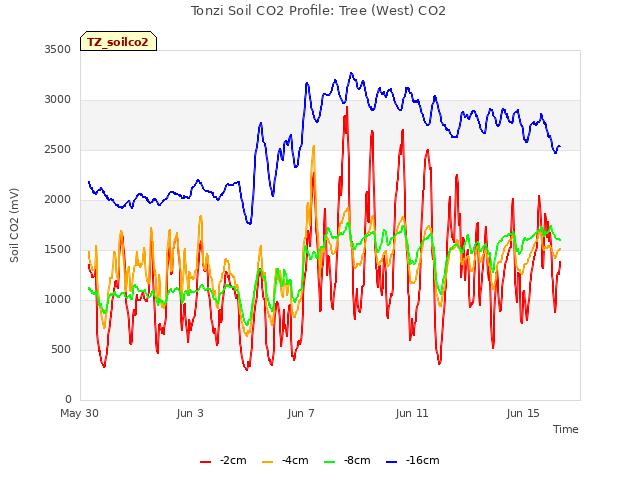

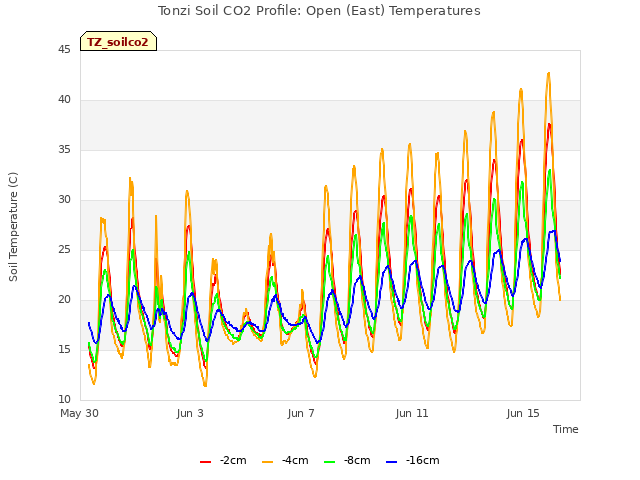

11 TZ_soilco2 graphs found
Can't check TZ_mixed
3 TZ_mixed graphs found
1 TZ_fflux graphs found

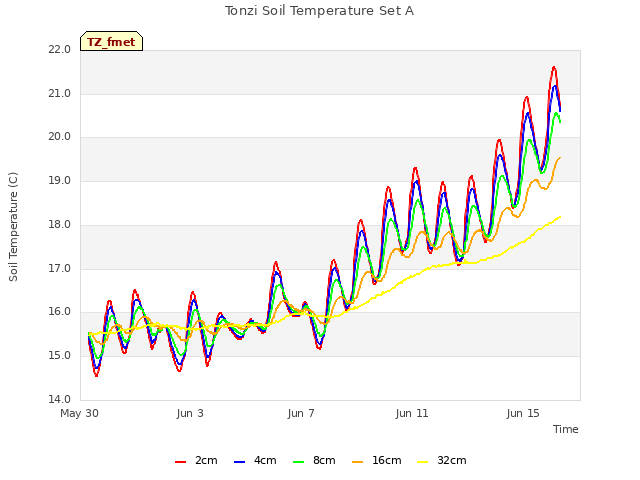

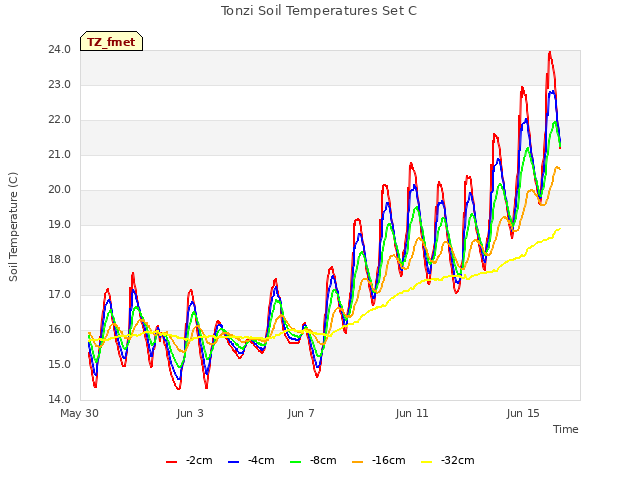

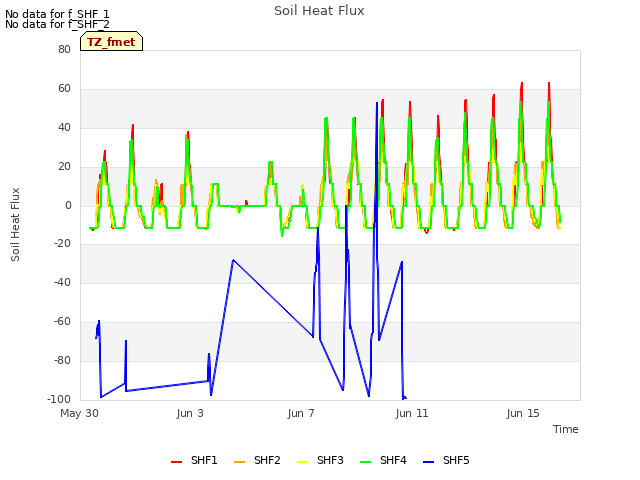

8 TZ_fmet graphs found
1 TZ_tram graphs found

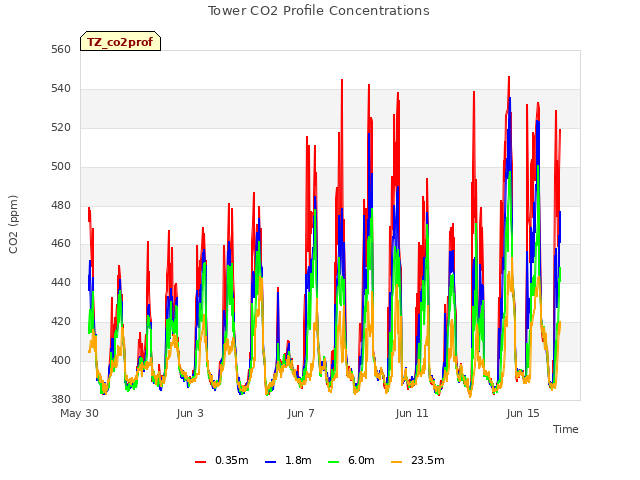

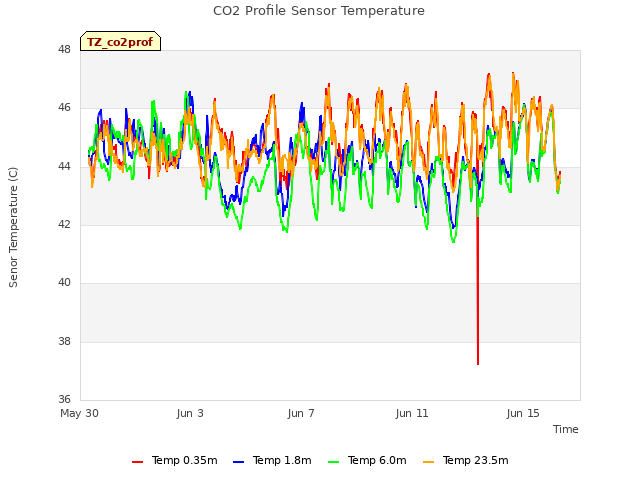

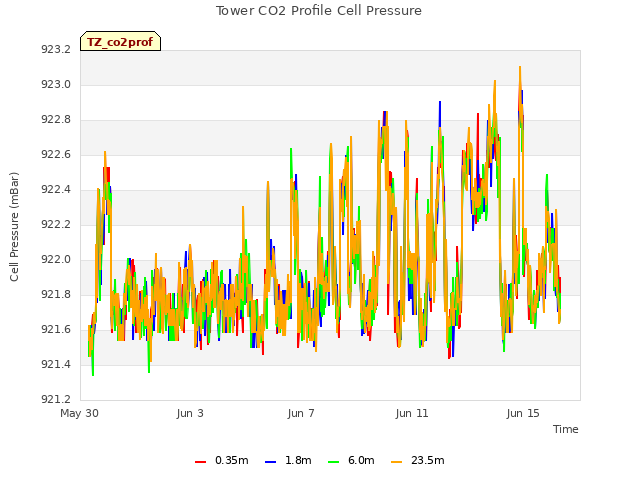

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

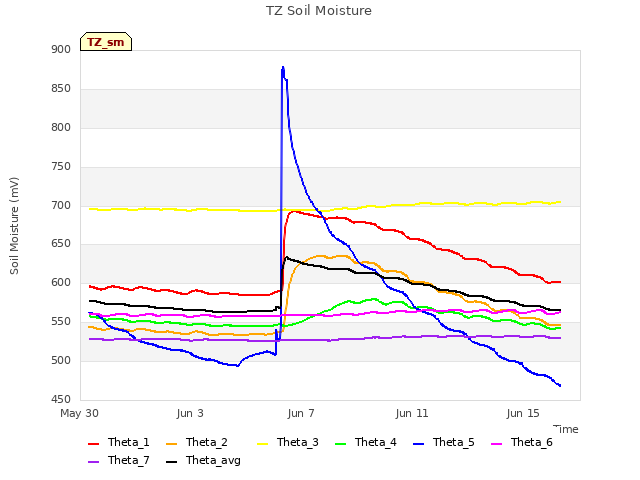

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
