Vaira: 2025-05-15 02:20:00 (DOY 135)
Author: Joe Verfaillie
Others: Kuno

Summary: No well level, spectra, removed last FD chamber and extra PAR, reverted CR1000 program.

Vaira
2025-05-15

Kuno and I arrived at about 3:20 PDT. It was clear, sunny and warm. The grass here is pretty yellow. The vetch flowers are gone. The water hole is still about 3/4 full. The well level meter has a dead battery and I forgot the Jaz again.

I collected the flux, met, FD and camera data. The camera data had five weeks of data as I missed it last time. The FD had data but it's bad because I think the CO2 sensor died. I removed FD sensor sn FD20160001 and all of its tie downs.
The 7500 read: 437.1ppm CO2, 356.7mmol/m3 H2O, 33.6C, 99.4kPa, 101.7SS

The extra reflected PAR sensor I put in last time was slightly tilted but seem to have nearly identical data to the permanent one. So I removed PAR sn 030382 and reverted the CR1000 program to the 20250207 version.

Somehow I missed downloading the soilvue and 5min met data.

I left the fence un-powered as the grass is getting dry. The grass was about 50cm tall.
We left at about 13:50 PDT

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2025-05-15TZ_floor21.75

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

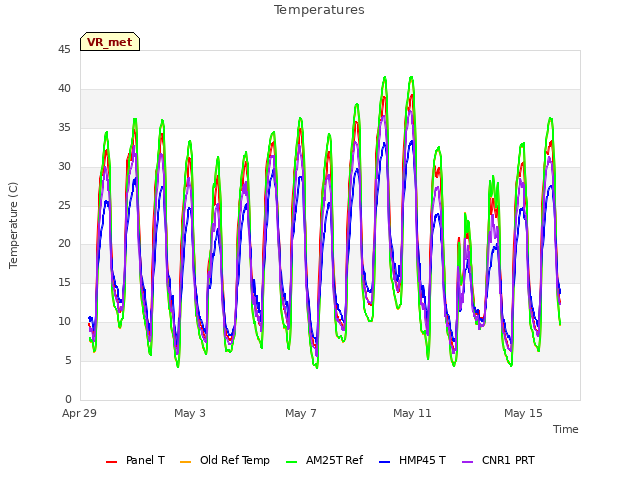

Explore the graph:Temperatures in a new window

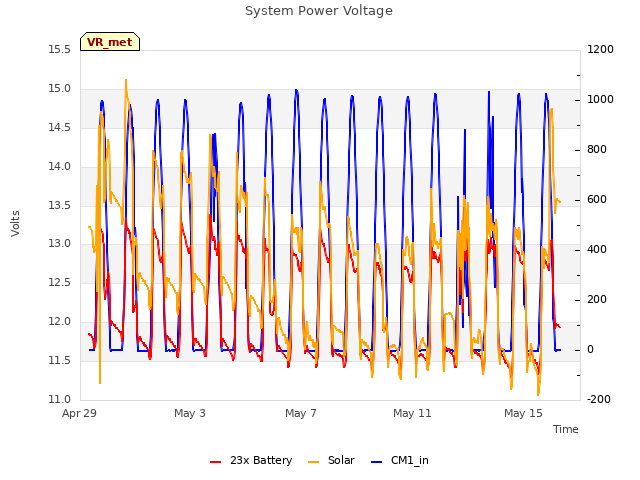

Explore the graph:System Power Voltage in a new window

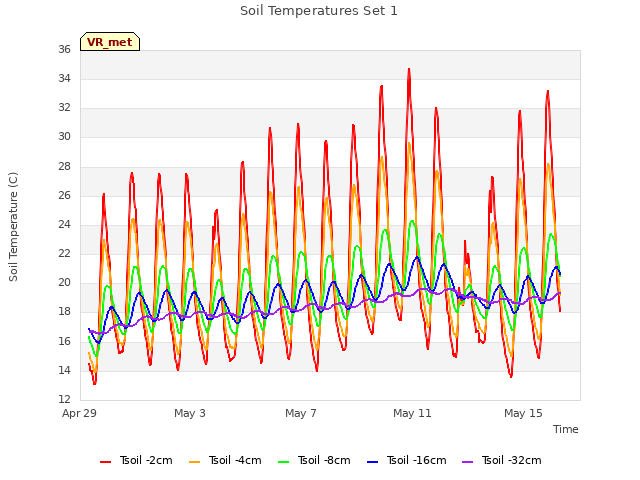

Explore the graph:Soil Temperatures Set 1 in a new window

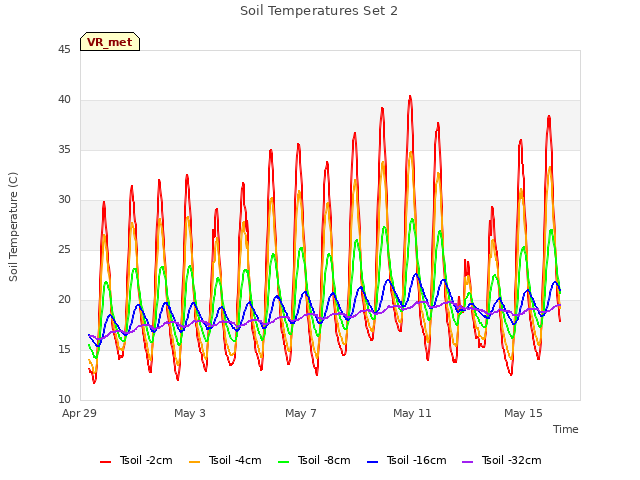

Explore the graph:Soil Temperatures Set 2 in a new window

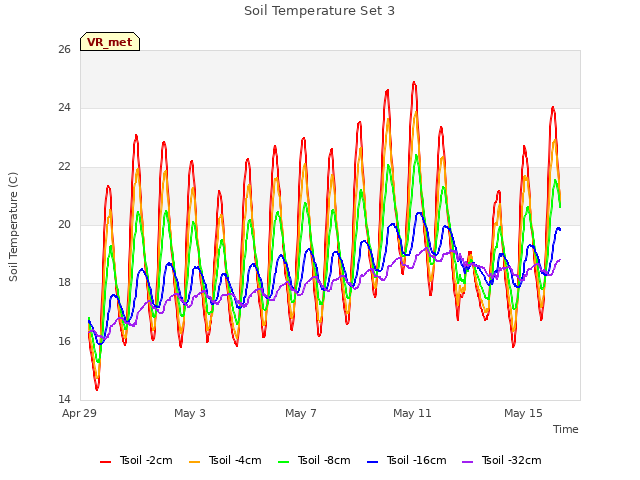

Explore the graph:Soil Temperature Set 3 in a new window

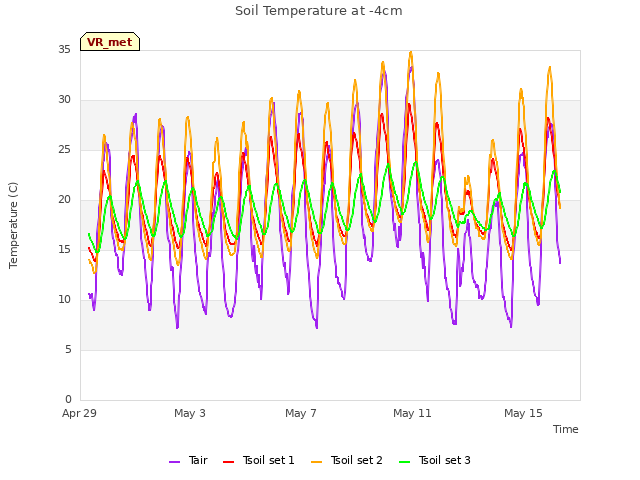

Explore the graph:Soil Temperature at -4cm in a new window

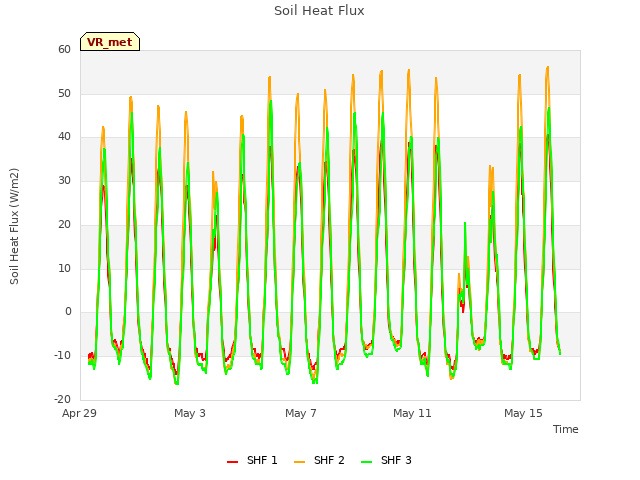

Explore the graph:Soil Heat Flux in a new window

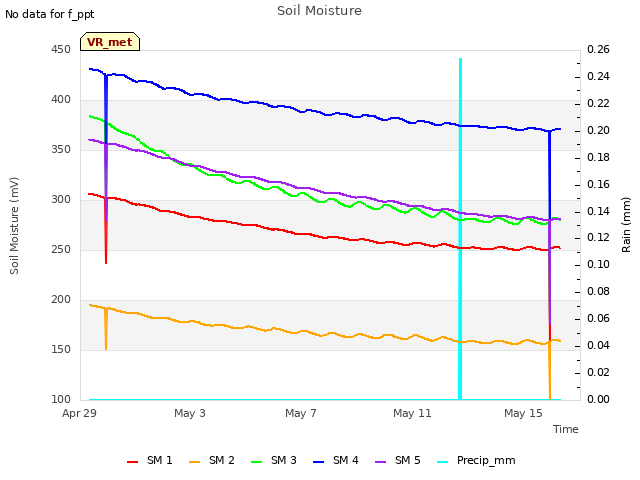

Explore the graph:Soil Moisture in a new window

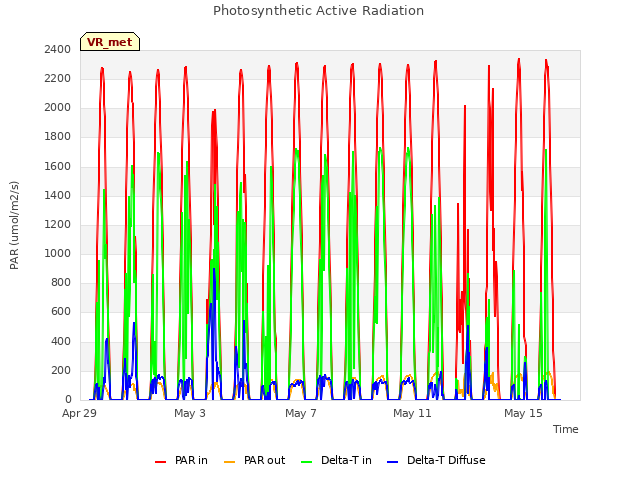

Explore the graph:Photosynthetic Active Radiation in a new window

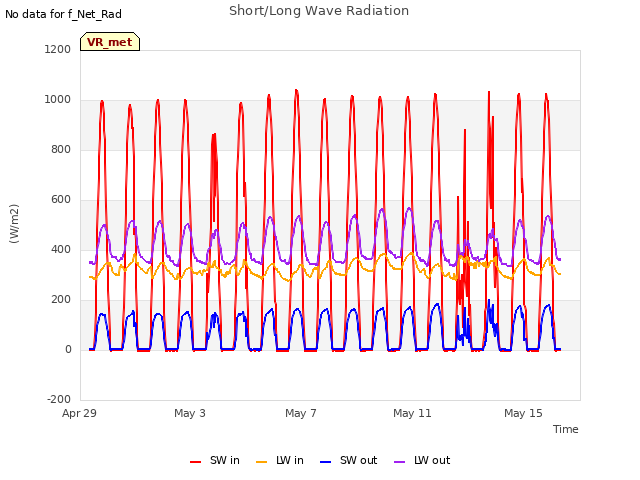

Explore the graph:Short/Long Wave Radiation in a new window

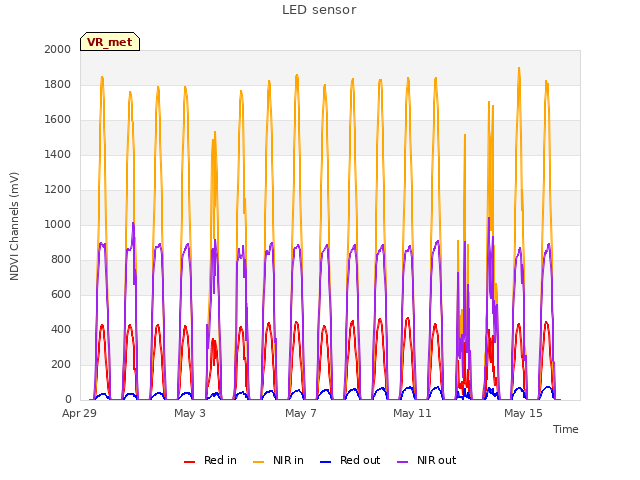

Explore the graph:LED sensor in a new window

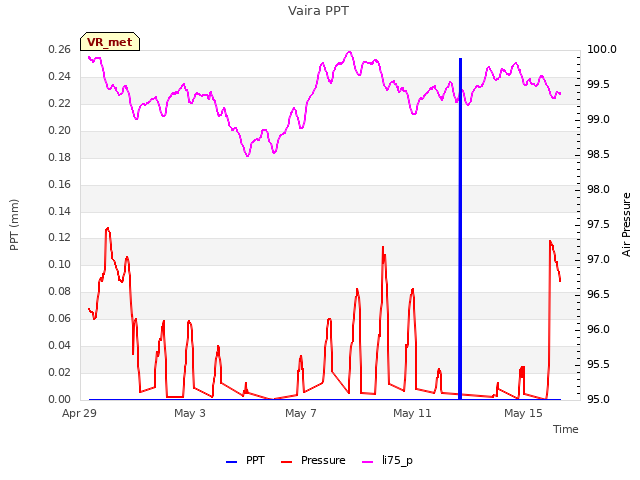

Explore the graph:Vaira PPT in a new window

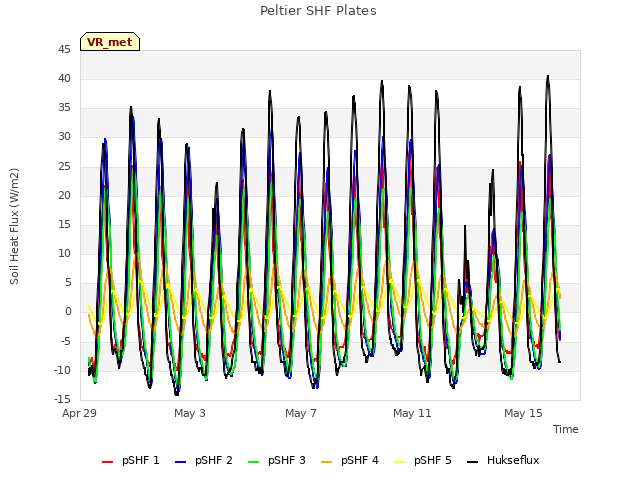

Explore the graph:Peltier SHF Plates in a new window

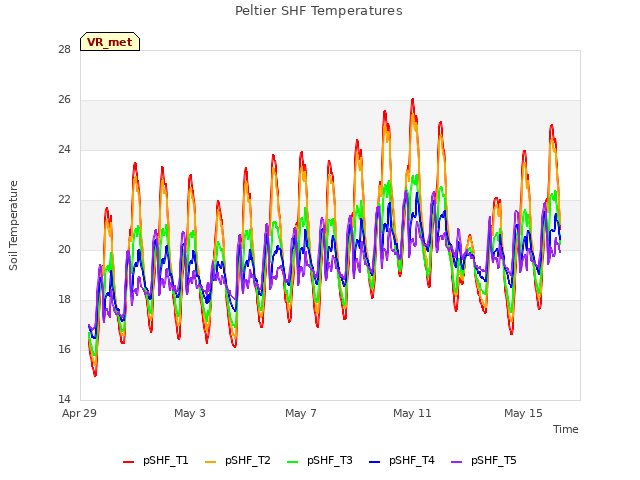

Explore the graph:Peltier SHF Temperatures in a new window

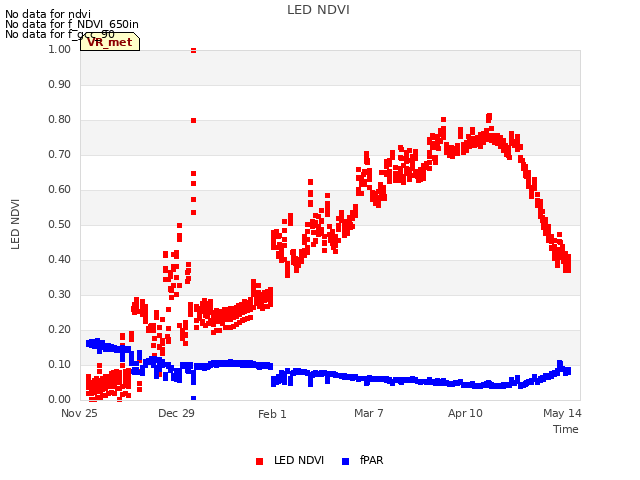

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

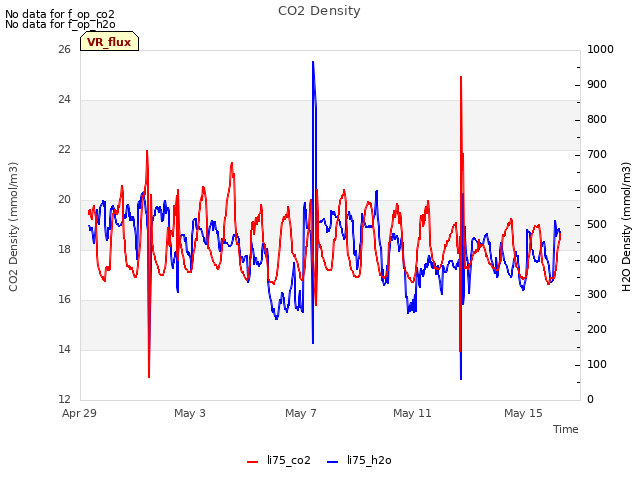

Explore the graph:CO2 Density in a new window

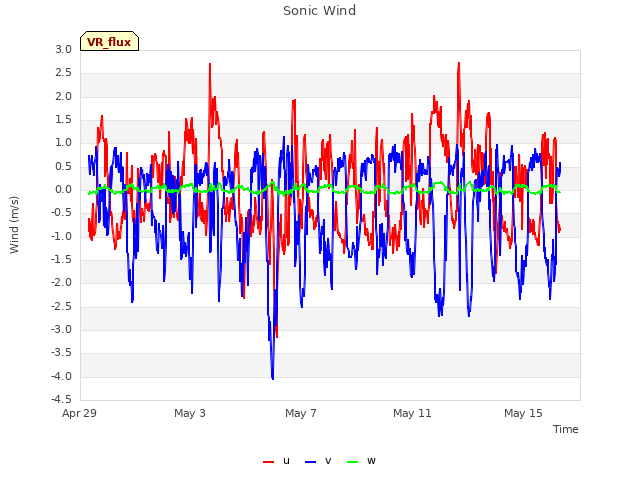

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

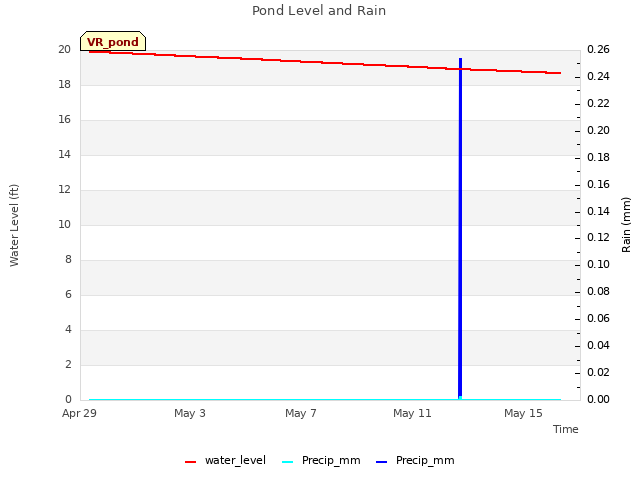

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

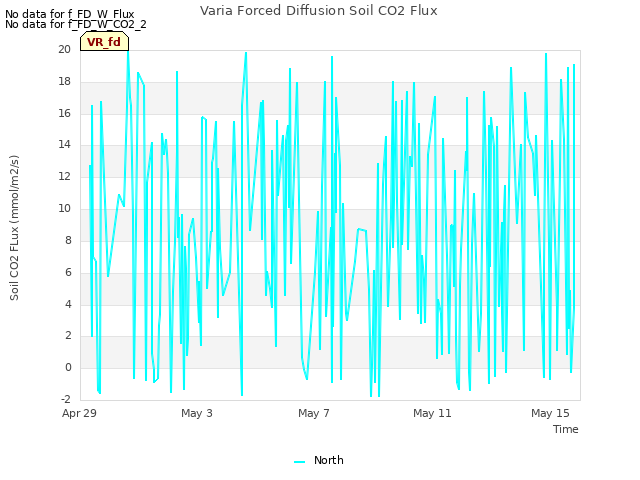

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

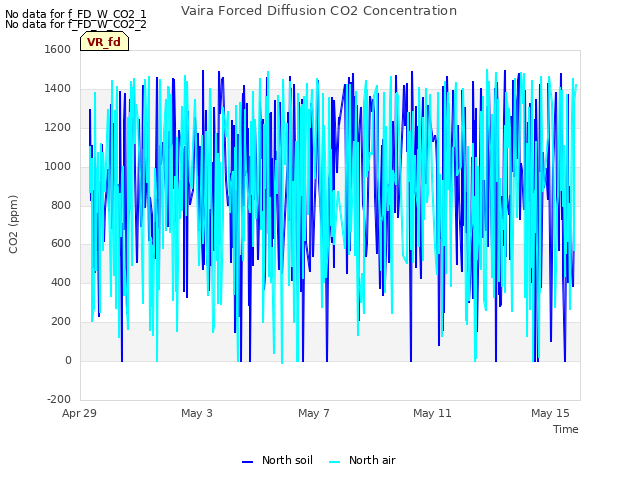

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

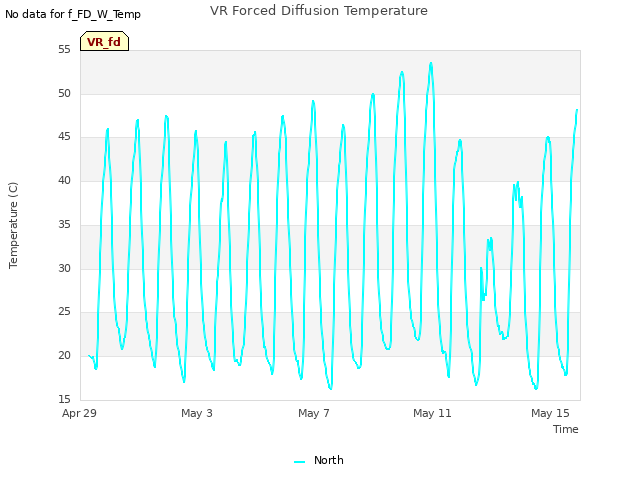

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

Explore the graph:Incoming bands in a new window

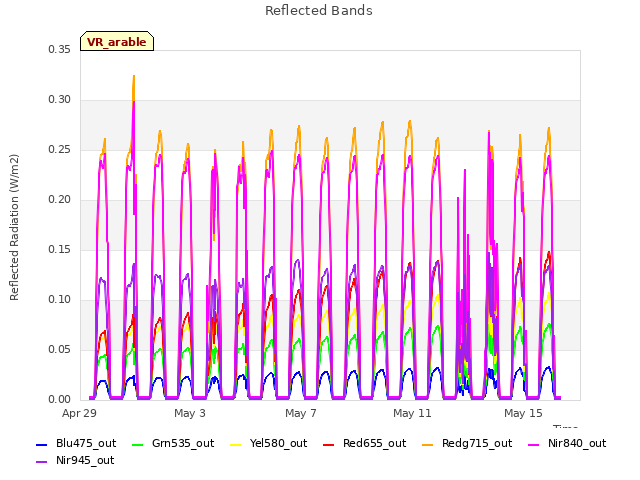

Explore the graph:Reflected Bands in a new window

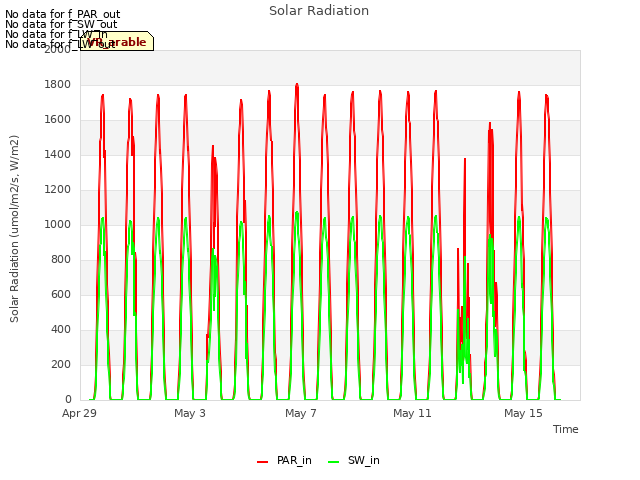

Explore the graph:Solar Radiation in a new window

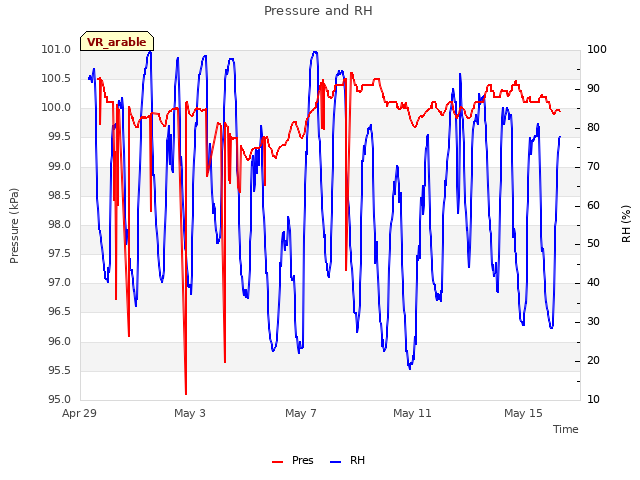

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

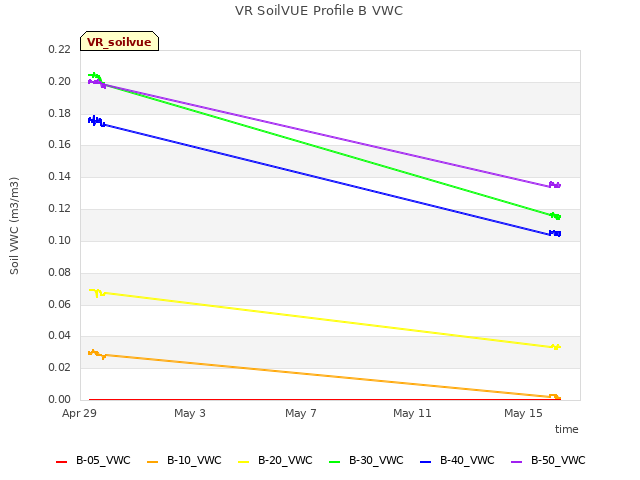

Explore the graph:VR SoilVUE Profile B VWC in a new window

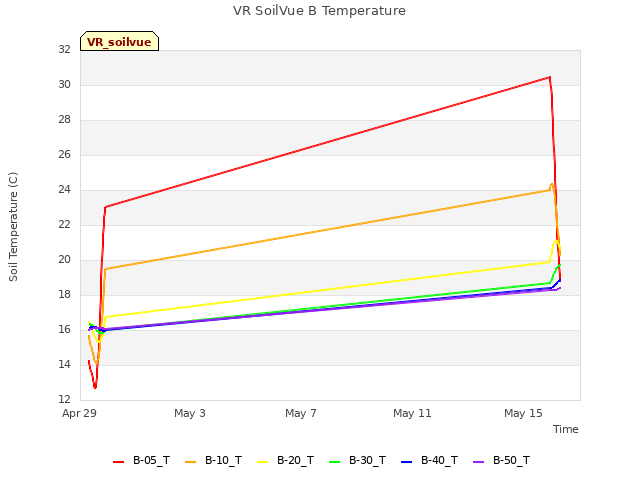

Explore the graph:VR SoilVue B Temperature in a new window

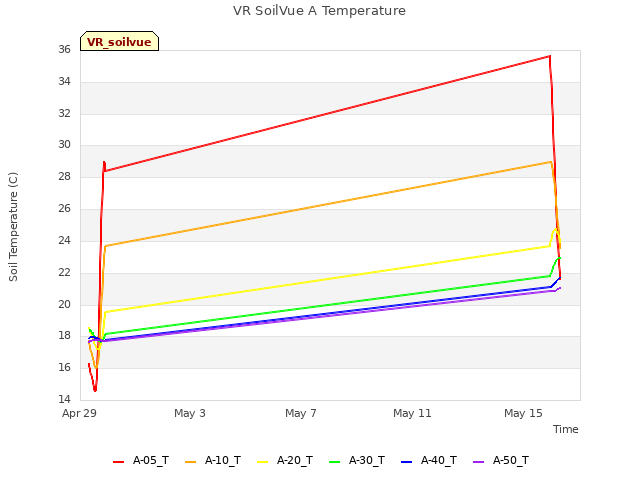

Explore the graph:VR SoilVue A Temperature in a new window

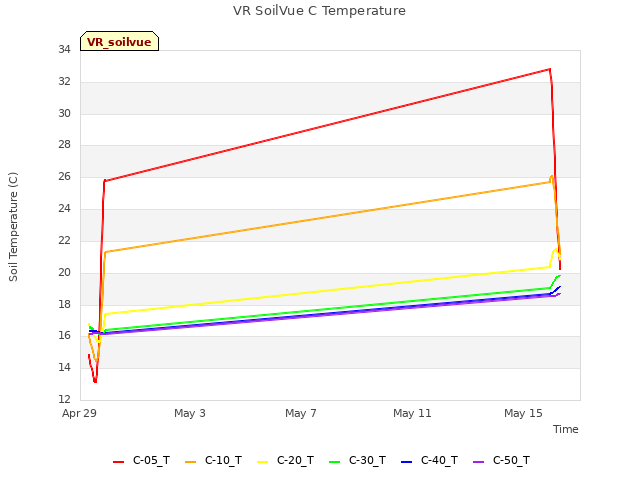

Explore the graph:VR SoilVue C Temperature in a new window

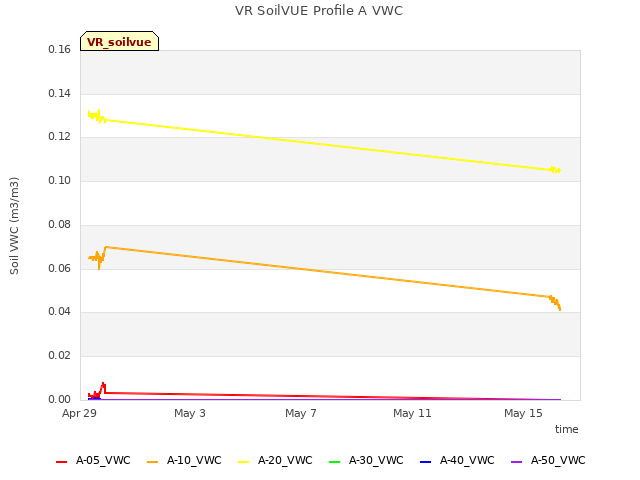

Explore the graph:VR SoilVUE Profile A VWC in a new window

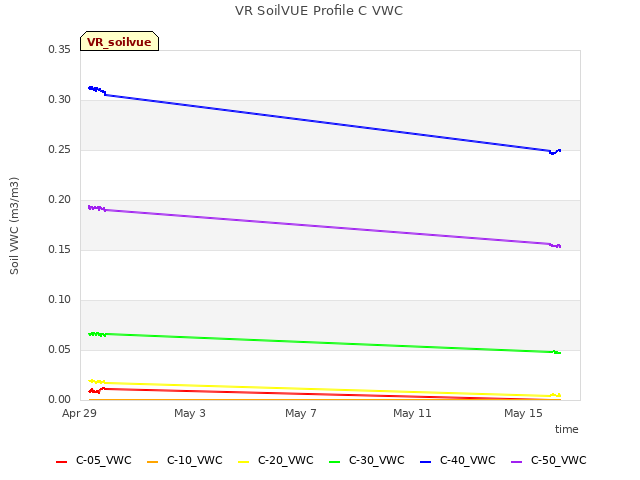

Explore the graph:VR SoilVUE Profile C VWC in a new window
