Vaira: 2024-08-21 10:30:00 (DOY 234)
Author: Joe Verfaillie
Others: Kuno

Summary: Standard fieldwork, removed West FD for repair, all seemed well

Vaira
2024-08-21

Kuno and I arrived at about 11:30 PDT. It was clear, sunny and dry. It was hot but not oven hot and only a little breeze. There was still a little wet looking mud in the bottom of the water hole. I got an email for Dale Vaira the other day that said it seemed like the soil amendment project would go through. I'm guessing late this year.

I did the regular data collection: flux, met, camera and FD data.
The 7500 read: 418.1ppm CO2, 382.8mmol/m3 H2O, 31.6C, 99.6kPa, 97.8SS

I removed FD sn FD20180047 that probably has a bad CO2 sensor. I measured the well depth.

Kuno got the closed path analyzers warmed up and running for use at Tonzi

We left at 12:00 PDT

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2024-08-21VR_well57.35
2024-08-21TZ_floor25.05
2024-08-21TZ_road34.4
2024-08-21TZ_tower29.65

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

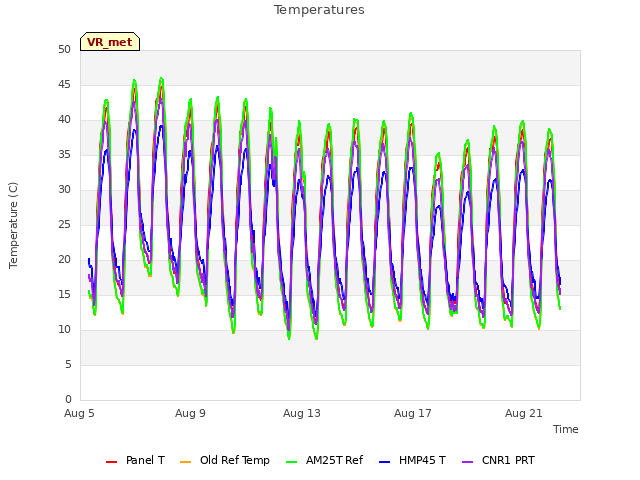

Explore the graph:Temperatures in a new window

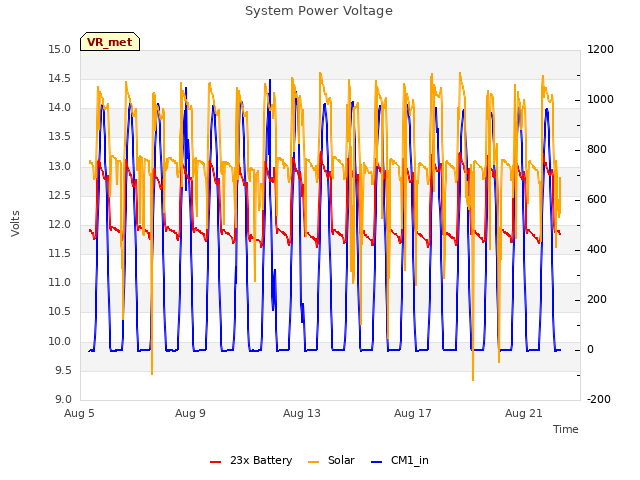

Explore the graph:System Power Voltage in a new window

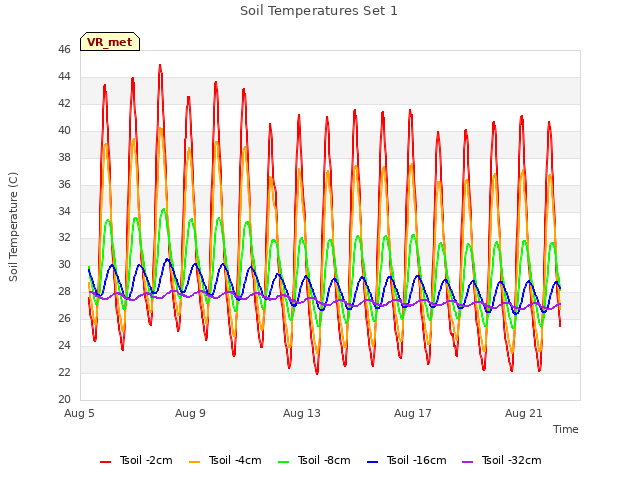

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

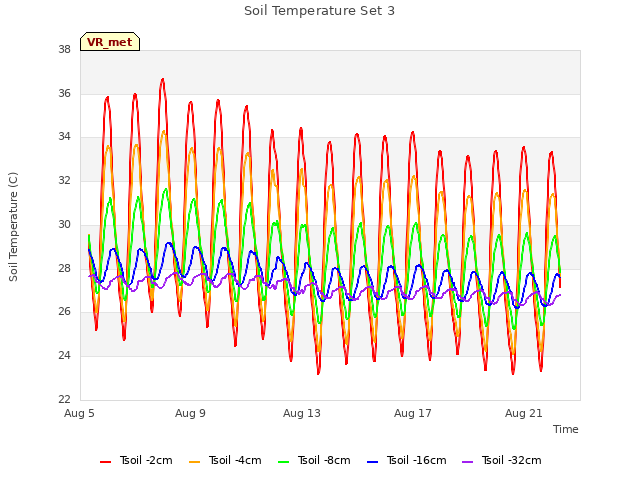

Explore the graph:Soil Temperature Set 3 in a new window

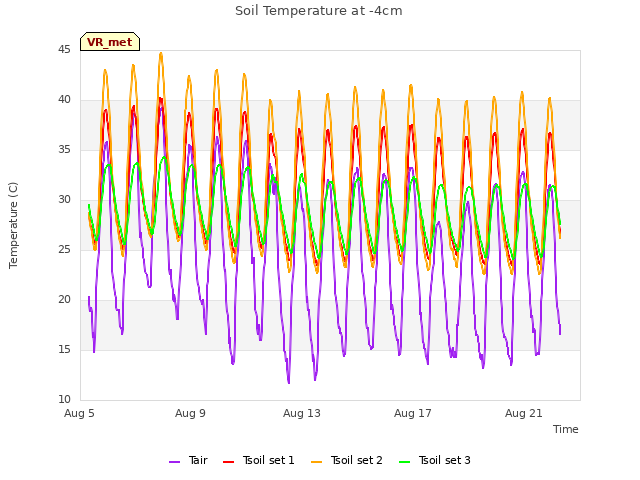

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

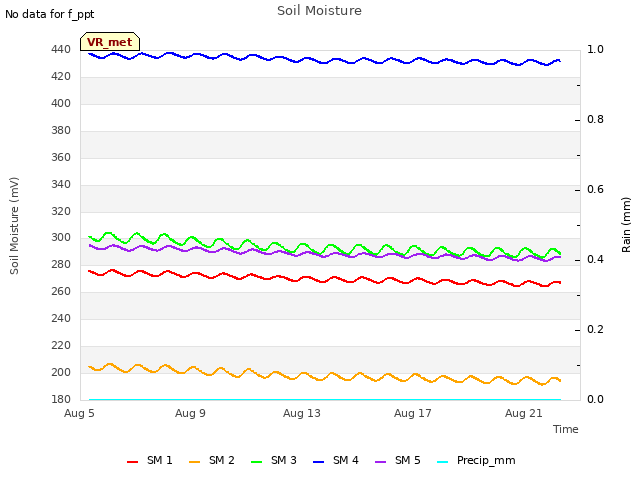

Explore the graph:Soil Moisture in a new window

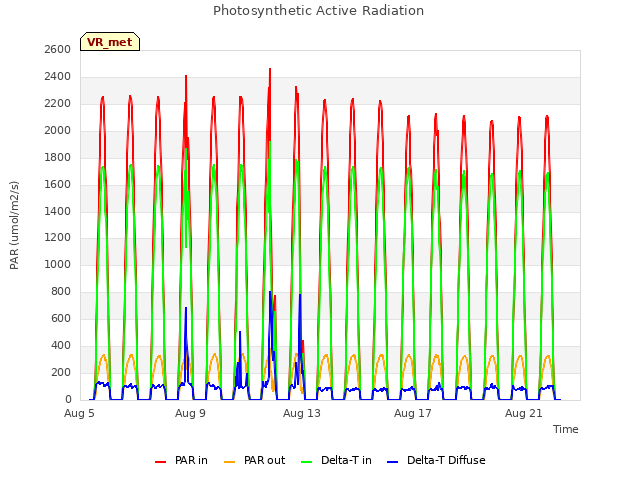

Explore the graph:Photosynthetic Active Radiation in a new window

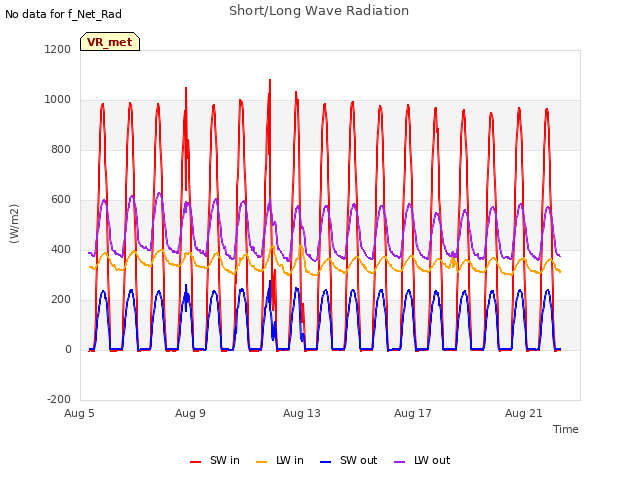

Explore the graph:Short/Long Wave Radiation in a new window

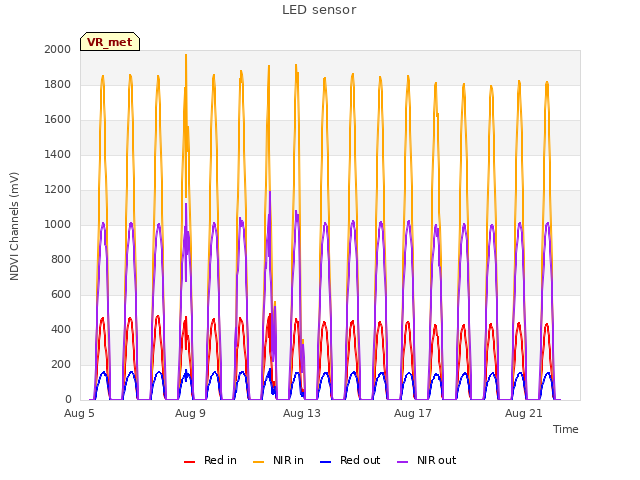

Explore the graph:LED sensor in a new window

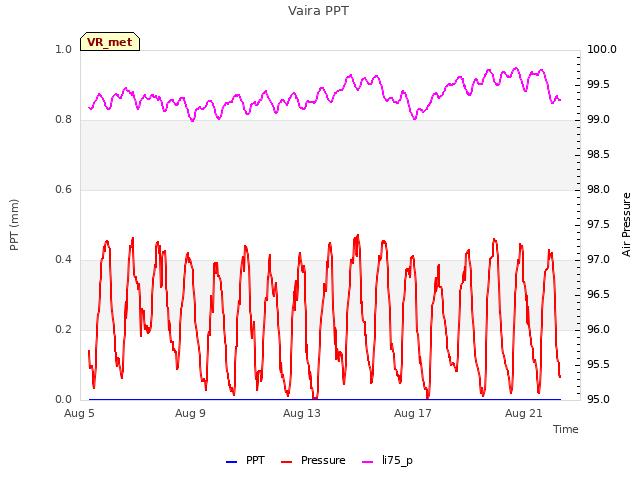

Explore the graph:Vaira PPT in a new window

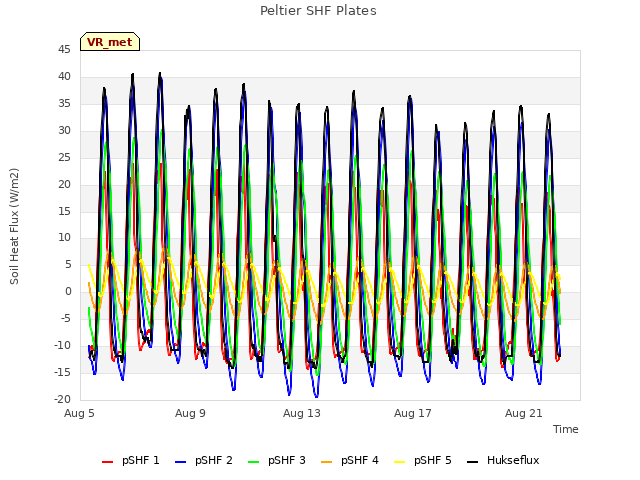

Explore the graph:Peltier SHF Plates in a new window

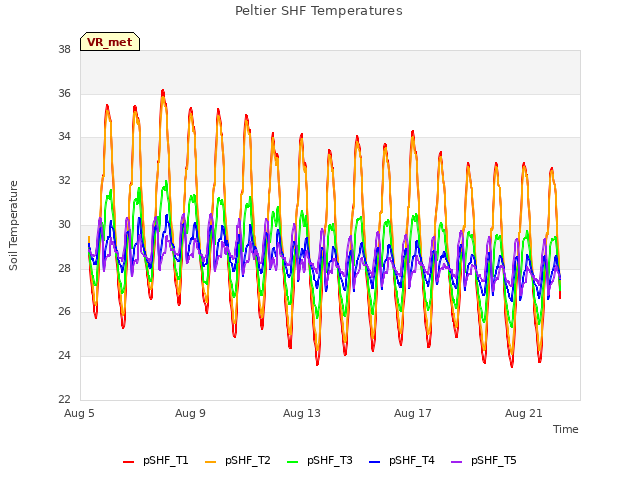

Explore the graph:Peltier SHF Temperatures in a new window

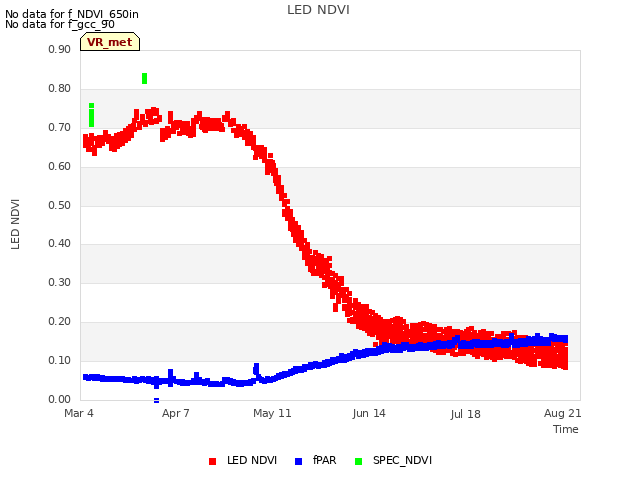

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

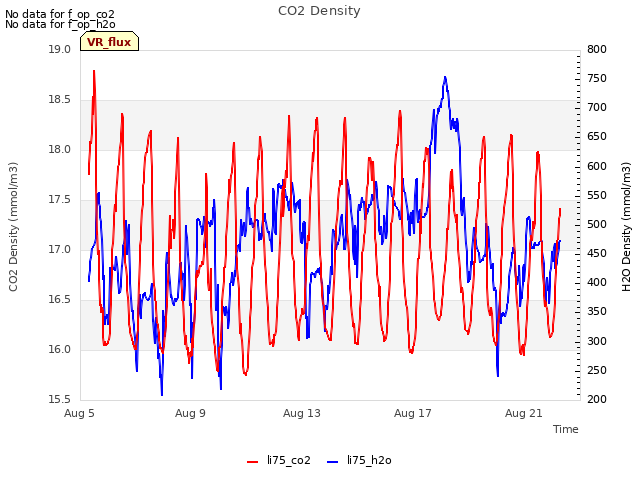

Explore the graph:CO2 Density in a new window

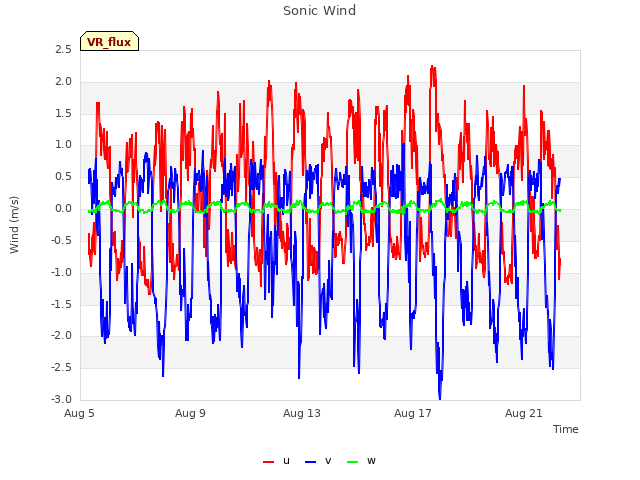

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

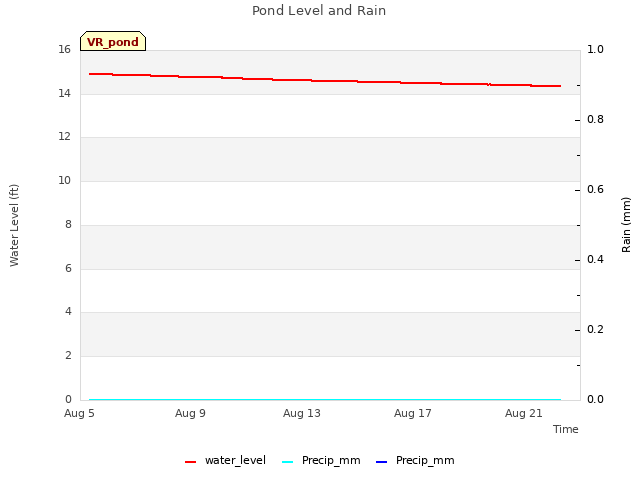

Explore the graph:Pond Level and Rain in a new window

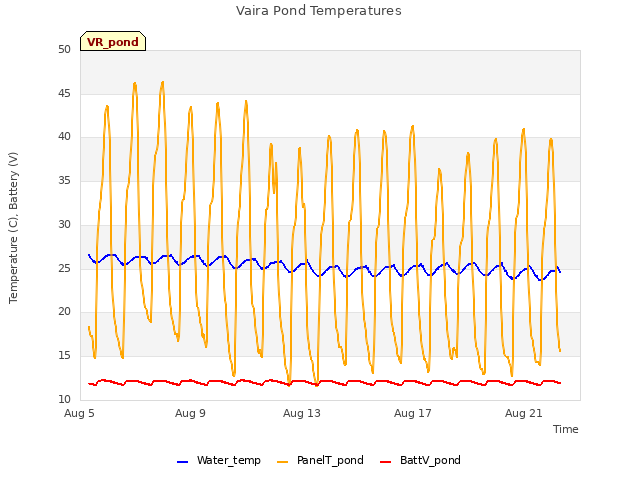

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

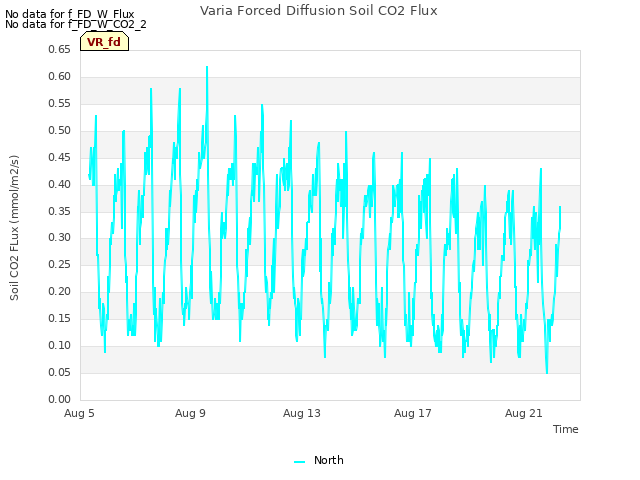

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

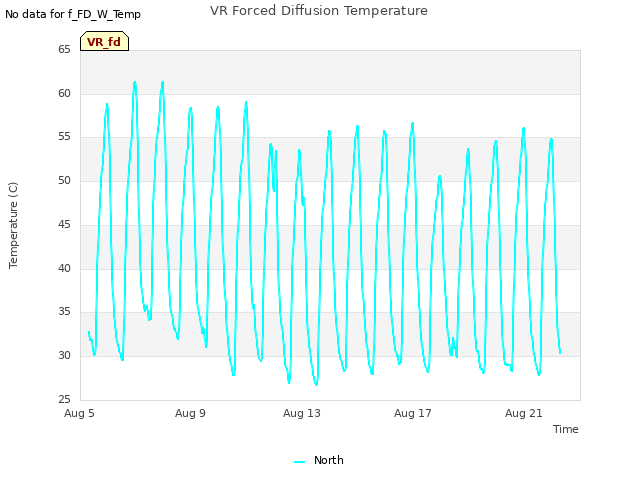

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

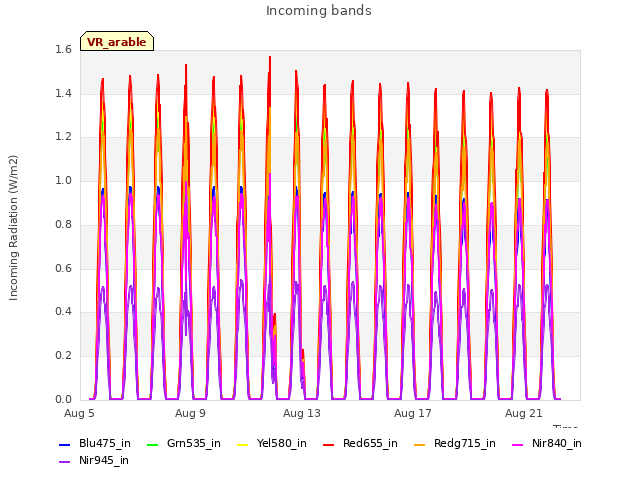

Explore the graph:Incoming bands in a new window

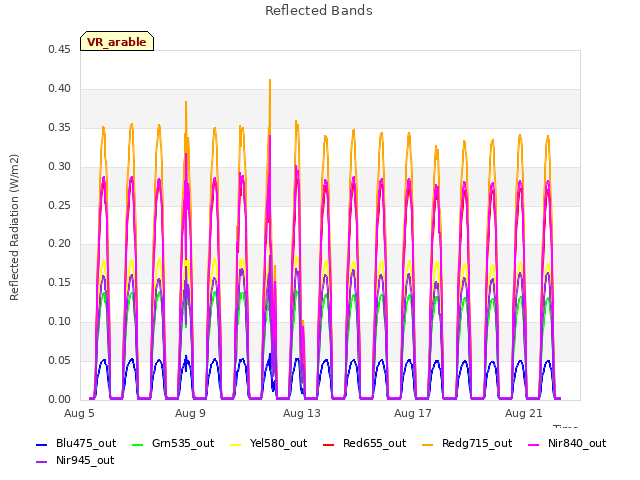

Explore the graph:Reflected Bands in a new window

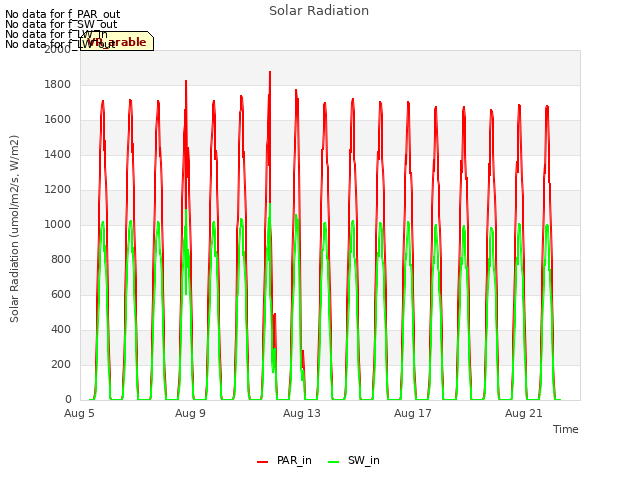

Explore the graph:Solar Radiation in a new window

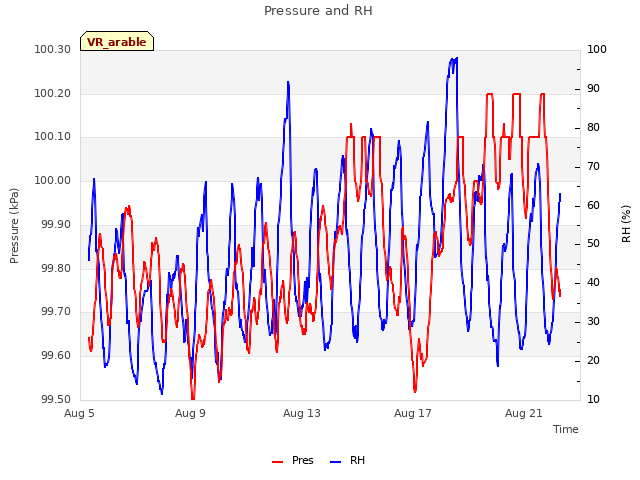

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

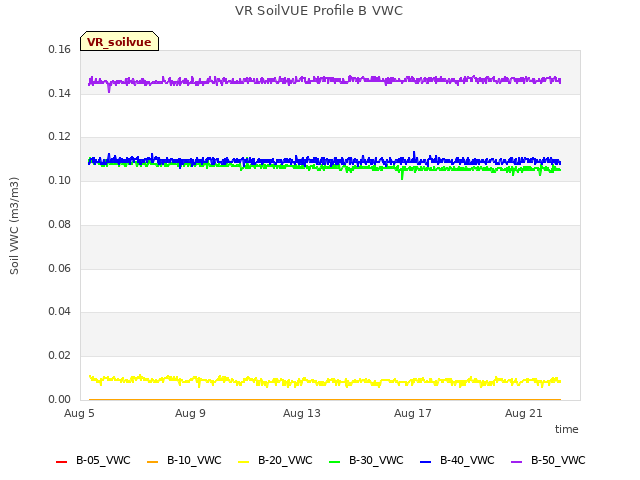

Explore the graph:VR SoilVUE Profile B VWC in a new window

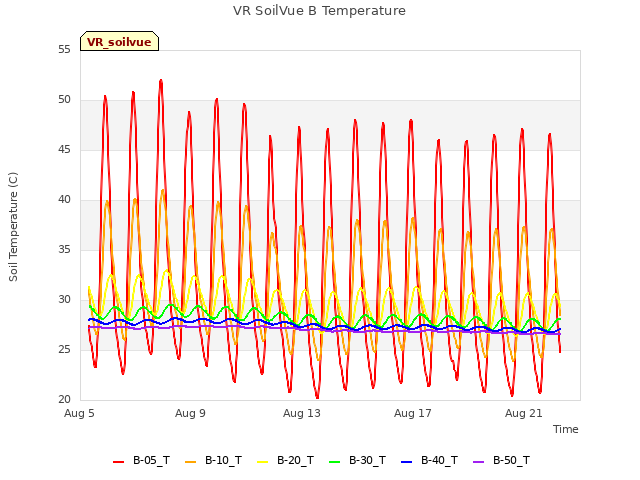

Explore the graph:VR SoilVue B Temperature in a new window

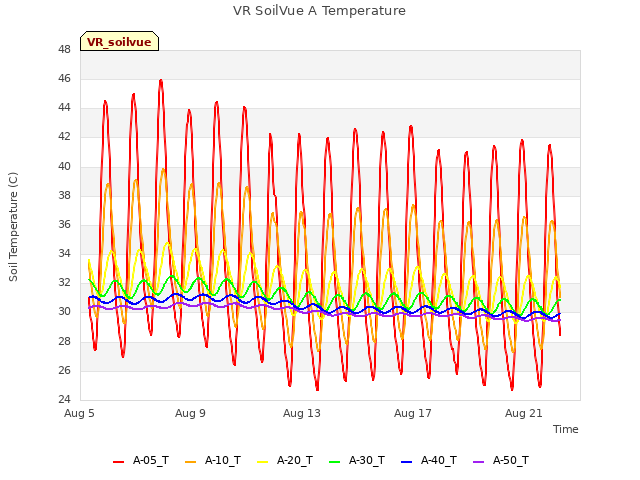

Explore the graph:VR SoilVue A Temperature in a new window

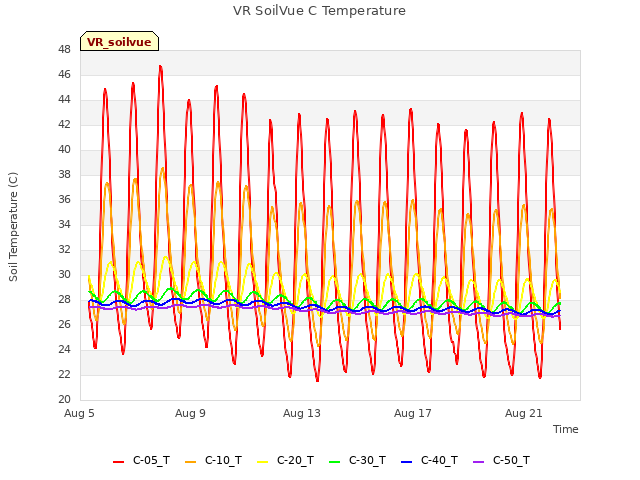

Explore the graph:VR SoilVue C Temperature in a new window

Explore the graph:VR SoilVUE Profile A VWC in a new window

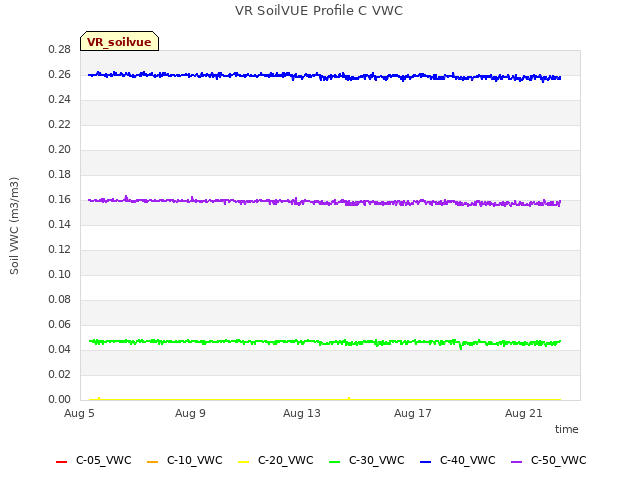

Explore the graph:VR SoilVUE Profile C VWC in a new window
