Field Notes

<--2024-05-23 12:25:00 | 2024-06-03 10:35:00-->
Other sites visited today: West Pond
Phenocam link: mayberry 2024/05/31

Mayberry: 2024-05-31 14:30:00 (DOY 152)
Author: Kyle Delwiche
Others: Ngoc

Summary: Sampled porewater sippers

Ngoc and I arrived at the field Friday afternoon. It was warm but not too hot, sunny, and not much wind. I put on the waders and went out to the open-water sippers while Ngoc sat on the boardwalk and recorded the data. We noticed that there appeared to be even more gas being pulled up with the porewater than last time, and started recording the amount of gas per amount of liquid sample. I also noticed more bubbles being released when I walked through the sediment than I remember seeing before.

After doing the open water sippers I sampled the sippers in the vegetated areas. Unfortunately 7 of these were clogged. For the black profile the black-green was easy to sample, so I pulled 60mLs at a time and pushed it into the clogged sippers (Vblackred, Vblackwhite, Vblackblack). For the clogged red profile sippers I pushed 60mLs of surface water into each (Vredyellow, Vredred, Vredwhite, Vredredred). Note that I discovered I had two Vredred sippers, so I added an extra red band to one of them to make it Vredredred.

Ngoc and I left around 5pm. We saw a dead snake in the road on the way back to the gate.

"open-red-yellow, 8.35 mS, 28.1C"
"open-red-red, 6.62 mS, 25.8C"
"open-red-white, 7.30 mS, 25.5C"
"open-red-black, 7.10 mS, 24.9C"
"open-red-green, 6.50 mS, 25.9C"
"open-blue-yellow, 6.30 mS, 26.8C"
"open-blue-red, 6.93 mS, 27.2C"
"open-blue-white, 7.14 mS, 26.8C"
"open-blue-black, 6.32 mS, 25.9C"
"open-blue-green, 4.90 mS, 23.0C"
"open-blue-green, 4.80 mS, 24.9C"
"open-black-yellow, 8.16 mS, 25.2C"
"open-black-red, 7.86 mS, 24.9C"
"open-black-white, 7.76 mS, 25.0C"
"open-black-black, 7.32 mS, 25.2C"
"open-black-green, 7.65 mS, 26.4C"
"veg-blue-yellow, 9.68 mS, 27.2C"
"veg-blue-red, 9.75 mS, 32.8C"
"veg-blue-white, 8.60 mS, 30.6C"
"veg-blue-black, 9.51 mS, 27.4C"
"veg-blue-green, 6.30 mS, 26.1C"
"veg-black-yellow, 8.08 mS, 29.5C"
"veg-black-red, , "
"veg-black-white, , "
"veg-black-black, , "
"veg-black-green, 5.20 mS, 26.2C"
"veg-red-yellow, , "
"veg-red-red, , "
"veg-red-white, , "
"veg-red-black, 4.79 mS, 26.2C"
"veg-red-green, 4.97 mS, 25.8C"
"veg-red-red-red, , "
"surface, 1.55 mS, 26.2C"

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

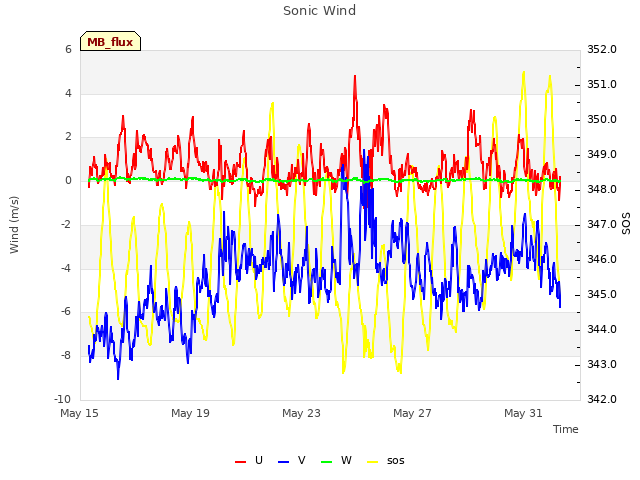

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

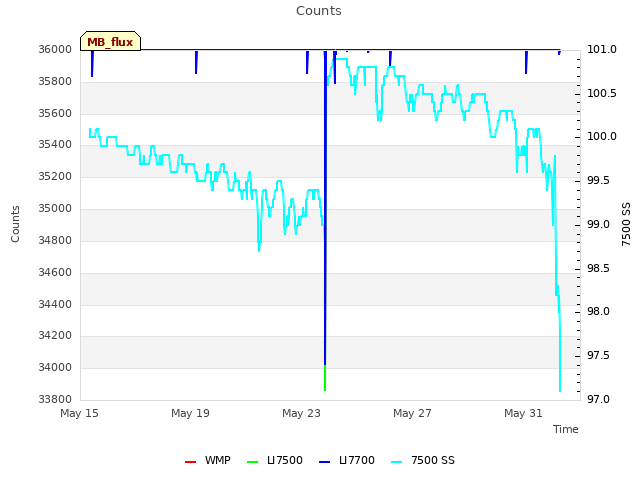

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

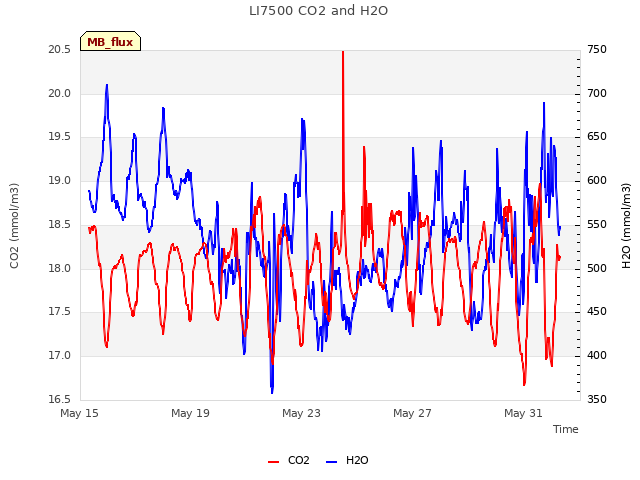

Explore the graph:LI7500 CO2 and H2O in a new window

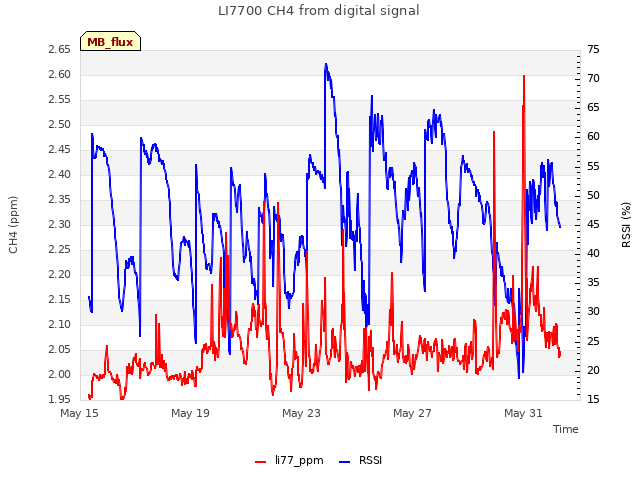

Explore the graph:LI7700 CH4 from digital signal in a new window

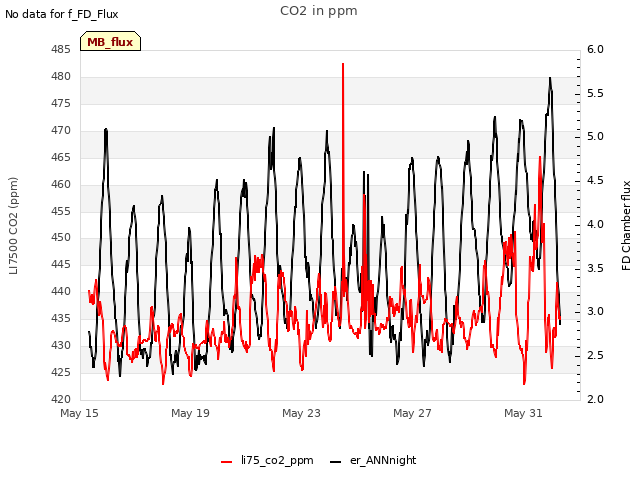

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

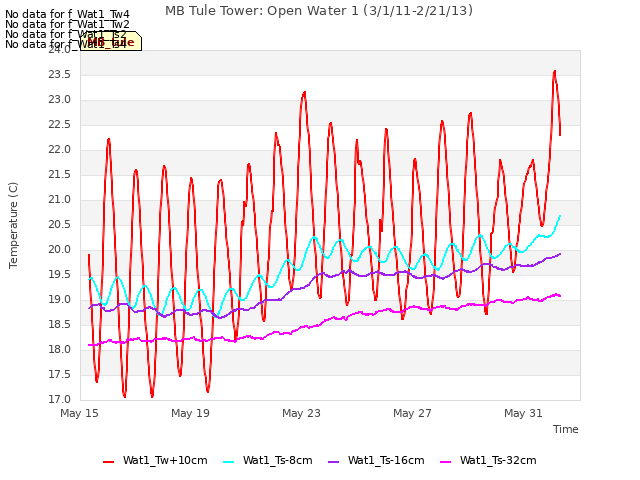

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

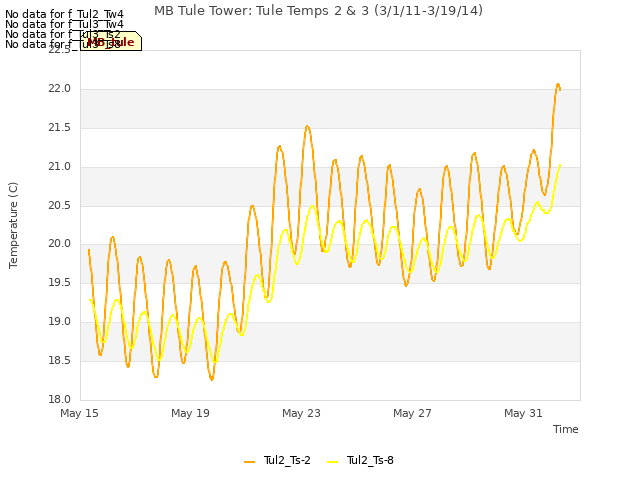

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

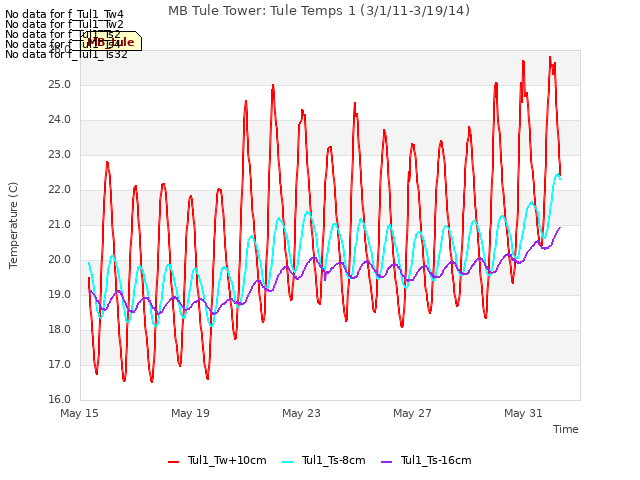

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

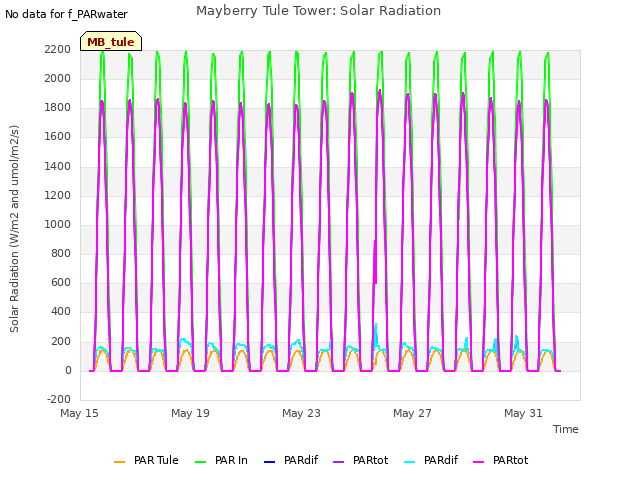

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

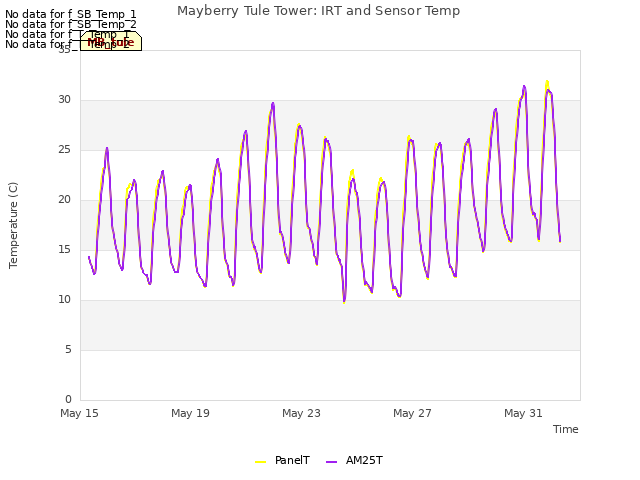

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

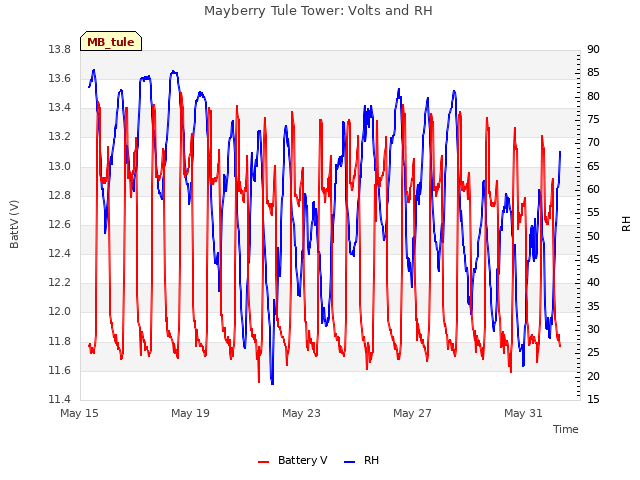

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

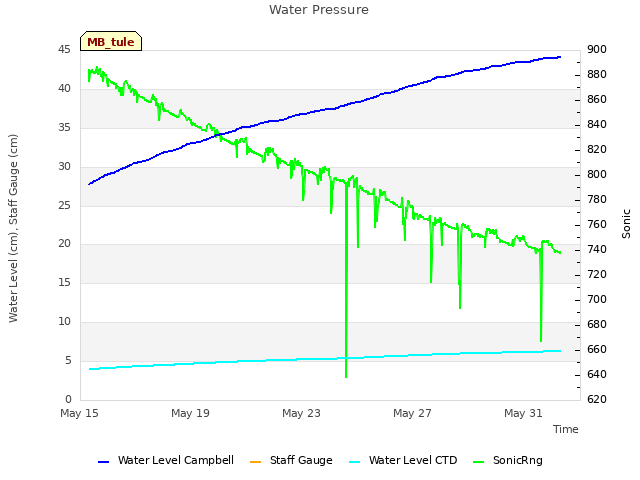

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

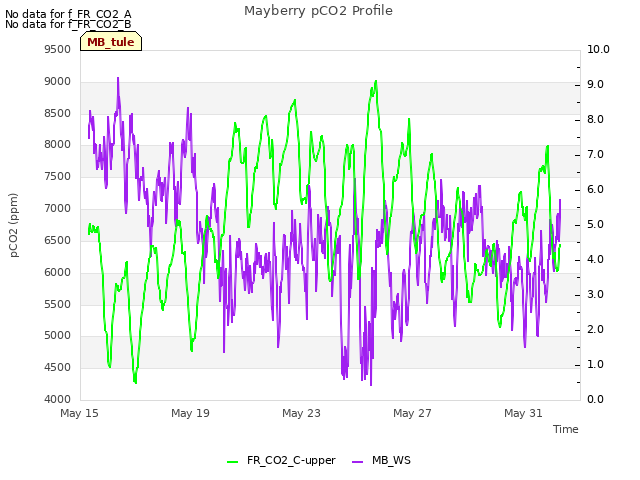

Explore the graph:Mayberry pCO2 Profile in a new window

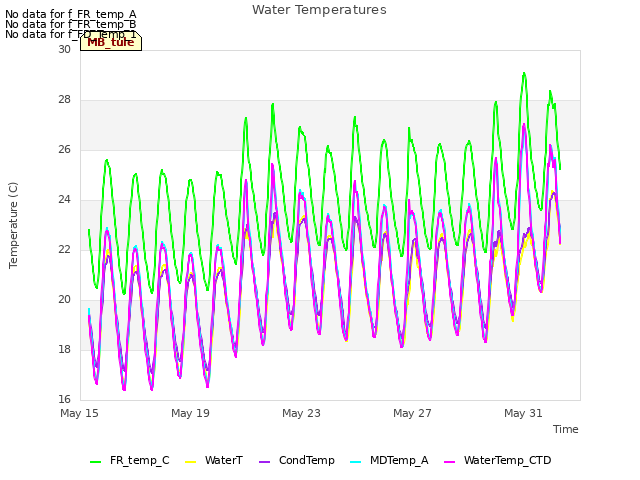

Explore the graph:Water Temperatures in a new window

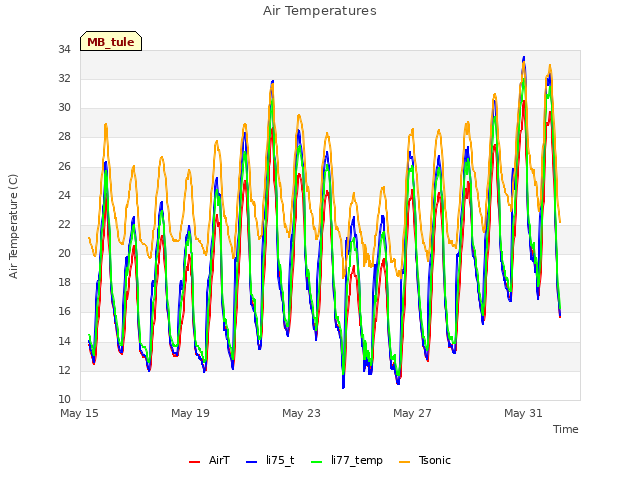

Explore the graph:Air Temperatures in a new window

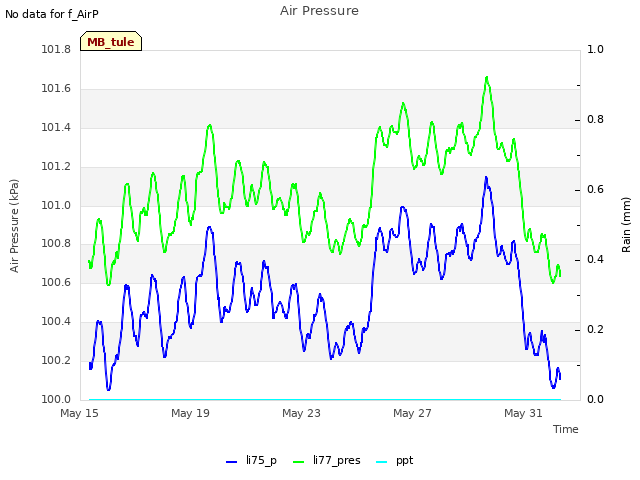

Explore the graph:Air Pressure in a new window

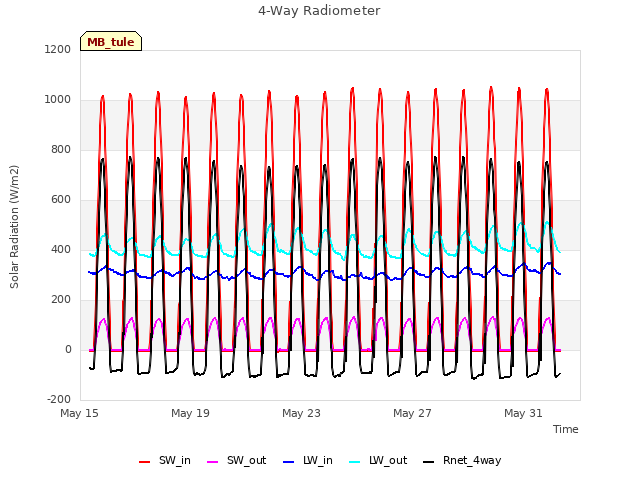

Explore the graph:4-Way Radiometer in a new window

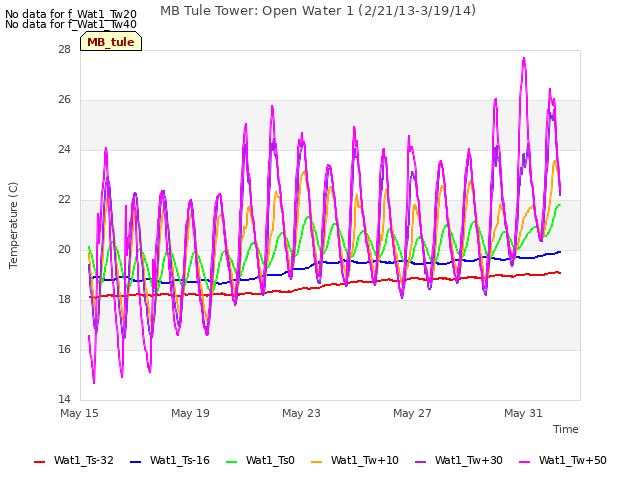

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

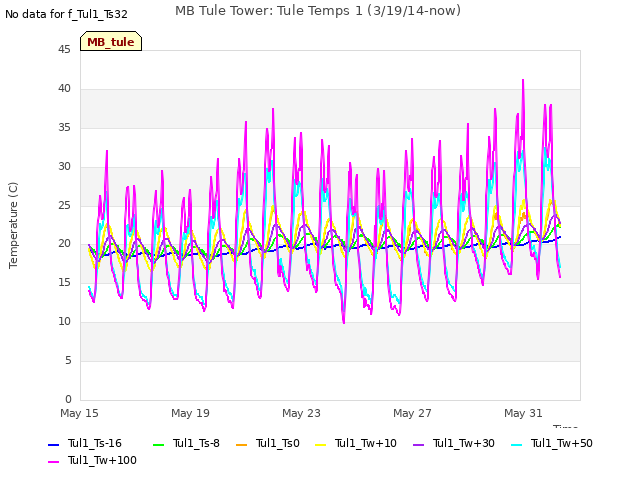

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

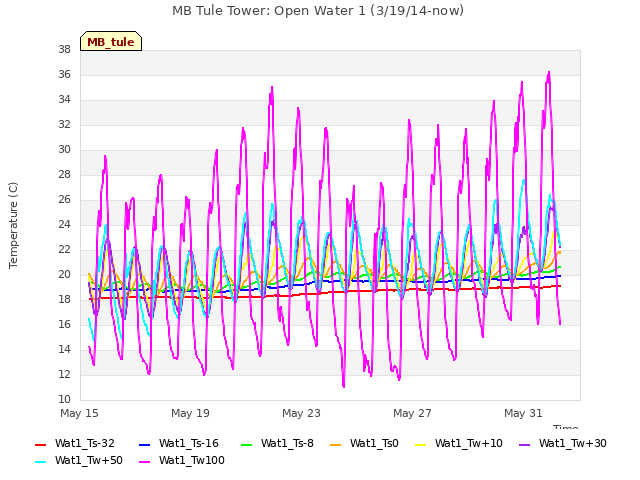

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

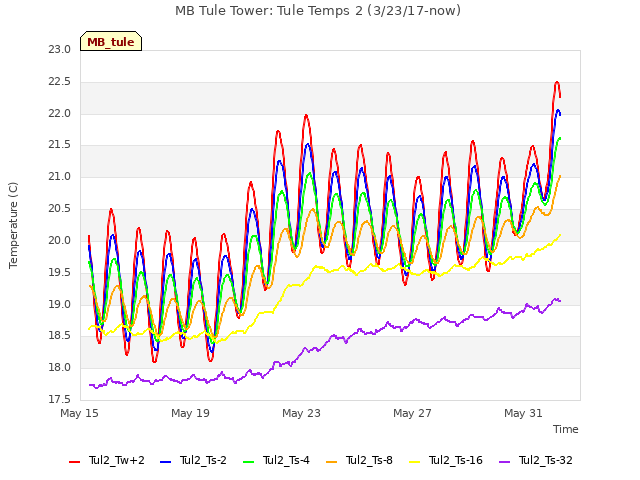

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

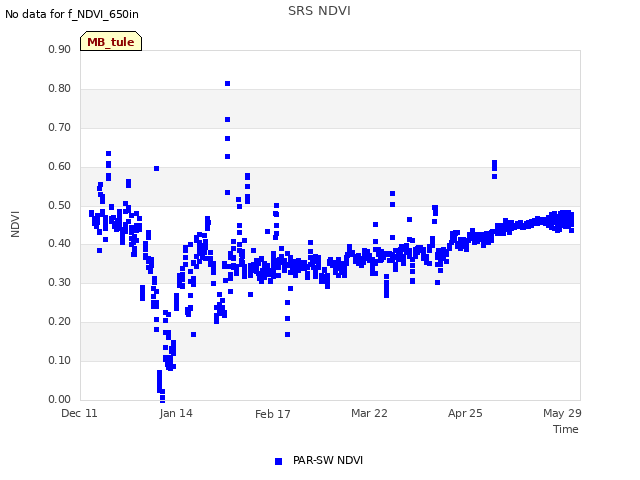

Explore the graph:SRS NDVI in a new window

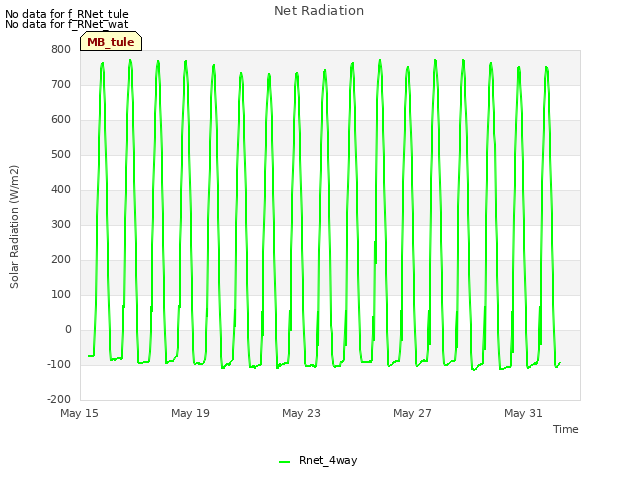

Explore the graph:Net Radiation in a new window

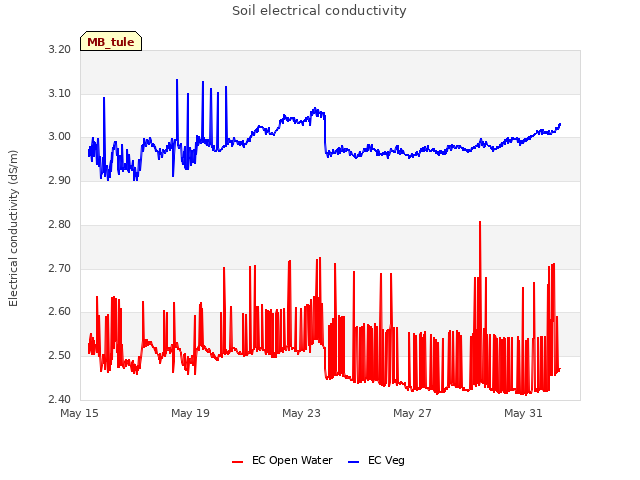

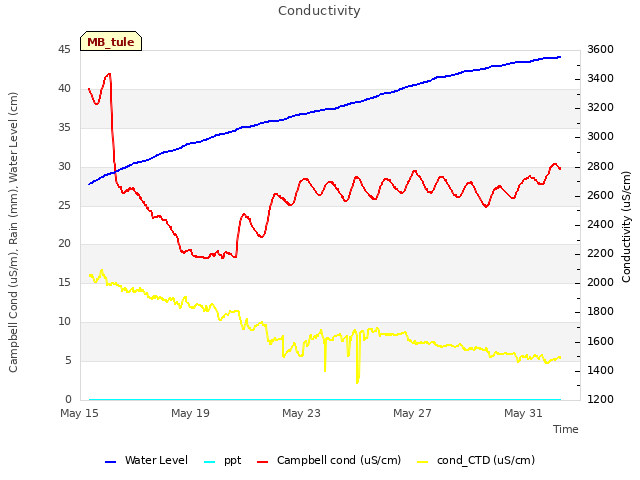

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

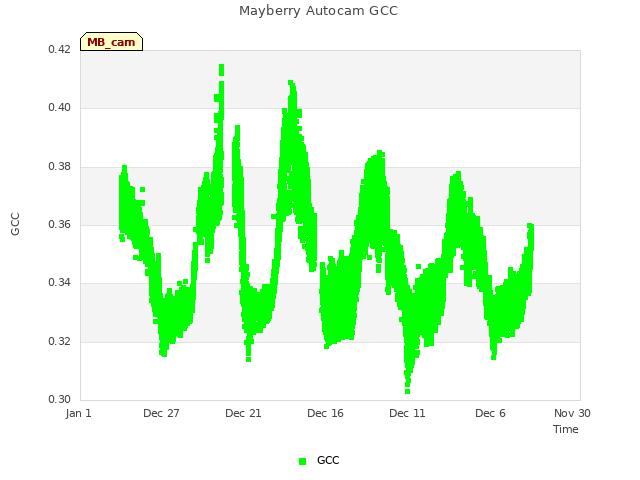

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

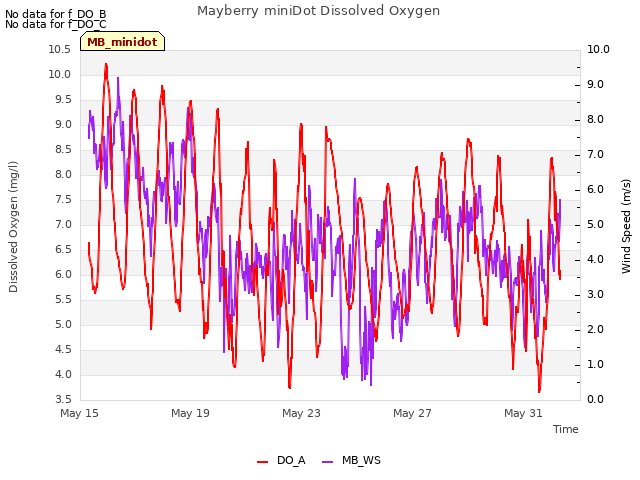

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
No data found for MB_processed.
Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
