Vaira: 2023-08-15 11:30:00 (DOY 227)
Author: Joe Verfaillie
Others: Daphne

Summary: Hot and dry. Standard fieldwork, sonic heading really is true north.

Vaira
2023-08-15

Daphne and I arrived at about 11:30 PDT. We are a little late today because we stopped to play in the mud at Hill Slough. It is clear, sunny and hot (~40C). The grass is dry and crunchy. There are some clouds to the northeast sliding in and dissipating. On the way up near Vacaville we had a few windshields full of fat heavy rain drops. The water hole still had some water in the bottom. The trees still look happy. There were a couple of burn scars along the road from Sacramento.

This was just a quick smash and grab to get the data and get out before it really gets hot. Daphne measured the well and cleaned the radiometers. I collected the flux, met, camera and FD data.
The 7500 read: 442.1ppm CO2, 641.8mmol/m3 H2O, 39.1C, 99.5kPa, 104.1SS

We checked the sonic heading yet again. This time using the old fashion analog magnetic compass. The sonic heading is 14deg true. My phone reports something close but Daphne’s phone is about 10deg high but consistent for that last three visits.

We left at about 12:10

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2023-08-15VR_well57.36
2023-08-15TZ_floor23.3
2023-08-15TZ_tower27.97
2023-08-15TZ_road32.59
2023-08-15HS3.68

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

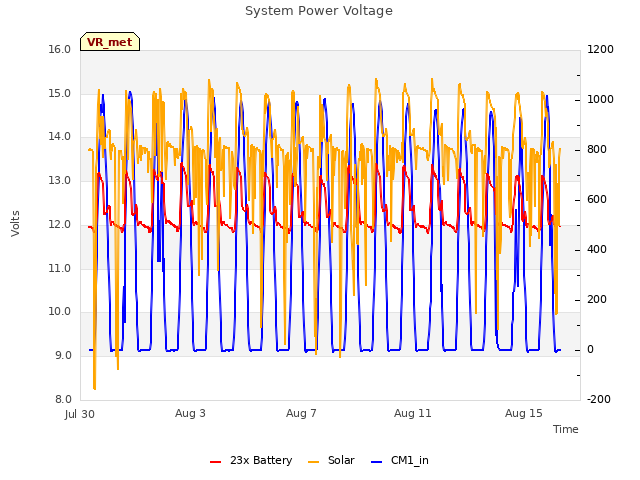

Explore the graph:System Power Voltage in a new window

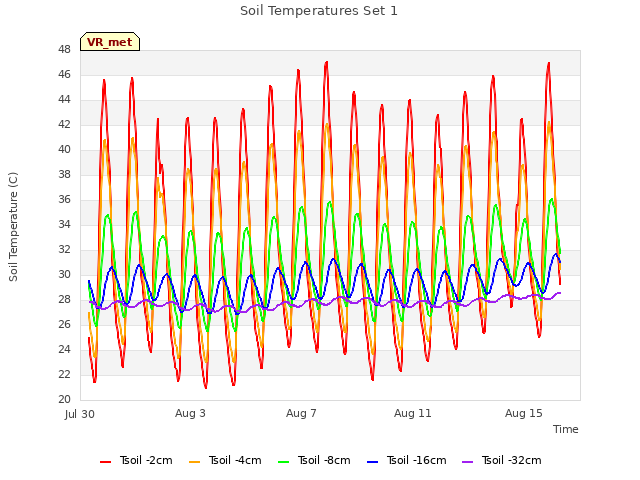

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

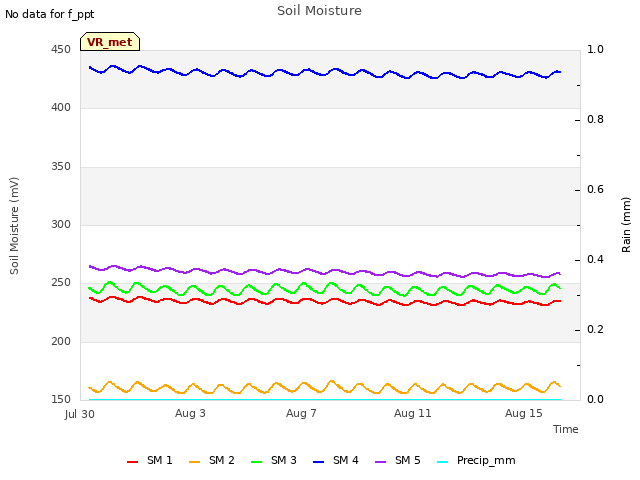

Explore the graph:Soil Moisture in a new window

Explore the graph:Photosynthetic Active Radiation in a new window

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

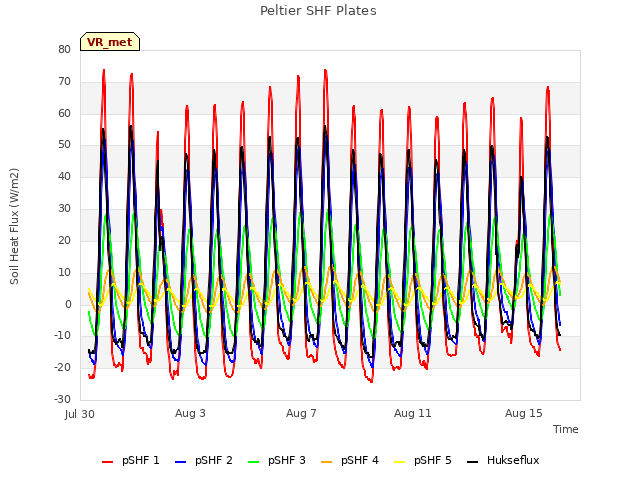

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

Explore the graph:CO2 Density in a new window

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

Explore the graph:Incoming bands in a new window

Explore the graph:Reflected Bands in a new window

Explore the graph:Solar Radiation in a new window

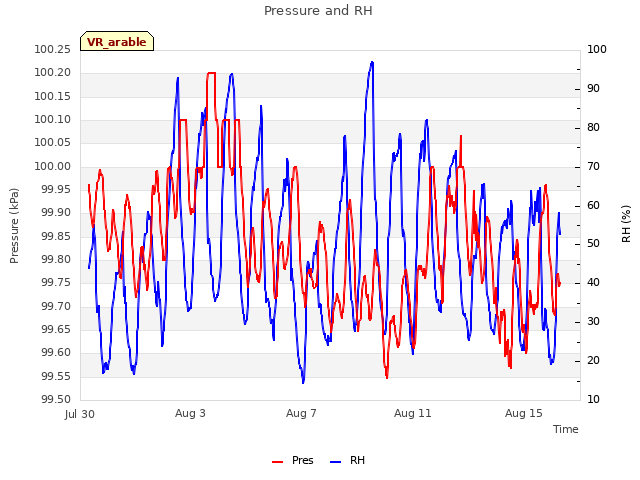

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

Explore the graph:VR SoilVUE Profile B VWC in a new window

Explore the graph:VR SoilVue B Temperature in a new window

Explore the graph:VR SoilVue A Temperature in a new window

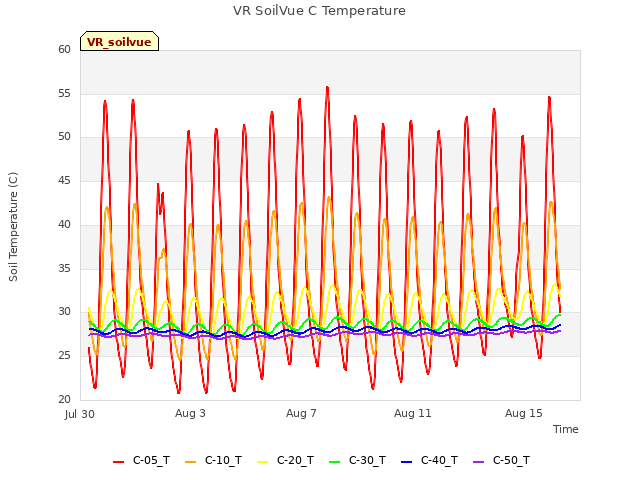

Explore the graph:VR SoilVue C Temperature in a new window

Explore the graph:VR SoilVUE Profile A VWC in a new window

Explore the graph:VR SoilVUE Profile C VWC in a new window
