Field Notes

<--2023-01-25 11:00:00 | 2023-03-01 11:00:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2023-02-08 11:00:00 (DOY 39)
Author: Joe Verfaillie
Others:

Summary: Still damp, pond CR10x lost its program - fixed, cows about.

Vaira
2023-02-08

I arrived at about 11:00 am. It was clear sunny and warm with a cool breeze from the northwest. The grass has not grown much still just a short green carpet. There was a bunch of cows (one might even say a herd) standing around the road near our site and they didn’t pay me any attention. Still lots of surface and standing water in the surrounding area and people out cutting up fallen trees. Snow very visible in the Sierras today.

I measured the well and collected the flux, met, camera and FD data.
The 7500 read: 447.2ppm CO2, 423.4mmol/m3 H2O, 22.8C, 100.9kPa, 102.4SS
I think the thermistor was in the sun – actual air temperature was more like 10C.

All looked well. I checked to make sure that grass wasn’t growing inside the FD chambers – I think all the seeds have been spent, nothing growing.

I went to the pond. The road was firm enough for a two wheel drive truck. The pond is still topped up. The CR10x there had lost its program for some reason – I guess power could have failed. I didn’t have a copy of the program with me but using the hot spot on my phone I could remote desktop from the field laptop to my computer in the lab and retrieve a copy. Reloading the program seemed to work.

I left at about 12:15

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2023-02-08VR_well51.65
2023-02-08VR_pond22.04
2023-02-08TZ_floor23.7
2023-02-08TZ_road31.25
2023-02-08TZ_tower26.65

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

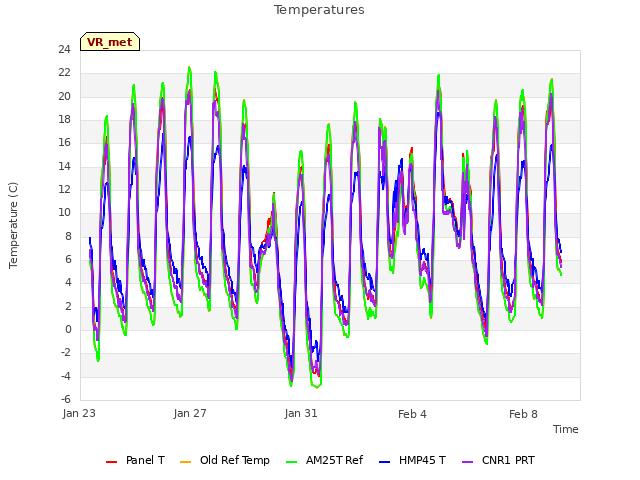

Explore the graph:Temperatures in a new window

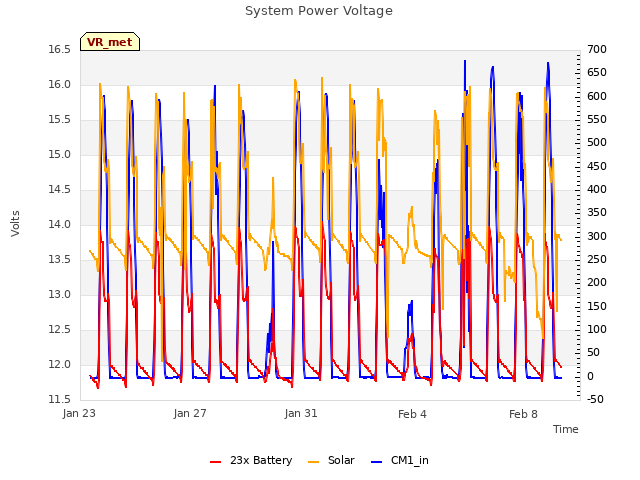

Explore the graph:System Power Voltage in a new window

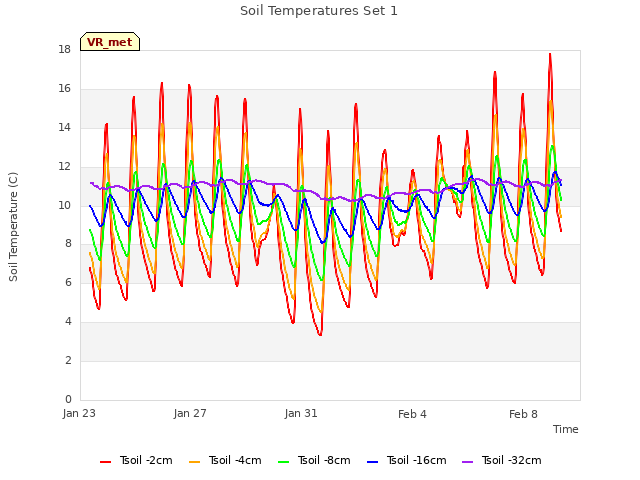

Explore the graph:Soil Temperatures Set 1 in a new window

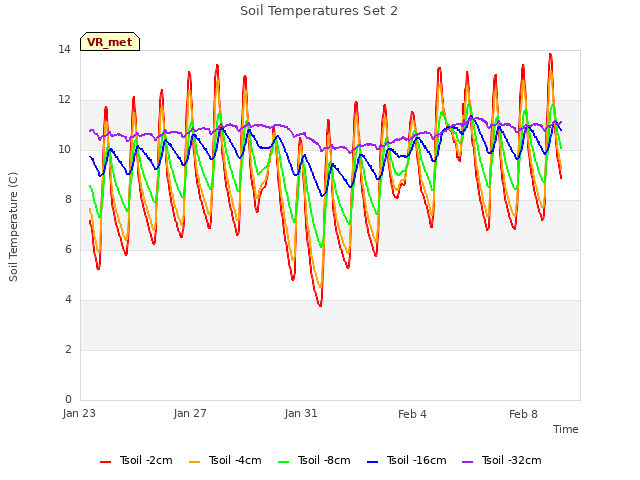

Explore the graph:Soil Temperatures Set 2 in a new window

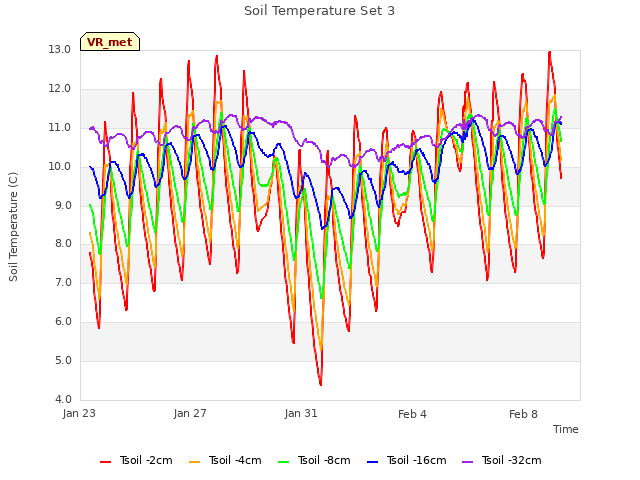

Explore the graph:Soil Temperature Set 3 in a new window

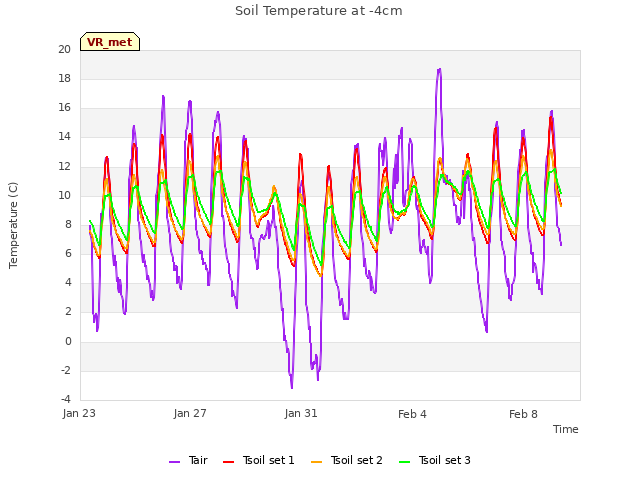

Explore the graph:Soil Temperature at -4cm in a new window

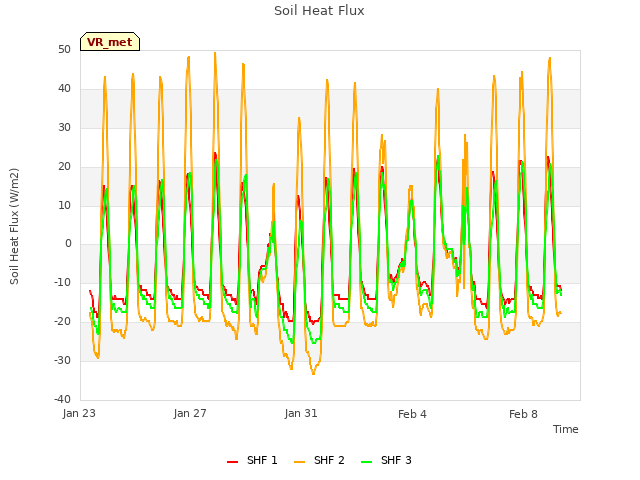

Explore the graph:Soil Heat Flux in a new window

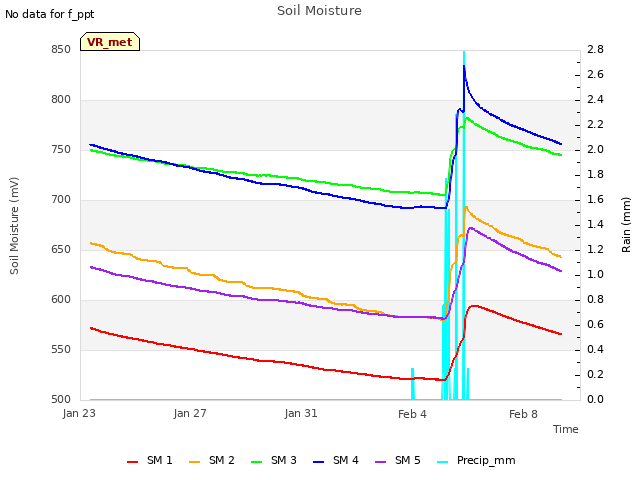

Explore the graph:Soil Moisture in a new window

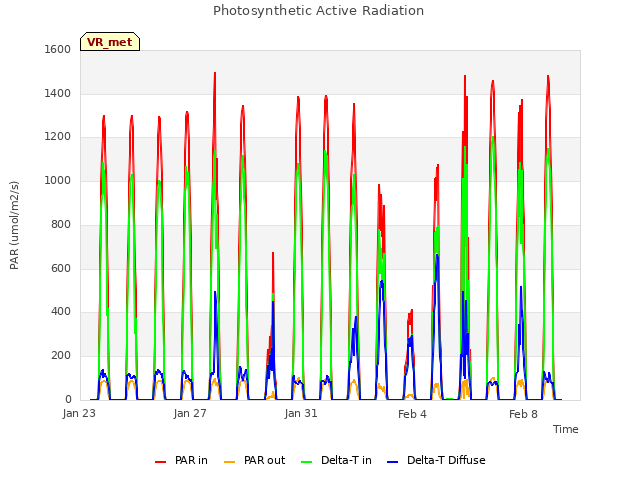

Explore the graph:Photosynthetic Active Radiation in a new window

Explore the graph:Short/Long Wave Radiation in a new window

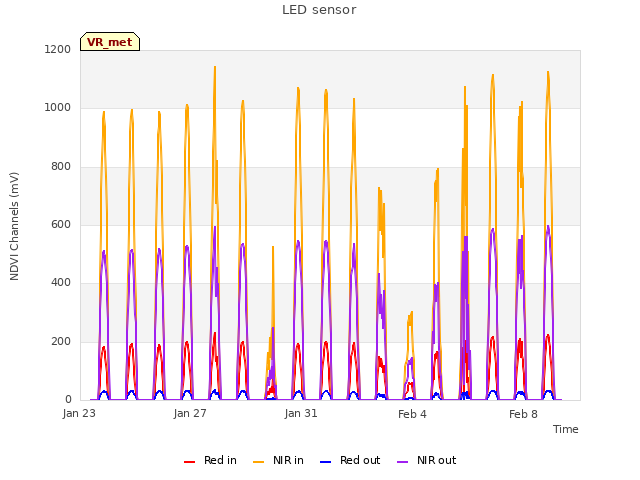

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

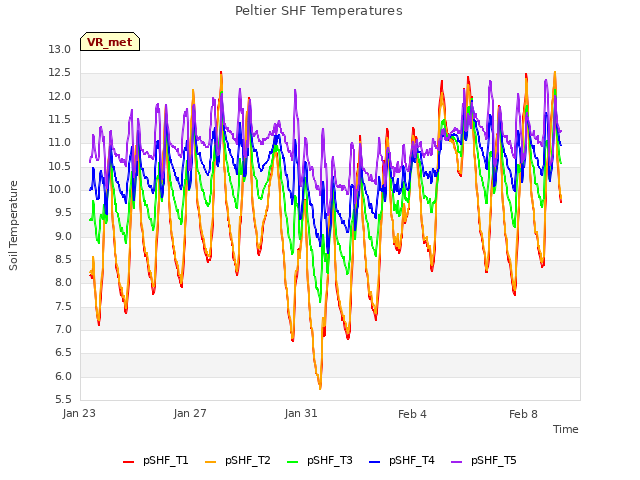

Explore the graph:Peltier SHF Temperatures in a new window

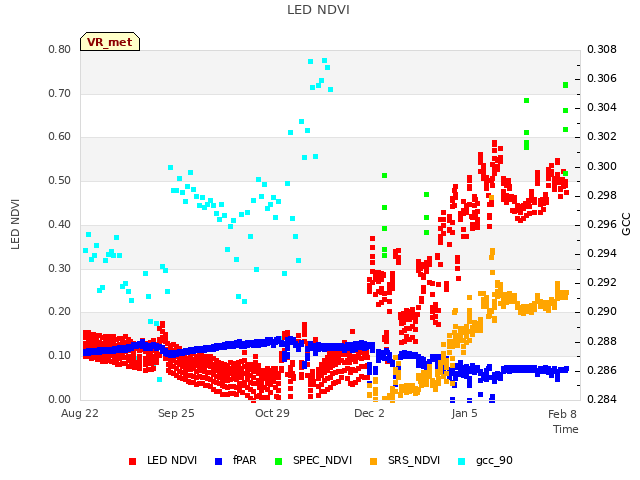

Explore the graph:LED NDVI in a new window

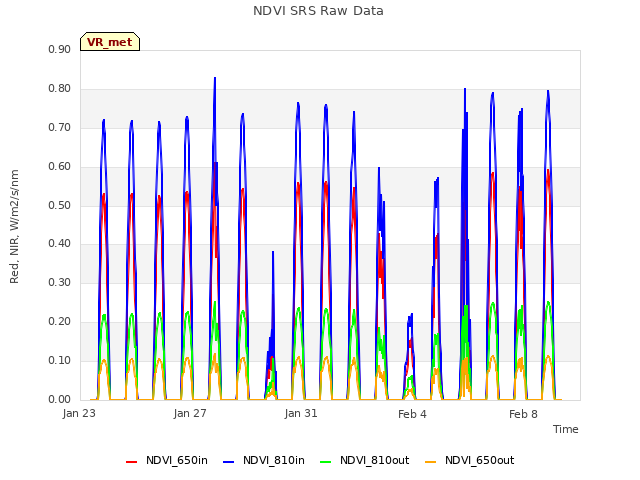

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

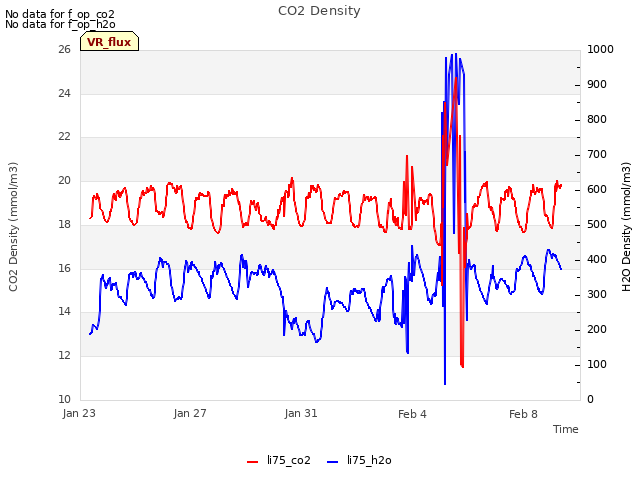

Explore the graph:CO2 Density in a new window

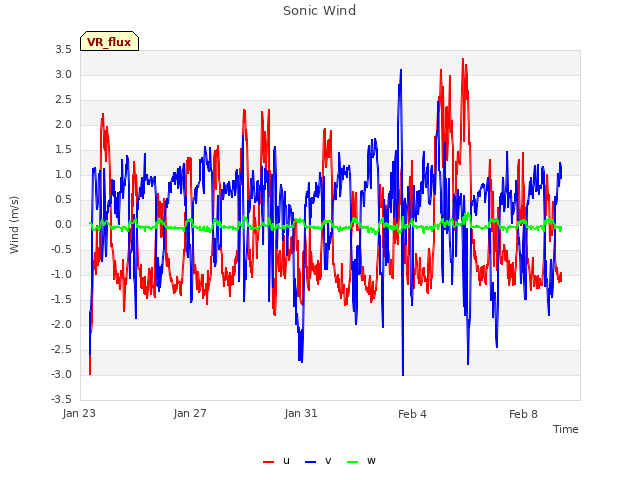

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
3 VR_fd graphs found

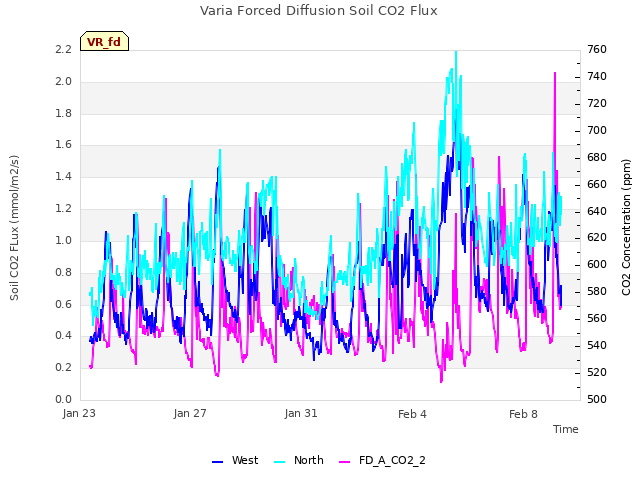

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

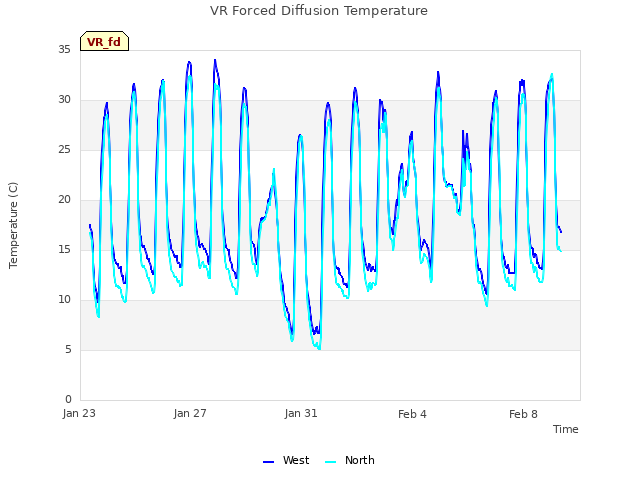

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

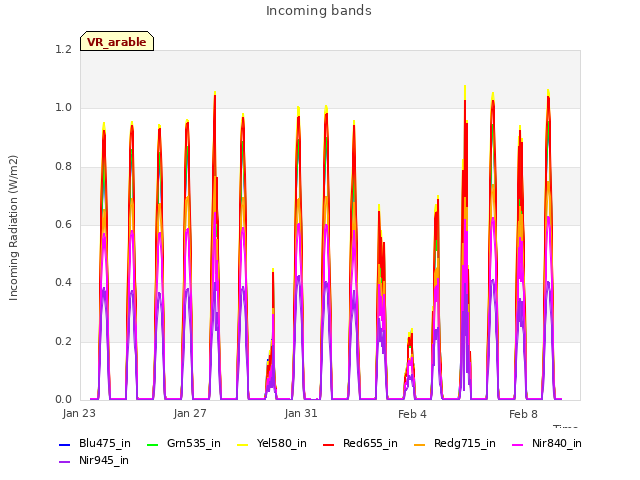

Explore the graph:Incoming bands in a new window

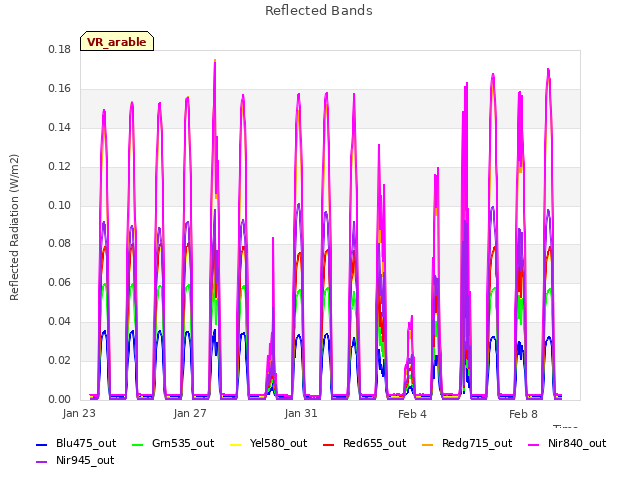

Explore the graph:Reflected Bands in a new window

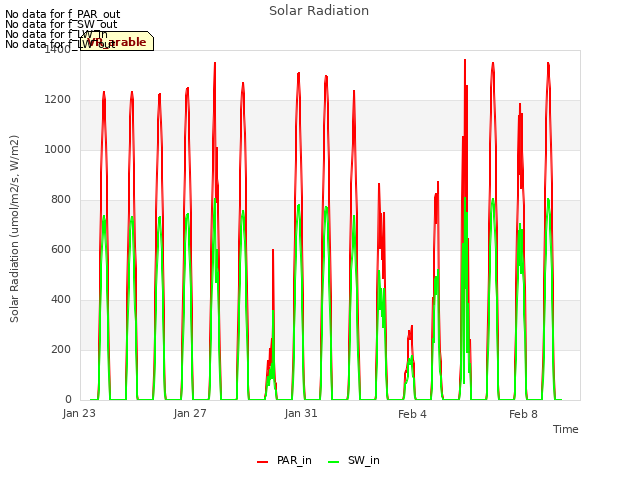

Explore the graph:Solar Radiation in a new window

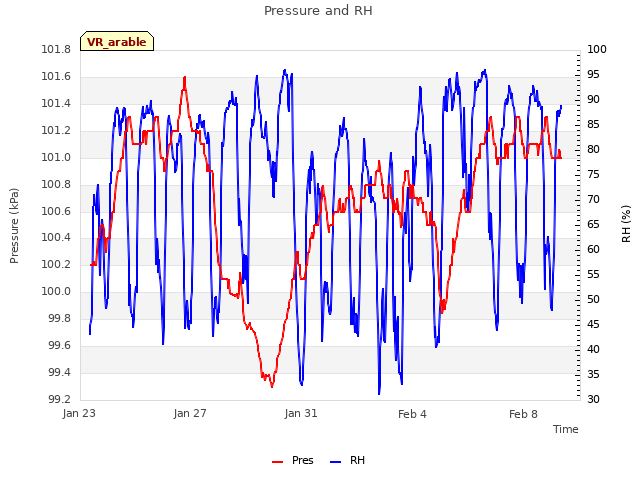

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

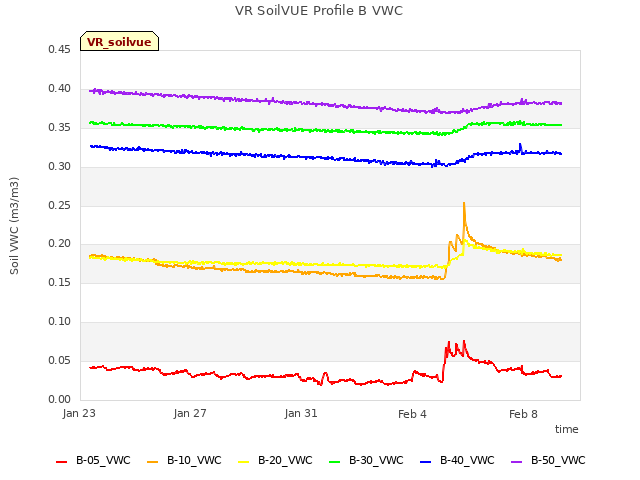

Explore the graph:VR SoilVUE Profile B VWC in a new window

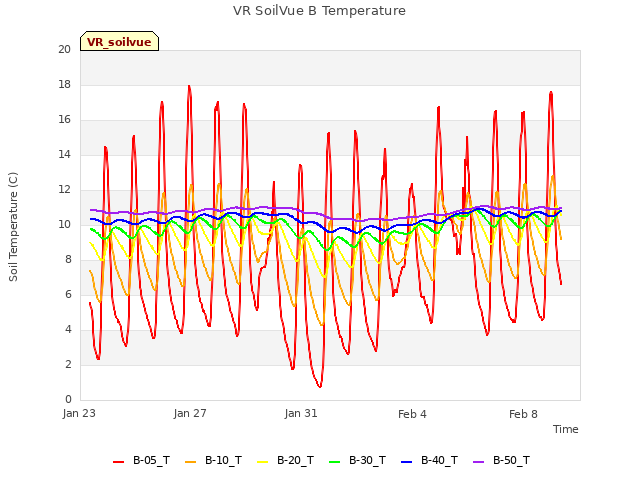

Explore the graph:VR SoilVue B Temperature in a new window

Explore the graph:VR SoilVue A Temperature in a new window

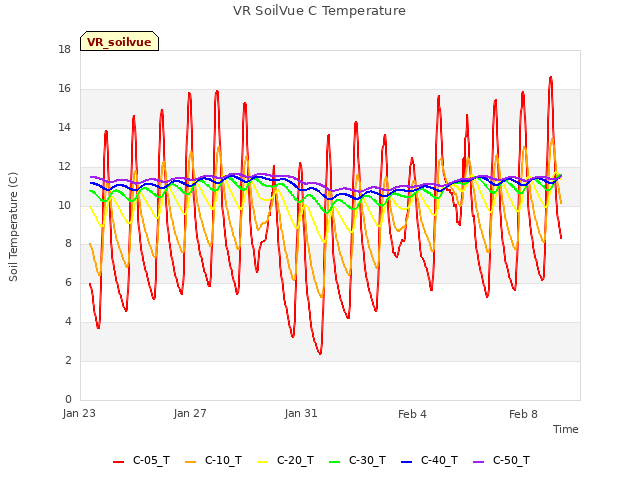

Explore the graph:VR SoilVue C Temperature in a new window

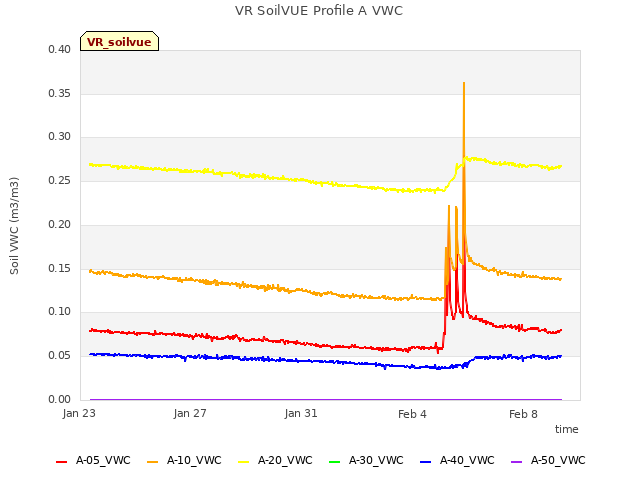

Explore the graph:VR SoilVUE Profile A VWC in a new window

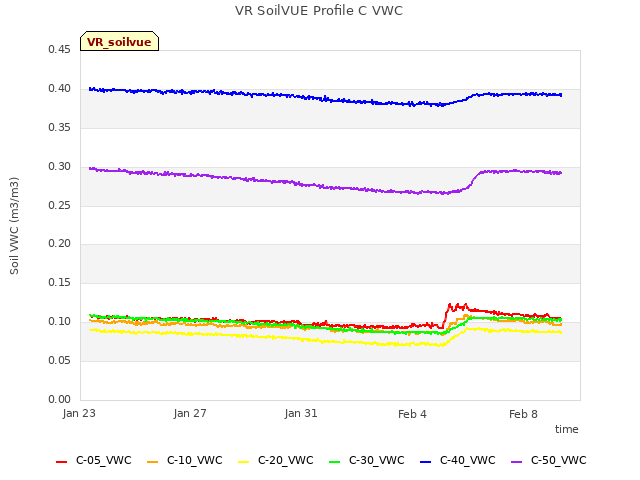

Explore the graph:VR SoilVUE Profile C VWC in a new window
