Field Notes

<--2022-12-06 10:40:00 | 2023-01-06 11:00:00-->
Other sites visited today: Hill Slough | Tonzi
Phenocam link: Searching...

Vaira: 2022-12-21 12:00:00 (DOY 355)
Author: Joe Verfaillie
Others: Kyoko, Hisashi

Summary: Cold and foggy, standard data collection, pond level has risen.

Vaira
2022-12-21

Kyoko, Hisashi and I arrived at 12:00 just in time for lunch. It was cold with light fog. The solar panels were still providing about 3A. The grass tips have yellowed – I think some freezing temperatures have finally impacted the growth. I don’t think there has been much if any rain in the last two weeks but the ground is still moist – no puddles on the road though. The water hole is still about half full. We went to the pond and its water level has come up to 14.54ft. The water was very clear – the weeds have almost disappeared.

At the tower we just did the standard data collection. I collected met, flux, FD and camera data. The camera had two periods of images since I couldn’t collect them last time.
The 7500 read: 465.2ppm CO2, 369.2mmol/m3, 6.1C, 100.6kPa, 102.2SS

I changed the desiccant in the water level tube. There are diurnal steps in the data - not sure this has anything to do with it though.

We left at 13:00

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2022-12-21VR_well61
2022-12-21TZ_floor31.55
2022-12-21TZ_road39.25
2022-12-21TZ_tower36.2
2022-12-21VR14.54

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

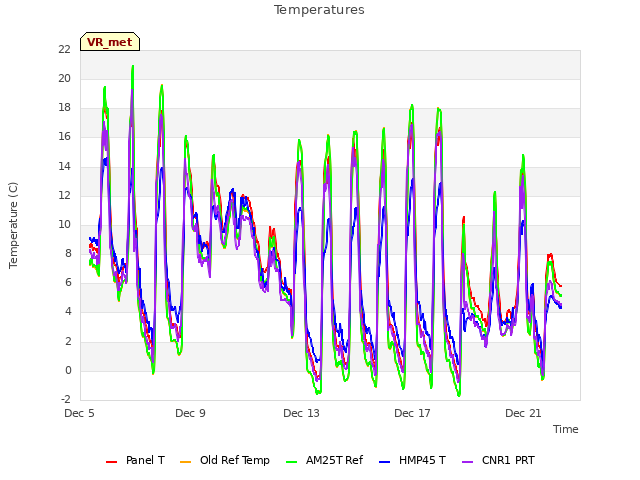

Explore the graph:Temperatures in a new window

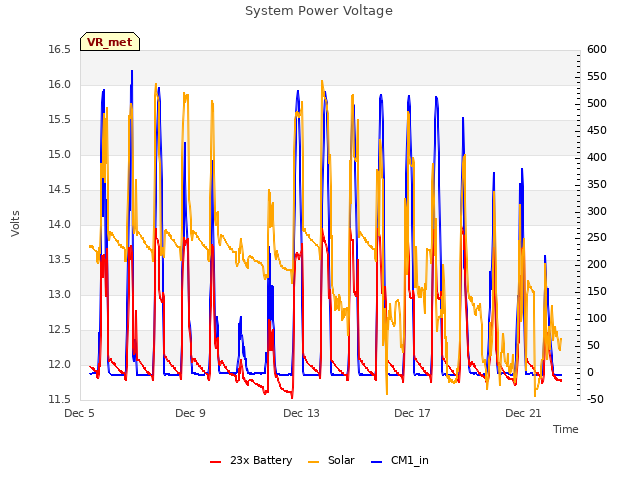

Explore the graph:System Power Voltage in a new window

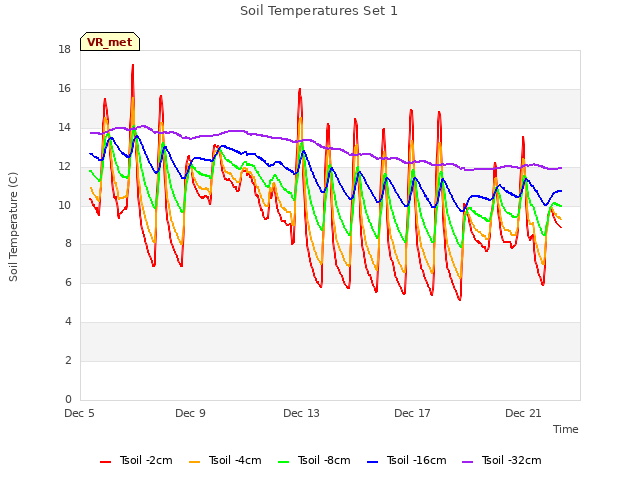

Explore the graph:Soil Temperatures Set 1 in a new window

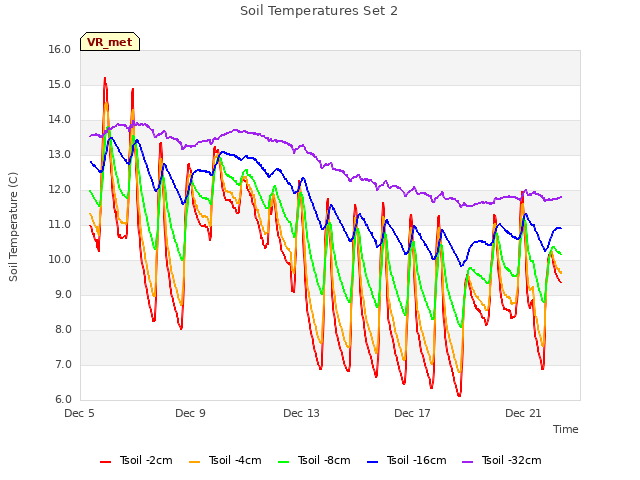

Explore the graph:Soil Temperatures Set 2 in a new window

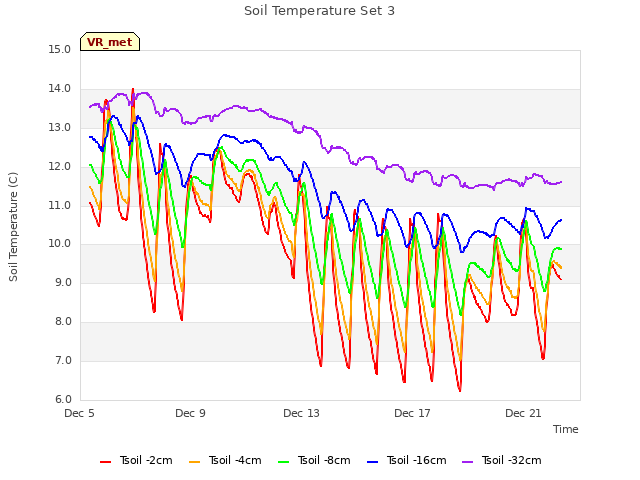

Explore the graph:Soil Temperature Set 3 in a new window

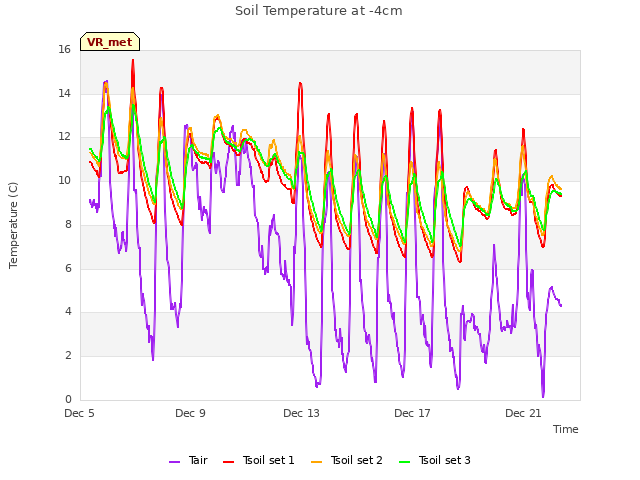

Explore the graph:Soil Temperature at -4cm in a new window

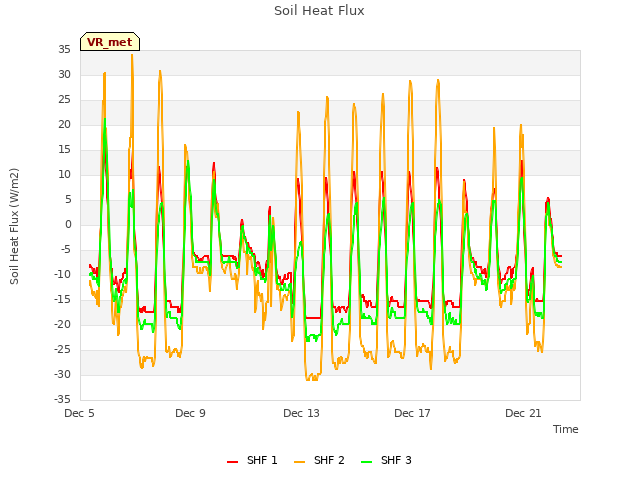

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

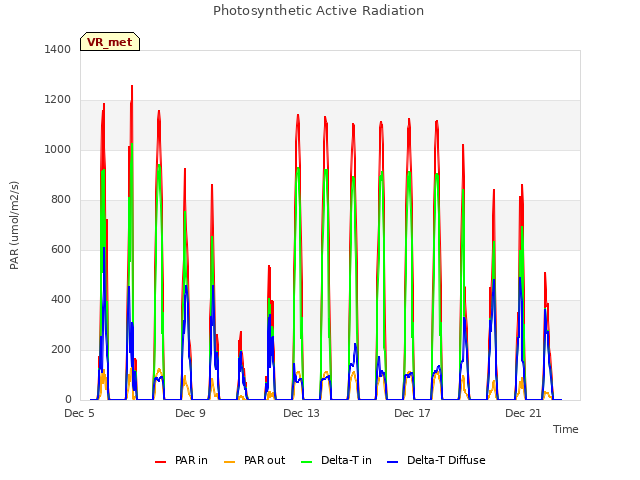

Explore the graph:Photosynthetic Active Radiation in a new window

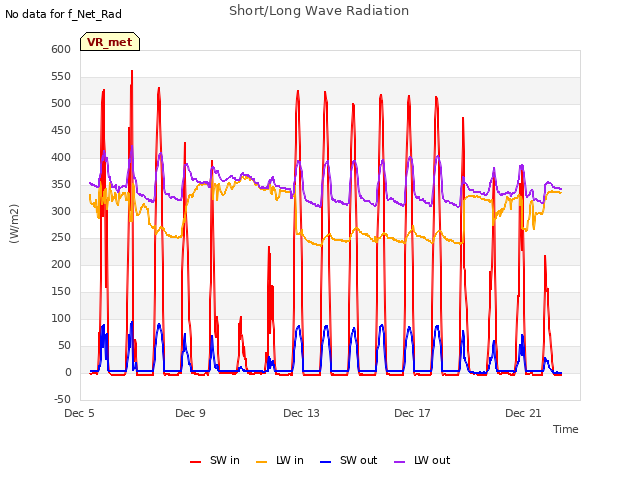

Explore the graph:Short/Long Wave Radiation in a new window

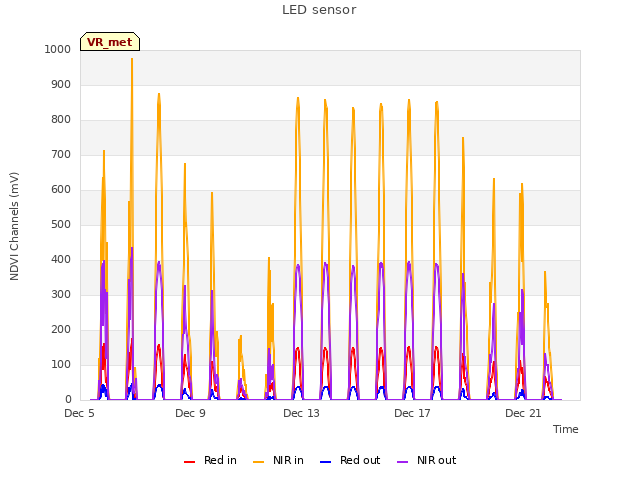

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

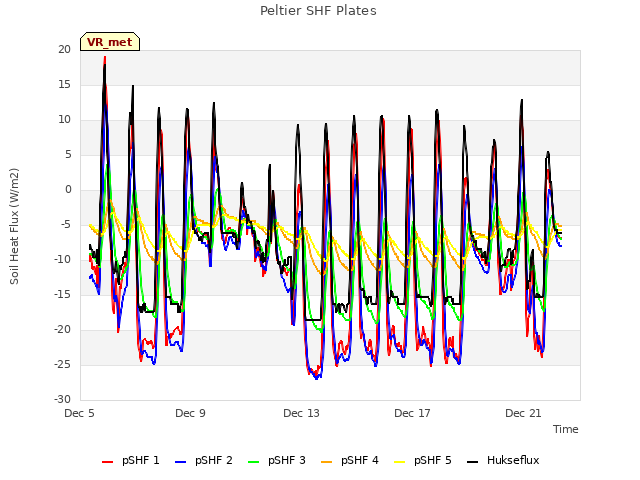

Explore the graph:Peltier SHF Plates in a new window

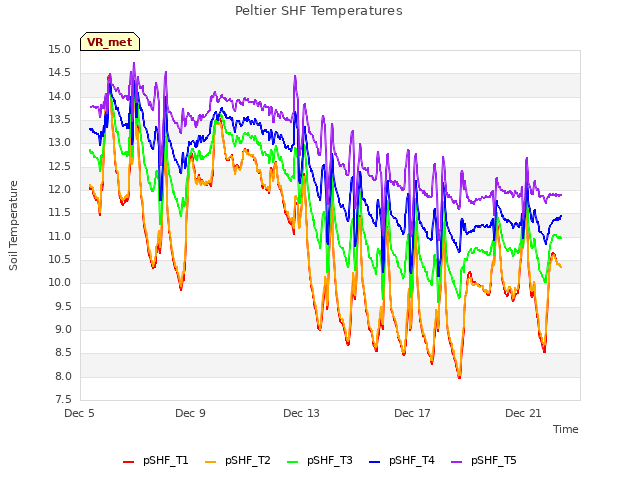

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

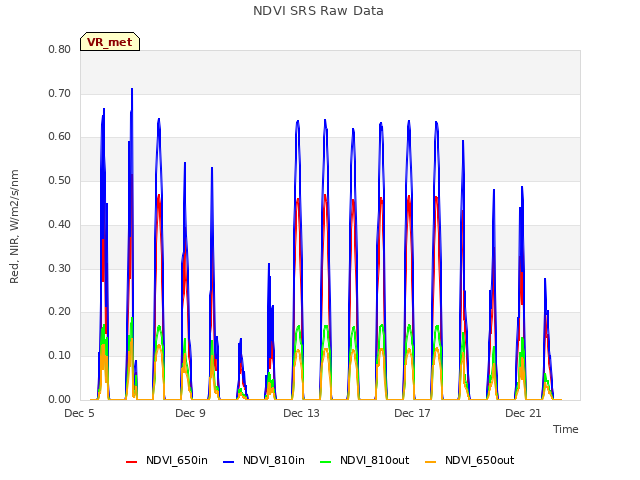

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

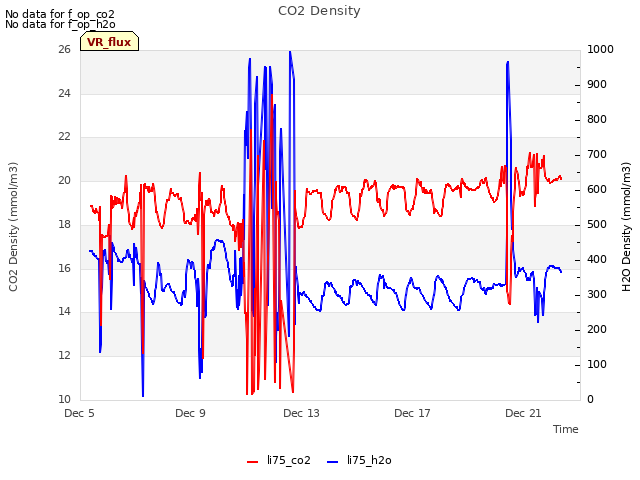

Explore the graph:CO2 Density in a new window

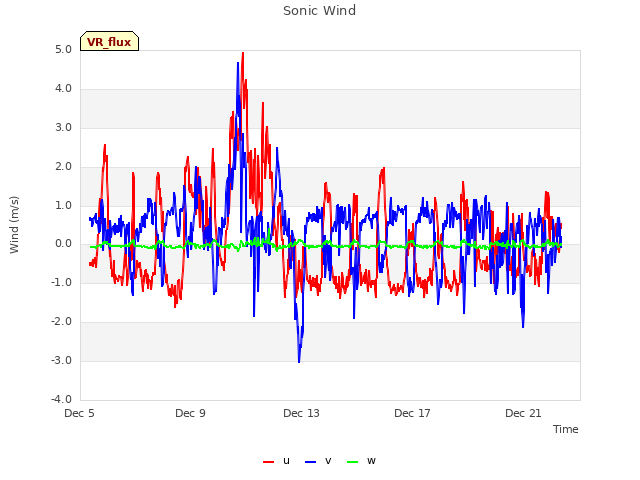

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

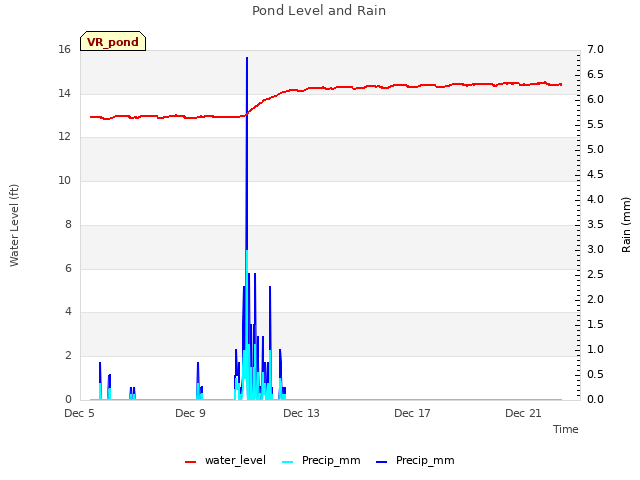

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

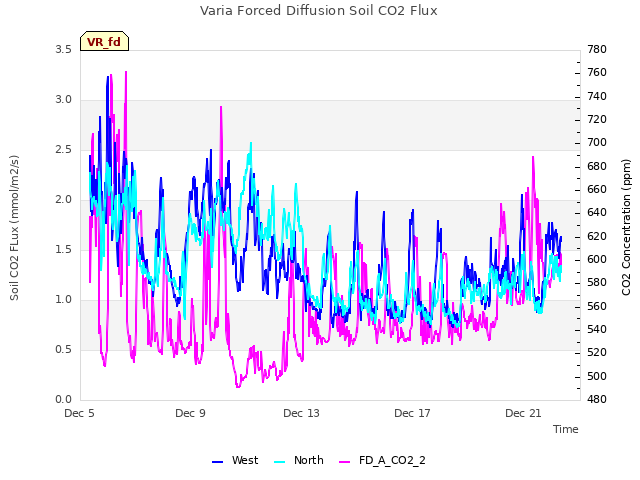

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

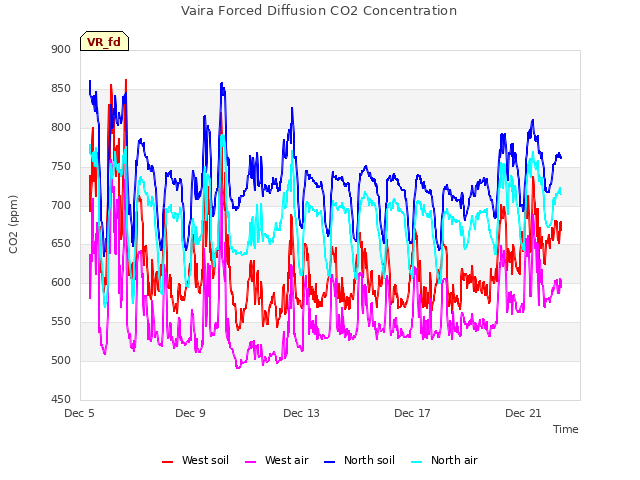

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

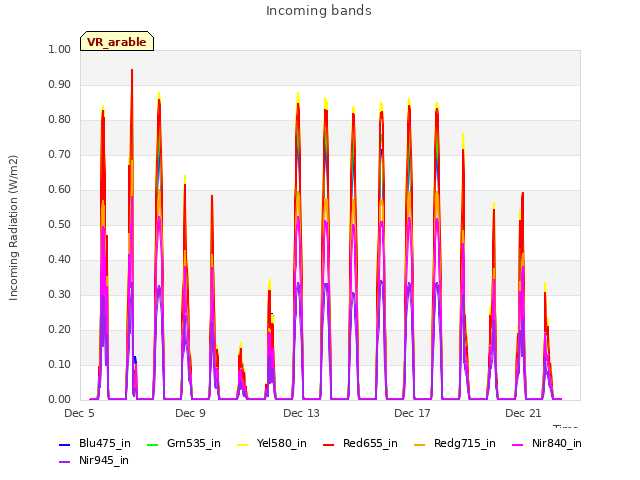

Explore the graph:Incoming bands in a new window

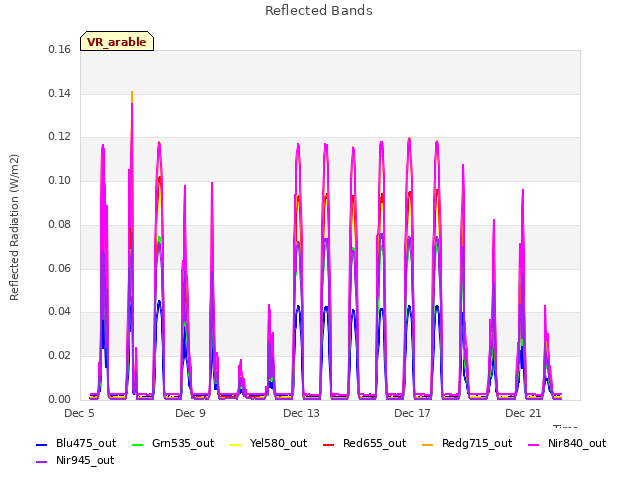

Explore the graph:Reflected Bands in a new window

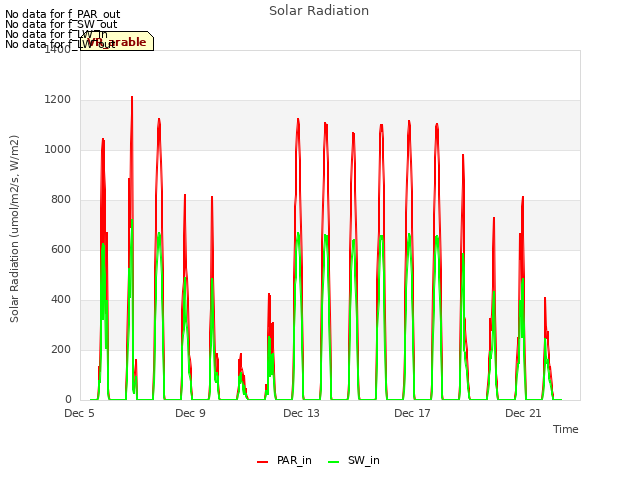

Explore the graph:Solar Radiation in a new window

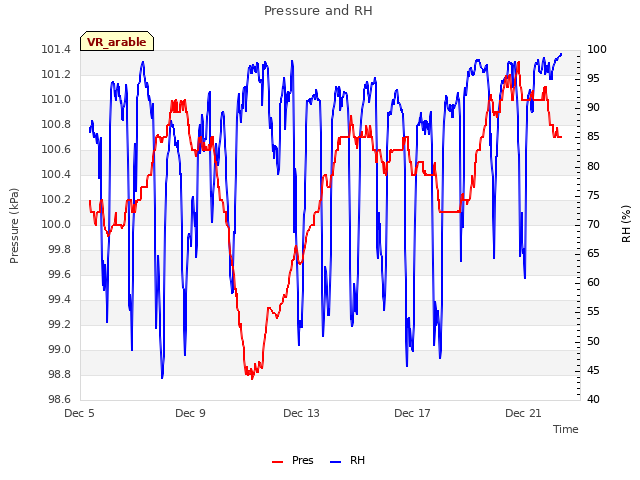

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

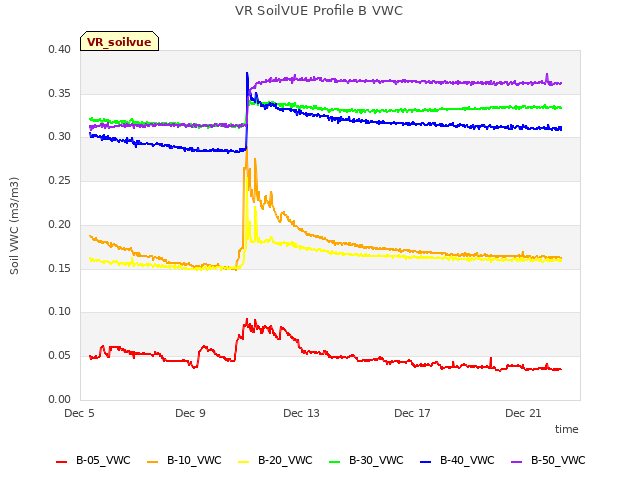

Explore the graph:VR SoilVUE Profile B VWC in a new window

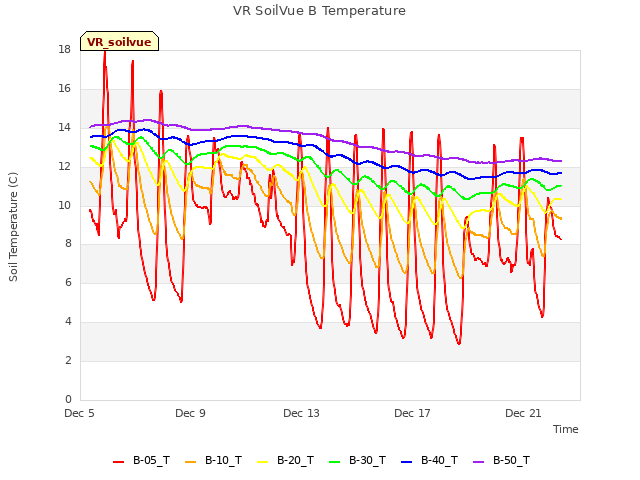

Explore the graph:VR SoilVue B Temperature in a new window

Explore the graph:VR SoilVue A Temperature in a new window

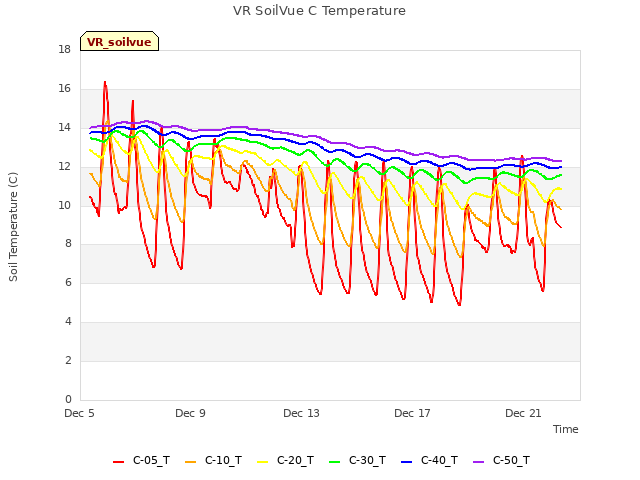

Explore the graph:VR SoilVue C Temperature in a new window

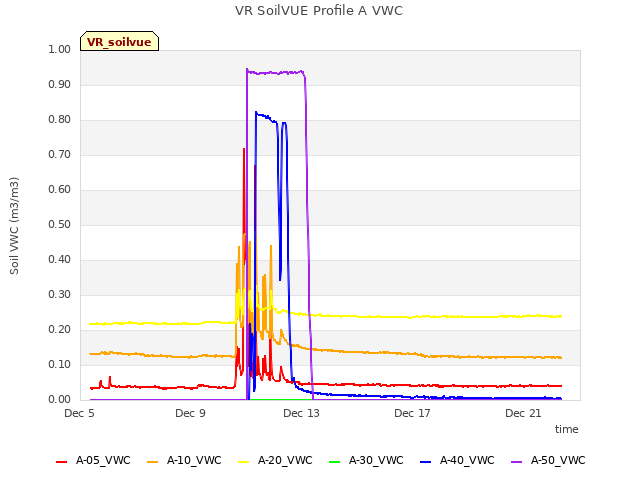

Explore the graph:VR SoilVUE Profile A VWC in a new window

Explore the graph:VR SoilVUE Profile C VWC in a new window
