Tonzi: 2022-02-09 13:30:00 (DOY 40)
Author: Joe Verfaillie
Others:

Summary: Added Ameriflux cell modem, ran new ethernet line, new power line for OSU SP2, IRT solar/battery failing

Tonzi
2022-02-09

I arrived at about 13:30 PST. It was clear and sunny with little to no breeze. It has not rained since early January and some of the hills on the way up looked like they had brown spots. The grass here was yellowed on the tips but hard to know if this is lack of water or cold. The pond had been a little higher and has retreated a small amount. The ground was moist below the surface, but there were no puddles on the road.

I added the Ameriflux cell modem sn 5A0331744701B101 to the box at the top of the tower. I connected its power-on lead to the switched 12V port of the CR1000 that controls the phenocam. It should only pull full power during the day. I was able to get internet access and set the LattePanda up for remote desktop – Daphne was able to connect from the lab. I also ran a new Ethernet line from the top of the tower to the bottom. The existing one was not working. I didn’t have a chance to remove the old one.

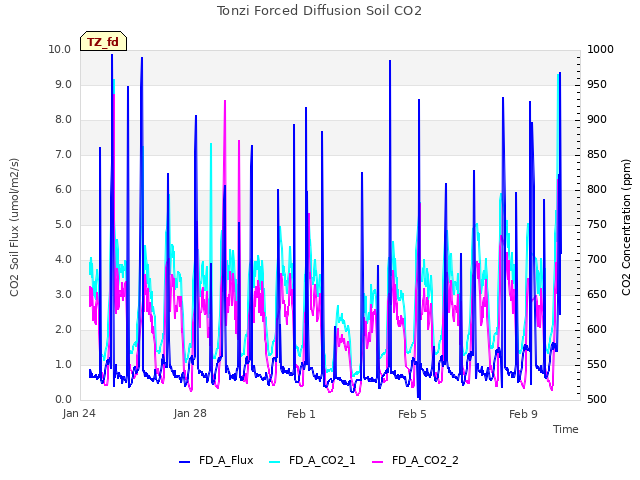

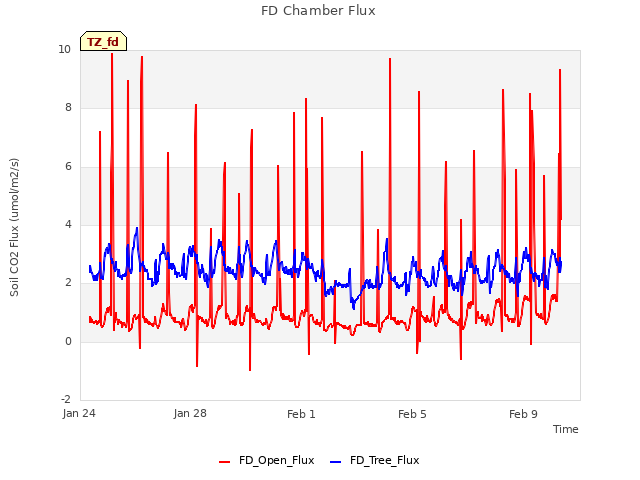

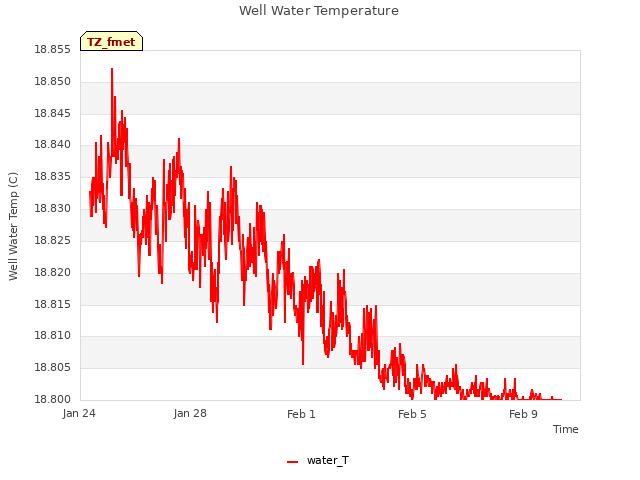

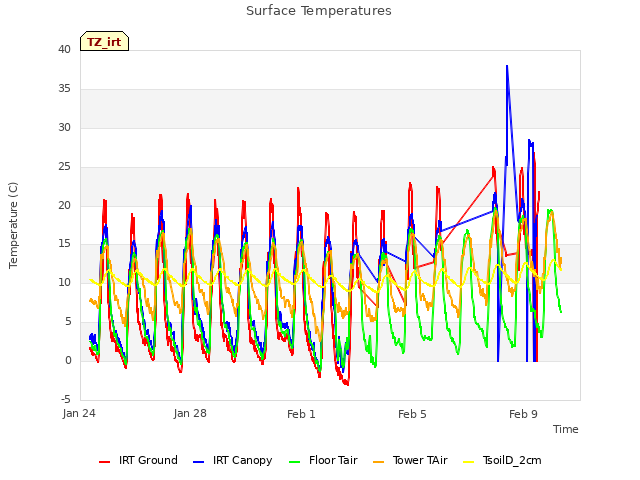

I collected flux, met, camera, well and FD data – all seemed well. The IRT battery is dying again. I made its solar panel less flat and hope to catch a few more winter time rays. A lithium power pack might be a solution.

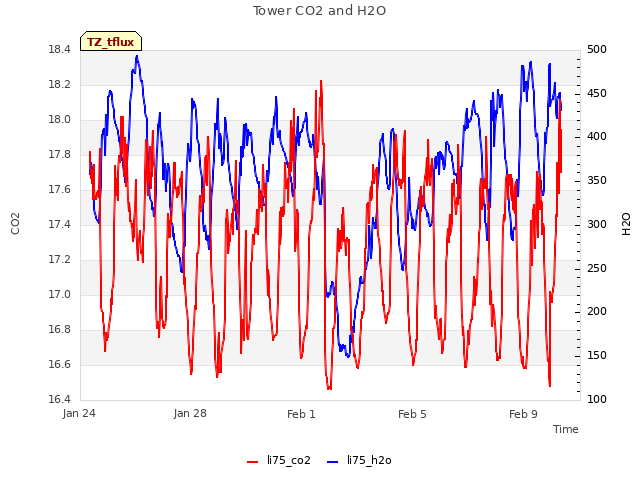

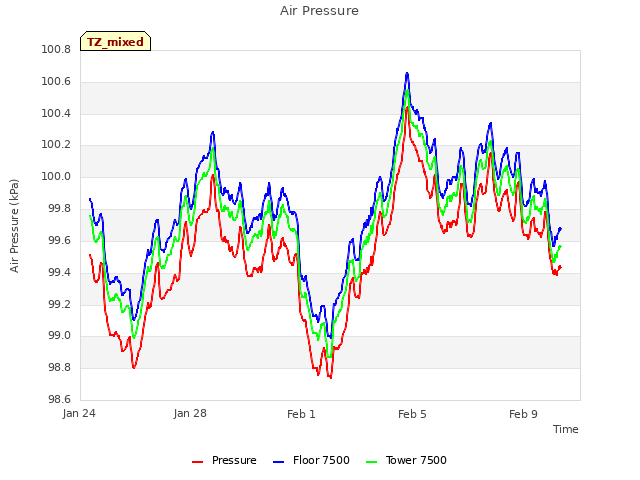

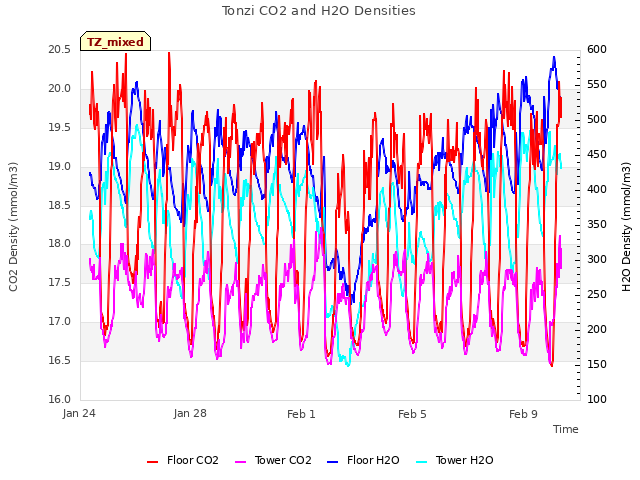

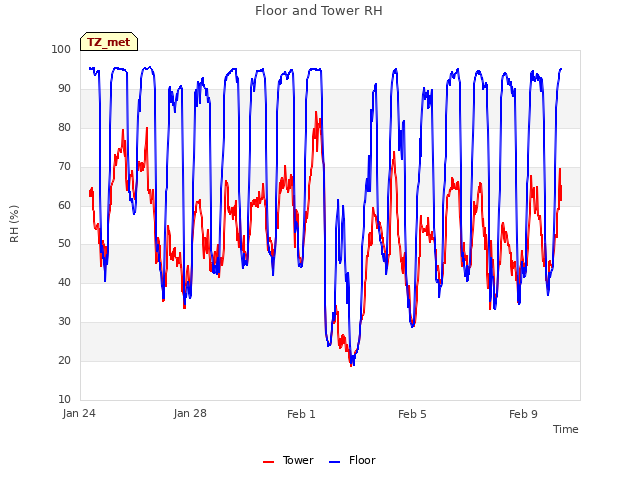

The Tower read: 403.1ppm CO2, 469.9mmol/m3 H2O, 99.6kPa, 18.7C, 98.3SS
The Floor read: 402.6ppm CO2, 564.2mmol/m3 H2O, 99.6kPa, 19.9C, 101.8SS
There were some spider webs on the Tower eddy sensors that I lowered the post to clean off.

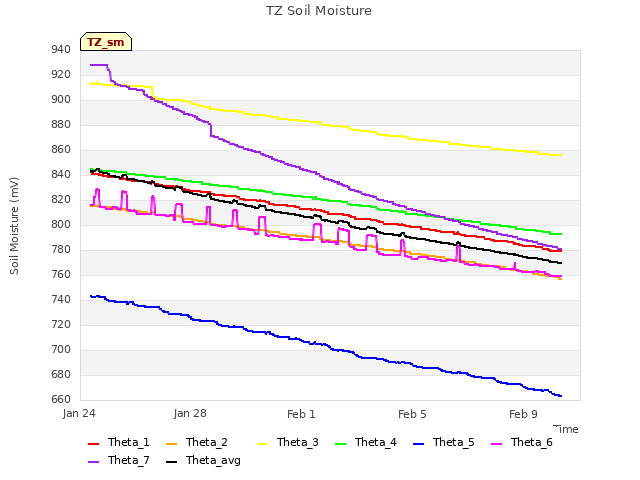

I did soil moisture, DBH, and manual well measurements.

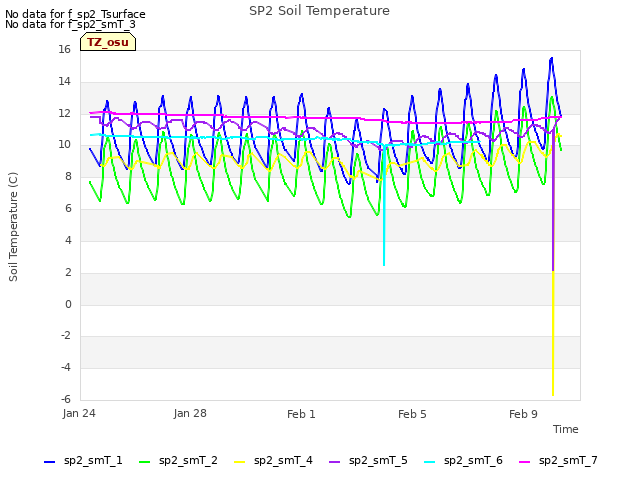

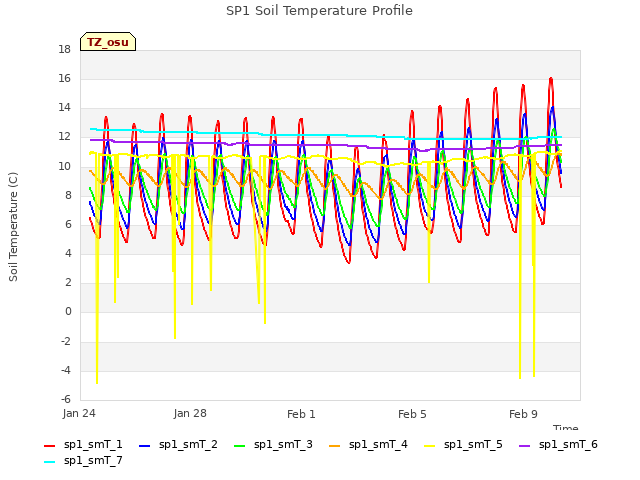

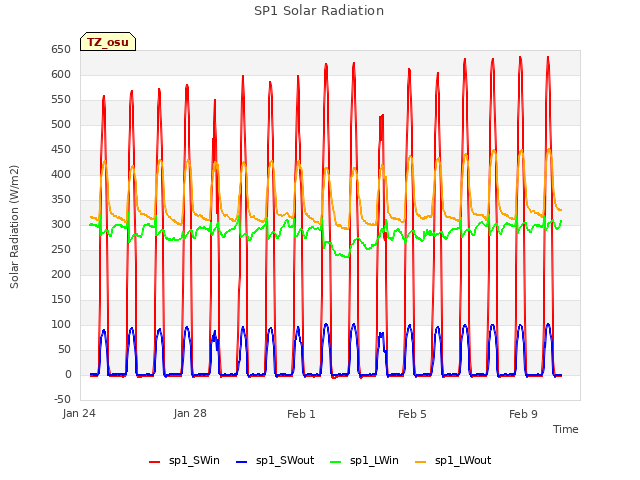

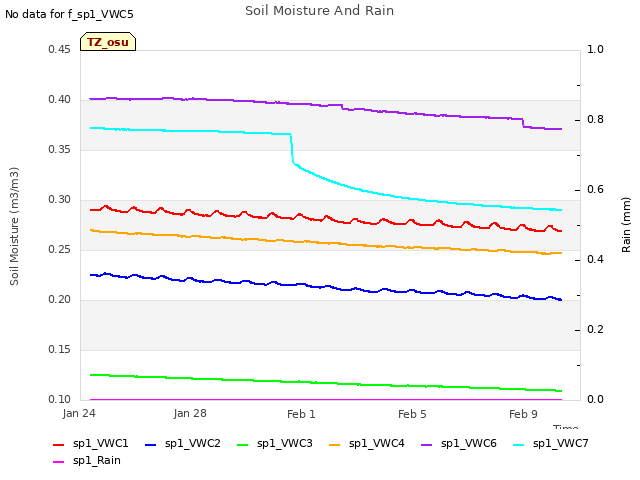

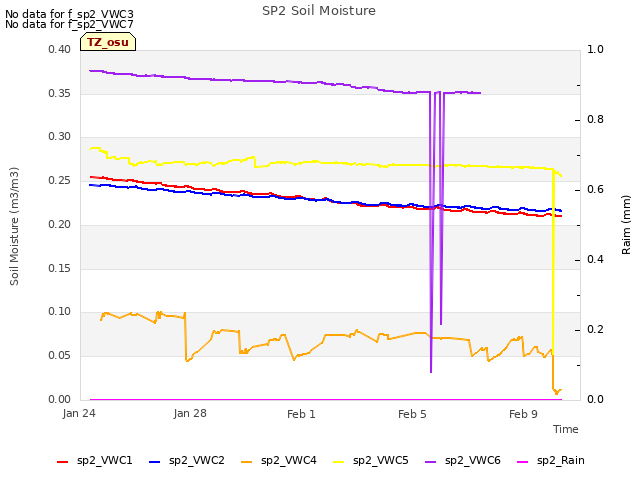

I removed the battery and solar panel sn T21009229B43579 from the OSU SP1 system – the battery had died a while back (looked better recently though) and the solar panel doesn’t get much sun. I ran a new 24V power line in conduit from the charge controller box. There is a DC-DC converter in the OSU SP2 box.

I was supposed to replace the clock battery in zcam-1 but lost the battery somewhere along the way. I was also supposed to clean the phenocam window but put that off too.

I left at about 17:00

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-02-09	VR_well	52.2
2022-02-09	TZ_floor	26.4
2022-02-09	TZ_road	34.55
2022-02-09	TZ_tower	29.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Soil_Transect_4_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2022-02-09	40	0	nan	21.7	24.7	5	20.6	19.1	17.3	27	24.1	21.2	43.3	24.3	21.3	29.5	29.8	17.3	24.6	16.4	26.5	43.5	38.8	23.2	29.3	32.4	31.5	32.4	43.1	34.9	40.5	53.4	28.5	39.4	47.1	32.8	44.8	45.7	46.8
2022-02-09	40	1	nan	22	19.7	8.6	20	19.7	16.8	27.6	24.4	20.6	42.6	25.2	21.3	28.9	29.2	17.3	24.9	16.1	28	43.3	39.1	24	29.3	32.7	31.5	32.9	33.8	35.4	38.5	51.4	27.6	38.2	46.8	42.5	42.5	46	46.6
2022-02-09	40	Avg	0-15cm																																					0
2022-02-09	40	Avg	15-30cm																																					0
2022-02-09	40	Avg	30-45cm																																					0
2022-02-09	40	Avg	45-60cm																																					0

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2022-02-09	1	17.4
2022-02-09	102	16.0
2022-02-09	2	15.4
2022-02-09	245	4.0
2022-02-09	3	20.2
2022-02-09	4	16.1
2022-02-09	5	8.7
2022-02-09	6	20.3
2022-02-09	7	9.6
2022-02-09	72	12.9
2022-02-09	79	13.1
