Vaira: 2022-02-09 13:30:00 (DOY 40)
Author: Joe Verfaillie
Others:

Summary: Added calkit, net hat from FD North, check SHF and Theta serial numbers

Vaira
2022-02-09

I arrived at about 11am PST. It was sunny and warm with a breath of breeze from the south. There were a few high thin clouds. No rain since early January and some of the hills on the way up have brown looking spots. In this area, surface water is still plentiful and only bare soil looks dry. Cows are still keeping the grass at only a few centimeters in height. Inside the fences it’s more like 10 to 20cm tall.

I added the cal kit to the radiation tower. I made some new mounts that I hoped would make it easier to get things on the tower. One I didn’t need, one needed to be modified and the other was just okay – so maybe more work needed.
CR1000 sn 23865
CNR4 sn 120788

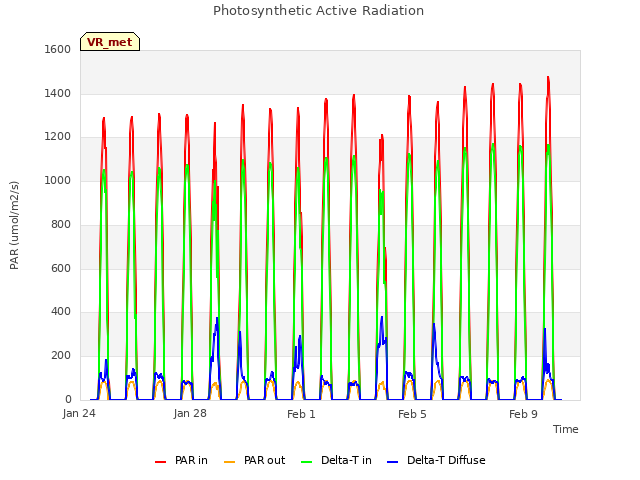

PAR sn 212225
NDVI in sn 1049
NDVI out sn 1050
HMP155 sn T2930114

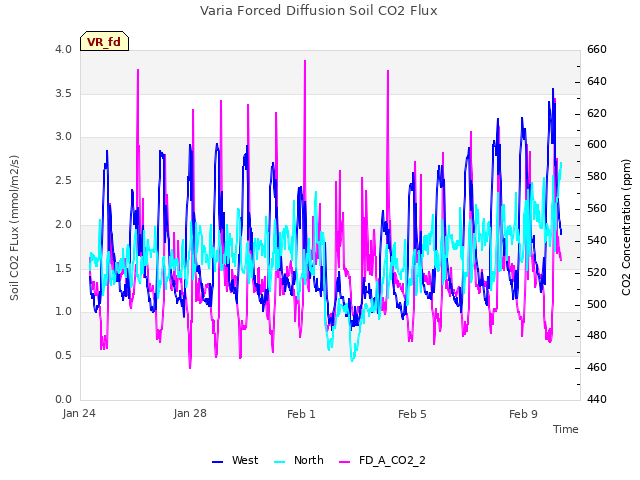

I replaced the sun hat on the north FD chamber – it is now plastic but 6in in diameter instead of 7in like the old cardboard ones. Instead of putting a whole in it for the cable I tilted it at an angle which seems ok.

I checked on the serial numbers of the SHF plates and Theta probes. I was going to check their locations but that’s going to take a lot of effort. Maybe better to do during the dry season so as to not disturb the growing plants.
SHF #1 sn 001603
SHF #2 sn 001605
SHF #4 sn 000143
Theta #1 sn 54/015
Theta #2 sn 54/011
Theta #3 sn 54/017
Theta #4 sn 54/019
Theta #5 sn 64/072

I did spectral measurements, but did not go to the pond. I measured the well. I collected Met, Flux, camera, and FD data. All seemed well.

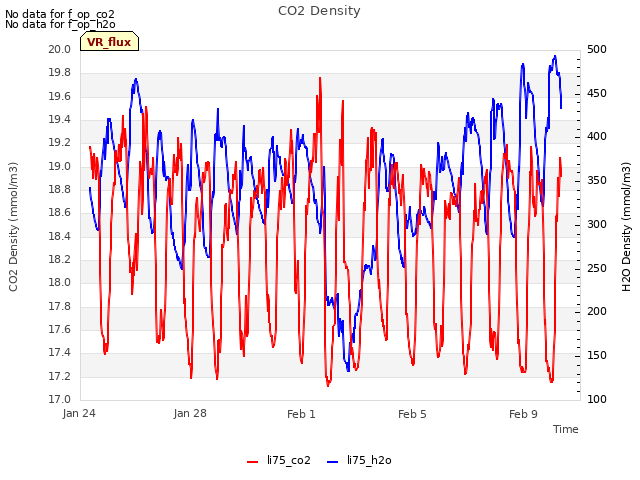

The 7500 read: 427.1ppm CO2, 371.7mmol/m3 H2O, 100.3kPa, 22.0C, 99.9SS

I left at about 13:30

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-02-09	VR_well	52.2
2022-02-09	TZ_floor	26.4
2022-02-09	TZ_road	34.55
2022-02-09	TZ_tower	29.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Soil_Transect_4_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2022-02-09	40	0	nan	21.7	24.7	5	20.6	19.1	17.3	27	24.1	21.2	43.3	24.3	21.3	29.5	29.8	17.3	24.6	16.4	26.5	43.5	38.8	23.2	29.3	32.4	31.5	32.4	43.1	34.9	40.5	53.4	28.5	39.4	47.1	32.8	44.8	45.7	46.8
2022-02-09	40	1	nan	22	19.7	8.6	20	19.7	16.8	27.6	24.4	20.6	42.6	25.2	21.3	28.9	29.2	17.3	24.9	16.1	28	43.3	39.1	24	29.3	32.7	31.5	32.9	33.8	35.4	38.5	51.4	27.6	38.2	46.8	42.5	42.5	46	46.6
2022-02-09	40	Avg	0-15cm																																					0
2022-02-09	40	Avg	15-30cm																																					0
2022-02-09	40	Avg	30-45cm																																					0
2022-02-09	40	Avg	45-60cm																																					0
