Vaira: 2022-01-19 12:25:00 (DOY 19)
Author: Joe Verfaillie
Others:

Summary: No new power problems, soil co2 system seems okay, fixed fence corner post and shocked some cows. Went to the pond.

Vaira
2022-01-19

I arrived at about 12:25. There was fog in the Delta and at the coast this morning but here it is clear and sunny, but cool with a breeze from the west. The grass looks lush but has been kept short by the cows. There are puddles on the road and I saw lots of surface water in the fields on the way to Tonzi.

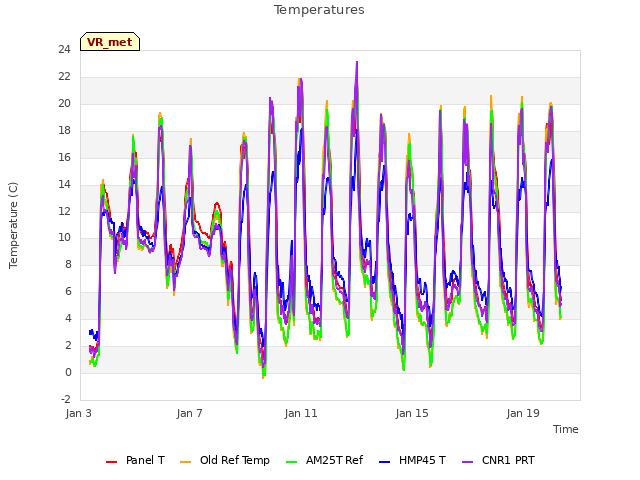

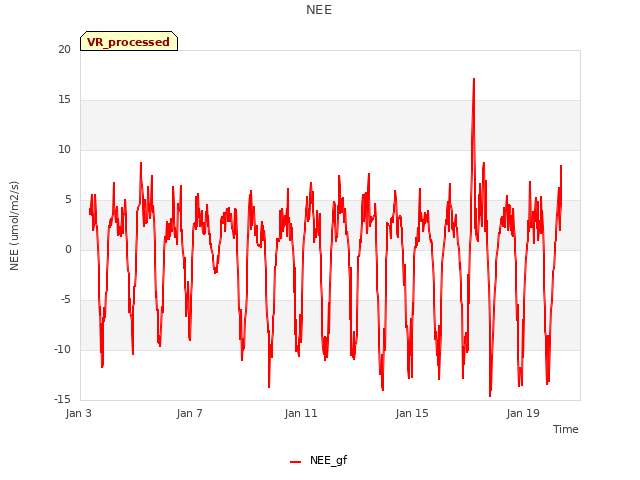

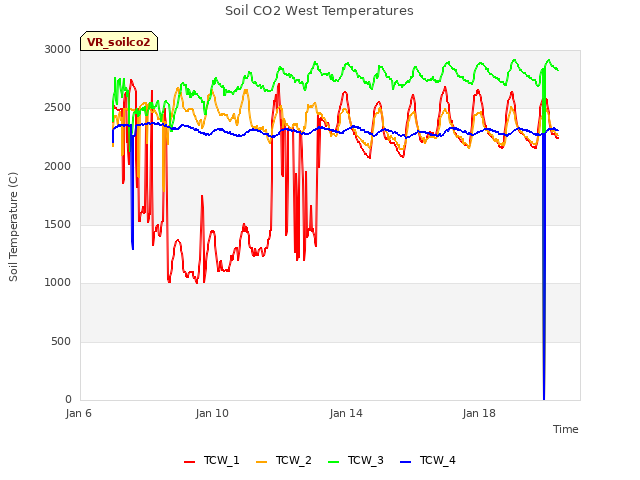

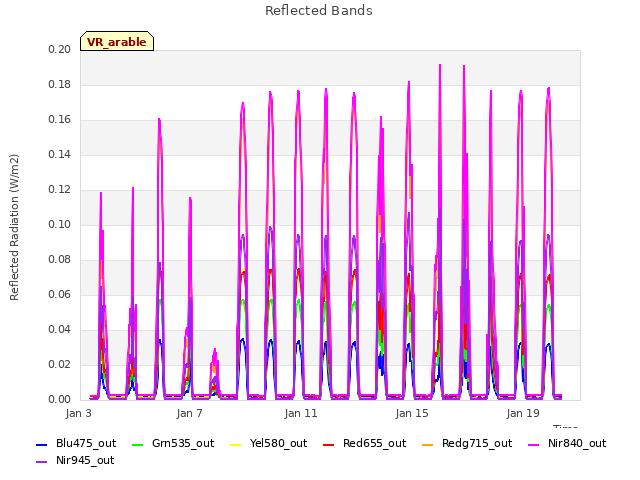

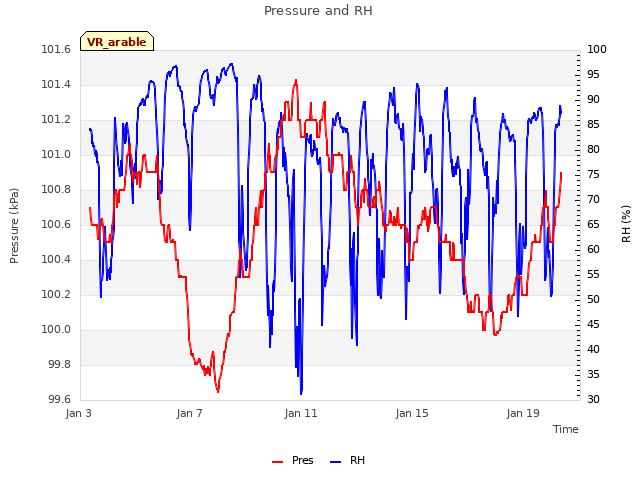

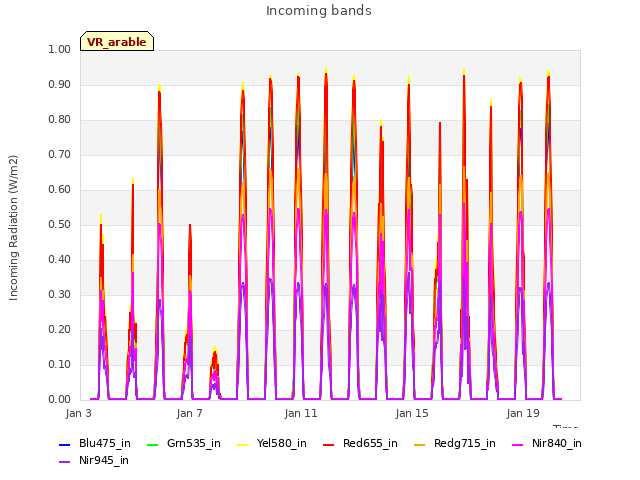

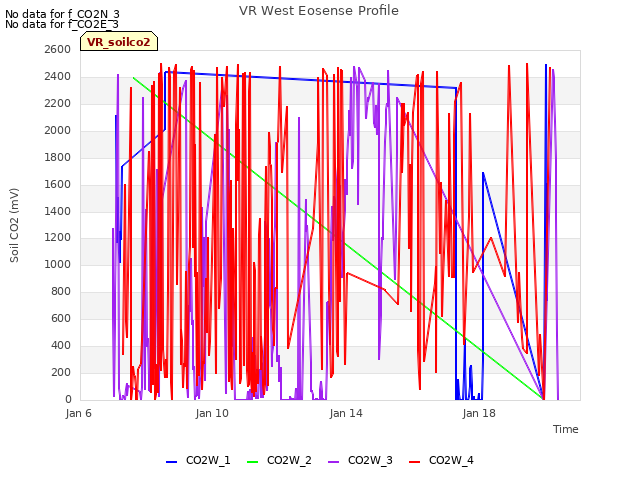

I measured the well, grass height inside the fencing, did spectral measurements, and collected met, flux, FD data and camera images. I didn’t see any power outages in the last two weeks but the weather has been mostly sunny. Daphne had problems with the soil co2 23x and I initially thought it had problems because LoggerNet was reporting “No Program”, so I unplugged the power from the data logger and the Eos co2 probes. I didn’t have a copy of the most recent program. But at the pond I realized that it was just LoggerNet that didn’t know what the program was. So I stopped on my way back out, was able to download a copy of the program as a DLD, open it in EdLog, and save a copy as a CSI. I was able to download all the data and all the data since last visit seems intact.

The cows have been putting pressure on the fence and had bumped the NW corner post braces loose. Dennis and Daphne temporarily fixed it last time. I took the fittings apart and had to pound one back into shape with a hammer. Then, with a lot of fussing I was able to get the braces back in place correctly. I straightened out the electric wire and turned on the fence. As I was doing spectra measurements, the cows came over to investigate the fencing. I saw at least a half dozen get shocked. I hope they have learned something. There is a worn down area around the fence where the cows have been trying to get at the longer grass inside the fence.

The road to the pond was passable in the rental car. A couple live oak trees have fallen near the pond and have been largely cut up for firewood. The pond was full but not over flowing. I forgot to write down the staff gauge reading but it was close to 21.6 feet.

I left at about 13:40

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-01-19	VR_well	52.55
2022-01-19	TZ_floor	26.1
2022-01-19	TZ_road	37.95
2022-01-19	TZ_tower	30.35
2022-01-19	HS	4.24

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Soil_Transect_4_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2022-01-19	19	0	nan	37.6	27.9	10.9	26.1	25	15.9	33.5	32	31.1	35.6	37.8	28	32.9	31.9	21.6	28.9	24.3	31	34.3	43.1	32.1	32.9	35.4	34.3	34.1	41.3	38	42.3	50.9	34	42.5	47.7	36.5	45.7	48.6	47.7
2022-01-19	19	1	nan	38.4	27.9	15.3		24.1	23.8	32.3	32.6	30.5	35	38.4	28		31	22.2	28.6	25.2	30.7	33.5	43.3	31.8		35.2	34.3	35.7	41	38.5	43.4	54.6	34.5		47	36.8	44.5	48.3	47.1
2022-01-19	19	2	nan						20									22.2									34.1									36.8
2022-01-19	19	Avg	0-15cm																																					0
2022-01-19	19	Avg	15-30cm																																					0
2022-01-19	19	Avg	30-45cm																																					0
2022-01-19	19	Avg	45-60cm																																					0
