Field Notes
<--2021-09-01 12:00:00 | 2021-10-06 12:35:00-->Other sites visited today: Vaira
Tonzi: 2021-09-16 12:20:00 (DOY 259)
Author: Joe Verfaillie
Others:
Summary: Trees mostly brown, pond almost dry, fixed zcam1 window, corrosion starting on tower batteries, JPL boxes full of acorns.

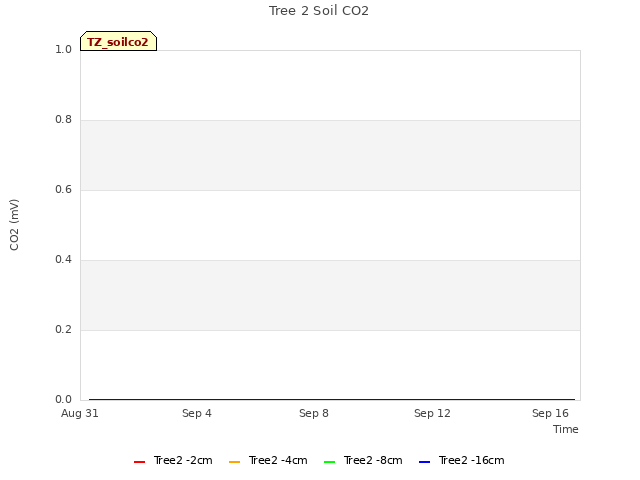

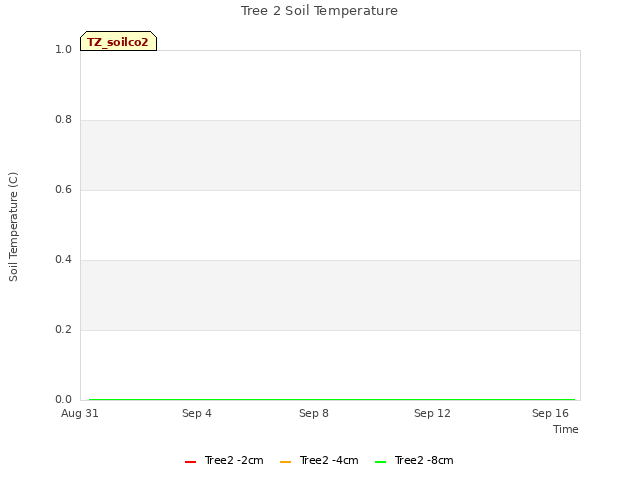

| Tonzi 2021-09-16 I arrived at about 12:20 PDT. It was clear but hazy and relatively cool for this time of year. There was a little rain from a passing thunderstorm about a week ago but it didn’t do more than pockmark the dust. The trees are definitely brown. I thought I might do leaf water potential one more time but it was hard to find twigs with green leaves. I probably could have found some on LiuKang’s tree but it certainly would not have been representative of the area. I collected the flux, met, camera and FD chamber data. The Tower 7500 read: 411.8ppm CO2, 543.2mmol/m3 H2O, 98.5kPa, 22.9C, 103.4SS The Floor 7500 read: 408.0ppm CO2, 538.8mmol/m3 H2O, 98.5kPa, 26.1C, 101.9SS I measured the wells, DBH and Moisture Points. Here too there are two broken soil moisture rods. There are eight still working. I serviced the zcams. The window on zcam-1 had come loose last time and I just laid it in place over the opening. This time is was shifted aside. I cleaned off the old silicone and re-glued it in place. I changed the soil co2 23x program to stop reporting the Tree2 data since that soil co2 profile has been removed and was dead due to power loss before that. There is some corrosion starting on the tower batteries again. I’ll try to clean it off and seal them again next time. One of the JPL spectrometer was making a grinding noise. I opened the boxes and found them stuffed with acorns again. I cleaned out the acorns but it’s possible one is jamming the rotating drum when it rotated down. JPL will be out in the next few weeks for maintenance. I left at about 14:45 PDT |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2021-09-16 | VR_well | 60.4 |
| 2021-09-16 | TZ_floor | 32.15 |
| 2021-09-16 | TZ_road | 39.8 |
| 2021-09-16 | TZ_tower | 36.85 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Soil_Transect_3
[2] => Soil_Transect_2
[3] => Soil_Transect_1
[4] => SoilCO2_West_A
[5] => SoilCO2_West_B
[6] => SoilCO2_West_C
[7] => Soil_Transect_4
)
| Date | DOY | Rep | Depth | Tower |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Soil_Transect_4 |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2021-09-16 | 259 | 0 | 0-15cm | 3 | 0.4 | 3 | 0.3 | 7.1 | 3 | 3.3 | ||||
| 2021-09-16 | 259 | 0 | 15-30cm | 10.6 | 12.4 | 10.3 | 4.2 | 5.7 | 1.7 | 10.6 | 4.5 | |||
| 2021-09-16 | 259 | 0 | 30-45cm | 13.4 | 11.7 | 15.9 | 12.9 | 14.3 | 14 | 10.1 | 9.2 | |||
| 2021-09-16 | 259 | 0 | 45-60cm | 15.9 | 19.1 | 26.5 | 13 | 15 | 6.2 | 11 | 10.5 | |||
| 2021-09-16 | 259 | 1 | 0-15cm | 2.7 | 0.1 | 2.4 | 0.1 | 6.5 | 3 | 2.4 | 0.3 | |||
| 2021-09-16 | 259 | 1 | 15-30cm | 12.1 | 12.1 | 11.5 | 3.2 | 6.6 | 1.4 | 10.6 | 5.1 | |||
| 2021-09-16 | 259 | 1 | 30-45cm | 14.3 | 11.2 | 14.8 | 12.3 | 15.1 | 13.7 | 10.6 | 9 | |||
| 2021-09-16 | 259 | 1 | 45-60cm | 17.9 | 19.6 | 25.9 | 13.3 | 15.6 | 5.9 | 11.6 | 10.5 | |||
| 2021-09-16 | 259 | Avg | 0-15cm | 2.85 | 0.25 | 2.7 | 0.2 | 6.8 | 3 | 2.85 | 0.3 | 2.37 | 8 | 15 |
| 2021-09-16 | 259 | Avg | 15-30cm | 11.35 | 12.25 | 10.9 | 3.7 | 6.15 | 1.55 | 10.6 | 4.8 | 7.66 | 8 | 16 |
| 2021-09-16 | 259 | Avg | 30-45cm | 13.85 | 11.45 | 15.35 | 12.6 | 14.7 | 13.85 | 10.35 | 9.1 | 12.66 | 8 | 16 |
| 2021-09-16 | 259 | Avg | 45-60cm | 16.9 | 19.35 | 26.2 | 13.15 | 15.3 | 6.05 | 11.3 | 10.5 | 14.84 | 8 | 16 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Biomass_Cage
)
| Date | DOY | Rep | Depth | Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|
| 2021-09-16 | 259 | 0 | 0-15cm | 0.7 | |||
| 2021-09-16 | 259 | 0 | 15-30cm | 2.6 | |||
| 2021-09-16 | 259 | 0 | 30-45cm | 11.5 | |||
| 2021-09-16 | 259 | 0 | 45-60cm | 15 | |||
| 2021-09-16 | 259 | 1 | 0-15cm | 0.4 | |||
| 2021-09-16 | 259 | 1 | 15-30cm | 3.2 | |||
| 2021-09-16 | 259 | 1 | 30-45cm | 11.5 | |||
| 2021-09-16 | 259 | 1 | 45-60cm | 15 | |||
| 2021-09-16 | 259 | Avg | 0-15cm | 0.55 | 0.55 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 15-30cm | 2.9 | 2.9 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 30-45cm | 11.5 | 11.5 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 45-60cm | 15 | 15 | 1 | 2 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|---|---|
| 2021-09-16 | 1 | 12.6 |
| 2021-09-16 | 102 | 7.2 |
| 2021-09-16 | 2 | 11.4 |
| 2021-09-16 | 245 | 3.0 |
| 2021-09-16 | 3 | 17.0 |
| 2021-09-16 | 4 | 11.9 |
| 2021-09-16 | 5 | 7.5 |
| 2021-09-16 | 6 | 19.4 |
| 2021-09-16 | 7 | 6.9 |
| 2021-09-16 | 72 | 10.2 |
| 2021-09-16 | 79 | 11.4 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
1 photos found
The pond is almost dry
16 sets found
No data found for TZ_Fenergy.

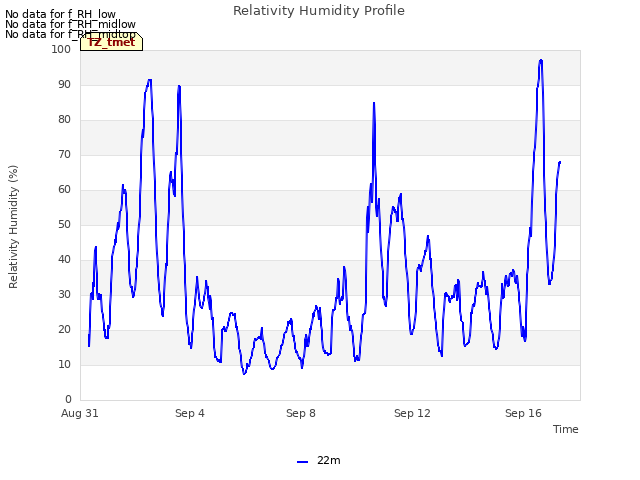

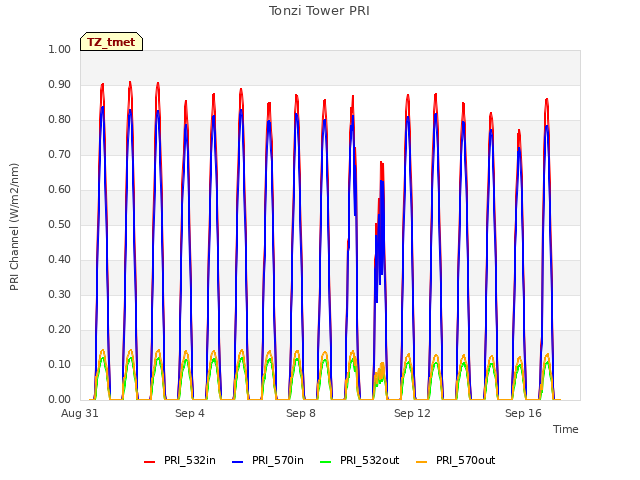

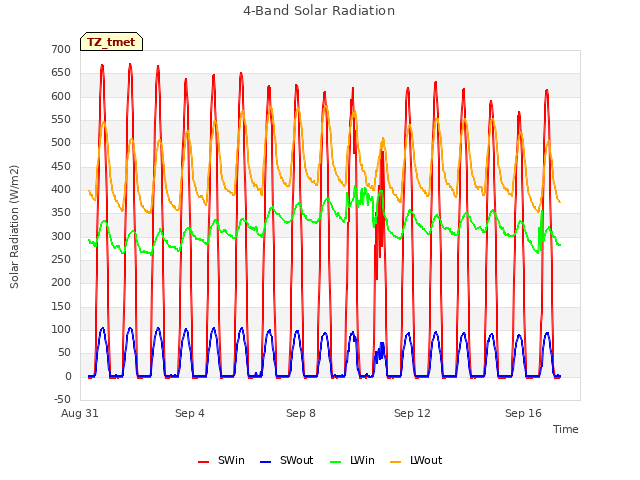

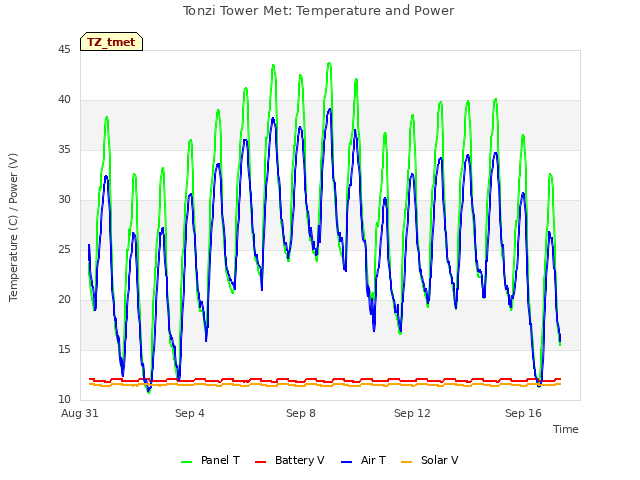

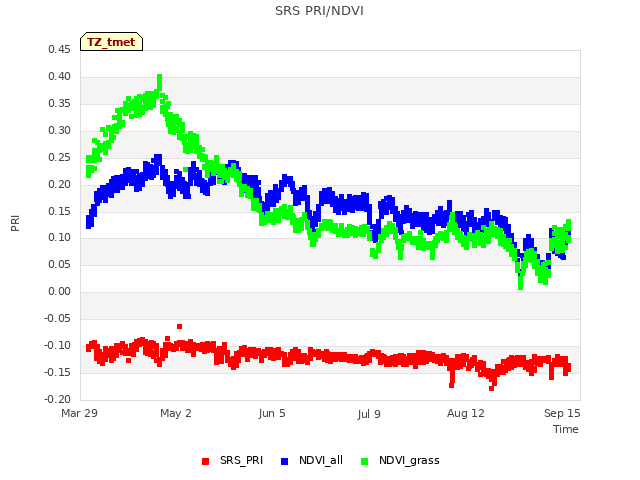

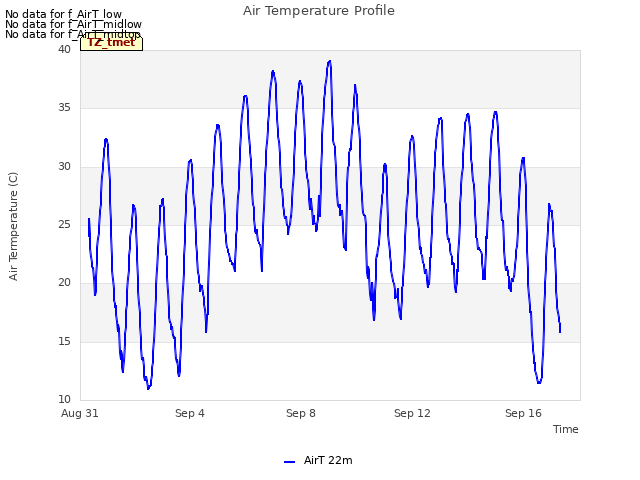

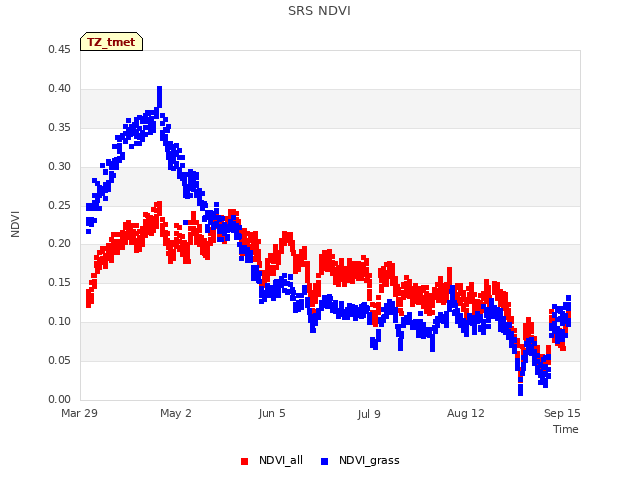

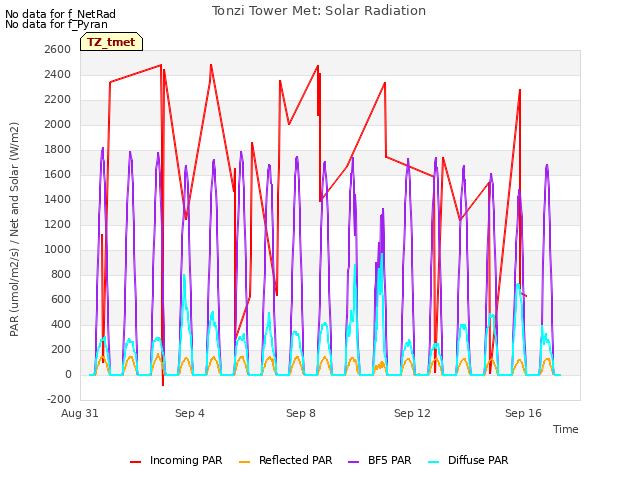

11 TZ_tmet graphs found

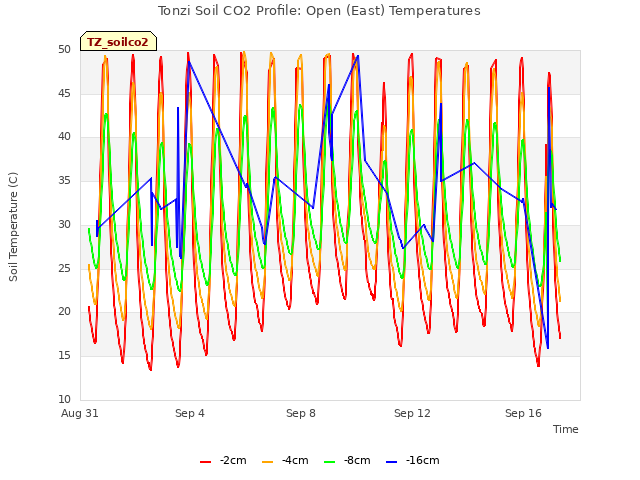

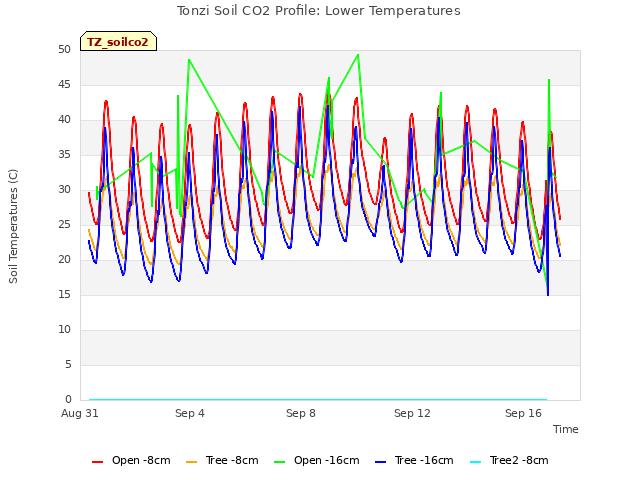

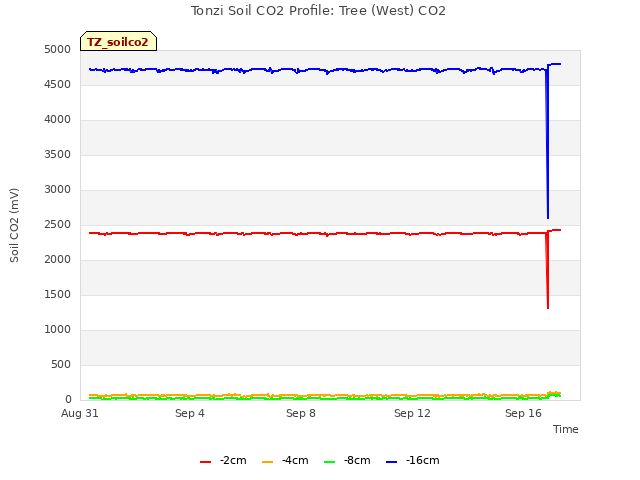

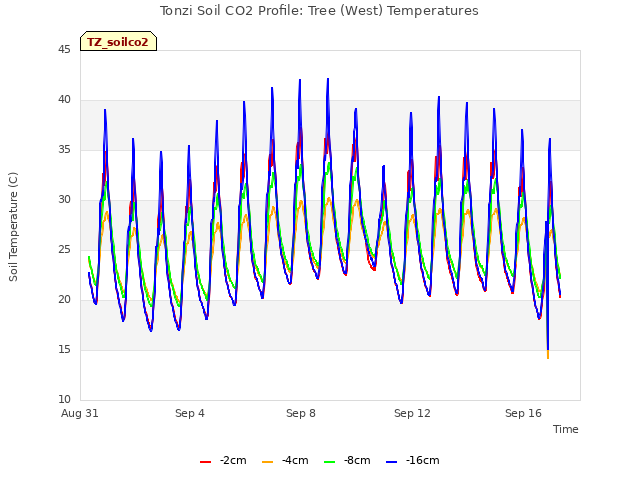

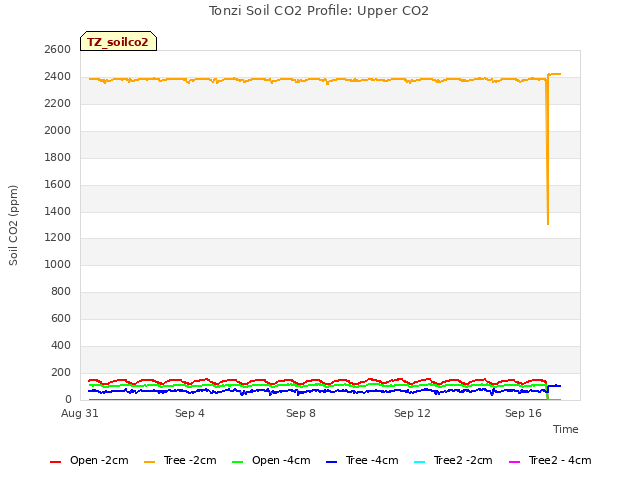

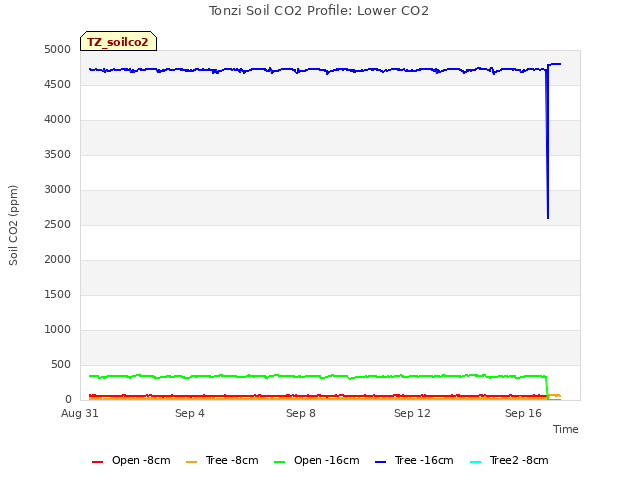

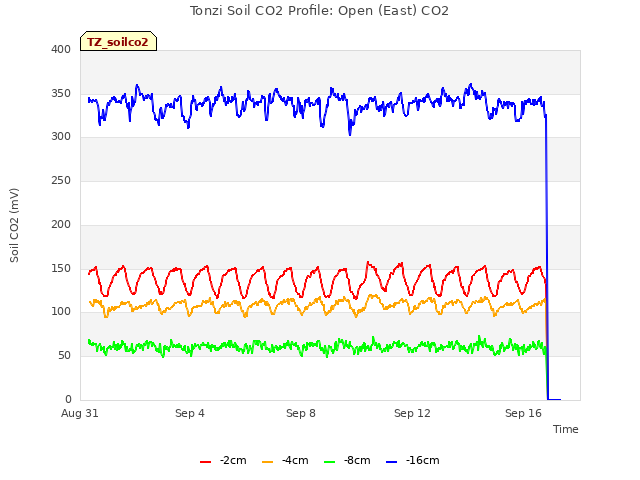

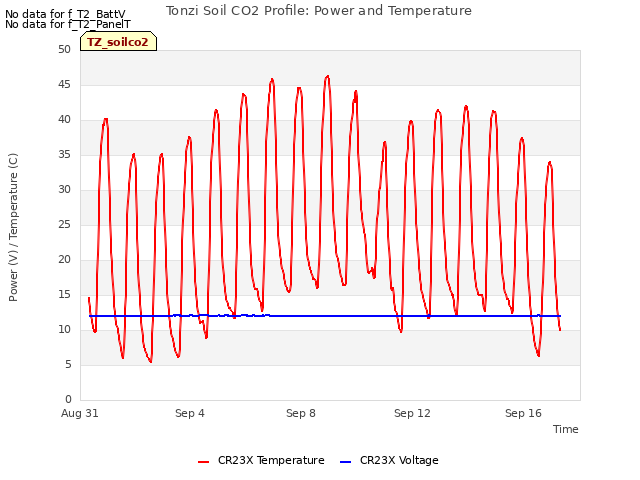

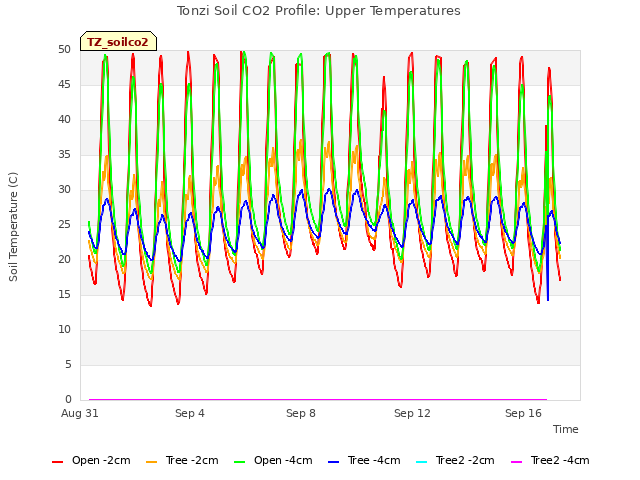

11 TZ_soilco2 graphs found
Can't check TZ_mixed

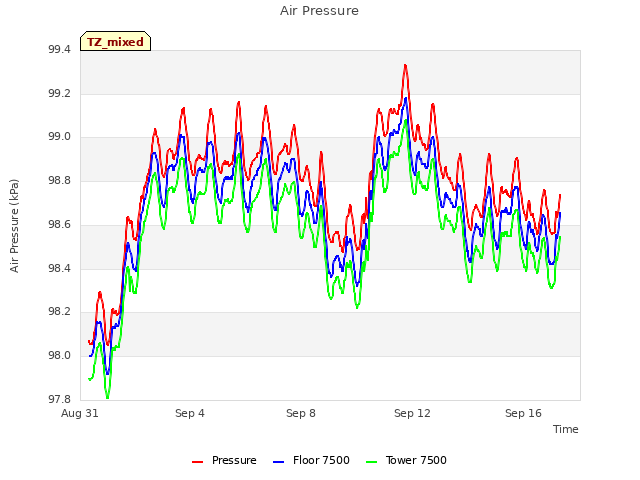

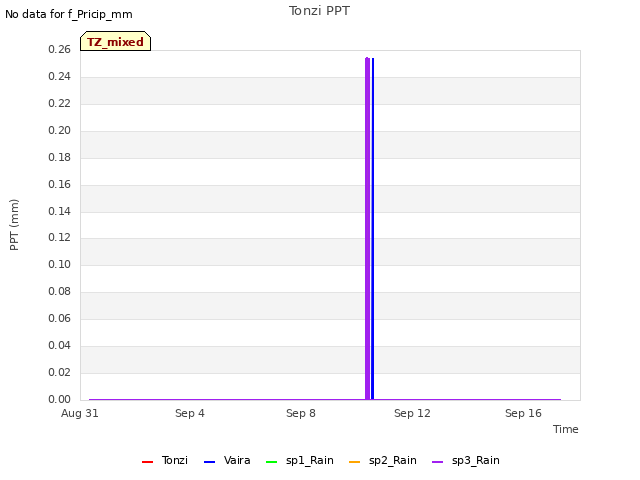

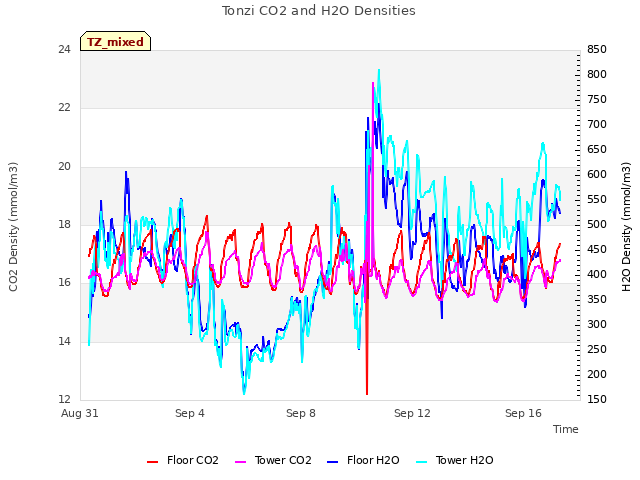

3 TZ_mixed graphs found

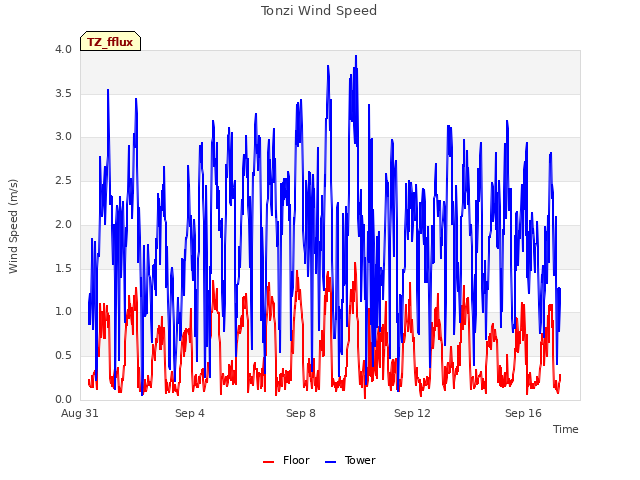

1 TZ_fflux graphs found

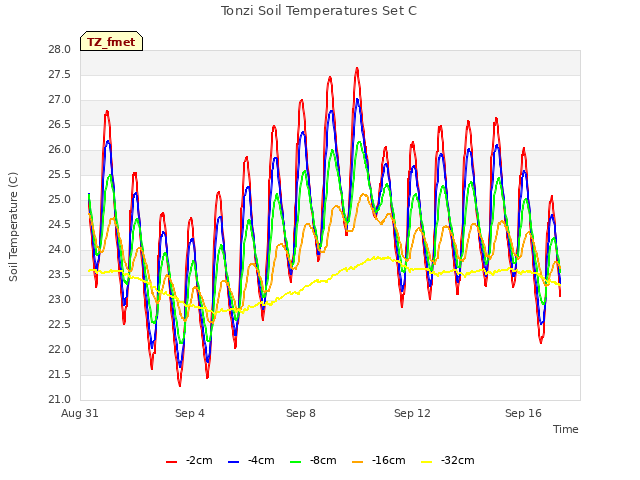

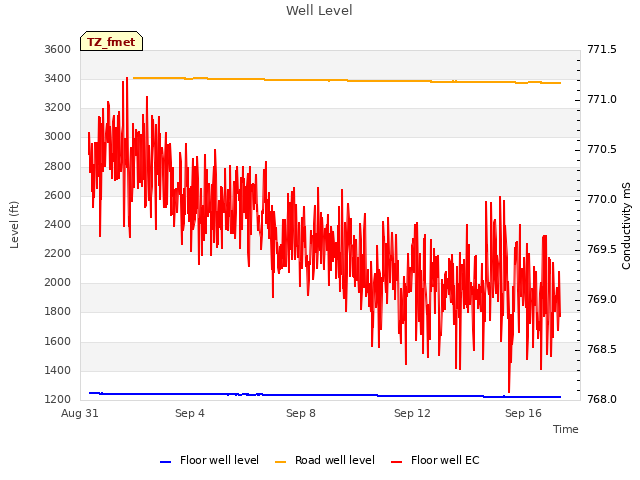

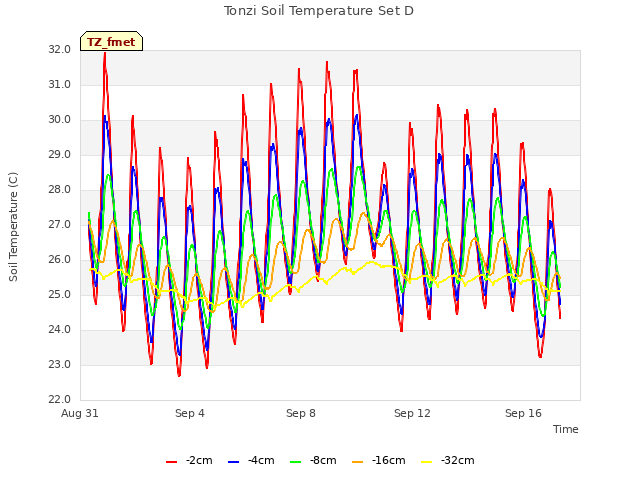

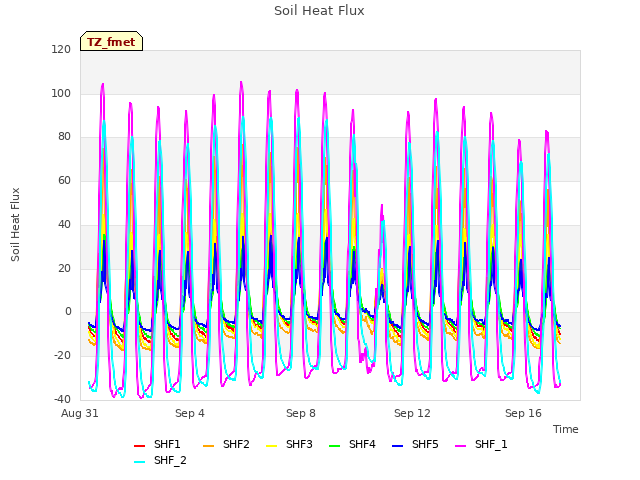

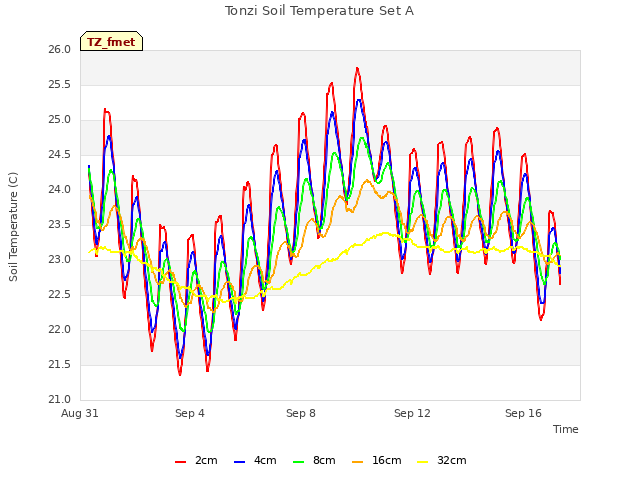

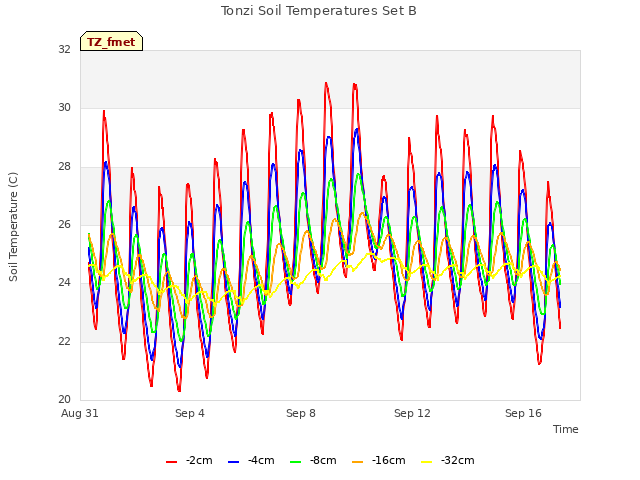

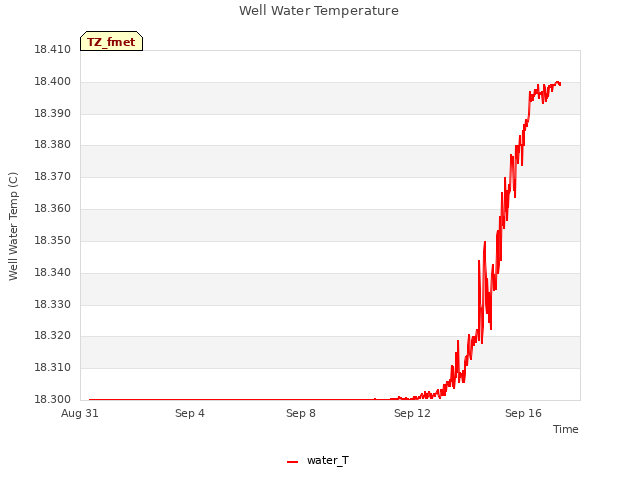

8 TZ_fmet graphs found
No data found for TZ_tram.

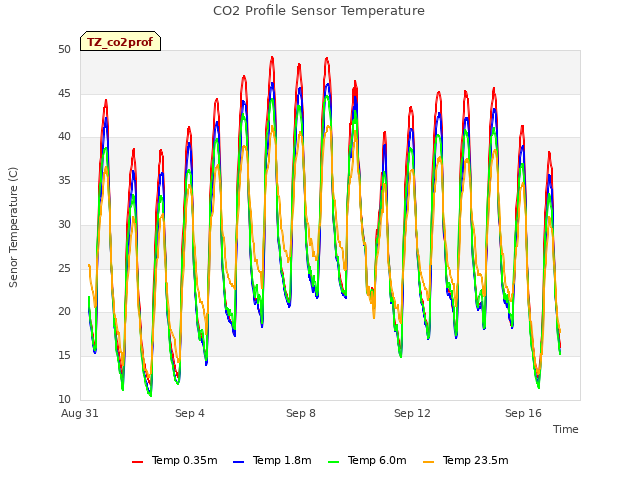

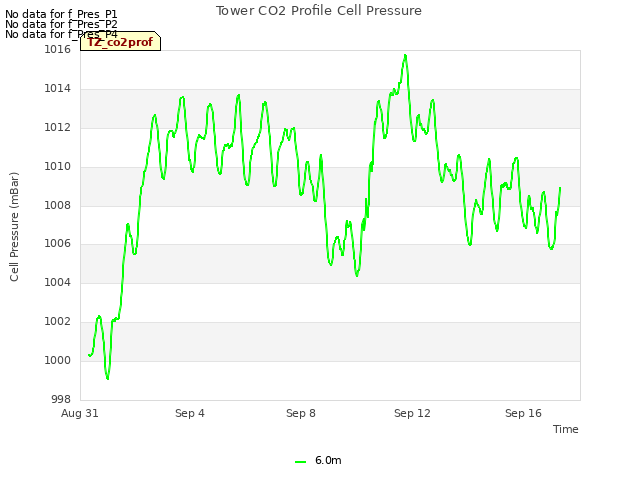

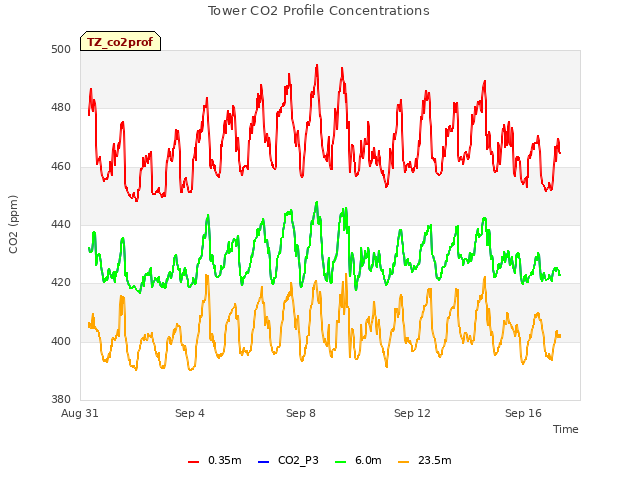

3 TZ_co2prof graphs found

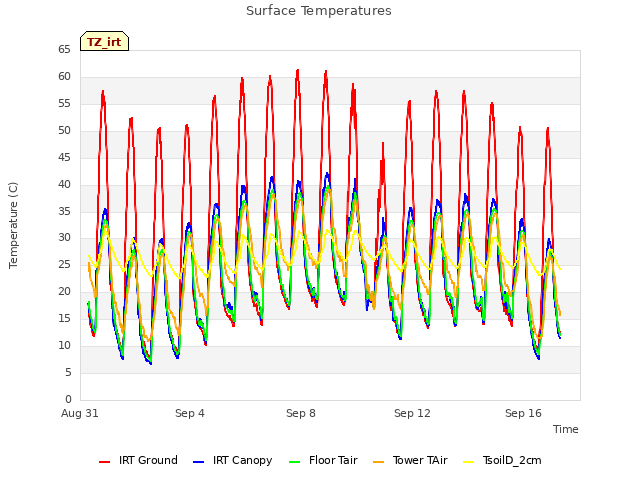

1 TZ_irt graphs found
No data found for TZ_windprof.

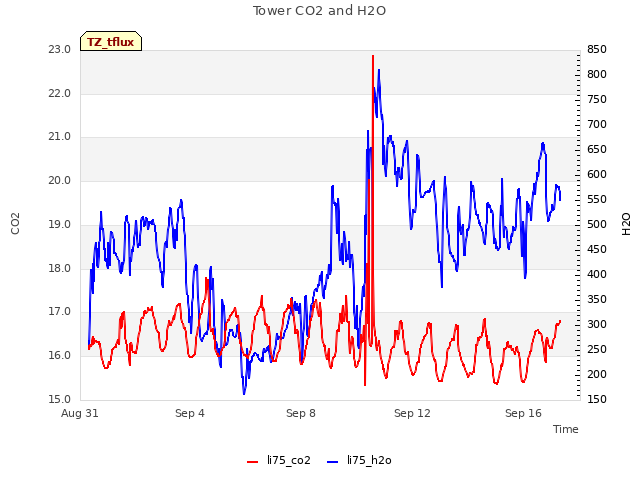

1 TZ_tflux graphs found

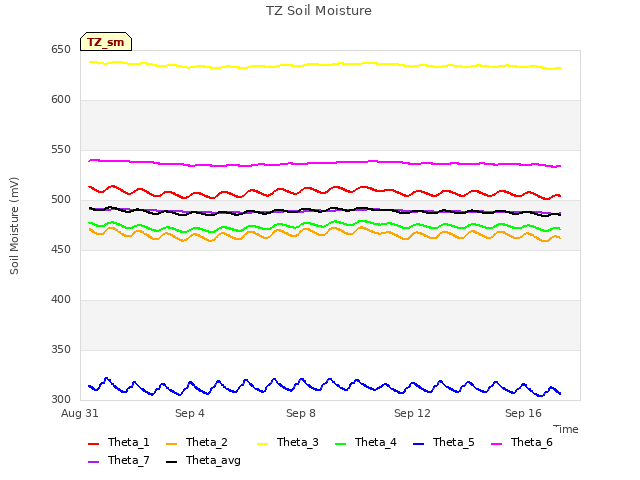

2 TZ_sm graphs found
Can't check TZ_met

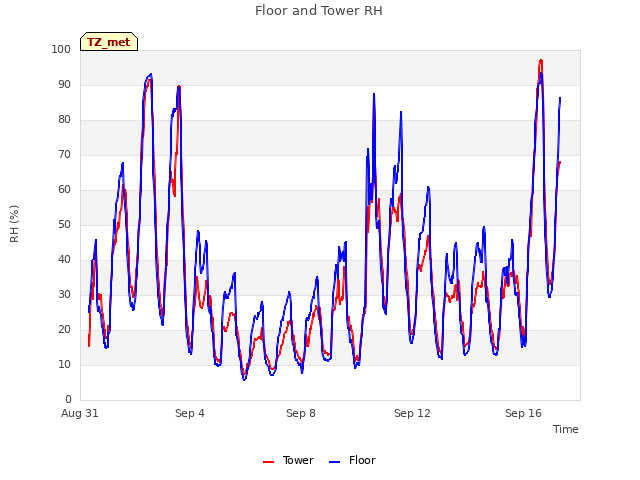

1 TZ_met graphs found
Can't check TZVR_mixed

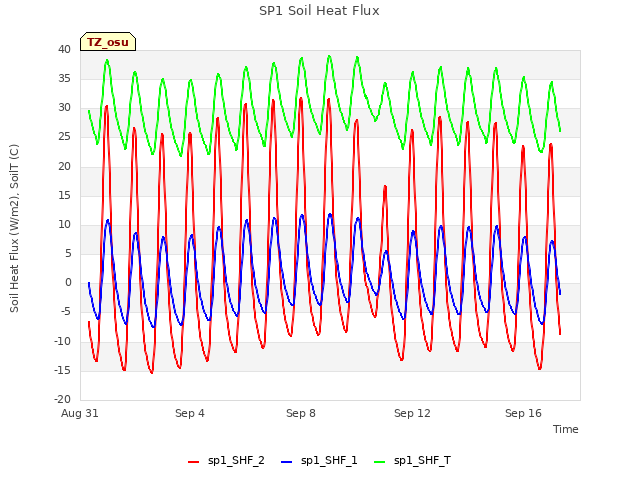

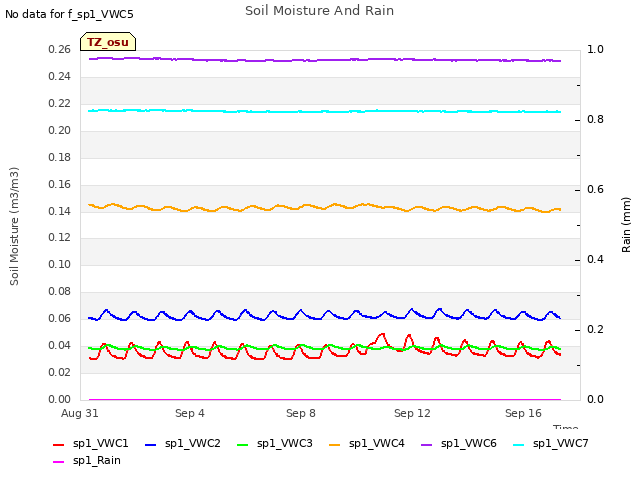

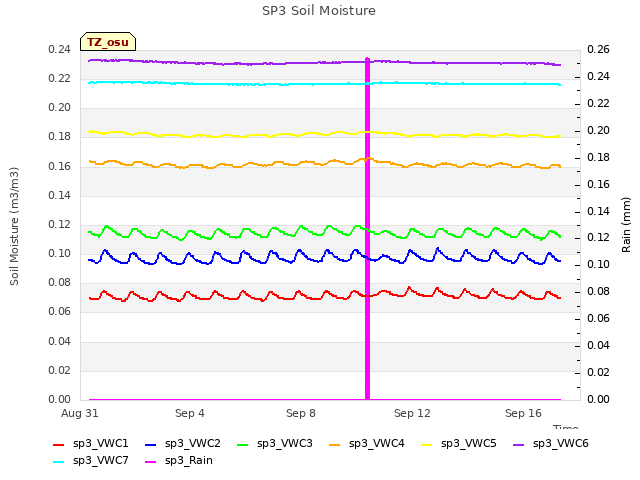

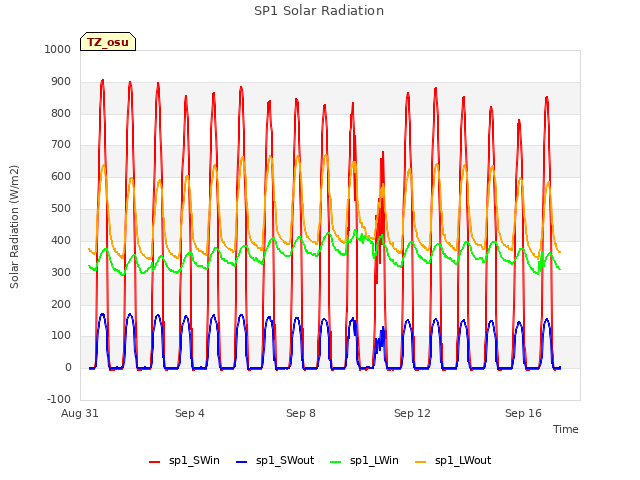

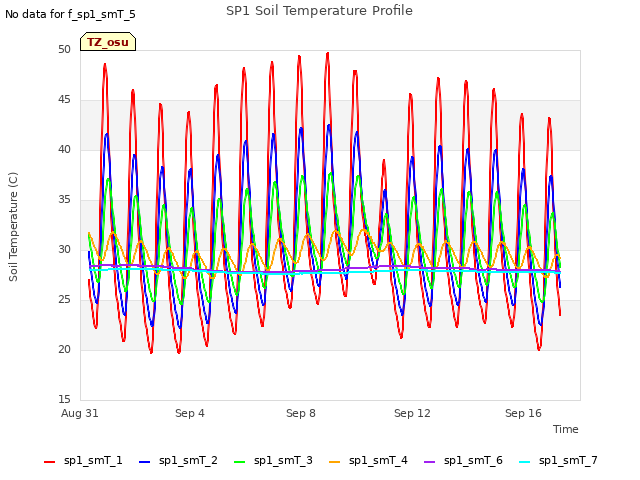

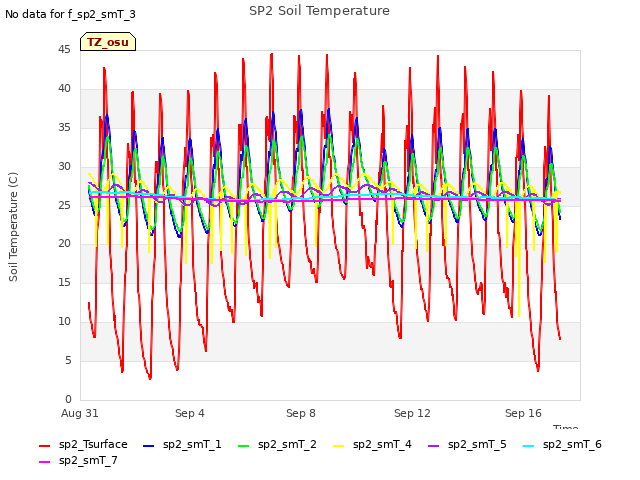

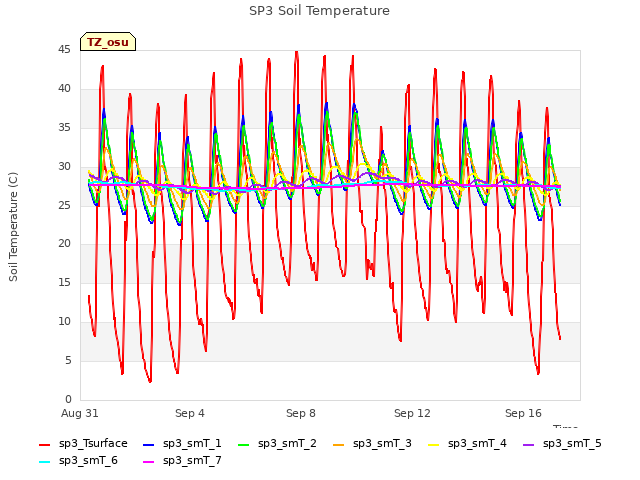

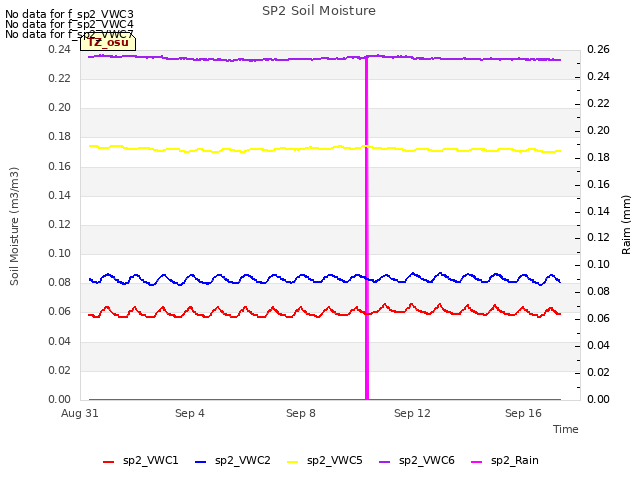

8 TZ_osu graphs found

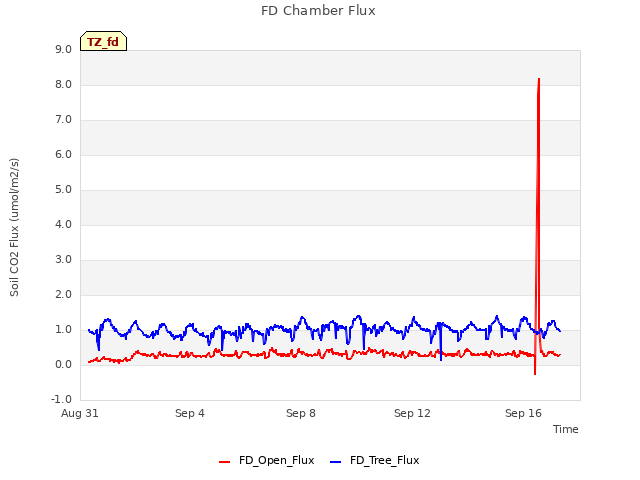

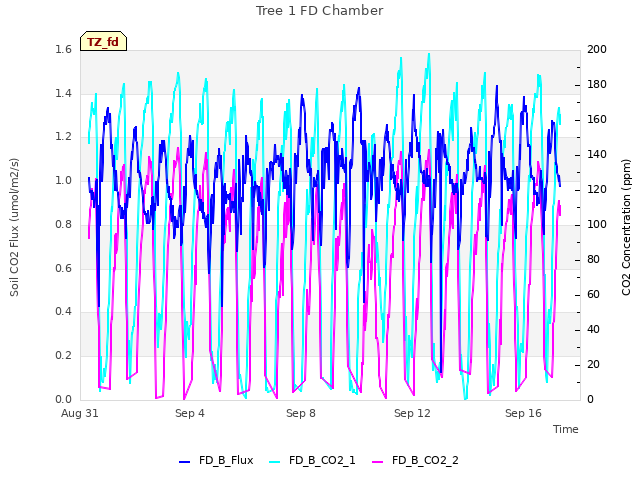

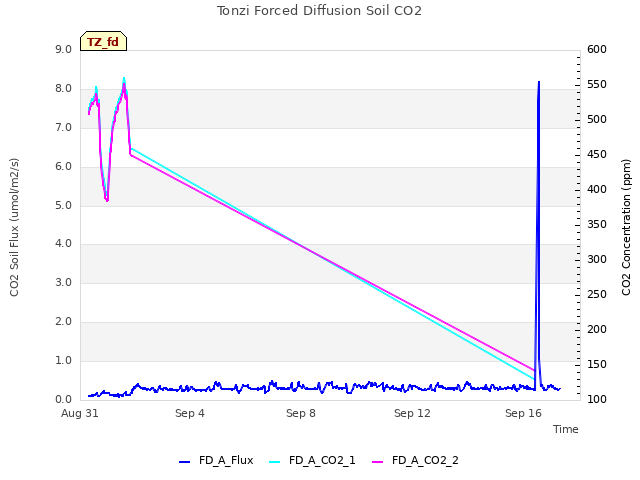

3 TZ_fd graphs found
Tonzi Z-cam data
