Field Notes
<--2021-09-01 10:55:00 | 2021-10-06 11:00:00-->Other sites visited today: Tonzi
Vaira: 2021-09-16 11:00:00 (DOY 259)
Author: Joe Verfaillie
Others:
Summary: Standard fieldwork, checked ethernet lines, Moisture Point rods might be dead.
| Vaira 2021-09-16 I arrived at 11:00 PDT. It was clear but hazy and relatively cool for this time of year. There was a tiny bit of rain about a week ago from a passing thunderstorm but didn’t seem to do more than pockmark the dust. Most trees have some brown leaves, and few are mostly brown and a few are still mostly green. The grass seemed shorter (more grazed) than last time and I see young cows in the phenocam photos. I measured the well but did not go to the pond. I measured the Moisture Point at the biomass enclosure which seemed okay, but afterwards I found the bottom pin broken off and stuck in the cable connector. Then at the rod near the solar panels I noticed that the bottom pin was bent and broke when I tried to straighten it. This rod is also missing the top pin and didn’t read at all. So it’s possible we have no more functioning Moisture Point rods at Varia. I collected the met, flux, camera and FD chamber data. All seemed well. The 7500 read: 411.9ppm CO2, 536.5mmol/m3 H2O, 99.1kPa, 24.8C, 102.6SS I looked at the two Ethernet cables that run between the two towers. I cut the connector off the cable still in the camera case, moved the cable to inside the data logger box and put a new connector on it. This cable worked. I tried to test the continuity in the older cable but failed. Either the cable is completely broken or the adapters I was using limit continuity. I put a new connector on the end that was cut but could not communicate on it. I left at about 12:10 PDT |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2021-09-16 | VR_well | 60.4 |
| 2021-09-16 | TZ_floor | 32.15 |
| 2021-09-16 | TZ_road | 39.8 |
| 2021-09-16 | TZ_tower | 36.85 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Soil_Transect_3
[2] => Soil_Transect_2
[3] => Soil_Transect_1
[4] => SoilCO2_West_A
[5] => SoilCO2_West_B
[6] => SoilCO2_West_C
[7] => Soil_Transect_4
)
| Date | DOY | Rep | Depth | Tower |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Soil_Transect_4 |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2021-09-16 | 259 | 0 | 0-15cm | 3 | 0.4 | 3 | 0.3 | 7.1 | 3 | 3.3 | ||||
| 2021-09-16 | 259 | 0 | 15-30cm | 10.6 | 12.4 | 10.3 | 4.2 | 5.7 | 1.7 | 10.6 | 4.5 | |||
| 2021-09-16 | 259 | 0 | 30-45cm | 13.4 | 11.7 | 15.9 | 12.9 | 14.3 | 14 | 10.1 | 9.2 | |||
| 2021-09-16 | 259 | 0 | 45-60cm | 15.9 | 19.1 | 26.5 | 13 | 15 | 6.2 | 11 | 10.5 | |||
| 2021-09-16 | 259 | 1 | 0-15cm | 2.7 | 0.1 | 2.4 | 0.1 | 6.5 | 3 | 2.4 | 0.3 | |||
| 2021-09-16 | 259 | 1 | 15-30cm | 12.1 | 12.1 | 11.5 | 3.2 | 6.6 | 1.4 | 10.6 | 5.1 | |||
| 2021-09-16 | 259 | 1 | 30-45cm | 14.3 | 11.2 | 14.8 | 12.3 | 15.1 | 13.7 | 10.6 | 9 | |||
| 2021-09-16 | 259 | 1 | 45-60cm | 17.9 | 19.6 | 25.9 | 13.3 | 15.6 | 5.9 | 11.6 | 10.5 | |||
| 2021-09-16 | 259 | Avg | 0-15cm | 2.85 | 0.25 | 2.7 | 0.2 | 6.8 | 3 | 2.85 | 0.3 | 2.37 | 8 | 15 |
| 2021-09-16 | 259 | Avg | 15-30cm | 11.35 | 12.25 | 10.9 | 3.7 | 6.15 | 1.55 | 10.6 | 4.8 | 7.66 | 8 | 16 |
| 2021-09-16 | 259 | Avg | 30-45cm | 13.85 | 11.45 | 15.35 | 12.6 | 14.7 | 13.85 | 10.35 | 9.1 | 12.66 | 8 | 16 |
| 2021-09-16 | 259 | Avg | 45-60cm | 16.9 | 19.35 | 26.2 | 13.15 | 15.3 | 6.05 | 11.3 | 10.5 | 14.84 | 8 | 16 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Biomass_Cage
)
| Date | DOY | Rep | Depth | Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|
| 2021-09-16 | 259 | 0 | 0-15cm | 0.7 | |||
| 2021-09-16 | 259 | 0 | 15-30cm | 2.6 | |||
| 2021-09-16 | 259 | 0 | 30-45cm | 11.5 | |||
| 2021-09-16 | 259 | 0 | 45-60cm | 15 | |||
| 2021-09-16 | 259 | 1 | 0-15cm | 0.4 | |||
| 2021-09-16 | 259 | 1 | 15-30cm | 3.2 | |||
| 2021-09-16 | 259 | 1 | 30-45cm | 11.5 | |||
| 2021-09-16 | 259 | 1 | 45-60cm | 15 | |||
| 2021-09-16 | 259 | Avg | 0-15cm | 0.55 | 0.55 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 15-30cm | 2.9 | 2.9 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 30-45cm | 11.5 | 11.5 | 1 | 2 |
| 2021-09-16 | 259 | Avg | 45-60cm | 15 | 15 | 1 | 2 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

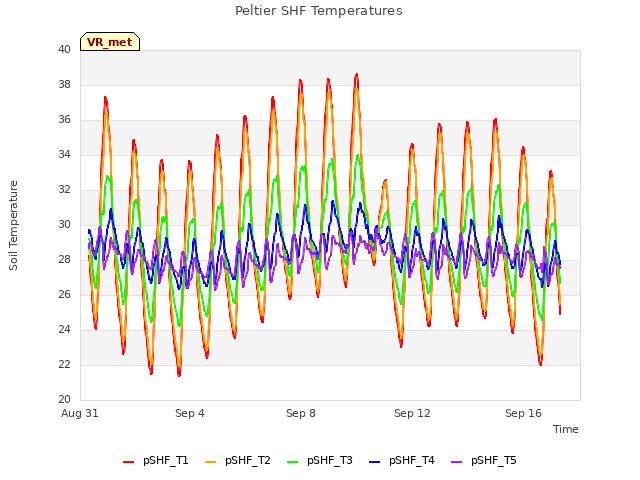

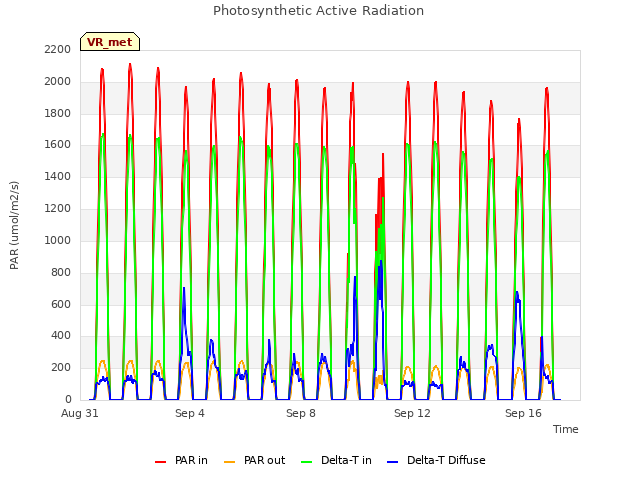

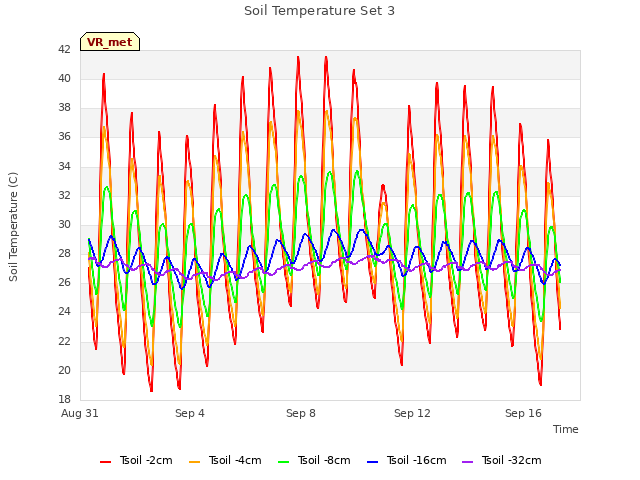

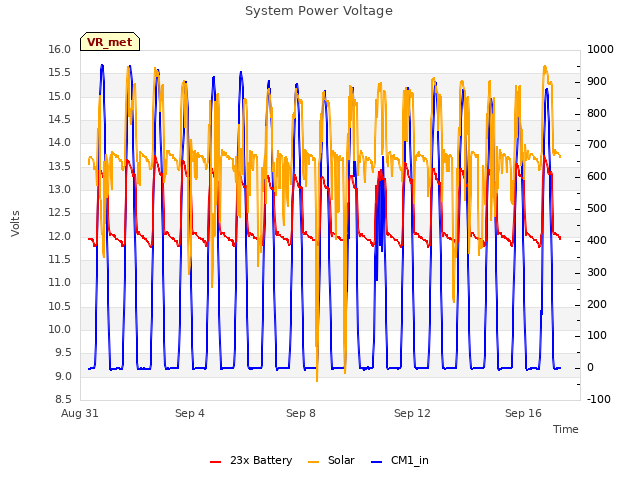

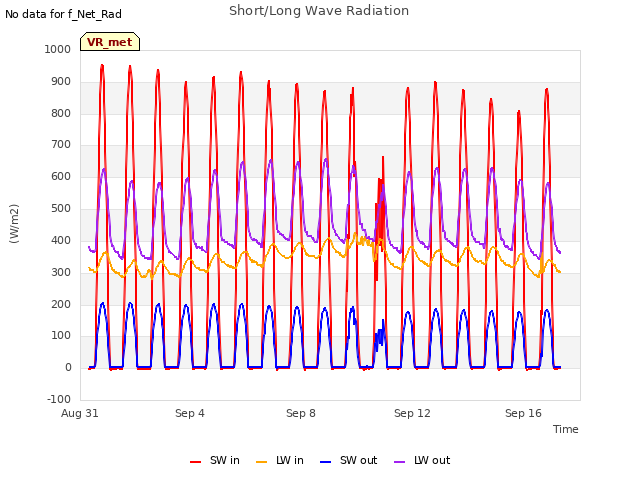

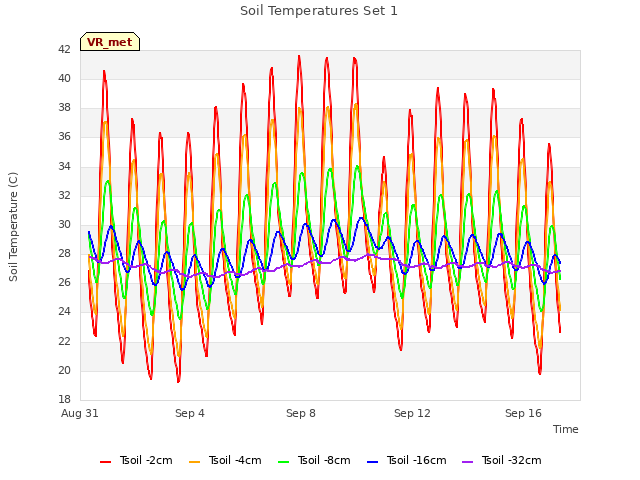

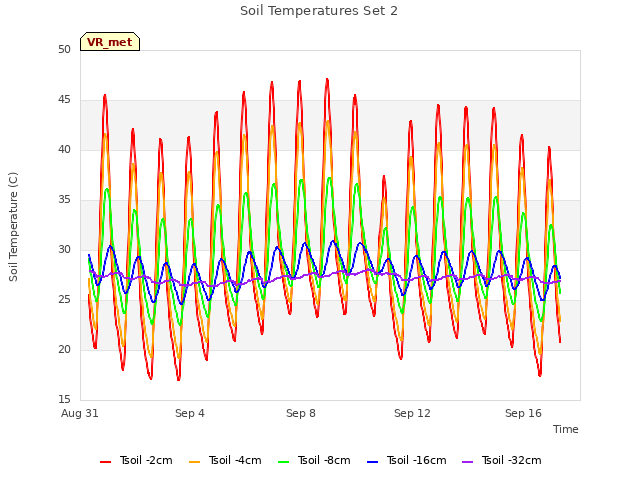

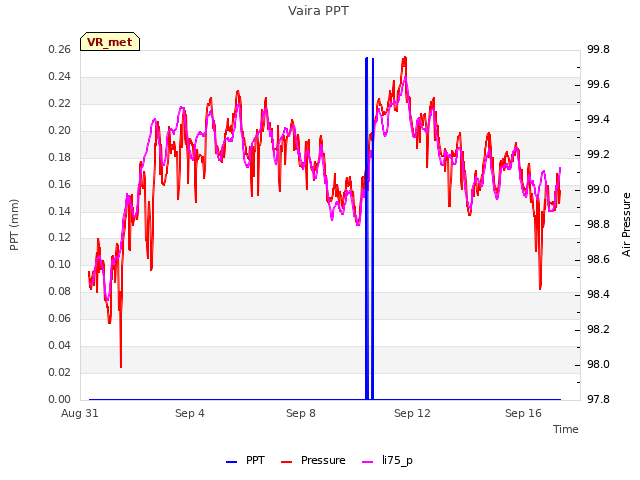

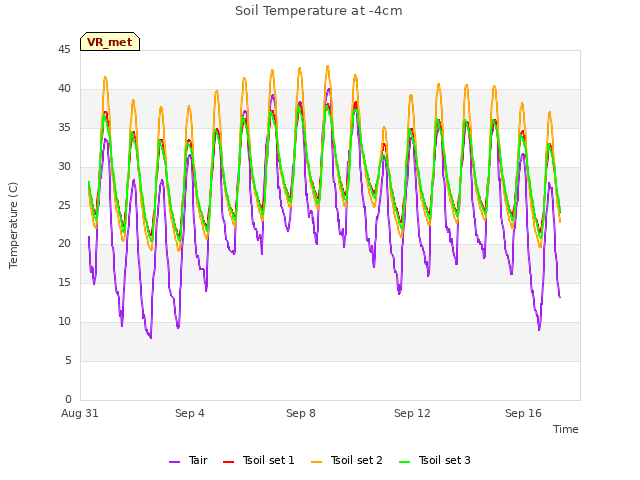

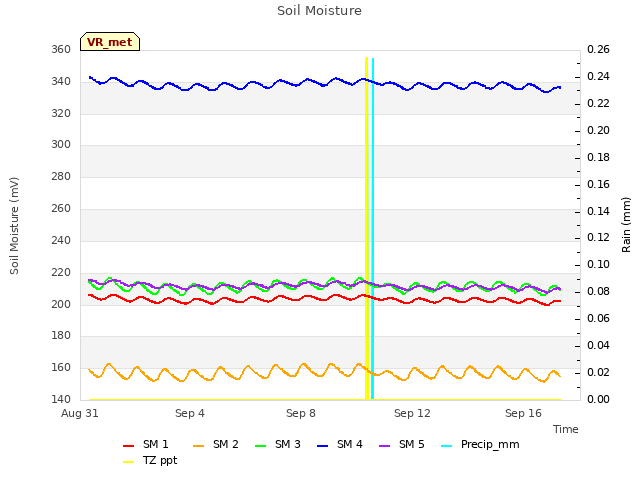

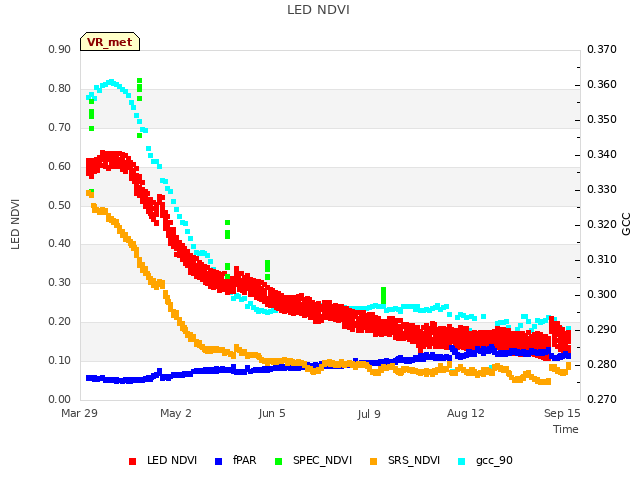

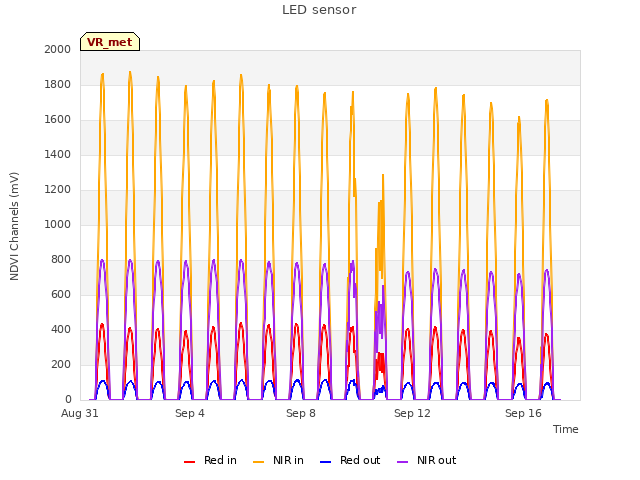

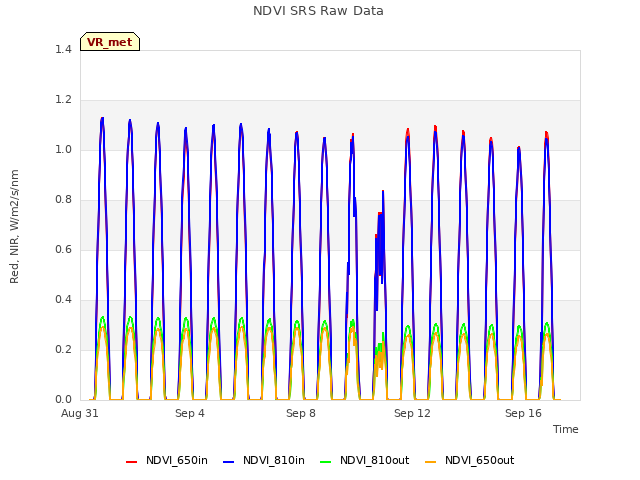

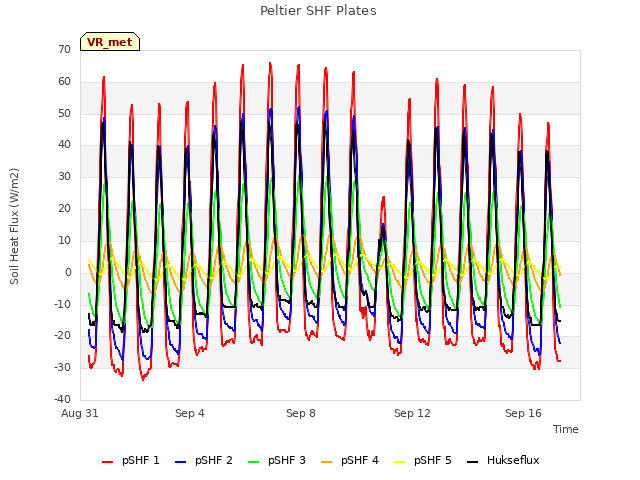

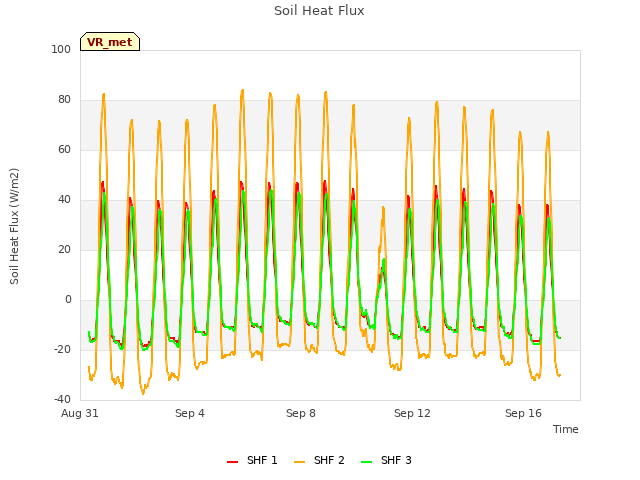

16 VR_met graphs found

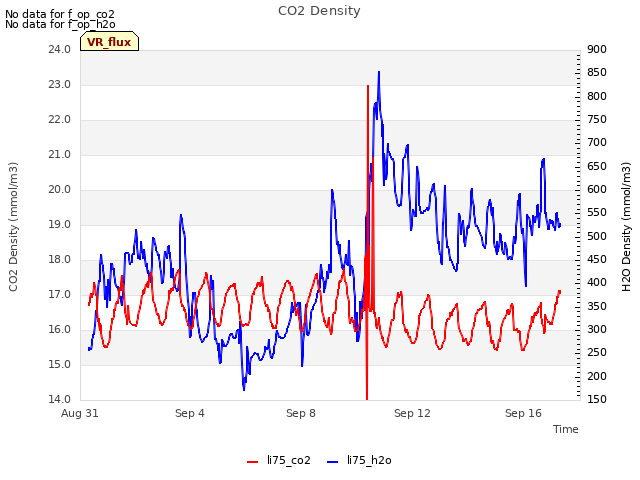

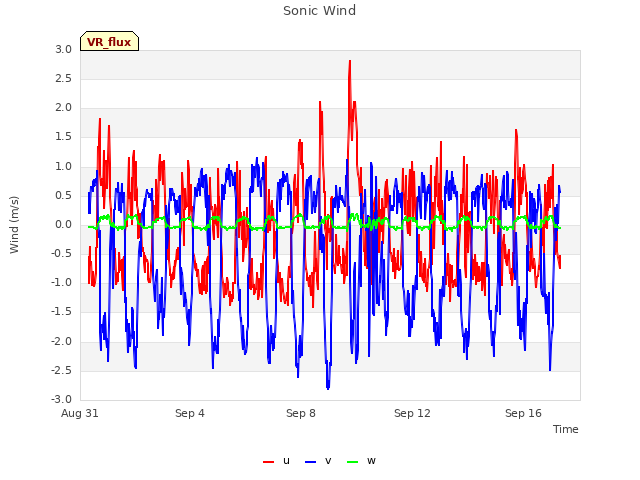

2 VR_flux graphs found

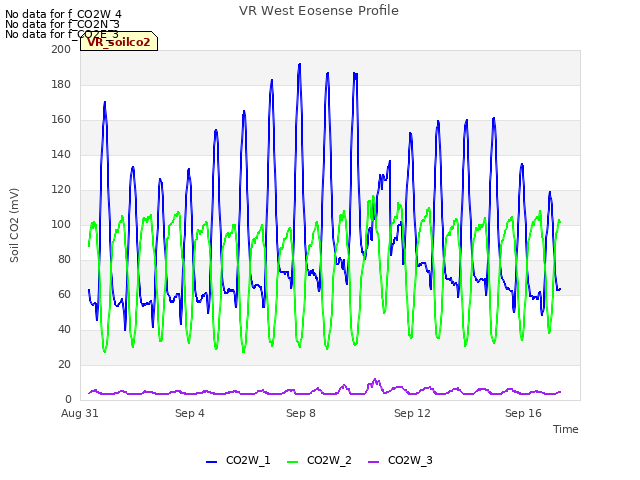

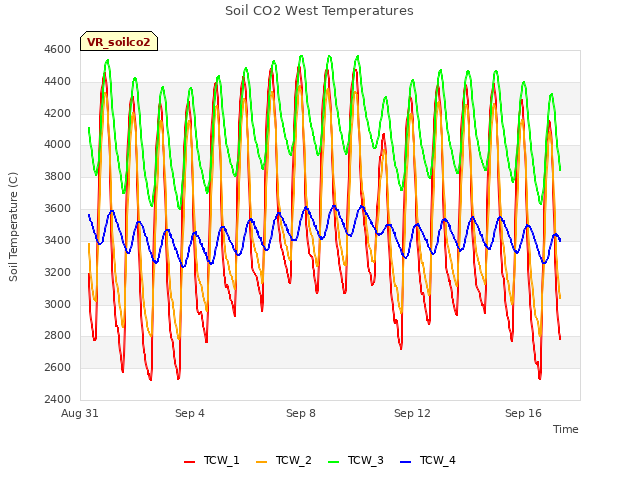

2 VR_soilco2 graphs found

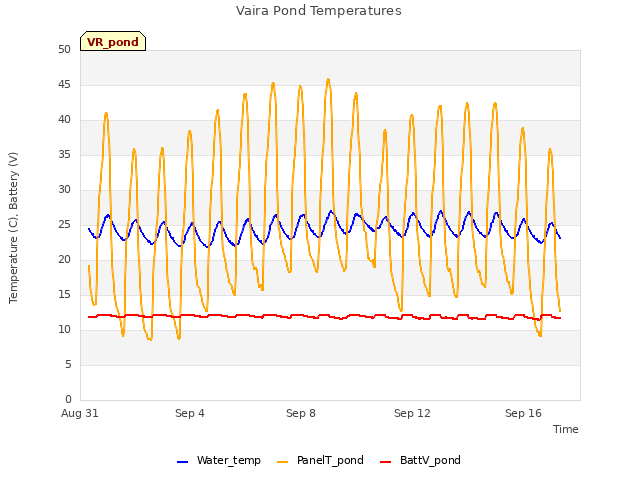

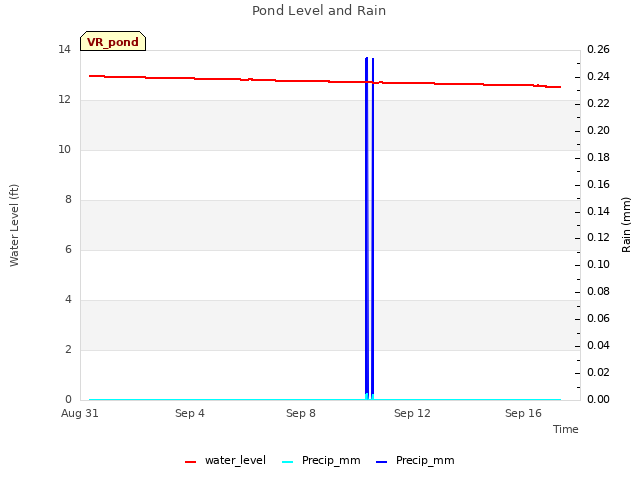

2 VR_pond graphs found
Can't check TZVR_mixed

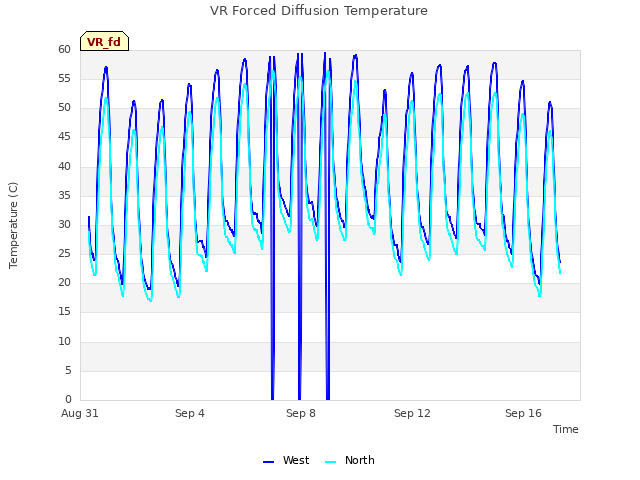

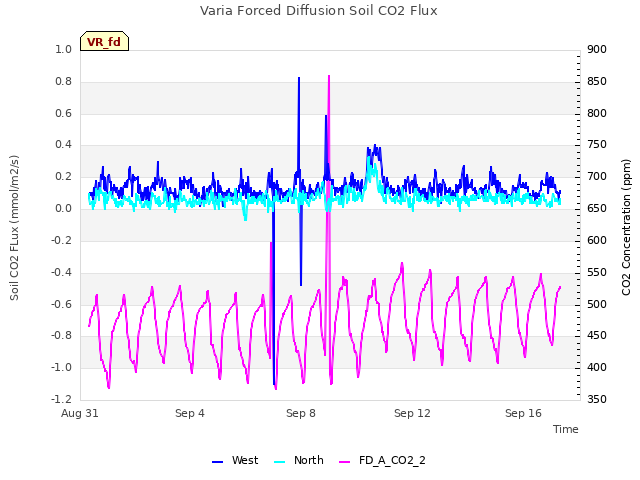

3 VR_fd graphs found

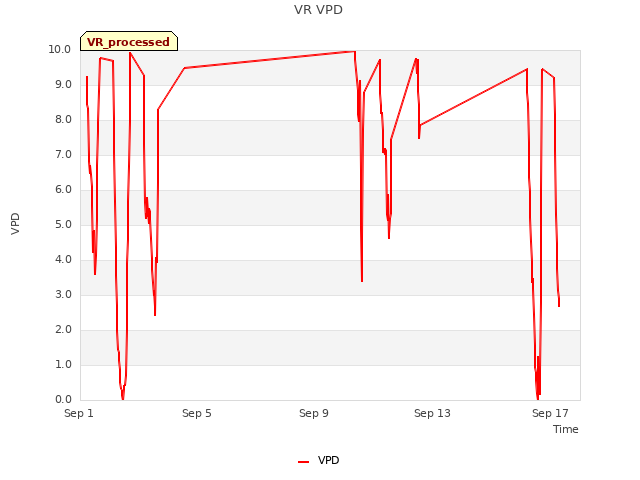

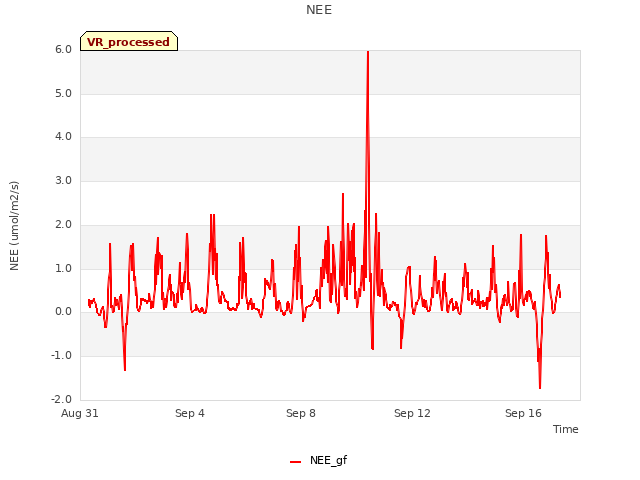

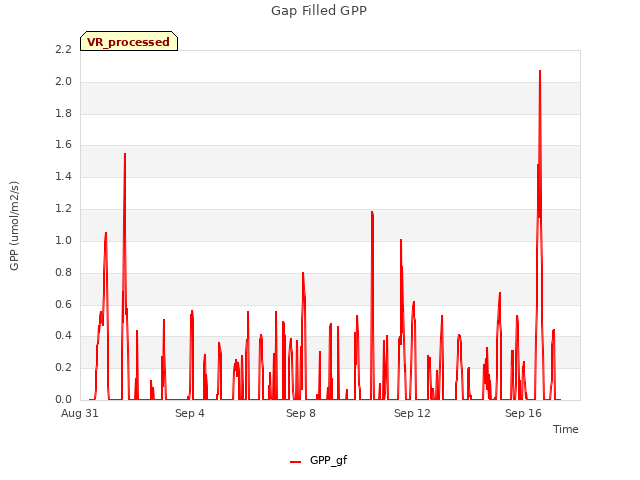

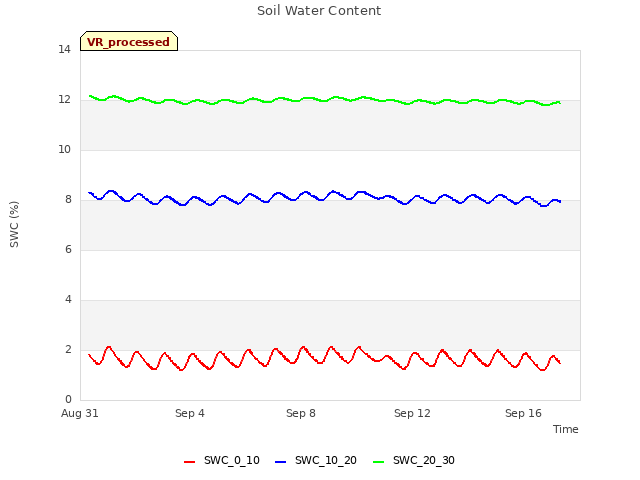

4 VR_processed graphs found

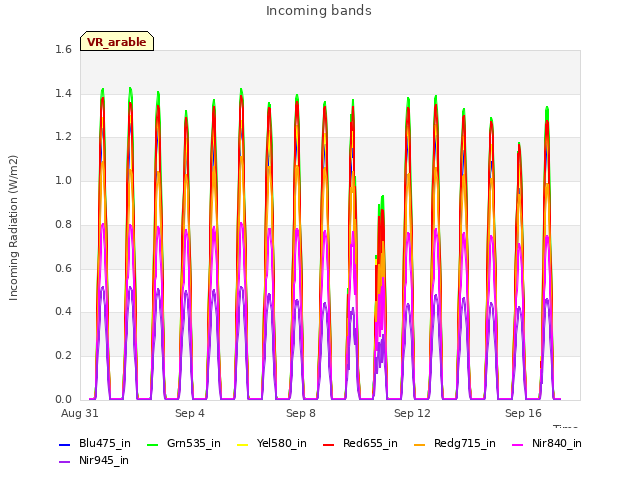

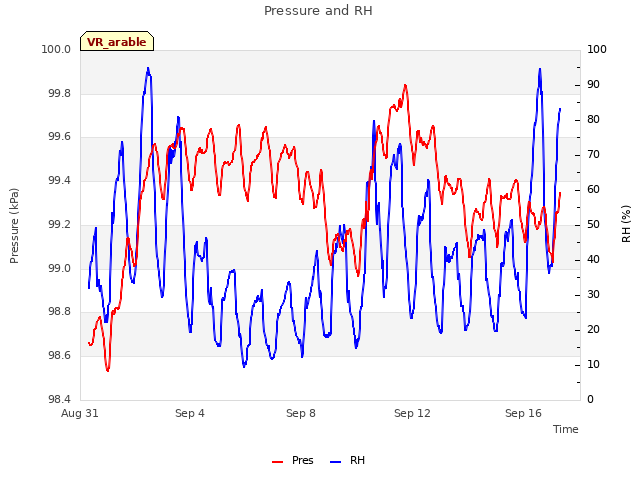

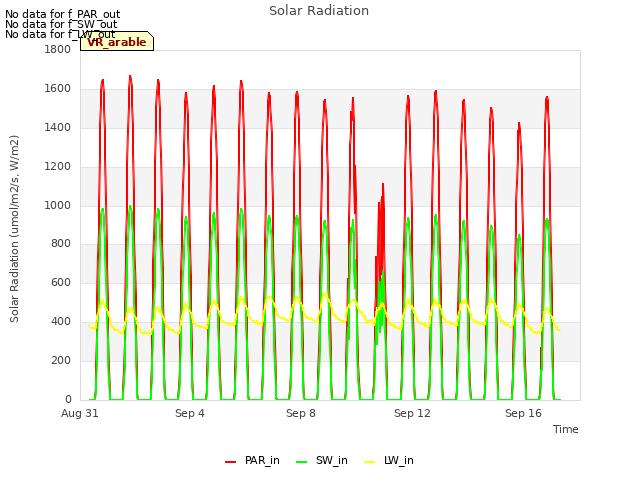

4 VR_arable graphs found
No data found for VR_soilvue.
