Mayberry: 2021-04-27 16:50:00 (DOY 117)
Author: Daphne Szutu
Others:
Summary: Regular data collection/cleaning, installed RPi cam for intercomparison

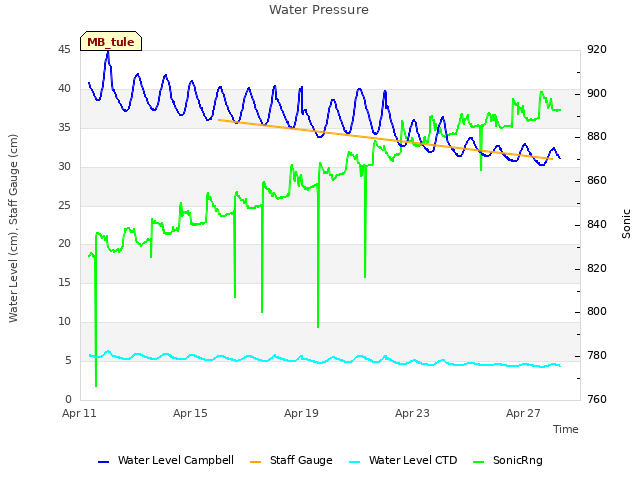

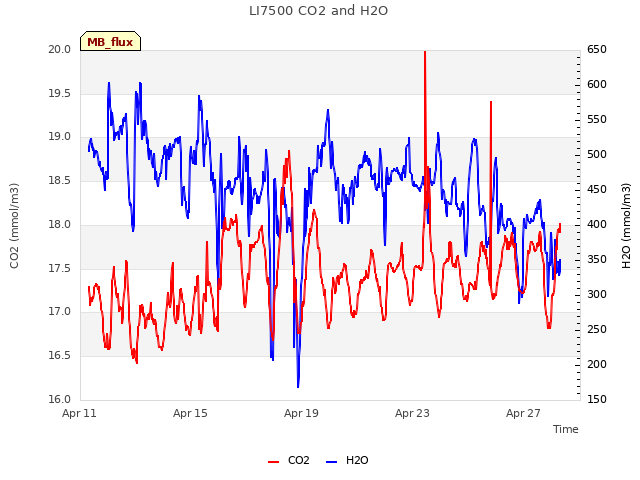

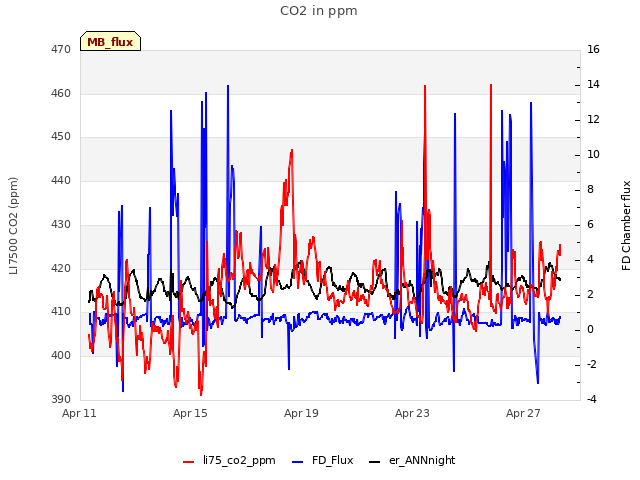

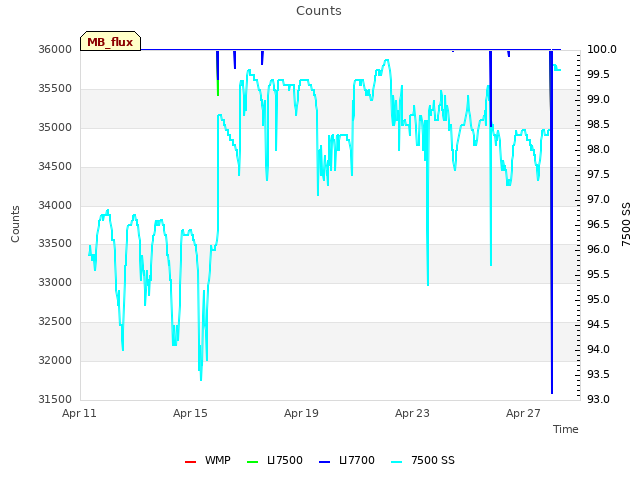

| 2021-04-27 Mayberry I arrived at 16:50 PDT. It was warm and breezy. There were a few sprinkles of rain a few days ago on Sunday, but that might be the last of the rain for this season. The wetland is looking greener, but still mostly brown. I climbed down and scrubbed the staff gauge, which read 31 cm. I downloaded met, camera, and USB GHG data. I downloaded FD data and cleared its memory. I cleaned the flux and rad sensors and topped off the wash reservoir. The Rnet sensor over the water had a lot of bird poop on it. I installed a Raspberry Pi camera to compare with our Canon photos since the Canon photos are occasionally underexposed, although that problem seems to have improved once we changed the canon’s internal battery. I added sn RPI0W-003 to the NW scaffolding post, under the eddy sensors. It’s pointed approximately west to match the view of the Canon camera. LI-7500 readings: CO2 414ppm H2O 381ppm T 24.4C P 101.4kPa SS 98-->99 after cleaning LI7700 readings: CH4 1.94ppm RSSI 67--> 75 after cleaning I left at 17:45 PDT. |
0 photos found
11 sets found
7 MB_flux graphs found
No data found for MB_met.

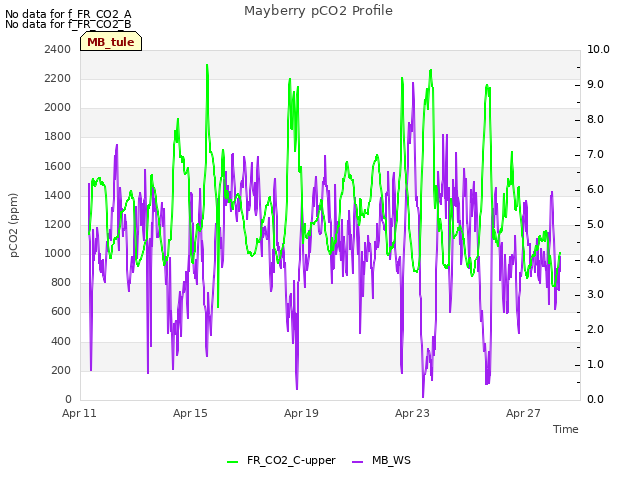

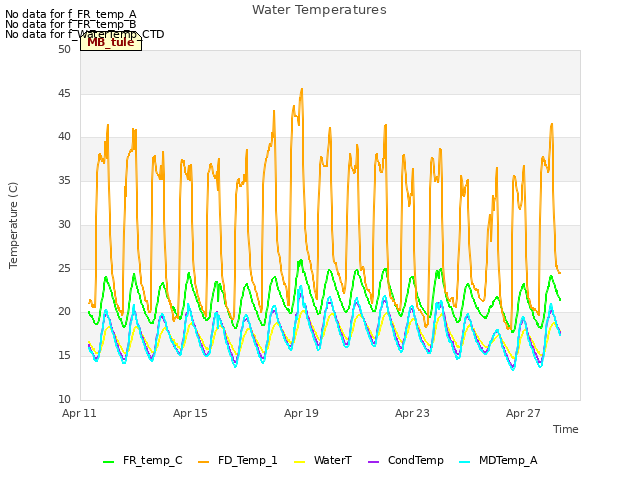

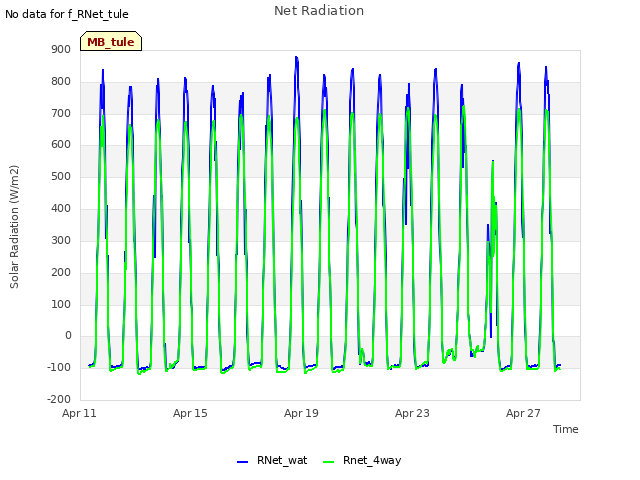

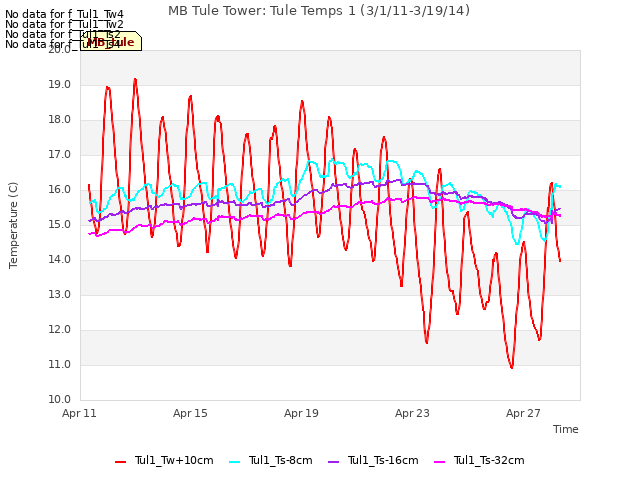

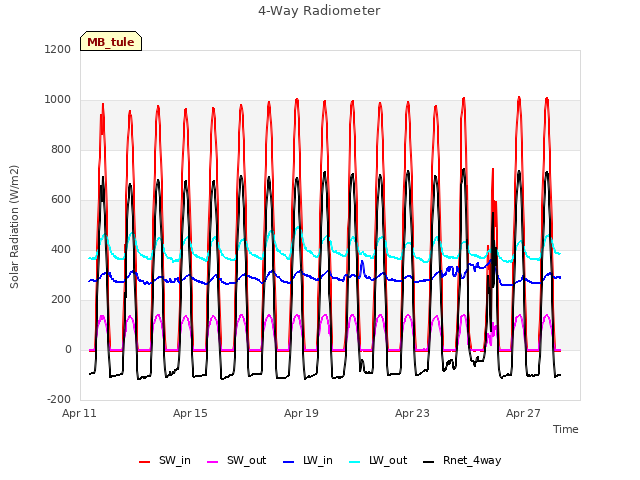

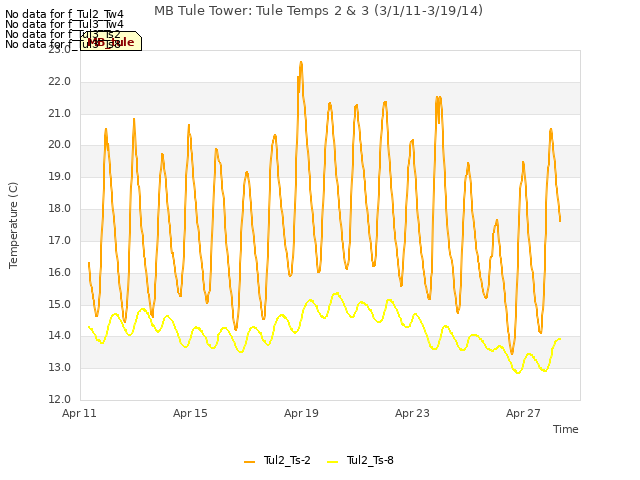

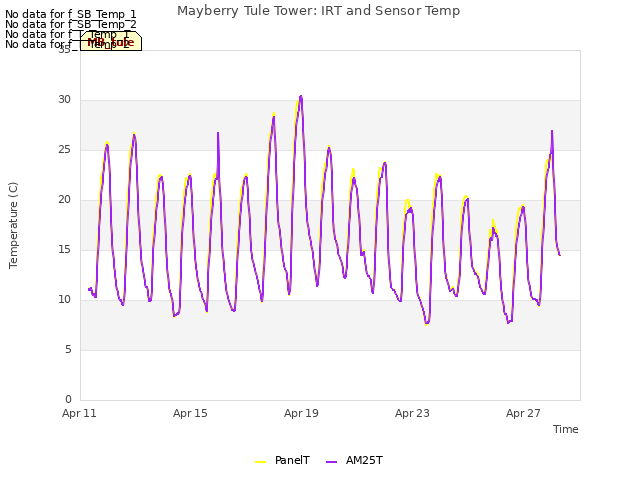

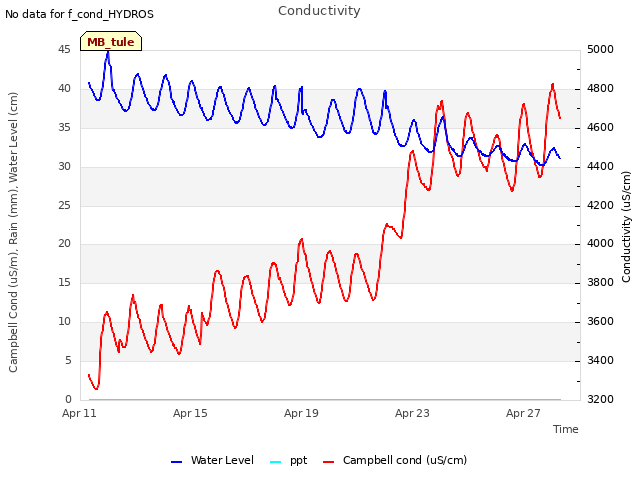

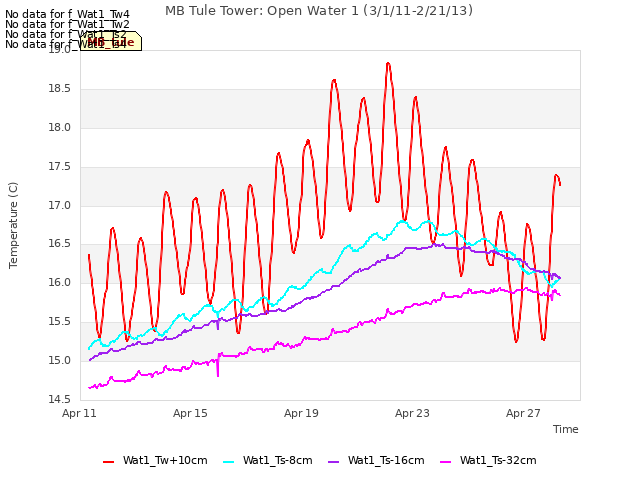

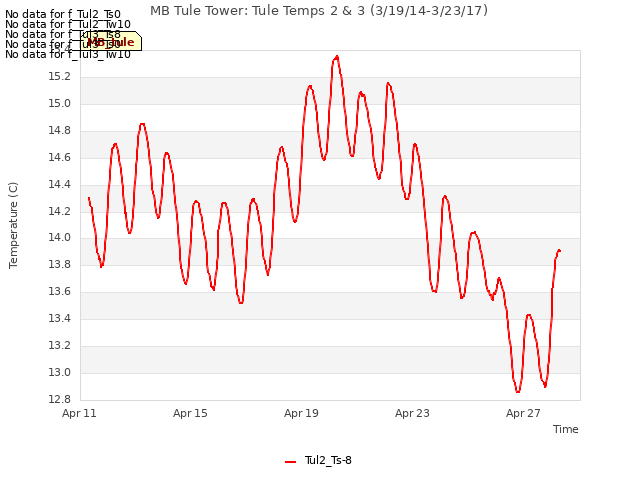

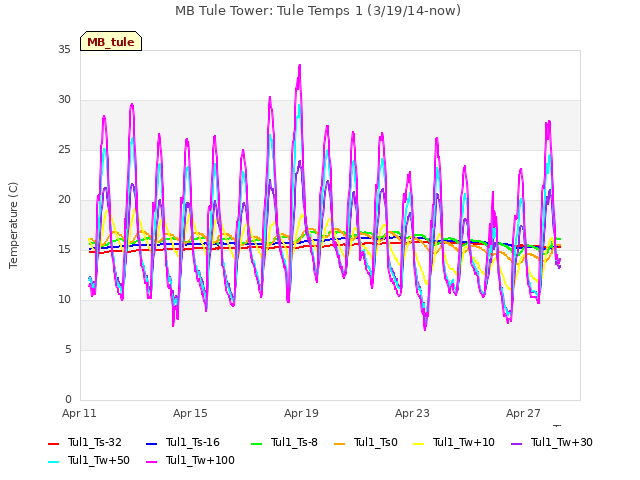

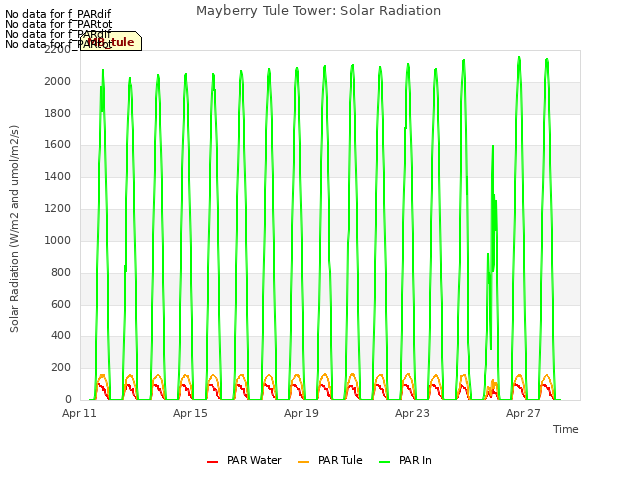

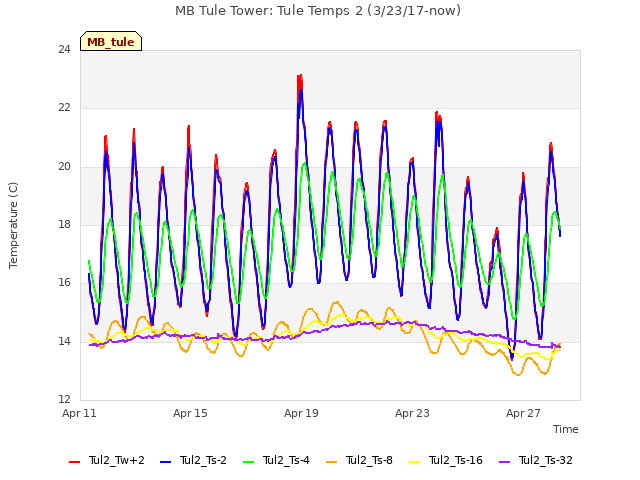

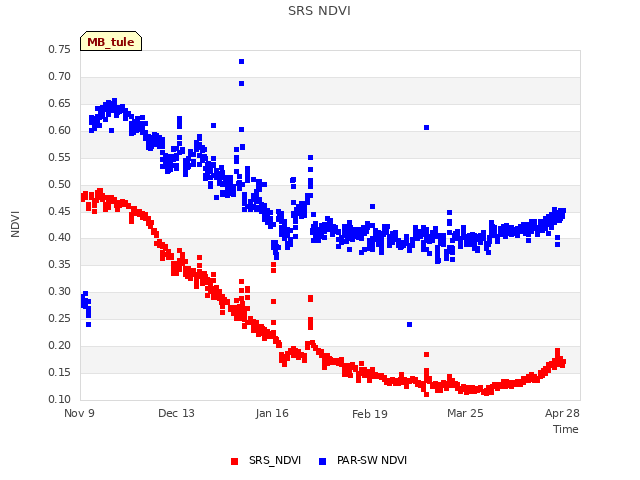

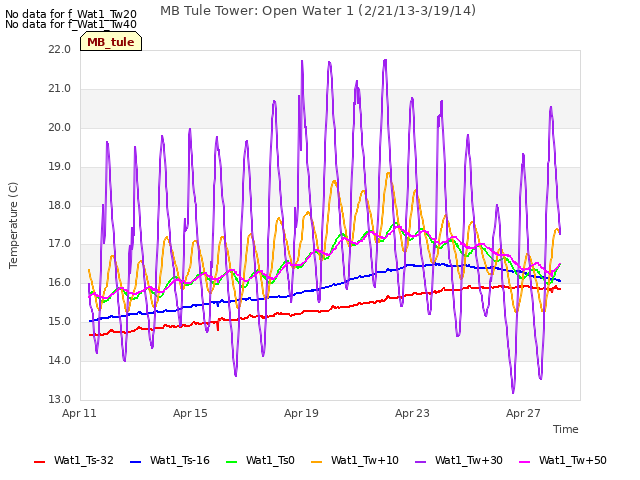

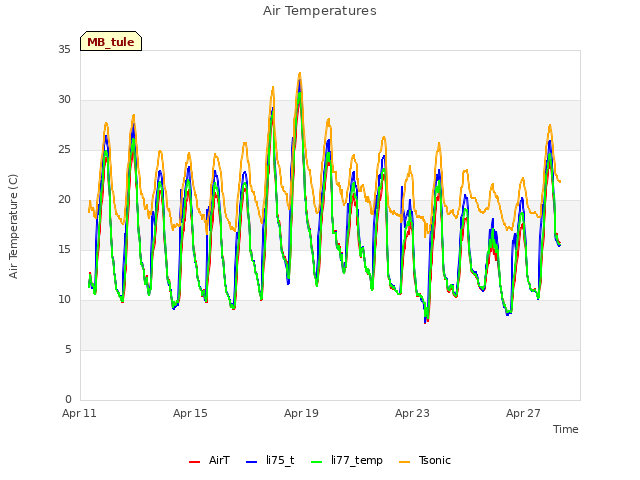

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed
1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

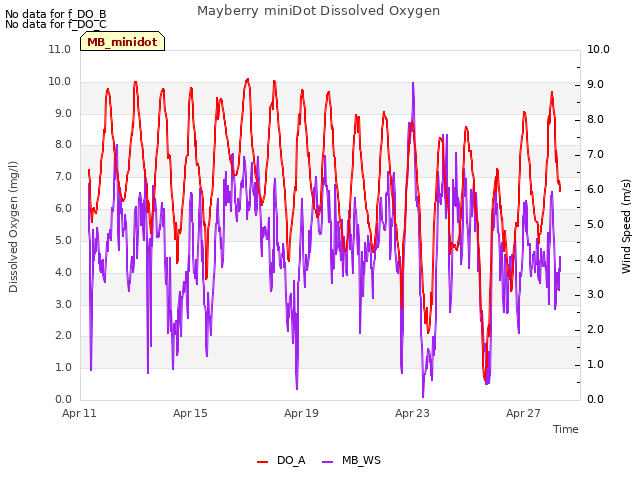

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA
1 MB_processed graphs found
Can't check MB_fd

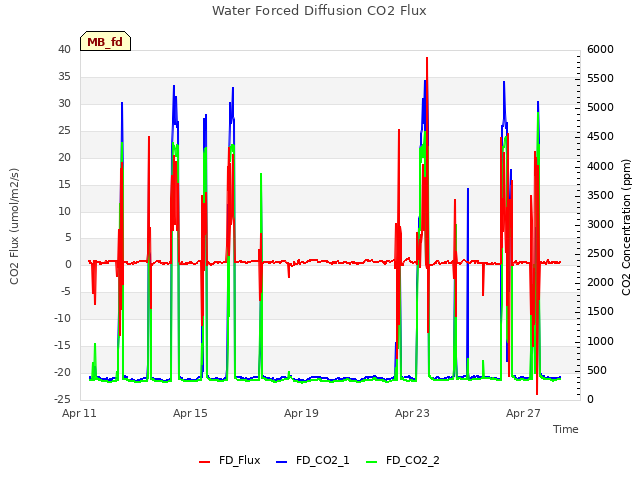

1 MB_fd graphs found
