Field Notes

<--2021-01-03 08:55:00 | 2021-02-04 09:45:00-->
Other sites visited today: Mayberry | East End | West Pond | Bouldin Alfalfa | Bouldin Corn

Sherman Wetland: 2021-01-17 09:30:00 (DOY 17)
Author: Daphne Szutu
Others: Mike

Summary: Regular data collection/cleaning, unseasonably warm day, removed eosGP sensor

2021-01-17
Sherman Wetland

Mike and I arrived at 9:30 PST. It was a sunny and unseasonably warm day with clear skies and a little breeze. It’s been mostly dry these past 2 weeks, and we’re expecting a wind event over the next 2 days. There was fresh soil and sand on the dirt path where we turn off the gravel road and onto the levee to drive toward the tower. The staff gauge read 96.5 cm. We could hear occasional hunting sounds.

I downloaded met, cam, and USB GHG data. I cleaned the flux and rad sensors. The wash reservoir was 1/4 empty; I refilled it.

The eosGP data from sn GP20140084 for both Temp and CO2 were just noise, so I removed it to bring back to the lab for testing. This sensor has been deployed for a little over a year.

LI-7500 readings:
CO2 439ppm
H2O 441ppm
T 19.4C
P 102.2kPa
SS 103--> 107 after cleaning
LI7700 readings:
CH4 2.3ppm
RSSI 45--> 85 after cleaning

We left at 10:10 PST.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

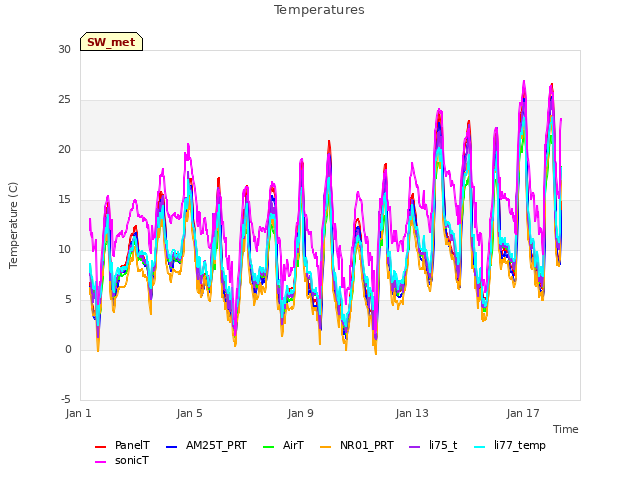

Explore the graph:Temperatures in a new window

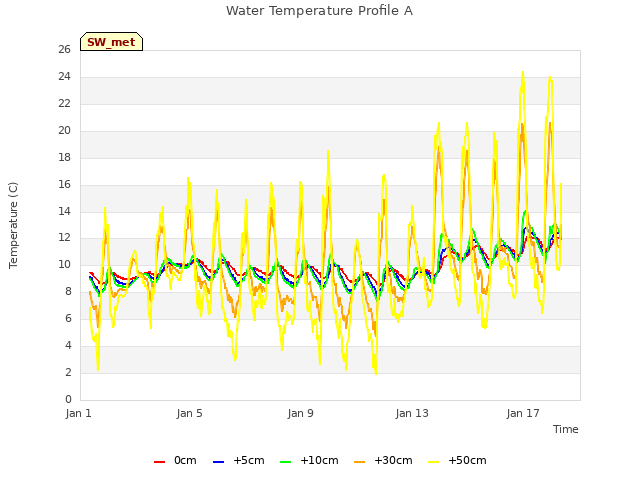

Explore the graph:Water Temperature Profile A in a new window

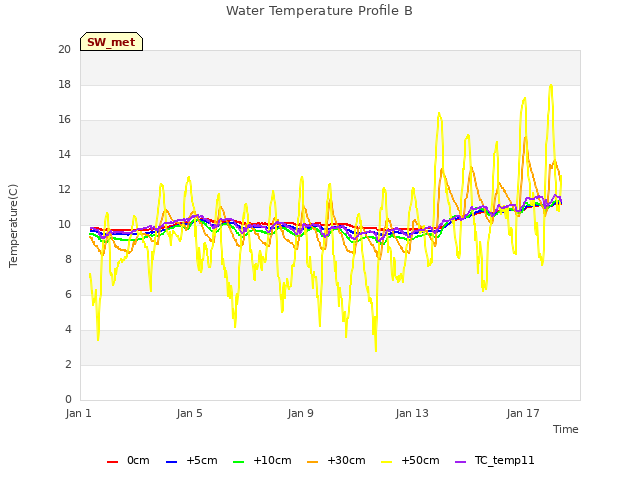

Explore the graph:Water Temperature Profile B in a new window

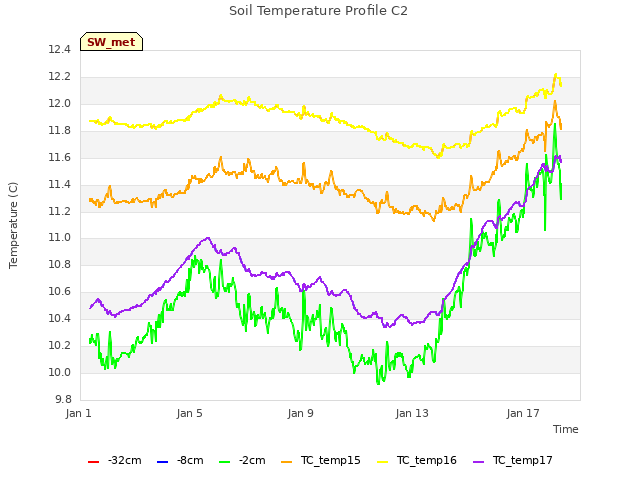

Explore the graph:Soil Temperature Profile C2 in a new window

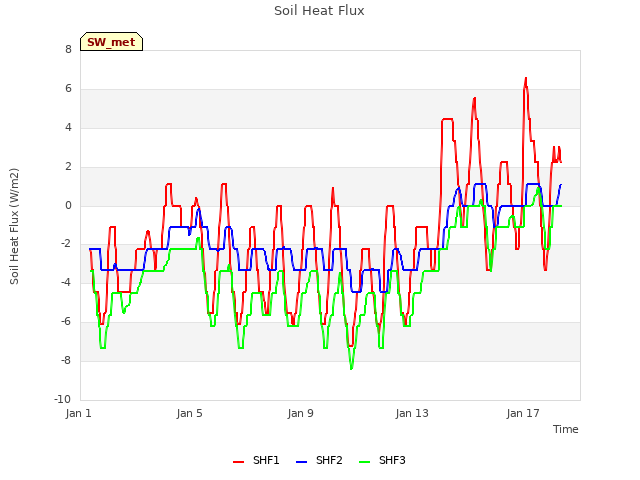

Explore the graph:Soil Heat Flux in a new window

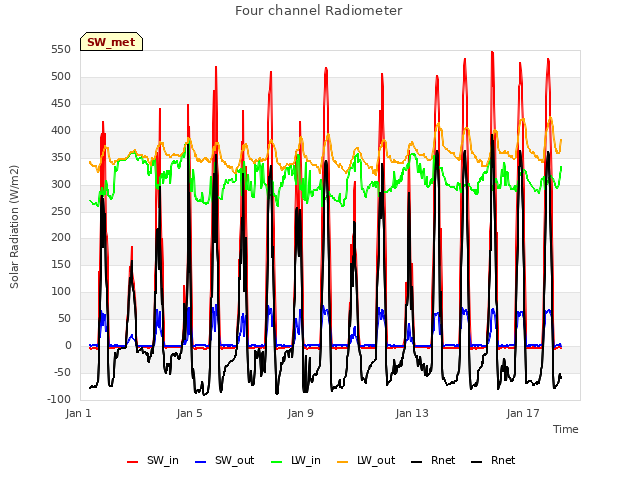

Explore the graph:Four channel Radiometer in a new window

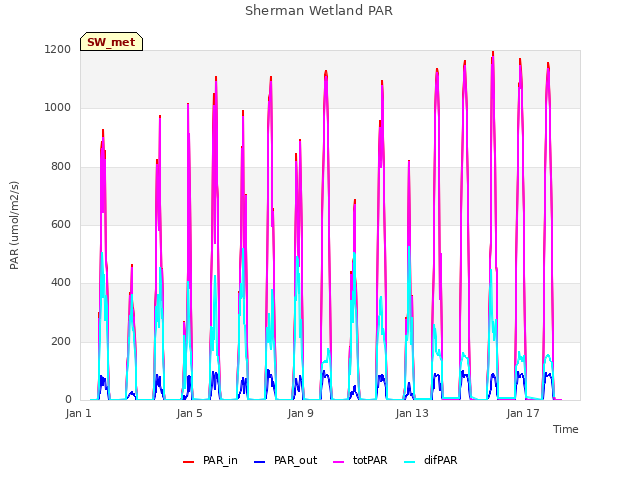

Explore the graph:Sherman Wetland PAR in a new window

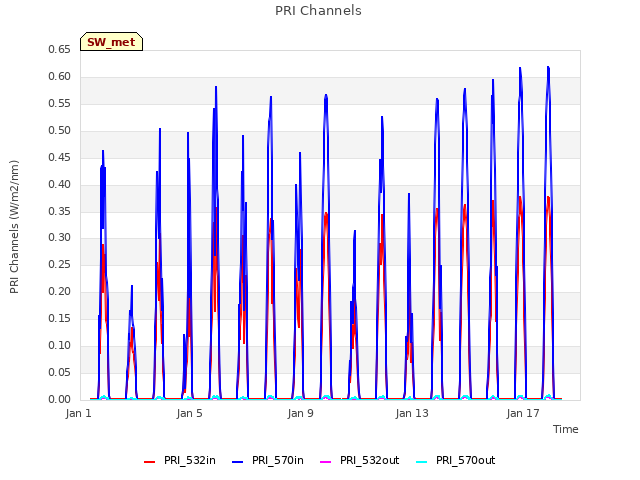

Explore the graph:PRI Channels in a new window

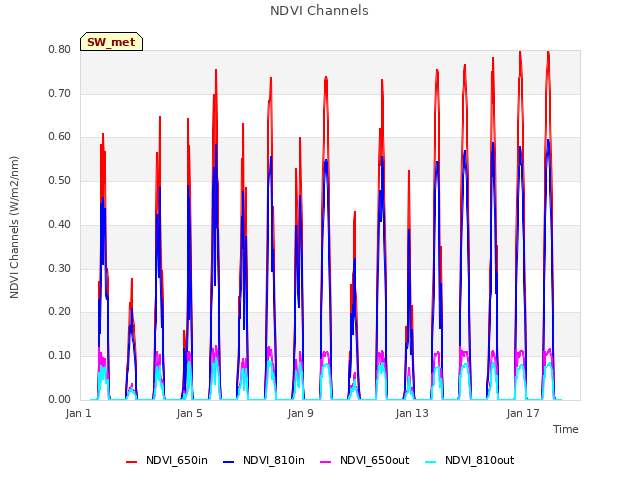

Explore the graph:NDVI Channels in a new window

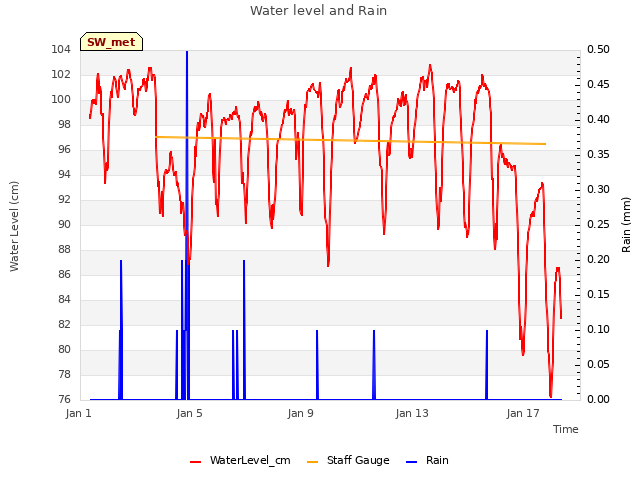

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

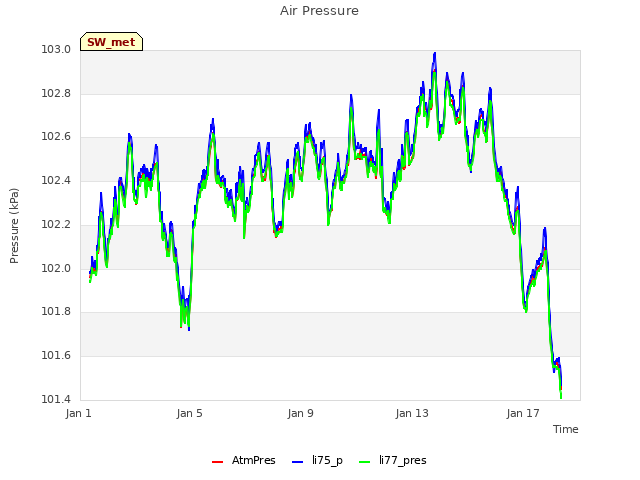

Explore the graph:Air Pressure in a new window

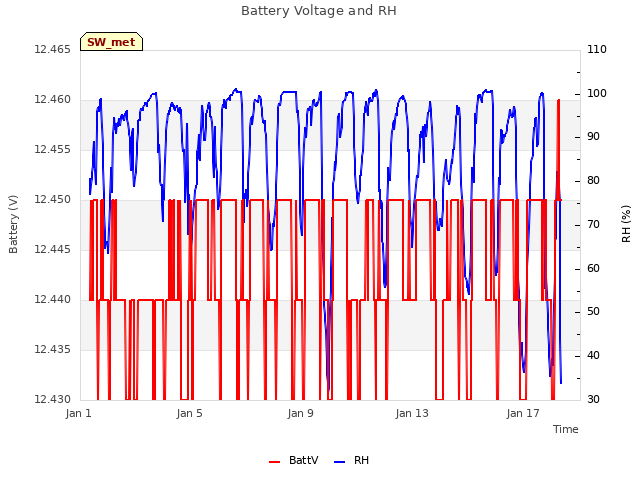

Explore the graph:Battery Voltage and RH in a new window

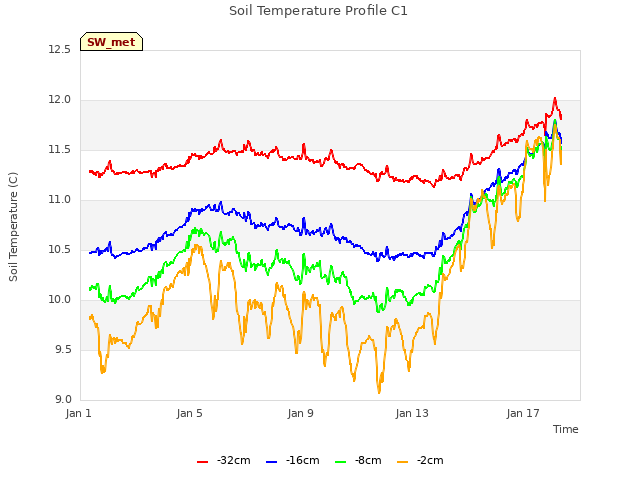

Explore the graph:Soil Temperature Profile C1 in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

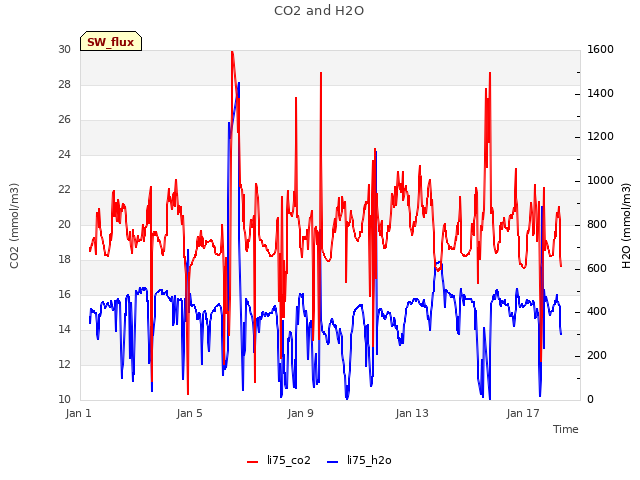

Explore the graph:CO2 and H2O in a new window

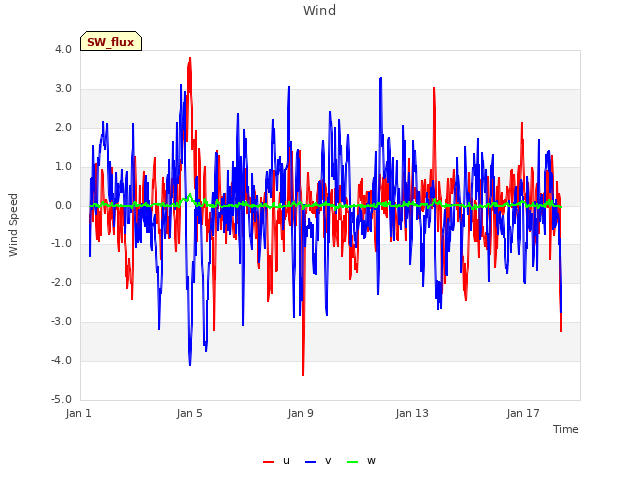

Explore the graph:Wind in a new window

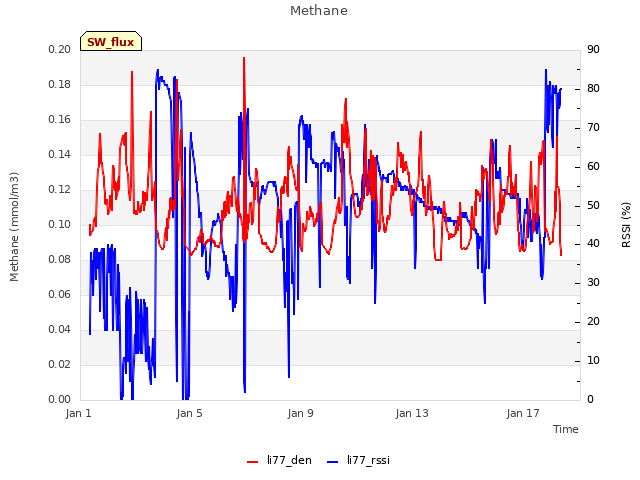

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

3 SW_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

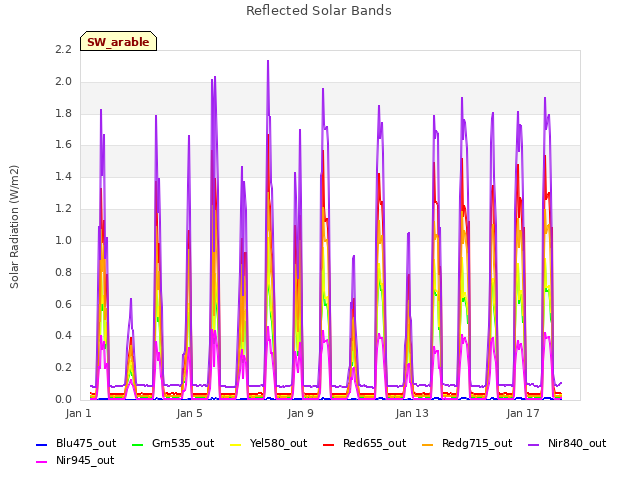

Explore the graph:Reflected Solar Bands in a new window

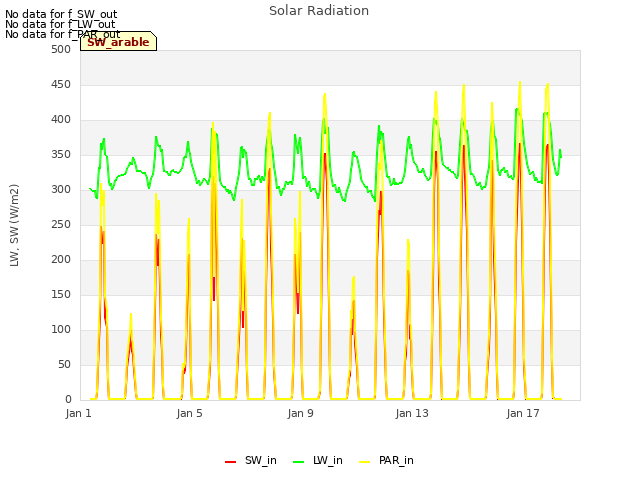

Explore the graph:Solar Radiation in a new window
