Field Notes
<--2010-03-16 09:00:00 |
2010-04-02 06:00:00-->
Tonzi: 2010-03-21 11:30:00 (DOY 80)
Author: Siyan Ma
Others:
When: Date: 3/21/2010 ,
Day: 80 ,
Watch Time: 11:30 .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather:
Sunny, warm, nice breeze
Phenology:
grasses grew well; white flowers; oak leaves came out 100%
Summary
- swap CR10X for the new understory met
- tram was working well.
- swap the shield with fan for Ta&Rh sensor at Vaira
- check and download data at Tower, Floor, and Vaira
- Calibrate Li-800 in the field: bump wasn’t on, but it went back to
work after I gave it a click.
- collected samples of grasses, oak leaves and pin needles
- dendrometers
- spectrum
- soil moisture
- groundwater well:
Date
|
DOY
|
Location
|
Depth
from the black thing (feet)
|
8/23/2010
|
80
|
Floor
|
23.75
|
|
|
Tower
|
27.05
|
|
|
roadside
|
32.00
|
Vaira_Grass
Site
- Fence and gate power: 12 (was not on) v.
- Panel and Batteries: 13.5 v; 14.6 amps; 3.6
amps.
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and CO2 should be in the range of 0 – 5 v.)
- downloading data
- Check the fans of air temp.
and relative humidity sensors at Vaira. YES!
- Check MD-9 system connections
YES!
- Check CR23X with two
multiplexers
- Check levels of Radiation
sensors, clear up surfaces.YES!

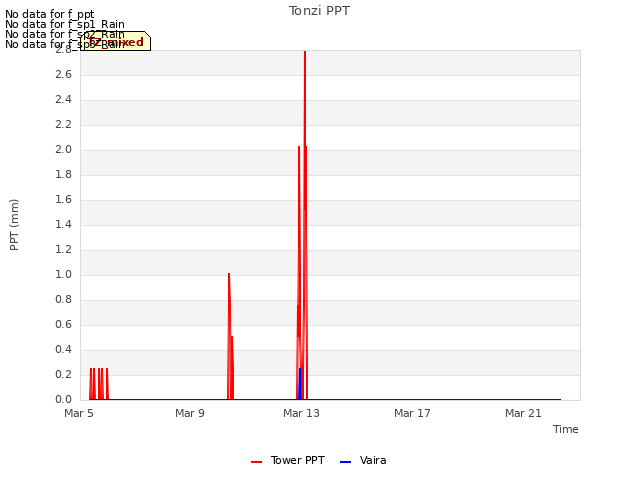

- Check rain gage, make sure
not clogged. YES!
- Closed gate and set up fence.
YES!
Tonzi_Tower Site
- Fence and gate power: 12, was not on v.
- Panel and Batteries: 13.9
v; 0.0
amps; 4.5 amps.
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and CO2 should be in the range of 0 – 5 v.)
- downloading data YES!
- check the fans of air temp.
and relative humidity sensors on the tower and the floor. YES!
- Check rain gage, make sure
not clogged. YES!
- Check calibration cylinders;
CO 2 900 psig; flow 20 psi; 418.8
ppm.
N 2 600
psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running No. Pump was
not on. It ran after I clicked it.
Zero may be 8.0 ppm off.
before zero
Take a long time to zero
after zero
before span
span with CO2=418.8 ppm
after span
- close gate and set up fence. YES!
Toniz_Floor
Site
- Tram is running well.
- swap the CR10X for the new understory Ta&Rh. The
old understory Ta&Rh system: shield broken, no fan on.
- Fence and gate power: 12
v.
- Panel and Batteries: 14.0
v; 11.9
amps; 1.9
amps. (about
7:00 am local time)
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and
CO2
should be in the range of 0 – 5 v.)
- downloading data YES!
- Check MD-9 system
connections YES!
CR23X3 – floor-Met
CR23X5 – soil CO 2
profile
CR23X6 – tower-Met
CR10X2 – floor-Met

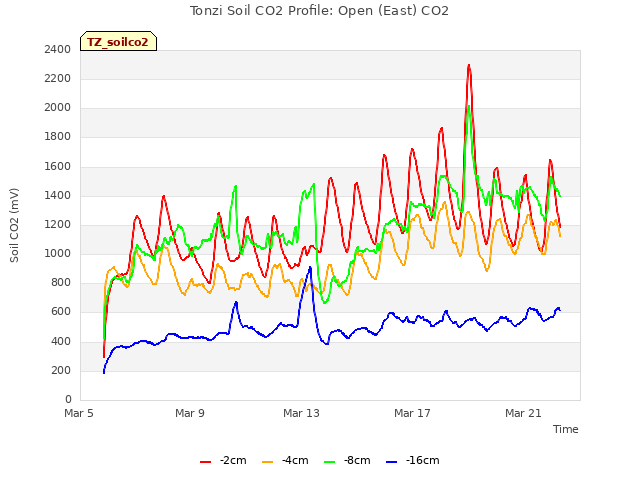

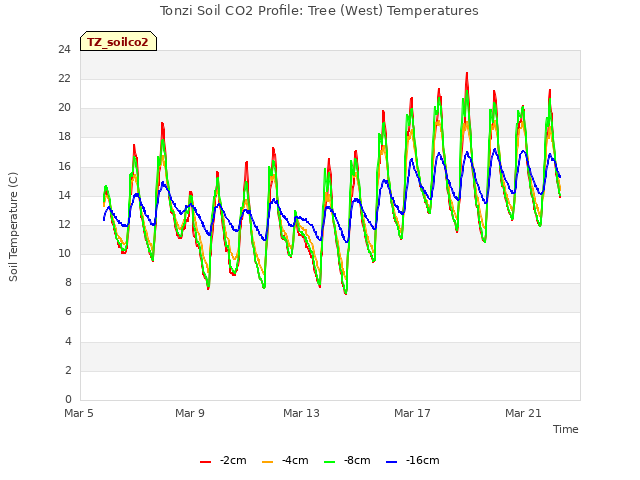

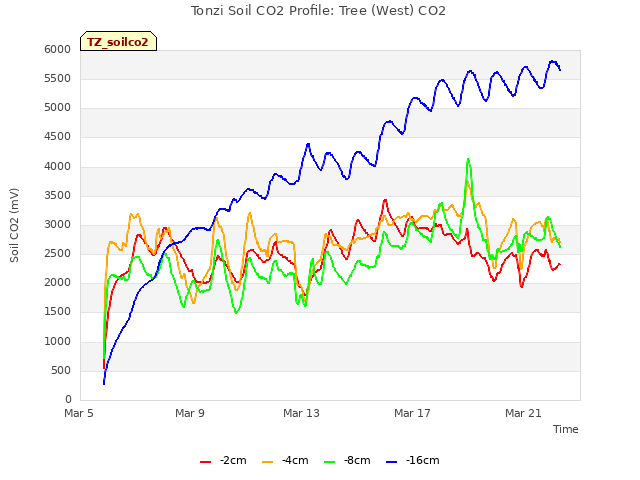

- Soil CO2 profile:
no power when I got there. I unplug
and re-plug fuses, then the system back to work.
Reading
from datalogger
Reading
from panels of analyzers
depth
|
Open
|
order
|
depth
|
Tree
|
order
|
2cm
(1%)
|
|
1
|
2cm
(1%)
|
|
1
|
4cm
|
|
2
|
4cm
|
|
4
|
8cm
|
|
3
|
8cm
|
|
2
|
16cm
|
|
4
|
16cm
|
|
3
|
- Close gate and set up fence. YES!
tonzi
|
7931AFE
|
402165
|
574B4B
|
402FF3
|
574632
|
7A432E
|
7A3C6E
|
7A3B40
|
7A4AAA
|
3/21/2010
|
80
|
|
|
|
|
|
|
|
|
|
DDB
|
|
|
|
|
|
|
|
|
0-15
|
42.0
|
21.2
|
39.9
|
31.7
|
34.6
|
32.3
|
22.3
|
22.3
|
17.9
|
15-30
|
40.2
|
40.8
|
31.0
|
37.1
|
38.7
|
27.7
|
28.0
|
30.7
|
20.3
|
30-45
|
43.0
|
45.8
|
39.6
|
38.5
|
45.9
|
32.4
|
30.4
|
34.1
|
34.6
|
45-60
|
40.2
|
66.9
|
41.4
|
49.4
|
43.1
|
34.8
|
40.8
|
47.7
|
31.1
|
|
|
|
|
|
|
|
|
|
|
|
A6D882B
|
A3D04E8
|
A6D72F5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0-15
|
22.3
|
16.8
|
21.7
|
|
|
|
|
|
|
15-30
|
27.1
|
21.3
|
32.3
|
|
|
|
|
|
|
30-45
|
35.4
|
39.4
|
34.1
|
|
|
|
|
|
|
45-60
|
43.7
|
48.3
|
50.6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
vaira
|
57318a
|
7933dee
|
|
|
|
|
|
|
|
0-15
|
23.1
|
20.0
|
|
|
|
|
|
|
|
15-30
|
24.2
|
28.5
|
|
|
|
|
|
|
|
30-45
|
25.0
|
35.1
|
|
|
|
|
|
|
|
45-60
|
35.3
|
33.7
|
|
|
|
|
|
|
|
Tonzi
|
|
|
|
|
|
Dendrometer
|
|
|
|
|
|
|
|
|
|
|
Date
|
Day
|
Tag #
|
Reading (mm)
|
|
|
3/21/2010
|
80
|
72
|
10.4
|
|
|
|
|
79
|
6.9
|
|
|
|
|
102
|
X
|
|
|
|
|
245
|
10
|
|
|
|
|
250
|
20.3
|
(reset to 10.5 on May 7, 2009)
|
|
|
|
1
|
17.6
|
|
|
|
|
2
|
9.9
|
|
|
|
|
3
|
15.3
|
|
|
|
|
4
|
7
|
|
|
|
|
5
|
11.5
|
|
|
|
|
7
|
14.9
|
133
|
|
|
|
8
|
7
|
11828
|
|
|
|
71
|
X
|
|
|
|
|
77
|
X
|
|
|
|
|
78
|
X
|
|
|
|
|
248
|
X
|
broken
|
|
|
|
255
|
X
|
|
|
|
|
252
|
X
|
|
|
|
|
6
|
X
|
|
|
Notes:
“X” means not working any more.
Dendrometers
installed by Gretchen group
|
Field Data
No tank data

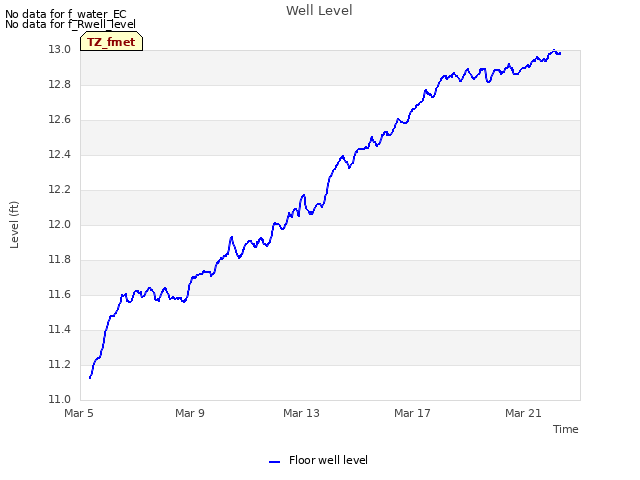

Well Depth
Date | Location | Depth (feet) |
2010-03-21 | TZ_floor | 23.75 |
2010-03-21 | TZ_road | 32 |
2010-03-21 | TZ_tower | 27.05 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Water Potential - mode: raw
Time< h> | Species | Tree | readings (bar) |
2010-03-21 12:09:00 |
OAK |
UNKNOWN |
-5 |
-3.5 |
-10 |
-13.5 |
-10 |
-17 |
-7.5 |
-9 |
-8 |
2010-03-21 12:09:00 |
PINE |
UNKNOWN |
-17 |
-16.9 |
-3.5 |
-12 |
-7.2 |
|
|
|
|
OAK_UNKNOWN |
Whole Study | 20100321 |
12:09:00 |
twig/leaf cluster | |
-0.9 |
0.41 |
9 |
PINE_UNKNOWN |
Whole Study | 20100321 |
12:09:00 |
twig/leaf cluster | |
-1.1 |
0.6 |
5 |
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

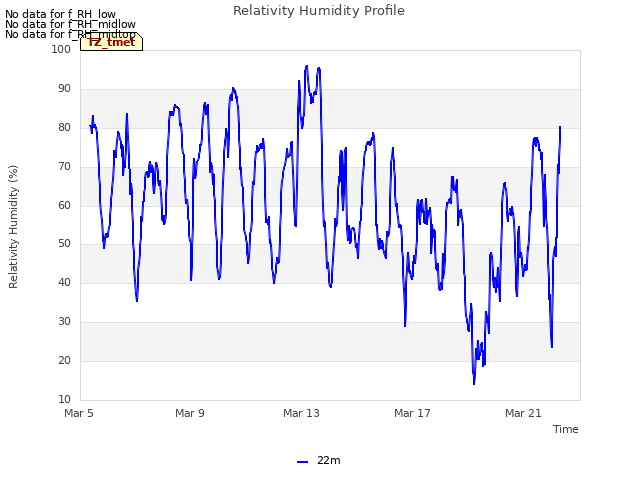

11 TZ_tmet graphs found

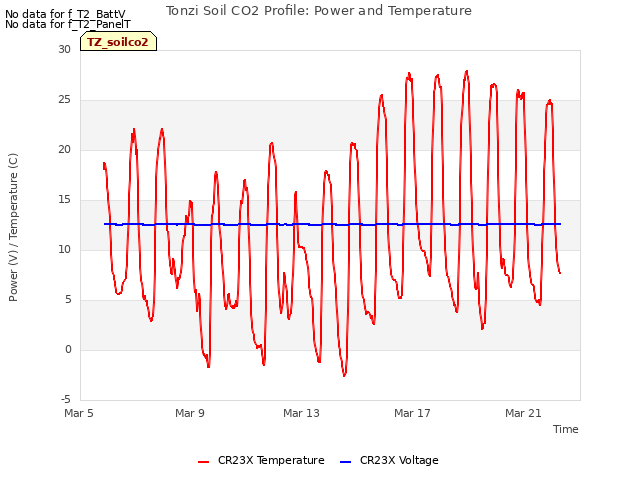

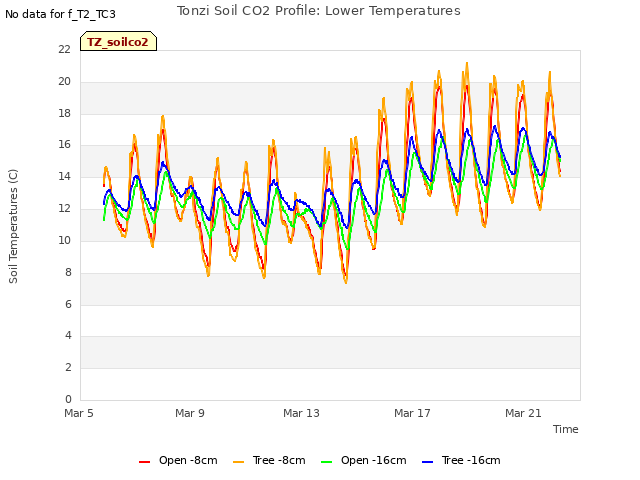

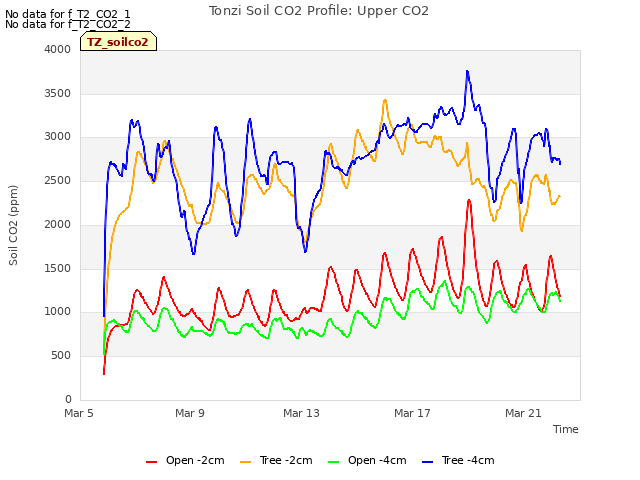

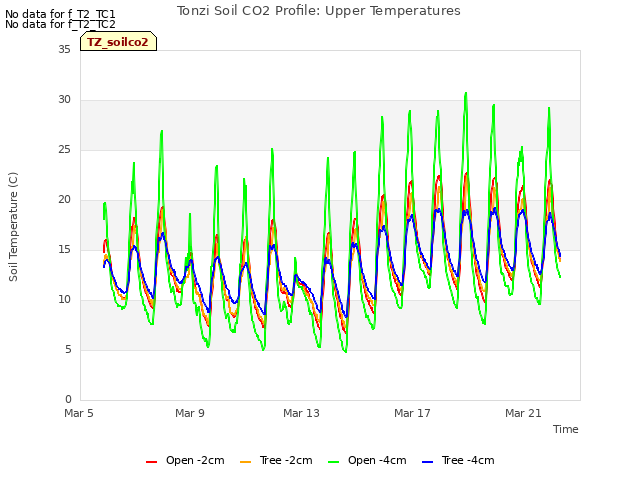

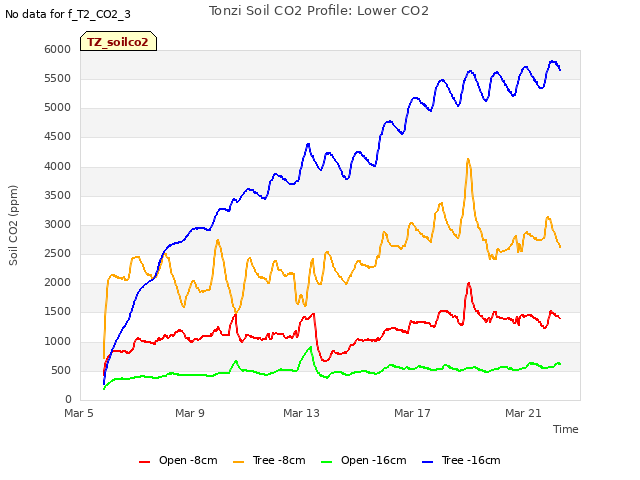

11 TZ_soilco2 graphs found
Can't check TZ_mixed
3 TZ_mixed graphs found
No data found for TZ_fflux.

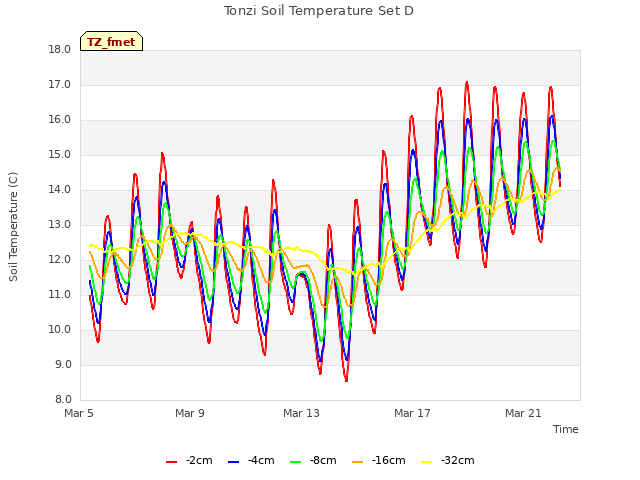

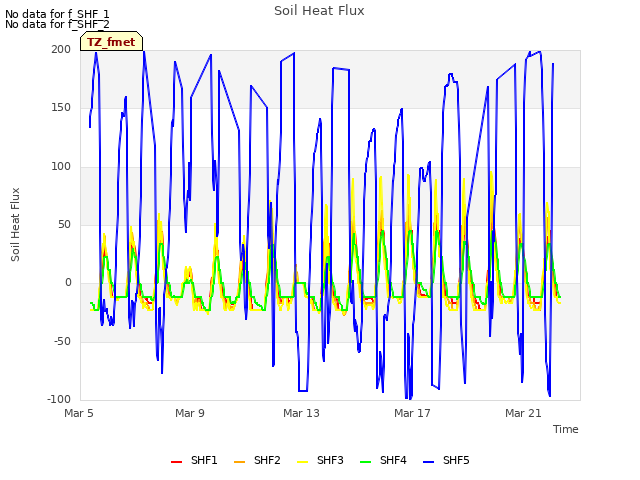

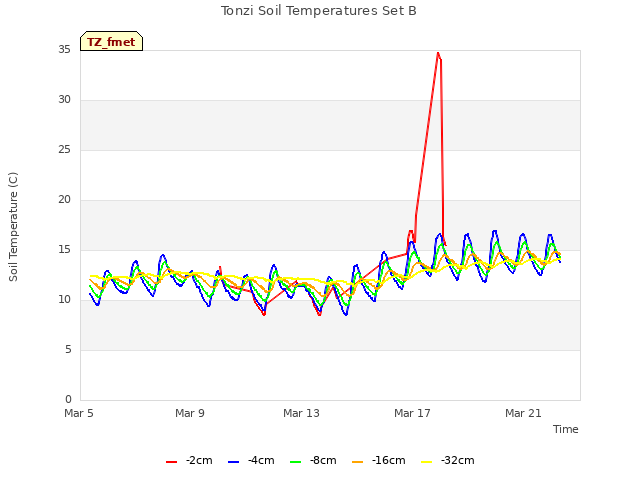

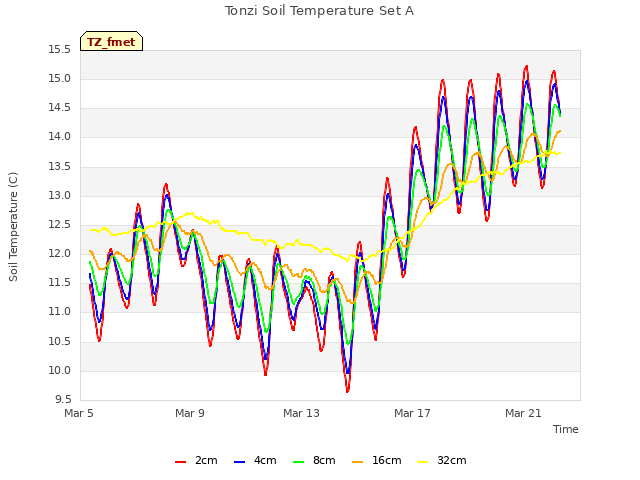

8 TZ_fmet graphs found

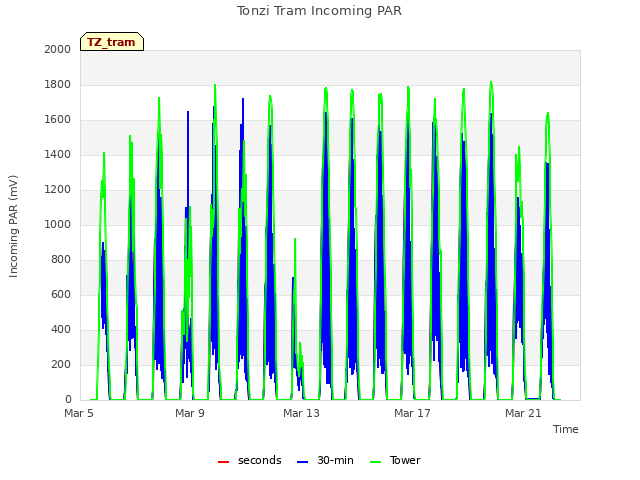

1 TZ_tram graphs found
3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

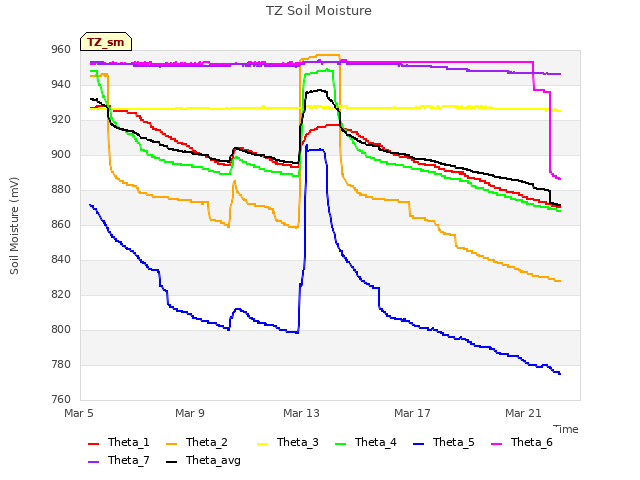

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
