Field Notes

<--2020-04-01 10:15:00 | 2020-05-05 10:15:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2020-04-18 13:00:00 (DOY 109)
Author: Joe Verfaillie
Others: Kyoko, Hisashi

Summary: Standard data collection, forgot gate keys - walked in from road, swapped Arable Mark II, BF3 still needs desiccant

Vaira
2020-04-18

Kyoko, Hisashi and I arrived at 13:00. It had been overcast most of the morning but was starting to break up and there was a tiny breeze from the east. The gasses have largely gone to seed. Some of the broadleaves are large and beginning to flower. The trees look nice with full leaves. There were some very small puddles on the road. I forgot to bring my keys so we crawled under the gate and walked to the site.

I collected the data and did spectral measurements with the Jaz. Kyoko and Hisashi did the soil moisture, the well level, took clip plots and measured vegetation height.

After I got home and reviewed the Phenocam images I saw that the camera window needs cleaning. There are some black smudges but mostly in areas not used from GCC.

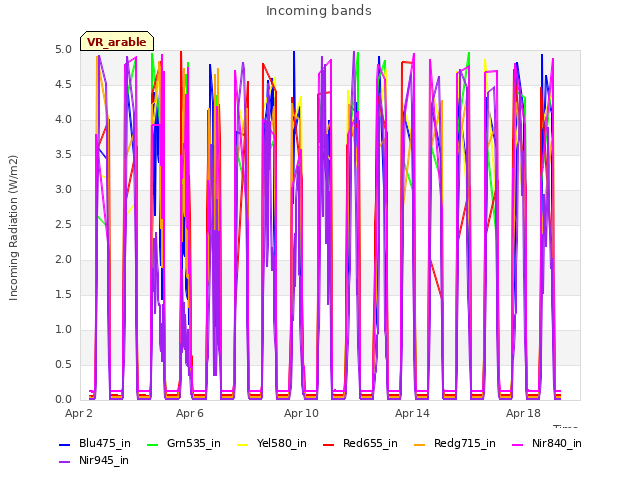

I swapped the Arable Mark II sensor: sn C002714 came off and sn C003231 went up. It seemed to boot up properly.

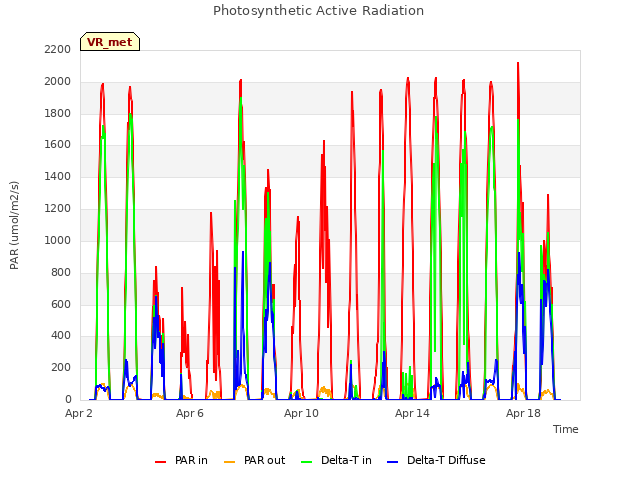

I forgot to bring fresh desiccant from the car for the BF3 diffuse PAR sensor. I opened the box, removed an unused battery holder and mopped up a bunch of condensation. Hopefully this helps until next time.

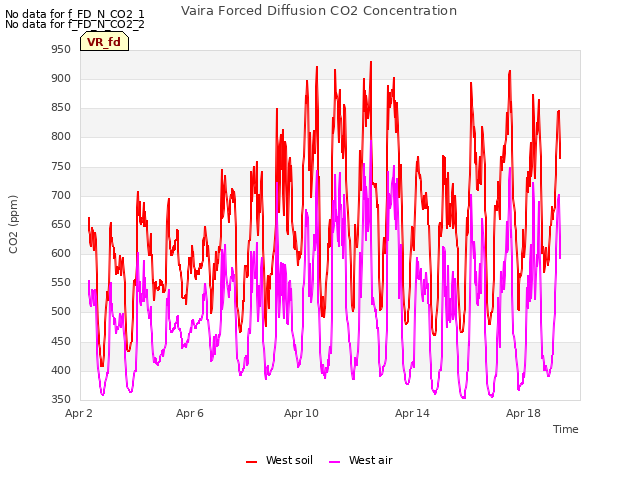

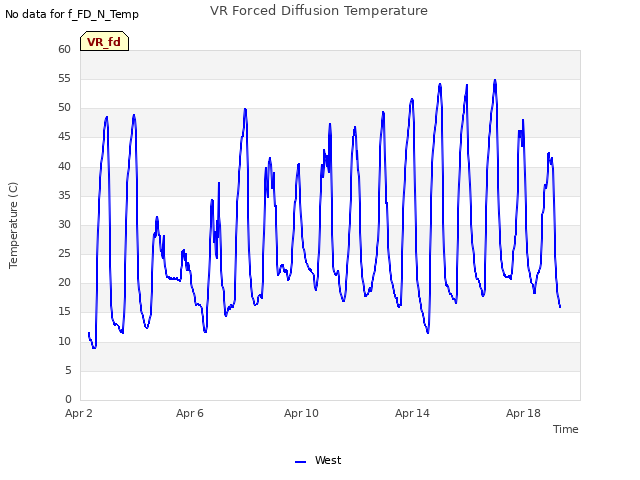

I collected the FD chamber data but did not clear its memory.

We left at about 14:00

Veg Height (cm): Tape measure from ground to top of plant - Measured with PVC pipe graduated by Leatherman
25, 12, 35, 40, 40, 25, 15, 23, 36, 25, 20, 32, 20, 42, 35, 45, 39, 35, 22, 50, avg = 30.8, stdev = 10.49

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-04-18	TZ_road	36.2
2020-04-18	TZ_floor	27.7
2020-04-18	TZ_tower	31.7
2020-04-18	VR_well	54.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-04-18	109	0	nan	29.7	15.9	19.7	14.4	17.3	21.3	12.7	30.2	28.2	26.7	31.9	30.1	31.3	27.1	29.2	29.8	17.9	24.9	17.9	28.6	31	38.2	35.2	28.8	29.3	33.5	30.7	33.8	33.5	37.4	41.7	51.7	43.3	32.8	42	49.7	32.2	45.1	50.6	50.9
2020-04-18	109	1	nan	30.5	15.6	20.6	14.1	17.9	21.4	11.2	31.4	28.2	27	31.9	29.8	31.3	26.5	29.2	29.8	17.6	26.1	17	29.5	29.6	37.7	36	28.8	29.9	33.8	31.3	34.6	33.8	38	42	50.9	40.8	34.4	42.5	48	31.9	45.1	50.9	49.4
2020-04-18	109	Avg	0-15cm																																									0
2020-04-18	109	Avg	15-30cm																																									0
2020-04-18	109	Avg	30-45cm																																									0
2020-04-18	109	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-04-18	109	0	nan	10.9	7.7	26.5	15.8	14	26.6	24.5	30.2
2020-04-18	109	1	nan	10.3	8	26.8	16.1	13.1	24.6	25.4	27.6
2020-04-18	109	Avg	0-15cm									0
2020-04-18	109	Avg	15-30cm									0
2020-04-18	109	Avg	30-45cm									0
2020-04-18	109	Avg	45-60cm									0
