Vaira: 2020-02-27 11:30:00 (DOY 58)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard fieldwork, dry and warm

Vaira
2020-02-27

Daphne and I arrived at 11:30. It was clear sunny and hot. The ground surface is dry – no puddles in the road. The water hole is only about half full and the pond is not full. The grass still looks okay, maybe a little yellow tinge. There was a plume of dark smoke to the north – probably someone burning yard wastes.

Daphne measured the well and collected the data. I did the soil moisture. The Moisture Point sensor near the tower is not working well. It’s possible that only the lowest level is reading correctly. I also collected spectra with the Jaz but using the old Ocean Optics fiber because I forgot to bring the Jaz fiber. I cleaned the radiometers.

We went to the pond. The stream from the pond was running. I don’t remember if it was running last time, but this time we had a sedan making the water look more important.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2020-02-27VR_pond17.22

No TZ Moisture Point data found

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000
Date DOY Rep Depth
Flux_Tower_1
Biomass_Cage_1
Flux_Tower_2
Biomass_Cage_2
Flux_Tower_3
Biomass_Cage_3
Flux_Tower_4
Biomass_Cage_4
Avg
Spacial Count
Measurement Count
2020-02-27 58 0 nan 85.323.71311.722.323.423.1
2020-02-27 58 1 nan 6.85.323.113.612.322.123.923.9
2020-02-27 58 Avg 0-15cm 0
2020-02-27 58 Avg 15-30cm 0
2020-02-27 58 Avg 30-45cm 0
2020-02-27 58 Avg 45-60cm 0

No TZ grass heigth found

Grass Height VR 10

DateHeight reps (cm)LocationAverageSampSTDEV
2020-02-275 3 8 4 2 10 5 7 5 4 GH_ALL5.3102.28

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

The water hole is half full
The water hole is half full

Graphs display:
9 sets found

16 VR_met graphs found

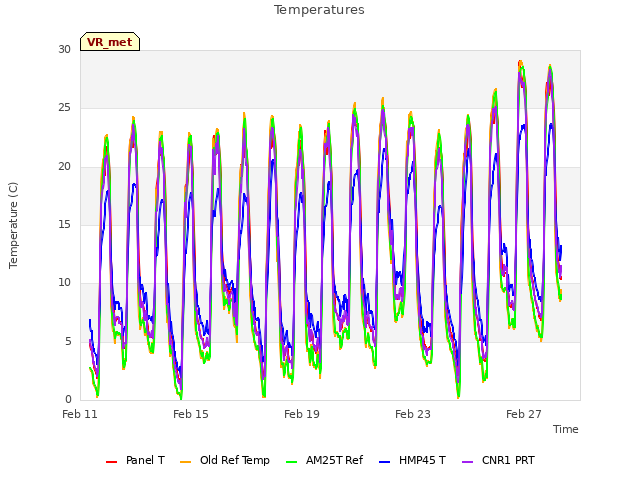

Explore the graph:Temperatures in a new window

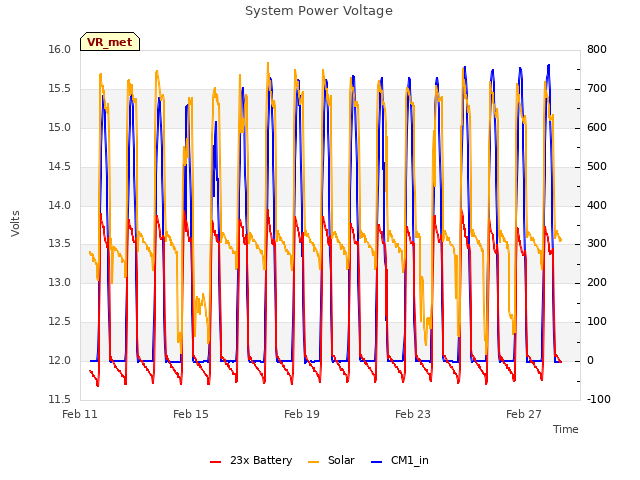

Explore the graph:System Power Voltage in a new window

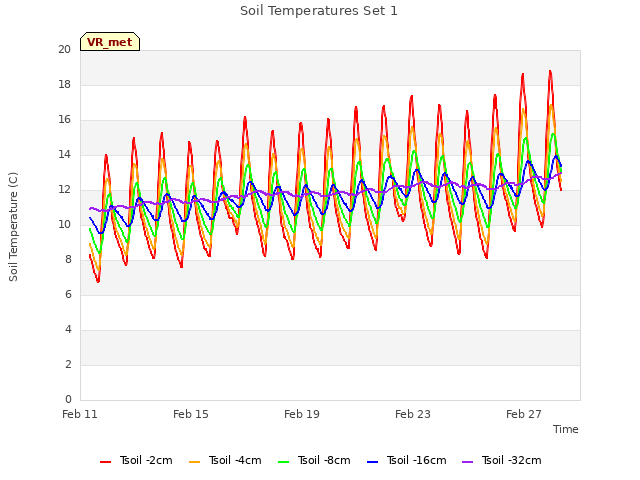

Explore the graph:Soil Temperatures Set 1 in a new window

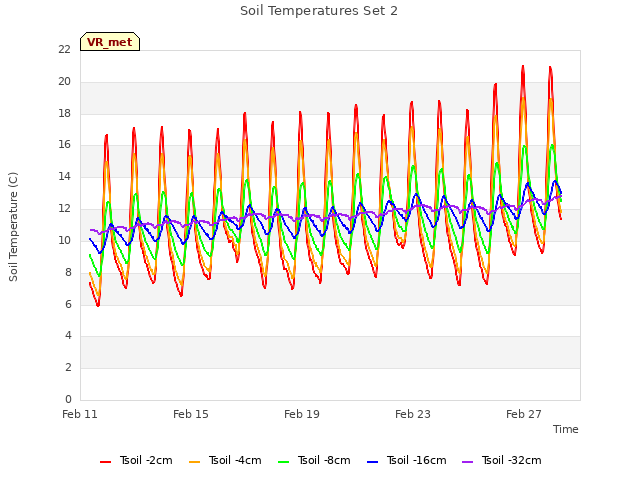

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

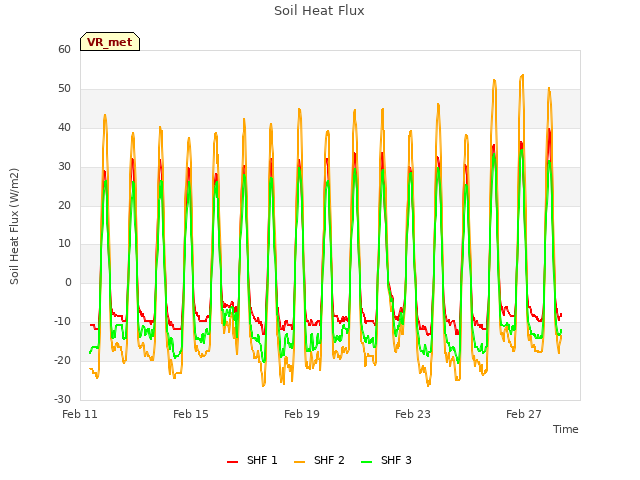

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

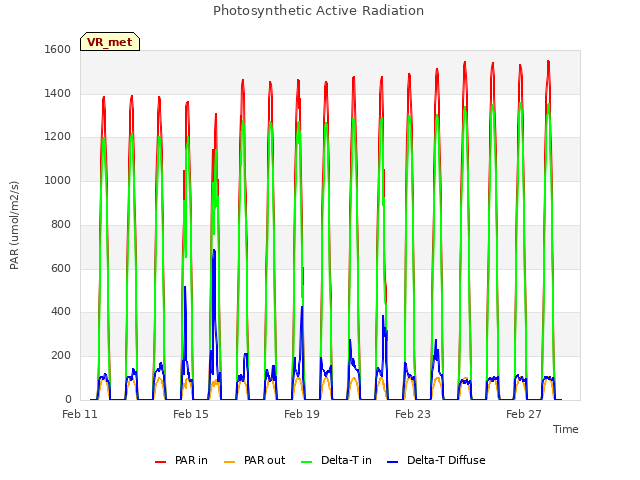

Explore the graph:Photosynthetic Active Radiation in a new window

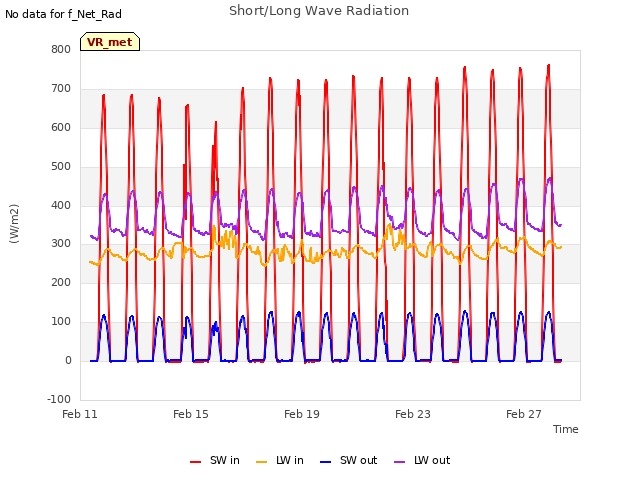

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

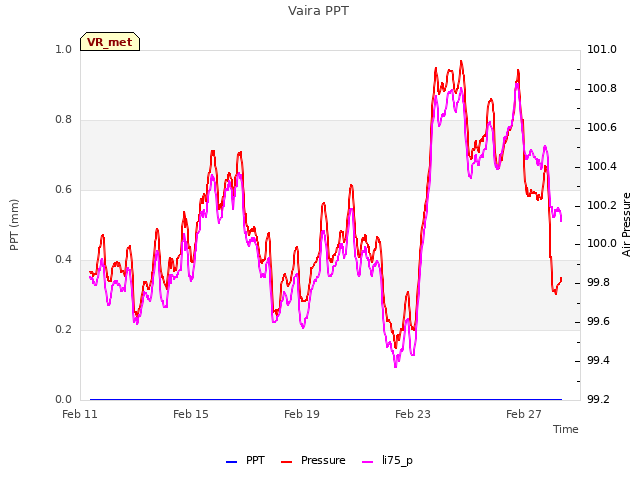

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

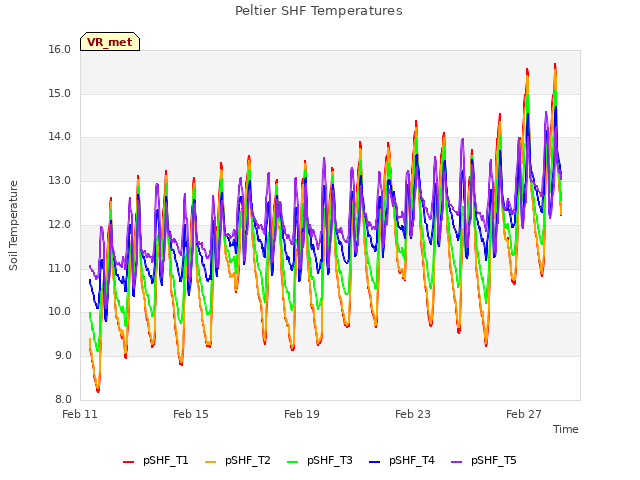

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

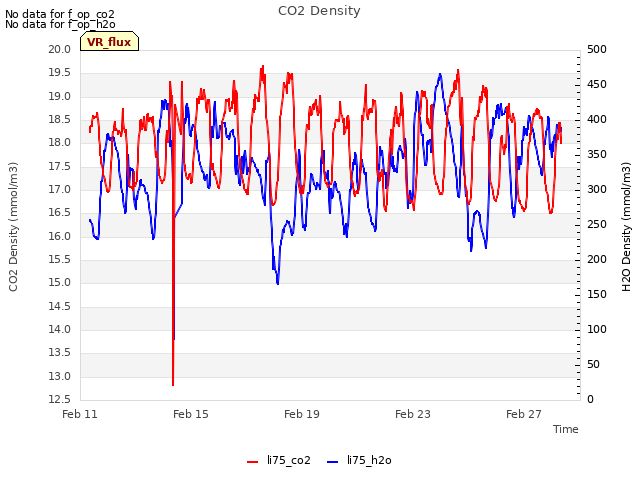

Explore the graph:CO2 Density in a new window

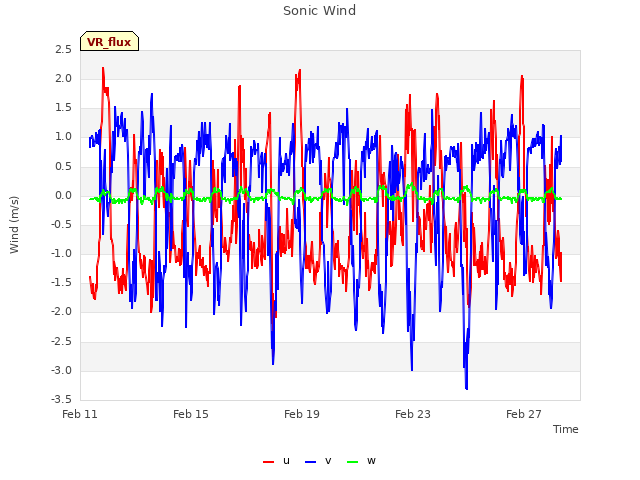

Explore the graph:Sonic Wind in a new window

6 VR_soilco2 graphs found

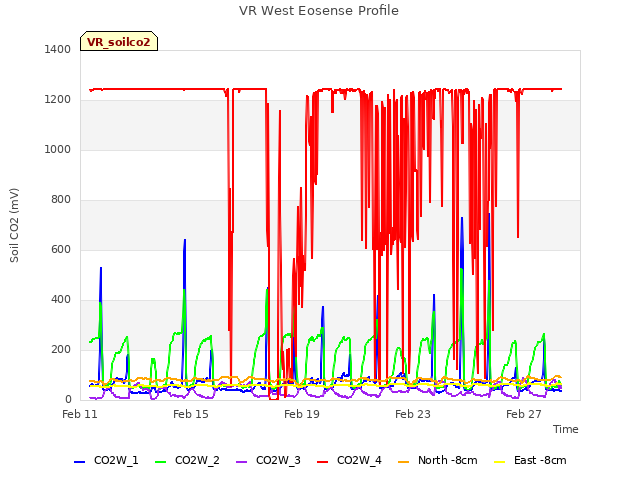

Explore the graph:VR West Eosense Profile in a new window

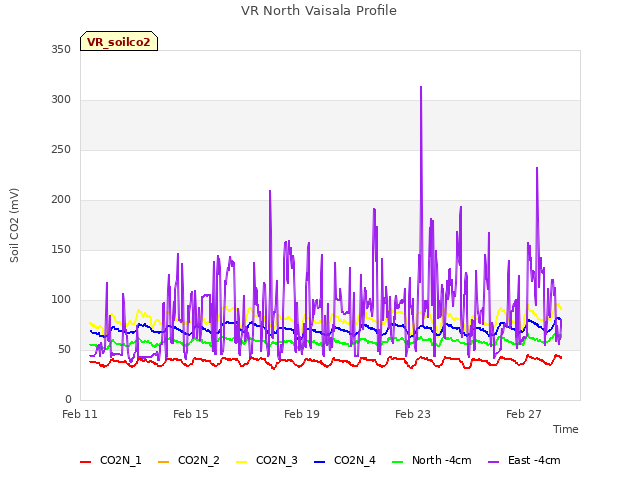

Explore the graph:VR North Vaisala Profile in a new window

Explore the graph:Soil CO2 West Temperatures in a new window

Explore the graph:Soil CO2 North Temperatures in a new window

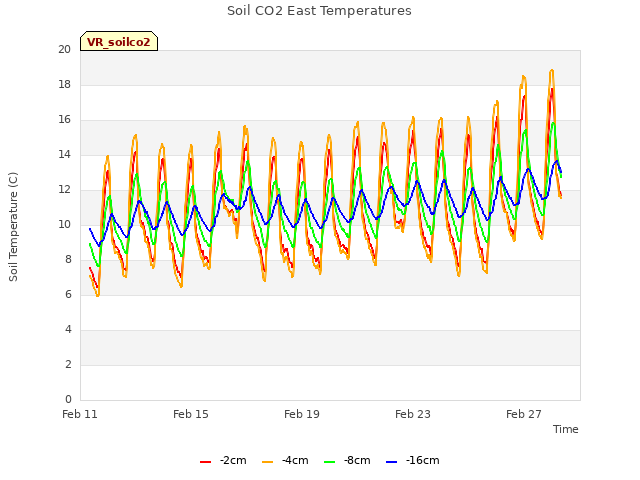

Explore the graph:Soil CO2 East Temperatures in a new window

Explore the graph:VR East Vaisala Profile in a new window

2 VR_pond graphs found

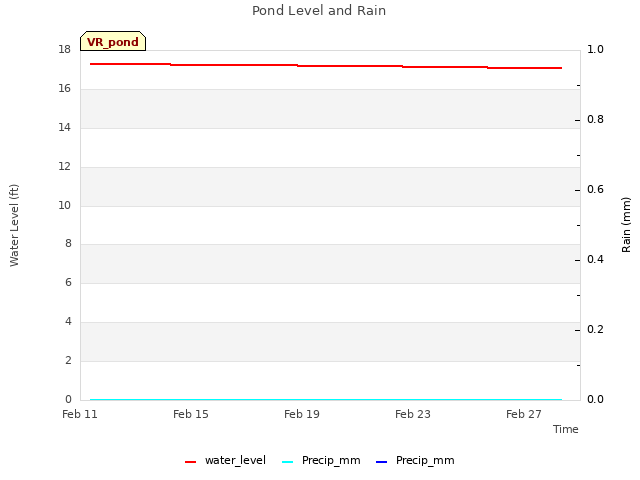

Explore the graph:Pond Level and Rain in a new window

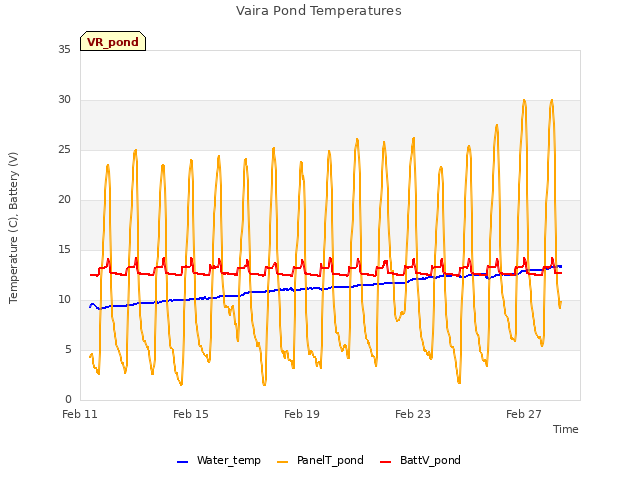

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
4 VR_arable graphs found

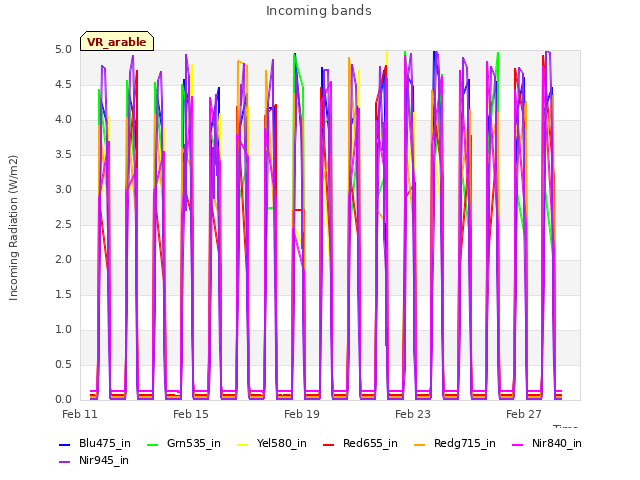

Explore the graph:Incoming bands in a new window

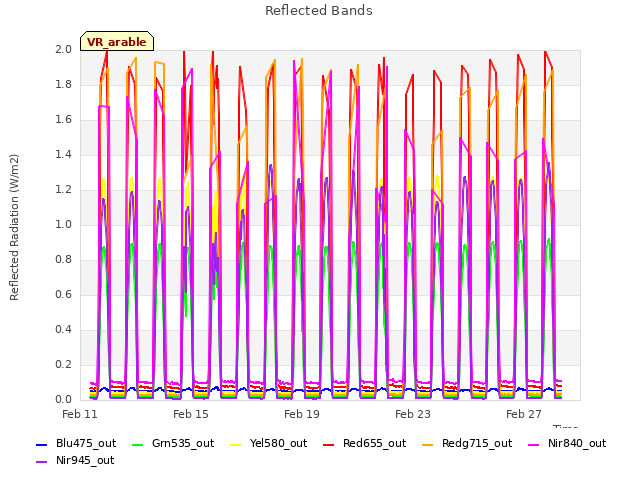

Explore the graph:Reflected Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Pressure and RH in a new window

No data found for VR_soilvue.
