Field Notes

<--2019-09-09 11:30:00 | 2019-09-25 11:00:00-->
Other sites visited today: Vaira | Tonzi
Phenocam link: Searching...

Tonzi: 2019-09-25 10:00:00 (DOY 268)
Author: Siyan Ma
Others: Joe

Summary: Standard data collection, some recent rain

When: Date: 9/25/2019 , Day: 267 , Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: clear, sunny, hot

Phenology:

Summary

Swapped memory sticks of Licor-7500A. (Joe)
Checked and downloaded phenocam images and met data from PC at three towers. (Joe)
Joe checked and calibrated the soil CO2 probes at Tonzi and Vaira (Joe)
Read dendrometers

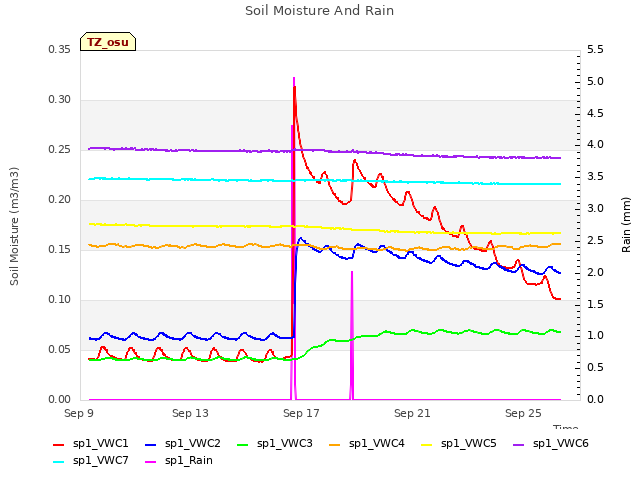

Measured soil moisture
Measure groundwater well and download GlobalWater data
Measure midday water potential of oak leaves
Download IRT data

Vaira_Grass Site

Fence: no electronic.
Downloaded Phenocam images. (Joe)
Swapped the memory stick of Licor-7500A. (Joe)
Checked the fans of air temp and relative humidity sensors at Vaira. YES!
Downloaded met data (Joe)

Screen shot of Vaira LI-7500 status window

Screen shot of Vaira met data logger table

Checked levels of Radiation sensors, clear up surfaces. (Joe)
Checked rain gage, make sure not clogged. (Joe)
Closed gate. YES!

Tonzi_Tower Site

Fence: no electronic.
swapped the memory stick of Licor-7500A. (Joe)

Screen shot of Floor LI-7500 status window

download Phenocam images. (Joe)
checked the fans of air temp. and relative humidity sensors on the tower and the floor. (Joe)
Checked rain gage, make sure not clogged. (Joe)
Screens of met dataloggers:

CR23X3 â€“ floor-Met & soil moisture

CR1000 â€“ tower-Met

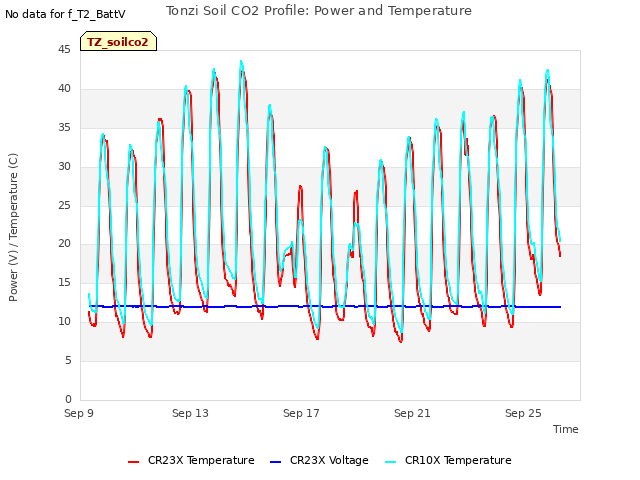

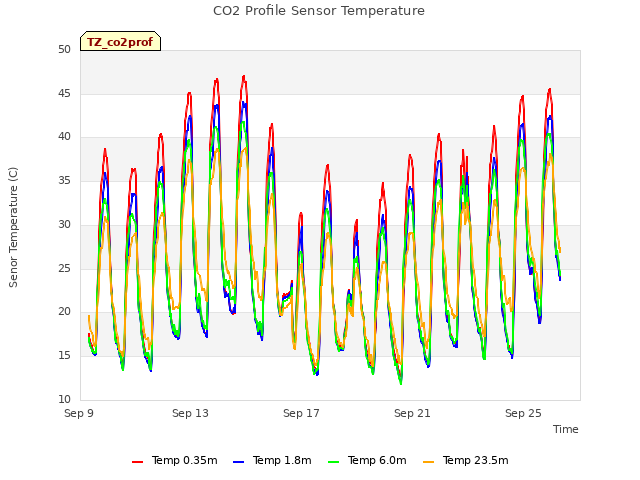

Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile

Screen shot of floor met data logger table

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

7. closed gate and set up fence. YES!

Toniz_Floor Site

Fence: no electronic
Swapped the memory stick of Licor-7500A.

Screen shot of Tower LI-7500 status window

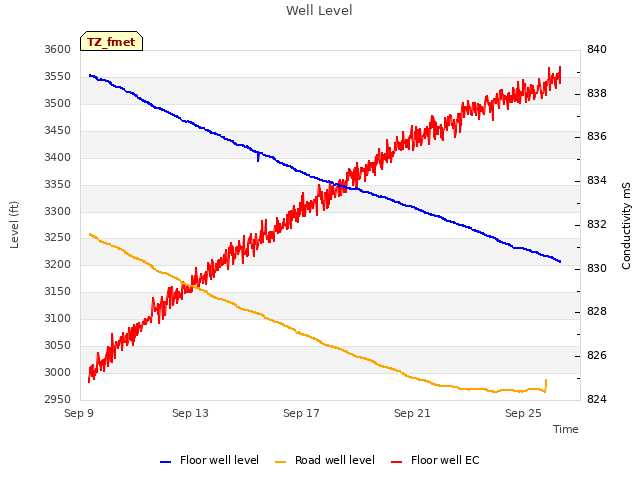

the sensor of road well is above the water surface.

Screen shot of well level data logger status

Closed gate. YES!

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-09-25	VR_well	57.8
2019-09-25	TZ_floor	25.4
2019-09-25	TZ_tower	30.4
2019-09-25	TZ_road	34.9

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_B_2 [18] => SoilCO2_West_C_2 [19] => Tower_3 [20] => Floor_South_3 [21] => Floor_West_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_1_4 [34] => SoilCO2_West_A_4 [35] => SoilCO2_West_B_4 [36] => SoilCO2_West_C_4 [37] => Soil_Transect_2_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_2_4	Spacial Count
2019-09-25	268	0	nan	6.5	0.1	6.2	3.6	6.5	4.8	2.4	10	0.3	10.9	6.6	7.5	8.4	14.5	25.2	4.8	5.7	0.9	12.1	13.4	8.7	9.5	9.5	12.3	24.3	13.4	15.9	14.3	13.7	17.6	9.3	10.5	20.2	11.3	15.9	18.2	23.8
2019-09-25	268	1	nan	6.2	7.1	5	4.7	6.5	5.4	2.4	9.7	0.1	10.2	6.6	6.9	8.1	14.5	28	4.8	6.3	1.5	12.7	14	9		9.5	12.6	3.7	13.9	15.4	15.1	13.4	18.2	8.5	11	20.5	11.6	15.3	17.6	23.9	26
2019-09-25	268	Avg	0-15cm																																							0
2019-09-25	268	Avg	15-30cm																																							0
2019-09-25	268	Avg	30-45cm																																							0
2019-09-25	268	Avg	45-60cm																																							0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-09-25	268	0	nan	6.2	5.9	4.2	12.4	13.6	7.2	15.9	6.4	17.6	28.8	17.3	20.5
2019-09-25	268	1	nan	6.2	6.2	4.7	12.4	12.4	7.5	16.5	7.3	17	29.7	17.3	21.1
2019-09-25	268	Avg	0-15cm													0
2019-09-25	268	Avg	15-30cm													0
2019-09-25	268	Avg	30-45cm													0
2019-09-25	268	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-09-25	1	20.0
2019-09-25	102	9.2
2019-09-25	2	12.9
2019-09-25	245	10.3
2019-09-25	3	18.9
2019-09-25	4	5.0
2019-09-25	5	25.2
2019-09-25	7	19.0
2019-09-25	72	3.5
2019-09-25	79	15.8
2019-09-25	8	7.2

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2019-09-25 13:06:00	OAK	102	-45	-20	-32
2019-09-25 13:06:00	OAK	35	-25	-30	-31
2019-09-25 13:06:00	OAK	92	-42	-33	-25
2019-09-25 13:30:00	PINE	OLD	-15	-30	-27
2019-09-25 13:30:00	PINE	YNG	-4	-21	-23
