Tonzi: 2019-09-09 11:30:00 (DOY 252)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard data collection, no Phenocam images, partial midday water potential, Tree 79 needs DBH gauge.

Tonzi
2019-09-09

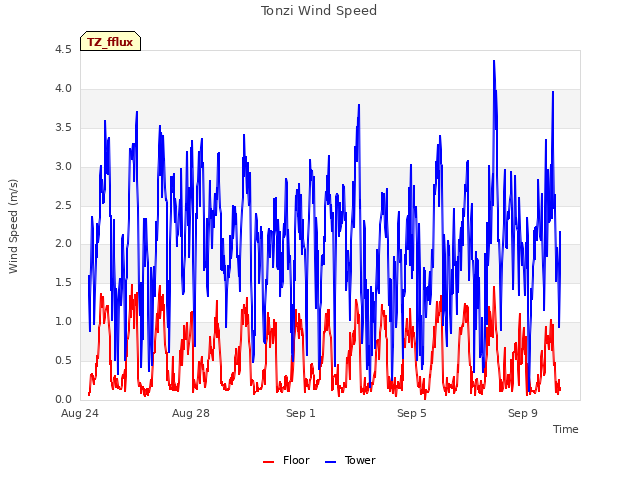

Daphne and I arrive at about 11:30 PDT. It was clear, sunny and warm with a nice breeze. The breeze seemed to swing around from west to south and back to west. It looks much drier than last time. The pond still has a good amount of water and is ringed by green. Some of the trees still seem to have fresh green leaves especially near their tops.

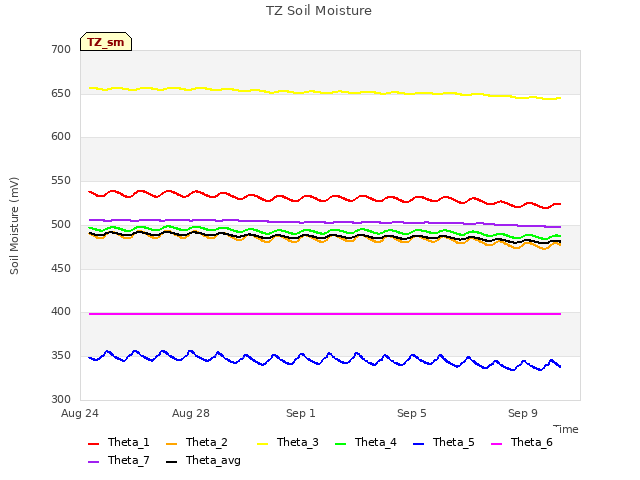

I did soil moisture, DBH and manual well measurements. Tree 79 needs the smaller gauge glued back on to the DBH meter. Its DBH was read as the left edge of the slider.

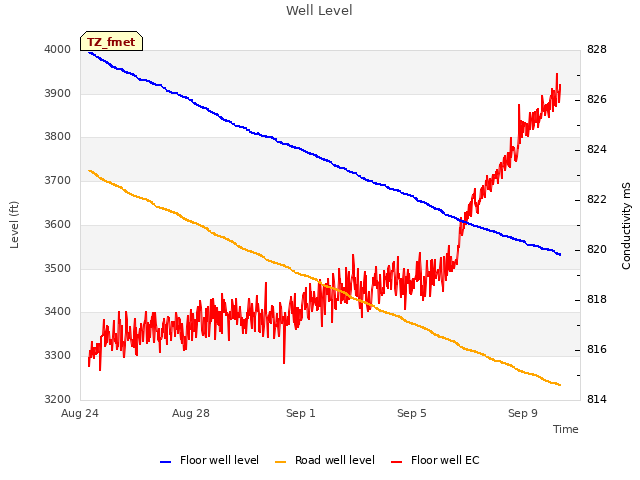

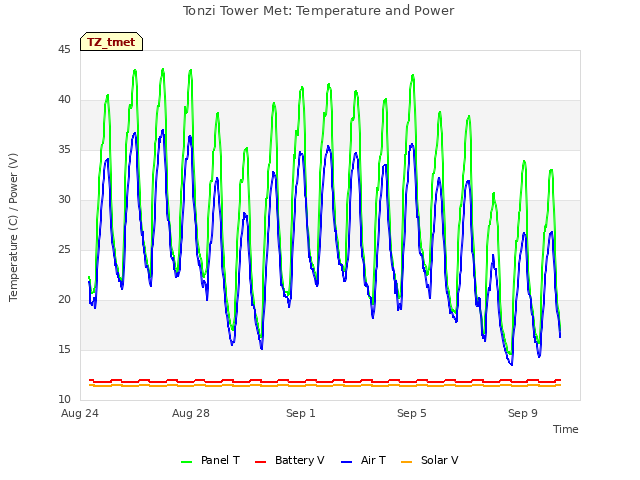

The road well was only reading 0.8ft but there is no more cable to lower the sensor unless we move the logger from its post over to the well pipe. The battery was still okay at 12.2V. The clock was 13min ahead and was reset from 12:38 to 12:25.

Daphne collected the data and did the z-cams.

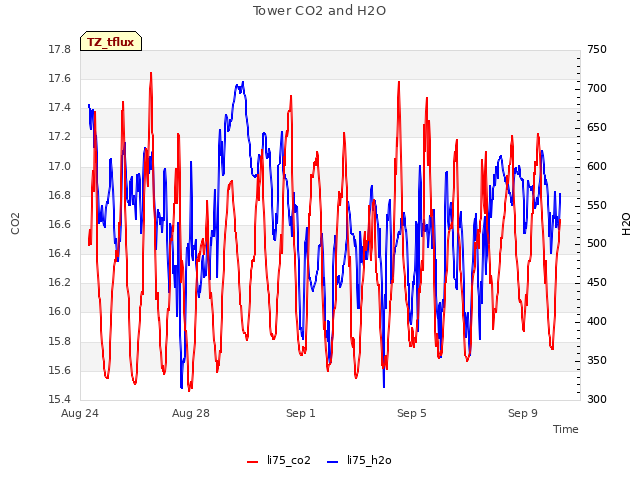

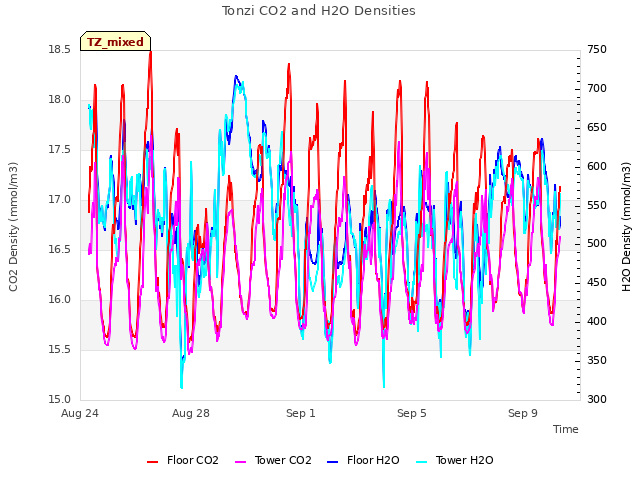

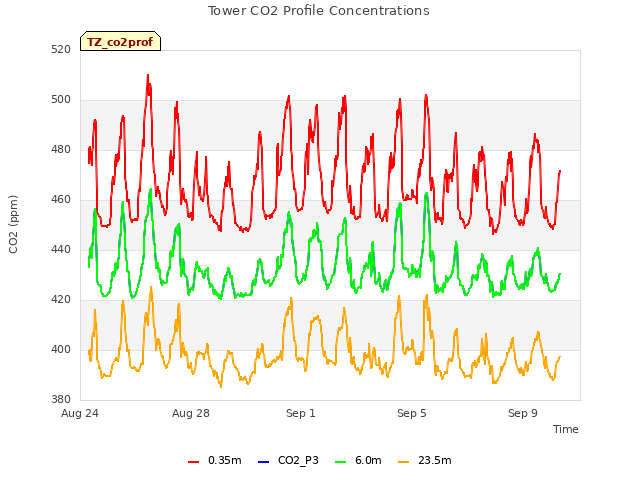

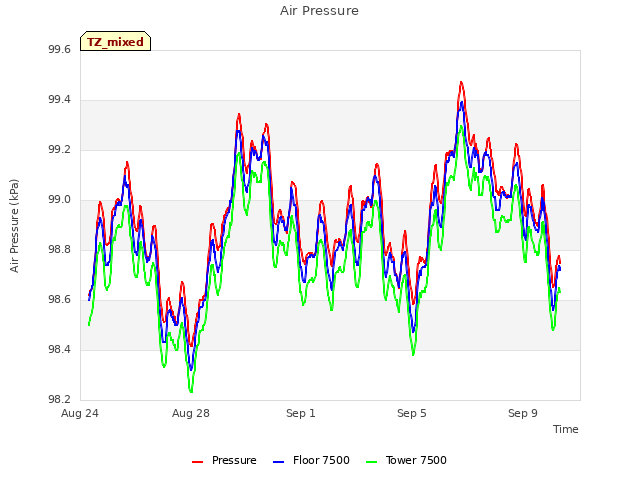

Tonzi Tower: 410ppm CO2, 588mmol/m3 H2O, 24.4C, 98.8kPa, 108SS
Tonzi Floor: 406ppm CO2, 570mmol/m3 H2O, 30.7C, 98.8kPa, 98SS--> 100 after cleaning

No photos from the phenocam, but no problems found. After putting the card back it was sending photos â€“ though it skipped one initially.

I did midday water potential. The oak trees seemed to work okay. I could not find tree 92 and tree 35 seems to be dying. The pines were more difficult and I was not sure whether to just do a needle bunch or twig with many needle bunches. The old pine tree doesnâ€™t have many green needles low enough to reach. The tank pressure was a little over 1000psi.

We left at about 14:00

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-09-09	WP	1.05
2019-09-09	TZ_floor	24.5
2019-09-09	TZ_road	33.8
2019-09-09	TZ_tower	29.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Soil_Transect_4_4 [31] => Soil_Transect_3_4 [32] => Soil_Transect_2_4 [33] => Soil_Transect_1_4 [34] => SoilCO2_West_A_4 [35] => SoilCO2_West_B_4 [36] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-09-09	252	0	nan	3.3	1.5	1.8	6.9	1.5	3.3	0.4	3.9	5.6	0.7	11.2	7.2	6.9	7.8	14.2	12.1	4.8	6.3	0.3	11.8	14.5	20.1	10.6	12.6	16.8	14	16.2	15.1	13.7	17.6	11.6	19.6	25.9	11.3	16.8	19.9	24.8
2019-09-09	252	1	nan	3	3.1	3	7.2	1.8	3.3	0.1			0.4	10.9	5.7	7.2	7.8	13.3	11.8	4.8	6.6	0.3	11.5	14	20.1	10.1	12.9	16.5	14	15.9	15.1	13.7	17.9	10.2	19.3	26.8	12.2	16.8	20.2	24.5
2019-09-09	252	Avg	0-15cm																																						0
2019-09-09	252	Avg	15-30cm																																						0
2019-09-09	252	Avg	30-45cm																																						0
2019-09-09	252	Avg	45-60cm																																						0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Solar_Panels_3 [5] => Flux_Tower_3 [6] => Biomass_Cage_3 [7] => Solar_Panels_4 [8] => Flux_Tower_4 [9] => Biomass_Cage_4 [10] => Biomass_Cage_1 [11] => Biomass_Cage_2 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Solar_Panels_2	Flux_Tower_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Biomass_Cage_1	Biomass_Cage_2	Spacial Count
2019-09-09	252	0	nan	2.7	0.4	10.6	10.9	15.8	6.7	17	29.7	17	21.1
2019-09-09	252	1	nan	1.8	1	10.6	10.9	16.2	7.3	17.9	30.2	16.8	21.3	0.6	6.9
2019-09-09	252	2	nan							17.9			20.5	0.9	6.6
2019-09-09	252	Avg	0-15cm													0
2019-09-09	252	Avg	15-30cm													0
2019-09-09	252	Avg	30-45cm													0
2019-09-09	252	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-09-09	1	19.5
2019-09-09	102	9.1
2019-09-09	2	18.3
2019-09-09	245	10.5
2019-09-09	3	12.7
2019-09-09	4	4.9
2019-09-09	6	15.3
2019-09-09	7	19.0
2019-09-09	72	5.3
2019-09-09	79	15.6
2019-09-09	8	8.1
