Tonzi: 2018-10-17 11:30:00 (DOY 290)
Author: Joe Verfaillie
Others:

Summary: Maintenance trip, tested tipping buckets, fixed FLIR focus, split loom on radiometer wires, checked IRT battery.

Tonzi
2018-10-17

I arrived at about 11:30. The pond is very low and cows have destroyed all the vegetation around the edges. This is a maintenance trip.

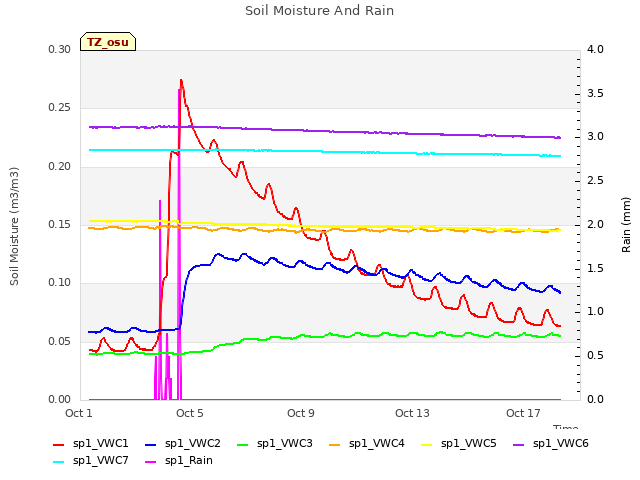

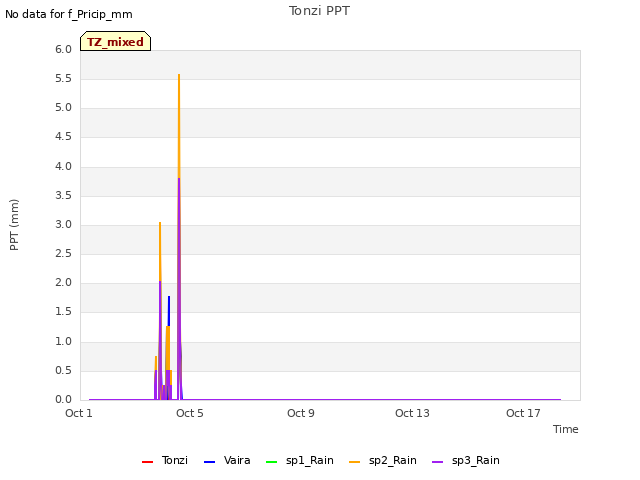

I tested all the tipping buckets except for OSU SP3. At each location the bucketâ€™s cable was disconnected from the data logger and connected to a CR6 for the test. I cleaned the tipper and then dribbled 475ml of water into the bucket. This should result in 100 tips.

Tonzi sn 24872-999: 88 tips adjusted screws 2.5 turns in
OSU SP1 sn 48130-611: 88 tips â€“ adjusted screws 2.5 turns in
OSU SP2 sn 48132-611: 134 tips â€“ adjusted screws 4 turns out.

A half turn of the set screws in the bottom of the tipper should result in 2-3% change. I should probably retest all of them next time out.

The focus on the FLIR camera has been bad for some time. The LattePanda was running and I poked around the FLIR a little to see if I could fix the focus remotely. There is a service menu that has a focus page but it is password protected. I ended up having to use the FLIR Research IR software at the top of the tower. From there it was a simple process to connect to the camera, Camera-Control, focus tab and finally press the auto button.

I also took a bunch of readings with the Nikon range finder.

I added small split loom to the exposed wires of the radiometers â€“ all are still in good shape.

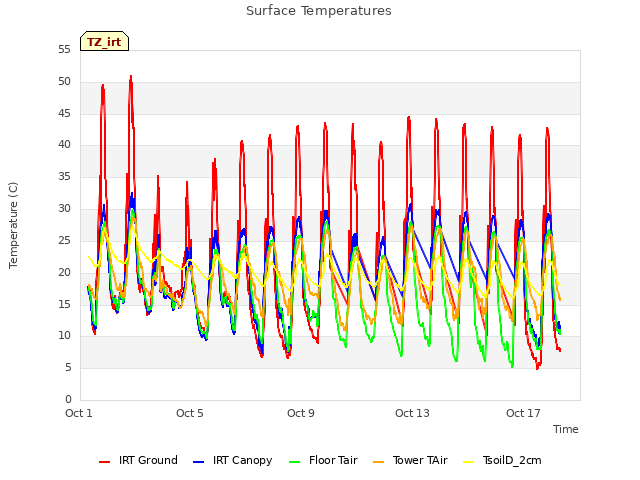

I checked on the small tree IRT system â€“ it has been losing power over night. The battery seemed fully charged but I initially didnâ€™t get a voltage on the charger controller battery terminals. After wiggling around the wires a bit I got a voltage on the charge controller. We will see if that fixes the problem next week.

When I left, cows were wandering through paying little attention to the fences. I think most of them are broken but I donâ€™t see much point in fixing them until I feel comfortable putting the electricity back on.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found
