Tonzi: 2018-10-29 10:00:00 (DOY 302)
Author: Siyan Ma
Others: Joe, Remi, JPL

Summary: JPL installing equipment, testing tipping buckets, power problems at Floor and soil co2, checked SMAP nodes

When: Date: 10/29/2018 , Day: 302 , Watch Time: 10:00 am . Where: Tonzi/Vaira Ranch Who: Siyan, Joe, Remi Weather: clear, sunny Phenology: Summary Swapped memory sticks of Licor-7500A (Joe – Tower & Vaira; Siyan – Floor). Checked and downloaded phenocam images and met data from PC at three towers. (Joe) Joe calibrated rain gages. Read dendrometers Measured soil moisture Measure groundwater well and download GlobalWater data Spectrum of Vaira grassland Download IRT data Vaira_Grass Site Fence: the electronic turned off. Downloaded Phenocam images. (Joe) Swapped the memory stick of Licor-7500A. (Joe) Checked the fans of air temp and relative humidity sensors at Vaira. YES! (Joe) Downloaded met data Checked levels of Radiation sensors, clear up surfaces.YES! Joe calibrated the rain gage. Closed gate and set up fence. YES! Tonzi_Tower Site Fence: broken by cows; Joe will install bar-fence. swapped the memory stick of Licor-7500A. download Phenocam images. Yes! checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Checked rain gage, make sure not clogged. YES! Screens of met dataloggers: CR23X3 – floor-Met & soil moisture CR1000 – tower-Met Soil CO2 profile: CR23X5 – soil CO2 profile Toniz_Floor Site Fence worked. Swapped the memory stick of Licor-7500A.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-10-29	TZ_floor	28.7
2018-10-29	TZ_tower	33.4
2018-10-29	TZ_road	37.3
2018-10-29	VR_pond	13.2

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Floor_West_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 [39] => Floor_West_3 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_3	Avg	Spacial Count	Measurement Count
2018-10-29	302	0	nan	3.9	0.3	8	0.7	2.4	4.2	0.4	6.2	6.8	1.9	11.5	1.1	7.8	8.1	13.3	11.2	3.5	8.1	0.9	11.5	13.1	5.6	7.8	10.3	15.4	12.3	16.8	15.1	12.3	15.6	11.1	17.6	11.9	17.9	24.5	11.3	14.5	15.3	21.9
2018-10-29	302	1	nan	4.2	2.7	8.8	0.7	3	3.6	0.7	6.2	6.8	2.8	11.5	1.7	7.8	8.4	13.3	10.6	4.2	8.4	0.9	11.2	13.4	5.6	8.4	12	16.2	12.3	15.9	14	12	15.6	9.3	19.6	10.7	18.5	239	11	14.5	15.3	21.3	12
2018-10-29	302	Avg	0-15cm																																										0
2018-10-29	302	Avg	15-30cm																																										0
2018-10-29	302	Avg	30-45cm																																										0
2018-10-29	302	Avg	45-60cm																																										0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2018-10-29	302	0	nan	3	1.2	8.6	2.1	8.7	8.1	4.8	5.1	13.7	5.6	7.6	16.2	26.5	15	20.5	18.5
2018-10-29	302	1	nan	3	0.9	9.1	1.8	8.7	8.4	5.1	5.4	14.5	6.2	8.1	15.9	25.9	14.5	20.8	18.2
2018-10-29	302	Avg	0-15cm																		0
2018-10-29	302	Avg	15-30cm																		0
2018-10-29	302	Avg	30-45cm																		0
2018-10-29	302	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-10-29	1	6.6
2018-10-29	102	10.7
2018-10-29	2	5.0
2018-10-29	245	8.0
2018-10-29	3	7.0
2018-10-29	4	9.1
2018-10-29	5	7.5
2018-10-29	7	5.1
2018-10-29	72	15.5
2018-10-29	79	12.6
2018-10-29	8	5.9

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: days

16 sets found

No data found for TZ_Fenergy.

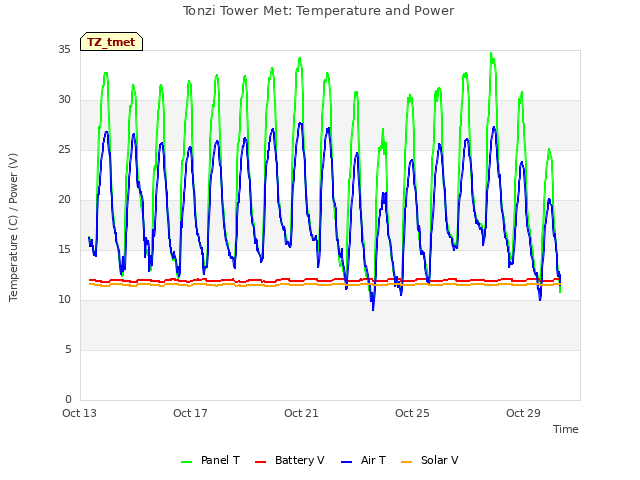

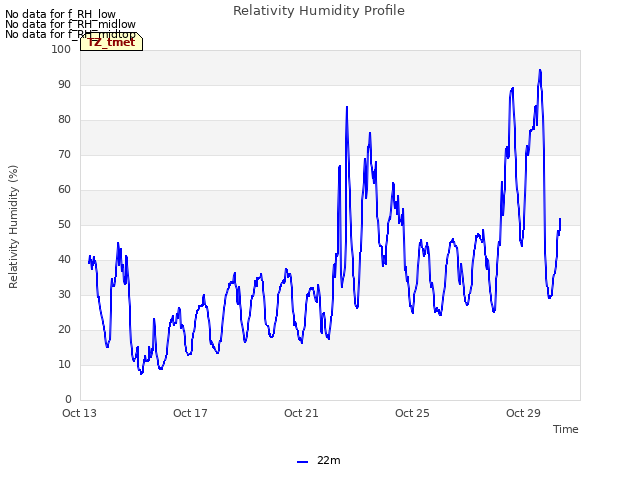

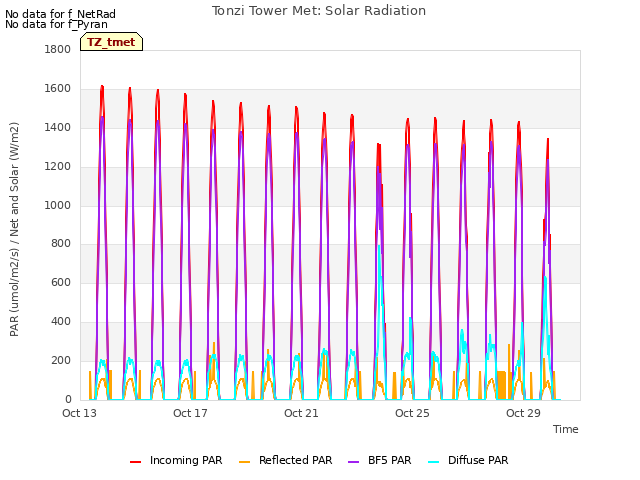

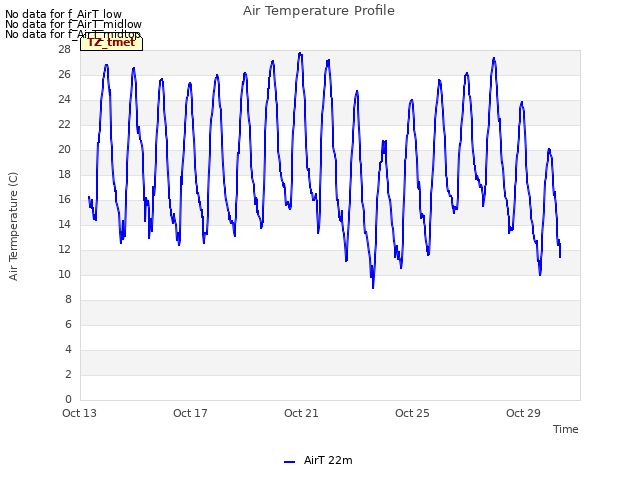

11 TZ_tmet graphs found

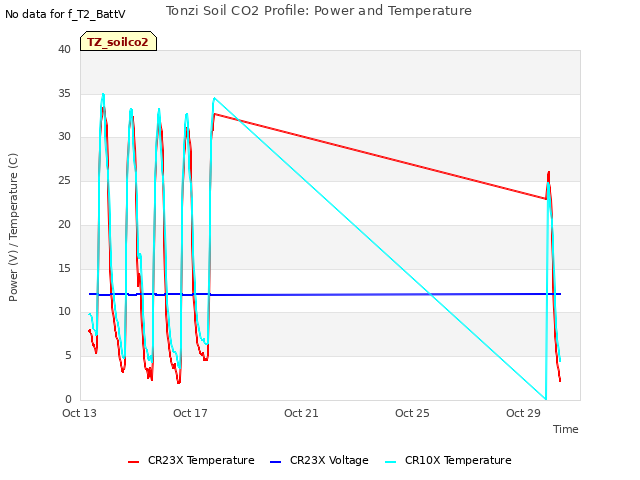

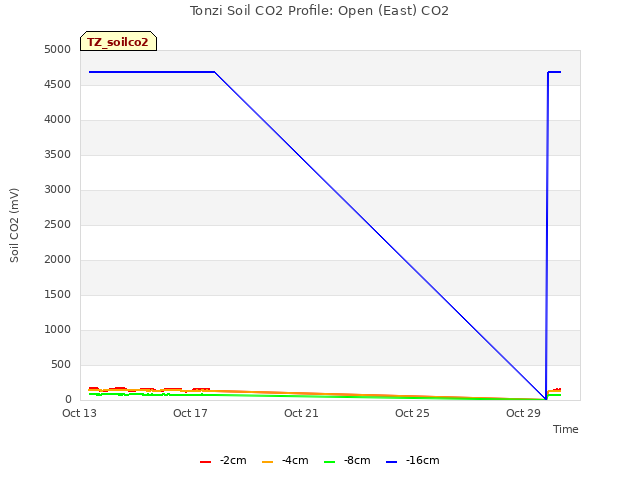

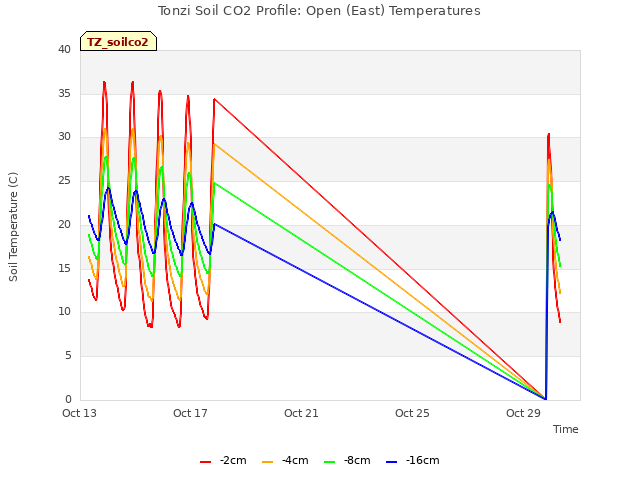

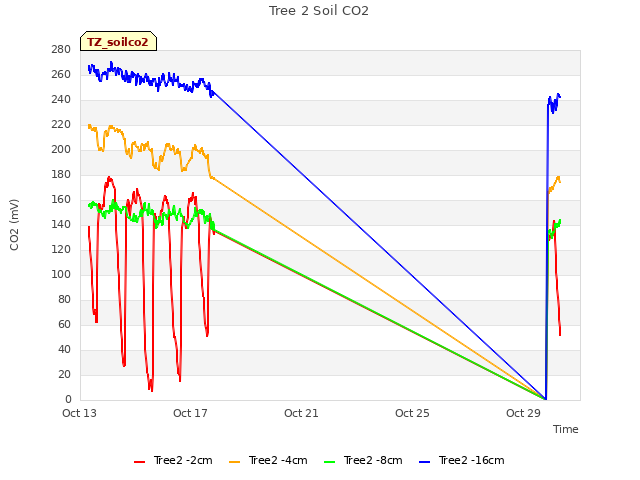

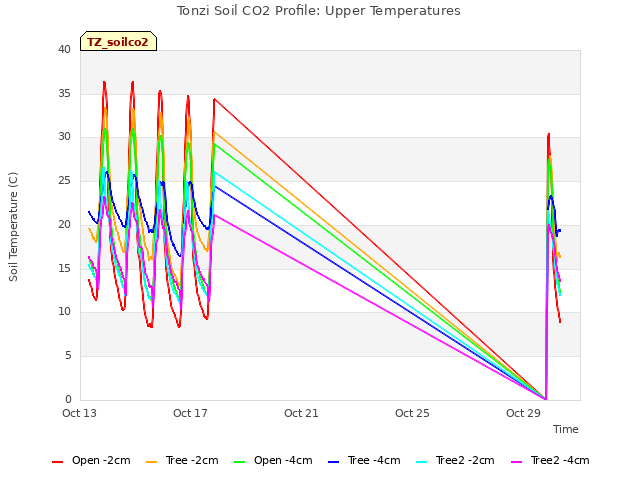

11 TZ_soilco2 graphs found

Can't check TZ_mixed

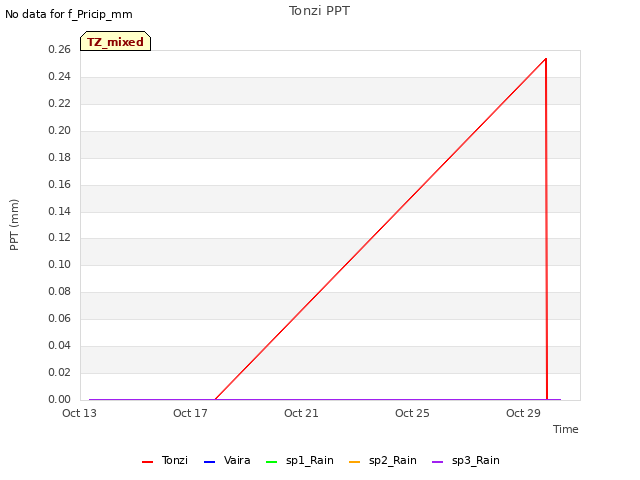

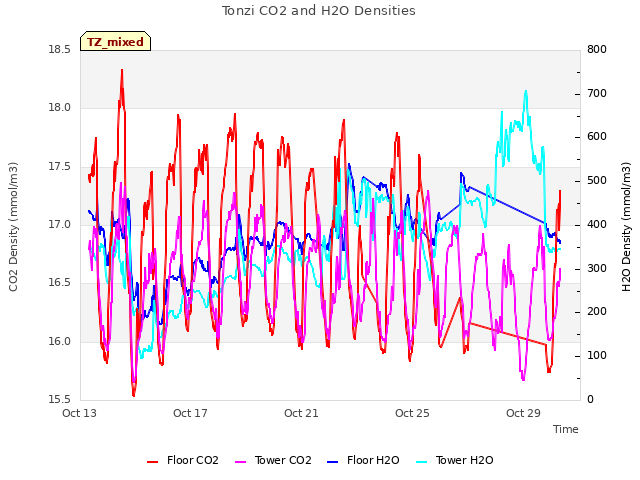

3 TZ_mixed graphs found

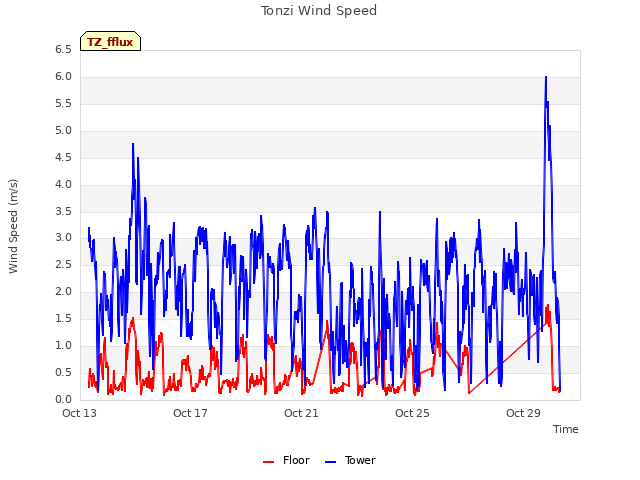

1 TZ_fflux graphs found

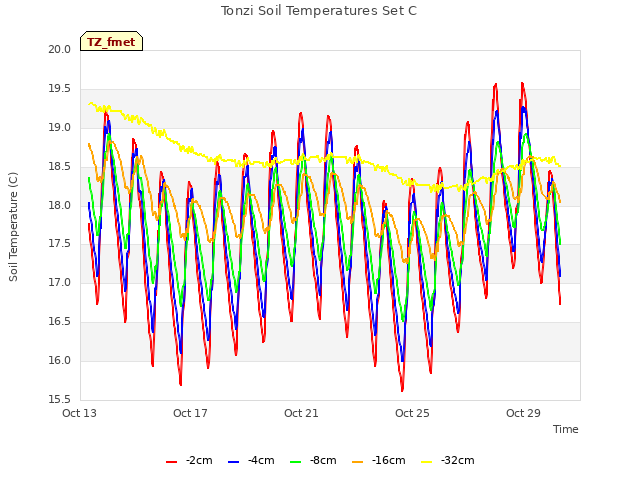

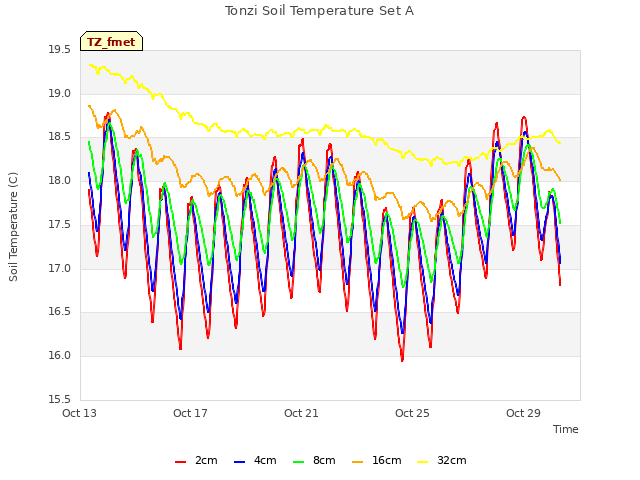

8 TZ_fmet graphs found

No data found for TZ_tram.

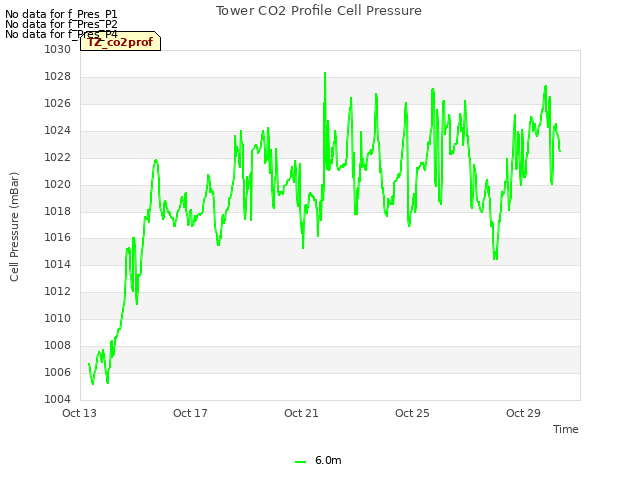

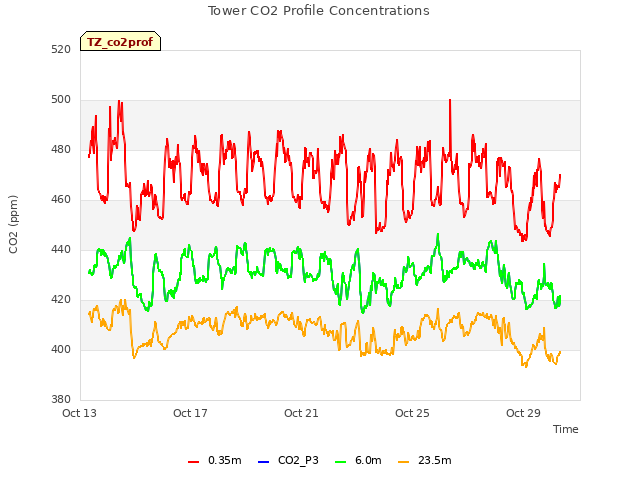

3 TZ_co2prof graphs found

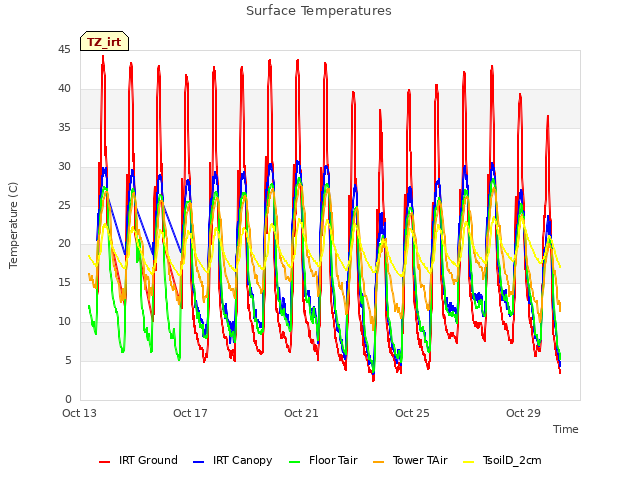

1 TZ_irt graphs found

No data found for TZ_windprof.

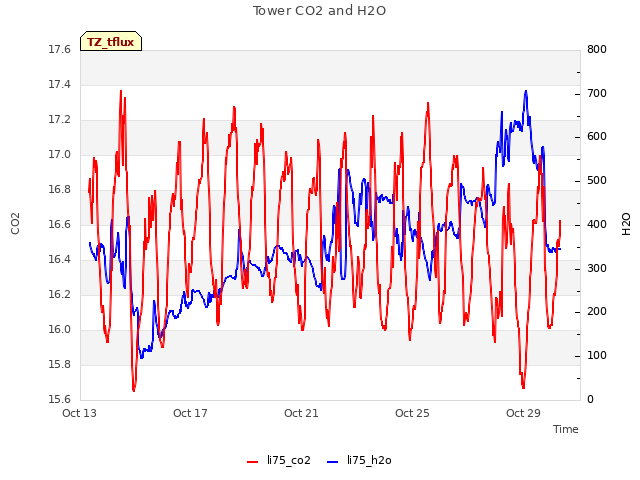

1 TZ_tflux graphs found

2 TZ_sm graphs found

Can't check TZ_met

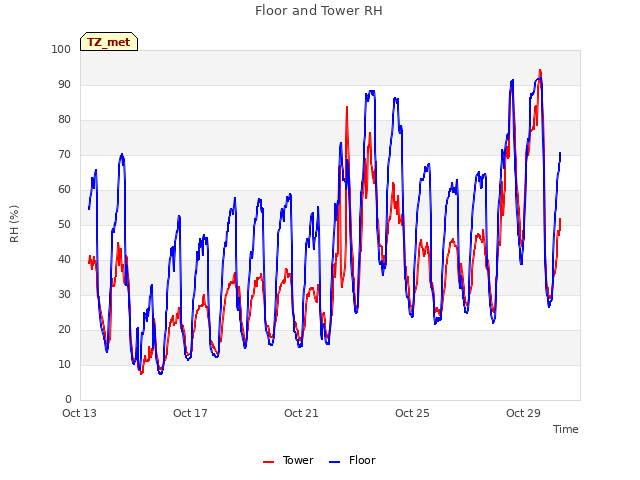

1 TZ_met graphs found

Can't check TZVR_mixed

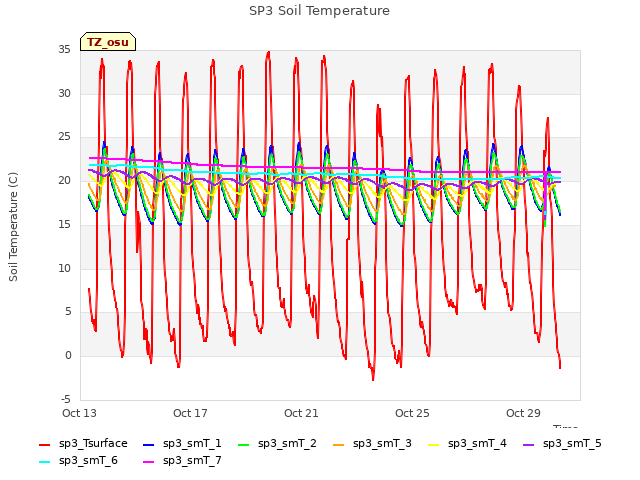

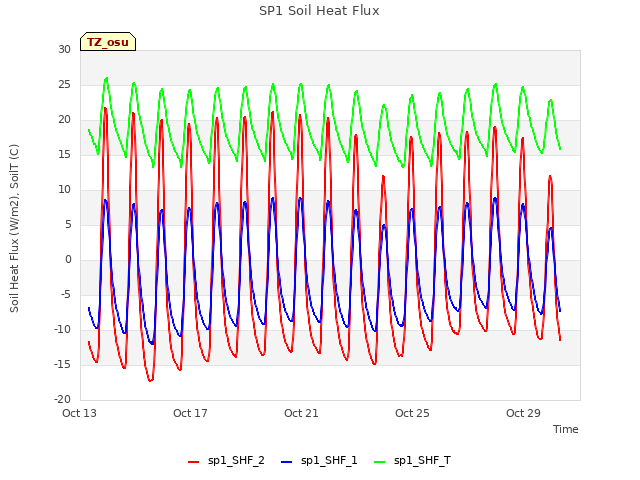

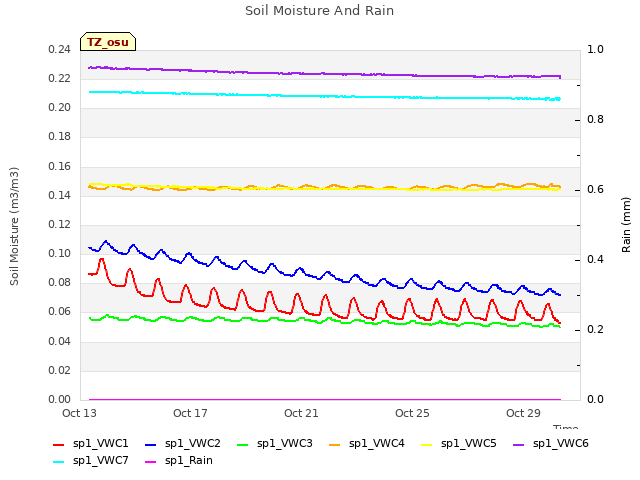

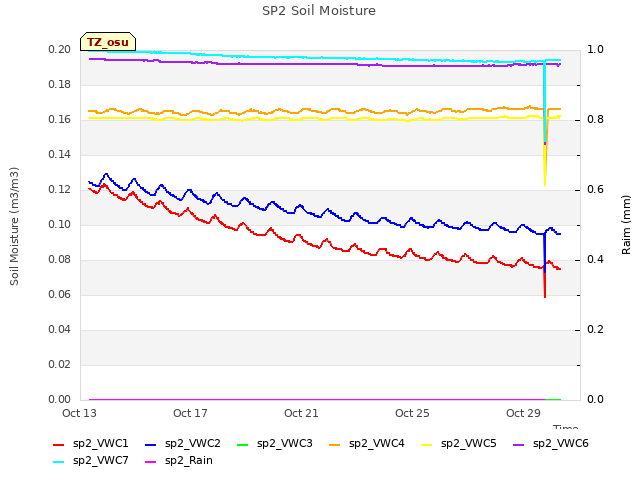

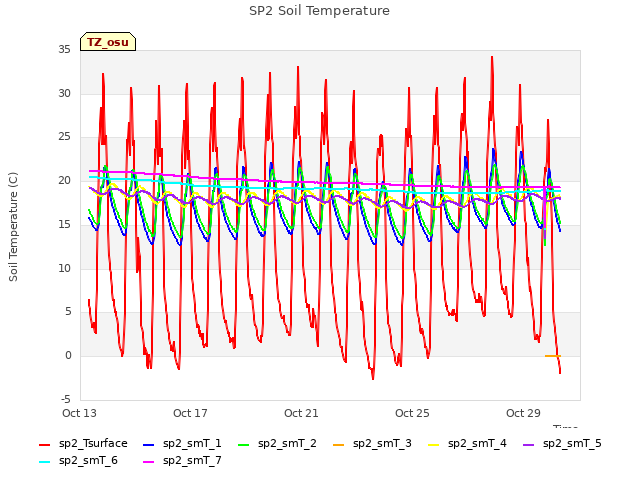

8 TZ_osu graphs found

No data found for TZ_fd.
Tonzi Z-cam data
