Field Notes

<--2018-07-17 11:30:00 | 2018-07-26 09:40:00-->
Other sites visited today: Tonzi | Vaira

East End: 2018-07-18 10:00:00 (DOY 199)
Author: Katrina Cone
Others: Elke, Kyle

Summary: VPD response curves taken with LI6400.

We arrived around 10am, it was a sunny, warm, and clear day.

We took VPD response curves with the LI6400 for cattail and tule at East End wetland.

Elke took VPD response measurements on cattail along the boardwalk North of the tower with the Baldocchi lab 6400 and the opaque 2x3 broadleaf chamber with the LED light source. Measurements were taken on two cattail leaves. Leaf temperature was controlled with measurements taken at three different temperatures, each set containing VPD measurements from maximum relative humidity to full scrub. Incoming CO2 and light level were also controlled.

Kyle and I took VPD response measurements on tule growing along the boardwalk with the Silver lab 6400 and conifer chamber head. Measurements were taken on two leaves. Leaf temperature was controlled with measurements taken at three different temperatures, each set containing VPD measurements from maximum relative humidity to full scrub. Incoming CO2 was also controlled.

0 photos found

11 sets found

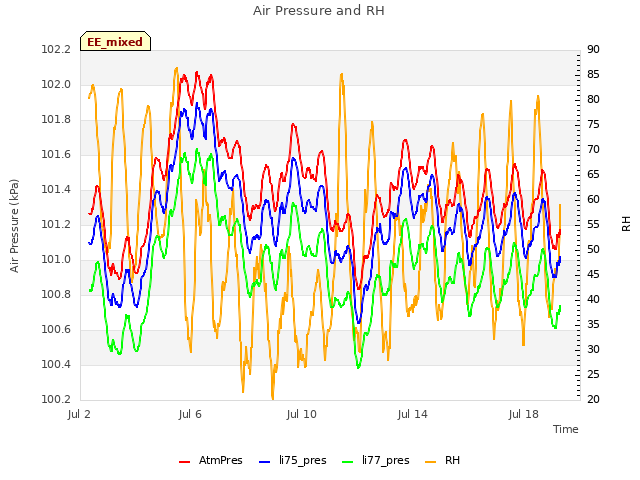

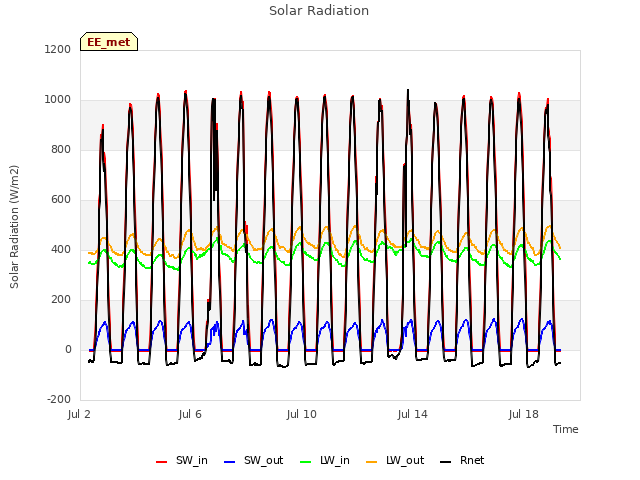

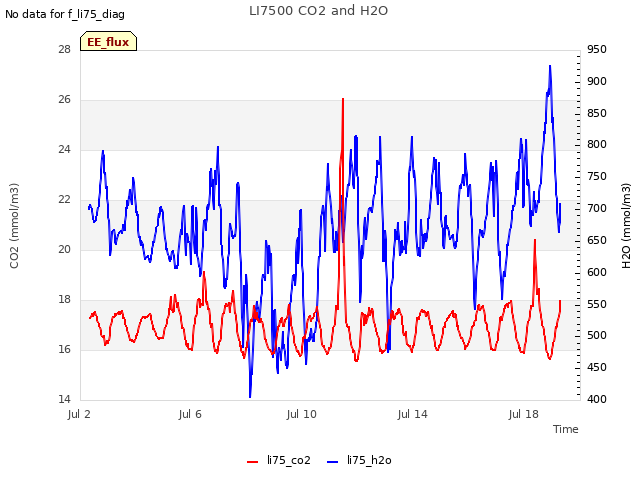

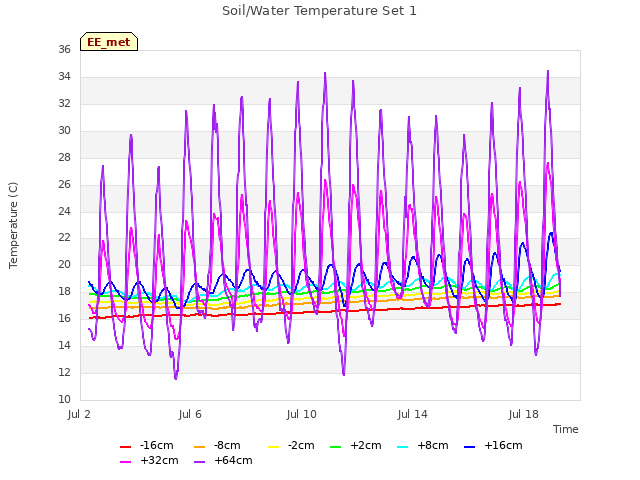

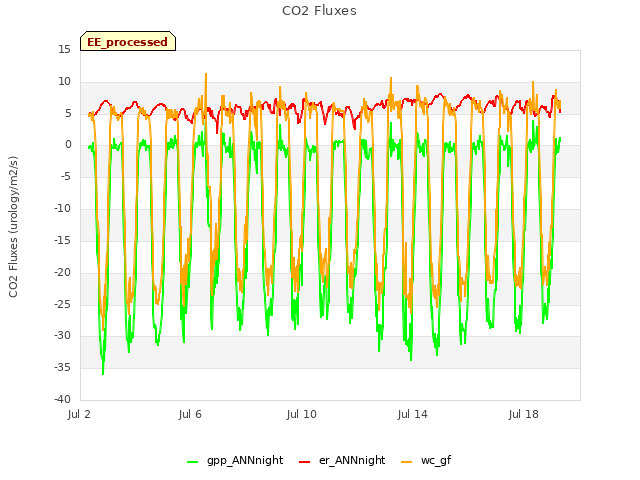

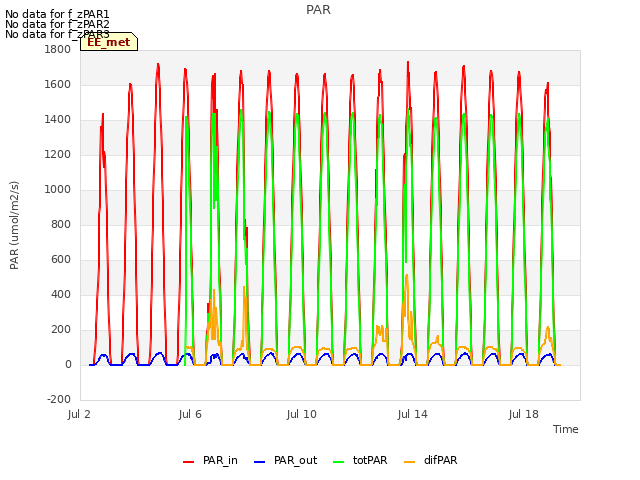

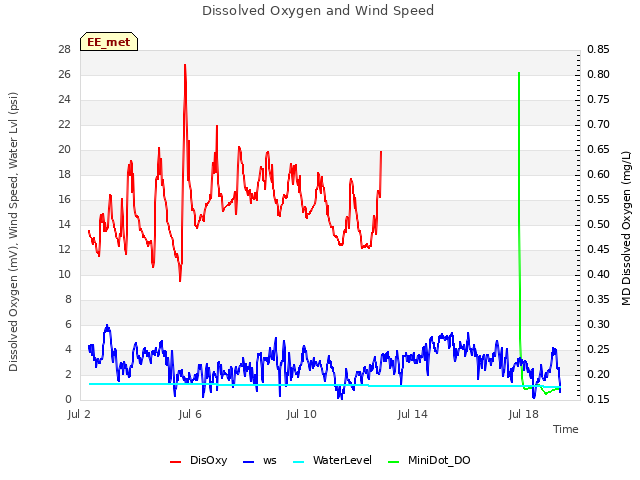

14 EE_met graphs found
