Field Notes

<--2018-08-10 11:00:00 | 2018-09-13 00:00:00-->
Other sites visited today: Vaira
Phenocam link: Searching...

Tonzi: 2018-08-30 10:00:00 (DOY 242)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard fieldwork. problems with the Latte Panda and the FLIR, and the pressure bomb.

Tonzi
2018-08-30

Siyan and I arrived at about 10am. We came to Tonzi first today due to traffic at Vaira â€“ see notes. It was mild and partly cloudy with a nice cool breeze. Clouds were coming in from the southeast and felt like tropical moisture. The ground is still very dry and the trees are senescing.

I checked on the Latte Panda and FLIR camera. The screen would not come on and I had to reset the Panda again. After it rebooted there were only about 120 images. I collected the images and software in preparation for swapping the computer. I tried to install the Latte Panda and touch screen that has been running in the lab for weeks, but couldnâ€™t get it to boot. It was behaving as if there was a power problem. I swapped power supplies and Pandas but couldnâ€™t get anything to run with the touch screen. I ended up putting the old system back in. Then I still couldnâ€™t access the camera. Its web page was reporting some kind of â€œout of memoryâ€ error. Telnet still worked but I couldnâ€™t remember how to do much with that interface. I ended up cycling the power on the camera and may have jiggled its FOV a little. However, restarting the camera fixed the problem. I might need to put in a relay to automatically restart the FLIR regularly.

I collected the flux data and OSU data. Siyan did the rest. She tried to do midday water potential but the twigs kept slipping through the gasket before the pressure was high enough to force water out of them.

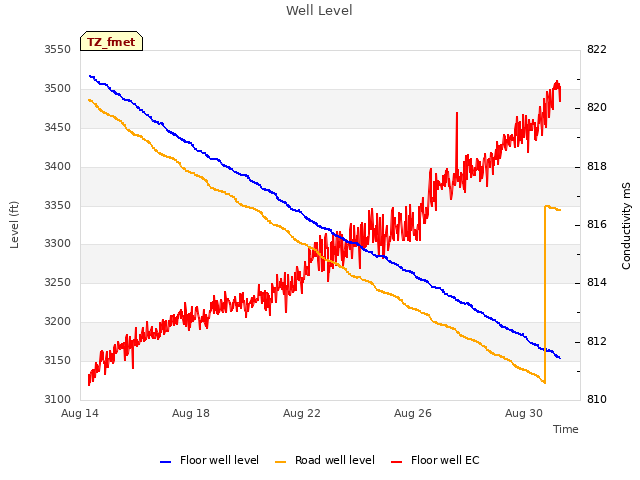

Siyan lowered the Road Well sensor by about 225cm.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-08-30	TZ_floor	25.7
2018-08-30	TZ_tower	30.2
2018-08-30	TZ_road	34.8

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-08-30	242	0	nan	2.7	0.1	3.5	9.2	0.9	2.7	1.3	3.9	7.4	1.8	10.9	9.7	5.7	7.4	13.3	11.5	4.2	9.3	0.6	10.6	14	9.8	22.1	9.5	12.6	15.6	14	17	15.7	14	17	3.9	11	17.3	26.8	11.9	17	19.1	21.4
2018-08-30	242	1	nan	3.6	1.2	4.2	1.9	1.8	3	1.3	1.6	7.7	2.1	11.8	9.3	5.1	8.1	13.3	11.2	3.8	8.7	0.5	11.5	14.3	10.3		8.5	12.6	16.5	13.7	16.8	14.3	13.1	17.6	4.7	11.3	17.9	26.2	11.6	17	18.8	23.6
2018-08-30	242	Avg	0-15cm																																								0
2018-08-30	242	Avg	15-30cm																																								0
2018-08-30	242	Avg	30-45cm																																								0
2018-08-30	242	Avg	45-60cm																																								0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-08-30	242	0	nan	0.3	1	6.8	0.9	8.1	7.5	4.2	5.4	14.8	6.2	8.1	17	28.5	14.2	21.1	19.6
2018-08-30	242	1	nan	0.6	1	7.1	0.9	7.8	7.2	4.5	5.1	14.3	6.4	8.1	16.5	28.8	14.2	21.1	17.9
2018-08-30	242	Avg	0-15cm																	0
2018-08-30	242	Avg	15-30cm																	0
2018-08-30	242	Avg	30-45cm																	0
2018-08-30	242	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-08-30	1	21.5
2018-08-30	102	10.5
2018-08-30	2	22.1
2018-08-30	245	8.4
2018-08-30	3	18.8
2018-08-30	4	9.1
2018-08-30	5	7.7
2018-08-30	7	21.3
2018-08-30	72	15.4
2018-08-30	79	12.6
2018-08-30	8	24.0
