Vaira: 2018-08-10 09:15:00 (DOY 222)
Author: Joe Verfaillie
Others: Siyan

Summary: Regular fieldwork, new phenocam CF card, checked on BF3, went to pond and checked on fire scar.

Vaira
2018-08-10

I arrived at about 9:15 with Siyan. It was clear, sunny and hot. There is a pall of smoke everywhere, not enough to smell except for an occasional whiff but the distance is hazy and there is a slight burn in your eyes and a heaviness to the air in your nose. The grass is crispy, the water hole is nearly dry, and the trees donâ€™t look so happy. There is a new secondary lock on the gate and the road, especially towards the pond has seen heavy traffic. Iâ€™m guessing both are related to fire fighting. The cow fence is unpowered and we will leave it that way until the fire weather abates, however we did see some cows on the land.

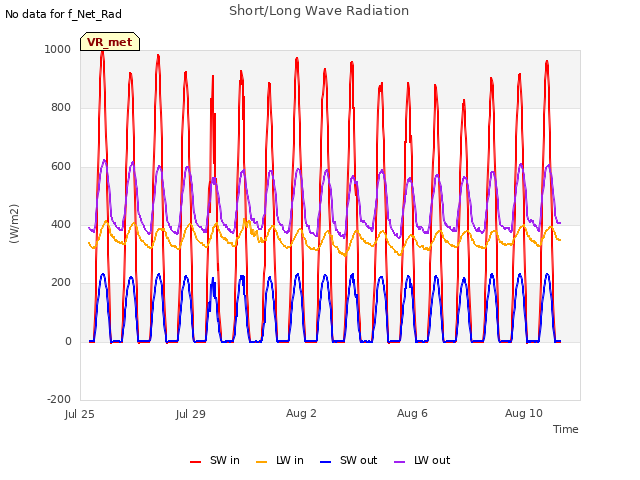

I collected data and Siyan did the regular field work. I cleaned the radiometers and recorded the solar panelsâ€™ serial numbers. I also picked up the broken battery in a lead hazmat bag and brought it in.

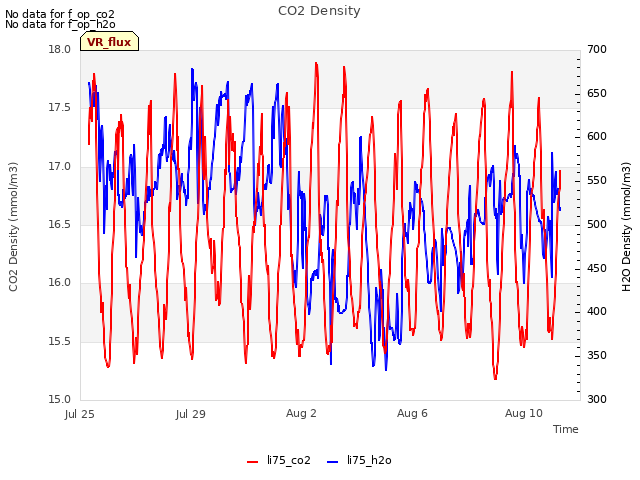

The 7500 read: 419.0ppm CO2, 501.1mmol/m3 H2O, 99.5kPa, 30.8C, 97.8SS â€“ 101.9 after cleaning

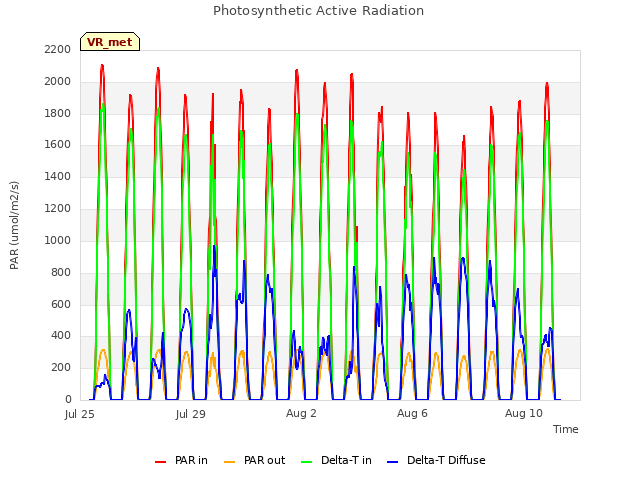

The BF3 diffuse PAR has been reading low for years. Sigrid suggested I connect to its serial port to check on it, but the pins on its serial are corroded and one is missing. I swapped its internal desiccant. I could solder in a new serial port in the lab.

The CR1000 seemed to have a full set of phenocam images. I swapped the card with a new SanDisk Ultra 16GB card. It takes some time for the 16GB card to initialize but it was storing photos before we left.

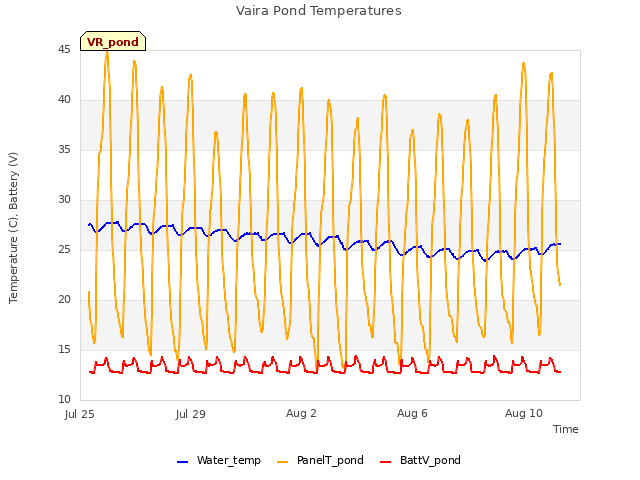

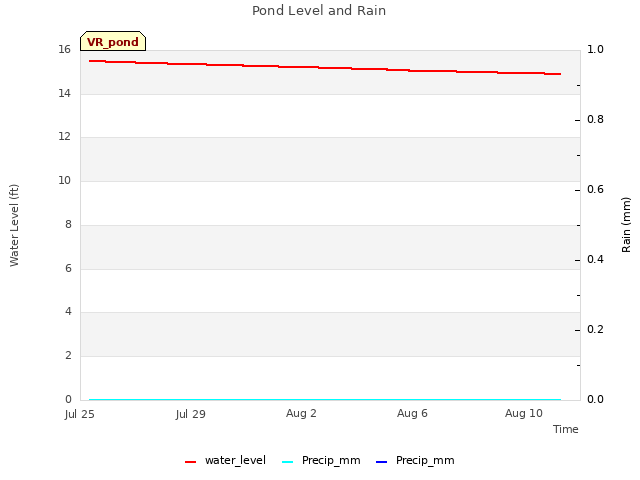

We went to the pond. The stream from the pond is dry. The fire burned down the northeast edge of the pond and extends to the north and east from there. The staff gauge read about 14.90ft but was hard to see due to weeds.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-08-10	TZ_floor	24.3
2018-08-10	TZ_tower	28.8
2018-08-10	TZ_road	33.3
2018-08-10	VR_pond	14.9

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 [39] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_4	Spacial Count
2018-08-10	222	0	nan	4.5	2.2	1.8	2.2	2.1	3	0.4	3.6	1.9	2.8	11.2	11.8	6.3	8.7	13.9	12.4	4.2	9.3	0.6	12.1	14	11.2	11.1	9.2	15.6	15.9	14	17.9	15.4	13.4	17.3	3.9	11.3	18.5	28.2	17.8	17.9	19.3	24.8
2018-08-10	222	1	nan	3.9	2.2	3.6	2.5	5.4	2.7	0.1	3.9	2.2	3.1	11.5	11.2	5.3	9.3	13.9	11.8	4.8	9.7	0.3	12.1	15.1	10.9	24.6	9.8	12.9	16.8	13.4	17.6	15.6	12.9	18.8	3	11	17.6	27.1	11.3	18.5	19.3	24.8	11.1
2018-08-10	222	Avg	0-15cm																																									0
2018-08-10	222	Avg	15-30cm																																									0
2018-08-10	222	Avg	30-45cm																																									0
2018-08-10	222	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Gate_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Gate_2 [6] => Biomass_Cage_2 [7] => Solar_Panels_3 [8] => Flux_Tower_3 [9] => Gate_3 [10] => Biomass_Cage_3 [11] => Solar_Panels_4 [12] => Flux_Tower_4 [13] => Gate_4 [14] => Biomass_Cage_4 [15] => Solar_Panels_1 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Solar_Panels_1	Spacial Count
2018-08-10	222	0	nan	1.3	6.8	0.3	8.1	7.5	4.8	5.7	14.3	4.8	8.1	15.9	29.7	14.8	21.3	20.2
2018-08-10	222	1	nan	1.3	7.1	0.3	8.4	6.9	4.5	6.3	14	5.9	8.4	16.5	28.8	15	21.1	20.5	3.6
2018-08-10	222	Avg	0-15cm																	0
2018-08-10	222	Avg	15-30cm																	0
2018-08-10	222	Avg	30-45cm																	0
2018-08-10	222	Avg	45-60cm																	0
