Vaira: 2018-05-23 10:00:00 (DOY 143)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard data collection, we went to the pond, soil co2 system down due to solar battery failure.

Vaira 2018-05-23 I arrived at about 10am with Siyan. It was cool with an overcast that broke up into high patchy clouds. Still lots of flowers and the grass is green only in low spots. We went to the pond – the water level is 19.14ft. I collected the data. I could not connect to the soil CO2 system. On further examination I found that one of its solar system batteries had exploded blowing the top off the battery. The other three batteries were totally drained at about 4V. I disassembled the battery bank sn BB-VR_soilco2 bringing in the three dead, whole batteries to trade in their cores and will collect the damaged battery in a disposal bag next time. Soil CO2 is down until new batteries are installed. The solar charge controller for the soil CO2 system is a MorningStar PS-15 serial number 03220377. The main solar system has a MorningStar PS-30M the serial number is hidden on the back of the device There are only 126 phenocam images on the CF card again. Still need to get new cards. Siyan did the standard field work.

Veg Height (cm): Tape measure from ground to top of plant
42, 43, 40, 47, 48, 42, 50, 78, 52, 40, 38, 48, 46, 40, 34, avg = 45.9, stdev = 10.15

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-05-23	TZ_floor	18.8
2018-05-23	TZ_road	27.8
2018-05-23	TZ_tower	23
2018-05-23	VR_pond	19.14

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 [43] => Floor_West_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_1	Avg	Spacial Count	Measurement Count
2018-05-23	143	0	nan	6.8	4.2	13	10.4	5.3	6.2	0.9	10.6	8	5.3	14.5	11.8	13.6	10	10	16.1	15.8	6.3	12.1	12	13.9	17	16.2	16.2	18.4	10.6	17.3	21.5	17.6	20.4	17	19.5	23.9	13.9	20.5	30.8	15	20.8	35.1	15.6	23.6	23.4	28.8
2018-05-23	143	1	nan	6.8	4.5	12.1		5	6.2	1.5	10	8	5.3	13.6	12.1	13	9.7	10	16.1	15.8	5.7	11.9	10.3	13	16.2	27.3	15.4	16.5	10.9	17	21.2	17.9	20.4	16.5	19.3	24.2	14.2	20.5	30.5	19.9	20.5	36	15.6	23.4	23.9	27.9	9.7
2018-05-23	143	Avg	0-15cm																																														0
2018-05-23	143	Avg	15-30cm																																														0
2018-05-23	143	Avg	30-45cm																																														0
2018-05-23	143	Avg	45-60cm																																														0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2018-05-23	143	0	nan	5.9	2.7	9.1	1.2	9.7	10.6	6	7.2	14.5	4.8	7.8	16.5	28.2	16.2	21.9	19.3
2018-05-23	143	1	nan	5.3	2.4	9.7	1.5	9	10.9	6.6	7.5	15.1	4.2	8.1	17	28.2	17	21.6	19.6
2018-05-23	143	Avg	0-15cm																		0
2018-05-23	143	Avg	15-30cm																		0
2018-05-23	143	Avg	30-45cm																		0
2018-05-23	143	Avg	45-60cm																		0

Grass Height TZ 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-05-23	35	38	40	41	33	45	33	30	33	26	28	30	30	28	38	GH_ALL	33.87	15	5.33

Grass Height VR 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-05-23	42	43	40	47	48	42	50	78	52	40	38	48	46	40	34	GH_ALL	45.87	15	9.8

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

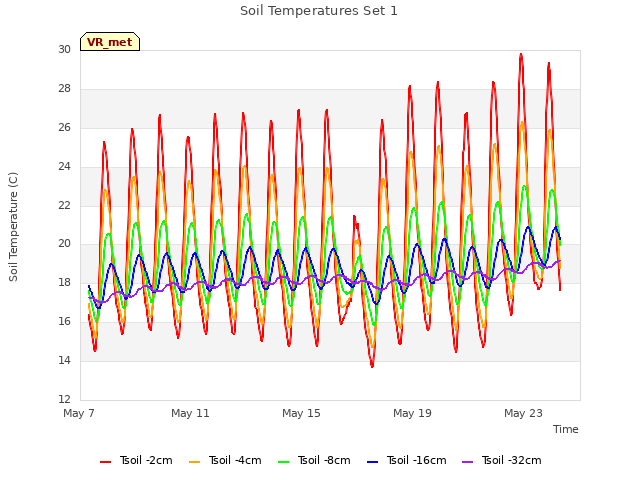

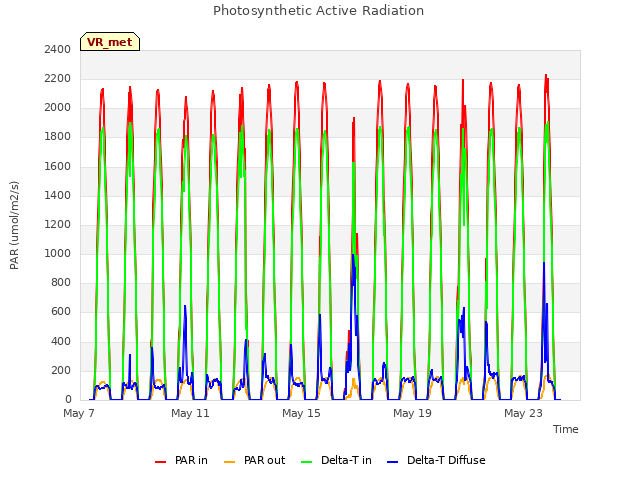

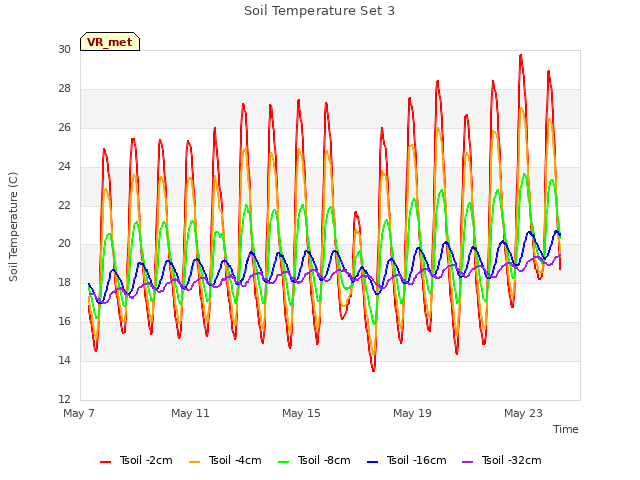

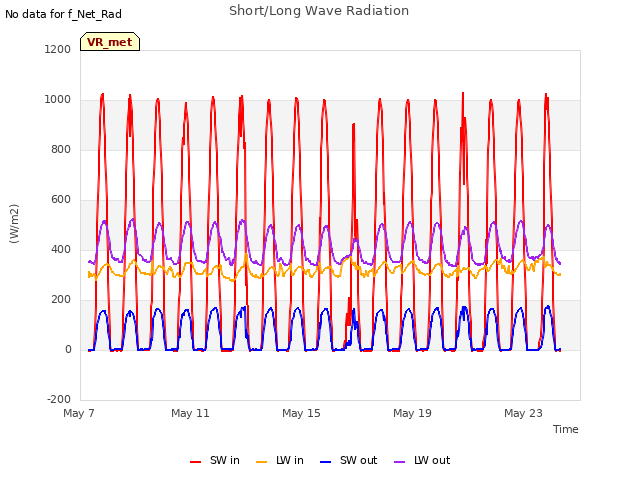

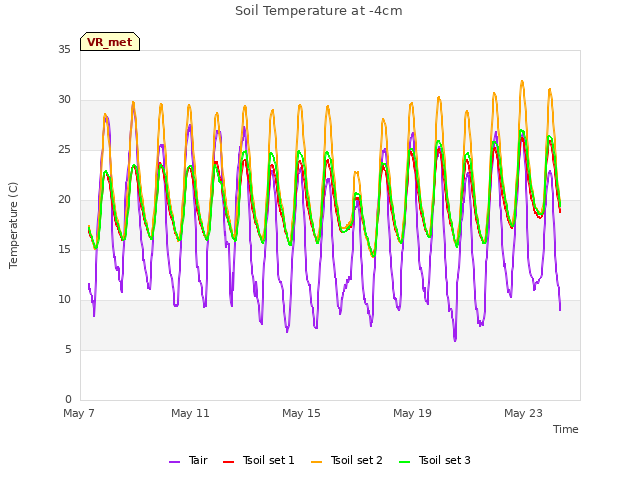

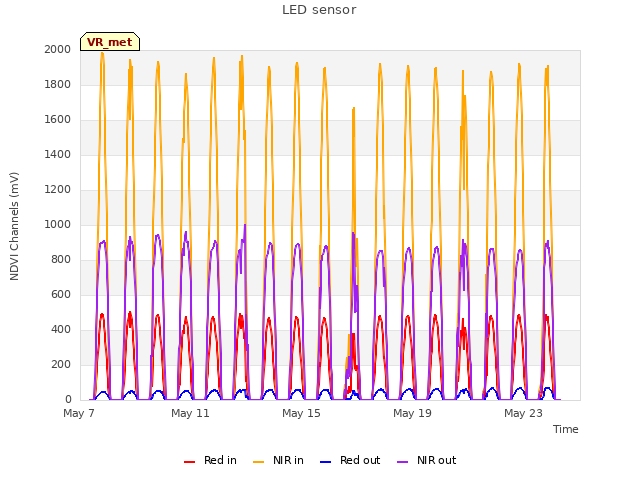

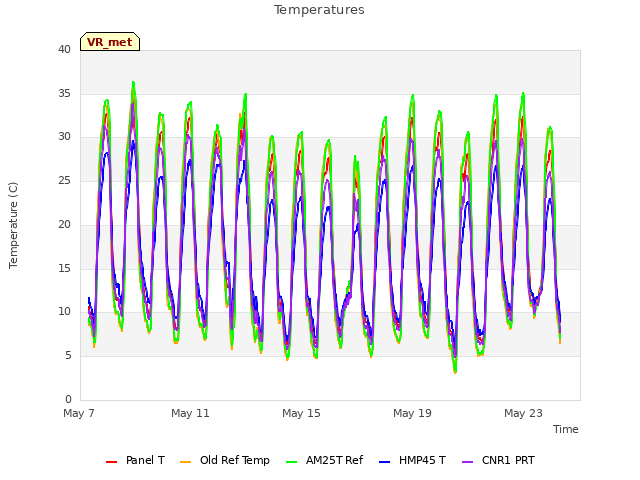

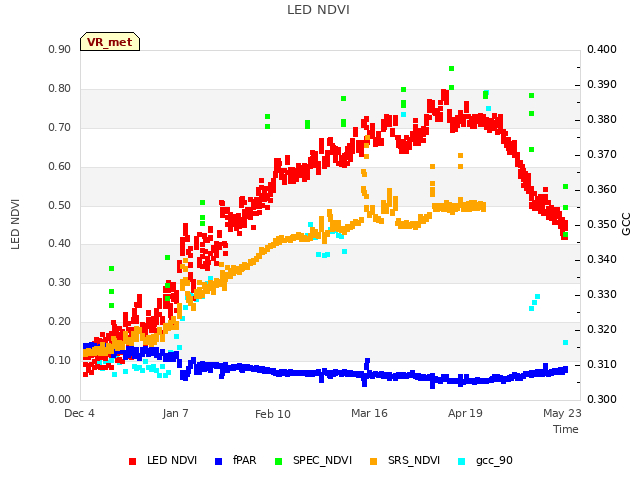

16 VR_met graphs found

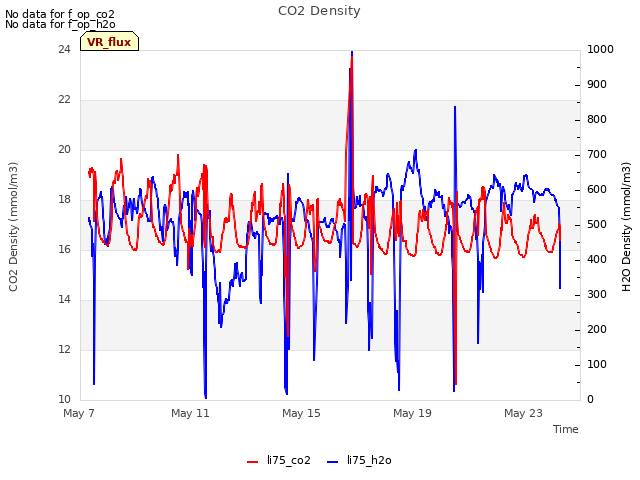

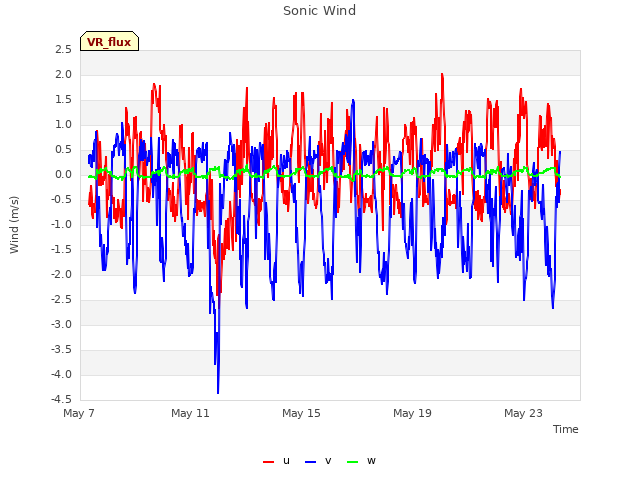

2 VR_flux graphs found

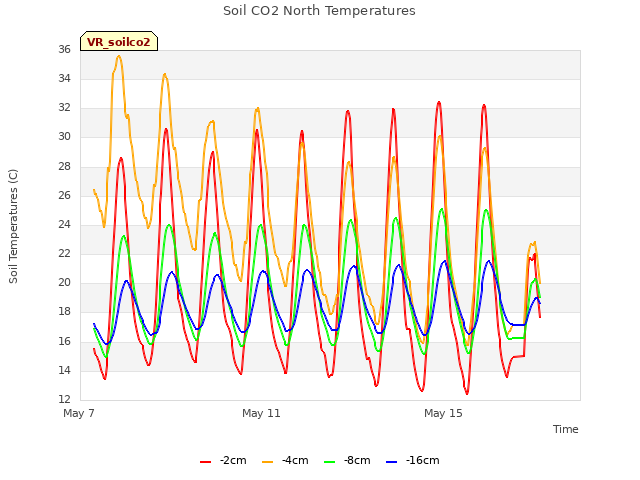

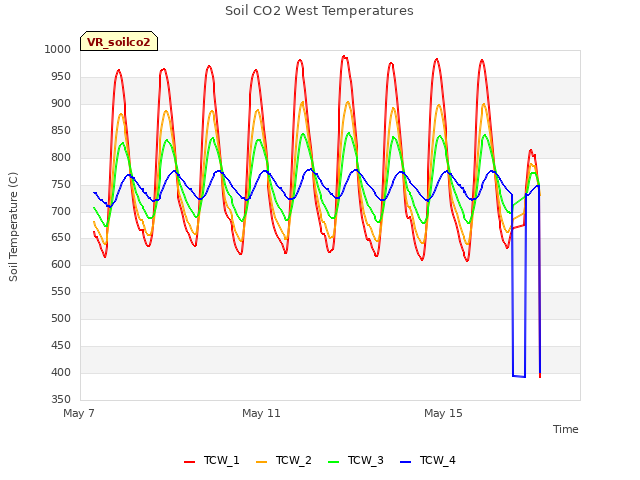

6 VR_soilco2 graphs found

2 VR_pond graphs found

Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
