Tonzi: 2018-05-23 11:00:00 (DOY 143)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard data collection, lots of flowers, removed LED sensor and old LI-820 CO2 profile from the Tower.

Tonzi
2018-05-23

I arrived at about 11am with Siyan. The morning overcast broke up to patchy, high thin clouds. There are still lots of flowers and the trees look happy. There were cows hanging out at the watering tank.

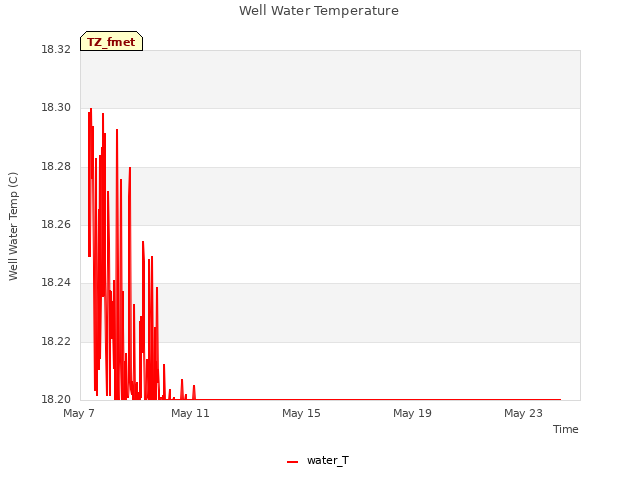

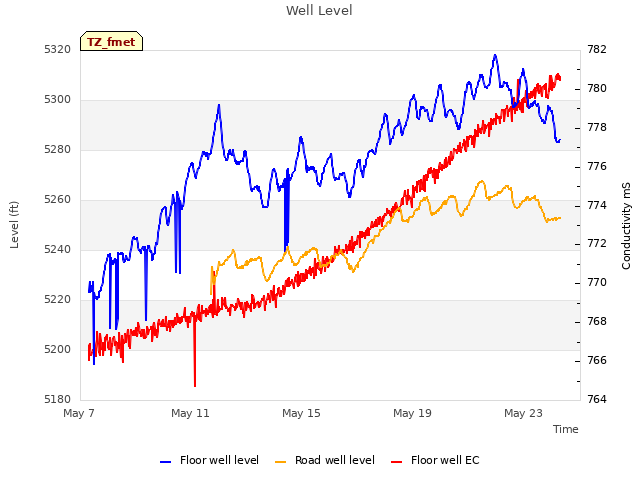

I collected all the data including the Global Water logger now in the east well next to the road. The phenocam had only recorded 126 images of the CF card again.

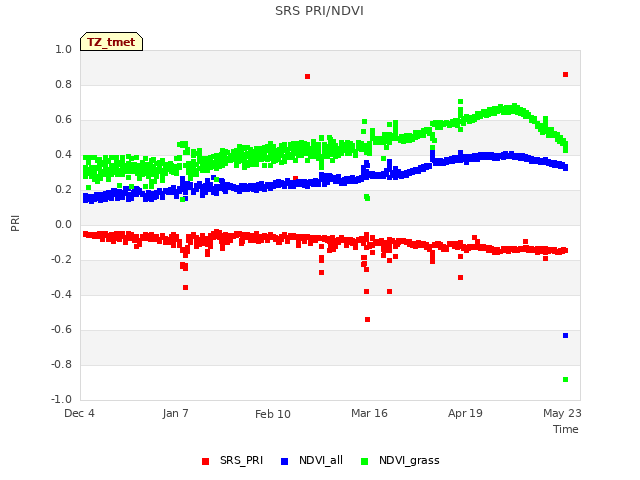

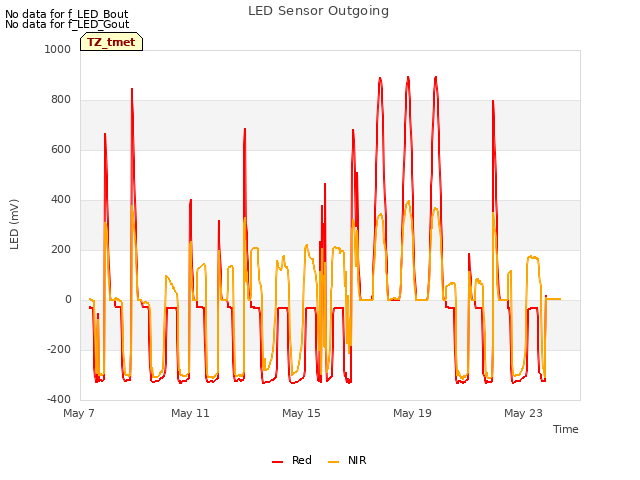

I removed the LED sensor sn LED-05 from the Tower top. It had been giving bad readings for weeks (months?) and the SRS NDVI and PRI sensor have been running there for a year or more.

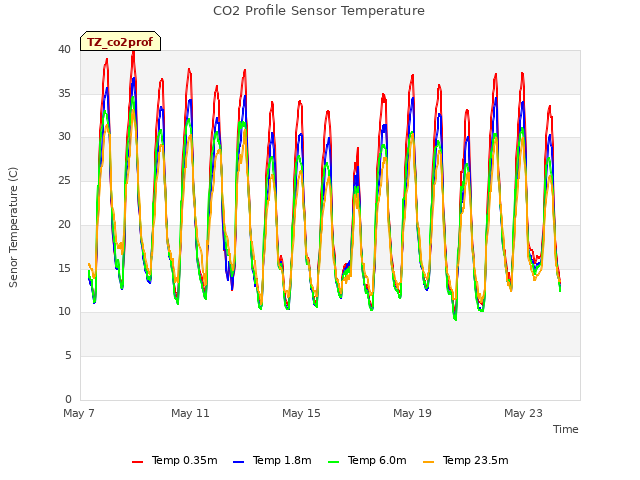

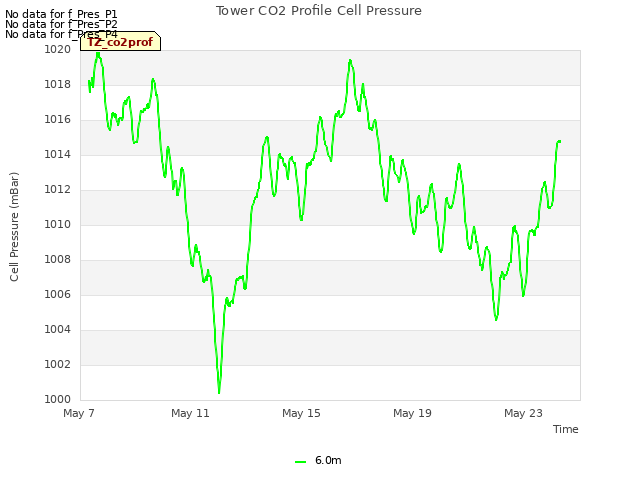

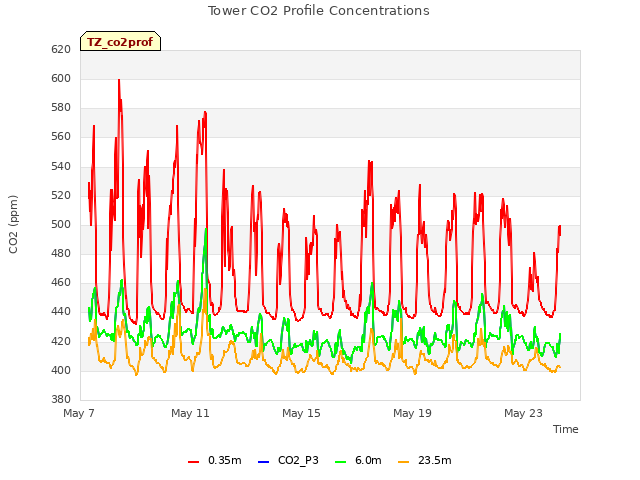

I removed the old Tower co2 profile equipment. I remove the two boxes and their contents: LI-820 sn CGA-556, CR10X sn 47253 wp 10203, MD9 sn 4004, solenoids, pump, relays. I left the external tubing, power lines and cal gas control lines in place. I might use some of this to run cal gas to the Vaisala sensors in the future. I also brought in an aluminum gas cylinder for return to Prax.

Siyan did the standard fieldwork including midday water potential.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-05-23	TZ_floor	18.8
2018-05-23	TZ_road	27.8
2018-05-23	TZ_tower	23
2018-05-23	VR_pond	19.14

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 [43] => Floor_West_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_1	Spacial Count
2018-05-23	143	0	nan	6.8	4.2	13	10.4	5.3	6.2	0.9	10.6	8	5.3	14.5	11.8	13.6	10	10	16.1	15.8	6.3	12.1	12	13.9	17	16.2	16.2	18.4	10.6	17.3	21.5	17.6	20.4	17	19.5	23.9	13.9	20.5	30.8	15	20.8	35.1	15.6	23.6	23.4	28.8
2018-05-23	143	1	nan	6.8	4.5	12.1		5	6.2	1.5	10	8	5.3	13.6	12.1	13	9.7	10	16.1	15.8	5.7	11.9	10.3	13	16.2	27.3	15.4	16.5	10.9	17	21.2	17.9	20.4	16.5	19.3	24.2	14.2	20.5	30.5	19.9	20.5	36	15.6	23.4	23.9	27.9	9.7
2018-05-23	143	Avg	0-15cm																																													0
2018-05-23	143	Avg	15-30cm																																													0
2018-05-23	143	Avg	30-45cm																																													0
2018-05-23	143	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-05-23	143	0	nan	5.9	2.7	9.1	1.2	9.7	10.6	6	7.2	14.5	4.8	7.8	16.5	28.2	16.2	21.9	19.3
2018-05-23	143	1	nan	5.3	2.4	9.7	1.5	9	10.9	6.6	7.5	15.1	4.2	8.1	17	28.2	17	21.6	19.6
2018-05-23	143	Avg	0-15cm																	0
2018-05-23	143	Avg	15-30cm																	0
2018-05-23	143	Avg	30-45cm																	0
2018-05-23	143	Avg	45-60cm																	0

Grass Height TZ 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-05-23	35	38	40	41	33	45	33	30	33	26	28	30	30	28	38	GH_ALL	33.87	15	5.33

Grass Height VR 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-05-23	42	43	40	47	48	42	50	78	52	40	38	48	46	40	34	GH_ALL	45.87	15	9.8

Tree DBH

Date	Tag#	Reading (mm)
2018-05-23	1	20.1
2018-05-23	102	10.1
2018-05-23	2	22.2
2018-05-23	245	9.5
2018-05-23	3	18.5
2018-05-23	5	17.9
2018-05-23	72	14.8
2018-05-23	79	12.3

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2018-05-23 12:45:00	OAK	102	-10	-22	-8
2018-05-23 12:45:00	OAK	35	-23	-26	-29
2018-05-23 12:45:00	OAK	92	-24	-30	-27
2018-05-23 13:08:00	PINE	OLD	-3	-5	-22
2018-05-23 13:08:00	PINE	YNG	-4	-5	-9
