West Pond: 2018-05-16 09:40:00 (DOY 136)
Author: Joe Verfaillie
Others: Daphne

Summary: Inlet running but water still low, knocked down wasp nests and tules near solar panels.

West Pond
2018-05-16

I arrived at 9:40 with Daphne. Thunderstorms to the north but otherwise mostly sunny and breezy. The wetland is starting the green up with mostly tules visible above the thatch. The Inlet was running but the water sensors were still out of the water. There were many wasp nests under the upper boardwalk that we knocked down.

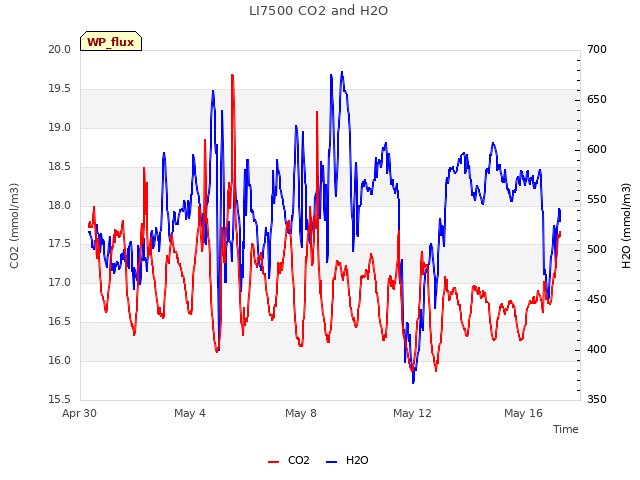

The 7500 read: 392ppm CO2, 540mmol/m3 H2O, 18.5C, 101.9kPa, 100.3SS – 103 after cleaning.
The 7700 read: 1.92ppm CH4, 39.8RSSI – 74 after cleaning.
After cleaning the CO2 was probably closer to 410 and the water may have come down a little. We saw similar offsets at the other sites. We forgot to check the wash reservoir but most sites took very little water.

Daphne cut back the tules near the solar panels but we could probably raise the solar panels a foot or two with some longer pipes for the low side.

We left at 10:15

1 photos found

Nice clouds
Nice clouds

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

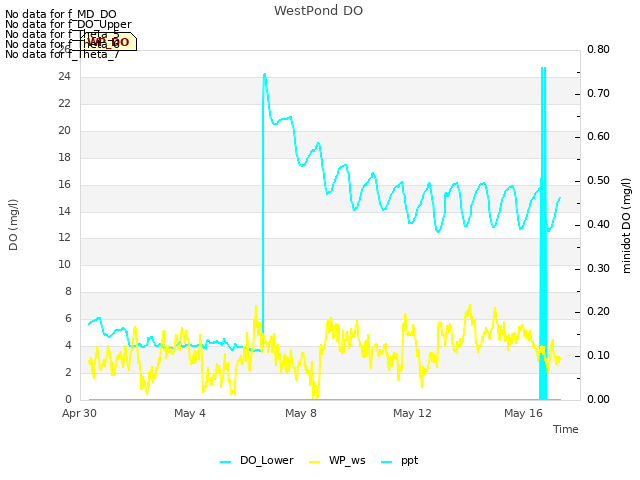

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

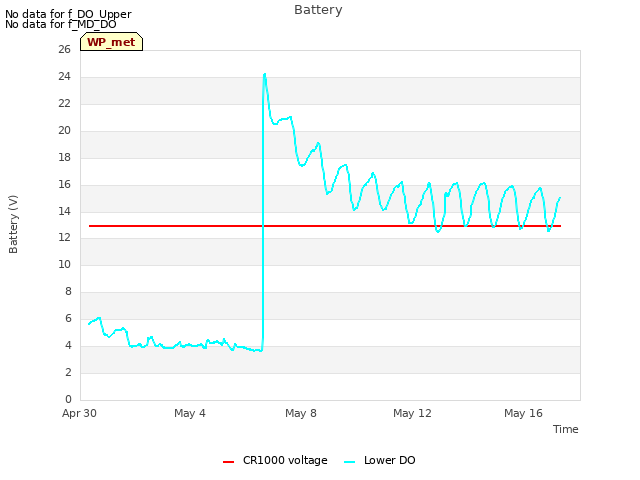

Explore the graph:Battery in a new window

Explore the graph:Temperatures in a new window

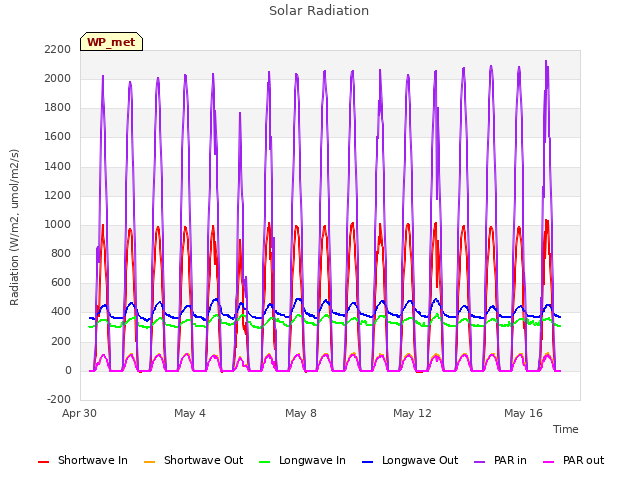

Explore the graph:Solar Radiation in a new window

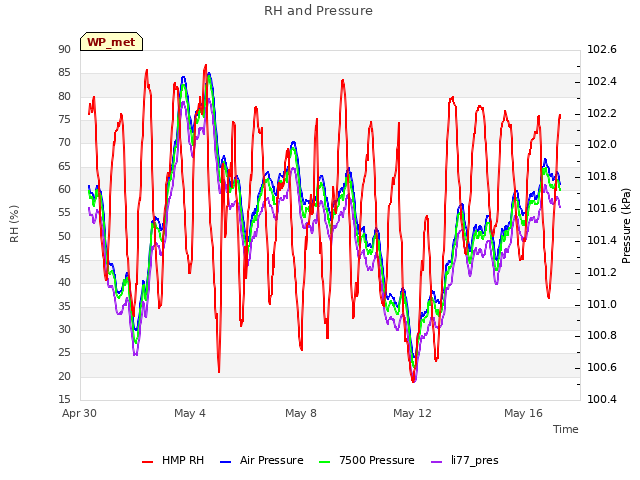

Explore the graph:RH and Pressure in a new window

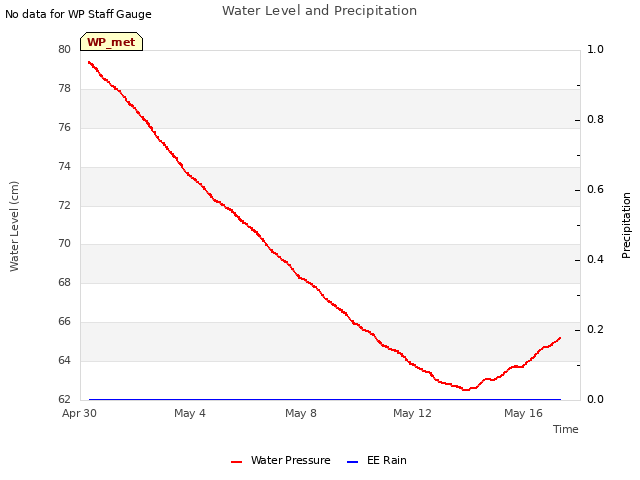

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

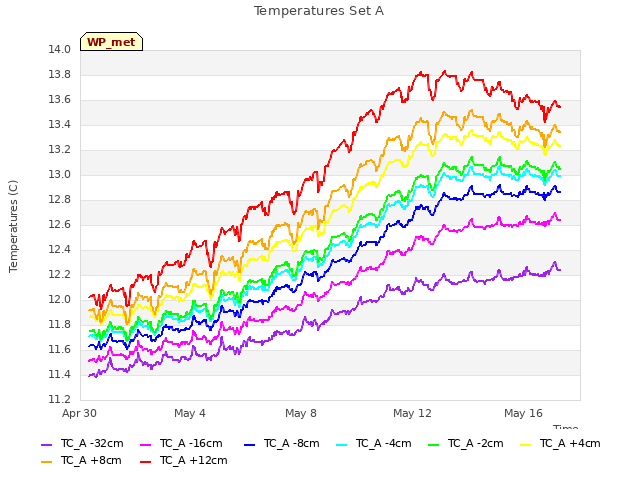

Explore the graph:Temperatures Set A in a new window

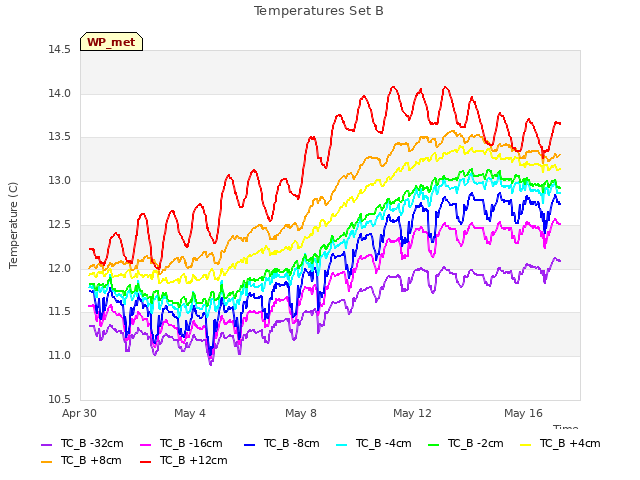

Explore the graph:Temperatures Set B in a new window

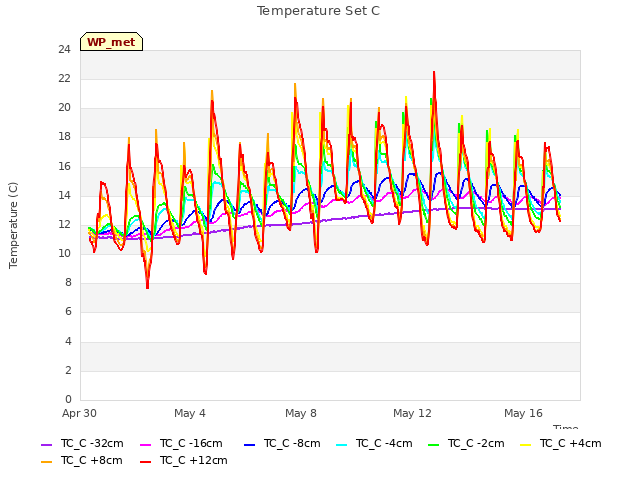

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

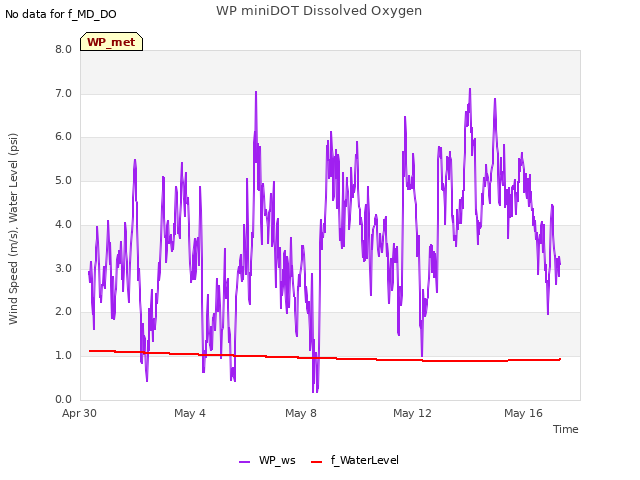

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

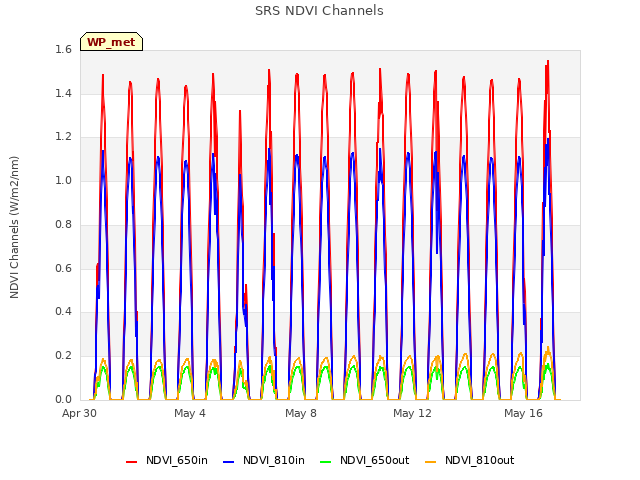

Explore the graph:SRS NDVI Channels in a new window

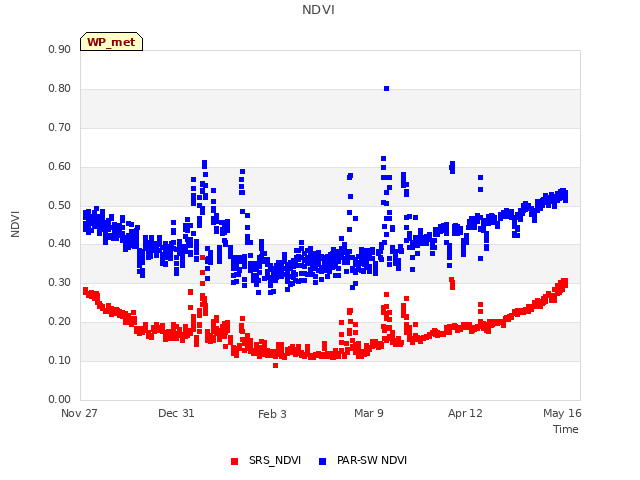

Explore the graph:NDVI in a new window

5 WP_flux graphs found

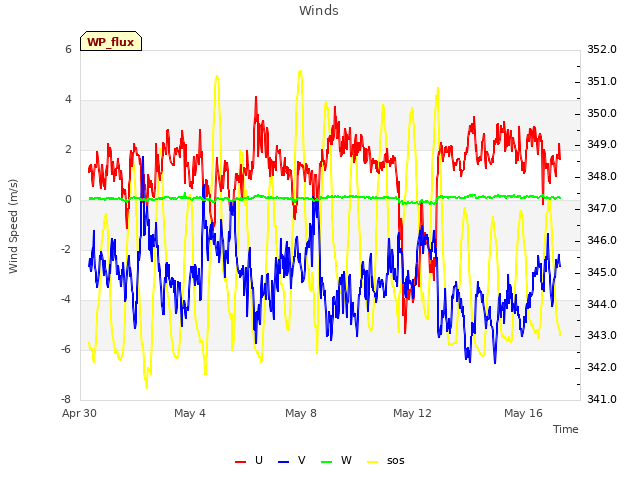

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

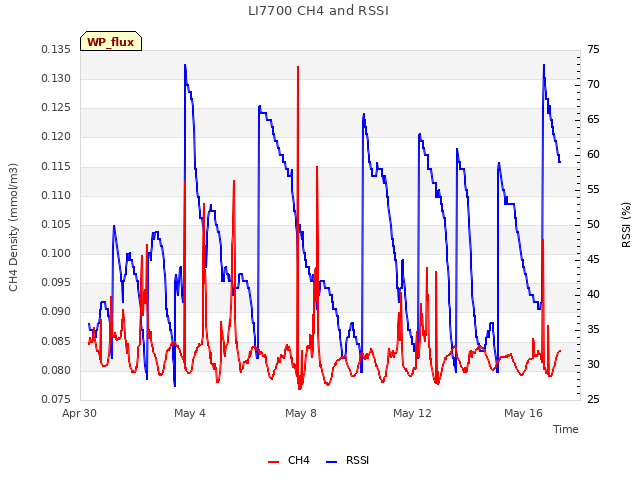

Explore the graph:LI7700 CH4 and RSSI in a new window

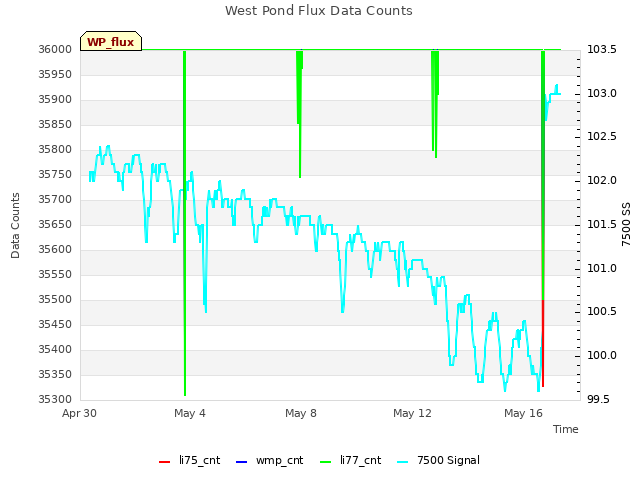

Explore the graph:West Pond Flux Data Counts in a new window

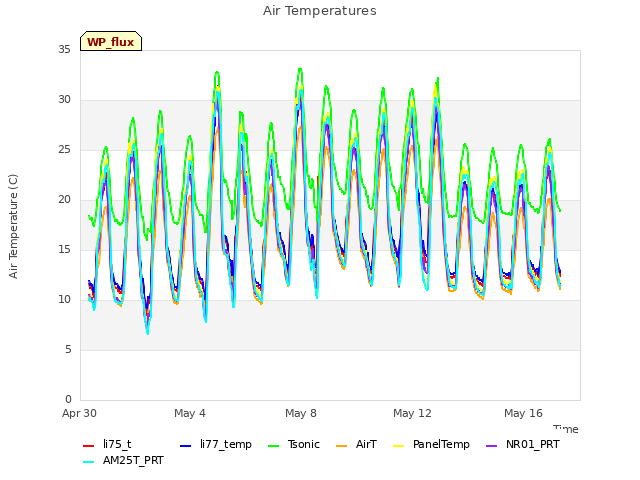

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

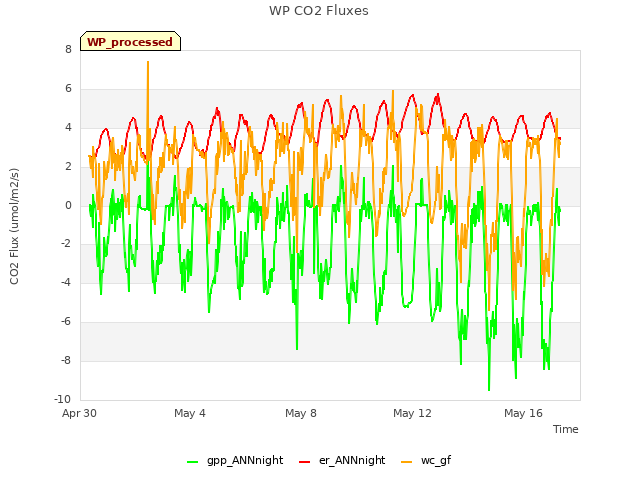

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
