Field Notes

<--2018-03-06 09:00:00 | 2018-04-13 09:15:00-->
Other sites visited today: Tonzi | Sherman Wetland
Phenocam link: Searching...

Vaira: 2018-03-27 09:00:00 (DOY 86)
Author: Joe Verfaillie
Others: Ana, Siyan

Summary: Trees are putting on leaves, computer died, setup CR1000 to collect images, pond full.

Vaira
2018-03-27

I arrive with Siyan and Ana about 9am. It was warm, clear and sunny with a light breeze. The trees have begun to put on leaves. There was sand and gravel debris on Irish Hill Road in a couple of places likely from runoff due to heavy rains. The water hole, pond and puddles on the road were full.

I checked on the computer that had not been sending data. There was no response from the keyboard or mouse. I tried unplugging and plugging in the USB connection but no luck. I did a hard restart and the BIOS loaded but it said it could not find a system disk. Hopefully I can boot it in recovery mode or from a USB disk in the lab and get the images off. We collected the data directly from the data loggers and the Licor, so no other data lost.

I made a new cross-over Ethernet cable to connect the camera with the met CR1000. I changed the ftp settings on the camera and used the CFM card I had brought to swap at Tonzi. After returning from the pond, two images were stored on the CR1000. The window of the camera enclosure came loose â€“ needs some silicon next time.

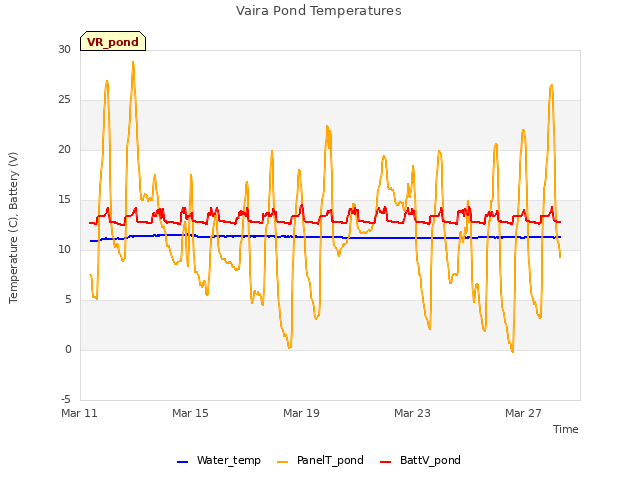

The pond was full at 22.24ft. The road to the pond was just passable with two wheel drive.

Siyan did clip plots, and spectral. Ana did the soil moisture.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-03-27	TZ_floor	22.6
2018-03-27	TZ_road	31.1
2018-03-27	TZ_tower	26.5
2018-03-27	VR_pond	22.24

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-03-27	86	0	nan	42.8	32.9	48.1	39	29.7	24.4	24.4	24.1	33.5	30.2	29.7	42.3	45.7	38.7	39	40.5	33.2	33.5	25.8	30.4	35.1	32.9	37.4	43.5	39.6	41.3	38.2	34.1	35.7	35.2	36.3	38.5	38.8	46.1	55.1	41.4	46.3	35.4	46.3	50	39.7	44.8	50.6	49.1
2018-03-27	86	1	nan	43.7	26.4	48.4	38.7	29.4	20.3	26.7	24.1	33.8	31.4	29.4	41.4	45.1	38.7	39.3	40.8	33.2	34.1	25.8	30.4	27.4	34.1	36.3	43.3	41.3	41.8	38.5	34.9	36.6	36.3	37.1	39.4	39.4	41.7	58.3	54.9	47.7	37.1	52	50.3	39.1	46.6	51.7	48.6
2018-03-27	86	Avg	0-15cm																																													0
2018-03-27	86	Avg	15-30cm																																													0
2018-03-27	86	Avg	30-45cm																																													0
2018-03-27	86	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-03-27	86	0	nan	25.3	22.9	31.1	17.9	28.9	30.4	24.6	24	31.5	17.3	24.3	31.5	42.5	31.4	24.2	33.1
2018-03-27	86	1	nan	29.9	22.6	30.8	17.6	28.3	30.7	24.9	23.7	31	17.3	24.3	32.4	42.5	31.7	23.9	33.1
2018-03-27	86	Avg	0-15cm																	0
2018-03-27	86	Avg	15-30cm																	0
2018-03-27	86	Avg	30-45cm																	0
2018-03-27	86	Avg	45-60cm																	0
