Vaira: 2018-04-13 09:15:00 (DOY 103)
Author: Joe Verfaillie
Others: Siyan, Ana, Alex

Summary: The trees are full of leaves, very green, standard field work, did not go to the pond

Vaira 2018-04-13 I arrived at about 9:15 with Siyan, Ana and Alex. Everything it super green. The grass is knee high inside the fence but patchier due to grazing outside the fence. There were puddles in the road. The trees are nearly completely leafed out. It was clear, sunny and cool with a gusty breeze shifting from east to south to west. Ana and Alex worked on the ASD spectrometer they borrowed from Susan Ustin’s lab. They will use it at Tonzi. I collected the data. No computer here now. There were only about two days of phenocam images on the CR1000 CFM card. I hope the one I swapped in will do better. Siyan did soil moisture and spectral measurements. The BF3 had some condensation inside. Bring an Ethernet switch to connect everything.

Veg Height (cm): Tape measure from ground to top of plant - uneven canopy due to grazing
33, 27, 42, 32, 40, 28, 32, 18, 30, 22, 26, 25, 22, 20, 24, avg = 28.1, stdev = 6.9

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-04-13	TZ_floor	20.3
2018-04-13	TZ_road	29.2
2018-04-13	TZ_tower	23.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2018-04-13	103	0	nan	40.5	30.8	51.9	35.5	28.8	14.7	24.7	20.9	34.9	27.8	23.5	37.1	39.6	50	37.4	31.3	31.3	31.6	22.2	28.6	23.4	31.6	36.6	43.5	39.6	41.9	33.8	31	33.8	33.8	33.5	35.4	39.4	41.4	54.5	41.4	48.3	35.4	45.4	50.3	33.1	46	51.4	52
2018-04-13	103	1	nan	39.9	31.4	43.4	36.4	23.5	22.9	24.1	20.9	34.6	27.9	24.4	36.8	40.2	38.1	37.1	31.3	31.6	31	22.2	27.7	22.8	31.6	36.6	42.4	41.1	41.3	33.2	31.8	33.5	32.9	35.7	35.7	39.1	41.1	57.4	58.3	44	36.8	45.1	50.9	33.4	45.4	51.1	49.4
2018-04-13	103	Avg	0-15cm																																														0
2018-04-13	103	Avg	15-30cm																																														0
2018-04-13	103	Avg	30-45cm																																														0
2018-04-13	103	Avg	45-60cm																																														0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2018-04-13	103	0	nan	23.8	23.5	25	12.1	26.4	30.3	25.2	20	30.4	28.7	27.6	29.6	42	29.9	20.2	31.9
2018-04-13	103	1	nan	23.8	21.1	25.3	12.4	27.7	30.7	36.5	20	30.1	20.9	28.8	29.9	41.1	28.7	27.3	32.8
2018-04-13	103	Avg	0-15cm																		0
2018-04-13	103	Avg	15-30cm																		0
2018-04-13	103	Avg	30-45cm																		0
2018-04-13	103	Avg	45-60cm																		0

Grass Height TZ 10

Date	Height reps (cm)										Location	Average	Samp	STDEV
2018-04-13	15	17	23	28	29	10	14	13	7	16	GH_ALL	17.2	10	6.93

Grass Height VR 15

Date	Height reps (cm)															Location	Average	Samp	STDEV
2018-04-13	33	27	42	32	40	28	32	18	30	22	26	25	22	20	24	GH_ALL	28.07	15	6.67

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

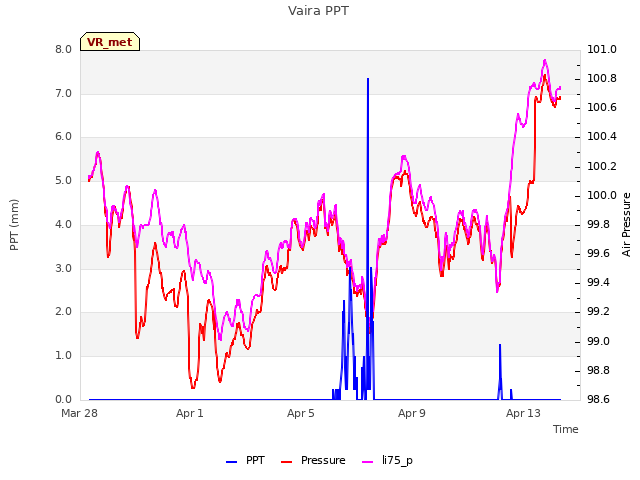

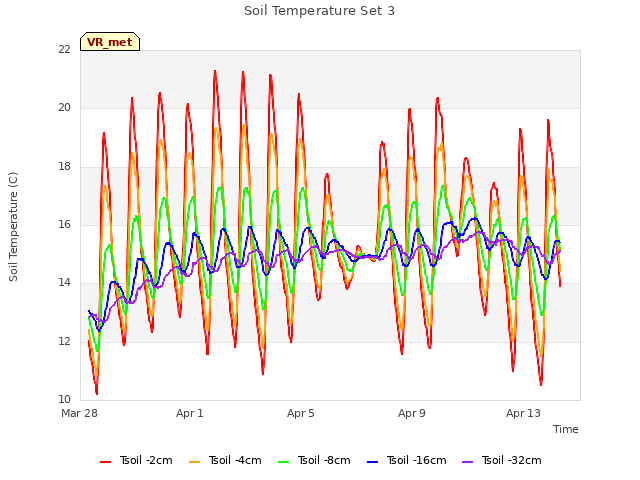

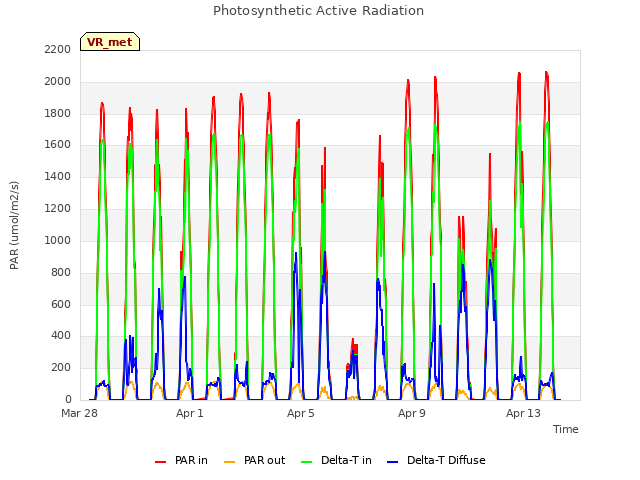

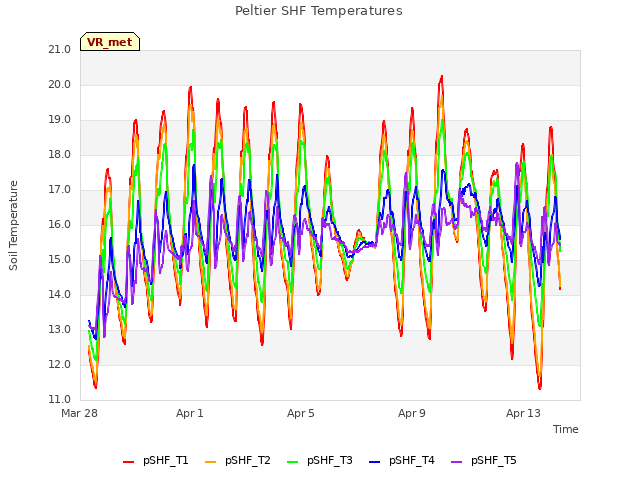

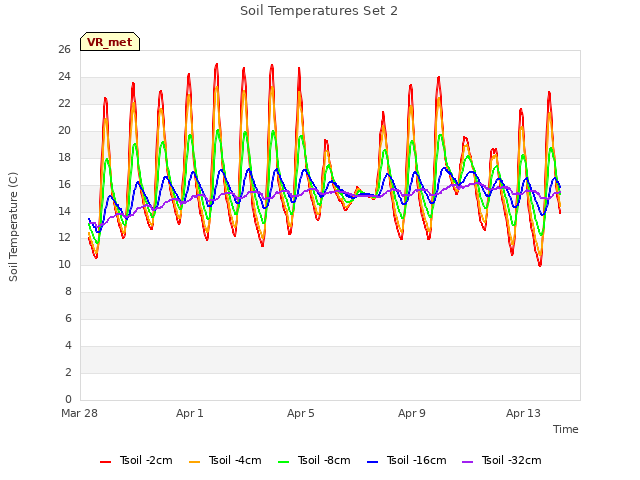

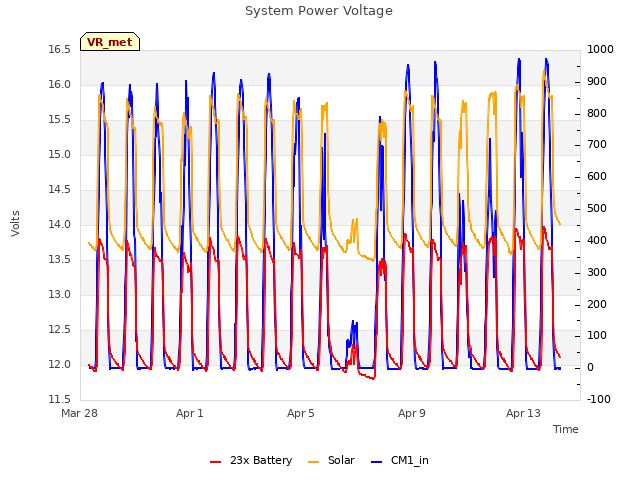

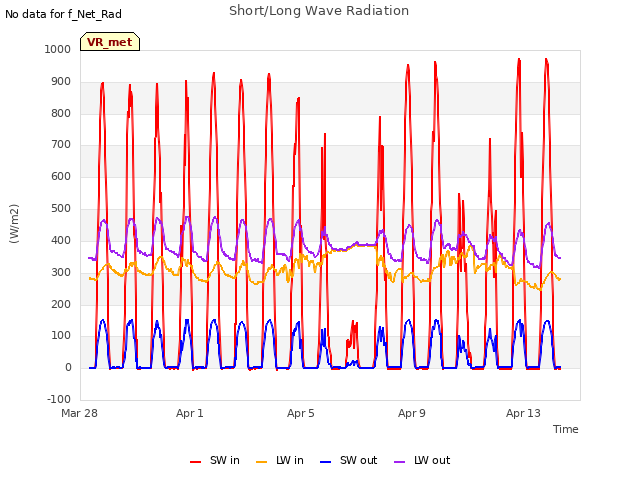

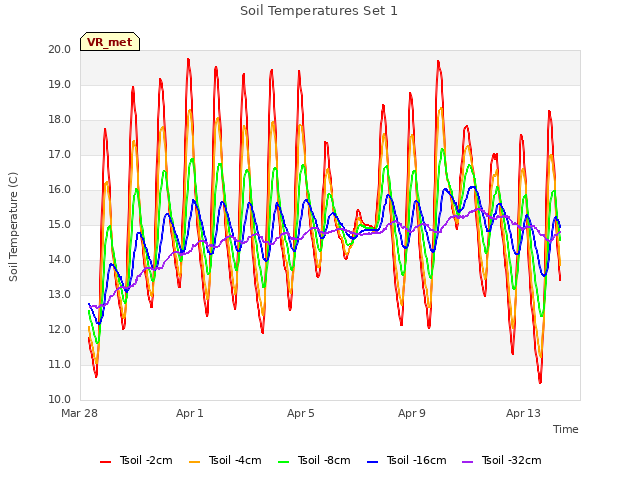

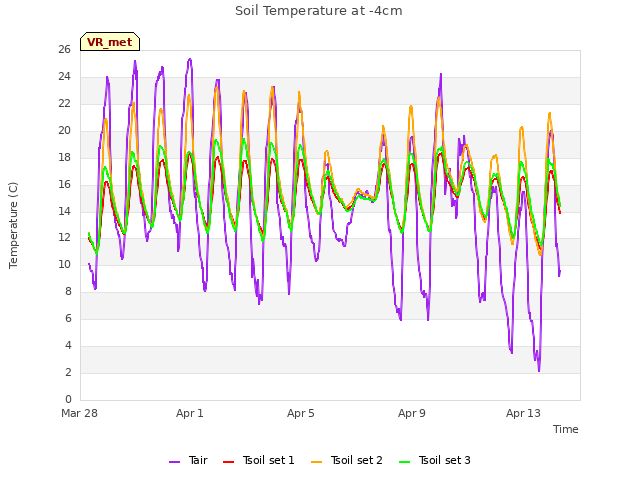

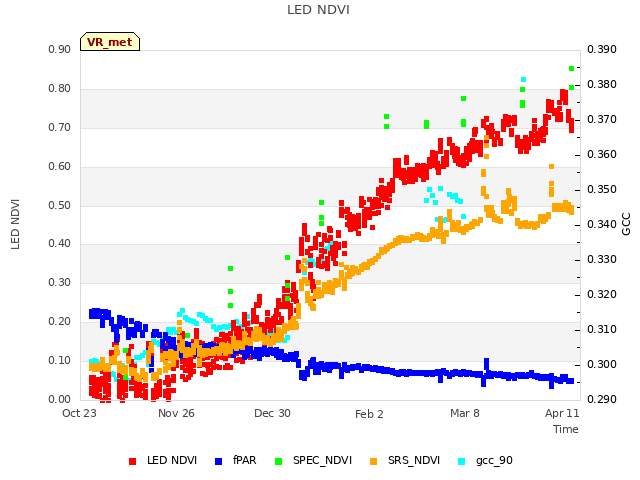

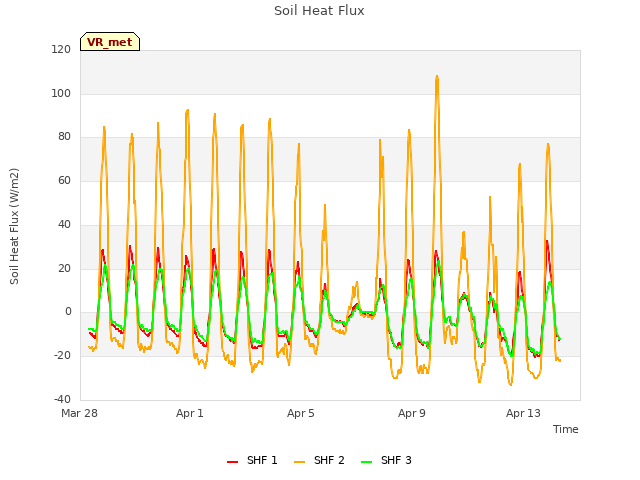

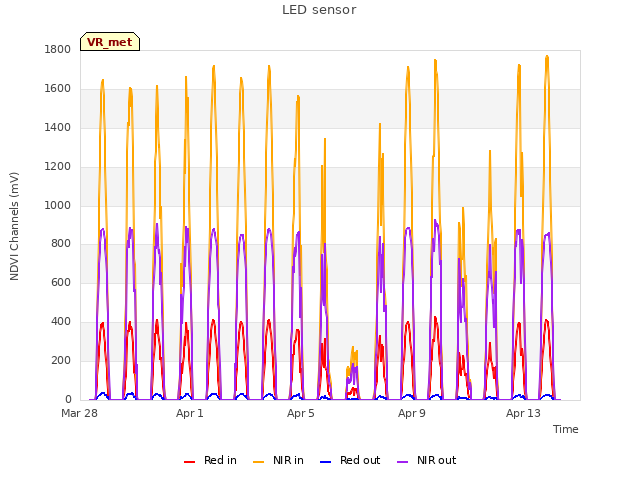

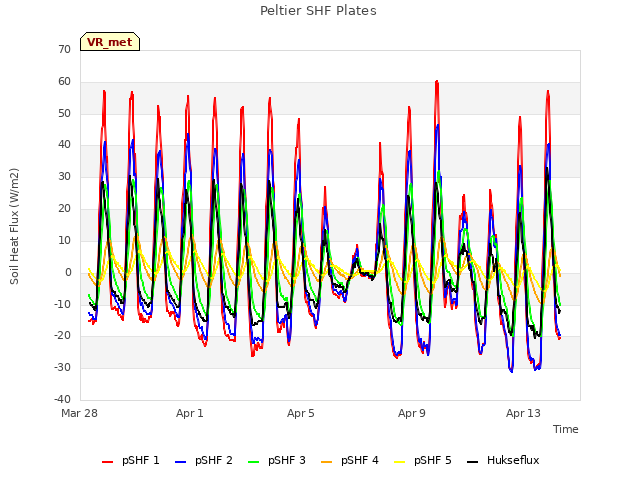

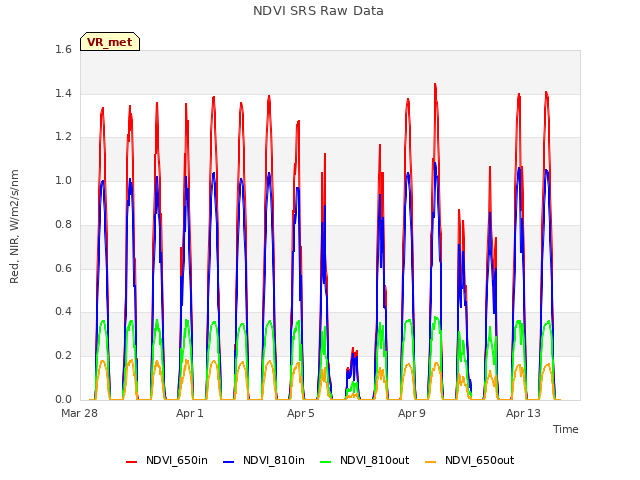

16 VR_met graphs found

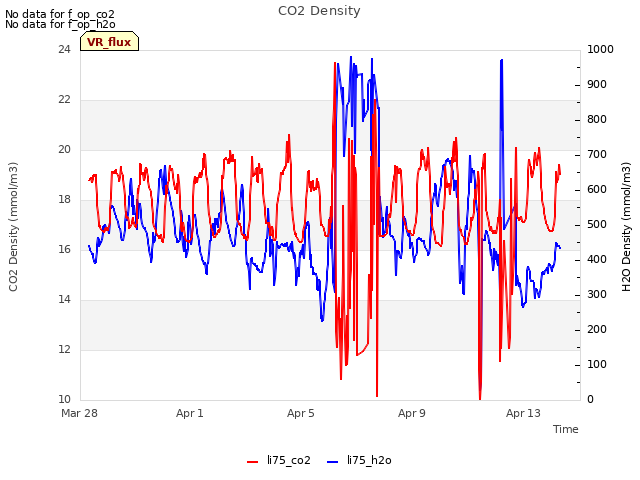

2 VR_flux graphs found

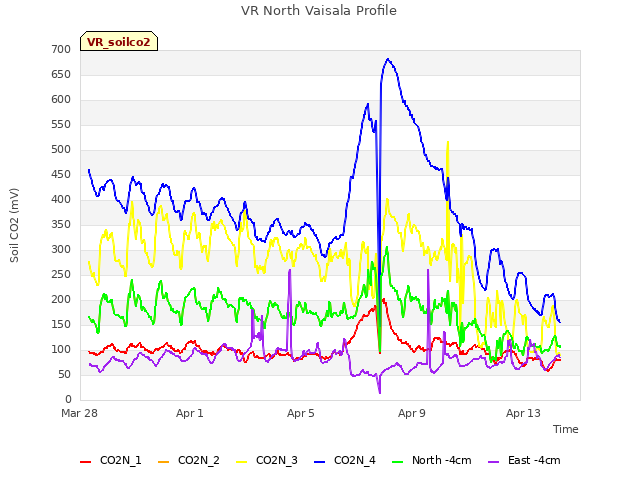

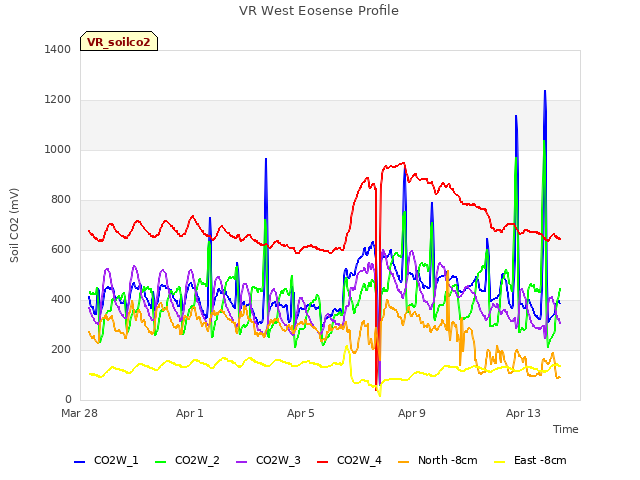

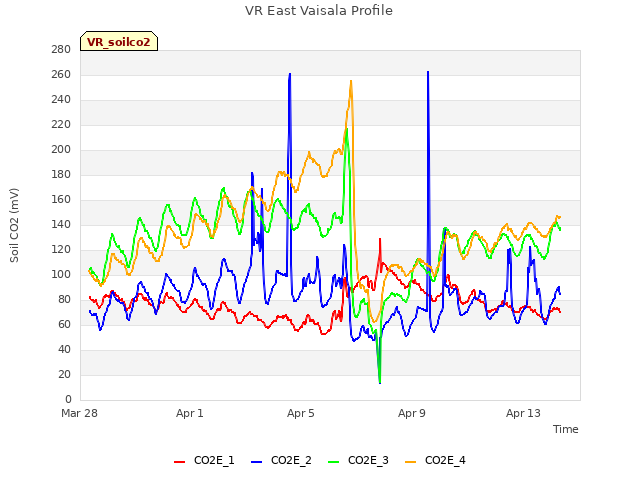

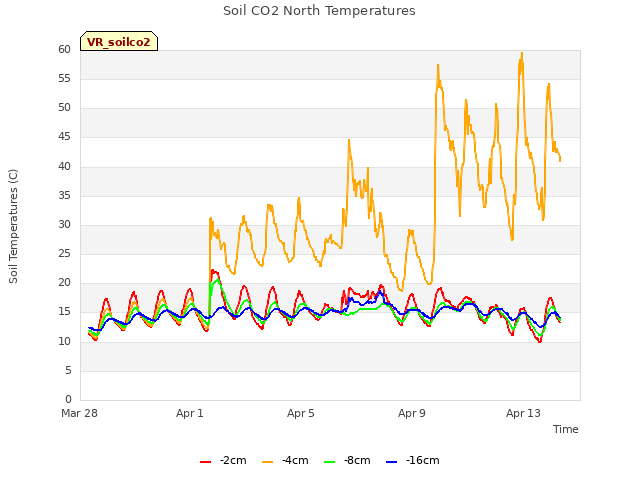

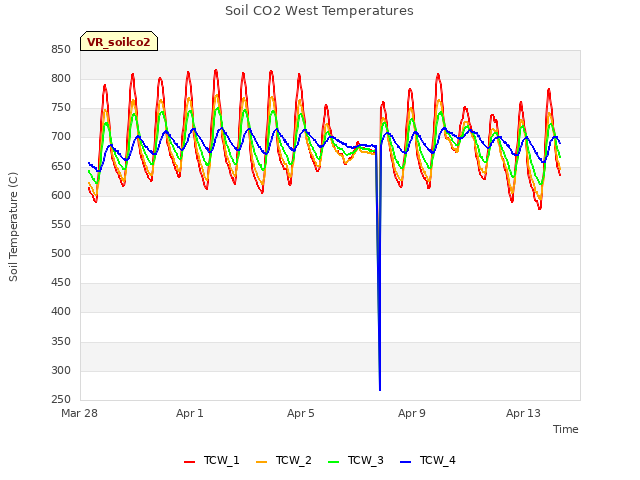

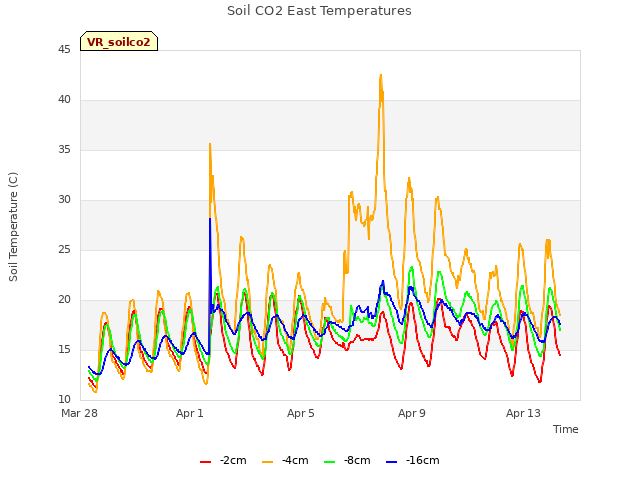

6 VR_soilco2 graphs found

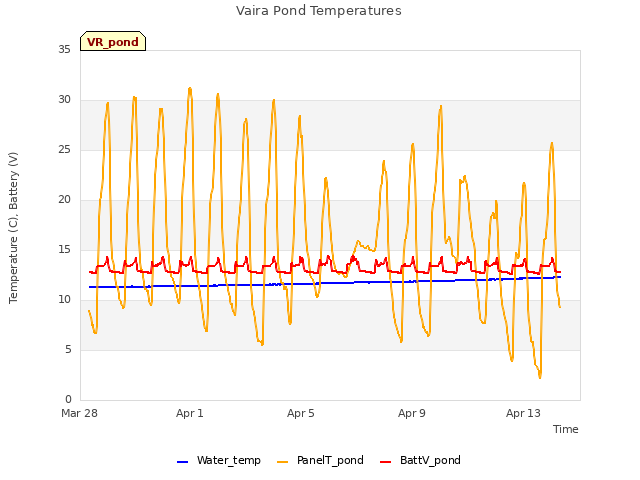

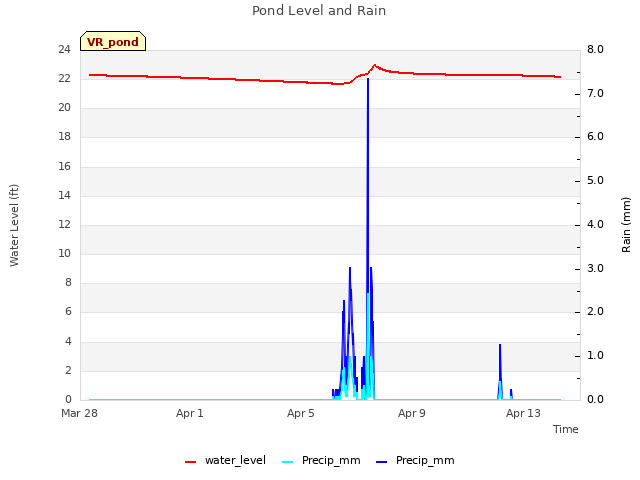

2 VR_pond graphs found

Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
