Vaira: 2018-03-06 09:00:00 (DOY 65)
Author: Joe Verfaillie
Others: Siyan

Summary: Downgraded LI-7550, swapped 7500 head, changed sftp to key auth, swapped testTC 2 with testTC 4, collected pond data

Vaira,
2018-03-06

I arrived at about 9am with Siyan. It was super clear, sunny and warm with little to no wind. The Sierras were visible all the way out from the Delta and I could see Mt Diablo clearly from Tonzi. Puddles on the road and the ground is damp.

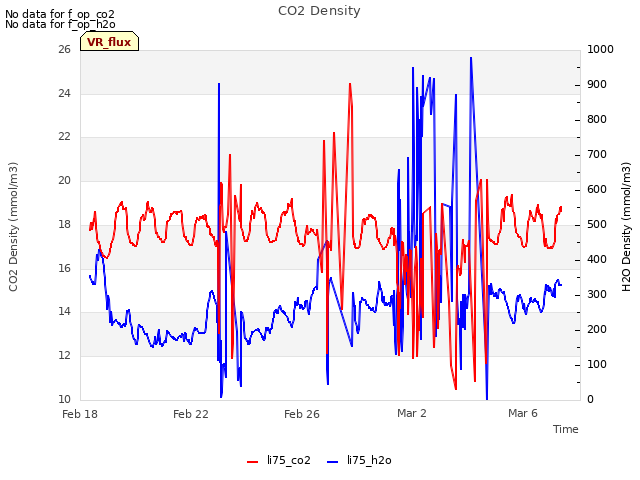

I downgraded the firmware of the 7550 sn AIU-1870 from v8.7.5 to v8.5.0. This was to standardize our systems. All the Delta systems went back to v8.5.0 because of problems with extra junk columns showing up when a 7700 was connected in v8.7.5. Then swapped heads for calibration sn 0065 coming off and sn 75H-2182 going up.

V8.7.5 0065: 411ppm CO2, 292mmol/m3 H2O, 13.07C, 100.2kPa, 110.3SS
V8.5.0 0065: 411ppm CO2, 284mmol/m3 H2O, 13.96C, 100.2kPa, 110.3SS
V8.5.0 2182: 415ppm CO2, 297mmol/m3 H2O, 15.58C, 100.2kPa, 87.3SS
I checked the columns and time â€“ all looked well.

After downgrading and swapping, I collected the data. I changed the sftp upload to use a provide key instead of a password to log in to mrspoc.

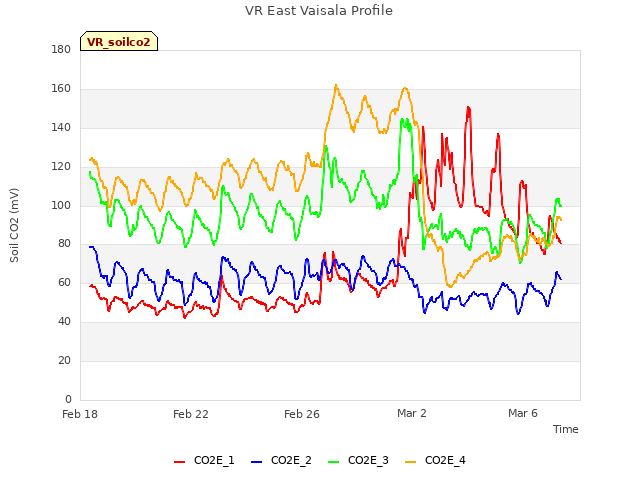

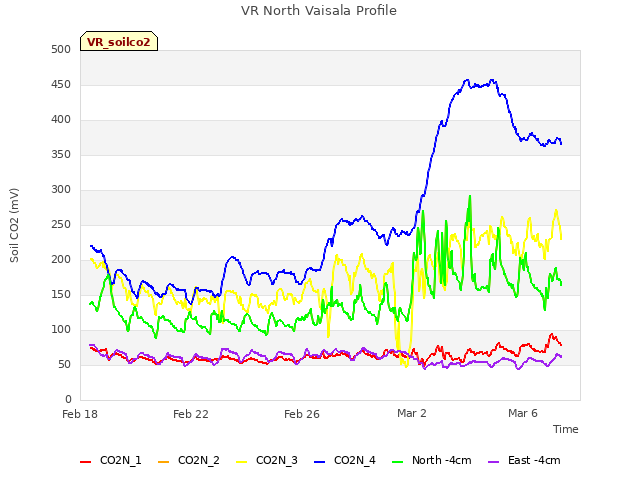

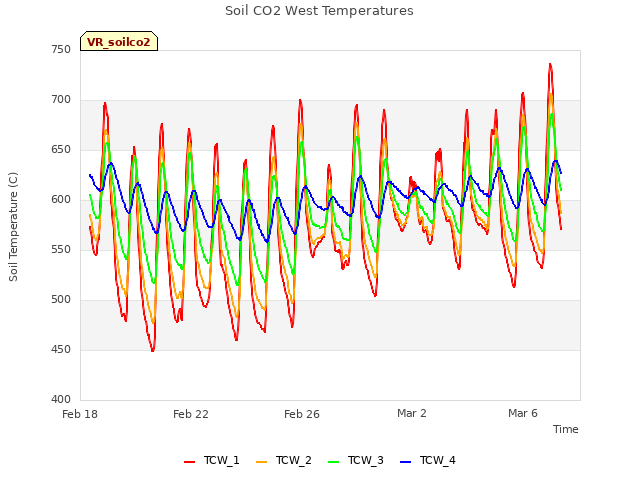

I moved the testTC 2 to the CR10X and testTC 4 back to the multiplexor on the soil co2 system.

Siyan did the standard fieldwork and collected clip plots.

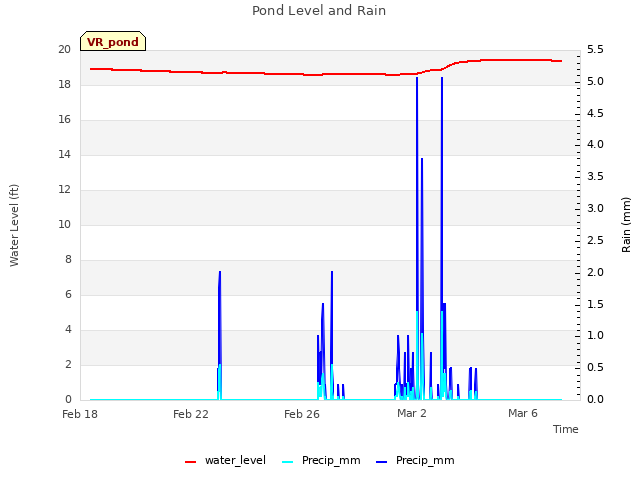

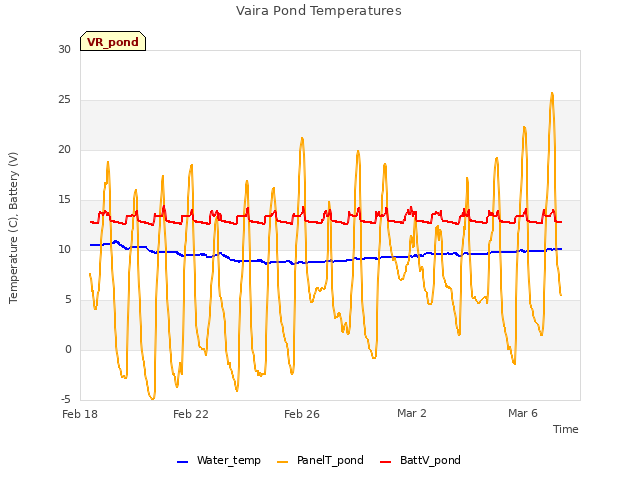

We went to the pond. It water level is still about 3ft below the spillway at 19.44ft

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-03-06	TZ_floor	27
2018-03-06	TZ_road	36.3
2018-03-06	TZ_tower	31.4
2018-03-06	VR_pond	19.44

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-03-06	65	0	nan	44.9	30.8	43.7	42.8	29.4	28.8	24.7	21.2	32.6	29.4	28.3	41.1	43.6	36.8	38.7	37.8	33.2	33.2	26.5	31.9	35.9	34.7	36.6	41.3	40.5	39.6	34.9	33.5	32.9	35.2	36.3	38.8	38.8	41.4	52.9	52.8	44.3	34.8	44.3	46.6	39.4	44.5	59.3	46.8
2018-03-06	65	1	nan	44	24.1	44.6	43.7	29.7	25	25.8	21.4	34.3	30.2	28.5	41.7	44.2	35.9	33.2	38.4	335	33.5	26.1	31.9	35.9	34.1	37.1	39.9	39.4	39.9	35.7	32.4	34.1	36.6	37.1	37.1	37.1	40	54.6	54.6	45.7	35.1	45.1	46.3	38.5	44.5	50	50.6
2018-03-06	65	Avg	0-15cm																																													0
2018-03-06	65	Avg	15-30cm																																													0
2018-03-06	65	Avg	30-45cm																																													0
2018-03-06	65	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-03-06	65	0	nan	26.4	2.4	27.6	14.7	28.9	30.4	24.6	24	31.5	16.2	23.2	31.5	41.7	29.7	23.9	33.1
2018-03-06	65	1	nan	28.5	21.4	27.6	15.9	29.2	30.7	24.6	23.4	31.3	16.2	23.7	31	42	29.4	24.8	32.8
2018-03-06	65	Avg	0-15cm																	0
2018-03-06	65	Avg	15-30cm																	0
2018-03-06	65	Avg	30-45cm																	0
2018-03-06	65	Avg	45-60cm																	0
