Tonzi: 2018-03-27 10:30:00 (DOY 86)
Author: Joe Verfaillie
Others: Siyan, Ana

Summary: Trees starting to put on leaves, fixed CR200, removed old well logger, turned off old Tower co2 profile, LAI-2200 measurements, replaced IRT tripod.

Tonzi
2018-03-27

I arrived at about 10:30 with Siyan and Ana. It was warm, clear and sunny with a light breeze. The trees have begun to put on leaves. There was sand and gravel debris on Irish Hill Road in a couple of places likely from run off due to heavy rains. The pond was full as were puddles on the road.

I checked on the CR200 at the Floor tower. It was toggling the wrong port to turn on the zcam. It was toggling C1 when it should have been the SW12V. I collected the data then fixed the program and change the time offset to test the camera. I saw it turn the camera on and off. I restored the correct time offset.

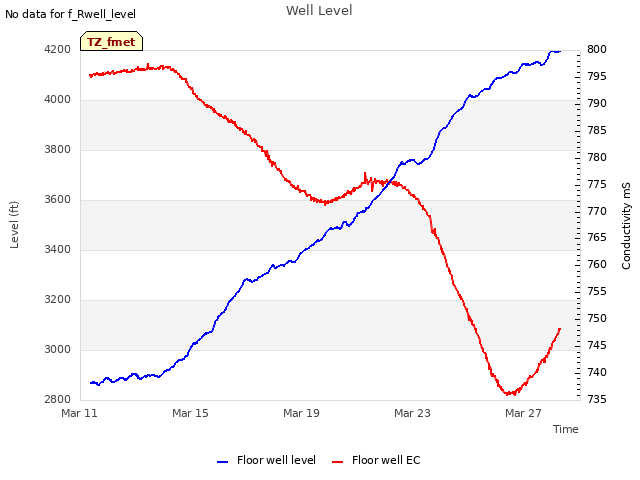

Siyan collected the well data then I removed the old Global Water logger sn 57278 to try and repair the cable in the lab.

Ana did LAI-2200 measurements with one wand on top of the tower. And she looked around for possible thermal camera locations.

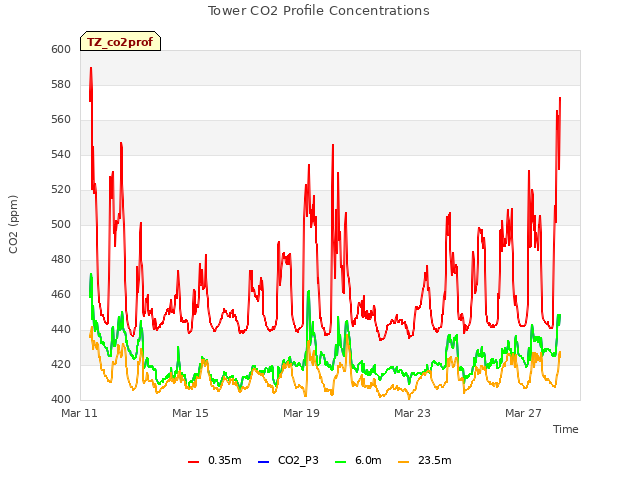

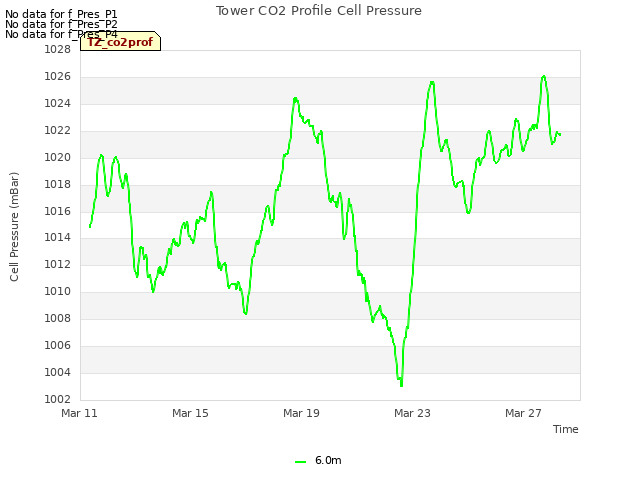

The LI-820 was giving bad CO2 numbers on the old tower profile system. I collected the data and turned the system off. I think I will give up on that system.

There was a full set of phenocam images on the Tower met CR1000. But I couldnâ€™t get them off because I used the spare CFM card at Vaira and didnâ€™t have a card reader with me. The CFM card should be okay until next time.

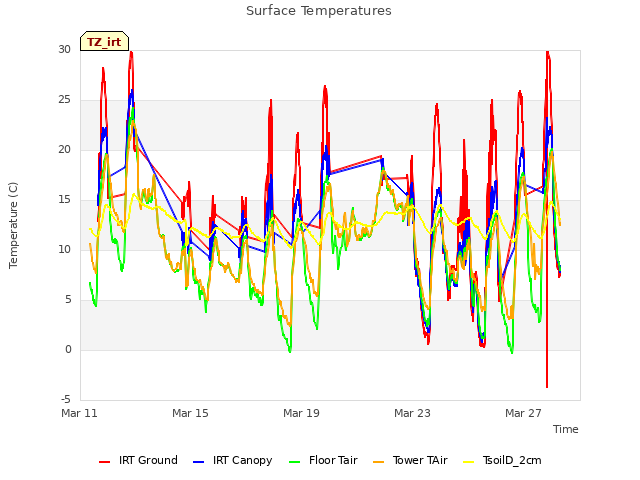

We replaced the surveying tripod on the IRT sensors with a heavy duty aluminum tripod. The surveying tripod kept leaning over as one of the legs loosened up. We also replaced the battery that was killed when the tripod fell over and didnâ€™t get enough solar power.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-03-27	TZ_floor	22.6
2018-03-27	TZ_road	31.1
2018-03-27	TZ_tower	26.5
2018-03-27	VR_pond	22.24

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-03-27	86	0	nan	42.8	32.9	48.1	39	29.7	24.4	24.4	24.1	33.5	30.2	29.7	42.3	45.7	38.7	39	40.5	33.2	33.5	25.8	30.4	35.1	32.9	37.4	43.5	39.6	41.3	38.2	34.1	35.7	35.2	36.3	38.5	38.8	46.1	55.1	41.4	46.3	35.4	46.3	50	39.7	44.8	50.6	49.1
2018-03-27	86	1	nan	43.7	26.4	48.4	38.7	29.4	20.3	26.7	24.1	33.8	31.4	29.4	41.4	45.1	38.7	39.3	40.8	33.2	34.1	25.8	30.4	27.4	34.1	36.3	43.3	41.3	41.8	38.5	34.9	36.6	36.3	37.1	39.4	39.4	41.7	58.3	54.9	47.7	37.1	52	50.3	39.1	46.6	51.7	48.6
2018-03-27	86	Avg	0-15cm																																													0
2018-03-27	86	Avg	15-30cm																																													0
2018-03-27	86	Avg	30-45cm																																													0
2018-03-27	86	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-03-27	86	0	nan	25.3	22.9	31.1	17.9	28.9	30.4	24.6	24	31.5	17.3	24.3	31.5	42.5	31.4	24.2	33.1
2018-03-27	86	1	nan	29.9	22.6	30.8	17.6	28.3	30.7	24.9	23.7	31	17.3	24.3	32.4	42.5	31.7	23.9	33.1
2018-03-27	86	Avg	0-15cm																	0
2018-03-27	86	Avg	15-30cm																	0
2018-03-27	86	Avg	30-45cm																	0
2018-03-27	86	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-03-27	1	16.5
2018-03-27	102	10.4
2018-03-27	2	22.0
2018-03-27	245	9.2
2018-03-27	3	17.0
2018-03-27	4	8.0
2018-03-27	5	7.2
2018-03-27	7	21.0
2018-03-27	72	13.0
2018-03-27	79	11.5
2018-03-27	8	23.9
