Field Notes
<--2018-01-03 09:00:00 | 2018-02-07 09:00:00-->Other sites visited today: Tonzi | Tonzi
Vaira: 2018-01-15 10:30:00 (DOY 15)
Author: Joe Verfaillie
Others: Siyan
Summary: Removed FD chambers, Standard field work.
Varia 2018-01-15 I arrived at about 10:30 with Siyan. It was foggy and cold with a bit of a breeze. The fog began lifting soon after we left for Tonzi. The ground was wet and there were puddles on the road. The water hole is close to full. We saw a cow rancher coming and going with a truck and trailer. I collected data from the three FD chambers and removed them (sn 20160004, sn 20160005, sn 20160006) for return to Eosense. Inside the collars was mostly sprout free. I looked at the test TCs on the soil CO2 system. There is one free SE channel on the 10X. I didn’t see a way to move things around to avoid the voltage divider on the multiplexer. So I changed the program to collect the raw mV instead of doing the TC function. I collected the 7500 data and left the box door unlatched – we came back on our way home to latch the door. Siyan did the usual fieldwork. We did not go to the pond. |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2018-01-15 | TZ_floor | 28.5 |
2018-01-15 | TZ_road | 37.3 |
2018-01-15 | TZ_tower | 33.6 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_East
[3] => Floor_West
[4] => Soil_Transect_4
[5] => Soil_Transect_3
[6] => Soil_Transect_2
[7] => Soil_Transect_1
[8] => SoilCO2_West_A
[9] => SoilCO2_West_B
[10] => SoilCO2_West_C
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_East |
Floor_West |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2018-01-15 | 15 | 0 | 0-15cm | 30.2 | 27.6 | 41.7 | 34.3 | 22.9 | 37.3 | 22.9 | 18.8 | 28.8 | 29.1 | 25.8 | |||
2018-01-15 | 15 | 0 | 15-30cm | 39 | 36.5 | 35 | 35.8 | 32.9 | 32.9 | 31.6 | 19.4 | 29.5 | 25.8 | 32.3 | |||
2018-01-15 | 15 | 0 | 30-45cm | 34.6 | 42.4 | 42.7 | 38.8 | 36.8 | 34.1 | 34.3 | 32.9 | 36.3 | 35.7 | 37.4 | |||
2018-01-15 | 15 | 0 | 45-60cm | 39.1 | 40.3 | 55.4 | 44.3 | 34 | 45.1 | 48 | 31.9 | 44.3 | 49.1 | 47.4 | |||
2018-01-15 | 15 | 1 | 0-15cm | 31.1 | 27.3 | 41.1 | 34.1 | 24.4 | 28.2 | 23.2 | 19.1 | 29.4 | 29.1 | 25.3 | |||
2018-01-15 | 15 | 1 | 15-30cm | 39 | 40.5 | 35.3 | 35 | 33.2 | 32.9 | 32.3 | 19.7 | 28 | 25.8 | 32.3 | |||
2018-01-15 | 15 | 1 | 30-45cm | 36 | 41 | 39.4 | 39.4 | 36.8 | 33.8 | 33.5 | 32.7 | 36.3 | 36.3 | 36.3 | |||
2018-01-15 | 15 | 1 | 45-60cm | 38.2 | 38.8 | 54.9 | 44.8 | 33.1 | 44.8 | 46 | 32.4 | 46 | 48.8 | 45.8 | |||
2018-01-15 | 15 | Avg | 0-15cm | 30.65 | 27.45 | 41.4 | 34.2 | 23.65 | 32.75 | 23.05 | 18.95 | 29.1 | 29.1 | 25.55 | 28.71 | 11 | 22 |
2018-01-15 | 15 | Avg | 15-30cm | 39 | 38.5 | 35.15 | 35.4 | 33.05 | 32.9 | 31.95 | 19.55 | 28.75 | 25.8 | 32.3 | 32.03 | 11 | 22 |
2018-01-15 | 15 | Avg | 30-45cm | 35.3 | 41.7 | 41.05 | 39.1 | 36.8 | 33.95 | 33.9 | 32.8 | 36.3 | 36 | 36.85 | 36.7 | 11 | 22 |
2018-01-15 | 15 | Avg | 45-60cm | 38.65 | 39.55 | 55.15 | 44.55 | 33.55 | 44.95 | 47 | 32.15 | 45.15 | 48.95 | 46.6 | 43.3 | 11 | 22 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|
2018-01-15 | 15 | 0 | 0-15cm | 27 | 21.4 | 25.6 | 16.2 | |||
2018-01-15 | 15 | 0 | 15-30cm | 29.5 | 29.2 | 26.1 | 23.1 | |||
2018-01-15 | 15 | 0 | 30-45cm | 31.5 | 16.5 | 32.1 | 32.4 | |||
2018-01-15 | 15 | 0 | 45-60cm | 42.5 | 29.9 | 25.1 | 33.1 | |||
2018-01-15 | 15 | 1 | 0-15cm | 27.3 | 21.7 | 25.3 | 16.2 | |||
2018-01-15 | 15 | 1 | 15-30cm | 28.9 | 28.9 | 26.8 | 22.9 | |||
2018-01-15 | 15 | 1 | 30-45cm | 32.1 | 16.2 | 31.8 | 32.7 | |||
2018-01-15 | 15 | 1 | 45-60cm | 42.5 | 30.5 | 26.5 | 32.8 | |||
2018-01-15 | 15 | Avg | 0-15cm | 27.15 | 21.55 | 25.45 | 16.2 | 22.59 | 4 | 8 |
2018-01-15 | 15 | Avg | 15-30cm | 29.2 | 29.05 | 26.45 | 23 | 26.93 | 4 | 8 |
2018-01-15 | 15 | Avg | 30-45cm | 31.8 | 16.35 | 31.95 | 32.55 | 28.16 | 4 | 8 |
2018-01-15 | 15 | Avg | 45-60cm | 42.5 | 30.2 | 25.8 | 32.95 | 32.86 | 4 | 8 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

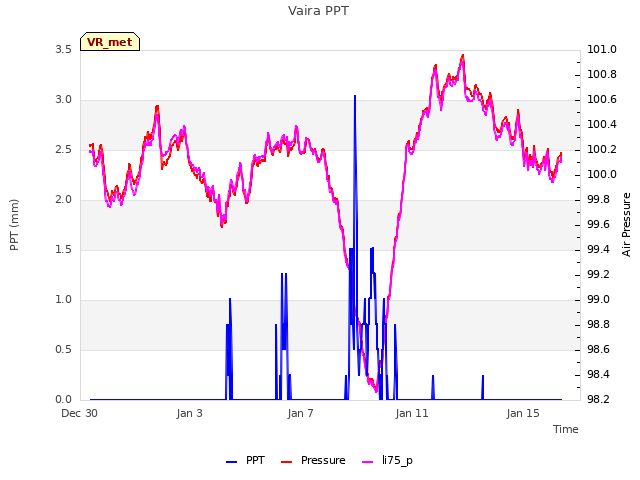

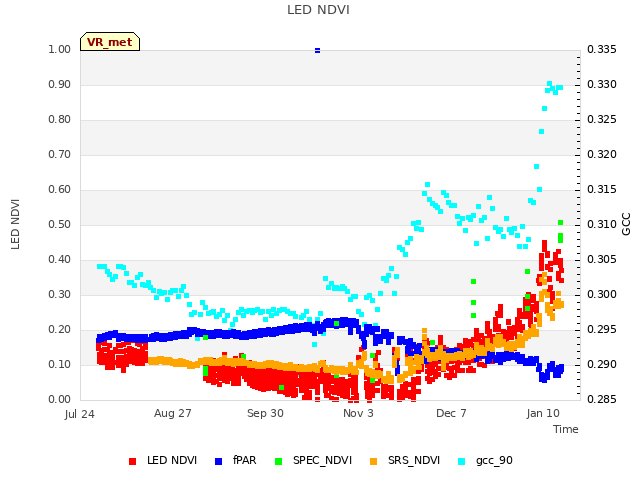

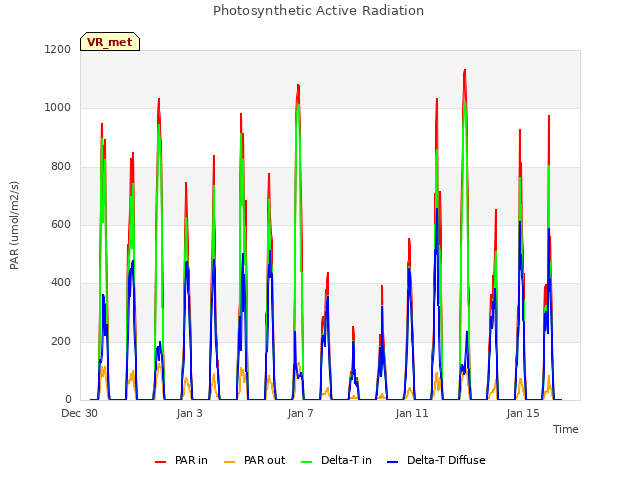

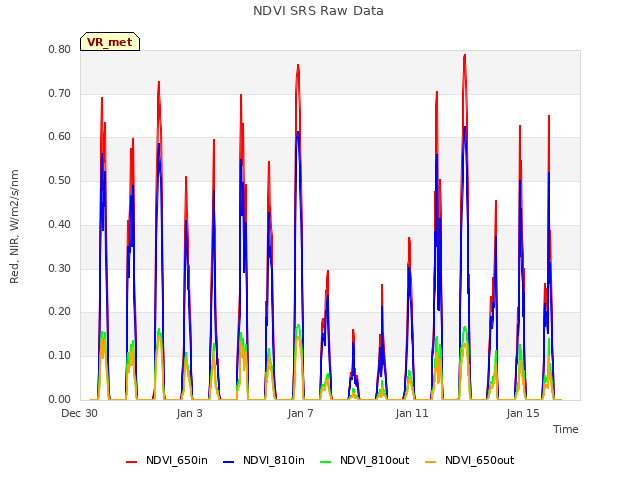

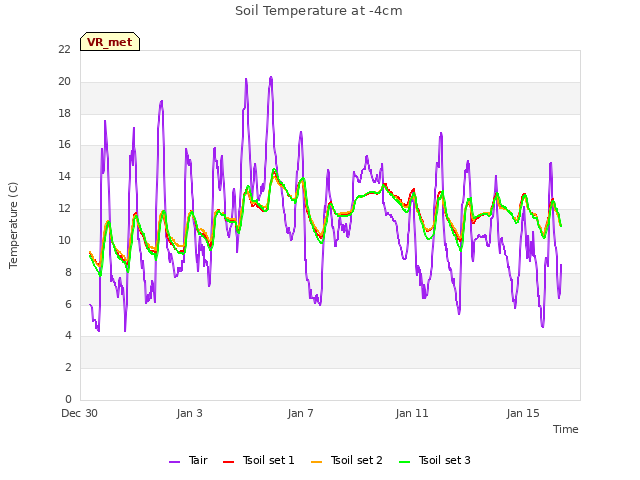

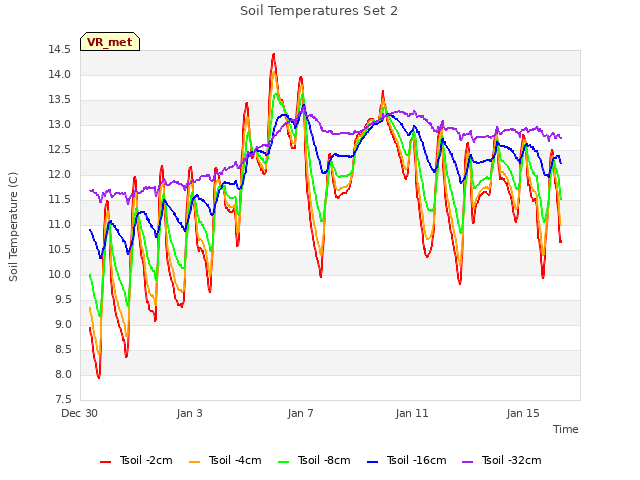

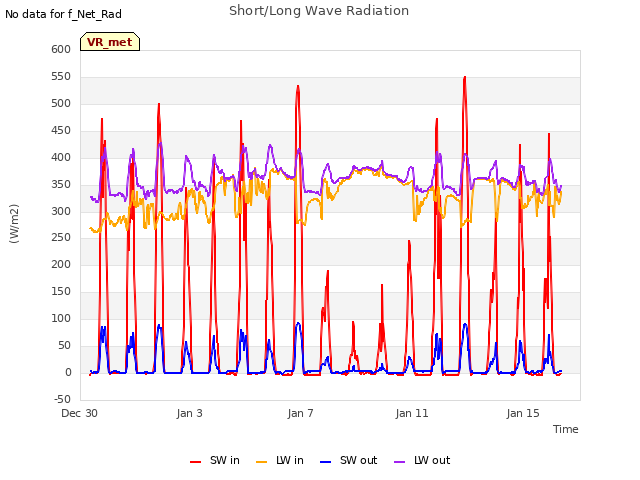

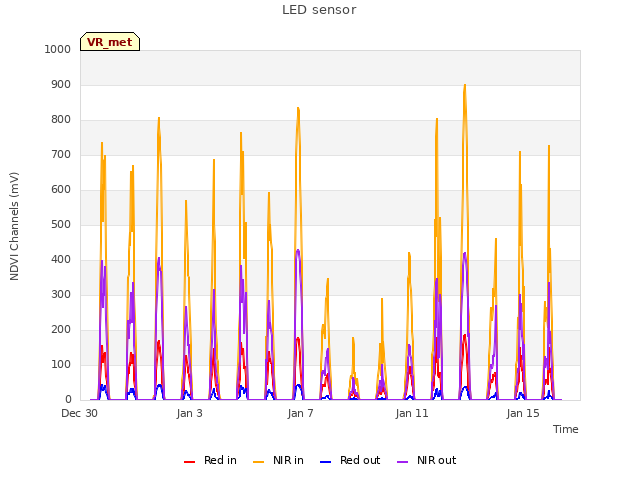

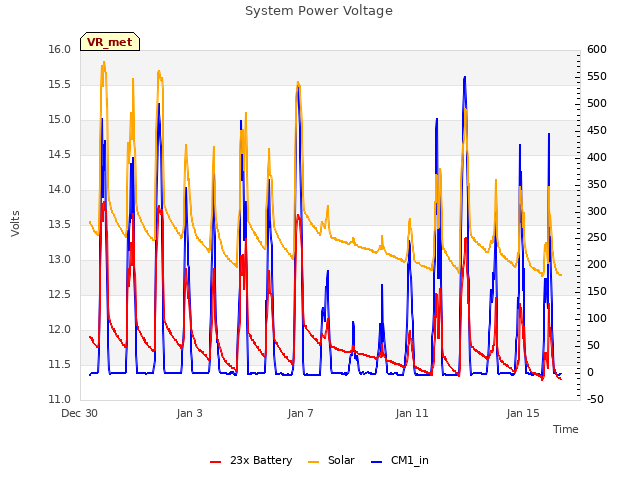

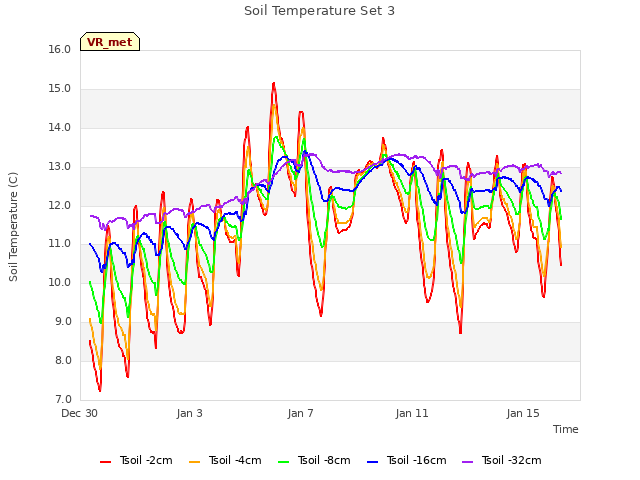

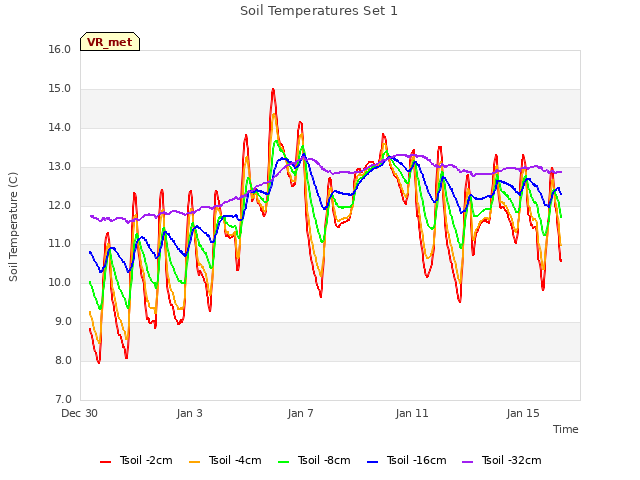

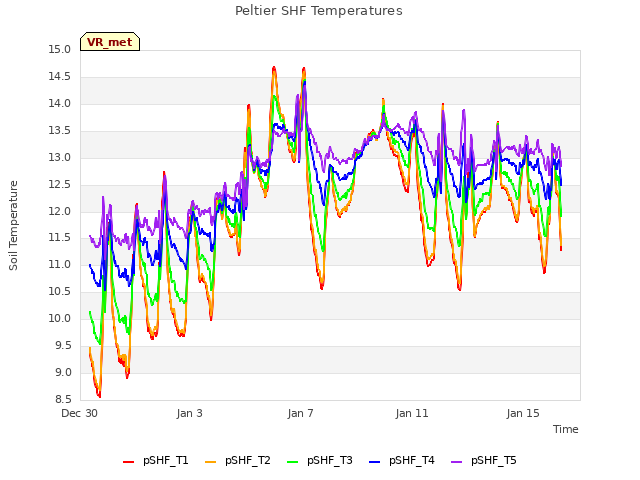

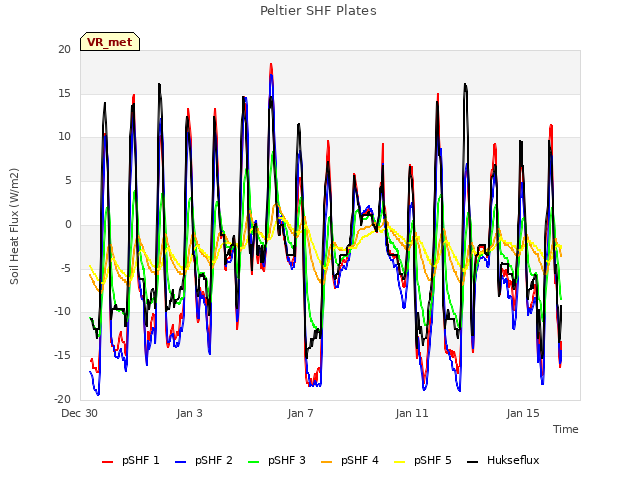

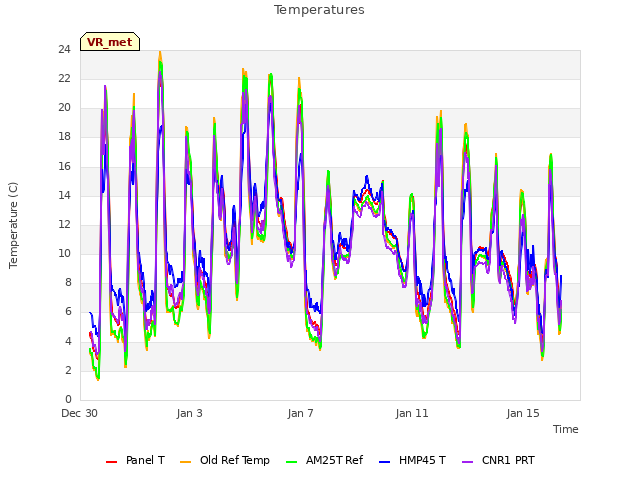

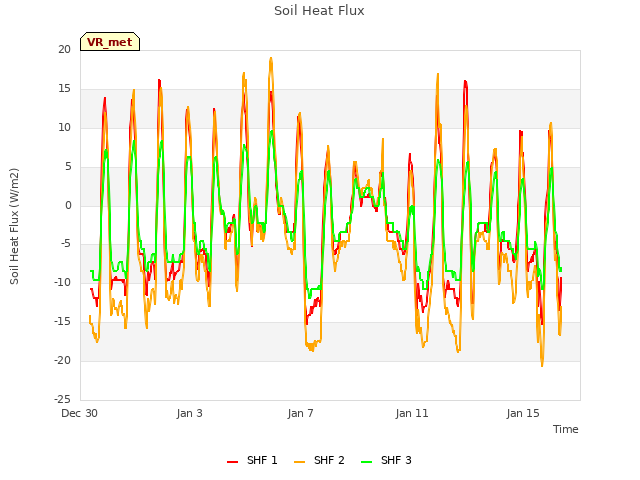

16 VR_met graphs found

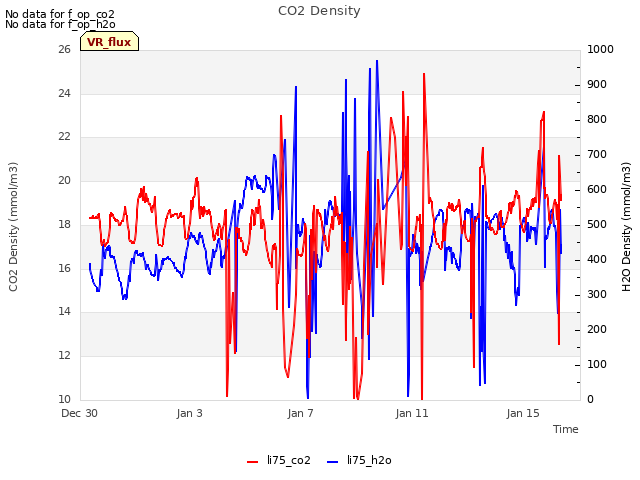

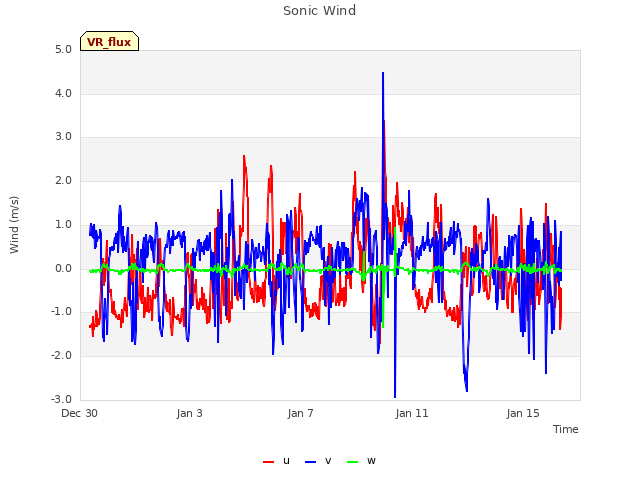

2 VR_flux graphs found

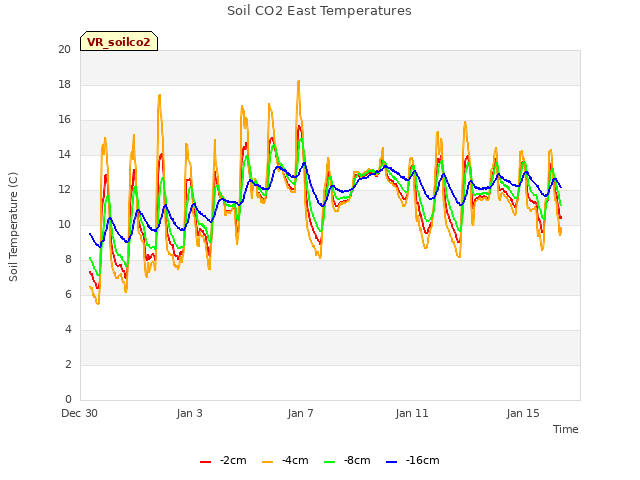

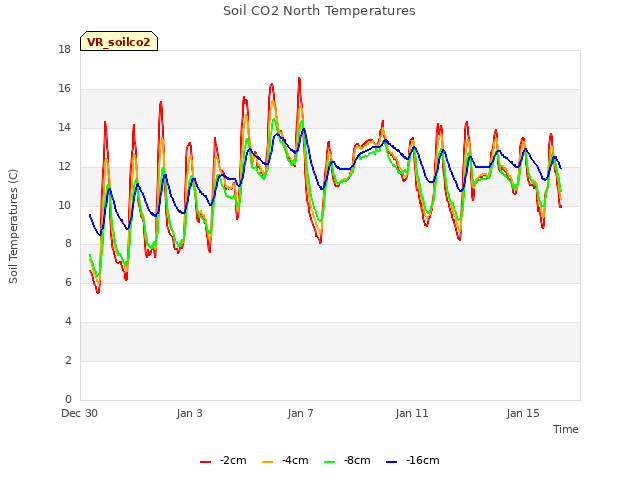

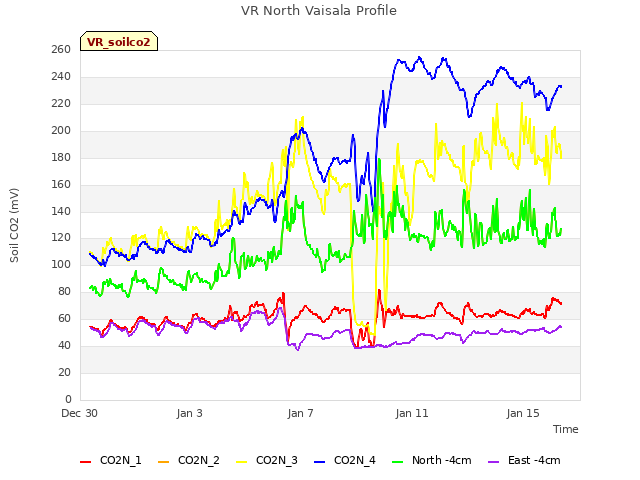

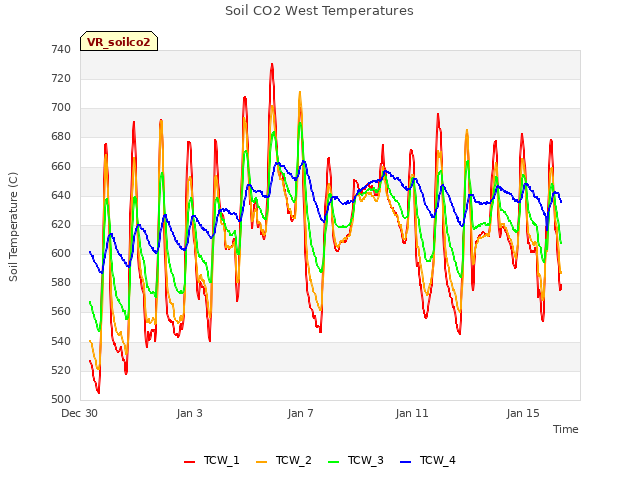

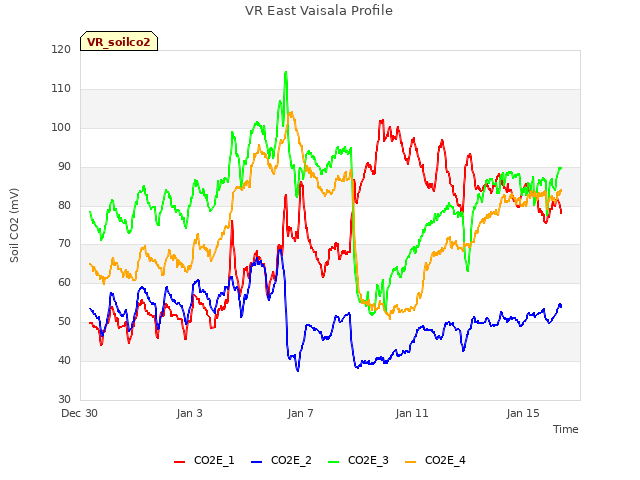

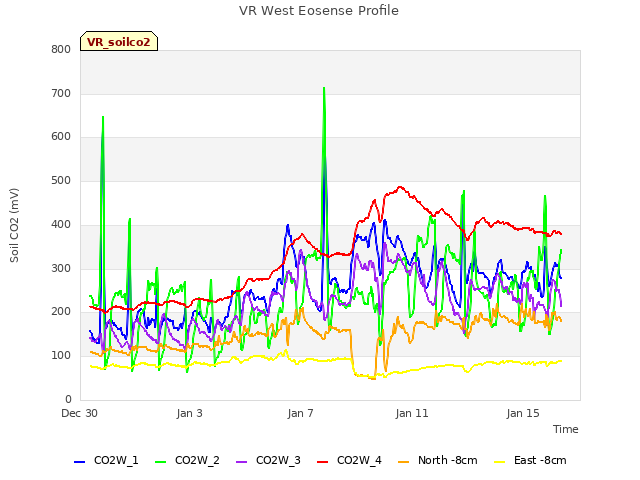

6 VR_soilco2 graphs found

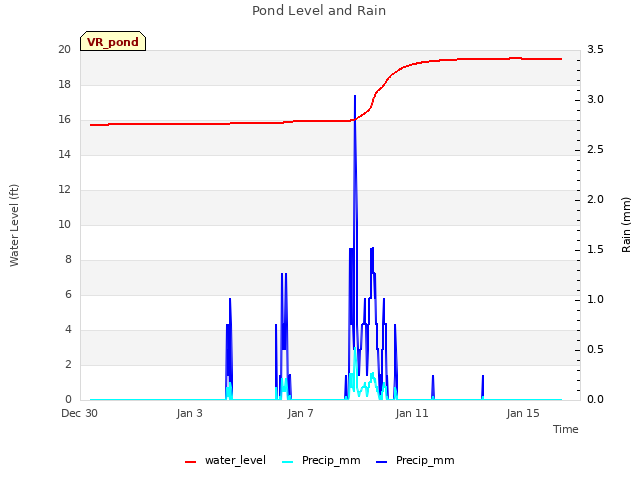

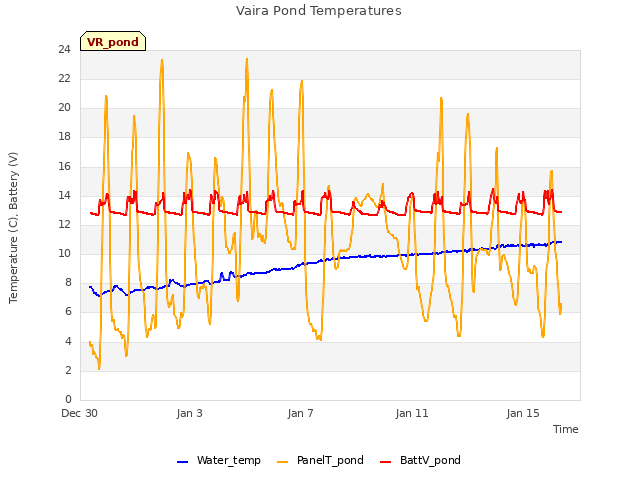

2 VR_pond graphs found
Can't check TZVR_mixed

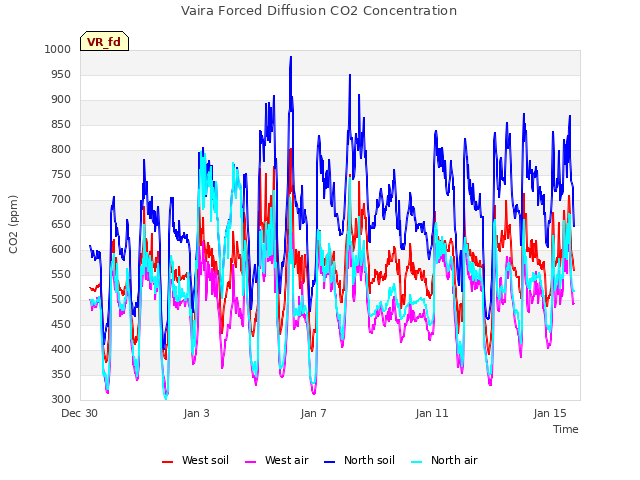

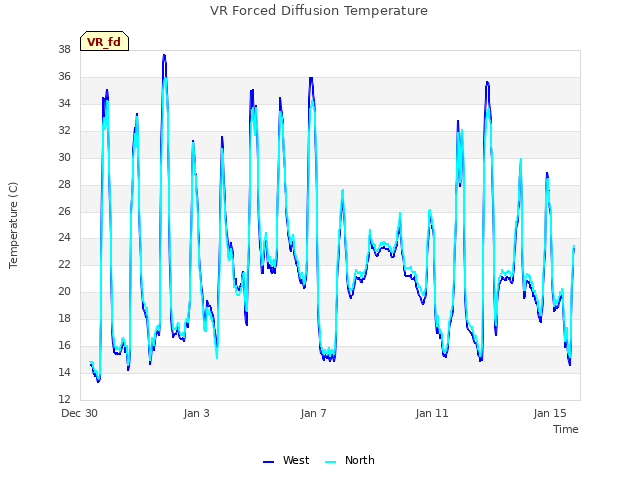

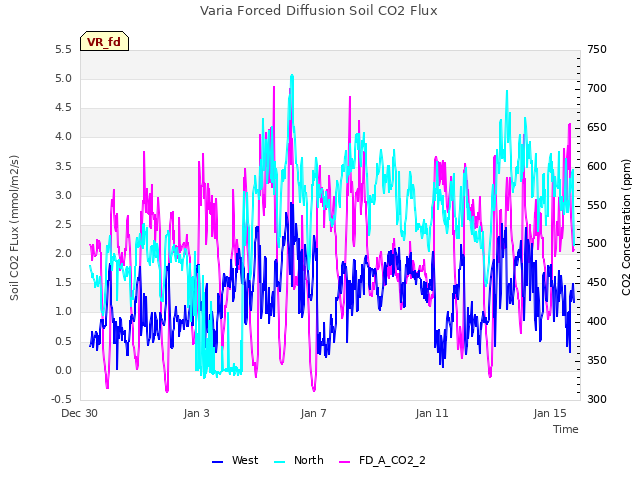

3 VR_fd graphs found
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
