Tonzi: 2018-01-15 11:30:00 (DOY 15)
Author: Joe Verfaillie
Others: Siyan

Summary: Partially installed new GMP343 co2 profile on the tower, removed the FD chamber for Tree 1 soil co2 profile.

Tonzi
2018-01-15

I arrived at about 11:30 with Siyan. It was cloudy and cool with fog lifting just after we arrived. The ground is wet with puddles in the road. The pond is still pretty low. The breeze we had at Varia is missing here. The grass is growing slowly.

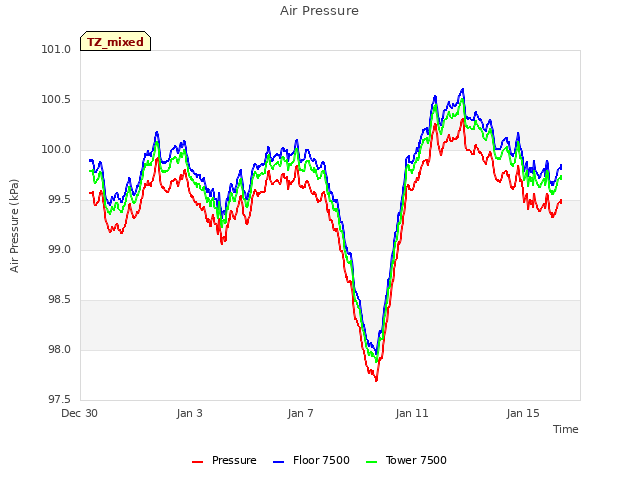

I worked on putting up the new Vaisala GMP343 CO2 profile on the tower. I put up the three lower sensors: sn N2220007 bottom, sn N2210010 2nd from bottom, sn N2210009 3rd from bottom. I put the box containing a CR6 just below the third location. I put the top GMP343 up but discovered that even after splicing more cable on it, its cable was still about 3m short. I also dropped its solar shield from the top of the tower and broke it. I decided to just run the bottom three but then the CR6 would not boot â€“ no power light and no response. I left the three GMP343s and the barometer sn B0310006 and HMP60 sn L2310711 in place and brought back the CR6 and the last GMP343.

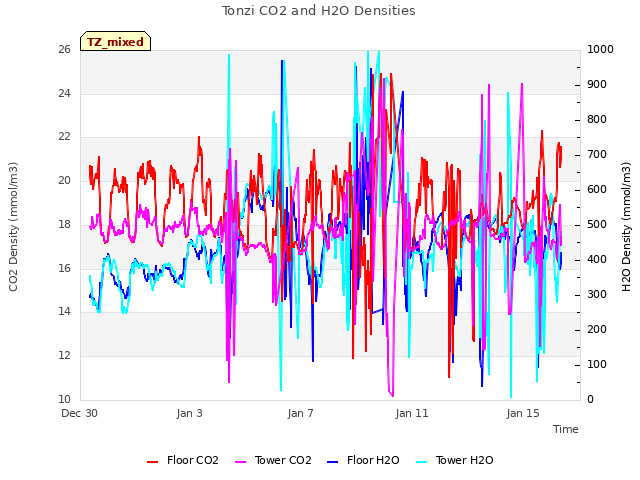

I collected the Licor GHG data and met data from the tower top. There seemed to be a full set of Phenocam photos this time. I tried to make an Ethernet cable to be left there for connecting the computer but the cable I made didnâ€™t seem to work.

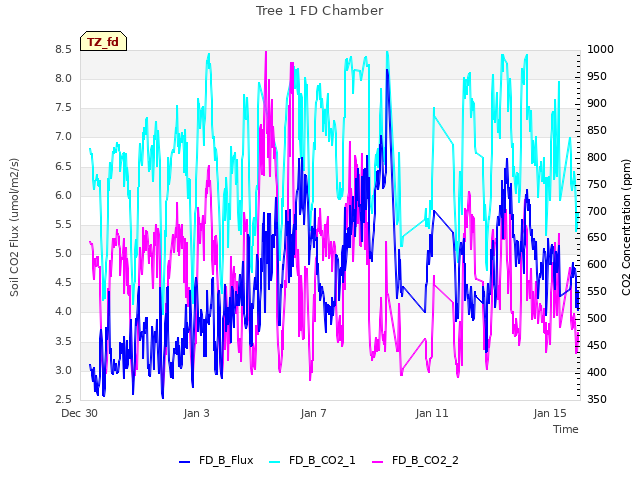

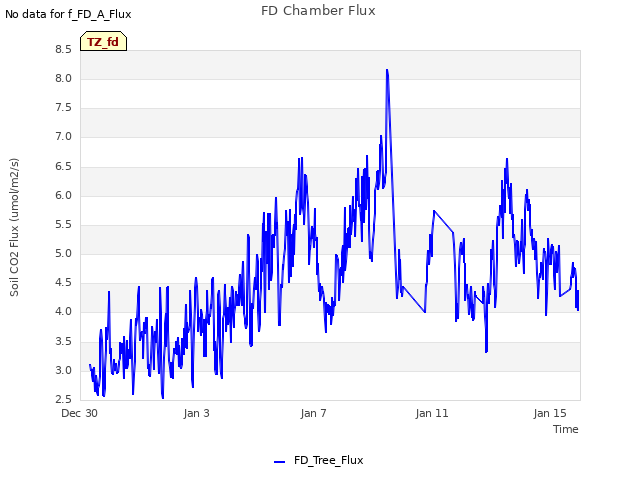

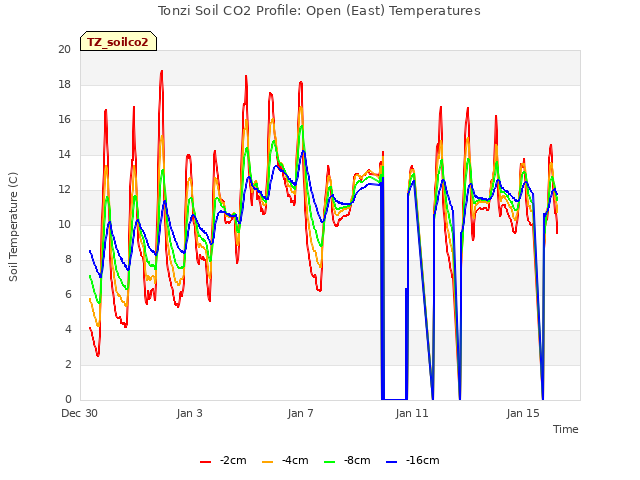

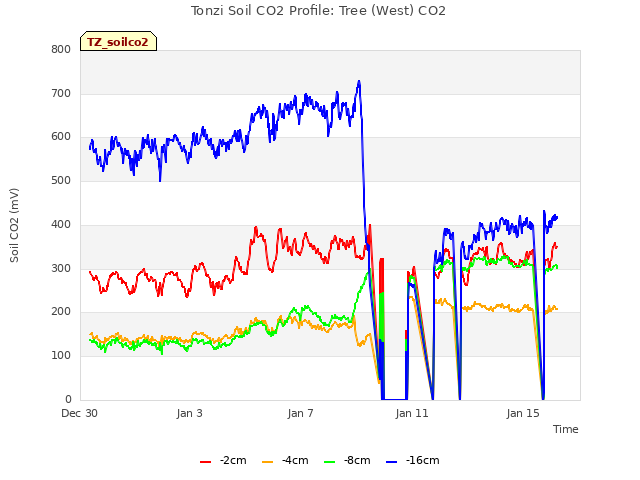

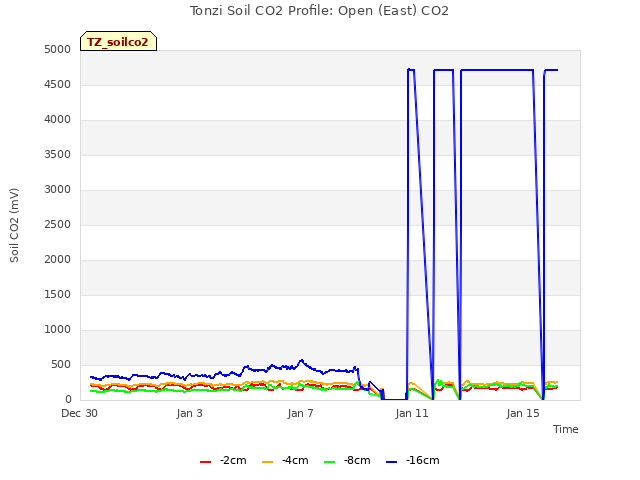

I removed the remaining FD chamber sn 20160003 from the Tree 1 soil co2 profile. I also removed the FD chamber cables from the Open profile where the failed chamber had been removed previously, but forgot the collar there.

Siyan did the usual field work.

Field Data

No tank data

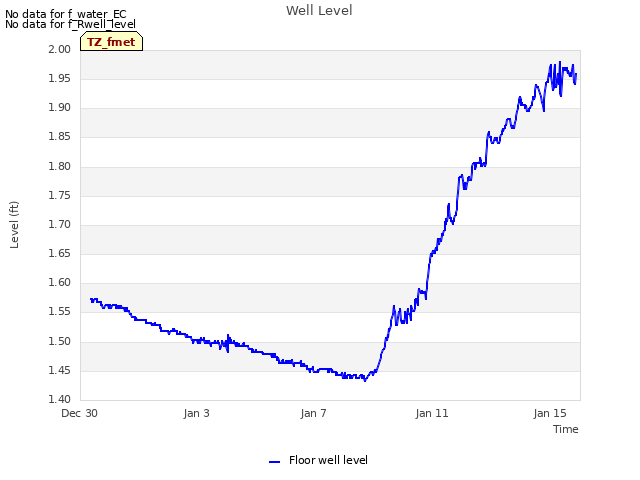

Well Depth

Date	Location	Depth (feet)
2018-01-15	TZ_floor	28.5
2018-01-15	TZ_road	37.3
2018-01-15	TZ_tower	33.6

mode = both

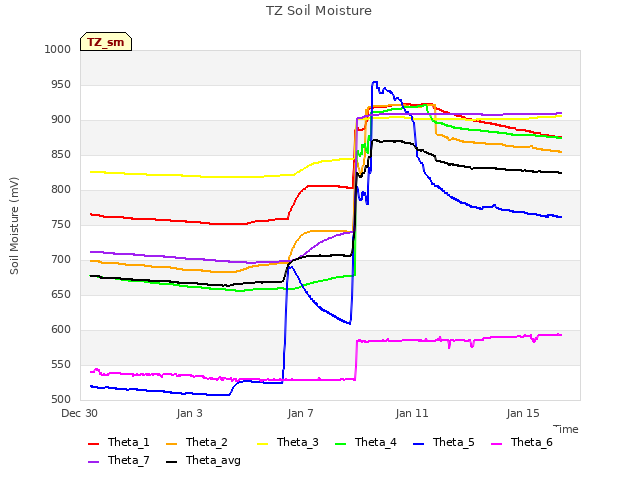

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-01-15	15	0	nan	30.2	27.6	41.7	34.3	22.9	37.3	22.9	18.8	28.8	29.1	25.8	39	36.5	35	35.8	32.9	32.9	31.6	19.4	29.5	25.8	32.3	34.6	42.4	42.7	38.8	36.8	34.1	34.3	32.9	36.3	35.7	37.4	39.1	40.3	55.4	44.3	34	45.1	48	31.9	44.3	49.1	47.4
2018-01-15	15	1	nan	31.1	27.3	41.1	34.1	24.4	28.2	23.2	19.1	29.4	29.1	25.3	39	40.5	35.3	35	33.2	32.9	32.3	19.7	28	25.8	32.3	36	41	39.4	39.4	36.8	33.8	33.5	32.7	36.3	36.3	36.3	38.2	38.8	54.9	44.8	33.1	44.8	46	32.4	46	48.8	45.8
2018-01-15	15	Avg	0-15cm																																													0
2018-01-15	15	Avg	15-30cm																																													0
2018-01-15	15	Avg	30-45cm																																													0
2018-01-15	15	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-01-15	15	0	nan	27	21.4	25.6	16.2	29.5	29.2	26.1	23.1	31.5	16.5	32.1	32.4	42.5	29.9	25.1	33.1
2018-01-15	15	1	nan	27.3	21.7	25.3	16.2	28.9	28.9	26.8	22.9	32.1	16.2	31.8	32.7	42.5	30.5	26.5	32.8
2018-01-15	15	Avg	0-15cm																	0
2018-01-15	15	Avg	15-30cm																	0
2018-01-15	15	Avg	30-45cm																	0
2018-01-15	15	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-01-15	1	14.9
2018-01-15	102	9.2
2018-01-15	2	21.5
2018-01-15	245	9.1
2018-01-15	3	14.5
2018-01-15	4	7.5
2018-01-15	5	6.3
2018-01-15	7	20.1
2018-01-15	72	11.5
2018-01-15	79	11.0
2018-01-15	8	23.4
