Vaira: 2018-02-07 09:00:00 (DOY 38)
Author: Joe Verfaillie
Others: Siyan, Daphne

Summary: Camera was off - fixed, standard fieldwork, went to the pond - lower than last year

Vaira
2018-02-07

I arrived at about 9am with Siyan and Daphne. It was clear sunny and warm. I was surprised to see puddles on the road and that the water hole was completely full. The grass is green and short, and the ground is wet as well maybe partly from the morning dew. We met Jim Vaira who was on his way to the barn to do some weed control.

The air was very still in the Delta where there was Tule fog and the water was mirror smooth.

Daphne collected the met and soil co2 data to Siyan's USB stick and collected USB GHG to the silver laptop.

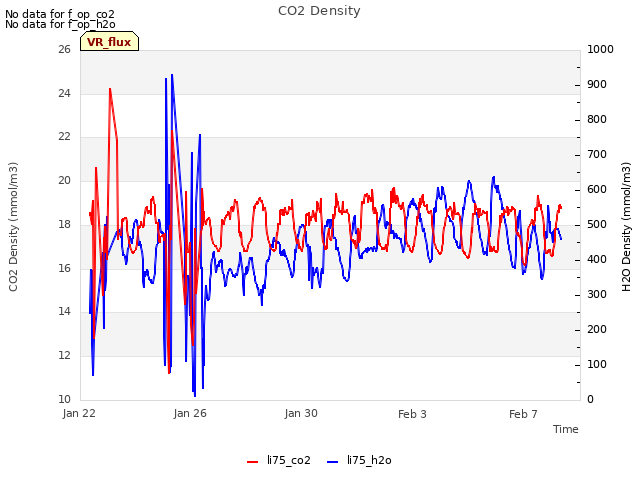

The 7500 read: 420ppm CO2, 413mmol/m3 H2O, 20.2C, 100.6kPa, 108SS

Siyan did the soil moisture, clip plots and spectral measurements.

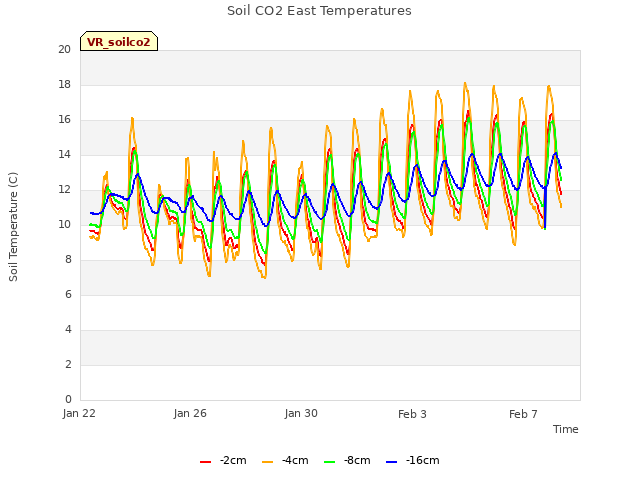

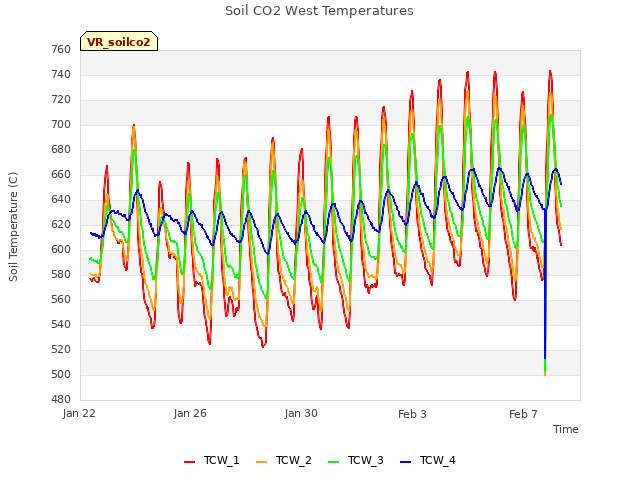

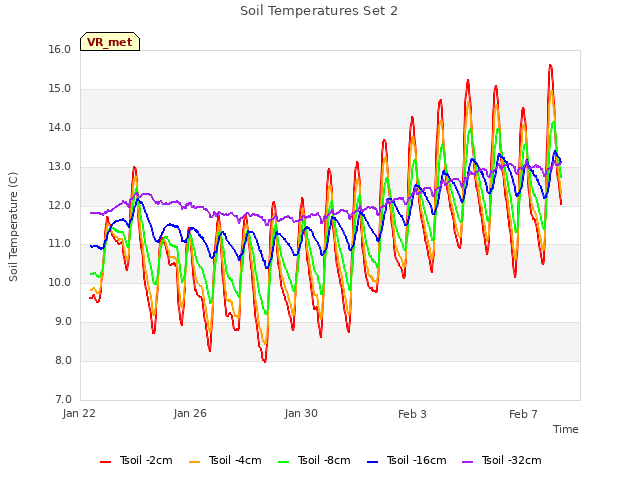

I moved one of the test TCs from the multiplexer to the CR10X since I have had no luck converting the mV to C. The first test TC (-2cm tube) is now on SE 10 and was reading 20C.

The Phenocam only recorded about three days of images. It didnâ€™t have power and I finally discovered a broken link on the old style screw terminal. I rewired it to avoid the broken link and the camera was running correctly again. The fan to the HMP45 might have been off too â€“ need to double check that next time, and rewire that entire power junction.

I also copied some of the cell modem settings off the computer for use at Tonzi and the Delta.

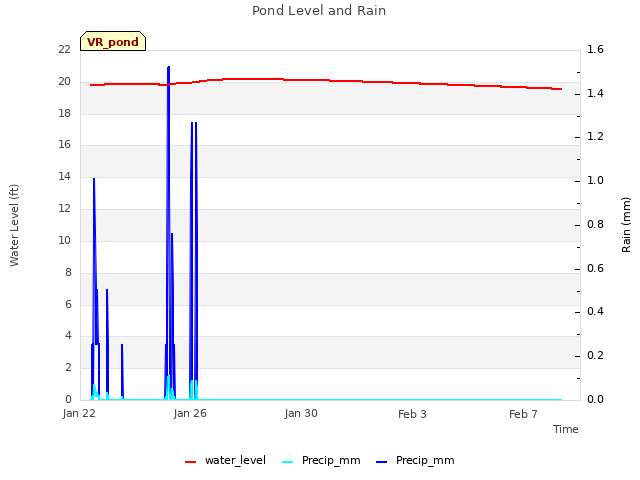

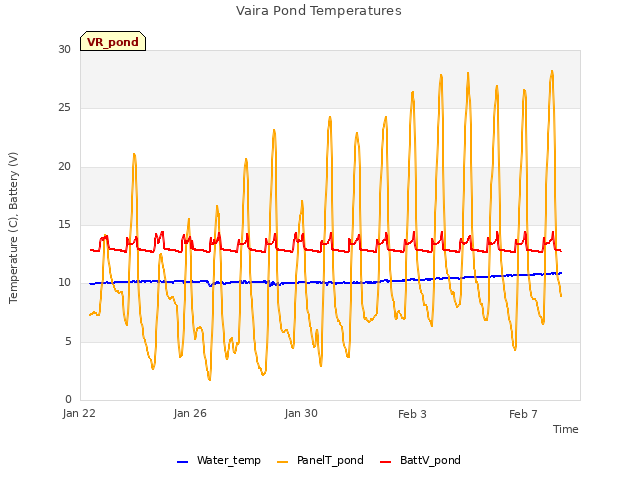

We went to the pond. The stream was running well and the road was damp but didnâ€™t give our minivan any trouble. The pound is several feet lower (19.52ft) than it was at this time last year.

Veg Height (cm): Tape measure from ground to top of plant
16, 10.5, 20, 18.5, 10, 10.5, 5.5, 12, 12, 12, 11, 10, 9, 5, 13, avg = 11.7, stdev = 4.1

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-02-07	TZ_floor	27.6
2018-02-07	TZ_road	36.6
2018-02-07	TZ_tower	32.1
2018-02-07	VR_pond	19.52

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-02-07	38	0	nan	34.1	31.7	37.3	37.3	27.6	25.6	21.4	16.5	27.3	25.6	22.9	35.6	41.7	37.1	29.5	28.3	31.3	30.7	19.4	25.5	21.3	31.3	32.4	39.9	40.2	39.1	30.7	32.7	33.2	32.7	35.7	34.3	39.1	39.1	53.1	543	44.8	34.5	43.1	47.1	32.8	44	49.1	48.3
2018-02-07	38	1	nan	32.6	31.7	37.6	37.9	27.6	25.3	22	16.2	25	25.3	25.3	35	42.3	37.8	28.9	28.3	32.3	31.3	18.2	27.1	21.9	31	32.1	41	39.9	39.9	31.5	31.3	33.2	32.4	35.2	34.6	38.2	39.4	56.3	57.2	45.4	34	42.3	47.7	32.2	43.7	50	48
2018-02-07	38	Avg	0-15cm																																													0
2018-02-07	38	Avg	15-30cm																																													0
2018-02-07	38	Avg	30-45cm																																													0
2018-02-07	38	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-02-07	38	0	nan	39.9	19.7	22	19.7	32.6	28.6	31	21.3	33.5	15.4	20.7	41.9	34.8	28.5	21.3	41.4
2018-02-07	38	1	nan	21.4	19.4	22	15.9	33.8	28.9	21.3	24.3	33.5	14	20.4	51.3	35.1	28.5	21.9	37.7
2018-02-07	38	Avg	0-15cm																	0
2018-02-07	38	Avg	15-30cm																	0
2018-02-07	38	Avg	30-45cm																	0
2018-02-07	38	Avg	45-60cm																	0
