Bouldin Alfalfa: 2018-01-16 13:20:00 (DOY 16)
Author: Daphne Szutu
Others: Dennis, Kyle, Sam

Summary: Regular data collection/cleaning, veg height, biomass samples, sheep at far end of footprint

2018-01-16
Bouldin Alfalfa

We arrived at 13:20. It was cloudy and cool with a slight breeze. The roads by the field seemed a bit drier than last time, but it's still slippery and 4WD is nice to have. I parked by the side of the road instead of driving down into the field to be safe. There are sheep on the western side of the field, at the far end of our footprint.

Kyle cleaned the wash reservoir; it was was 1/2 full. Sam cleaned the rad and flux sensors. There have been birds sitting on the radiation sensor pole.

Dennis took veg height measurements. Kyle did clip plots (biomass samples).

I collected met, camera, and USB GHG data. The gasket around the met datalogger enclosure is loose and should be re-glued. This enclosure also needs mothballs.

LI-7500 readings:
CO2 438 ppm
H2O 560 ppm
T 13.2 C
P 102.3 kPa
SS 106 --> 107 after cleaning

LI7700 readings:
CH4 2.16 ppm
RSSI 53 --> 81 after cleaning

We left around 13:55.

Next Mowing: 2018-03-30

Veg Height (cm): Tape measure from ground to top of plant
30, 36, 23, 29, 27, 20, 23, 21, 22, 17.5, 20, 19, 27, 22, 19.5, 19, 16.5, 18, avg = 22.8, stdev = 5.15

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

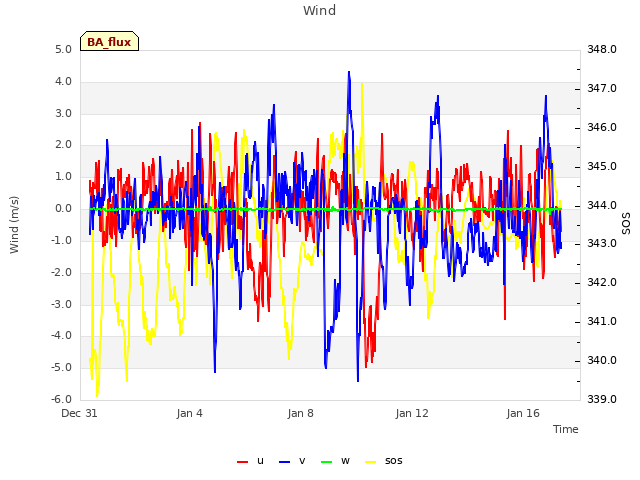

Explore the graph:Wind in a new window

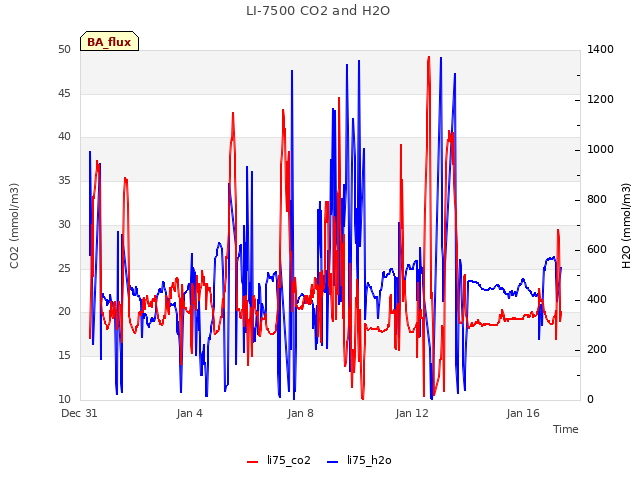

Explore the graph:LI-7500 CO2 and H2O in a new window

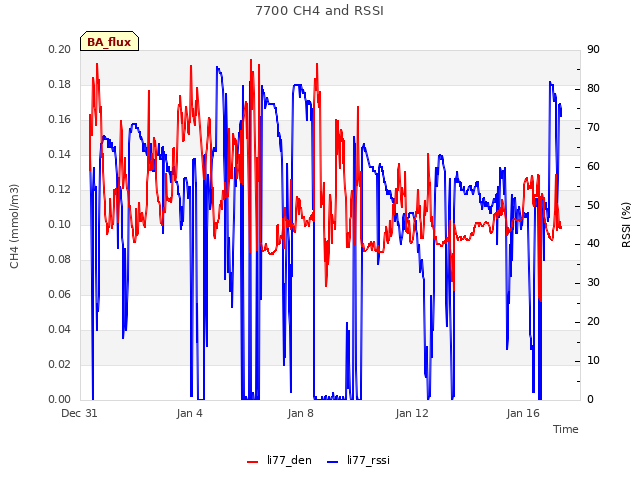

Explore the graph:7700 CH4 and RSSI in a new window

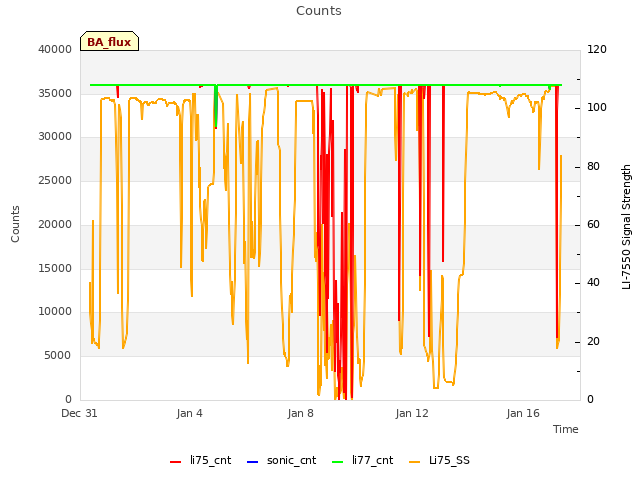

Explore the graph:Counts in a new window

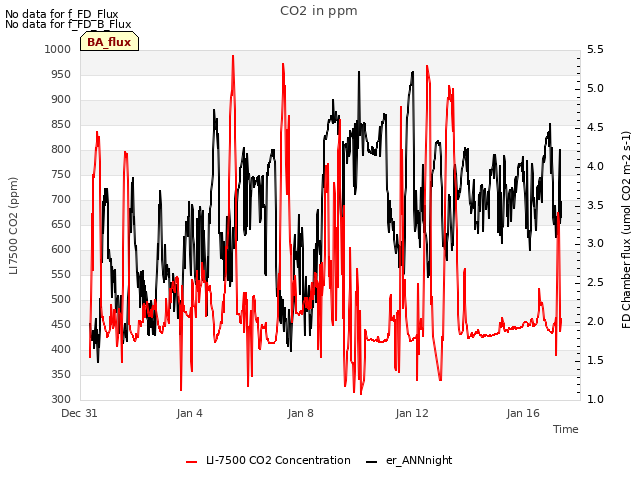

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

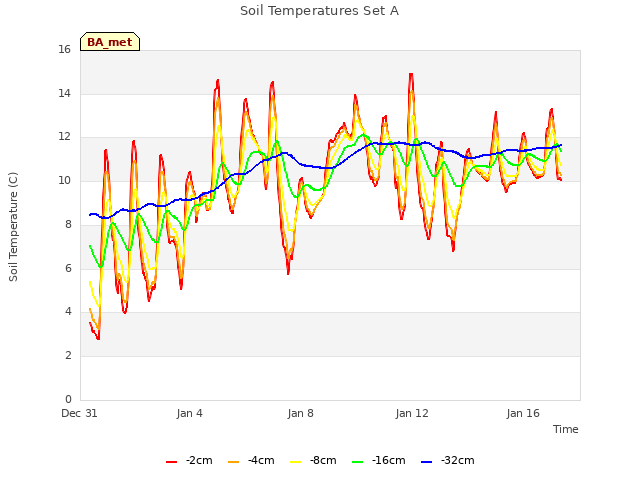

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

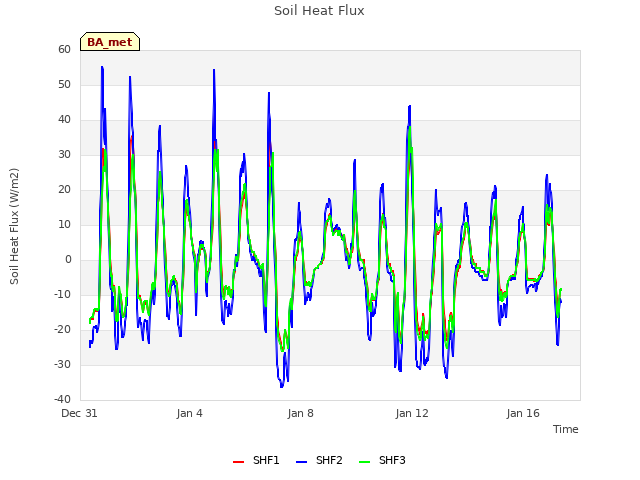

Explore the graph:Soil Heat Flux in a new window

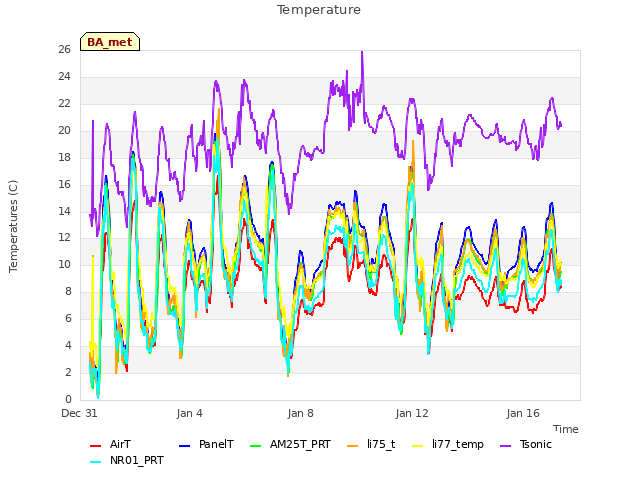

Explore the graph:Temperature in a new window

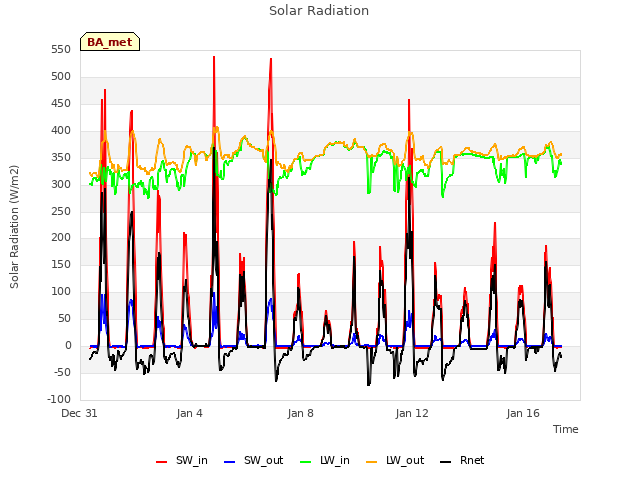

Explore the graph:Solar Radiation in a new window

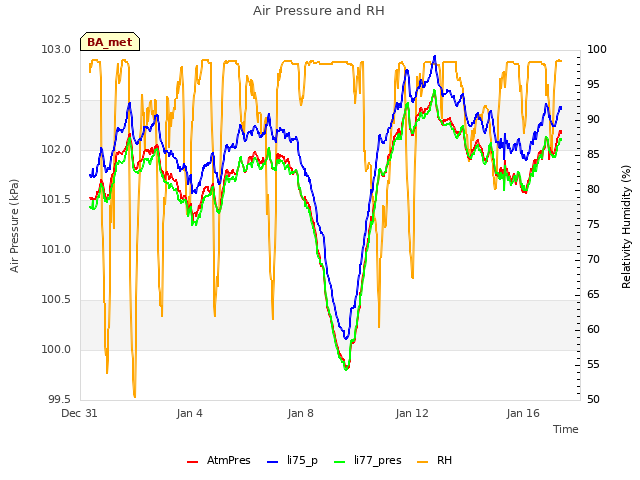

Explore the graph:Air Pressure and RH in a new window

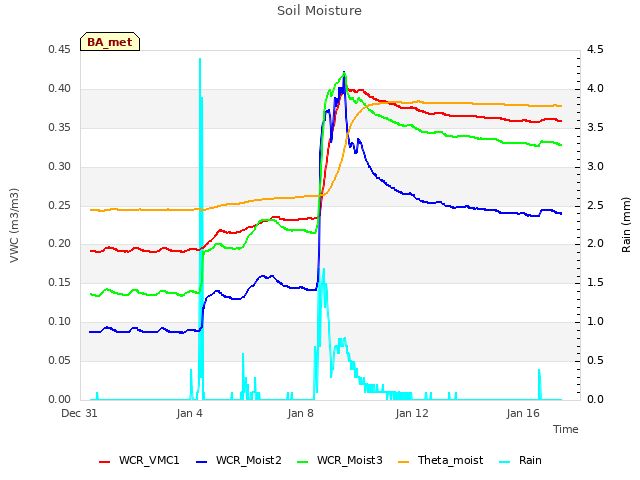

Explore the graph:Soil Moisture in a new window

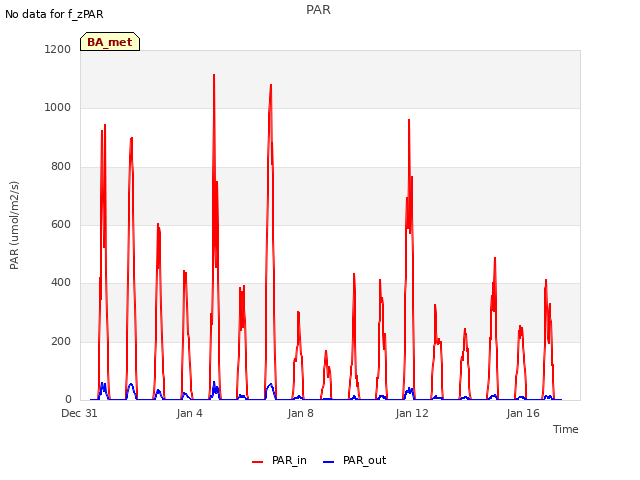

Explore the graph:PAR in a new window

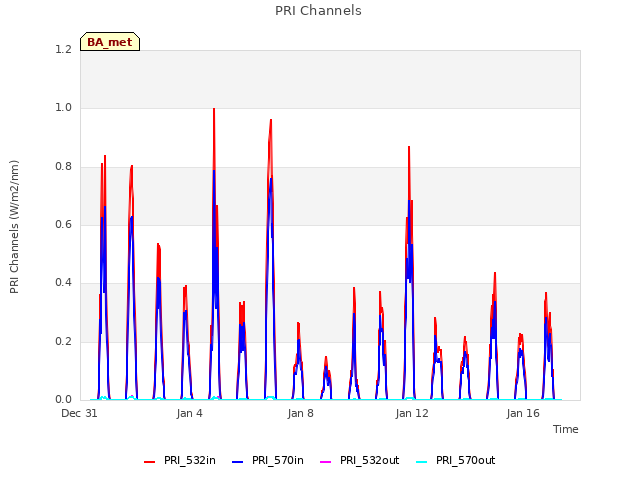

Explore the graph:PRI Channels in a new window

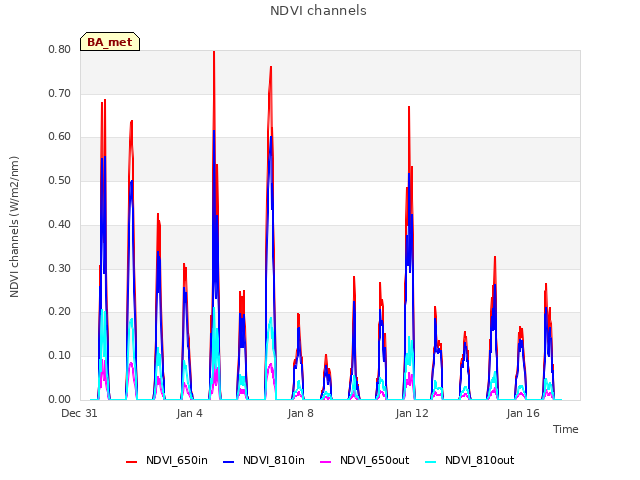

Explore the graph:NDVI channels in a new window

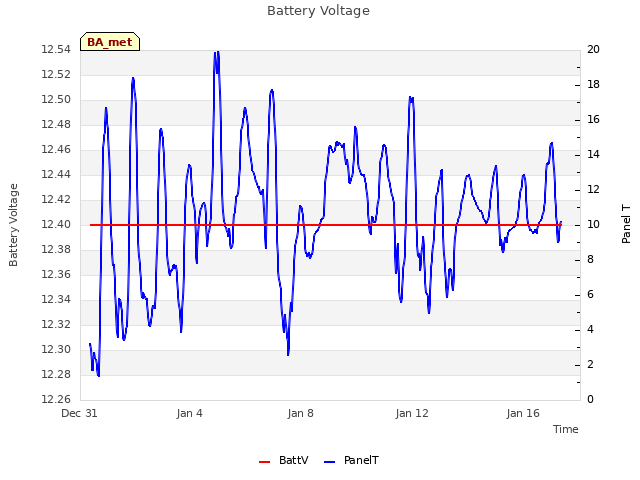

Explore the graph:Battery Voltage in a new window

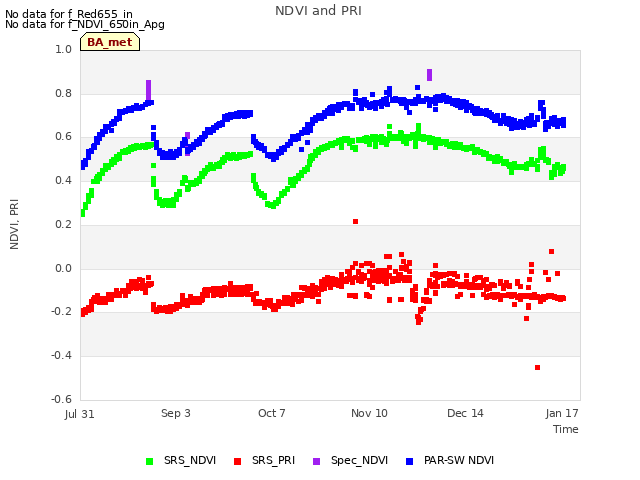

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

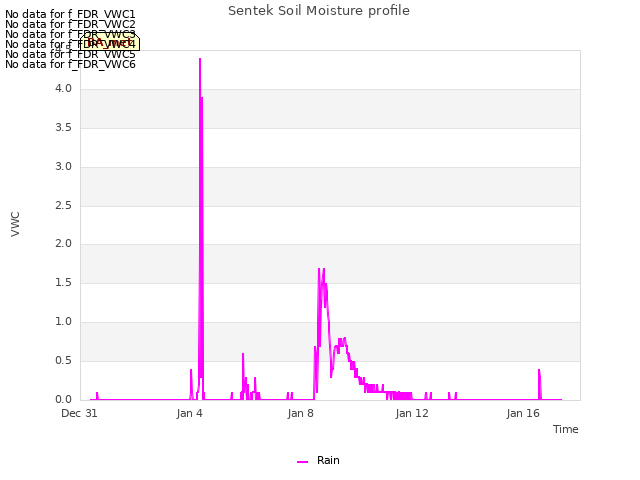

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

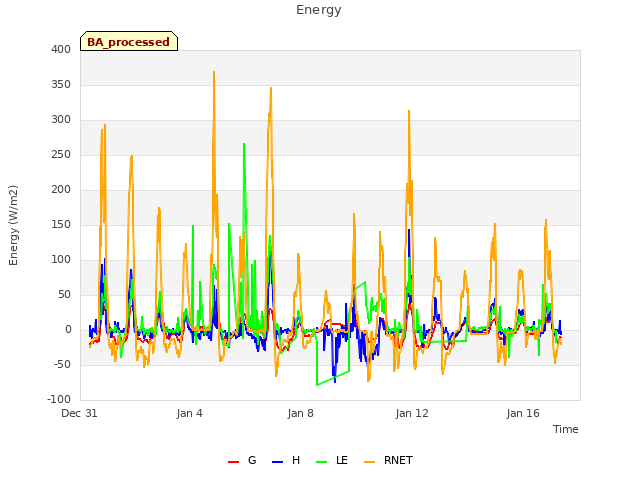

Explore the graph:Energy in a new window

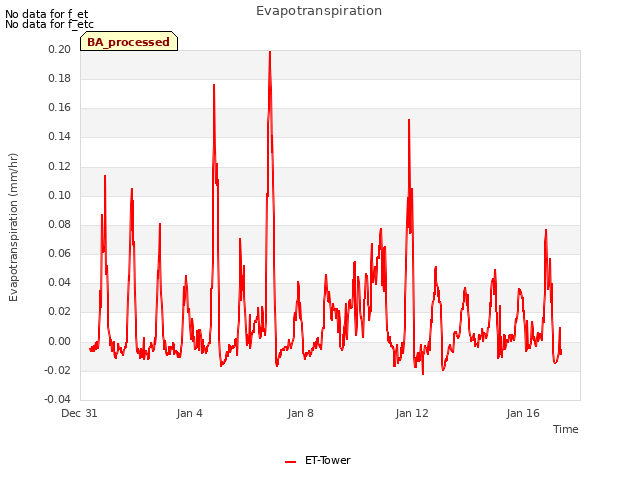

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
