East End: 2018-01-16 11:30:00 (DOY 16)
Author: Daphne Szutu
Others: Dennis, Kyle, Sam

Summary: Regular data collection/cleaning, downloaded minidot data, puddle in 7550 box

2018-01-16
East End

We arrived at 11:30. It was cool, breezy, and overcast. Large patches of tule/cattail have been blown down. Kyle and Dennis talked with one person by the pumphouse to ask about the NOAA truck with boundary layer profile instruments. That person also reported strong winds and 4" of rain recently.

NOAA truck:
From: Clark King - NOAA Federal clark.w.king@noaa.gov
The setup we have at Twitchell Island is our Mobile Atmospheric River Observatory (MARO). Equipment includes a 915-MHz wind profiling radar which measures winds to heights of 6 km, a S-band precipitation profiler which continuously monitors precipitation echoes overhead and observes the more strongly reflective regions of clouds, a Trimble GPS which gives us the integrated precipitable water in the vertical column above the unit, and a 10-m meteorological tower with pressure, temperature, relative humidity, solar radiation and wind speed and direction. The project is sponsored by the CA Department of Water Resources looking at precipitation processes impacting the Feather River watershed above the Oroville Dam. We have a similar setup in Oroville. Data from all of our sites can be viewed at: https://www.esrl.noaa.gov/psd/data/obs/datadisplay/. Depending on funding, the MARO should remain at Twitchell Island through the 2018-2019 precipitation season.


The 7550 box had standing water in it covering the circuit board. We sopped up the water using rags. Part of the gasket on the box lid had come out of its channel; we squished it back into place. We should re-attach the gasket securely or swap out the 7550 box.

The wash box was empty; we refilled it. The 7700 wash and clock settings seemed fine.

I collect met, camera, USB GHG, and minidot data.

LI-7500 readings:
CO2 500 ppm --> 460 after cleaning
H2O 250 ppm --> 640 after cleaning
T 12.2 C --> 12.3 after cleaning
P 102.4 kPa --> 102.4 after cleaning
SS 54 --> 102 after cleaning

LI7700 readings:
CH4 2.2 ppm --> 2.2 after cleaning
RSSI 36 --> 76 after cleaning

We left at 11:45.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

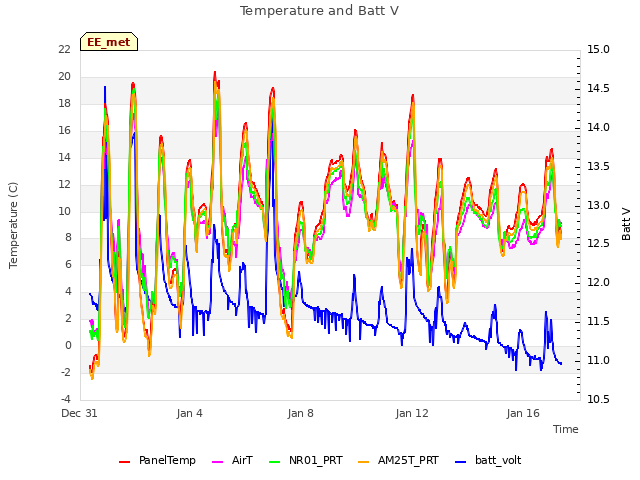

Temperature and Batt V

Soil Moisture and Well Pressure

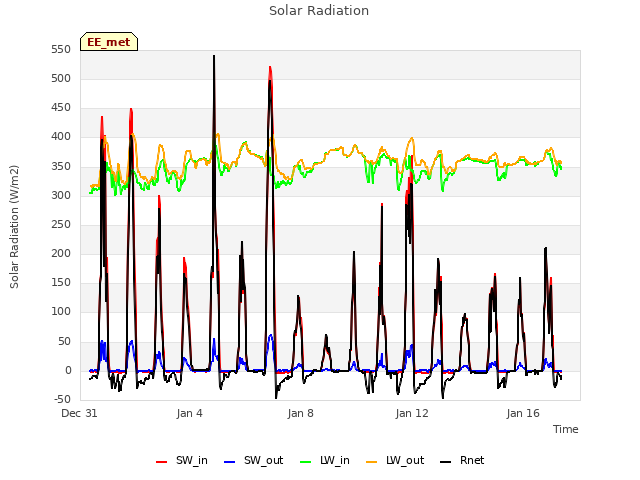

Solar Radiation

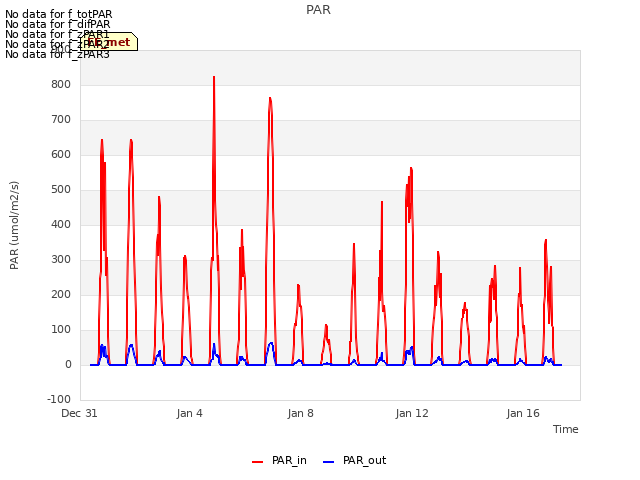

PAR

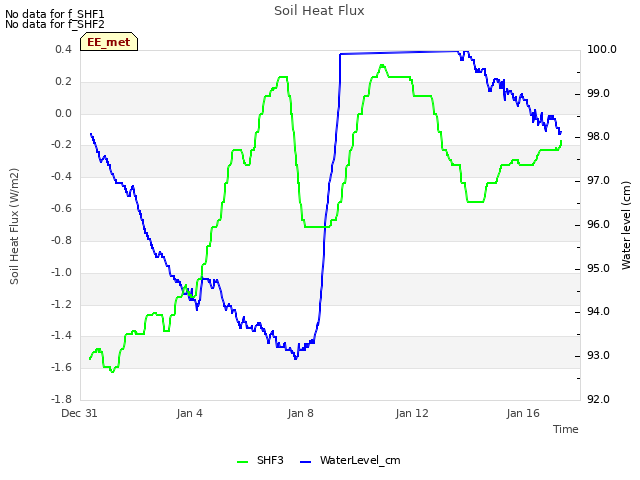

Soil Heat Flux

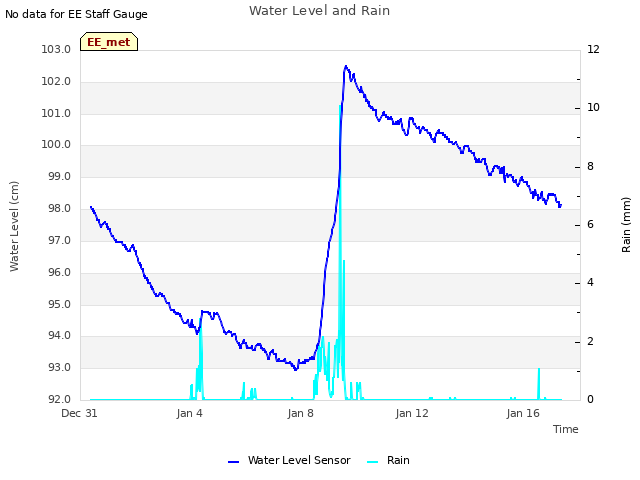

Water Level and Rain

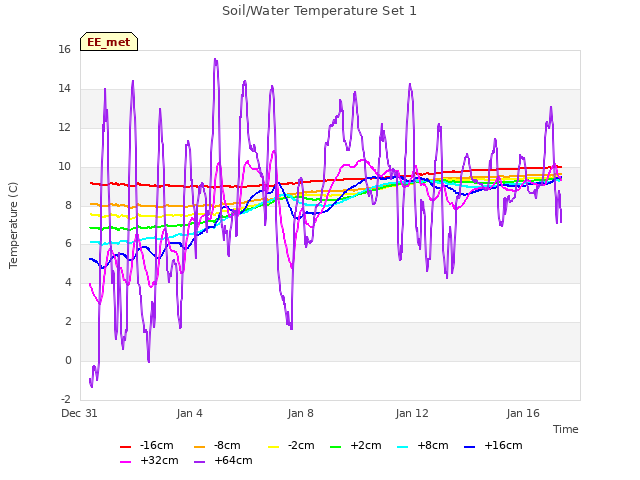

Soil/Water Temperature Set 1

Soil/Water Temperature Set 2

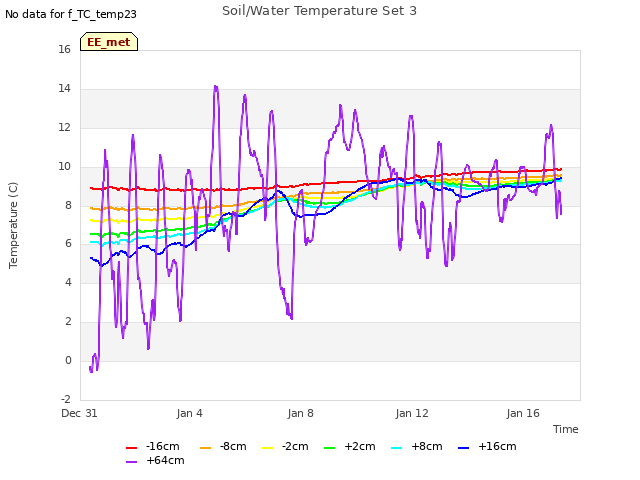

Soil/Water Temperature Set 3

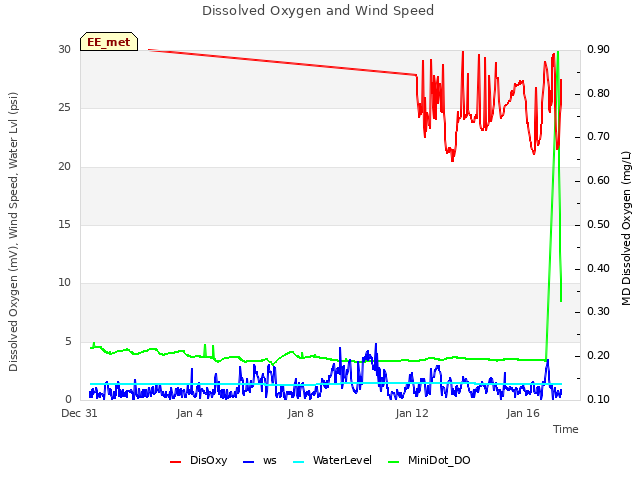

Dissolved Oxygen and Wind Speed

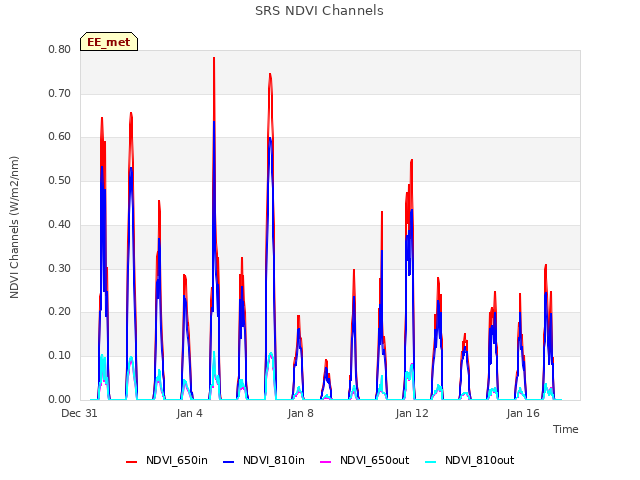

SRS NDVI Channels

Apogee NDVI

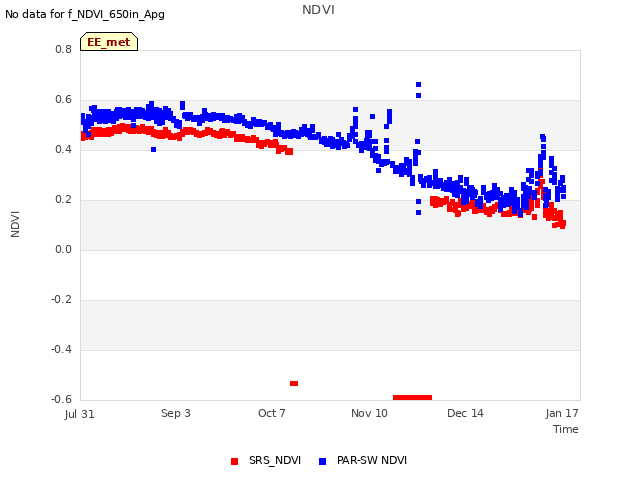

NDVI

Undercanopy PAR

Can't check EE_mixed
1 EE_mixed graphs found

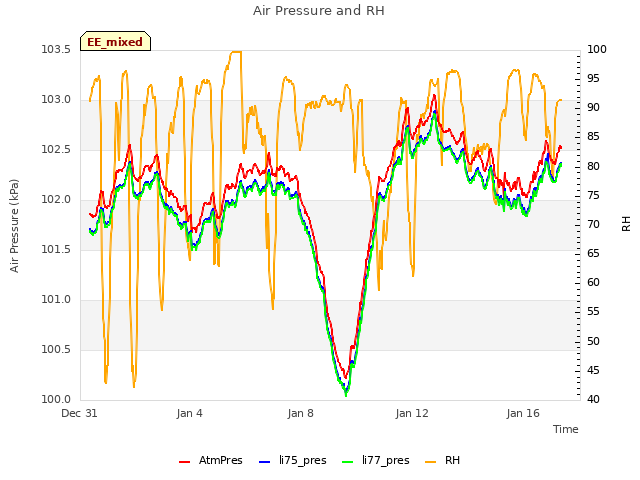

Air Pressure and RH

8 EE_flux graphs found

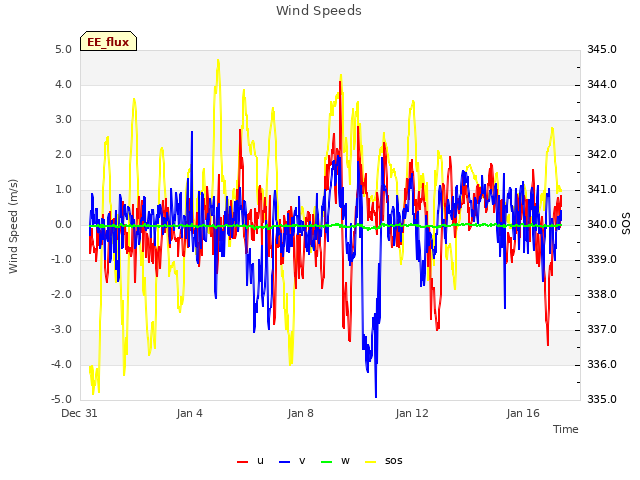

Wind Speeds

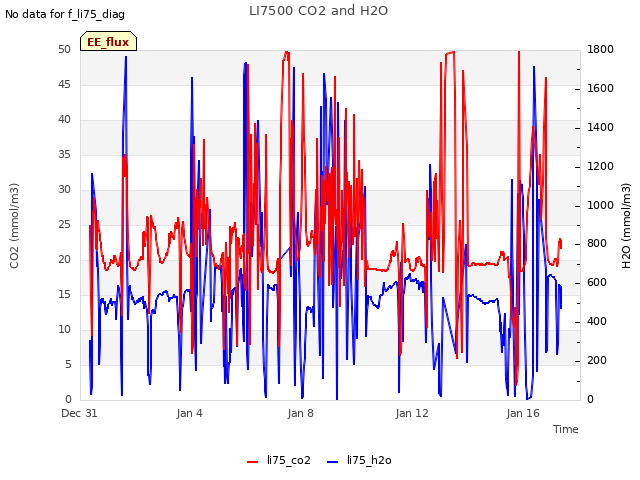

LI7500 CO2 and H2O

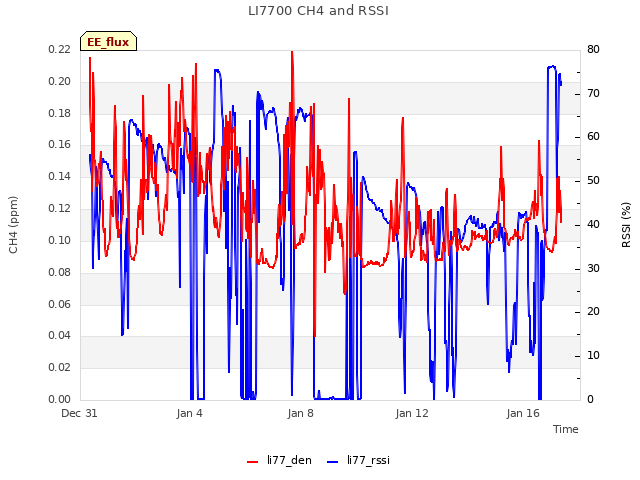

LI7700 CH4 and RSSI

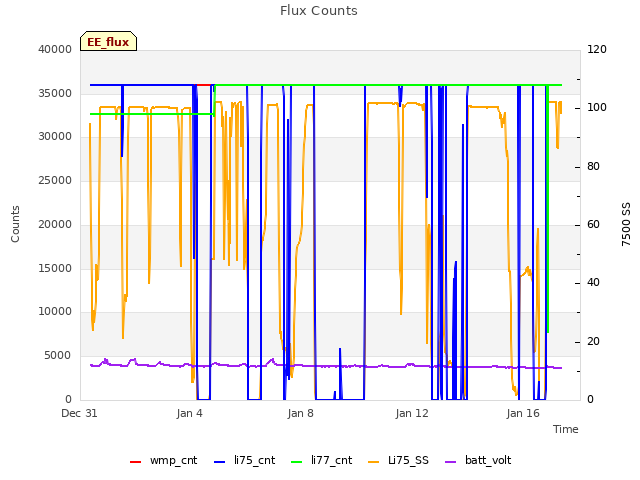

Flux Counts

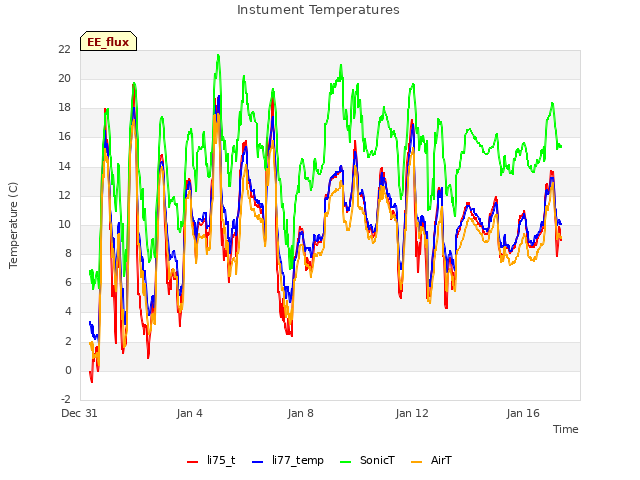

Instument Temperatures

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

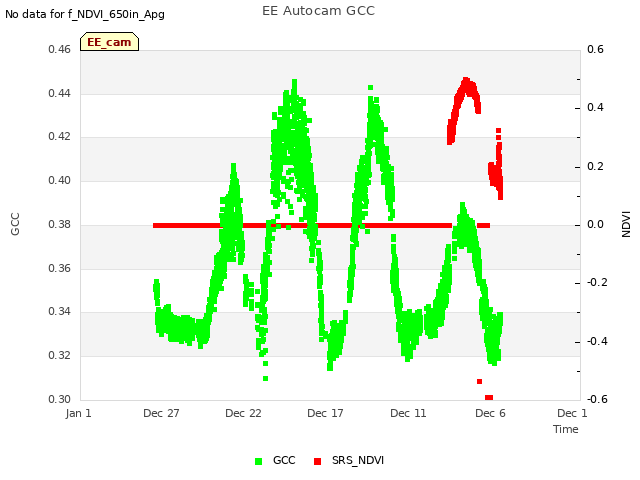

EE Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

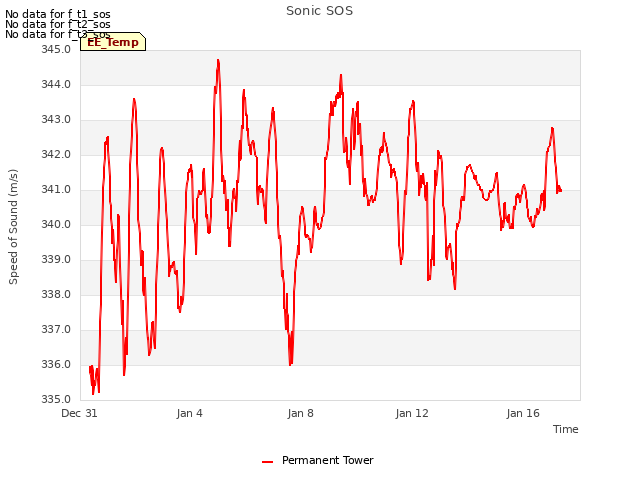

Sonic SOS

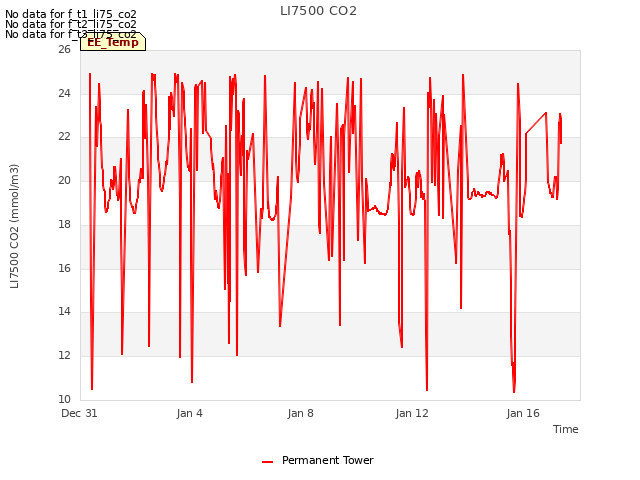

LI7500 CO2

Water Level

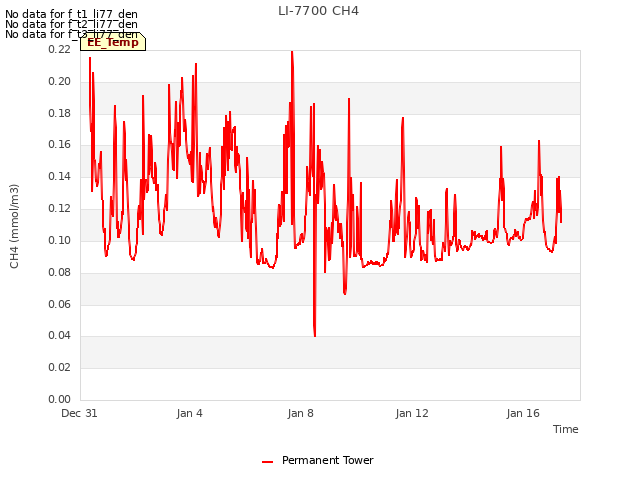

LI-7700 CH4

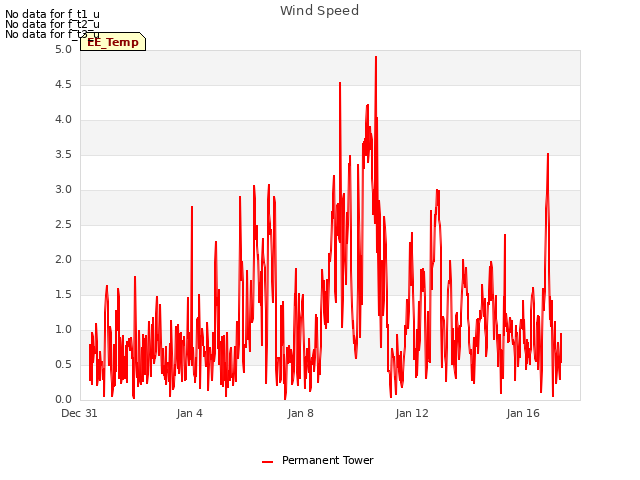

Wind Speed

Can't check EE_minidot
1 EE_minidot graphs found

EE miniDOT Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

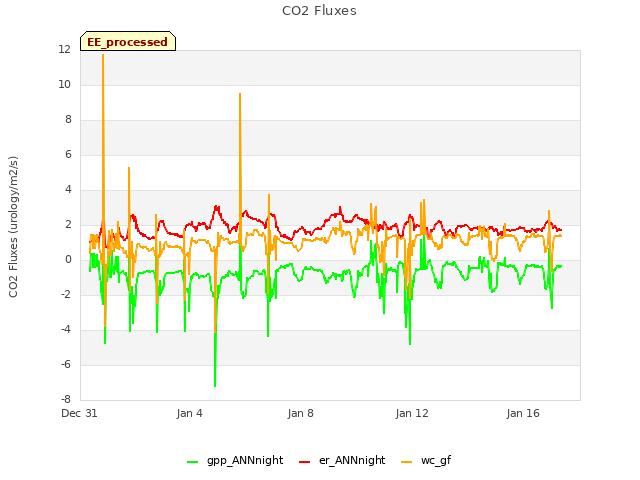

CO2 Fluxes
